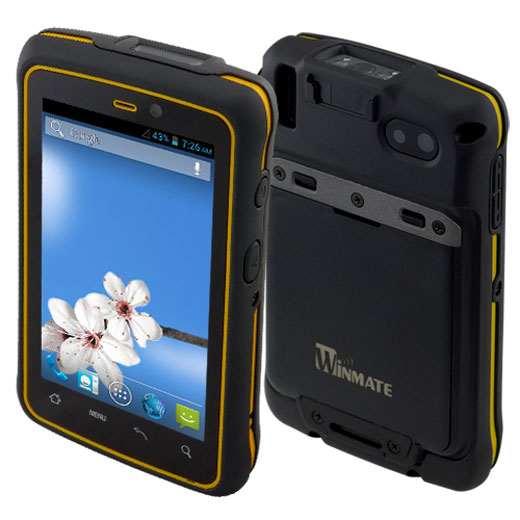

With its Android 4.2 platform, 1D/2D scanner, RFID reader, dual cameras, sunlight-readable 4.3-inch capacitive touchscreen, and a user replaceable battery design, the E430RM4 rugged handheld streamlines data collection and operations in any field application.

Refer to the "Select version for yourself" that possibility is a version of the device. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

Accesory

One difference between consumer devices and those designed for deployment in enterprise and vertical markets that's often overlooked is the availability of supporting accessories and peripherals. For consumer devices, all that's available may be a USB charging cable — definitely not a solution that would work for rugged equipment customers. Winmate knows that and offers not only a dedicated dual battery charger that shows charging level, but also a clever daisy chainable charging dock.

The collection and processing of data

Barcode Scanner (optional)

Unlike consumer smartphones that may be able to scan using their integrated cameras, professional quality devices such as E430RM4 use industrial grade scanners. Depending on the intended use, Winmate offers standard 2D scanner for indoor/outdoor use, or a Motorola 2D scanner with extended symbology support. From retail and healthcare to warehouse and logistics, Winmate E430RM4 with various options of the scan engine can boost productivity and efficiency immediately.

go top... menu…

RFID (optional)

RFID technology worldwide has aroused great interest. They are expected to solve the many problems with fast and unmistakable identification of people and equipment. Its development is more turbulent than being gradually implemented barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

Modules and Wireless Networks

go top... menu…

Minimalism

In addition to standard Bluetooth and Wi-Fi, the E430RM4 handheld offers optional GPS and 3G asset tracking and real-time data transfer. Whether indoor or outdoor, the E430RM4 handheld provides a wide of robust communications options.

go top... menu…

Featuring a user replaceable battery design with simple latch system, E430RM4 handheld can support continual operation on the field without down time. The replaceable battery also features high capacity at 3900mAh for extended use.

Resistance

go top... menu…

Odporność sprzętowa IP65

Sealed to IP65, the E430RM4 handheld is built to withstand harsh environments, protected against water and dust. Compliant with MIL-STD-810G, it can operate in extreme temperatures ranging from -10°C to 60°C and endure shock, vibration and 4-foot drops.

go top... menu…

Winamte E430RM4
