Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world. |

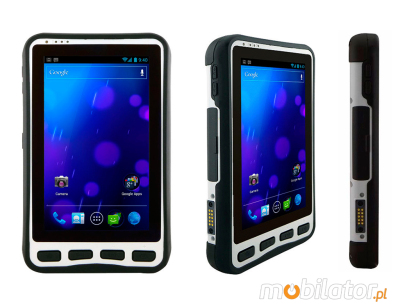

Winmate M700DT4 is unrivaled in the market, ultra-modern tablet that meets very strict industry standards. Very rich furnishings, combined with affordable prices make it the perfect solution where we require high performance, versatility and strength equipment.
|
Efficient processor |
|||||||||||||
 |
ARM® Cortex™ - A7
The Texas Instruments' OMAP4 family of application processors contain a quad-core power-efficient and high performance ARM® Cortex™-A7. Delivering up to 1.5 GHz of processing power, the OMAP4430 features a PowerVR™. |
||||||||||||
|
|
|||||||||||||
Minimalism |
|
The device weighs just 650g which is undoubtedly a great advantage considering met industry standards. When fully charged, the battery will get up to 7 hours of total work. The standard battery capacity is 5300 mAh. |
| Dimensions | 212.4mm x 132.8mm x 26mm (Standard) |
|
Weight |
650g |
| Battery | Li-Po 5300mAh |
|
Working Time |
7 hours |
|
Power Consumption |
11.5W |
|
Connectors |
1x Micro USB2.0 / 1x Headset jack / 1 x 2.5Ø 5V DCin / 1x SIM Card slot / 1x Micro SD slot |
go top...  menu… |
||||||||
Functionality |
||||||||
|

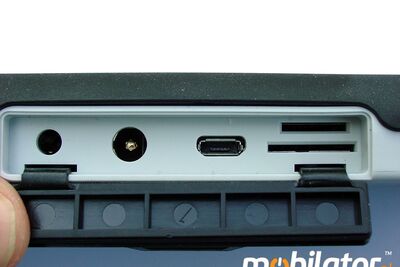

M700DT4 tablet is equipped with a micro USB 2.0 port, microSD card reader, SIM card slot and audio output mini-jack. The possibility of recording enables integrated 5Mpx camera with autofocus.
|
||||||||
Modules and Wireless Networks
|
||||||||
Protection Standards |
|
The followi
 ng is a top-level introduction to US Military standard MIL-STD-810, used to define the testing methodology for, and results required for acceptance of, rugged equipment.
MIL-STD-810 is a series of performance and manufacturing guidelines set by the US Department of Defense for military and commercial equipment and applications. These guidelines specify allowable parts and environmental condition ranges in which a device must be able to operate to meet compliance.
MIL-STD-810 is a generally accepted standard of ruggedisation testing and compliance for mobile computers and equipment.
The MIL-STD-810 test method is used to generate confidence in the environmental worthiness and overall durability of ‘material system’ design. The testing process follows guidelines, which include program documentation, program roles, test standards, and laboratory test method guidelines for all categories. The laboratory test methods are broken down into 24 categories and thereafter procedures (specific tests or levels) appropriate to the environment in which the equipment is expected to be used. The compliance test categories are shown overleaf.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hardware configurations available
|
Version with Windows 7 - click here.
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ... |
|
menu… |
374.11 zł
460.16 zł
382.50 zł
470.48 zł
438.98 zł
539.95 zł
498.47 zł
613.12 zł
523.92 zł
644.42 zł
605.05 zł
744.21 zł
626.69 zł
770.83 zł
648.28 zł
797.38 zł
675.37 zł
830.71 zł
686.15 zł
843.96 zł
736.40 zł
905.77 zł
The first digit in the range 0 to 6 the resistance to dust and the other in the range 0 to 8 the resistance of the water.
;)
;)
;)
;)
;)
;)
;)
;)
;)
;)
;)
;)
;)
;)
;)
;)
