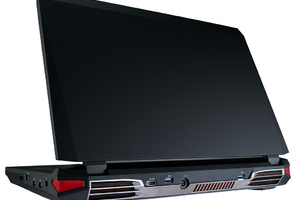

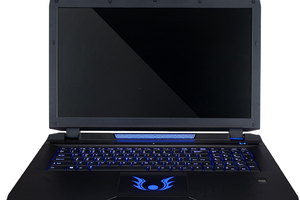

Laptop - Clevo P375SM v.0.1a

Name: Laptop - Clevo P375SM v.0.1a
Brand: Clevo
Price: 5892.63 PLN
Availability: InStock

Update Date: 2014.04.01

Guarantee 2 years

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

p375sm sli dual

Founded in 1983, the company has achieved an excellent reputation Clevo as a manufacturer of notebook computers. Due to the high position of the products in the high-tech has won many awards in tests conducted around the world.

Menu
Fourth generation Intel Core® i7
Technology nVidia® SLI & AMD Crossfire™
Description
Connectors

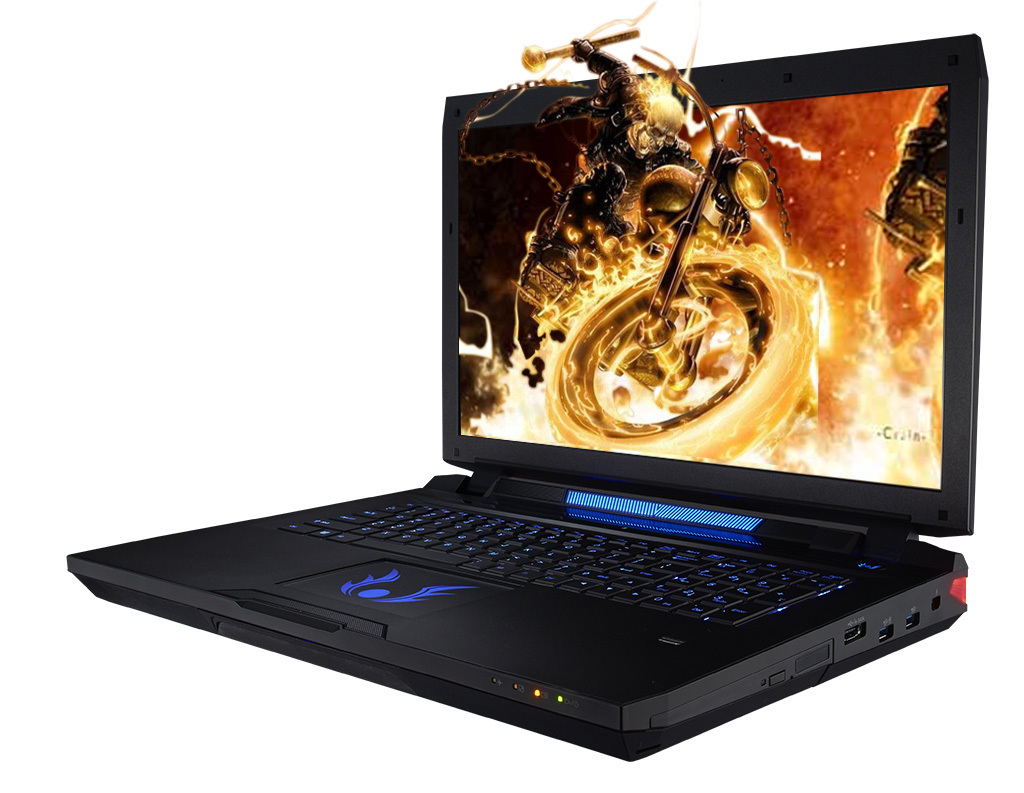

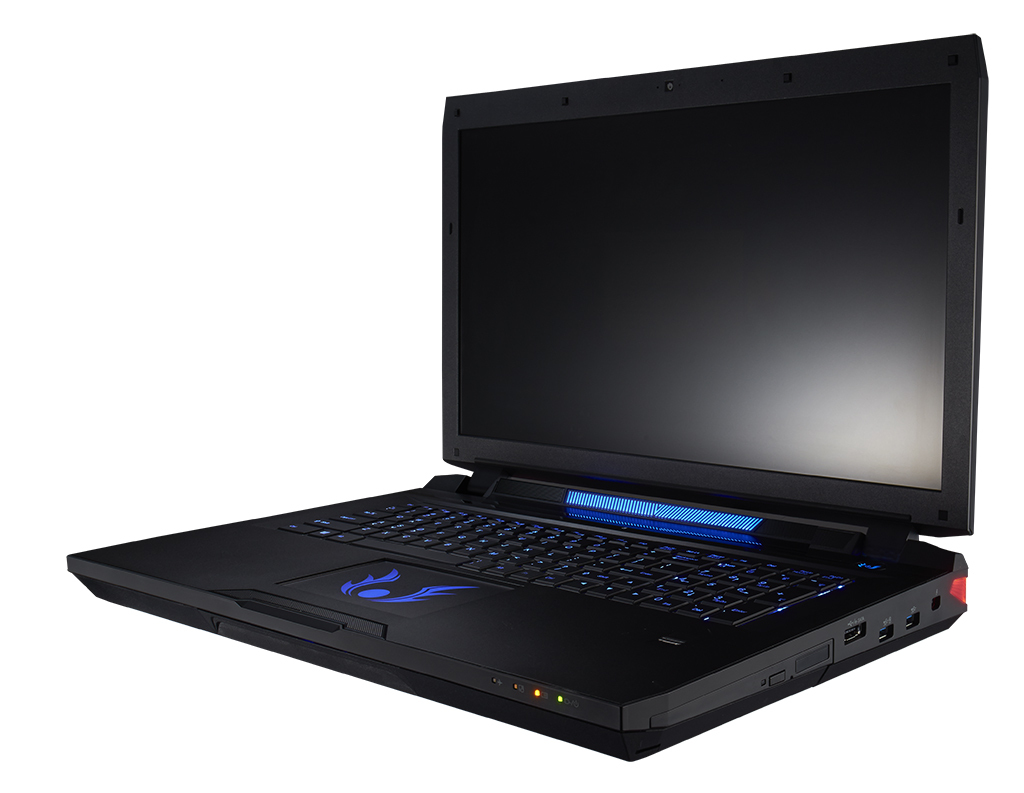

Dedicated to the most demanding users

P375SM a laptop dedicated to solutions that require the highest dose and comfort. Rubberized elements and modern design complete with incredible performance puts Clevo P375SM in first place in the ranking of laptops in the world.

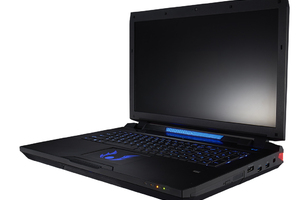

clevo p375sm best laptop

Clevo P375M v.0.1a
Processor	i5-4330M (2x 2.80 - 3.50GHz Turbo, 2 cores, 3MB L3, HD 4600, 22nm, TDP 37W)
Memory	not included - for building
HDD	not included - for building
Graphics	2x (SLI) - nVidia GTX-765M (N14E-GGE-B) 2GB
Display	17.3" FHD Matte (1920 x 1080) 16:9 Widescreen
Communication	Wireless LAN 802.11B/G/N + Bluetooth v4.0+LE Combo Half Mini Card
Optical Drive	Super Multi DVD Dual
Other	Dual Camera 5Mpx / 2Mpx
	The detailed specification of the configuration available in the "Technical data"

If none of the available configuration does not interest you, you can always suggest your option components. Submit your suggestion using the contact form - up to 2 working days you will receive a valuation of the desired configuration. Remember to carefully specify each parameter and accessories.

Each purchaser of a Clevo barebone has the opportunity to buy their own components (CPU, RAM, disk). In this case, keep in mind that parts must be in full working order. Purchased parts to be sent to the headquarters of the NPD in order to verify the correct installation and operation.

Fourth generation Intel Core® i7

Fourth generation Intel® Core™ i7

Intel Core 4th generation, the engineers placed emphasis on optimal power management. Less energy means good things - longer battery life and thinner casing.

Model	C/T	Frequency	Max. Frequency	L3 cache	Max. GPU	TDP
i7-4700MQ	4 / 8	2.4 GHz	3.4 GHz	6 MB	1.15 GHz	47 Wat
i7-4800MQ	4 / 8	2.7 GHz	3.7 GHz	6 MB	1.3 GHz	47 Wat
i7-4900MQ	4 / 8	2.8 GHz	3.8 GHz	8 MB	1.3 GHz	47 Wat
i7-4930MX	4 / 8	3 GHz	3.9 GHz	8 MB	1.35 GHz	57 Wat

go top…

menu…

Technology nVidia® SLI™ & AMD Crossfire™

In the new edition CLEVO P375SM engineers designed a dual graphics card NVIDIA GeForce GTX 780M or AMD ATI Radeon 8970M high performance working in SLI or Crossfire.

A new generation of NVIDIA ® GeForce ® GTX in SLI

NVIDIA GeForce ® GTX 780M is currently the fastest graphics chip designed for laptops based on the award-winning architecture of NVIDIA ® Kepler ™. The system has more clocks and cores than ever before, thanks to crush the competition in every respect. Graphics card has a core frequency of 823 MHz Boost technology 2.0 and GDDR5 memory with a capacity of 8GB.

	NVIDIA GeForce GTX 780M (SLI)	NVIDIA GeForce GTX 765M (SLI)
Codename	N14E-GTX	N14E-GGE-B
Cores	3072	1536
Clock	823 MHz	850 MHz
Memory	2x - 4096 MB GDDR5	2x - 2048 MB GDDR5
Memory Speed	1250 MHz	1000 MHz

sli gtx780 gtx765 clevo p375sm

AMD® Radeon Crossfire™

Radeon® HD 8970M Crossfire™

The new Radeon HD 8970M is based on the GCN architecture and is manufactured in 28-nanometer process. He works at a frequency of 850-900 MHz and has 2 GB of dedicated GDDR5 memory clocked at 1200 MHz effective. The processor supports DirectX 11.1 and Enduro, which allows to optimize the battery life of the notebook.

go top…

menu…

Description

Flexible storage

cztery dyski p375sm

P375SM can support a total of four drives at the same time. This makes it possible to easily expand without having to move data from the old disk to the new one. If you start running out of space on your hard drive is enough that you will use just another. Clevo Laptop P375SM to mount two mSATA drive on which you can install the system and frequently used applications. This approach leads to a super-fast operation of your computer. The speed of operations carried out applications installed on the mSATA drives can increase up to 30%.

raid 0 1 clevo p375sm

RAID 0 allows you to hook up physical drives into a single logical which allows for better use of space. With RAID 1, your data will be safer because a disk is an exact copy of the other. If one drive fails all data is still available on the other. RAID 1 is almost twice as fast as reading data from the disk.

Thunderbolt Technology

Thunderbolt I/O technology gives you two channels on the same connector with 10 Gbps of throughput in both directions. That makes Thunderbolt ultrafast and ultraflexible. You can move data to and from peripherals up to 20 times faster than with USB 2.0 and up to 12 times faster than with FireWire 800. You also have more than enough bandwidth to daisy-chain multiple high-speed devices without using a hub or switch. For example, you can connect several high-performance external disks, a video capture device, and even a display to a single Thunderbolt chain while maintaining maximum throughput.

go top…

menu…

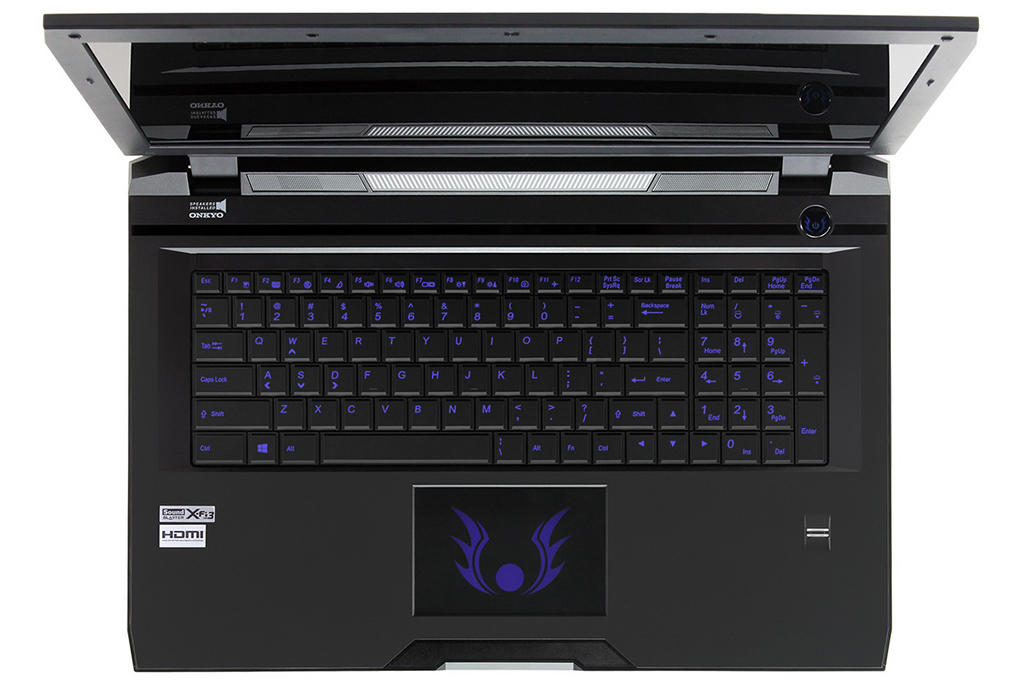

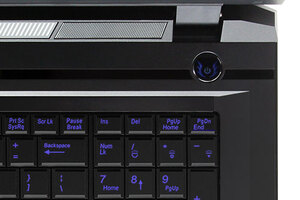

Advanced illumination

The backlight keyboard and touchpad LED is a feature that not only beautifies Clevo P375SM, but also makes it easier to write when the light in the environment is weak. The color and intensity of illumination can be adjusted to your needs. Highlighting three-zone which allows for the keyboard backlight in areas that are in use, and put it out there where it is unnecessary for example, the numeric keypad.

illuminated keyboard clevo p375sm

go top…

menu…

Powerful storage capacity

Performance of your computer will never again let you down by technology, dual-channel RAM. Sharing channels reduces data latency and increase memory bandwidth to satisfy most storage-hungry applications. With up to 32GB system memory always cope with the number of assigned tasks in parallel. Producer allows you to mount four SODIMM memory chips DDR3/DDR3L.

clevo p375sm modularity ddr3l gtx 780m ati radeon

CLEVO company to meet the needs of users applied in a laptop P375SM easy access to system components. In this way without any problems replacing the drive for greater efficiency will increase bone RAM or just clean the laptop with a residual dust.

Sound Blaster X-Fi MB3

Sound Blaster X-Fi MB3 has the best qualities of sound cards Sound Blaster ® and sets new standards in technology for games and entertainment via the PC. Sound Blaster and built-in speakers with sub-woofer deliver superior sound quality while listening to and making music in CLEVO P375SM, and is best suited for video games.

TPM (Trusted Platform Module)

A TPM is a microchip designed to provide basic security-related functions, primarily involving encryption keys. The TPM is usually installed on the motherboard of a computer or laptop, and communicates with the rest of the system using a hardware bus. Computers that incorporate a TPM can also create a key that has not only been wrapped, but also tied to certain platform measurements. This type of key can only be unwrapped when those platform measurements have the same values that they had when the key was created. This process is called "sealing" the key to the TPM. Decrypting it is called "unsealing.

With a TPM, private portions of key pairs are kept separated from the memory controlled by the operating system. Keys can be sealed to the TPM, and certain assurances about the state of a system—that define its "trustworthiness"—can be made before the keys are unsealed and released for use. Because the TPM uses its own internal firmware and logic circuits for processing instructions, it does not rely upon the operating system and is not exposed to external software vulnerabilities.

go top…

menu…

Connectors

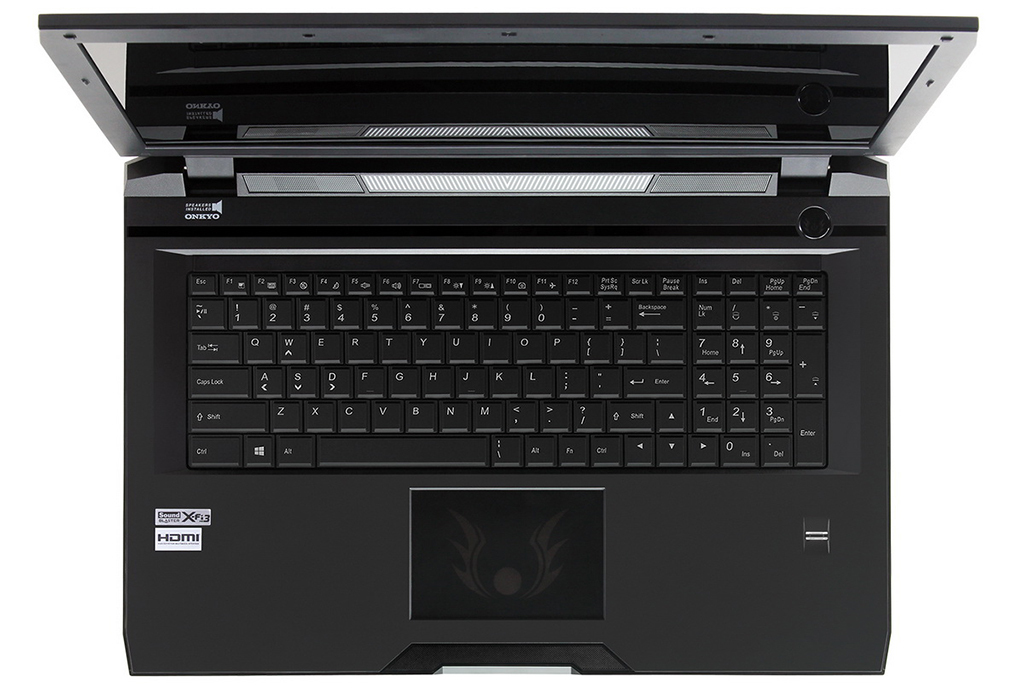

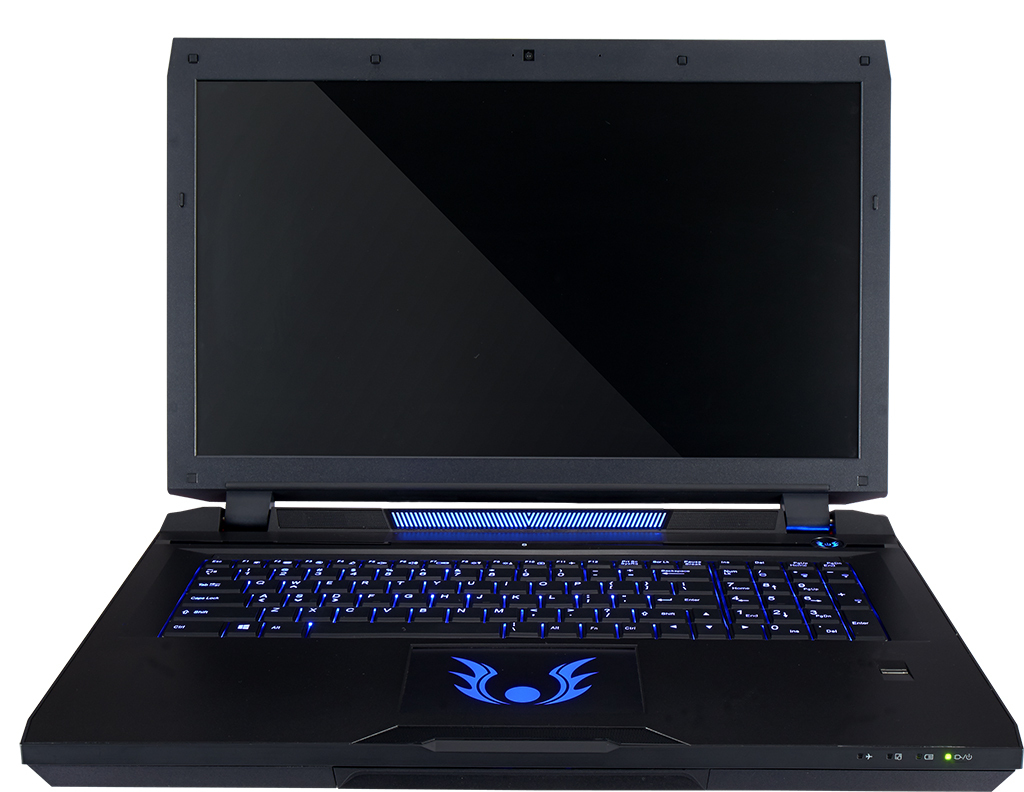

clevo p375sm onkyo fingerprint led speakers

1. Illuminated Power Button	5. LED Status Indicators
2. Speakers	6. Illuminated Keyboard
3. 2.0M FHD Video Camera	7. Illuminated Touchpad
4. Integrated Microphone	8. Fingerprint Reader

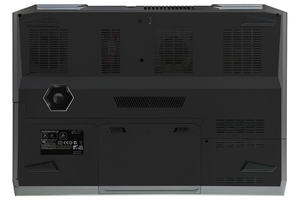

1. Battery Pack	5. Sub-Woofer
2. Battery Lock Latch	6. CPU, GPU, Pamięć, WiFi, mSata
3. Baterry Release Latch	7. GPU Cooling Fans
4. Primary & 2^nd Hard Drives	8. CPU Cooling Fans

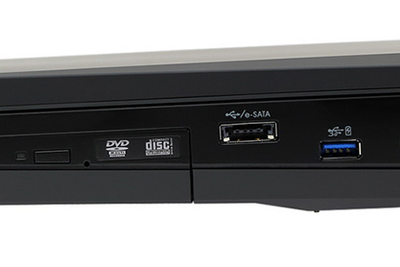

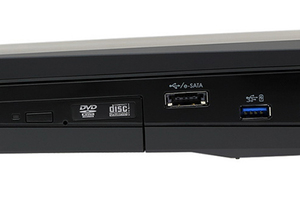

clevo p375sm usb3.0 e-sata thunderbolt port

1. Optical Device Bay	3. E-SATA Port (USB 3.0 Combo)
2. 2x - USB 3.0	4. Thunderbolt Port

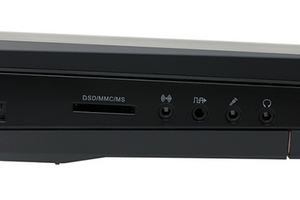

1. Kensington Lock	5. S/PDIF - Out Jack
2. RJ-45 LAN Port (Gigabit)	6. Microphone - In Jack
3. 9-in-1 Card Reader	7. Headphone - Out Jack
4. Line-in Jack

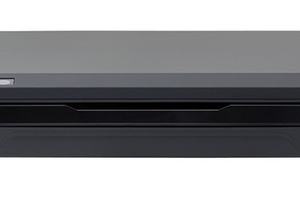

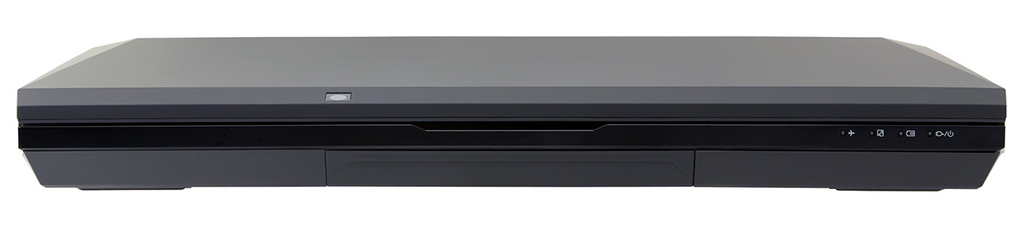

1. Frontal 5.0M FHD Video Camera

2. Airplane Mode, Touchpad On/Off, Power and Battery Charge Status Indicators

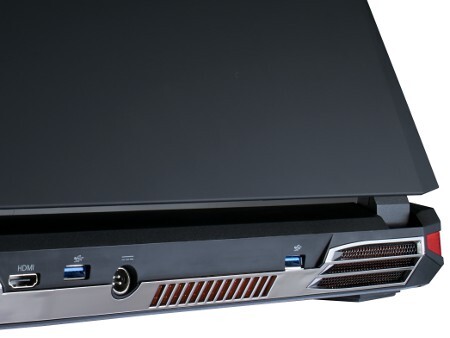

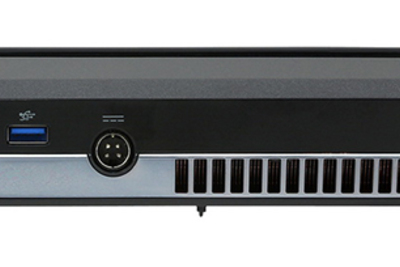

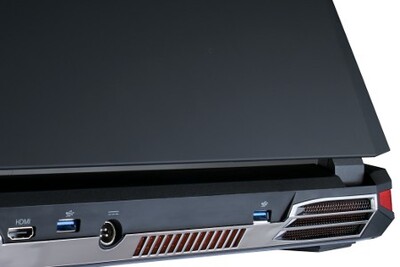

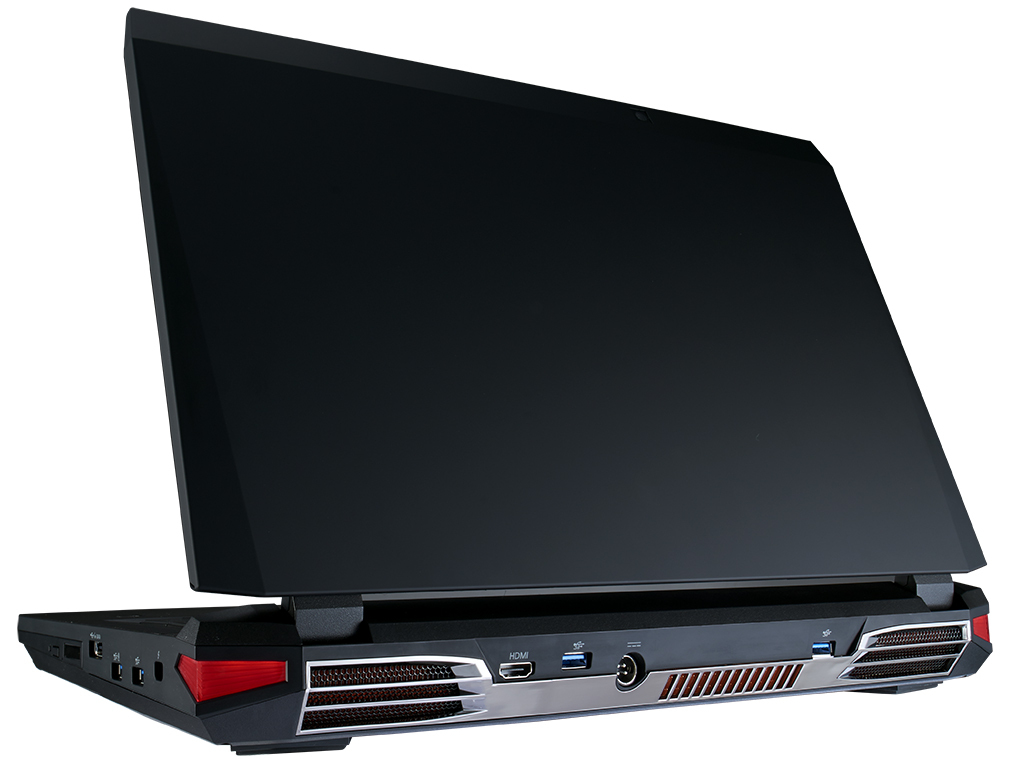

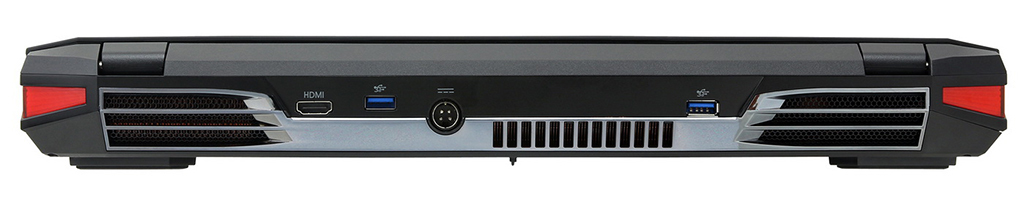

1. GPU Vents	4. DC-In Jack
2. HDMI 1.4a Output Jack	5. CPU Vent
3. USB 3.0 Ports

go top…

menu…

WAN
No
WLAN
Yes - 802.11 b/g/n  (Wireless LAN 802.11B/G/N + Bluetooth v4.0+LE Combo Half Mini Card module)
Bluetooth
Yes - 4.0
Processor
,i5-4330M (2x 2.80 - 3.50GHz Turbo, 2 cores, 3MB L3 cache, HD 4600, 22nm, TDP 37W)
Memory
none (available in other configurations)
Chipset
Mobile Intel® HM87 Express Chipset
Dispaly
17.3'' FHD/ MATT (1920*1080) 16:9 Widescreen Notebook
Graphics card
2 x (SLI) - nVidia GTX-765M (N14E-GGE-B) 2GB
Touch screen
No
Swivel Hinge
No
Hard Drive
none (available in other configurations)
BIOS
-----
VGA out
Yes - HDMI 1.4a , Display Port 1.2
LAN
Yes - 10/100/1000Mb Base-TX Ethernet LAN
Camera
Yes - Dual Camera 5.0Mpx / 1.0Mpx HD Video Camera
Audio
Yes - High Definition Audio / SPDIF digital output / Built in microphone / Built in two 2W speakers / Built in one subwoofer speaker / SOUND BLASTER® X-FI® MB3 / External 7.1CH audio output supported by headphone, microphone, Line-in, an
Audio
Yes - High Definition Audio / SPDIF digital output / Built in microphone / Built in two 2W speakers / Built in one subwoofer speaker / SOUND BLASTER® X-FI® MB3 / External 7.1CH audio output supported by headphone, microphone, Line-in, an
Seciurity
Yes - Fingerprint / Kensington® Lock / TPM1.2 
TV Out
HDMI + Display Port
In/Out
1 x Thunderbolt / 1 x HDMI 1.4a (with HDCP) / 4 x USB 3.0 ports (1 x powered USB port, AC/DC) / 1 x eSATA (USB 3.0 combo) / 1 x RJ-45 LAN (10/100/1000Mbps) / 1 x Microphone Jack / 1 x Headphone Jack / 1 x Line-In Jack / 1 x SPDIF output
In/Out
1 x Thunderbolt / 1 x HDMI 1.4a (with HDCP) / 4 x USB 3.0 ports (1 x powered USB port, AC/DC) / 1 x eSATA (USB 3.0 combo) / 1 x RJ-45 LAN (10/100/1000Mbps) / 1 x Microphone Jack / 1 x Headphone Jack / 1 x Line-In Jack / 1 x SPDIF output
Keyboard
Tak  - QWERTY (Multi languages illuminated full size keyboard with numeric pad / Built in illuminated touch pad with multi-gesture and scrolling function / W/A/S/D gaming key)
Additional Navigation Devices
Yes - illuminated touch pad with multi-gesture and scrolling functio
Battery
Lithium-Ion 8 cell 89.21WH
Working time on battery
260min depends of version
Size
419(W) x 295(D) x 42~54.8 (H) mm  / 4.2Kg, including single VGA card, ODD and 89.21WH battery
CD/DVD
Super Multi DVD DUAL
Operating System
No
Flash Card Reader
9-in-1 (MMC/RSMMC/SD/miniSD/SDHC/SDXC/MS/MS Pro/MS Duo)
GPS
-----
TV Tuner
-----
Color
Czarny
