Product Update Date: 2012-10-12

Mini PC - ECS MS110 320GB v.1

Update Date: 2012.10.12

Guarantee 2 years

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

MS110 Series is new alternative for stationary pc computers, design for people who important is speed in working and keeping silent.

MS110 surprise us not the only efficiency of work, thanks to use of hard discs of type SATA II 3,5" we can be to please with disc reaching space 2TB what even including to 2000 titles of movies in our collection.

ECS MiniPC MS110 has EuP and RoHS certificates, which are broadcast only environmentally friendly devices.

MS110 is supported Intel Atom processor, thanks to what it is unsually energy-saving, keeping near this large efficiency of work, what proof system is Windows 7 which be dedicated for this device. MiniPc MS110 is equipped in arrangement graphic Intel® HD Graphics which makes possible starting on him many games.

Internet communications used in the MS110 is integrated LAN card and an expansion slot (mini PCI-express), which allows you to install WiFi card or TV tuner.

go top…

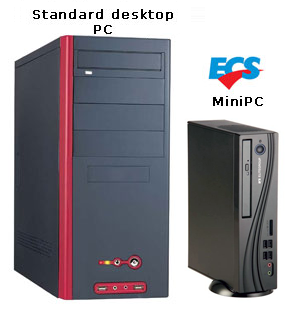

Performance and multi use MS110 are not his the largest advantages. It first of all is then computer, so small, that his sizes (270mm x 205mm x 70mm) it reminds home encyclopaedia, and use of systems soundproofing work it inflicts that he is practically inaudible for human ear.

Eces MS 110 Nettop Mini PC Mobilator NPD new portable devices Mobilatop_pl

go top…

It’s time to replace DVD player, MS110 ideally it will check in player of films, music and pictures, and additionally (on customer"s wish) which can be equipped in Television Tuner it will make him multimedia combines harvester.

opis mobilator ms110 eces elite group

1. CD/DVD Drive

2. 4 in 1 Card Reader

3. USB Connectors

4. Microphone and headphone jack

5. HDMI connector

6. USB Connectors

7. Connectors audio 7.1

8. DC-in Jack

9. External Antenna

10. VGA Connector

11. LAN port

12. Fans

13. Switch On/Off

14. Stand

go top…

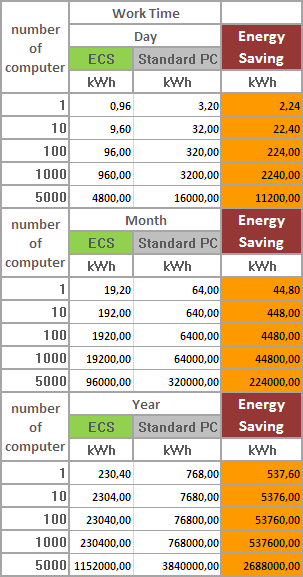

Energy saving and cost reducing

ms110 mobilator elite group

go top…

go top…

mobilator npd accesory ecs ms110 elite group

MS110 ECS new portable devices dębica mobilator minipc

Others
Optional LAN card 1000 Mbps
Chipset
Intel® NM10 chipset
FSB
800 MHz
CPU Support
Intel® Atom processor D525 (1M Cache, 1.80 GHz)
Installed CPU
Intel® Atom processor D525 (1M Cache, 1.80 GHz)
Memory Support
up to 4GB 800MHz
Installed Memory
Yes - 2GB 800MHz
Graphic Card
Integrated Graphic
Storage (HDD) Support
3.5
Installed Storage (HDD)
Yes - 320GB HDD SATA II
CD/DVD Drive
CD/DVD Recorder
LAN
Yes - 10/100 Mbps
Wireless LAN card
No (Optional Yes)
TV Tuner
Optional Yes
Front Panel (ports)
Card reader (SD/SDHC/MS/MS Pro/MS Pro-HG) Included, 1 x MIC-IN,  1 x Headphone output, 4 x USB 2.0
Rear Panel (ports)
4 x USB, 1 x D-SUB, LAN RJ45 (10/100), 2 Channel Audio, 1 Jacks, DC-in Jack, WiFi antenna (Optional)
Power
19V, 65W
Supported OS
Windows XP, Windows Vista, Windows 7
Installed OS
None (opcjonalnie  Microsoft Windows XP, VISTA, Win 7)
Dimensions
(W)70x(D)205(H)270mm, 3.8L
Expansion
WiFi or Tuner TV
Responsible Entity / Distributor
New Portable Devices

Software
ECS MS110 - Chipset
2.33 MB
15.12.2010
Windows 7
Download
Driver
ECS MS110 - LAN
17.35 MB
15.02.2011
Windows 7
Download
Driver
ECS MS110 - WLAN
9.55 MB
15.01.2011
Windows 7
Download
Driver
ECS MS110 - Graphics
118.51 MB
15.02.2011
Windows 7
Download
Driver
ECS MS110 - Audio
84.94 MB
17.01.2011
Windows 7
Download
Software
ECS MS110 - Flash Media Controller
1.04 MB
21.02.2011
Windows 7
Download
Software
ECS MS110 - Management Engine Components
5.32 MB
10.01.2011
Windows 7
Download
Driver
ECS MS110 - BIOS
1.18 MB
10.01.2011
Windows 7
Download
Software
ECS MS110 - Matrix Storage Manager
21.98 MB
10.01.2011
Windows 7
Download

Compare all versions


Mini PC - ECS MS110
					Very small sizes (270mm x 70mm x 205mm)
Processor - Intel® Atom™ D525
Storage - up to SATA II 2TB SSD or HDD
RAM Memory - DDR III up to 4GB
DVD Recorder SuperMultiCombo

Product from the Archive - production finished

Mini PC - ECS MS110 320GB v.1
					Very small sizes (270mm x 70mm x 205mm)
Processor - Intel® Atom™ D525
Storage - 320GB HDD SATA II
RAM Memory - 2GB DDR III
DVD Recorder SuperMultiCombo

Product from the Archive - production finished

Mini PC - ECS MS110 500GB v.2
					Very small sizes (270mm x 70mm x 205mm)
Processor - Intel® Atom™ D525
Storage - 500GB HDD SATA II
RAM Memory - 4GB DDR III
DVD Recorder SuperMultiCombo

Product from the Archive - production finished

Mini PC - ECS MS110 1TB v.3
					Very small sizes (270mm x 70mm x 205mm)
Processor - Intel® Atom™ D525
Storage - 1TB HDD SATA II
RAM Memory - 4GB DDR III
DVD Recorder SuperMultiCombo
Operating system Windows 7 Home PL

Product from the Archive - production finished
