Mini PC - ECS MS200 2TB v.4

Update Date: 2012.10.12

Guarantee 2 years

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

MS200 Series is new alternative for stationary pc computers, design for people who important is speed in working and keeping silent.

MS200 surprise us not the only efficiency of work, thanks to use of hard discs of type SATA II 3,5" we can be to please with disc reaching space 2TB what even including to 2000 titles of movies in our collection.

ECS MiniPC MS200 has EuP and RoHS certificates, which are broadcast only environmentally friendly devices.

i5 i3 Elite group Mobilator NPD MS200 ECS mini PC

MS200 is supported Intel i3, i5 processor, thanks to what it is unsually energy-saving, keeping near this large efficiency of work, what proof system is Windows Vista and 7 which be dedicated for this device. And you"ll experience maximum performance for everything you do, thanks to the combination of Intel® Turbo Boost technology and Intel® Hyper-Threading technology (Intel® HT technology), which maximizes performance to match your workload. MiniPc MS200 is equipped in arrangement graphic Intel® HD Graphics which makes possible starting on him many games.

Internet communications used in the MS200 is integrated LAN card and an expansion slot (mini PCI-express), which allows you to install WiFi card or TV tuner.

go top…

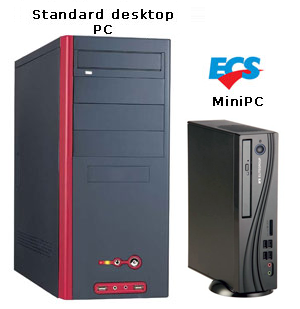

Performance and multi use MS200 are not his the largest advantages. It first of all is then computer, so small, that his sizes (270mm x 205mm x 70mm) it reminds home encyclopaedia, and use of systems soundproofing work it inflicts that he is practically inaudible for human ear.

Eces MS 200 Nettop Mini PC Mobilator NPD new portable devices Mobilatop_pl

go top…

It’s time to replace DVD player, MD200 ideally it will check in player of films, music and pictures, we thanks to built-in HDMI will get the very good quality of picture, and additionally (on customer"s wish) which can be equipped in Television Tuner it will make him multimedia combines harvester.

ECS Elit Group NPD mobilator MS200 mini pc

1. CD/DVD Drive

2. 4 in 1 Card Reader

3. USB Connectors

4. Microphone and

headphone jack

5. HDMI connector

6. USB Connectors

7. Connectors audio 7.1

8. DC-in Jack

9. External Antenna

10. VGA Connector

11. LAN port

12. Fans

13. Switch On/Off

14. Stand

go top…

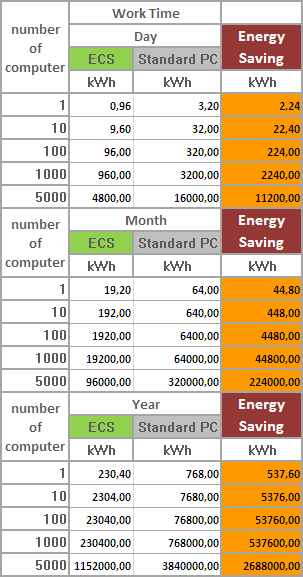

Energy saving and cost reducing

ecs ms200 mobilator

go top…

Others
Colour Black
Chipset
Intel® H55
FSB
1333 MHz
CPU Support
Intel® Socket LGA1156 Core i3/i5 Clarkdale CPU (up to 73W)
Installed CPU
Intel® Core™ i5-660 Processor (4M Cache, 3.33 GHz)
Memory Support
Support SO-DIMM DDR3 x2, Up to 8GB 1066/1333MHz Dual Channel DDR3 SDRAM
Installed Memory
SO-DIMM 8GB 1333MHz
Graphic Card
Built-in Intel® HD Grpahics Graphics from CPU
Storage (HDD) Support
up to 2TB SATA II SSD or HDD
Installed Storage (HDD)
3.5" 2TB HDD SATA II
CD/DVD Drive
CD/DVD Recorder SATA II
LAN
Yes
Wireless LAN card
Yes - 802.11b/g/n
TV Tuner
Optional Yes
Front Panel (ports)
Card reader (SD/SDHC/MS/MS Pro/MS Pro-HG) Included, 1 x MIC-IN,  1 x Headphone output, 4 x USB 2.0
Rear Panel (ports)
4 x USB 2.0, 1 x D-SUB, 1 x HDMI, 1 x LAN RJ45, 1 x 8 Channel Audio, 6 Jacks, 1 x DC JACK, 1 x zewnętrzna antena (opcja), 1 x TV-IN (opcja)
Power
19V, 120W
Supported OS
Microsoft Windows Vista / 7/ XP, Linux
Installed OS
Yes - Tak - Microsoft Windows 7 Pro PL
Dimensions
270mm(H)x 70mm(W)x 205mm(D)
Expansion
WiFi or Tuner TV
Responsible Entity / Distributor
New Portable Devices

Driver
ECS MS200 - Audio
84.94 MB
03.08.2010
XP / Vista
Download
Driver
ECS MS200 - Video
118.27 MB
03.08.2010
XP / Vista
Download
Driver
ECS MS200 - WLAN
9.55 MB
03.08.2010
XP / Vista
Download
Driver
ECS MS200 - LAN
17.35 MB
03.08.2010
XP / Vista
Download
Driver
ECS MS200 - BIOS
1.17 MB
03.08.2010
XP / Vista
Download
User manual
ECS MS200 - Manual
1.06 MB
03.08.2010
XP / Vista
Download
Description
ECS MS200 - Informacje
2.33 MB
03.08.2010
XP / Vista
Download
Software
ECS MS200 - iAMT
5.32 MB
03.08.2010
XP / Vista
Download
Software
ECS MS200 - Rapid Storage
10.77 MB
03.08.2010
XP / Vista
Download
