DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use ...
|
 |
 |
|
Resistance on damage & small size ...
|
|
The AOpen Digital Engine DE45-Pro is a rugged, high performance Intel-based system in a 6.5W x 6.3H x 1.89D footprint that weighs less than 3 pounds.
|
|
Advenced technology ...
|
|
The AOpen MiniPC DE2700 line offers Intel-based desktop products with a similar footprint and features an enclosure that balances ergonomics, size and function. Both systems include the Intel 945GSE / ICH7M chipset, one Mini PCI slot as well as extensive I/O that includes DVI, 2x COM(RS232),2x GB LAN, USB, audio and more. The systems have the ability to add up to 2GB of memory as well as a notebook hard drive or flash disk.
|
|
Using & interface ...
|
|

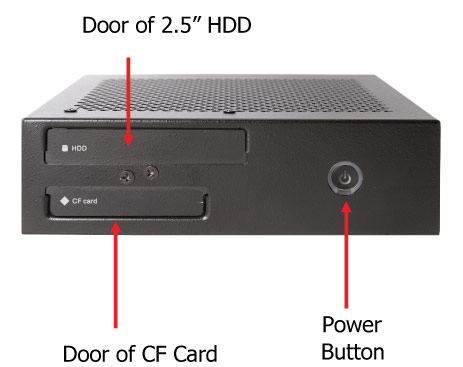

Front Panel : |
 |
|

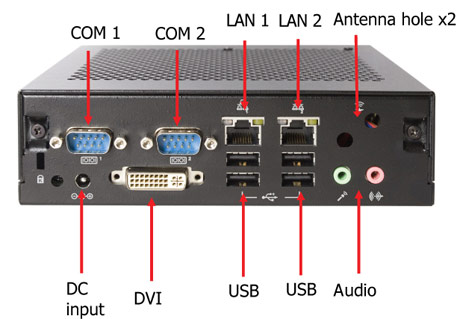

Rear Panel :
|
|
|
|
|
|
|
Use ...

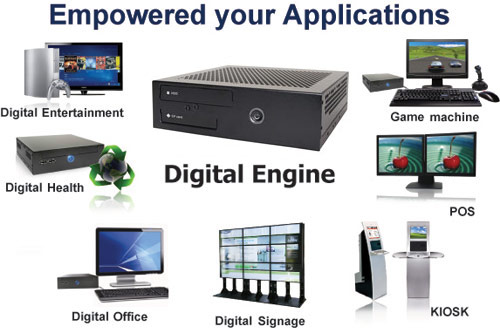

For thanks of use optional handles and adapters, it many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
|
 |
|
Recapitulation ... |
|
AOpen Digital Engine DE2700 is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen DE2700 is a compact system of 1.25L with Intel 945GSE Express Chipset supporting Intel socket PBGA437 Atom N270 processors. The AOpen DE2700 had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. AOpen DE2700 adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.
|
;)
;)
;)
