Product Update Date: 2018-02-21

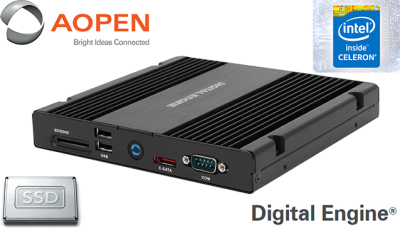

MiniPC Industrial AOpen DE3250 v.2

Name: MiniPC Industrial AOpen DE3250 v.2
Brand: AOpen
Price: 2421.35 PLN
Availability: InStock

Update Date: 2018.02.21

Guarantee 2 years

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

MiniPC Industrial AOpen DE3250

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC Industrial AOpen DE3250 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 166 (W) x158 (L) x25 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.275 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3L memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB SSD.

MiniPC Industrial AOpen DE3250

go top…

menu…

Communication & Connectors

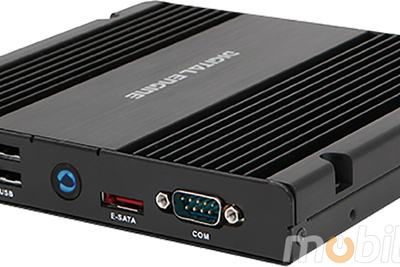

Integrated card - Realtek RTL8111G (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN port, one COM(RS232) port, one eSATA input, two USB 2.0 ports, one SD Card Slot, two HDMI outputs one way audio, one microphone input.

MiniPC Industrial AOpen DE3250

Cooling

The MiniPC Industrial AOpen DE3250 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

MiniPC Industrial AOpen DE3250 of these are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of AOpen models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages devices are: small size, performance and energy efficiency. An extra pair of brackets at t MiniPC Industrial AOpen DE3250 he bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

MiniPC Industrial AOpen DE3250

Areas of use of industrial MiniPC

Digital Engine

MiniPC Industrial AOpen DE3250

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

MiniPC Industrial AOpen DE3250 by to two USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC Industrial AOpen DE3250 can be used on transport market, in cars, through adapting him to operate with a supply 12/19V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

MiniPC Industrial AOpen DE3250

go top…

menu…

Specifications

Dimension	H: 25 mm L: 158 mm W: 166 mm
Weight	1,275kg
Processor	Intel Celeron N2930 4x1,83GHz
Chipset	Intel chipset
RAM Memory	4GB DDR3L (Dual Channel 2x 2GB)
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Realtek RTL8111G
Connectors	1x COM(RS232) 1x wyjście 12V DC_JACK 2x USB 2.0 1x eSATA 2x RJ-45 1x wyjście Audio 2x HDMI 1x Mic 1x SD Card Slot

Supported OS
Microsoft Windows: 7/8.1
Installed OS
-----
Chipset
Intel chipset
CPU Support
Intel Celeron N2930
Installed CPU
Intel Celeron N2930 (4x1.83GHz)
Graphic Card
Intel HD Graphics
Memory Support
DDR3 (can up to 2GB), Dual Channel
Installed Memory
4GB DDR3L (Dual Channel 2x 2GB)
Storage (HDD) Support
32GB or 64GB SSD
Installed Storage (HDD)
64GB SSD
IP Norm
-----
Temp
0 - 40 ℃
Storage temperature
-20 - 60 ℃
Humidity
0 ~ 90%
Others
Colour Black, Aluminum
LAN
Realtek RTL8111G
Wireless LAN card
No (opctional Yes)
3G
No (opctional Yes)
Bluetooth
No

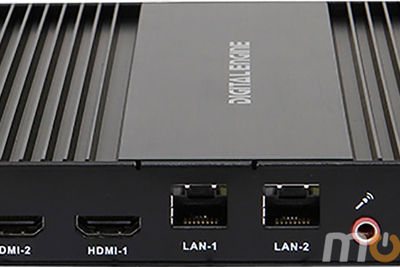

Rear Panel (ports)
1x Audio,
 1x Mic,
2x RJ-45,
 2x HDMI,
1x DC-IN 12/19V
Front Panel (ports)
Power ON/OFF,
 2x USB 2.0,
 1x eSATA,
 1x COM(RS232),
 1x SD Card Slot
Expansion
WiFi
Power
12V
Watch Dog Timer
0~255 sec
CD/DVD Drive
No
TV Tuner
No (opctional Yes)
Dimensions
166 x 158 x25  mm
Fanless
Yes
Weight
1.275 kg
