Product Update Date: 2018-02-21

MiniPC Industrial Fanless MBOX-K700 i7-3667U v.1

Update Date: 2018.02.21

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

MiniPC Przemysłowy Fanless MBOX-K700 i7-3667U

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX-K700 i7-3667U is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 210 (W) x188 (L) x62,4 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD 4000 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 320GB HDD/500GB HDD/64GB SSD.

MiniPC Przemysłowy Fanless MBOX-K700 i7-3667U

go top…

menu…

Communication & Connectors

Integrated card - Intel RTL8111E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN ports, two COM ports (RS232), one VGA output, four USB 2.0 ports, two USB 3.0 ports, one HDMI output one way audio, one microphone input.

MiniPC Przemysłowy Fanless MBOX-K700 i7-3667U

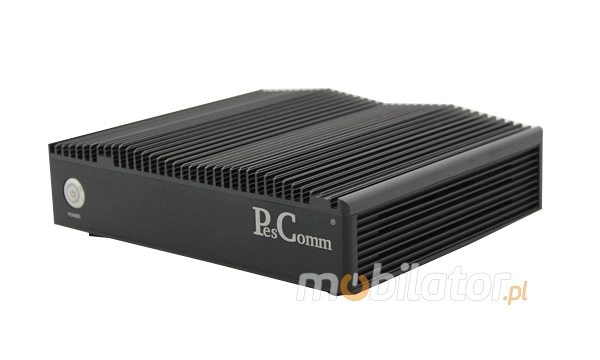

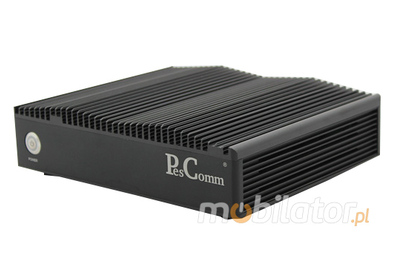

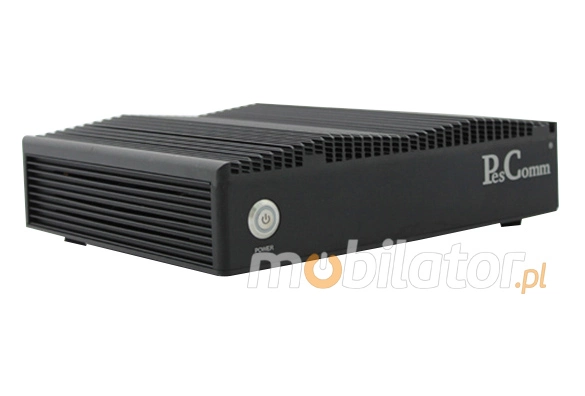

1. Power ON/OFF

MiniPC Przemysłowy Fanless MBOX-K700 i7-3667U

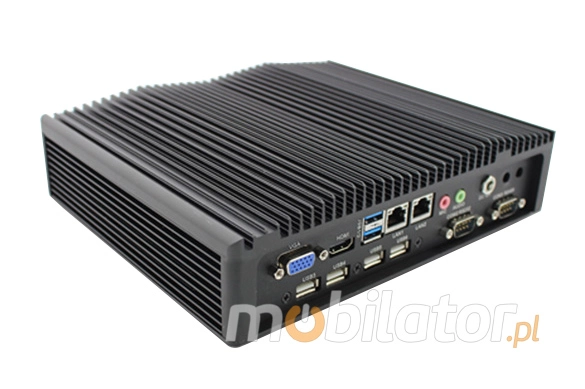

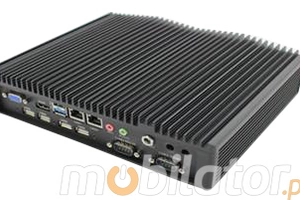

1. 1x VGA		5. 1x HDMI
2. 4x USB 2.0		6. 2x USB 3.0
3. 2x RJ-45		7. Audio/Mic
4. 2x COM(RS232)		8. DC-IN 12V

Cooling

The industrial fanless MiniPC MBOX-K700 i7-3667U uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go top… menu…

Application

Industrial MiniPC Series MBOX-K700 i7-3667U are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages MiniPC Przemysłowy Fanless MBOX-K700 i7-3667U of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

MiniPC Przemysłowy Fanless MBOX-K700 i7-3667U

Areas of use of industrial MiniPC

Digital Engine

MiniPC Przemysłowy Fanless MBOX-K700 i7-3667U

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC MBOX-K700 i7-3667U by to two COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX-K700 i7-3667U can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 8V to 28V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

MiniPC Przemysłowy Fanless MBOX-K700 i7-3667U

go top…

menu…

Specifications

Dimension	H: 62,4 mm L: 188 mm W: 210 mm
Weight	2,4kg
Processor	Intel i7 3667U (2x 2GHz)
Chipset	Intel HM77 express chipset
RAM Memory	4GB DDR3
Graphic Card	Intel HD 4000
Sound Card	Realtek ALC662
WLAN	Intel RTL8111E 100M Lan
Connectors	2x COM(RS232) 1x wyjście 12V DC_JACK 4x USB 2.0 2x USB 3.0 2x RJ-45 1x wyjście Audio 1x HDMI 1x Mic 1x VGA

Supported OS
Microsoft Windows: XP/Vista/7 , Linux
Installed OS
-----
Chipset
Intel HM77
CPU Support
-----
Installed CPU
Intel Core i7 3667U (2x2GHz)
Graphic Card
Intel HD 4000
Memory Support
4GB DDR3 (can up to 8GB)
Installed Memory
4GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
320 GB HDD
IP Norm
-----
Temp
-----
Storage temperature
-----
Humidity
-----
Others
Colour Black, Aluminum
LAN
Intel RTL8111E 100M Lan
Wireless LAN card
No (opctional Yes)
3G
No
Bluetooth
No (opctional Yes)
Rear Panel (ports)
4x USB 2.0,
 2x USB 3.0,
1x Audio,
2x RJ-45,
DC-in Jack,
 1x HDMI,
1x Mic,
2x COM(RS232),
1x VGA
Front Panel (ports)
Power ON/OFF
Expansion
WiFi
Power
12V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
210 x 188 x 62,4  mm
Fanless
Yes
Weight
2.4 kg
