Industrial Fanless |
Description

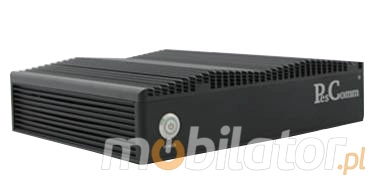

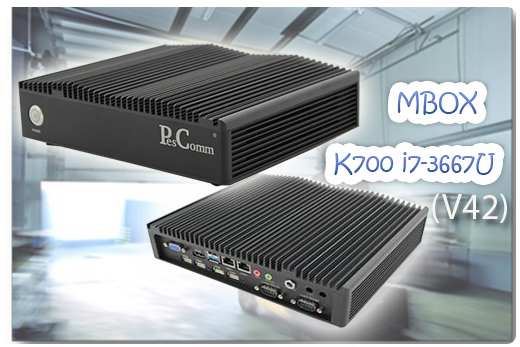

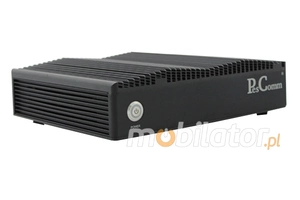

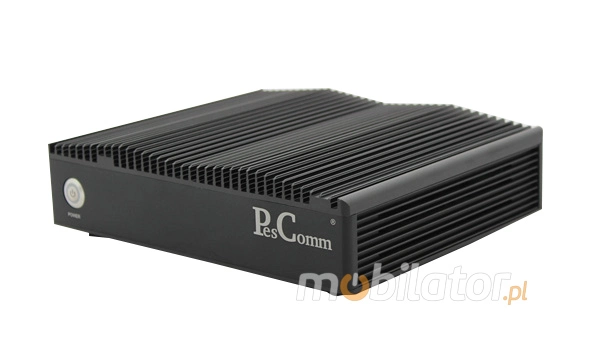

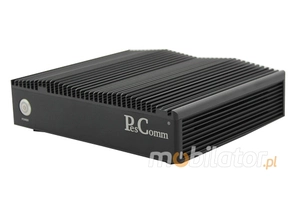

Housing dimension are 210 (W) x188 (L) x62,4 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD 4000 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 320GB HDD/500GB HDD/64GB SSD.
|
|
|
Communication & Connectors |
|

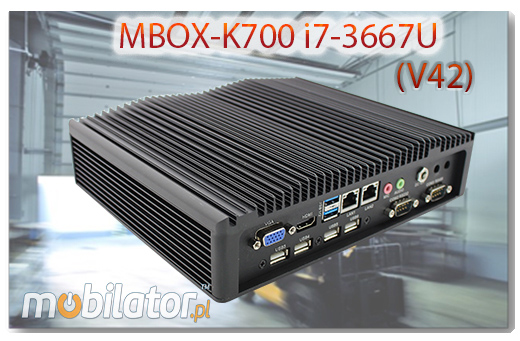

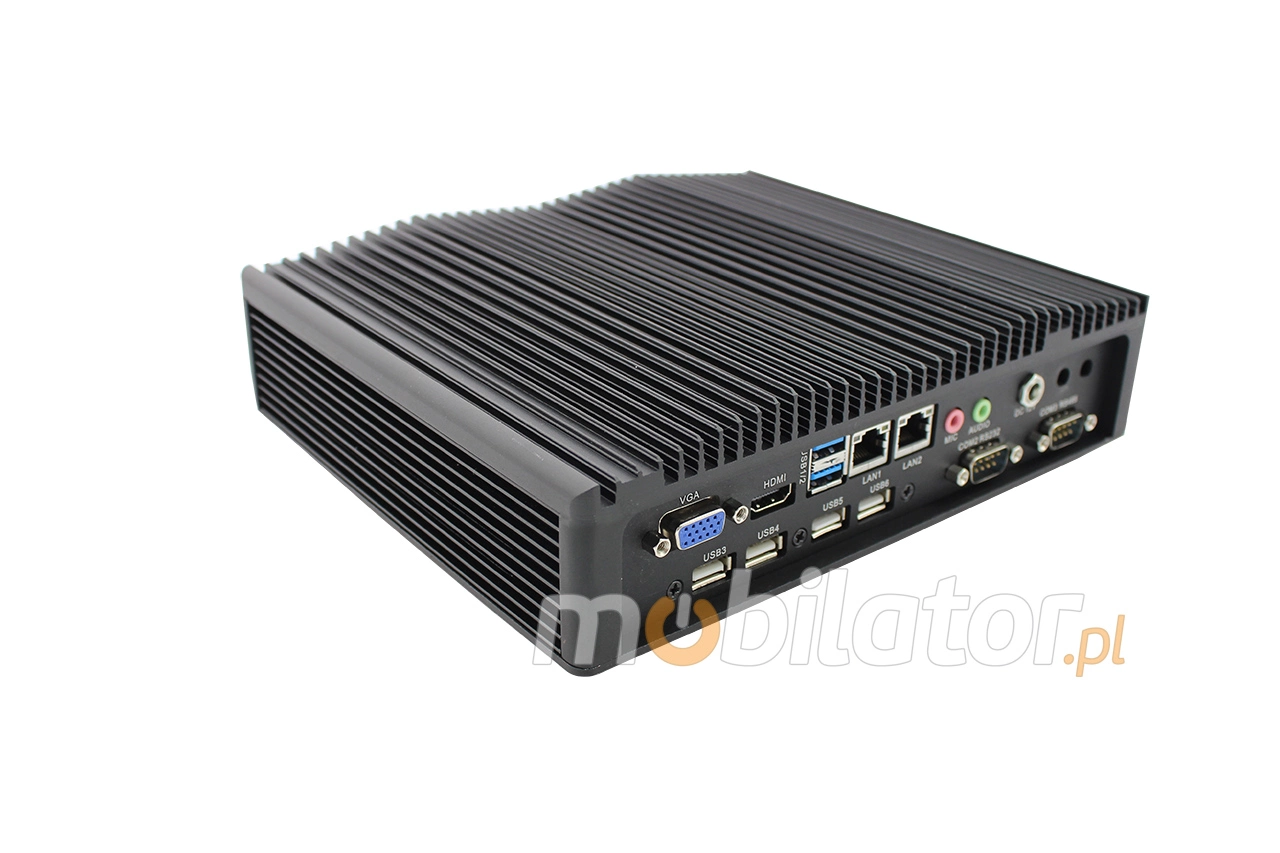

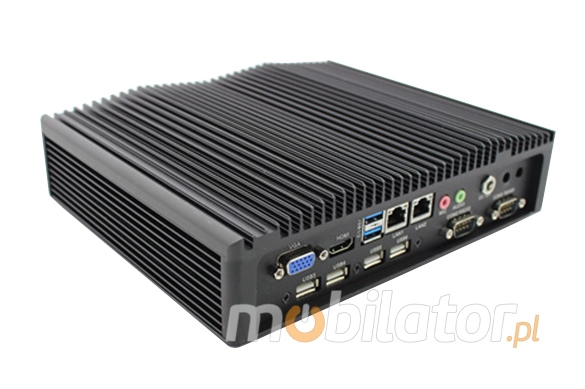

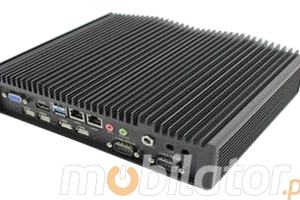

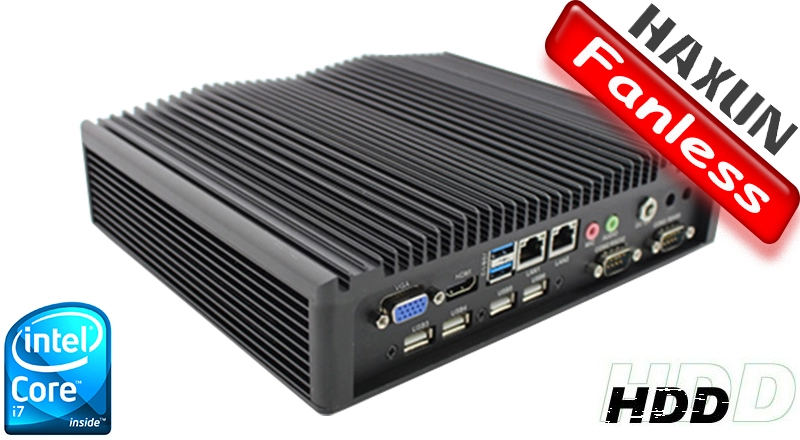

Integrated card - Intel RTL8111E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN ports, two COM ports (RS232), one VGA output, four USB 2.0 ports, two USB 3.0 ports, one HDMI output one way audio, one microphone input. In addition, the motherboard has built-in connectors: two Mini-PCIe, one GPIO and one COM (RS422 / 485).
|
Cooling

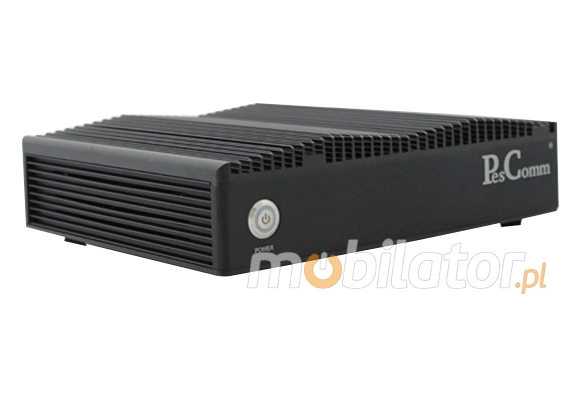

The industrial fanless MiniPC MBOX-K700 i7-3667U(V42) uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.
|
|
;)
;)
;)
;)
;)
;)
