Product Update Date: 2020-09-25

MiniPC Industrial Fanless MBOX K802 v.3

Update Date: 2020.09.25

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

MiniPC Przemysłowy Fanless MBOX K802

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX K802 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

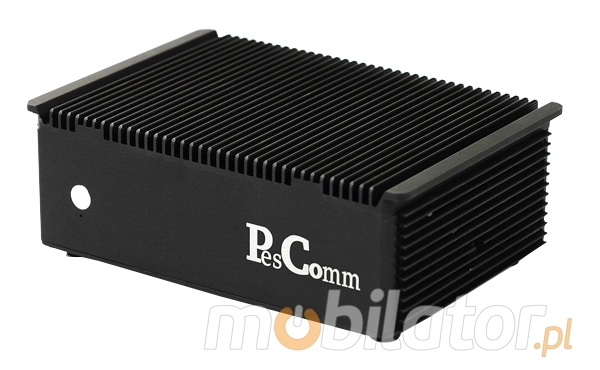

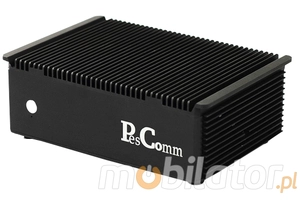

Housing dimension are 176 (W) x110 (L) x59 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel GMA 3650 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 500GB HDD/16GB SSD/64GB SSD.

MiniPC Przemysłowy Fanless MBOX K802

go top…

menu…

Communication & Connectors

Integrated card - Intel RTL8111E 100M and WiFi module allow connection to the network. The computer is equipped with: two LAN ports, two COM ports (RS232), one VGA output, four USB 2.0 ports, one HDMI output one way audio, one microphone input.

MiniPC Przemysłowy Fanless MBOX K802

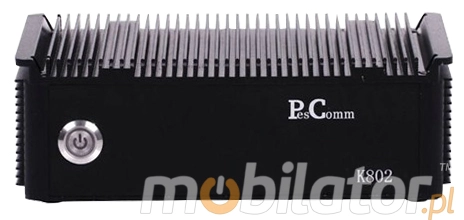

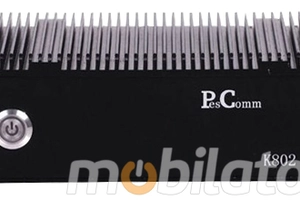

1. Power ON/OFF

MiniPC Przemysłowy Fanless MBOX K802

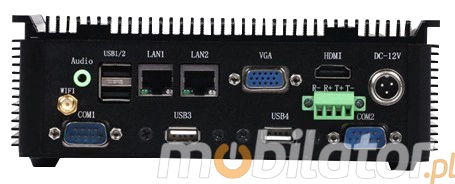

1. 1x WiFi		5. 2x RJ-45
2. 2x COM(RS232)		6. 1x VGA
3. 4x USB 2.0		7. 1x HDMI
4. 1x Audio		8. DC-IN 12V

Cooling

The industrial fanless MiniPC MBOX-K802 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Industrial MiniPC Series MBOX K802 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages MiniPC Przemysłowy Fanless MBOX K802 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

MiniPC Przemysłowy Fanless MBOX K802

Areas of use of industrial MiniPC

Digital Engine

MiniPC Przemysłowy Fanless MBOX K802

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC MBOX K802 by to two COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX K802 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 8V to 28V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

MiniPC Przemysłowy Fanless MBOX K802

go top…

menu…

Specifications

Dimension	H: 59 mm L: 110 mm W: 176 mm
Weight	2,4kg
Processor	Intel Atom N2800 (2x1,8GHz)
Chipset	Intel NM70 express chipset
RAM Memory	2GB DDR3
Graphic Card	Intel GMA 3650
Sound Card	Realtek ALC662
WLAN	Intel RTL8111E 100M Lan
Connectors	2x COM(RS232) 1x wyjście 12V DC_JACK 4x USB 2.0 2x RJ-45 1x wyjście Audio 1x HDMI 1x Mic 1x VGA

Supported OS
Microsoft Windows: XP/Vista/7 , Linux
Installed OS
-----
Chipset
Intel NM70
CPU Support
-----
Installed CPU
Intel Atom N2800 (2x1.8GHz)
Graphic Card
Intel GMA 3650
Memory Support
2GB DDR3 (can up to 8GB)
Installed Memory
2GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
500GB HDD
IP Norm
-----
Temp
-10°C - 60°C
Storage temperature
-20°C ~ 80°C
Humidity
10% to 93%
Others
Colour Black, Aluminum
LAN
Intel RTL8111E 100M Lan
Wireless LAN card
Yes
3G
No
Bluetooth
No
Rear Panel (ports)
4x USB 2.0,
1x Audio,
2x RJ-45,
DC-in Jack,
 1x HDMI,
1x Mic,
2x COM(RS232),
1x VGA
Front Panel (ports)
Power ON/OFF
Expansion
-----
Power
12V
Watch Dog Timer
0~255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
176 x 110 x59  mm
Fanless
Yes
Weight
2.4 kg
