Product Update Date: 2018-02-21

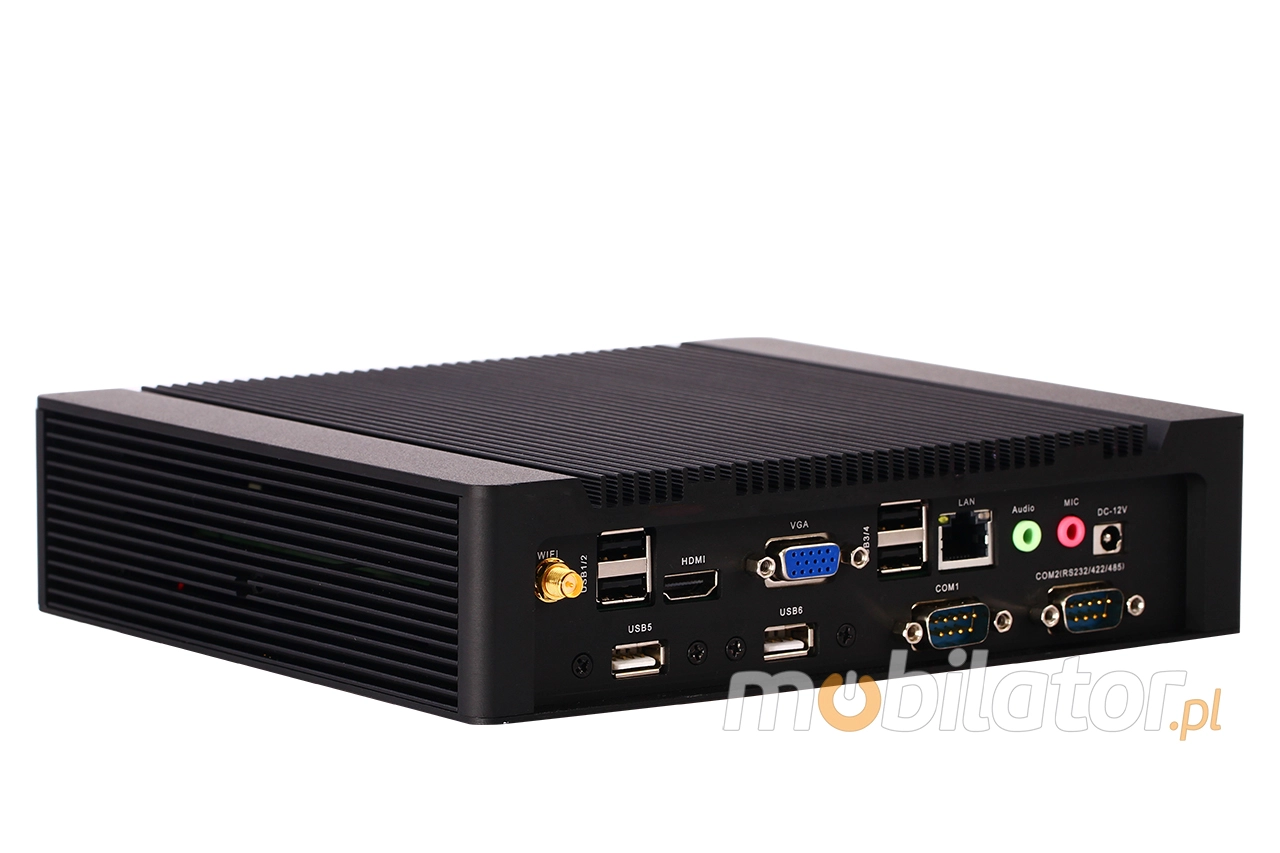

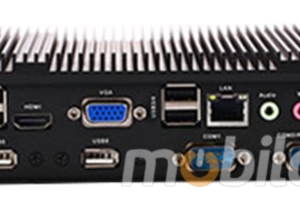

MiniPC Industrial Fanless MBOX K900 v.1

Update Date: 2018.02.21

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

MiniPC Przemysłowy Fanless MBOX K900

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MBOX K900 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 210 (W) x188 (L) x50 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel GMA 3650 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 500GB HDD/16GB SSD/64GB SSD.

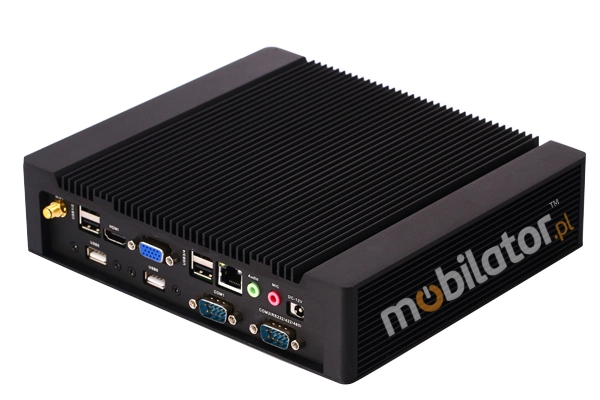

MiniPC Przemysłowy Fanless MBOX K900

go top…

menu…

Communication & Connectors

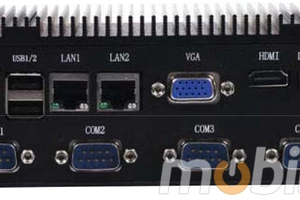

Integrated card - Intel RTL8111E 100M (optional WiFi module) allow connection to the network. The computer is equipped with: two LAN ports, four COM ports (RS232), one VGA output, four USB 2.0 ports, one HDMI output one way audio, one microphone input.

MiniPC Przemysłowy Fanless MBOX K900

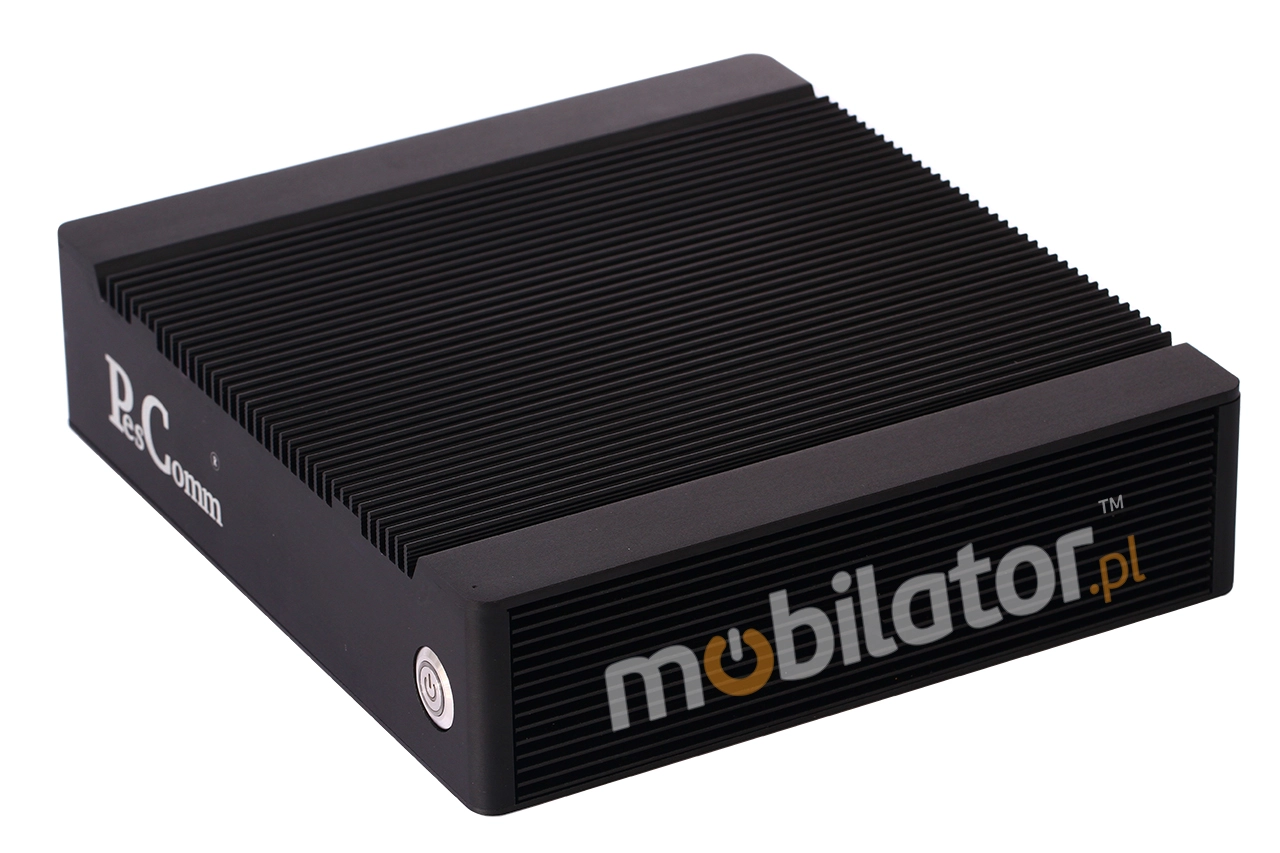

1. Power ON/OFF

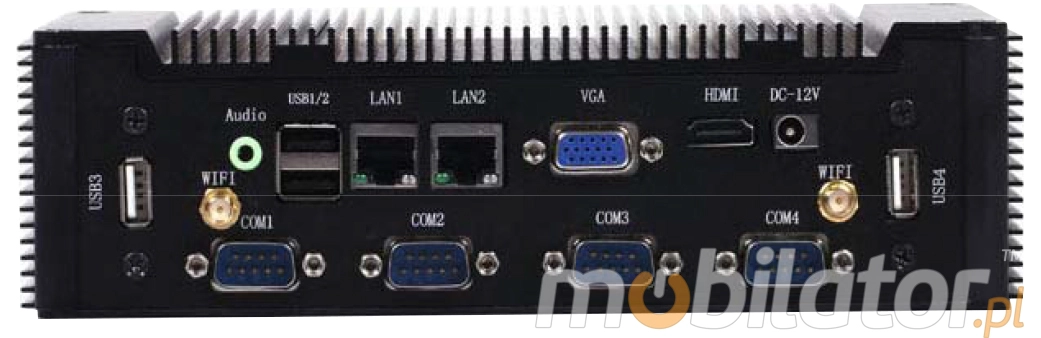

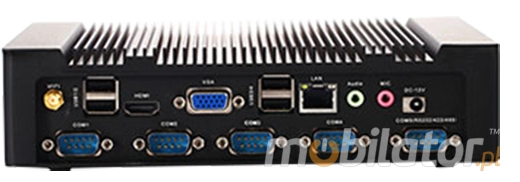

MiniPC Przemysłowy Fanless MBOX K900

1. 1x WiFi		5. 2x RJ-45
2. 4x COM(RS232)		6. 1x VGA
3. 4x USB 2.0		7. 1x HDMI
4. 1x Audio		8. DC-IN 12V

Cooling

The industrial fanless MiniPC MBOX-K900 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Industrial MiniPC Series MBOX K900 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages MiniPC Przemysłowy Fanless MBOX K900 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

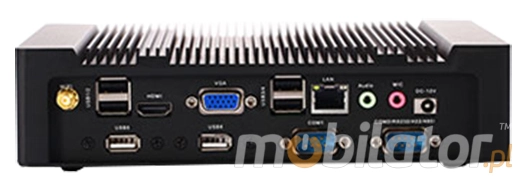

MiniPC Przemysłowy Fanless MBOX K900

Areas of use of industrial MiniPC

Digital Engine

MiniPC Przemysłowy Fanless MBOX K900

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial fanless MiniPC MBOX K900 by to four COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless MBOX K900 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 8V to 28V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

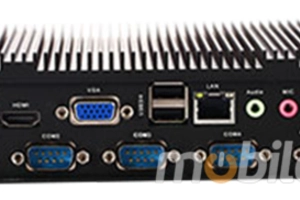

MiniPC Przemysłowy Fanless MBOX K900

go top…

menu…

Specifications

Dimension	H: 50 mm L: 188 mm W: 210 mm
Weight	2,4kg
Processor	Intel Atom N2800 (2x1,8GHz)
Chipset	Intel NM70 express chipset
RAM Memory	2GB DDR3
Graphic Card	Intel GMA 3650
Sound Card	Realtek ALC662
WLAN	Intel RTL8111E 100M Lan
Connectors	4x COM(RS232) 1x wyjście 12V DC_JACK 4x USB 2.0 2x RJ-45 1x wyjście Audio 1x HDMI 1x Mic 1x VGA

Others
Colour Black, Aluminum
Chipset
Intel NM70
CPU Support
-----
Installed CPU
Intel Atom N2800 (2x1.8GHz)
Memory Support
2GB DDR3 (can up to 8GB)
Installed Memory
2GB DDR3
Graphic Card
Intel GMA 3650
Storage (HDD) Support
-----
Installed Storage (HDD)
16GB SSD
CD/DVD Drive
-----
LAN
Intel RTL8111E 100M Lan
Wireless LAN card
No (opctional Yes)
Bluetooth
No
3G
No
TV Tuner
-----
Watch Dog Timer
0~255 sec
Front Panel (ports)
Power ON/OFF
Rear Panel (ports)
4x USB 2.0,
1x Audio,
2x RJ-45,
DC-in Jack,
 1x HDMI,
1x Mic,
4x COM(RS232),
1x VGA
Power
12V
Supported OS
Microsoft Windows: XP/Vista/7 , Linux
Installed OS
-----
Dimensions
210 x 188 x 50  mm
Weight
2.4 kg
Expansion
WiFi
Fanless
Yes
Humidity
10% to 93%
Temp
-10°C - 60°C
IP Norm
-----
Storage temperature
-20°C ~ 80°C
Responsible Entity / Distributor
New Portable Devices

Data sheet

Karta katalogowa MBOX-K900

108.67 KB

29.09.2014

Windows 7/8

Download

Compare all versions


MiniPC Industrial Fanless MBOX K900 v.1
					Small size / Intel® Atom N2800 2x1.8GHz
Graphics: Intel® GMA 3650
RAM 2G DDR3 / Disk 16GB SSD
2x LAN / 4x COM / 4x USB 2.0
1x HDMI / 1x VGA / 2x Mini-PCIe

Product from the Archive - production finished

MiniPC Industrial Fanless MBOX K900 v.2
					Small size / Intel® Atom N2800 2x1.8GHz
Graphics: Intel® GMA 3650
RAM 4G DDR3 / Disk 16GB SSD
2x LAN / 4x COM / 4x USB 2.0
1x HDMI / 1x VGA / 2x Mini-PCIe / WiFi

Product from the Archive - production finished

MiniPC Industrial Fanless MBOX K900 v.4
					Small size / Intel® Atom N2800 2x1.8GHz
Graphics: Intel® GMA 3650
RAM 2G DDR3 / Disk 16GB SSD
2x LAN / 4x COM / 4x USB 2.0
1x HDMI / 1x VGA / 2x Mini-PCIe / 8~28V

Product from the Archive - production finished

MiniPC Industrial Fanless MBOX K900 v.3
					Small size / Intel® Atom N2800 2x1.8GHz
Graphics: Intel® GMA 3650
RAM 4G DDR3 / Disk 500GB HDD
2x LAN / 4x COM / 4x USB 2.0 / Bluetooth
1x HDMI / 1x VGA / 2x Mini-PCIe / WiFi

Product from the Archive - production finished

MiniPC Industrial Fanless MBOX K900 v.2.1
					Small size / Intel® Atom N2800 2x1.8GHz
Graphics: Intel® GMA 3650
RAM 4G DDR3 / Disk 64GB SSD
2x LAN / 4x COM / 4x USB 2.0
1x HDMI / 1x VGA / 2x Mini-PCIe / WiFi

Product from the Archive - production finished
