Compact industrial computers perform well in dusty and harsh environments, ensuring remarkably quiet operation. The reliable MobiPad nBOX MK12F-V2-I5 utilizes fanless passive cooling and a metal construction for efficient heat dissipation. This durable device, powered by Intel Core Alder processors, is designed for 24/7 continuous operation thanks to the Auto Power On function and is suitable for demanding industrial and office systems.



up...    menu…

Specification

MobiPad nBOX MK12F-V2-I5
Processor	Intel Core i5-1235U
Operating system	Supported: Windows 11, Windows 10, Linux
RAM	DDR4: 16GB (DDR4: 32GB) (*optional)
Drive	SSD M2 - NVMe: 256GB + 1TB (SSD M2 - NVMe: 512GB | 2TB) * (optional)
Communication	WiFi 5 | WiFi 6E* (optional)  | Bluetooth 4G LTE* (optional)
Connectors - front	1x USB-C 3.0 | 4x USB 3.0 | 2x USB 2.0 microphone input (MIC IN) | line output (Line out)
Connectors - rear	3x HDMI 2.0b | 1x DisplayPort 1.4a | 2x LAN | 2x USB 2.0 2x COM ** (a choice of 2x RS232 or 2xRS485 or 1xRS232 and 1x RS485)
Dimensions	186x128x67mm
Weight	1.63kg
Graphics card	Intel Iris Xe Graphics
Colors available	Black (Metal Housing)

* Optional equipment available only in the appropriate product versions or upon request.

** When ordering, a selection of two COM connector variants is available: 2x RS232, 2x RS485, or a mixed set (1x RS232 and 1x RS485).

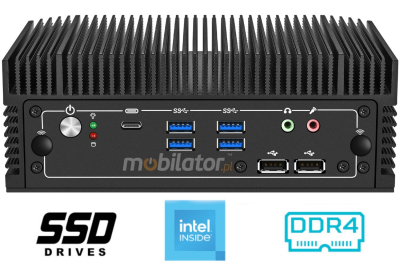

The MobiPad nBOX MK12F-V2-I5 industrial mini computer features powerful and energy-efficient 12th-generation Intel Core i5 processors. It houses up to ten cooperative cores, enabling extremely efficient processing of multiple tasks simultaneously. Shared cache memory in a modern hybrid architecture is dynamically allocated to each core depending on the current load. This optimizes access times to the DDR4 main memory and ensures smooth operation of the device in harsh environmental conditions.

up...    menu…



The reliable MobiPad nBOX MK12F-V2-I5 features an efficient, passive fanless cooling system based on a durable metal housing. This utilizes the natural principle of heat dissipation from the structure to the environment, completely eliminating moving components and fans. This solution guarantees silent operation, reduced failure rates, and high resistance to dust and dirt, enabling stable operation across a wide temperature range while maintaining the high energy efficiency of the Alder Lake series units.

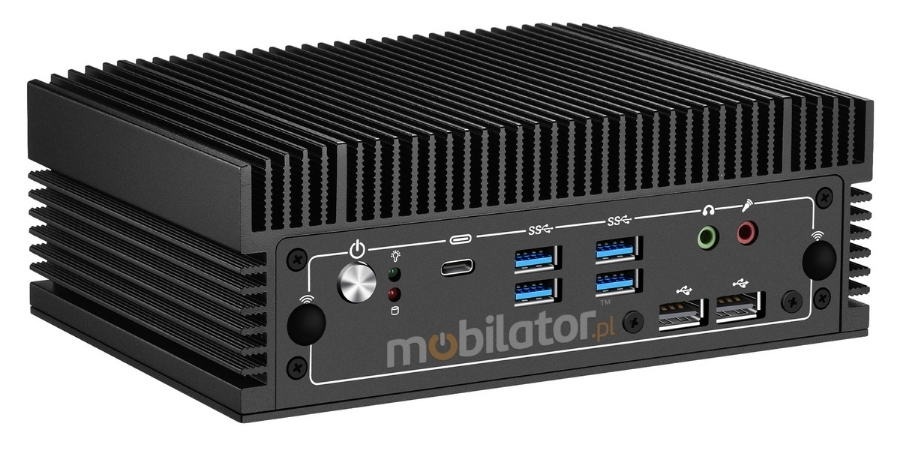

Thanks to its compact metal housing, the MobiPad nBOX MK12F-V2-I5 is versatile for use in both modern offices and demanding industrial environments. Its fanless design fits almost anywhere, and VESA mount support allows for easy mounting on the back of a monitor for maximum workstation optimization.

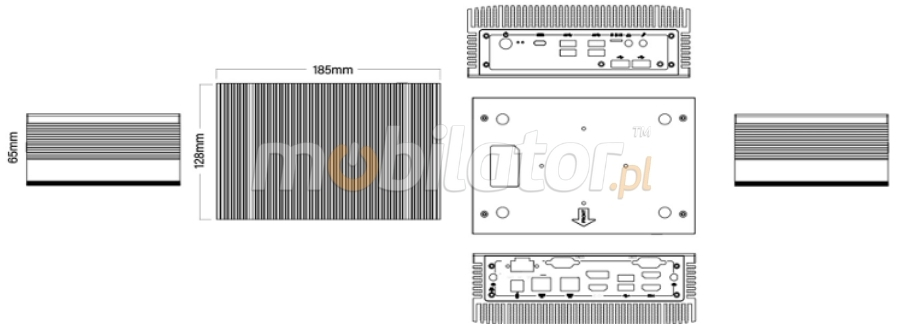

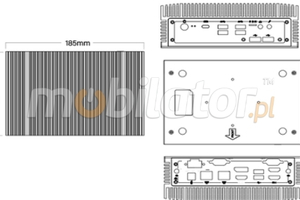

Dimensions	186mm x 128mm x 67mm
Net weight	1630g

up...    menu…

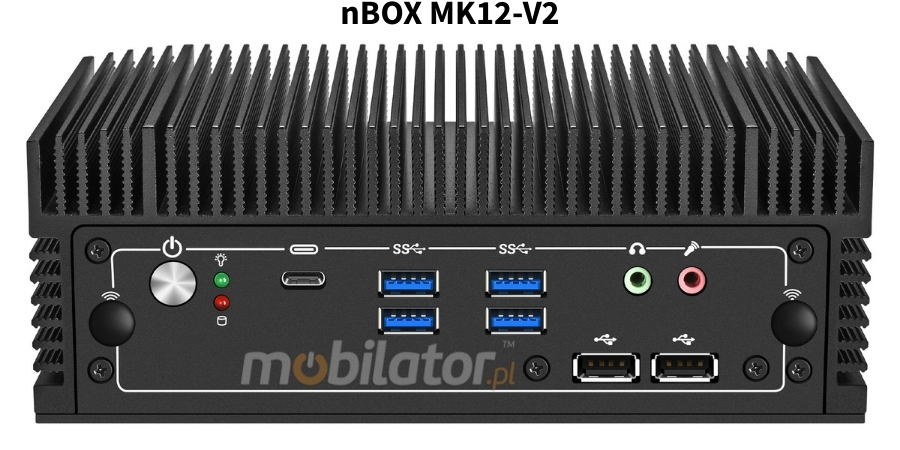

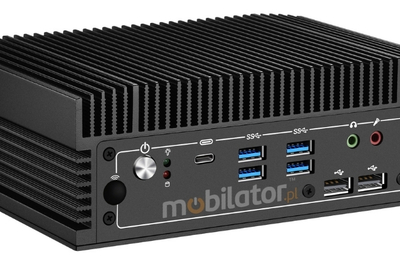

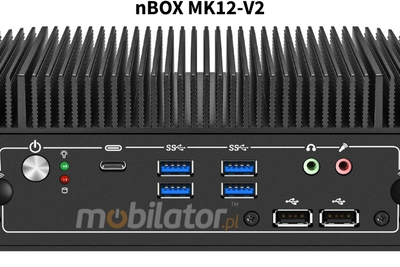

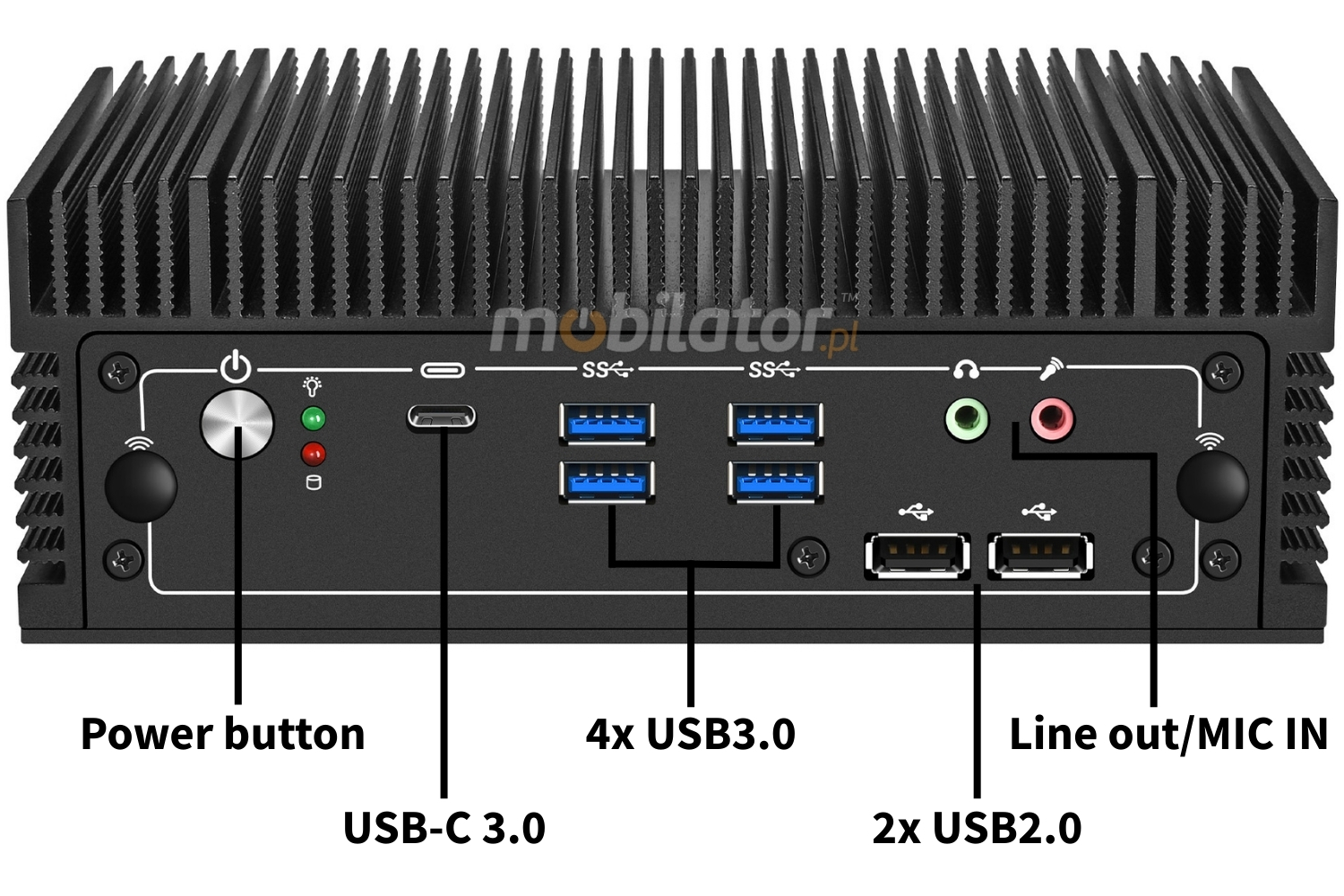

The compact MobiPad nBOX MK12F-V2-I5 is equipped with a comprehensive set of front ports that enable lightning-fast communication with peripherals even in challenging work environments. In addition to the physical power button and LED indicators, the metal front housing includes a USB-C 3.0 port, four high-speed USB 3.0 ports, and two USB 2.0 ports. This model also features dedicated audio connectors for a microphone and line-out, which users can use according to their specific tasks and personal needs.

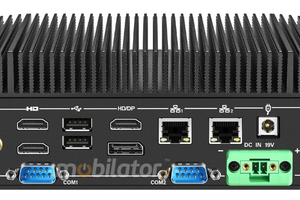

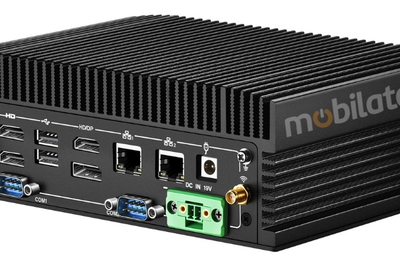

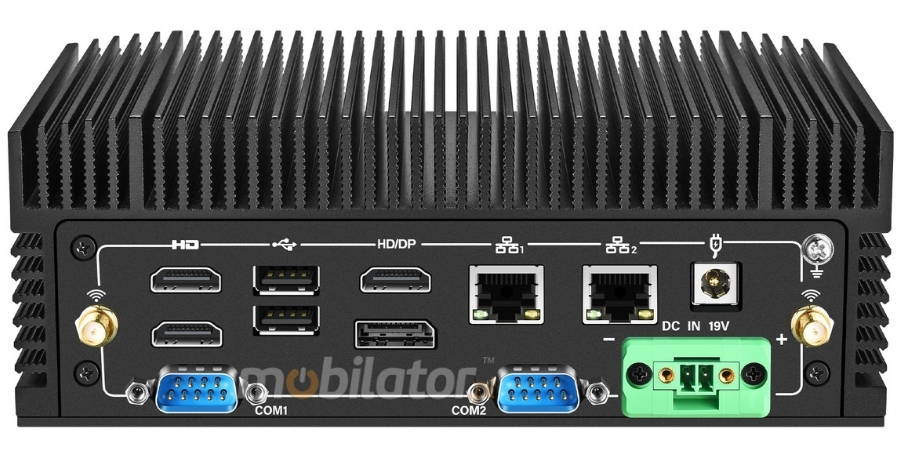

The design of this innovative mini PC includes a built-in DC IN power socket, a Phoenix connector, two RJ45 2.5Gbe LAN sockets, three HDMI 2.0b ports, a DisplayPort 1.4a, and an additional USB 2.0. The device offers complete configuration flexibility - when ordering, a selection of two COM connector variants is available: 2x RS232, 2x RS485, or a mixed set (1x RS232 and 1x RS485). This allows for a perfect match of the equipment to the unique technical requirements of each industry.

up...    menu…

CONNECTIVITY AND COMMUNICATION



The modern MobiPad nBOX MK12F-V2-I5 provides stable wireless connectivity thanks to its built-in M.2 2230 E Key slot, which supports modern ac/ax Wi-Fi standards. The device offers fast and reliable data transmission in the 2.4 GHz and 5 GHz bands, allowing for smooth operation in crowded industrial and office networks.

* The device is available in a configuration with the WiFi 6E option.

The ultra-efficient MobiPad nBOX MK12F-V2-I5 features two advanced built-in Intel I225-V/1226-V network cards, which can operate in an incredibly fast 2.5Gbe LAN. This solution provides twice the throughput of standard Gigabit Ethernet, guaranteeing lightning-fast data transfer and a stable connection in demanding industrial infrastructures. Thanks to the dual RJ45 ports, the computer supports multiple networks simultaneously or a redundant connection, significantly improving the reliability of the entire system.

up...    menu…

RESISTANCE AND DURABILITY



The passive fanless cooling system used in the silent MobiPad nBOX MK12F-V2-I5, combined with a fast M.2 NVMe SSD, makes this unit exceptionally resistant to vibration and mechanical damage.

A key advantage of this mini computer is its robust metal construction, which acts as a heat sink and ensures high heat dissipation efficiency. The specially designed, dimensional enclosure effectively protects components from external damage and ensures trouble-free operation in harsh environmental conditions.



The versatile MobiPad nBOX MK12F-V2-I5 is designed for continuous operation in extreme thermal conditions, offering stability within a wide temperature range of -20°C to 55°C. Thanks to its durable metal construction and passive cooling system, the device efficiently dissipates heat even under maximum load with modern Intel Core processors. This operating characteristic ensures this industrial mini PC guarantees reliability in the most demanding environments, where ambient temperatures are subject to frequent and rapid changes.



Operating Temperature	-20°C to 55°C
Temperature Storage	-20°C to 70°C
Humidity	5% to 95%

up...    menu…



Applications







The future-proof MobiPad nBOX MK12F-V2-I5 is the ideal tool for supporting retail and logistics, and its compact dimensions significantly facilitate adaptation to tasks such as invoicing and sales documentation management. Its passively cooled metal construction allows for comfortable and quiet operation at customer service points. Thanks to the included VESA mount (70x70/100x100mm), the computer can be quickly mounted at a cash register, under a desk, or directly behind a monitor, optimizing space in stores, factory floors, and even in delivery vehicles.

up...    menu…







Thanks to the high performance of a 12th-generation Intel Core processor, the MobiPad nBOX MK12F-V2-I5 industrial computer can be used to manage multiple warehouse systems simultaneously. Its robust design guarantees long-term, trouble-free operation, even in dusty environments, ensuring system stability across a wide temperature range.





The multi-purpose MobiPad nBOX MK12F-V2-I5 is ideal for transportation thanks to its wide DC IN power supply range. The unit can be successfully used in cars, buses, trains, and airplanes, supporting passenger information systems and real-time vehicle diagnostics. The compact metal housing allows for installation in confined spaces, and passive cooling ensures reliability in the event of a shock.

up...    menu…



Available versions



The professional MobiPad nBOX MK12F-V2-I5 minicomputer is available in numerous variants, allowing for a perfect match of hardware to specific requirements. Selecting a configuration number in the table below provides direct access to the product data sheet with full specifications. For custom solutions, configurations outside of the current offering can be prepared upon request.

	v.1	v.2	v.2.1	v.3	v.4	v.5	v.6
Windows 11 PRO	—	—	✔	—	—	—	—
WiFi 6E	—	—	✔	✔	—	—	—
4G	—	—	—	—	✔	—	—
8GB RAM	—	✔	✔	✔	✔	—	—
16GB RAM	—	—	—	—	—	✔	✔
32GB RAM	—	—	—	—	—	—	—
256GB SSD M.2 -NVMe	—	✔	✔	—	—	—	—
512GB SSD M.2 -NVMe	—	—	—	✔	✔	—	✔
512GB + 2TB SSD M.2 -NVMe	—	—	—	—	—	—	—
256GB + 1TB SSD M.2 -NVMe	—	—	—	—	—	✔	—
1TB SSD M.2 -NVMe	—	—	—	—	—	—	—
2TB SSD M.2 -NVMe	—	—	—	—	—	—	—
	v.6.1	v.7	v.8	v.8.1	v.9	v.10
Windows 11 PRO	✔	—	—	✔	—	✔
WiFi 6E	✔	✔	✔	✔	✔	✔
4G	—	—	—	—	—	—
8GB RAM	—	—	—	—	—	—
16GB RAM	✔	✔	—	—	—	—
32GB RAM	—	—	✔	✔	✔	✔
256GB SSD M.2 -NVMe	—	—	—	—	—	—
512GB SSD M.2 -NVMe	✔	—	—	—	—	—
512GB + 2TB SSD M.2 -NVMe	—	—	—	—	—	✔
256GB + 1TB SSD M.2 -NVMe	—	—	—	—	—	—
1TB SSD M.2 -NVMe	—	✔	✔	✔	—	—
2TB SSD M.2 -NVMe	—	—	—	—	✔	—

Compare all versions
