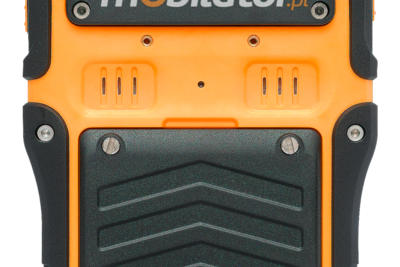

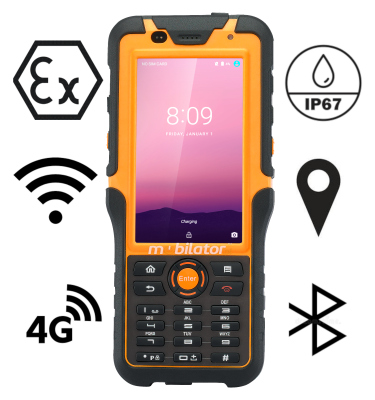

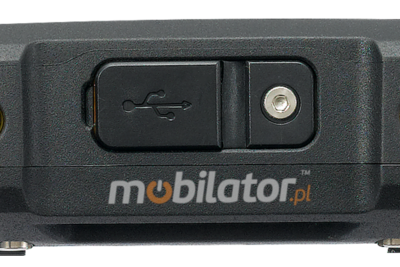

The MobiPad Tex05 is a rugged data collector built for extreme conditions. It's IP67 (dust and waterproof) and MIL-STD-810G (shock resistant) certified, and its reinforced design and 5000 mAh battery guarantee reliability in any situation.

Atex Certificate

ATEX Certificate

An ATEX certificate is a European Union designation confirming that a given product is safe for use in explosive atmospheres – such as those found in the oil, chemical, or gas industries. The name comes from the French "Atmosphères Explosibles". The certificate specifies, among other things, the type of explosion protection, the explosive group, and the temperature class.

ATEX Zones:
The classification of ATEX zones determines the likelihood of an explosive atmosphere occurring and is crucial for selecting appropriate equipment.

Zone 1
Characteristics: An area where an explosive atmosphere (a mixture of air with flammable gases, vapours, or mists) may occur occasionally during normal operation.
Required Equipment: Devices intended for use in Zone 1 must provide a high level of protection and be designed so that even in the event of rare malfunctions, they do not become a source of ignition.

Zone 2
Characteristics: An area where an explosive atmosphere (a mixture of air with flammable gases, vapours, or mists) does not occur during normal operation, or if it does, it is only for a short period and infrequently.
Required Equipment: Devices intended for use in Zone 2 must provide a normal level of protection and be designed so that they do not become a source of ignition under normal operating conditions. Protection against ignition is only required during normal operation.

Designed with the highest safety in mind, the MobiPad Tex05 data collector is certified for Zone 1. This makes it suitable for use in areas where the risk of an explosive atmosphere is sporadic but real. The device has a reinforced structure that minimizes the risk of becoming an ignition source even in critical situations.

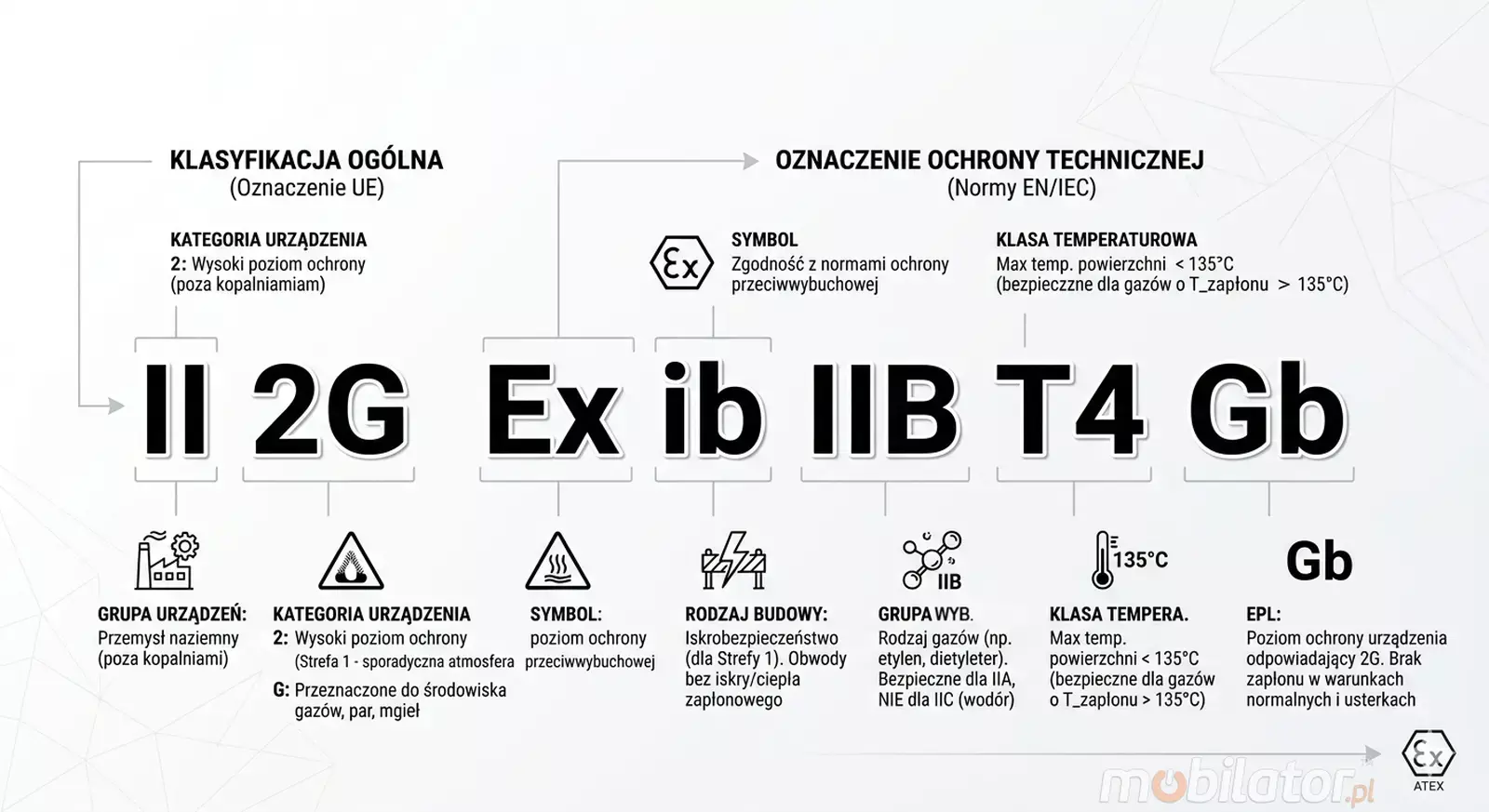

The II 2G Ex ib IIB T4 Gb device offers a high level of protection suitable for use in above-ground industrial environments where explosive gases and vapors occasionally occur. It features an intrinsically safe (ib) design, approved for use in the presence of Group IIB gases, such as ethylene and diethylene glycol. It also has a T4 temperature rating, ensuring that its enclosure temperature does not exceed 135°C, ensuring safety in compliance with explosion protection standards.

up…    menu…

Specification

Detailed device specification is available in the "Technical data".

The rugged MobiPad Tex05 industrial-strength collector runs on a powerful and energy-efficient ARM A73 processor. With eight cores, it can efficiently handle multiple tasks simultaneously.

up…    menu…

The MobiPad Tex05 combines ergonomics with durability. Its compact and carefully designed housing ensures a secure grip, while its reinforced construction makes it ideal for both harsh industrial environments and everyday work.

up…    menu…

With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our tablet or the collector with a few fingers at once.

The MobiPad Tex05 is a data collector designed for outdoor use. Its 500-nit screen provides excellent visibility in sunlight, eliminating reflections and blurring. Combined with a durable, dust- and waterproof casing, it's a reliable tool for any environment.

DATA COLLECTING

Take full advantage of NFC's potential with the MobiPad Tex05. This technology enables fast and secure wireless data transfer, crucial in industry. It allows for instant product identification, machine access authorization, and streamlines inventory processes. Its speed and ease of use make work more efficient.

The barcode scanner reads and transmits data quickly and efficiently. Thanks to its dynamic performance and wide reading range, the device precisely captures information, significantly increasing work speed and efficiency. Furthermore, its advanced 2D scanning engine (E20) effortlessly reads even damaged and blurred codes, including QR codes.

up…    menu…

REsistance

With the MIL-STD-810G military standard, the MobiPad Tex05 is synonymous with durability. This certification means the device has been tested for resistance to shocks, drops, and extreme temperatures, ensuring reliability in the most demanding work environments.

The IP67 standard, which this heavy-duty collector meets, defines the high degree of protection provided by its casing against dust ingress and the effects of temporary immersion in water. It's a reliable solution for industries where resistance to external factors and durability are key.

Firts digit              Protection level                Second digit
No special protection		No special protection
Protection from solid objects greater than 50mm in diameter		Protection from dripping water
Protection from object not greater than 12mm in diameter		Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter		Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter		Protection from splashed water
Complete protection against contact, Protection against dust deposit		Protection from water projected from a nozzle
Complete protectionm against contact, protection from infiltration of dust		Protection against heavy seas, or powerful jets of water
		Protection against immersion
		Protection against complete, continuous submersion in water

The robust, military-grade construction of this data collector ensures its unwavering resistance to accidental, destructive drops. Engineered with extraordinary precision, it guarantees complete data safety even after a powerful impact from a height of 1.83 meters onto a hard, unforgiving surface. This durable and reliable collector remains fully operational and ready for operation in even the most extreme operating conditions, making it an indispensable, armored tool for field professionals.

The MobiPad Tex05 collector is designed to withstand the harshest weather conditions. Its impressive temperature resistance allows it to operate continuously from -20°C to 55°C. Furthermore, it is fully humidity-resistant, operating without issue in environments with humidity levels up to 95%. In storage mode, it can withstand extremely low and high temperatures, from -40°C to 80°C.

up…    menu…

wireless communication

The MobiPad Tex05 is a reliable collector designed for professionals working in the field. Thanks to a highly accurate, low-power GPS module, it provides lightning-fast, error-free navigation. This facilitates efficient and precise navigation to the designated location, saving time and increasing efficiency.

Bluetooth is a wireless communication standard that connects various devices, such as keyboards, computers, and smartphones. This technology is ideal for transmitting data over short distances, and its latest versions offer lower power consumption and greater range than previous versions.

Dual-band Wi-Fi provides fast internet access wherever a secured or open Wi-Fi connection is available. This is a convenient solution for users with a router and a Wi-Fi network at work or home, allowing for free connection use.

 up…    menu…

Application

The MobiPad Tex05 is a reliable tool for optimizing the work of sales representatives. Based on Android, it allows for efficient and intuitive management of customer and product databases, offering a quick search function (e.g., by name or Tax Identification Number). The device also ensures the immediate flow of documents to the company, such as orders and invoices, thanks to support for GSM and Wi-Fi networks.

do góry…    menu…

Specialized industrial collectors are reliable tools for use in the harshest conditions. Their housings are completely dust- and water-resistant (IP67), as well as shock- and drop-resistant, as certified by the MIL-STD-810G military standard. This makes devices like the MobiPad Tex05 ideal for applications in construction, logistics, and manufacturing – anywhere traditional equipment would quickly fail. This is durability you can rely on.

The MobiPad Tex05 is a powerful collector that significantly improves warehouse and inventory processes. It enables the quick and precise execution of key tasks such as receiving and issuing goods, price control, order management, and inventory monitoring.

up…    menu…

Accessories and available versions

The robust, ATEX-certified MobiPad Tex05 data collector is ideal for use in harsh environments. Available in a variety of configurations to suit your needs. Click on the hardware configuration number to view detailed parameters in the table below. Want to create your own custom version? Contact us and we'll create a custom configuration just for you.

More photos in full resolution available in the "Gallery".
