Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.

Efficient cooling

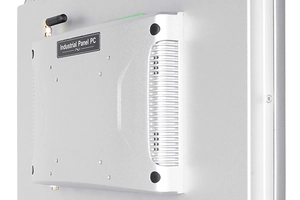

The housing with notches used in the panel ensures good air exchange inside the device



Quick start

A modern eMMC drive will increase the speed of applications and programs and ensure quiet computer operation.



Efficient



The quad-core

RK3568

improvesthe&device's

performance.

Bright Screen

The display with 300 cd/ m² brightness makes the picture much more vivid and better readable when used outside in the sun.

Wireless network

The panel can be connected to nearby wireless networks by equipping it with a  Wi-Fi module

Resistive screen



The resistive screen allows precise handling and gentle on-screen movement.

up…   menu…


Specifications and parameters

* Optional equipment, available only in specific versions of the device.


Detailed device specification is available in the "Technical data".

The industrial PC panel uses an efficient and energy-saving RK3568 (4x 2.0 GHz) . In its interior there are four cooperating cores enabling more efficient processing of many tasks at the same time. Shared cache memory in which a multi-level hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. Improved graphics card technology allows you to enjoy movies at full resolution and HD quality.

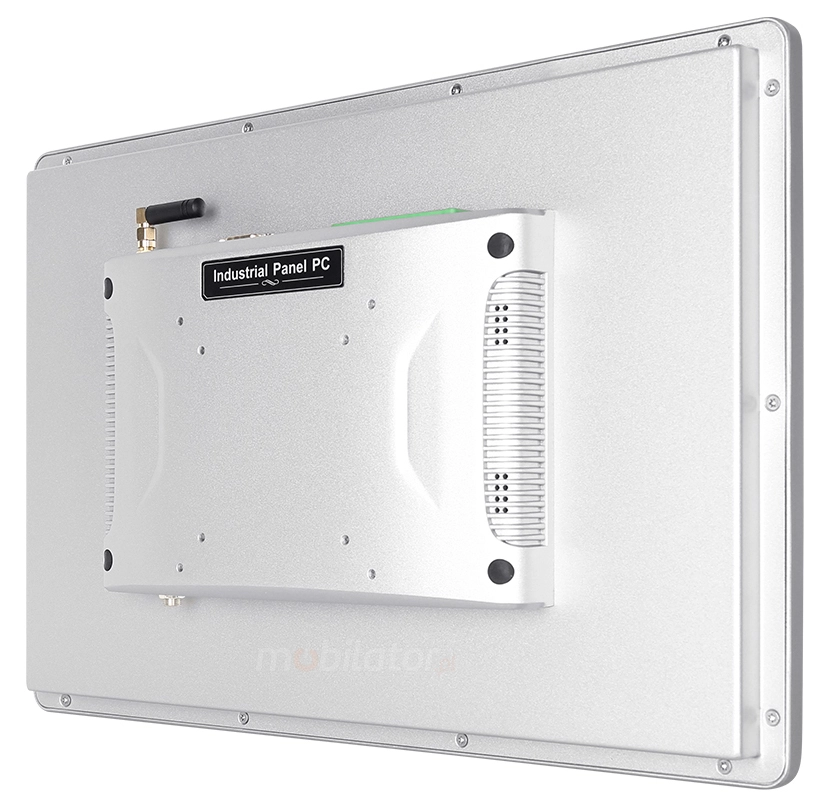

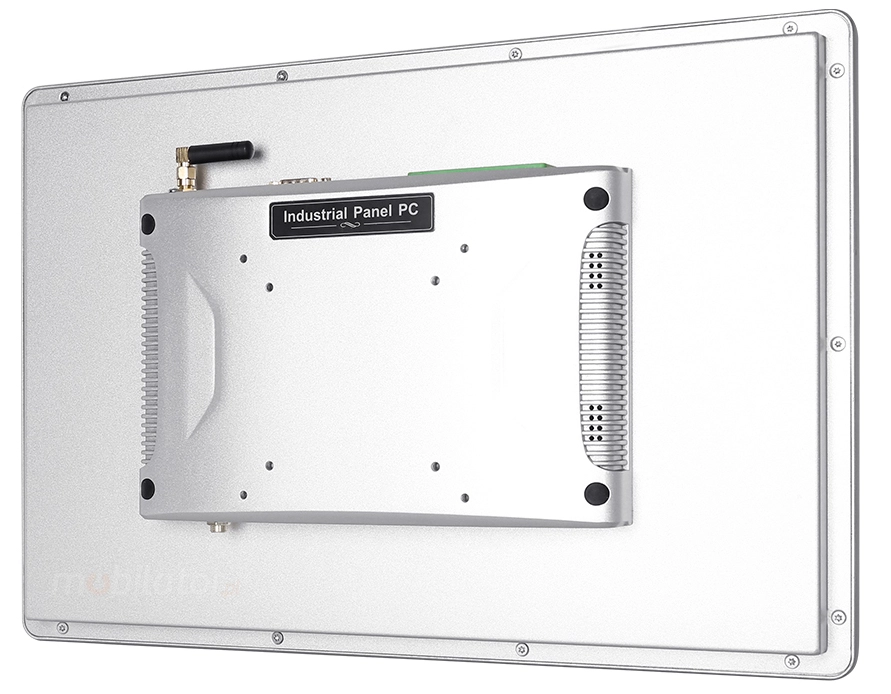

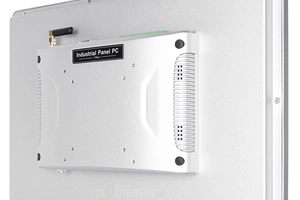

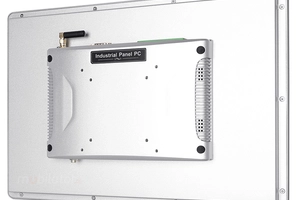

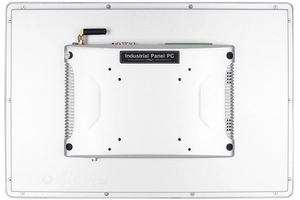

More photos in full resolution available in the "Gallery".

up…   menu…

NPU

A special type of chip designed to handle artificial intelligence tasks. It allows a device to recognize images, voice, or text more quickly, while also operating more efficiently and saving energy. The NPU enables the use of smart features without delays, which translates into a more convenient and modern everyday user experience.

Display and touch

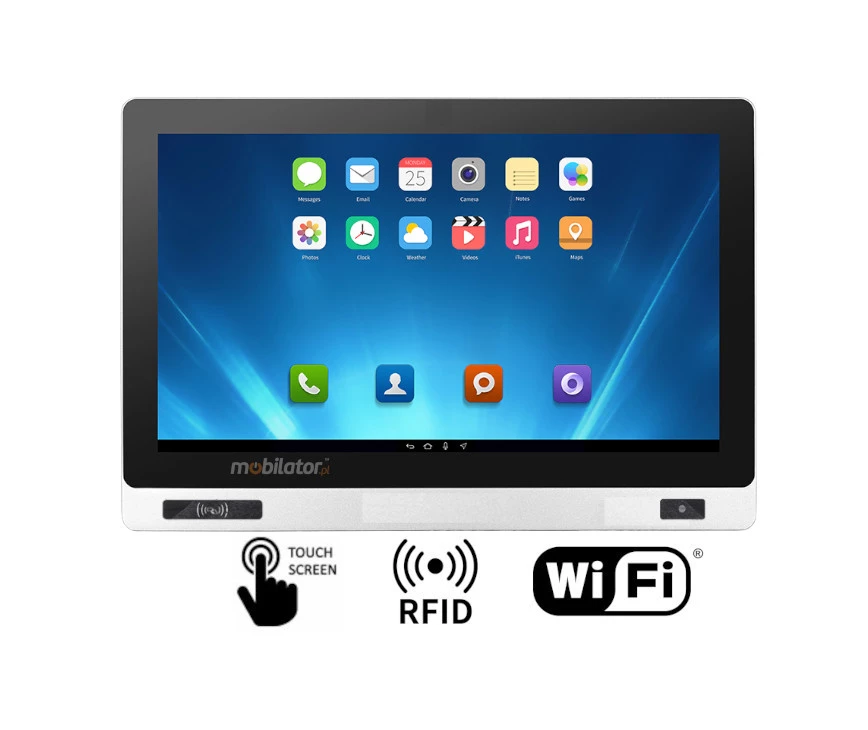

Amplified, metal industrial computer Mobitouch 156A-LF+2D has a water-resistant and scratch-proof 15.6" LED screen 1920x1080  resolution offers good image quality, and high brightness in the 300 cd/m² range gives better color saturation and contrast and allows significantly improved visibility even in the case of incident The display of the resistive type provides the user with a clear image and ease of use by touch.

Resistive Screen

A resistive touchscreen is a type of touchscreen that operates on the principle of pressure sensing. It consists of several layers, typically two thin, transparent layers separated by a thin space. Both layers are coated with a conductive layer and insulated from each other. When a user presses a finger or other object on the screen, the layers touch at the point of pressure, causing a change in resistance. The system measures these changes and determines the precise coordinates of the touch.

up…   menu…

Resistance and protection

Quality of materials

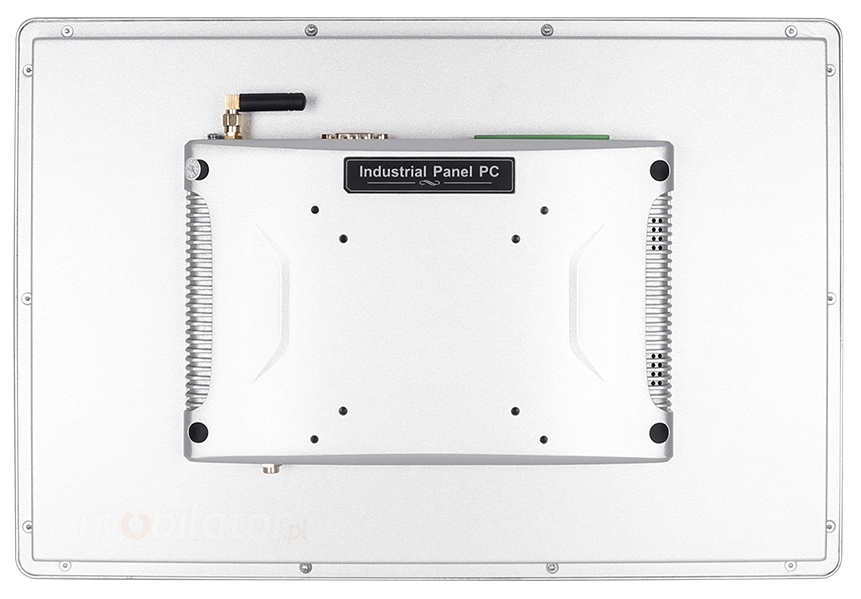

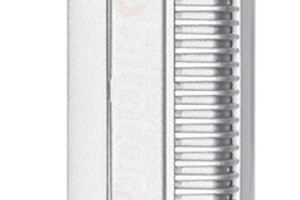

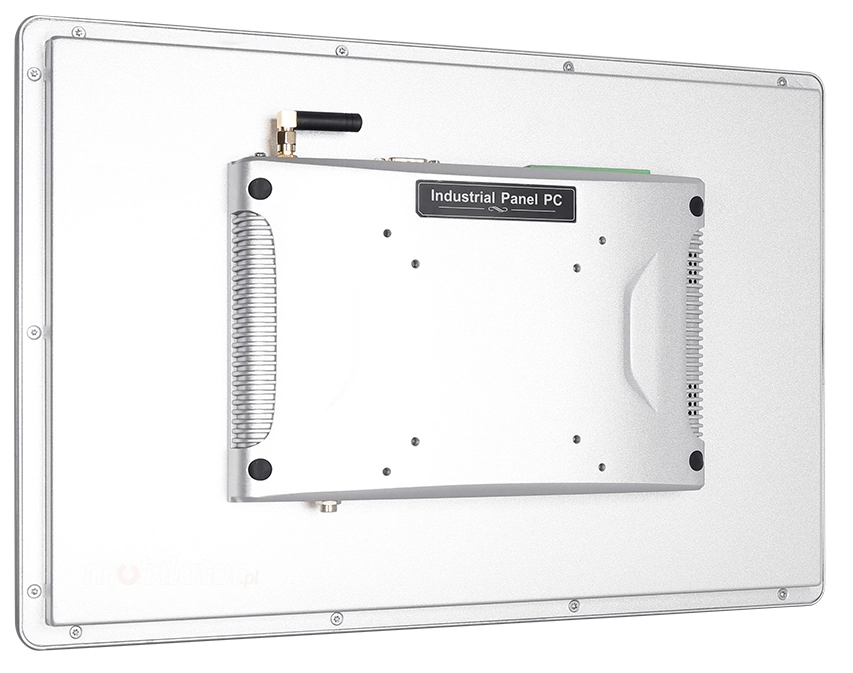

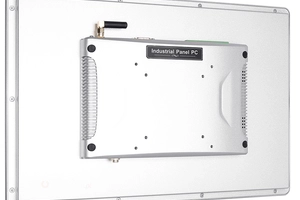

The panel PC has a good-quality metal casing. It is an important element of the cooling system thanks to specially designed cutouts that facilitate air circulation inside the housing. The overall design of the device is focused on simplicity and functionality, appreciated among professionals, as an accessory the panel can be equipped with passive cooling.

EXtreme temperatures

PanelPC Mobitouch 156A-LF+2D is designed for continuous operation both at very low and high temperatures in the range from -10 ° C to 60 ° C. If the device is turned off, it can handle temperatures ranging from -20 ° C to 70 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 95% relative air humidity. It is also possible to purchase additional fanless cooling.

up…   menu…

Communication and connectors

WIreless Wi-Fi network

The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The shockproof industrial panel Mobitouch 156A-LF+2D has been equipped with standards - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb/s.

Bluetooth communication

Bluetooth enables short-range wireless communication between various electronic devices, such as keyboard computer, laptop, PDA, mobile phone and many others. In the fourth version of standard, energy consumption was significantly reduced transfer and the real range of operation was increased

RFID READER

RFID is a technology used to identify objects and control the flow of products. Reading information from special tags that are attached to objects (but not only, because RFID is also used to mark animals and even people) is done by radio. Depending on the type of tag, the amount of information that it can store changes as well as the maximum distance from which the data can be read. RFID tags are an alternative to barcodes - more convenient and more efficient.

   4G

4G technology is based on a radio network with fast transmission and rare occurrence of downtime or transfer errors. The main feature that distinguishes 4G from its predecessor (3G) is the speed of transfer between devices. The fourth generation network offers a mobile Internet speed of 100 Mb/s, and sending packages takes place at a speed of over 25 Mb/s. The technology allows users, among other things: extremely fast, as for radio networks, Internet access, individualized telephony and access to modern multimedia and game services.

   SCANNER

The barcode reader allows you to read, decode, and transfer data stored in a barcode to a computer. Thanks to its dynamic scanning capabilities and wide reading range, the data collector accurately collects data, helping to increase workflow speed and efficiency. The entire system can be quickly deployed, as the simplified installation procedure and intuitive, user-friendly design make setting up the scanner very easy.

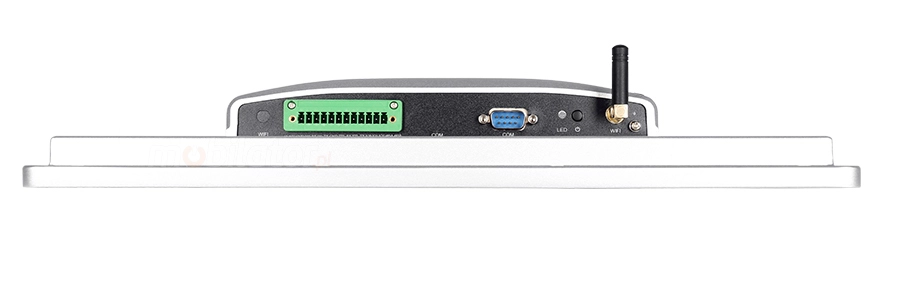

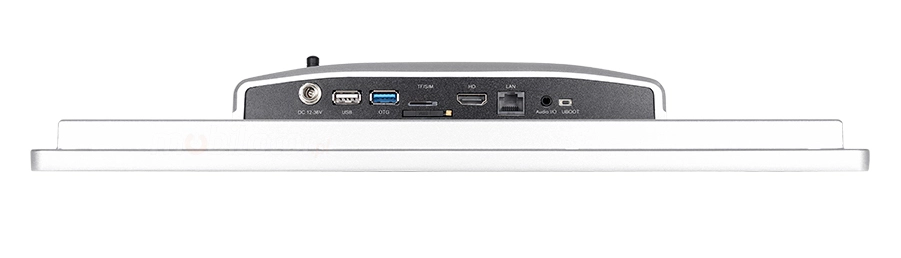

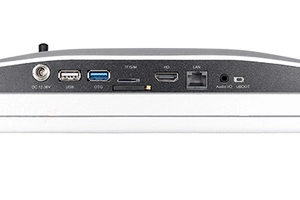

Connectors and interfaces

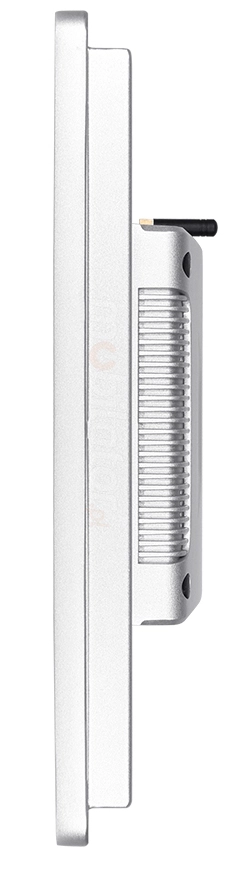

Dimensions

Application

trade and services

PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.

warehouse and management

The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.

Transport and motorization

Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.

up…   menu…

Available versions and accessories

Industrial Panel PC Mobitouch 156A-LF+2D is offered in several versions adapted to different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.
