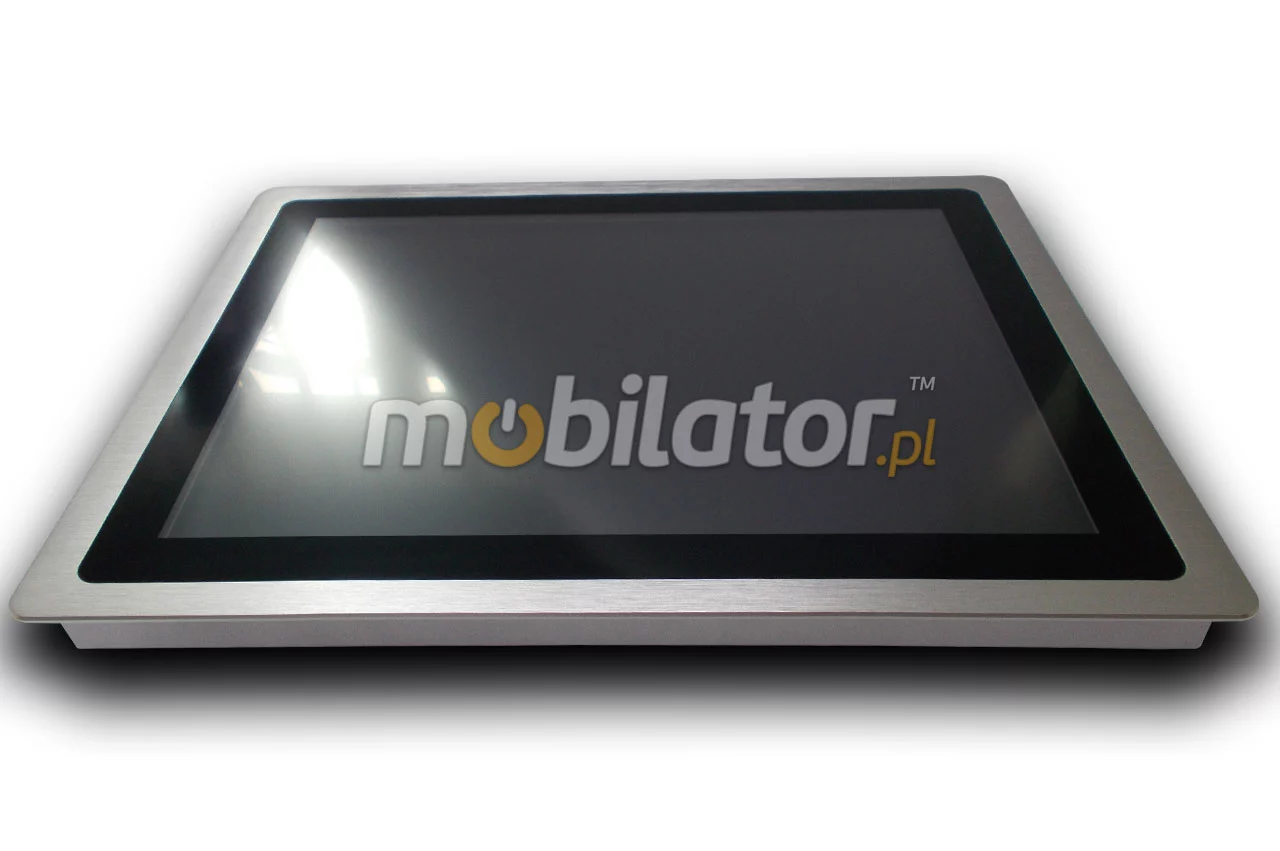

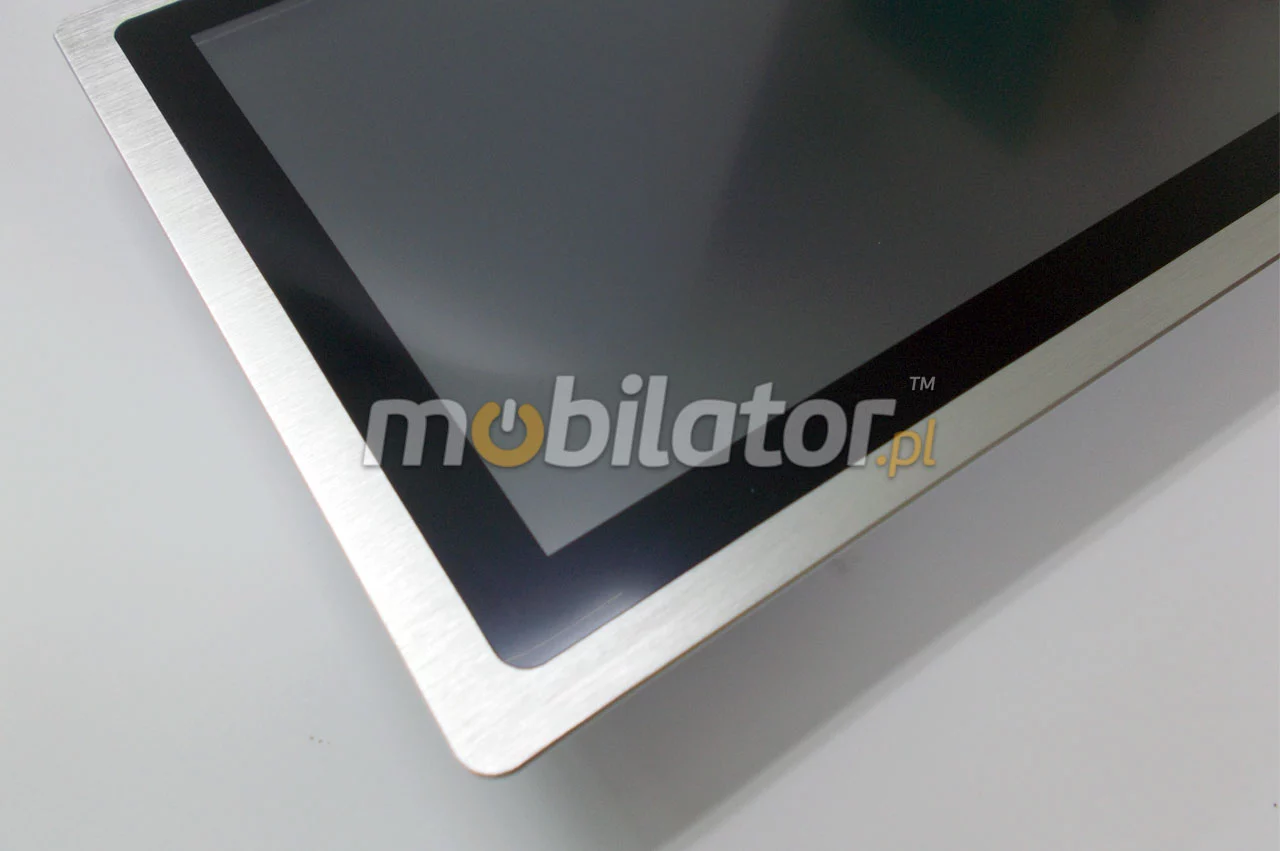

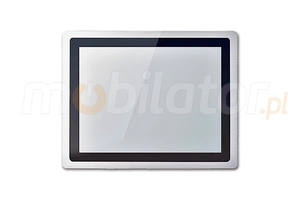

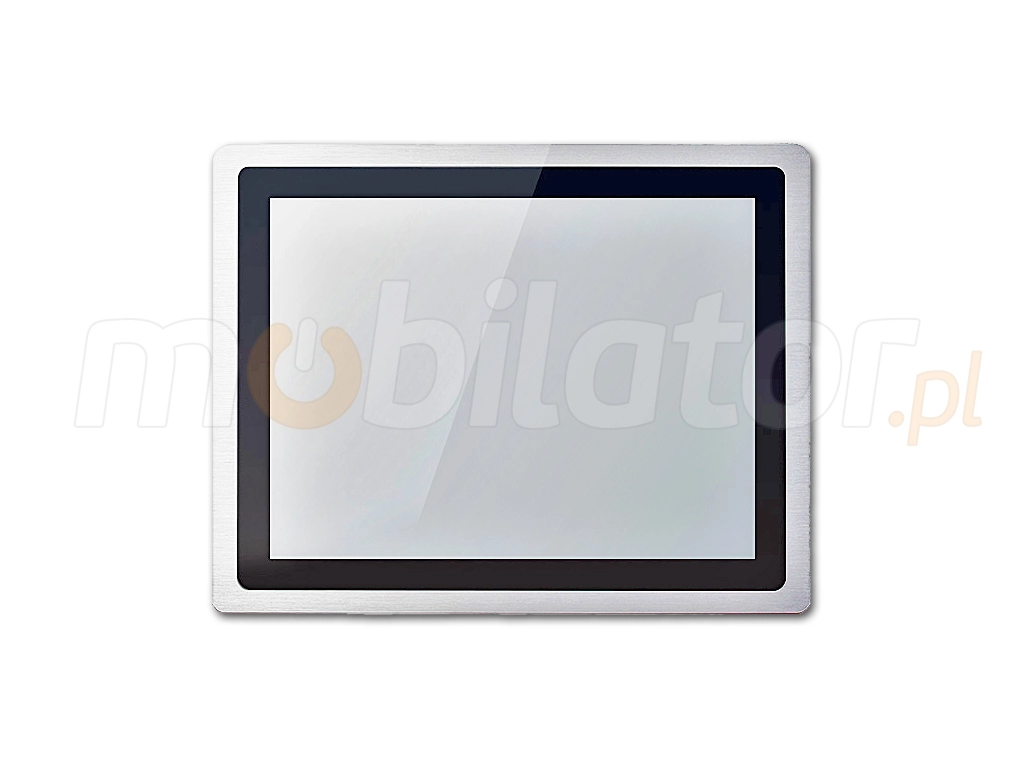

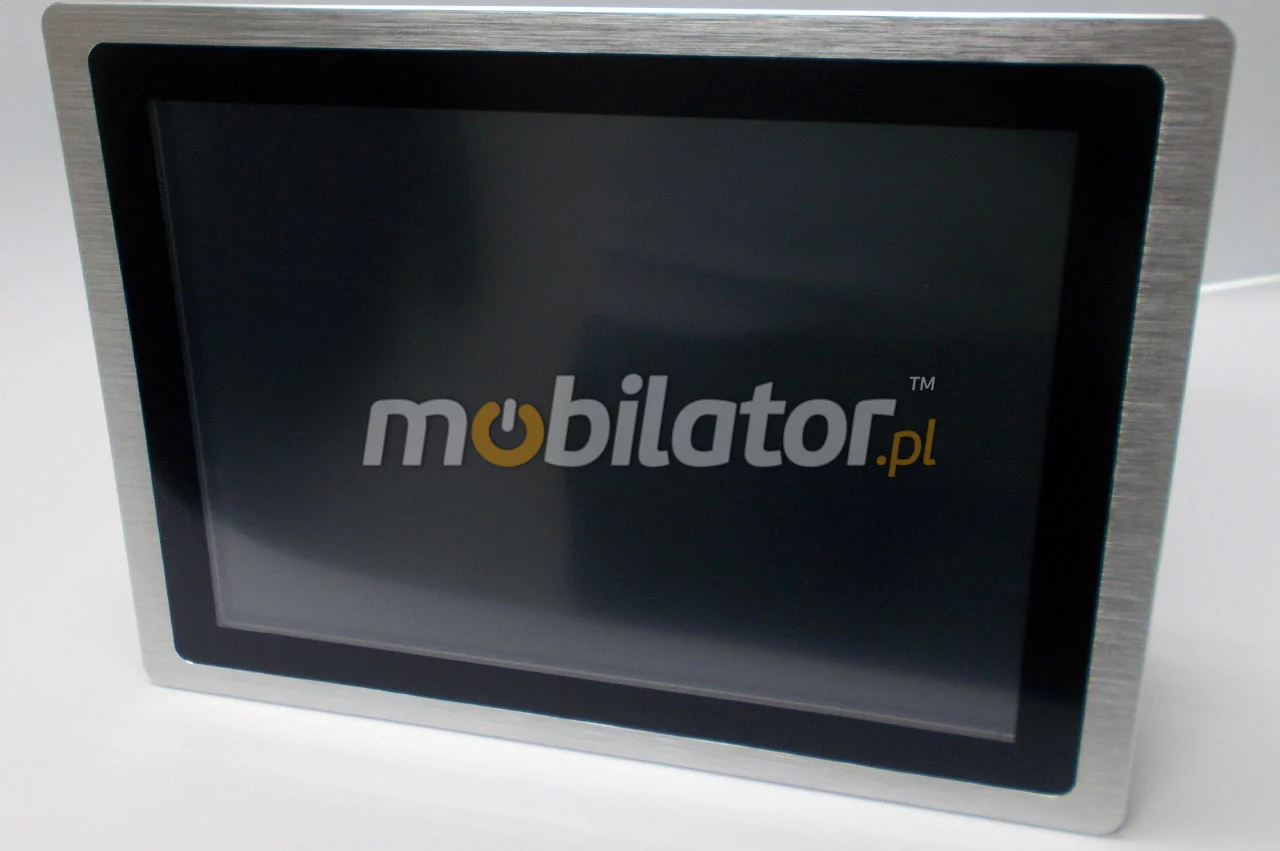

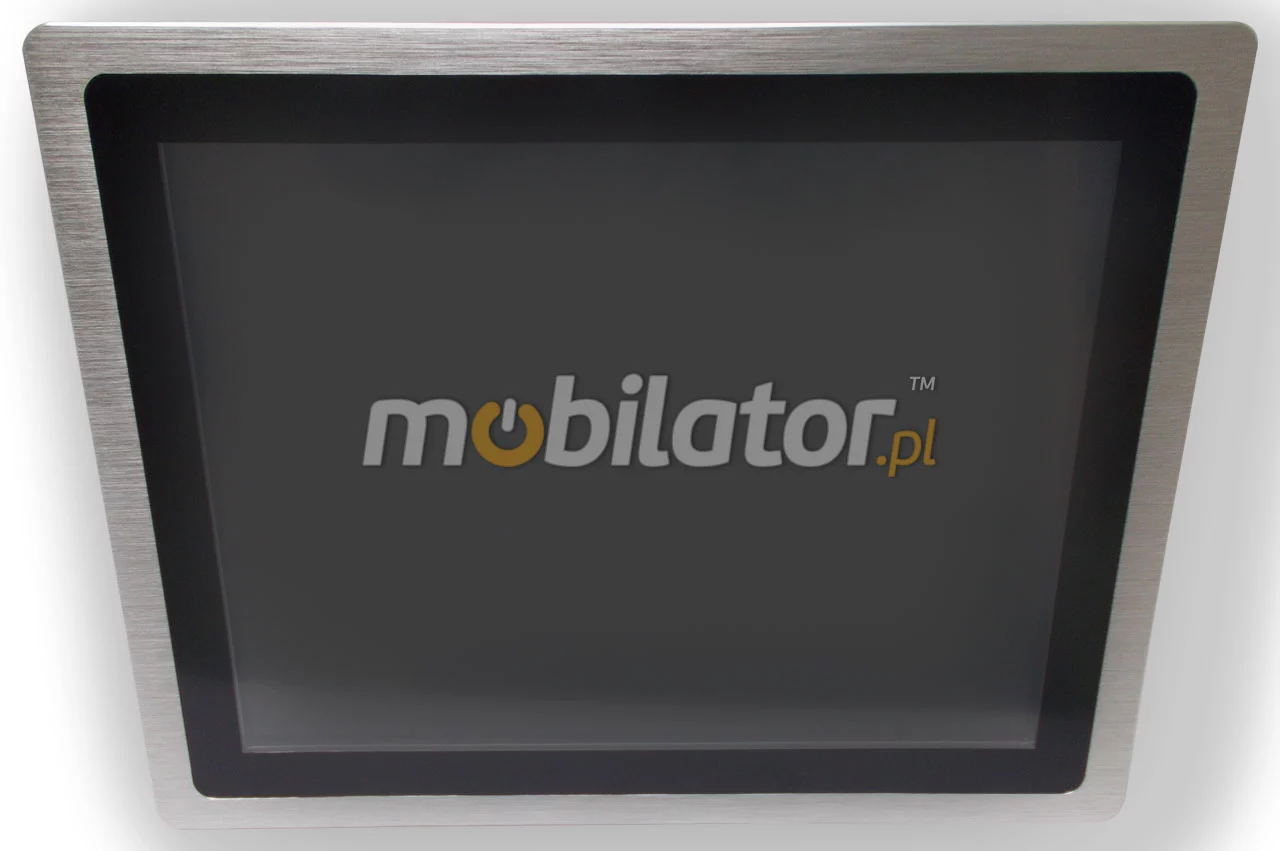

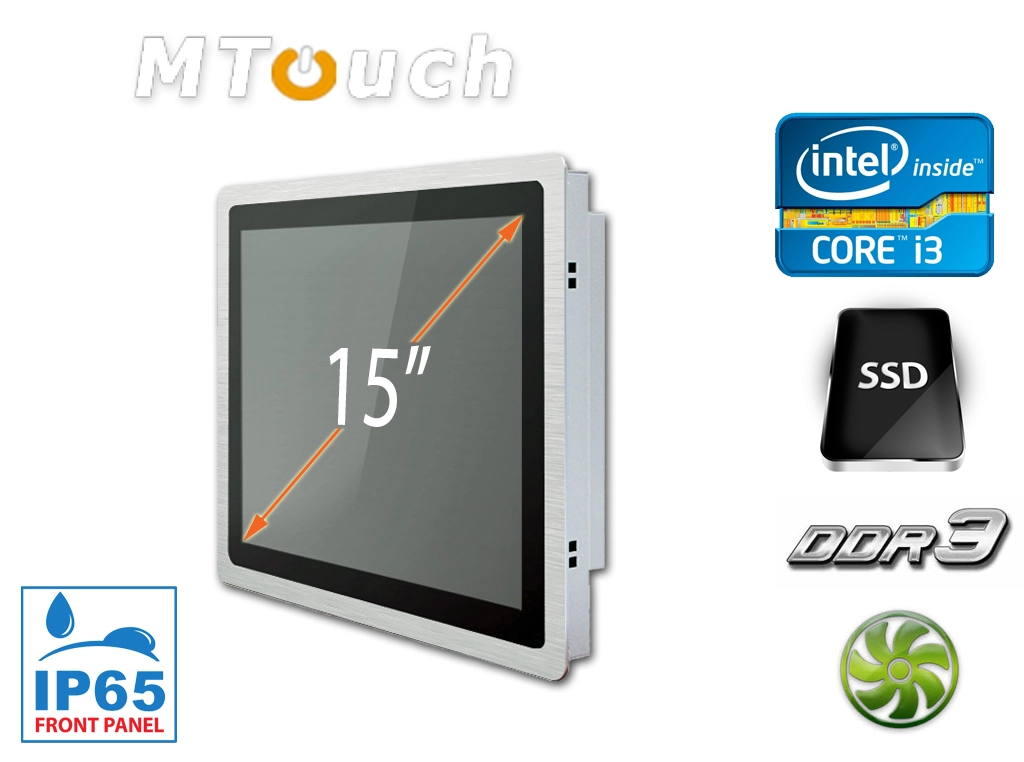

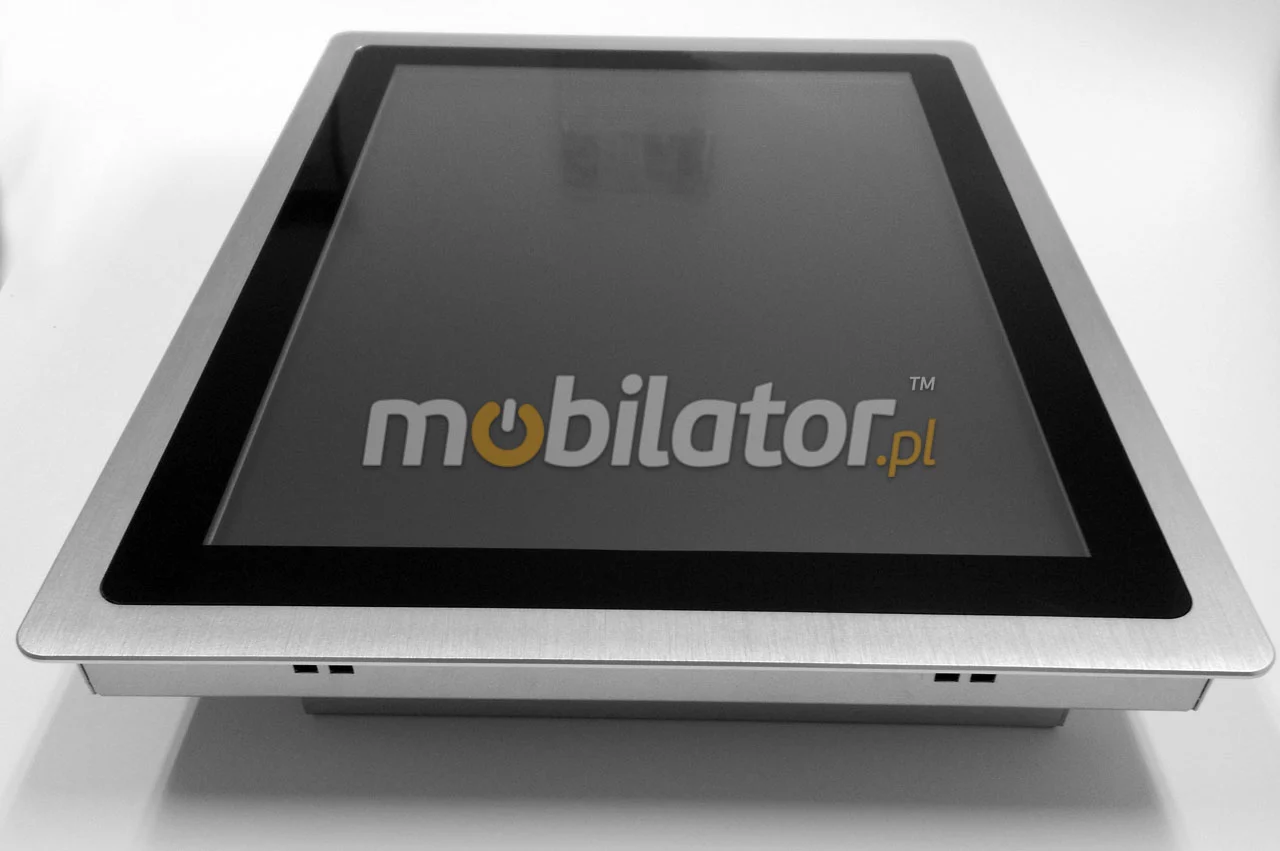

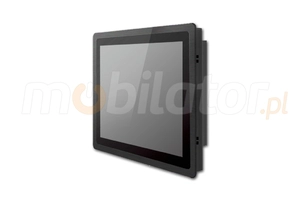

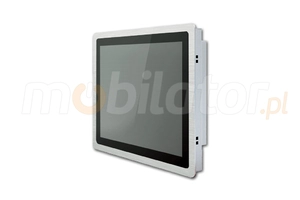

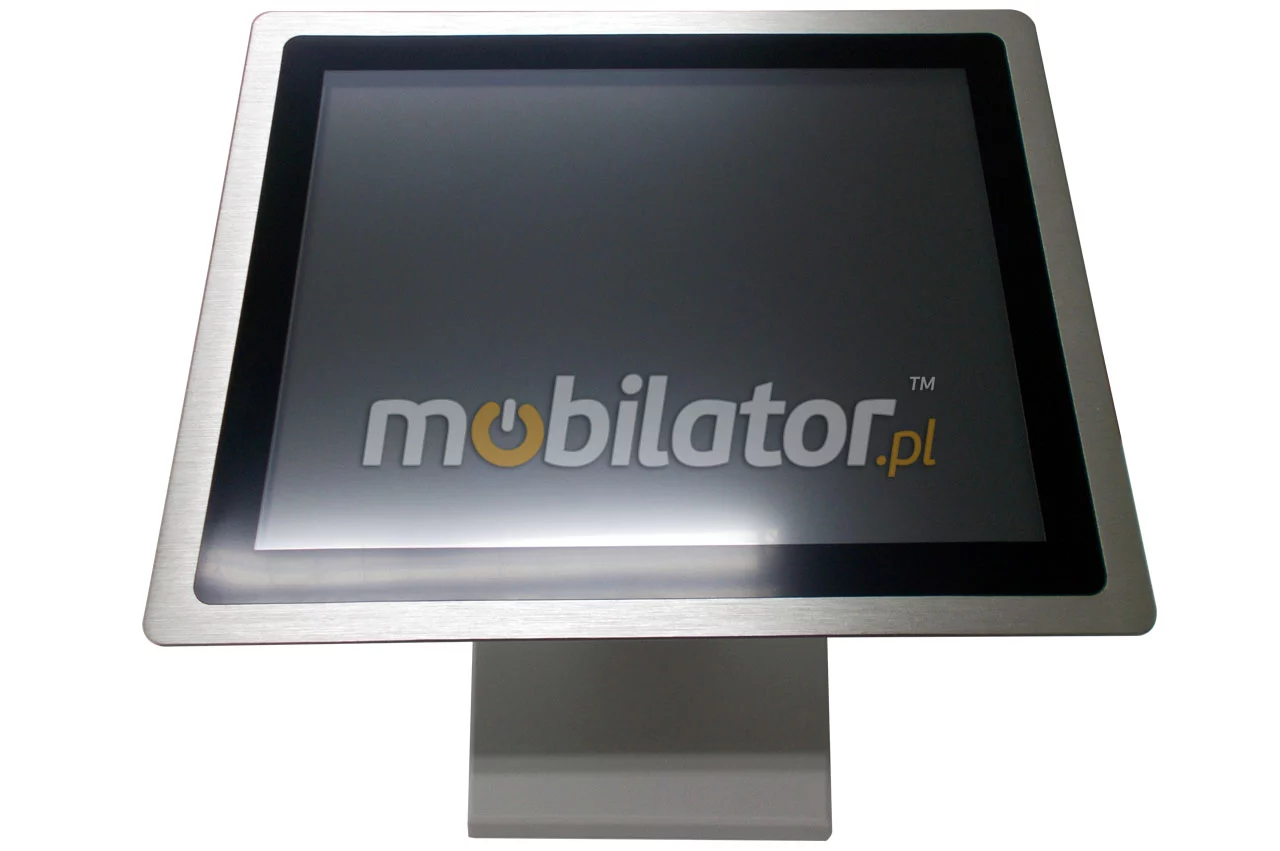

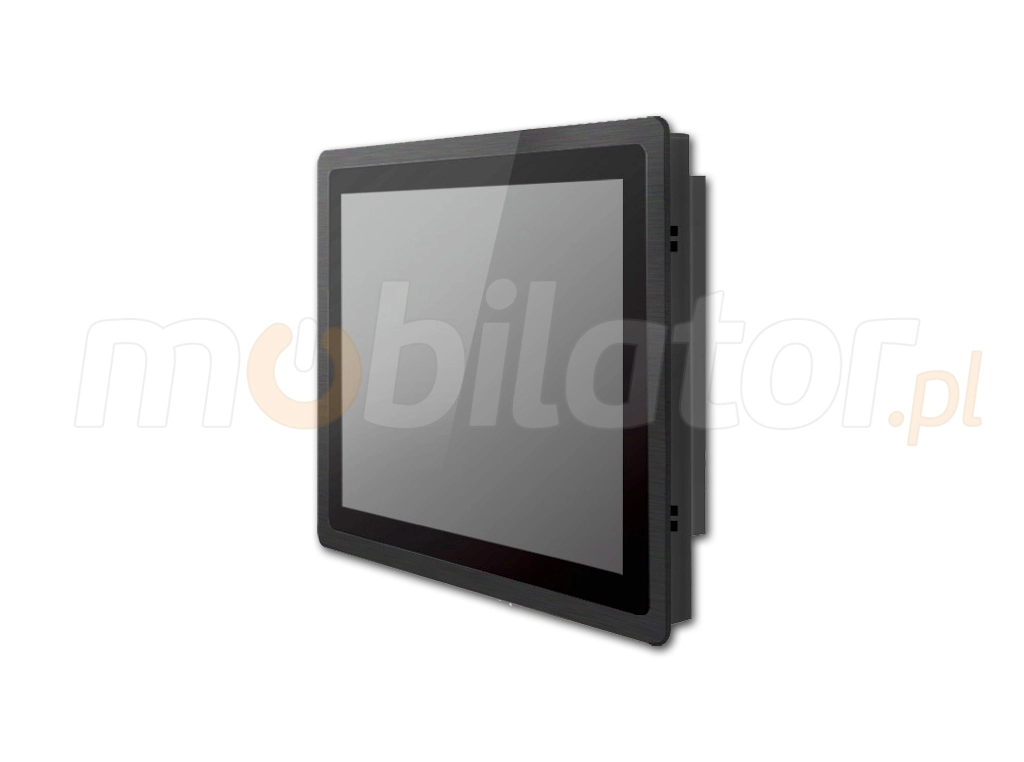

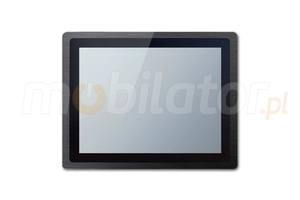

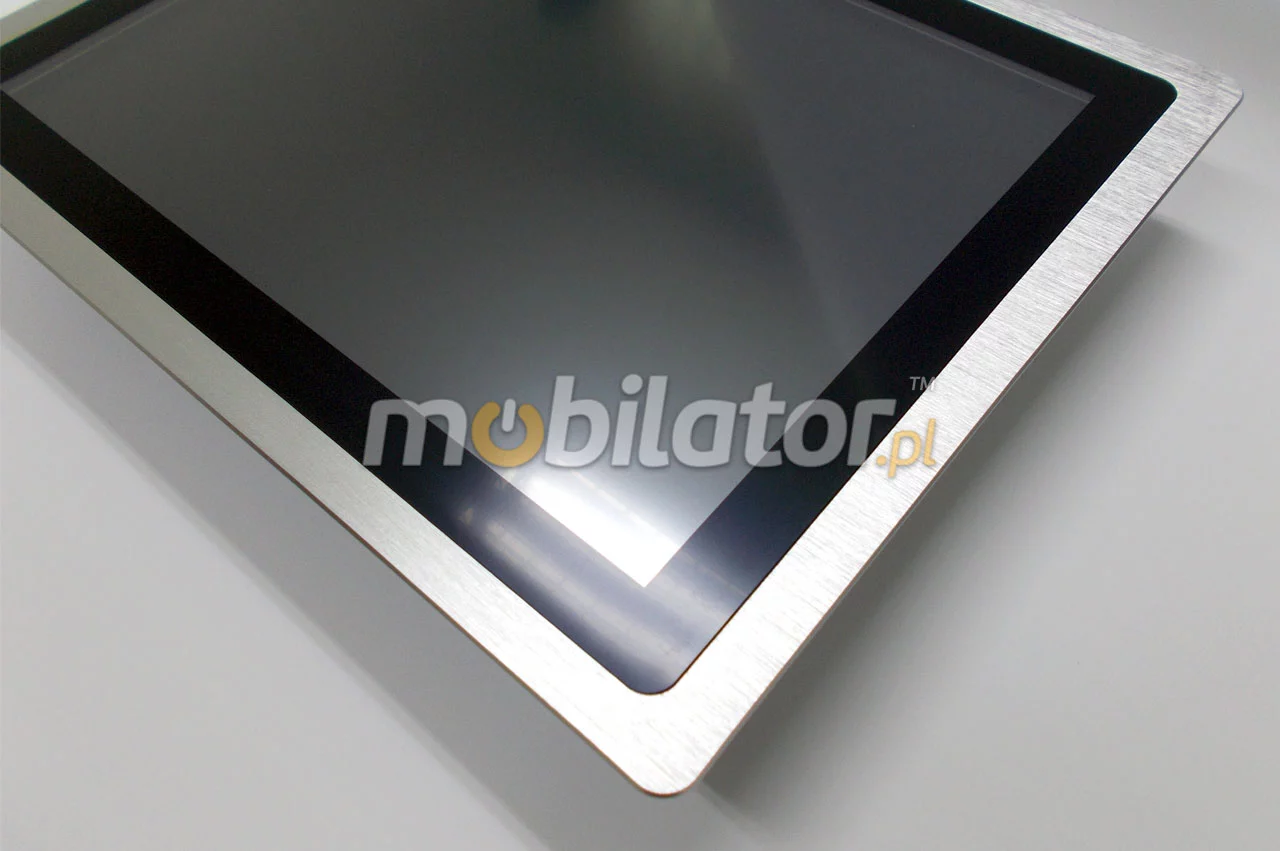

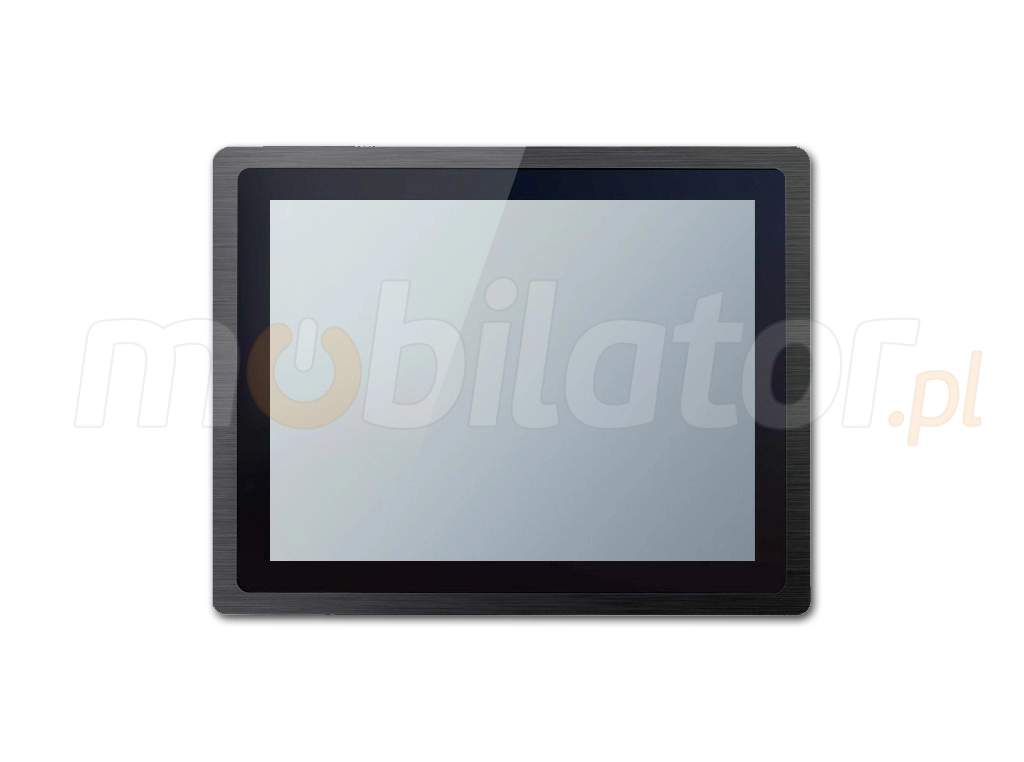

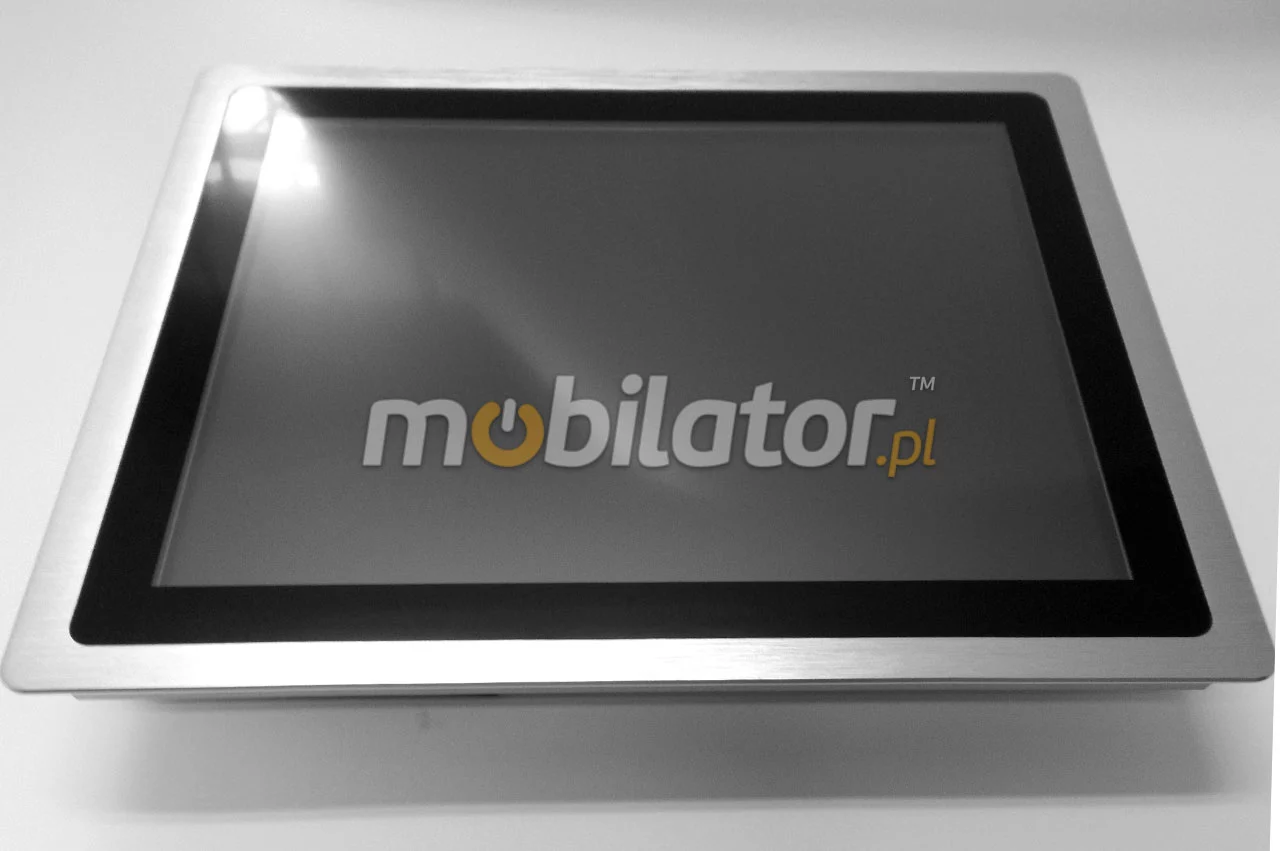

Operator Panel Industrial MobiBOX IP65 i3 15 has a water-resistant front panel and scratch resistant LED screen. With 1024x768 resolution and high brightness of 350 cd/m2, screen of capacitive type with high sensitivity to touch, offers the user a clear picture and ease of use.

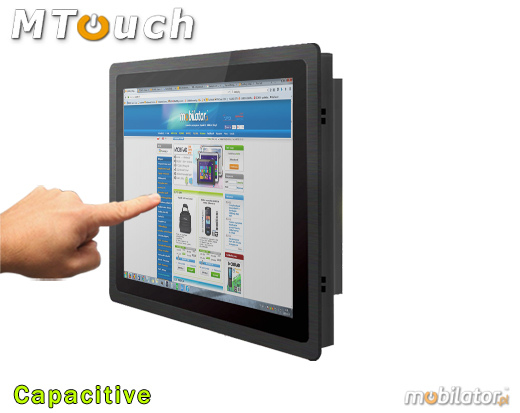

Capacitive screen
With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our screen with a few fingers at once.
|
|

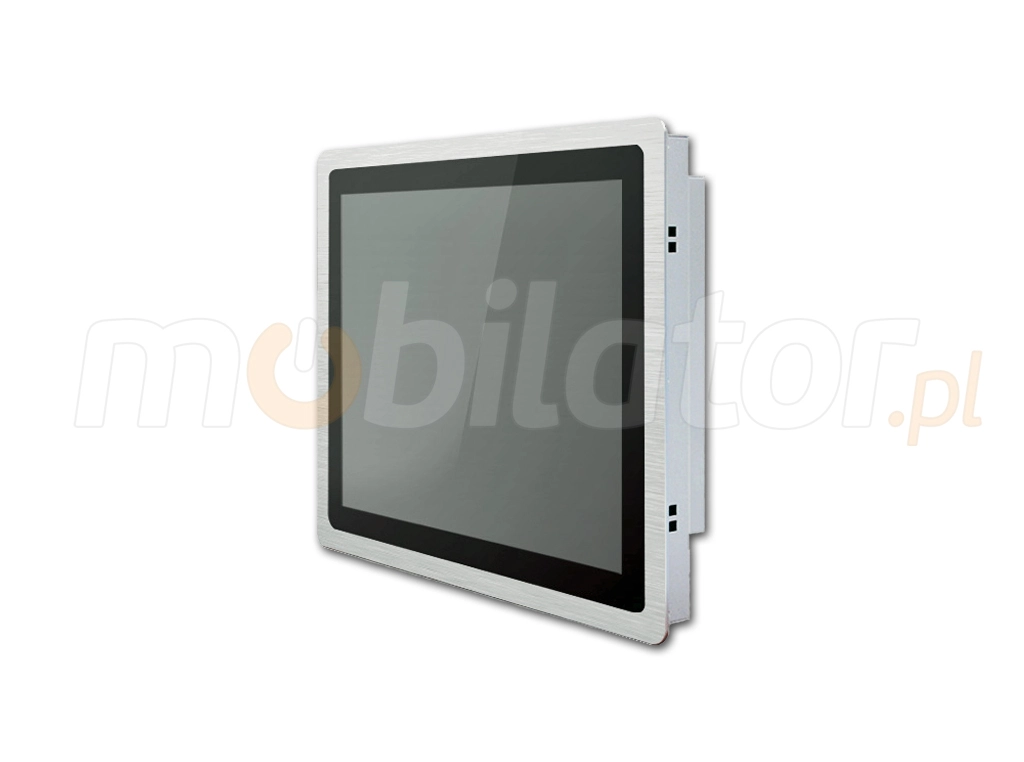

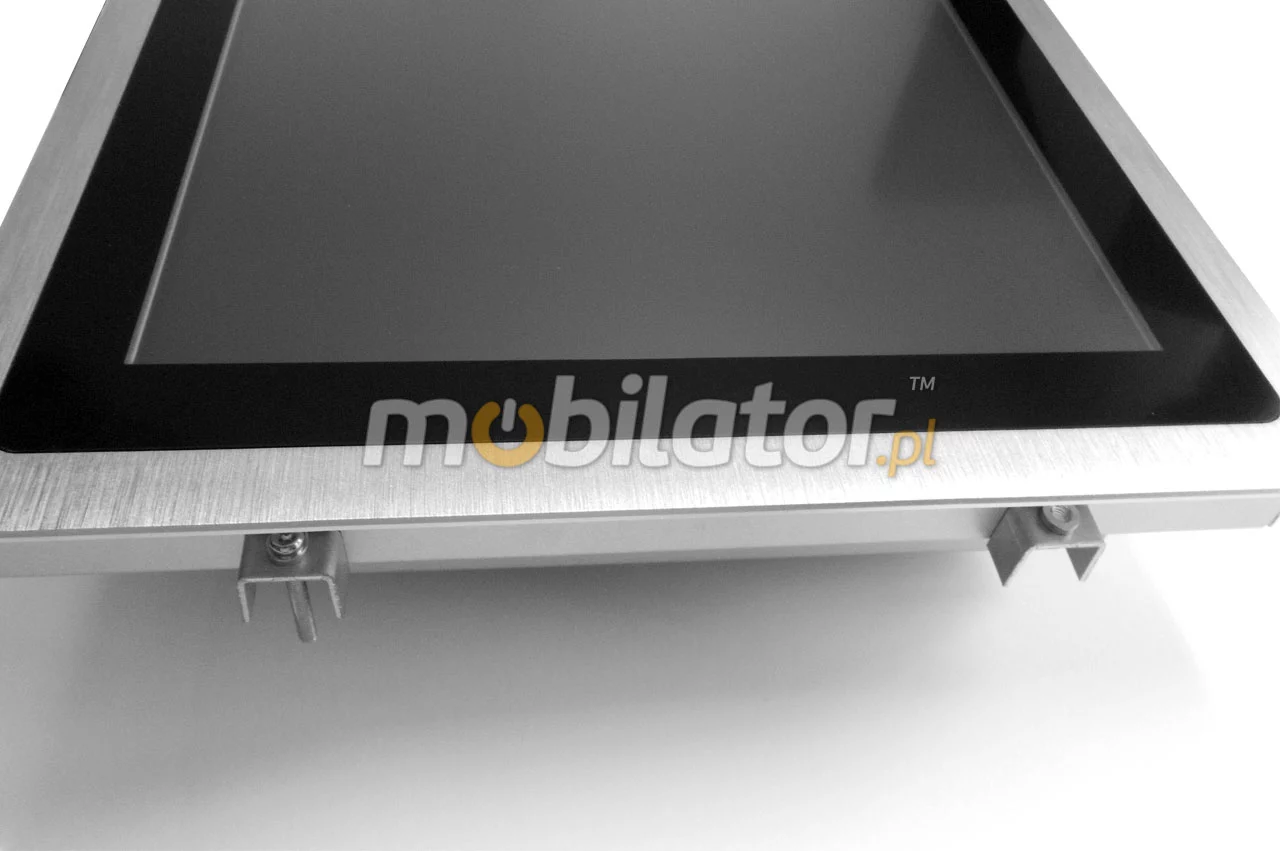

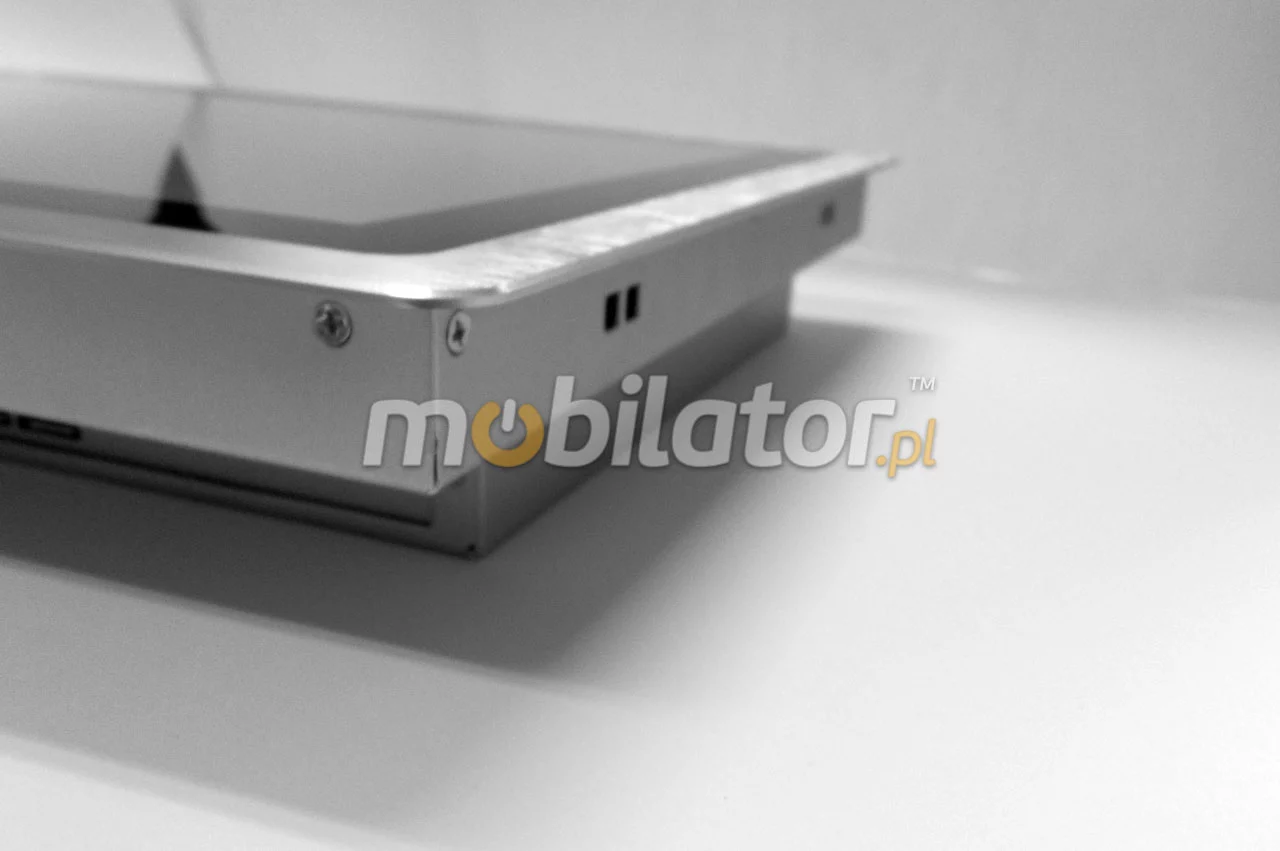

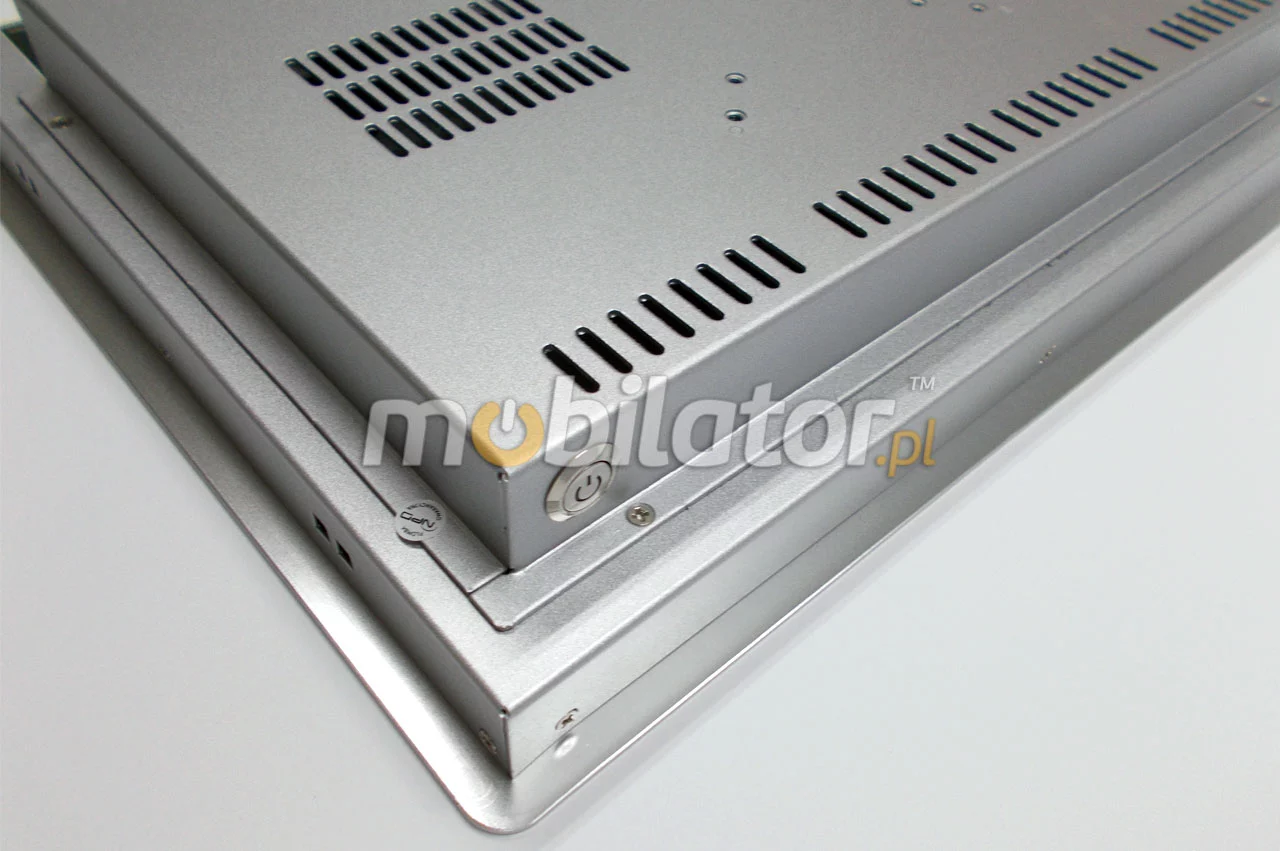

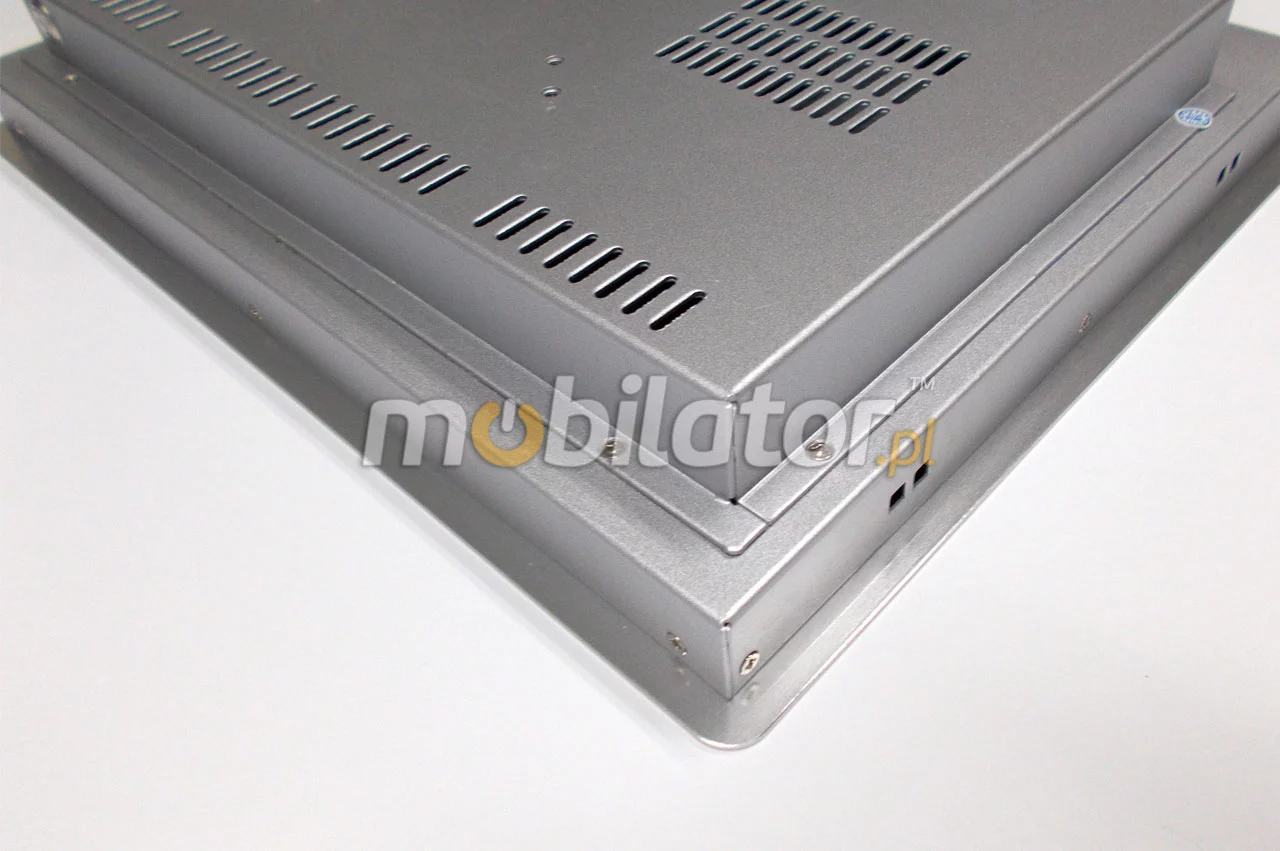

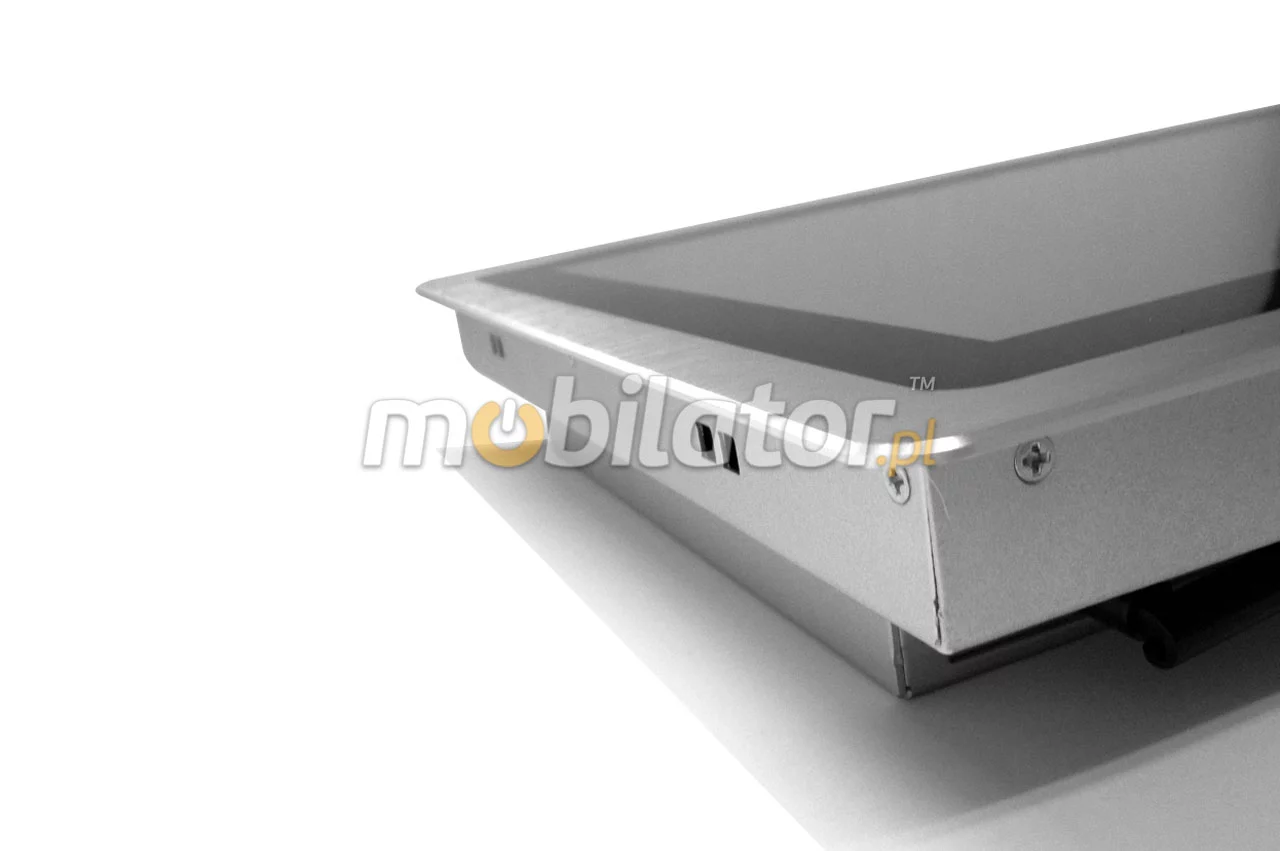

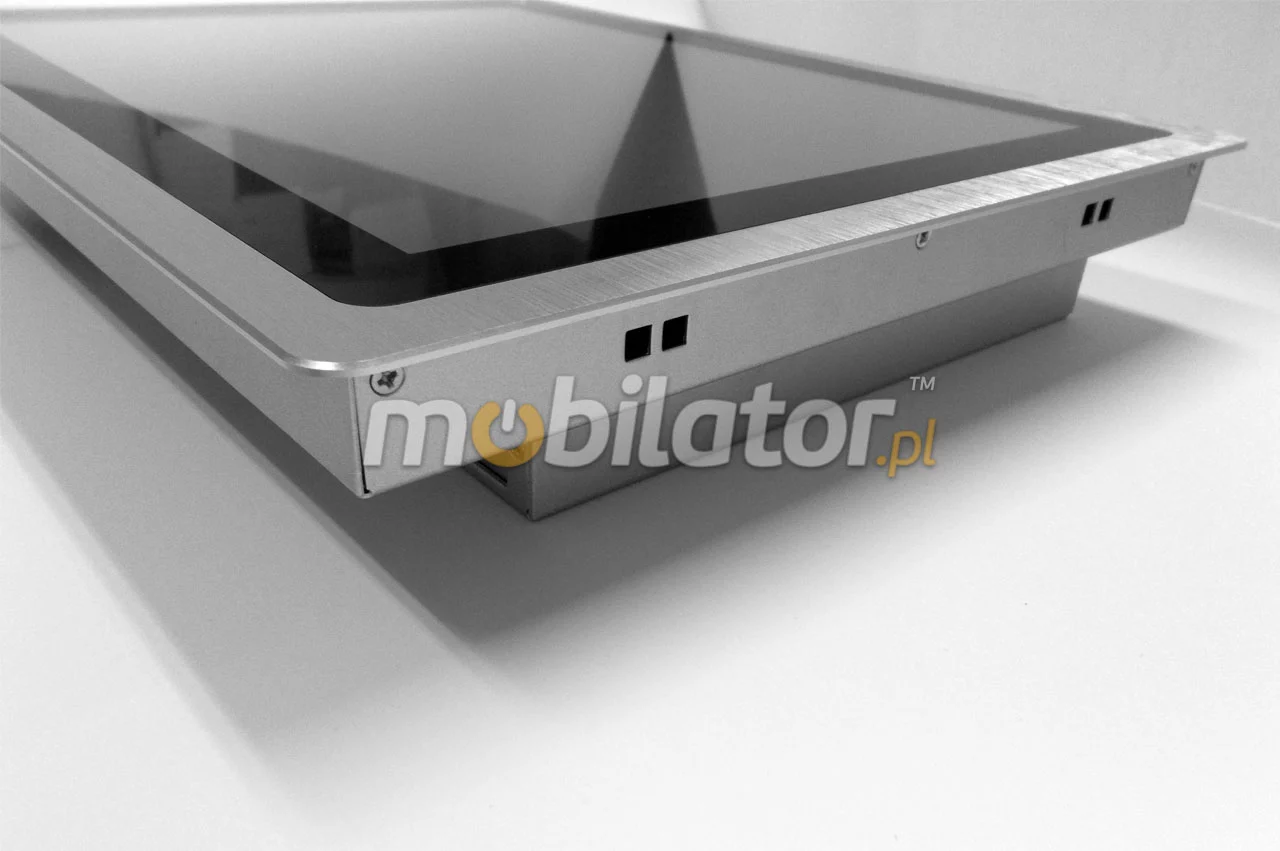

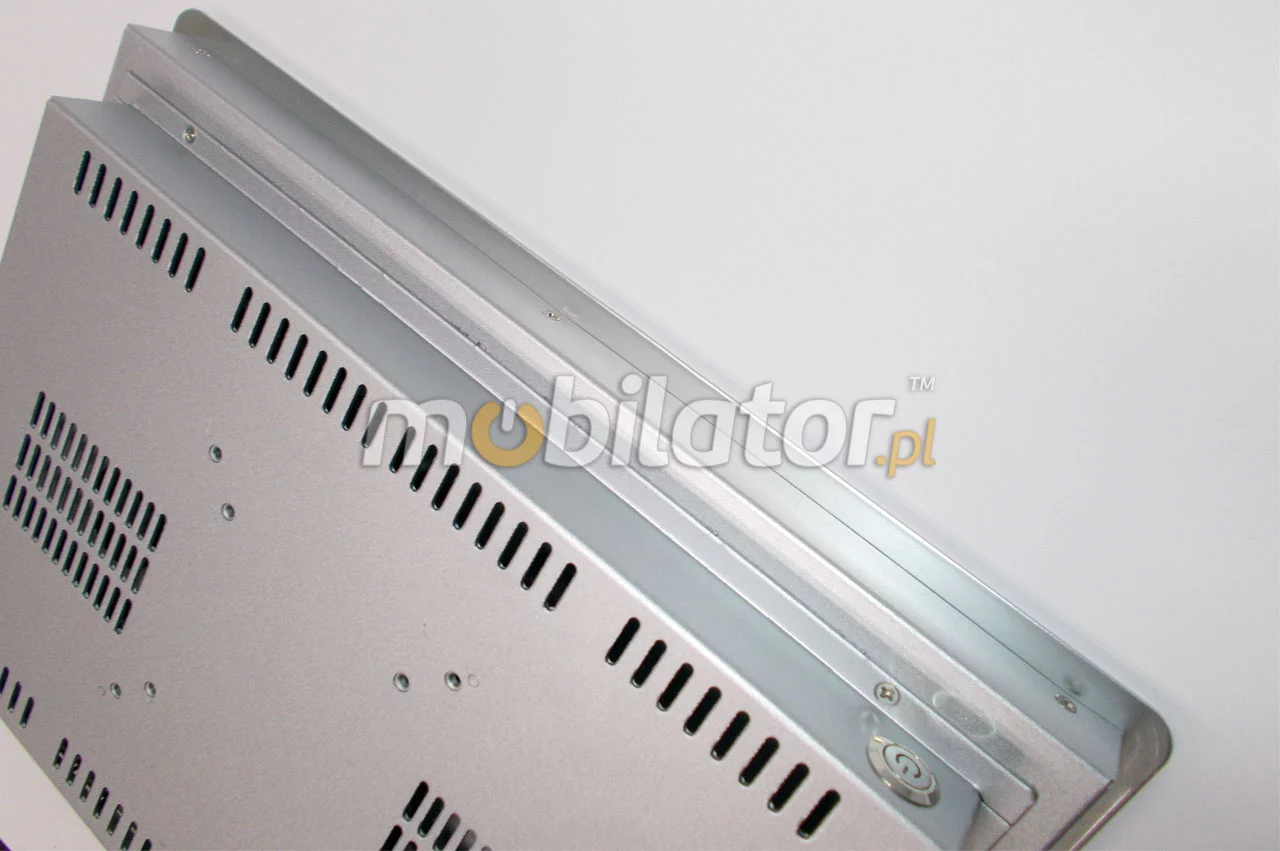

Operator Panel Industrial MobiBOX IP65 i3 15 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial aluminum IP65 housing protects the display from the outside against mechanical damage, drops of water, oil, sand and dust. Operator Panel Industrial MobiBOX IP65 i3 15 is the best solution for extreme applications in dust or moisture.
| Operating Temp |
-10-60 °C |
| Operating Humidity |
10%-80% |
| Dust |
IP6x(dust) |
| Water |
IPx5(drops of water) |
|
|
Resistance IP65 (front panel)
The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).
go top…  menu…
The first digit [x]
Protection against solid objects |
|
The second digits [y]
Protection against liquids |
| No special protection |
| 0 |
 |
0
|
|
No waterproofing |
| Protection from solid objects greater than 50mm in diameter |
| 1 |
 |
1
|
|
Protection from dripping water
|
| Protection from object not greater than 12mm in diamete |
| 2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
| Protection from object not greater than 2,5mm in diameter |
| 3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
| Protection from object not greater than 1mm in diameter |
| 4 |
 |
4
|
|
Protection from splashed water |
| Complete protection against contact, Protection against dust deposit |
| 5 |
 |
5
|
|
Protection from water projected from a nozzle |
| Complete protectionm against contact, Protection from infiltration of dust |
| 6 |
 |
6
|
|
Protection against heavy seas, or powerful jets of water |
| |
| |
 |
7
|
|
Protection against immersion |
| |
| |
 |
8
|
|
|
Protection against complete, continuous submersion in water |
Industrial Panel PCs with MTouch companies are based on the efficient two-core processors and high-quality components.

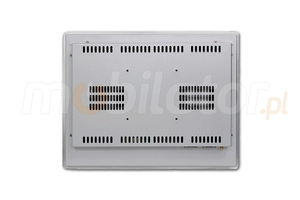

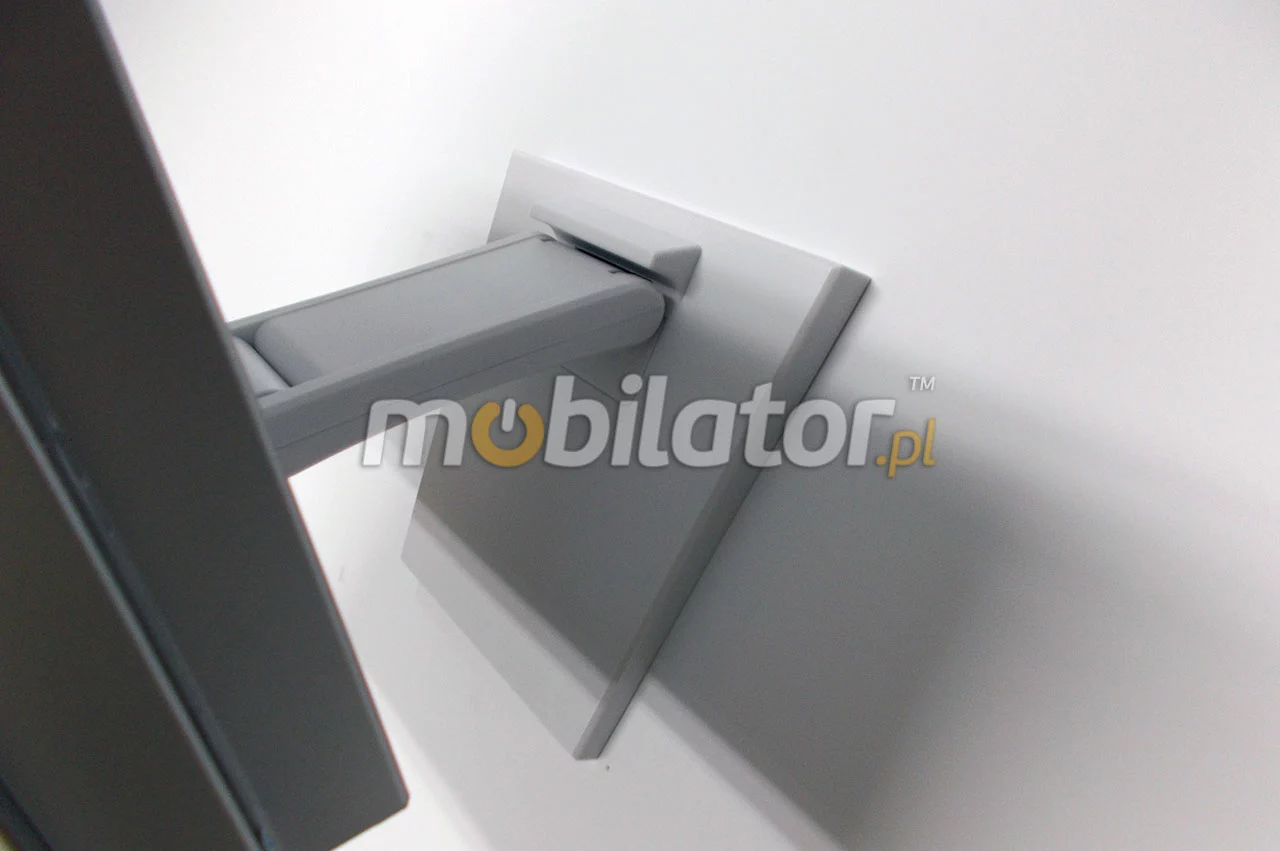

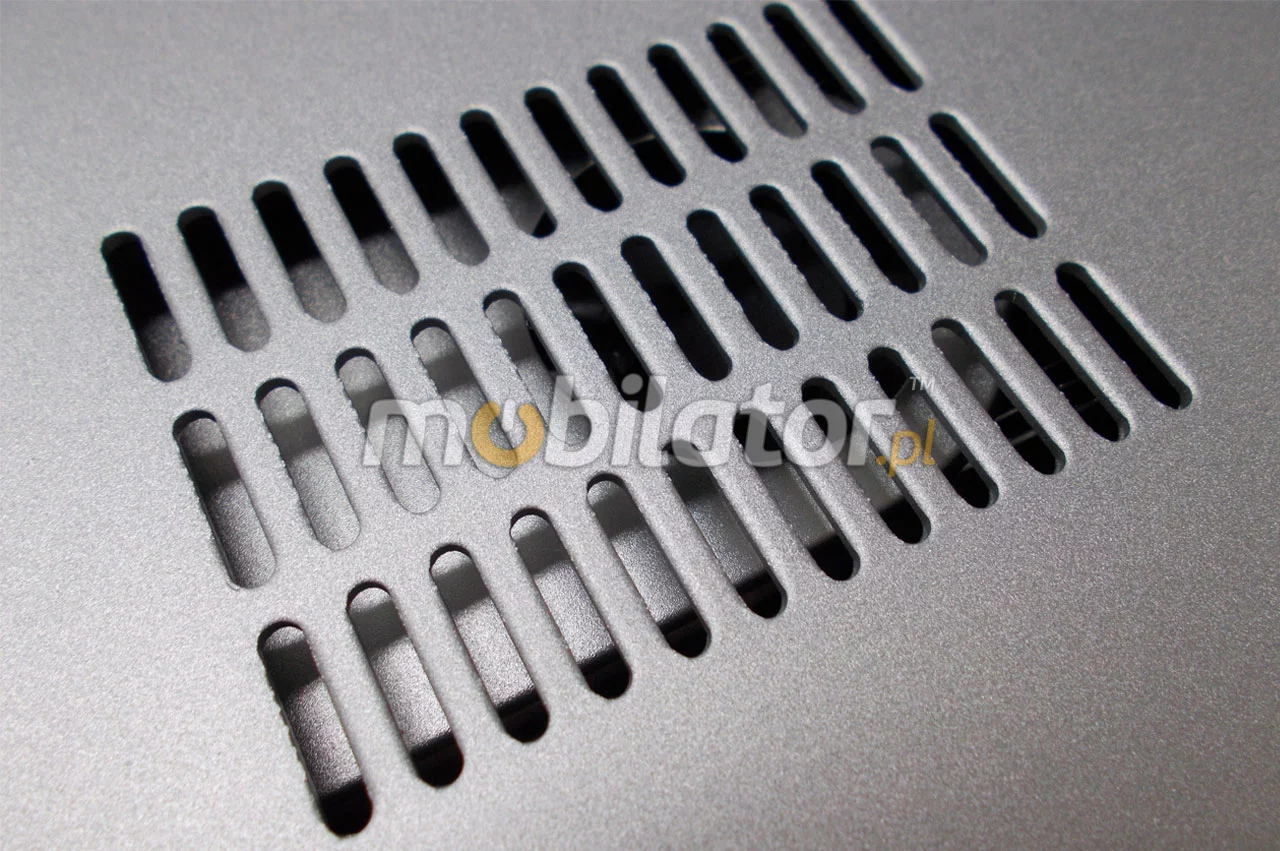

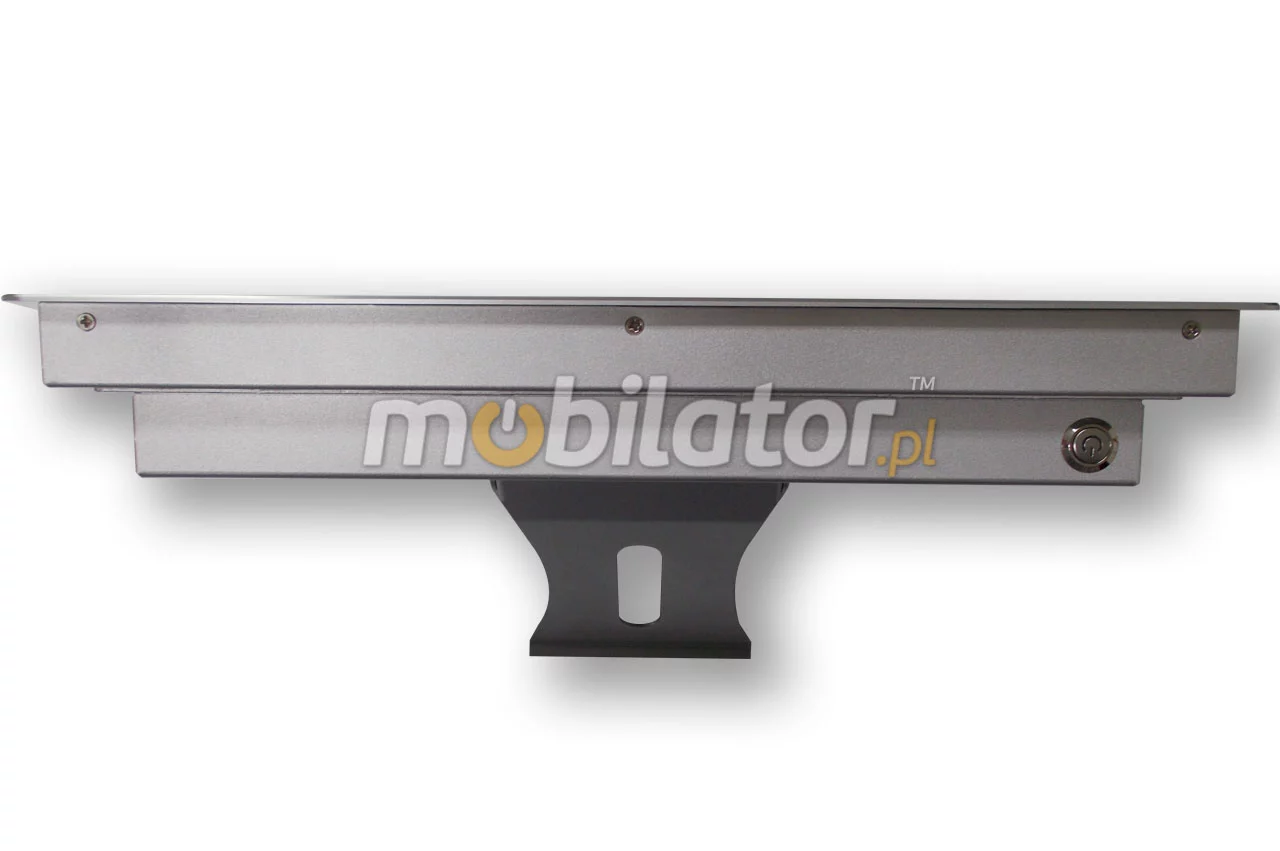

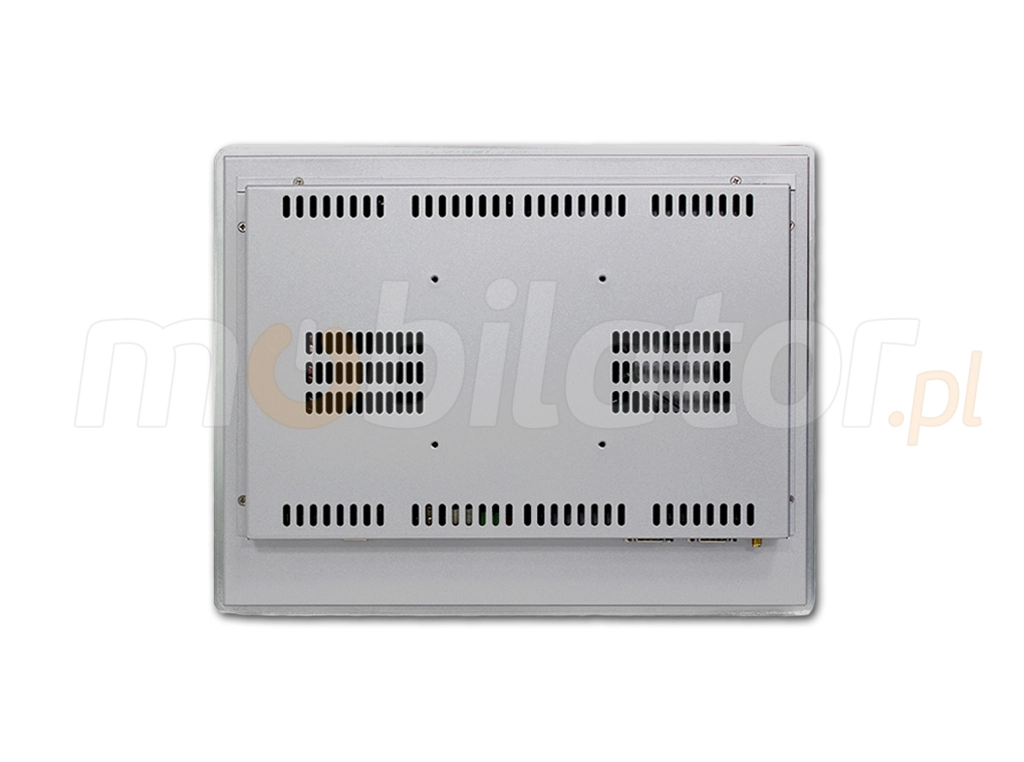

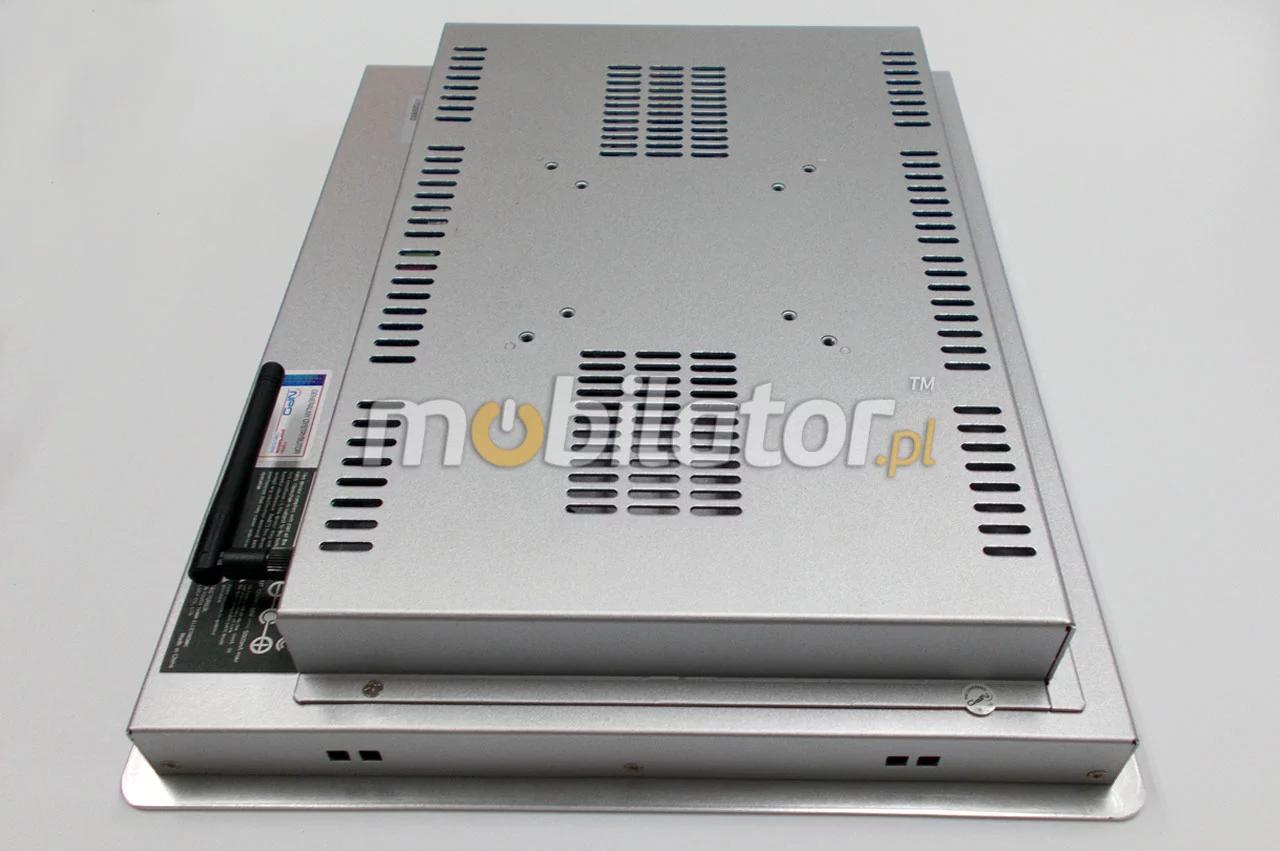

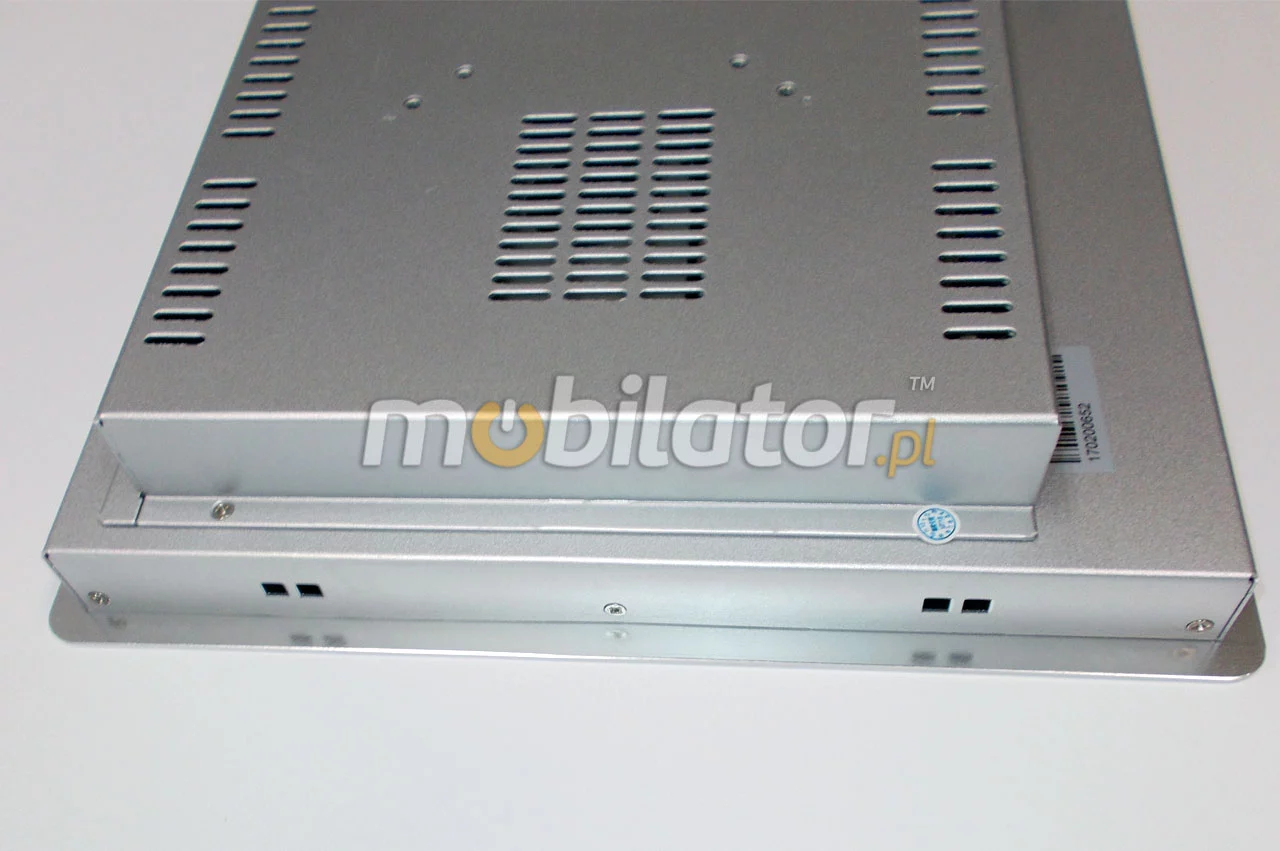

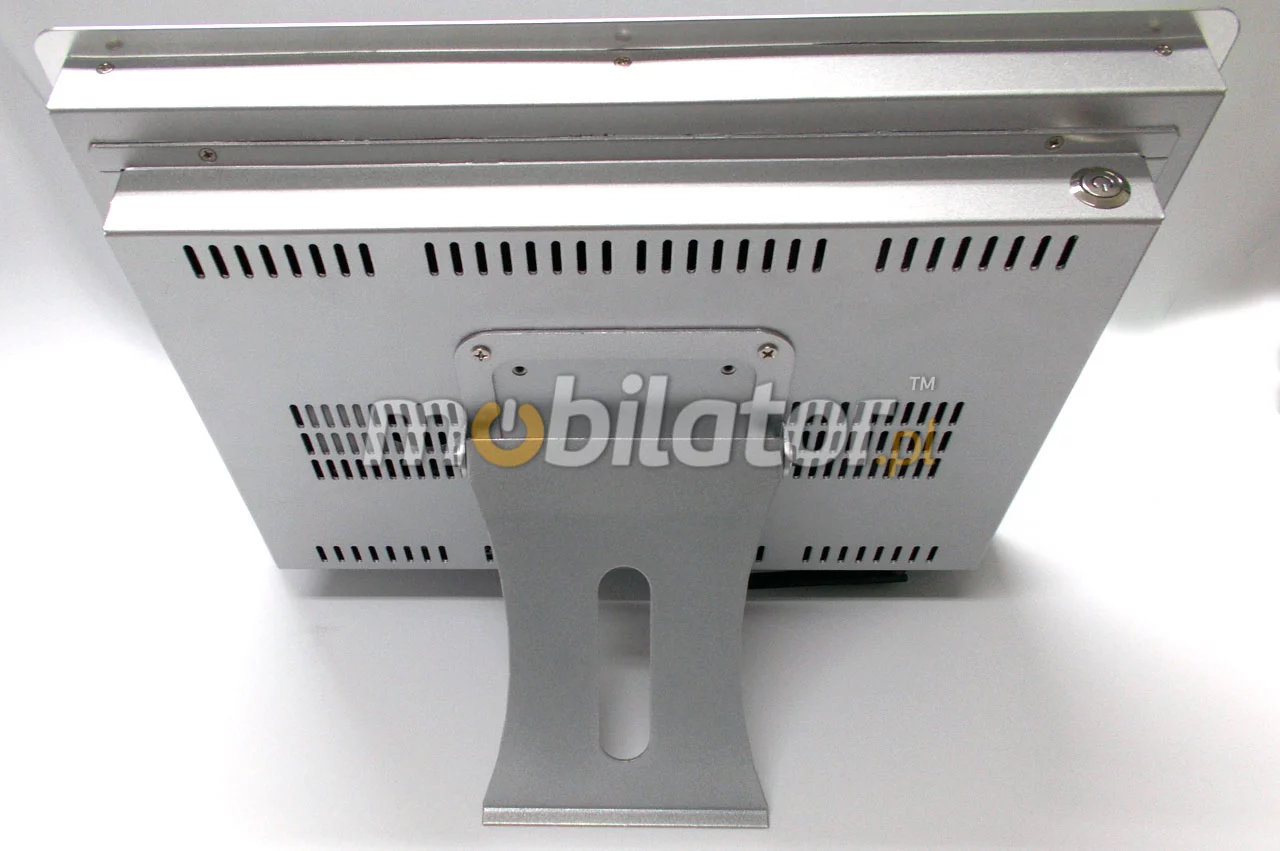

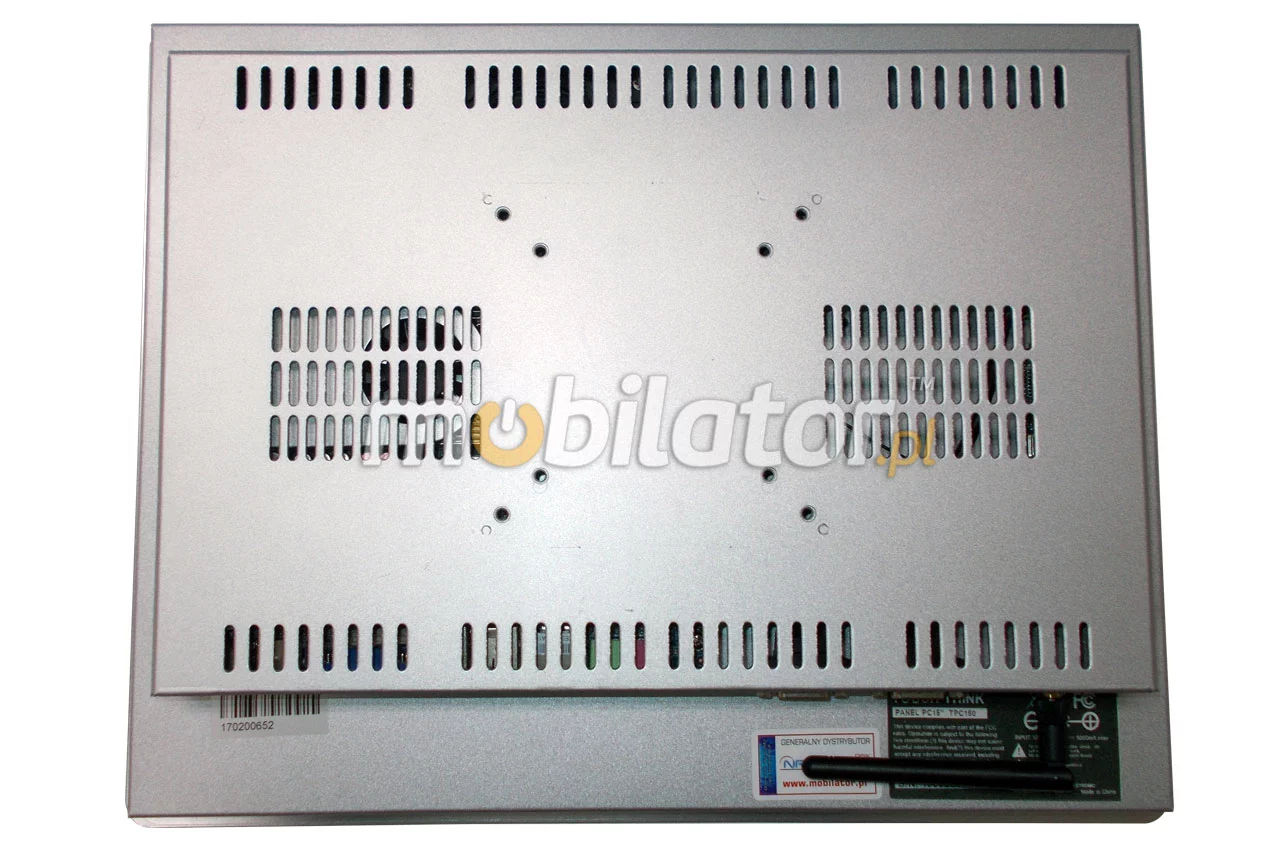

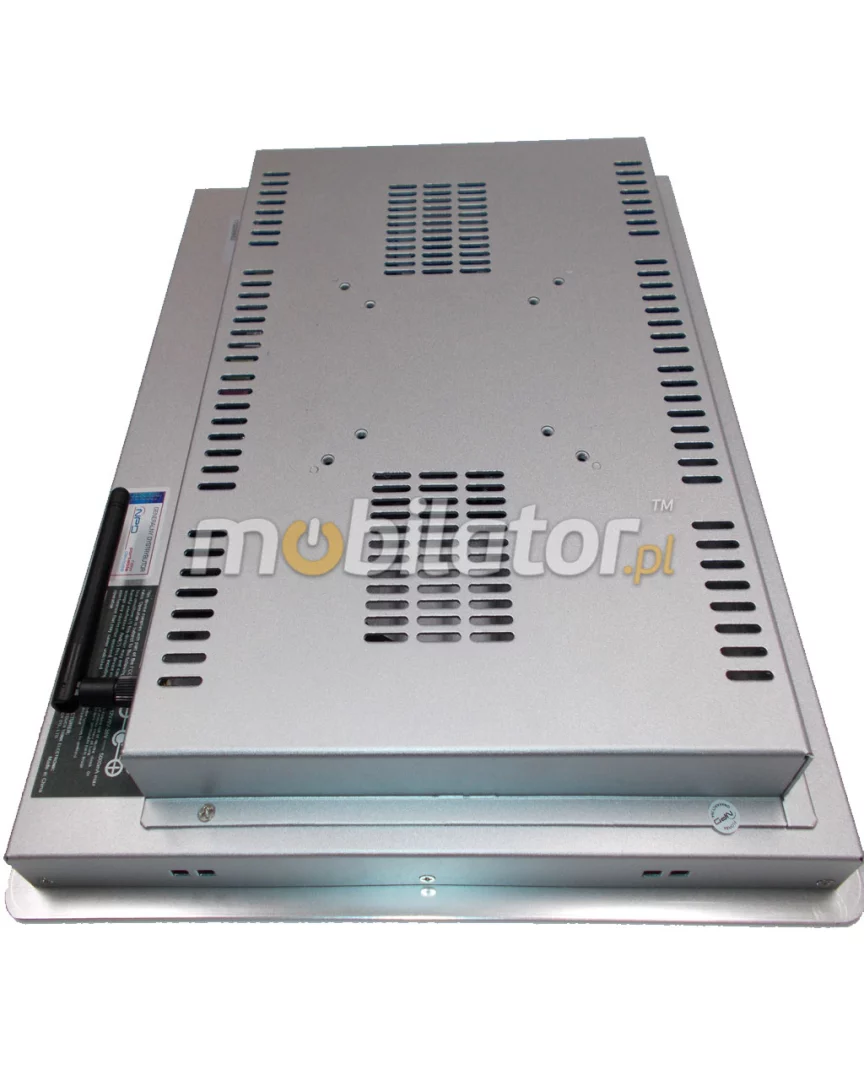

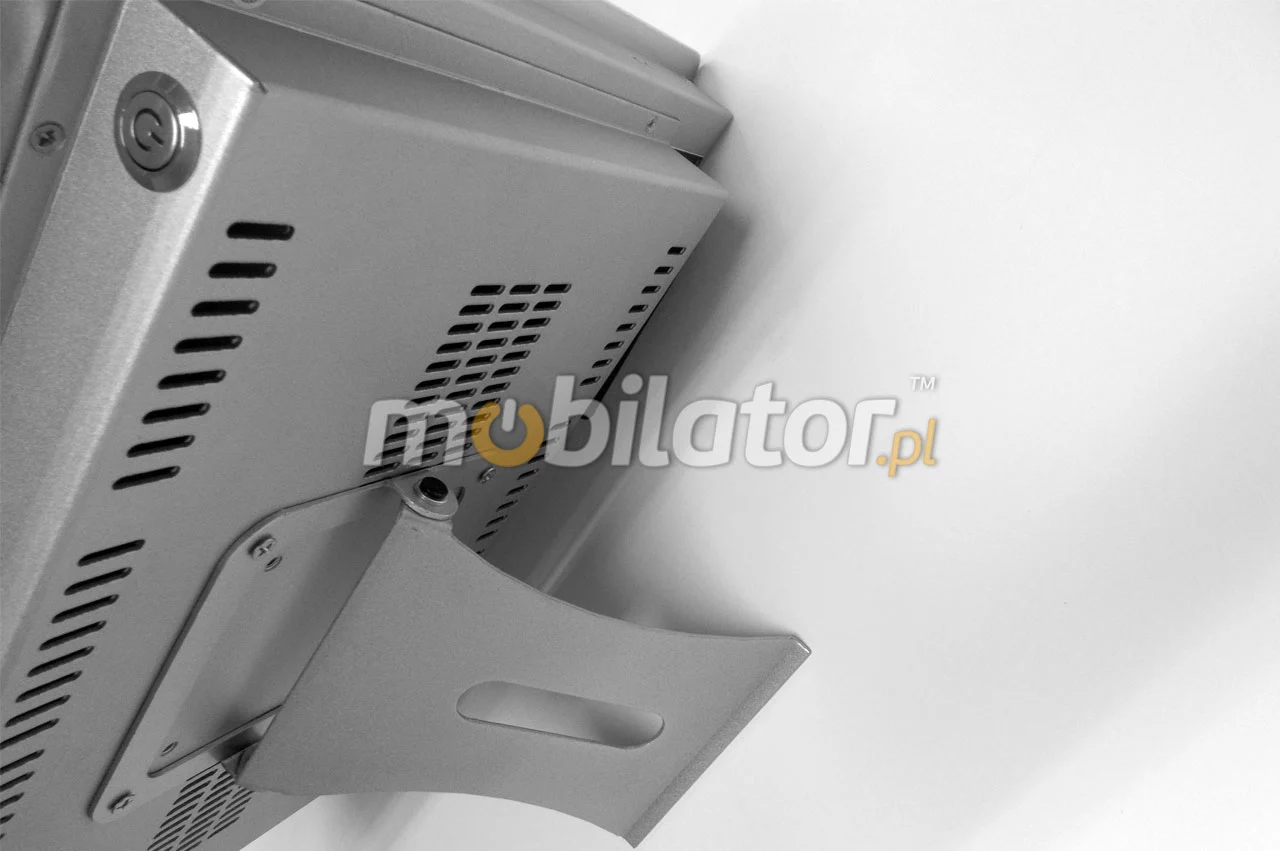

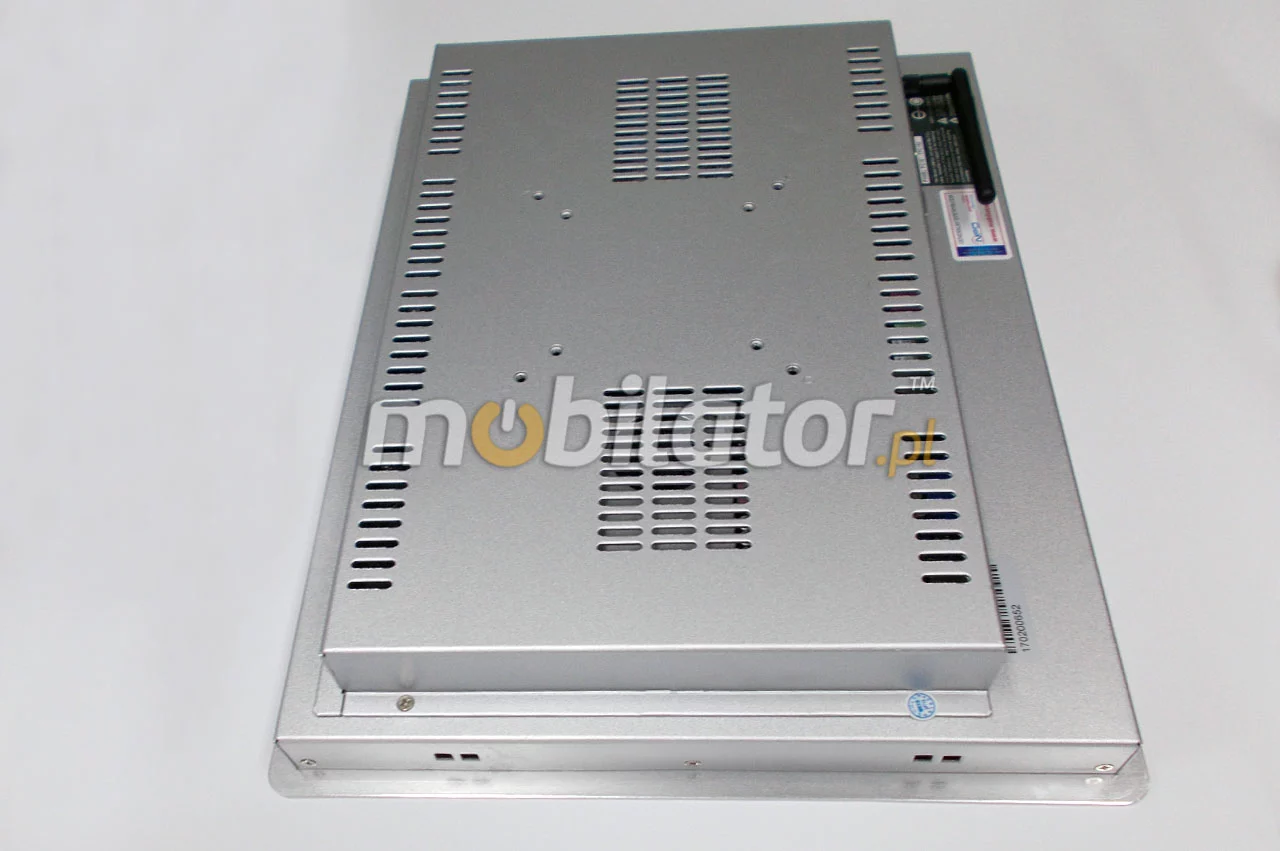

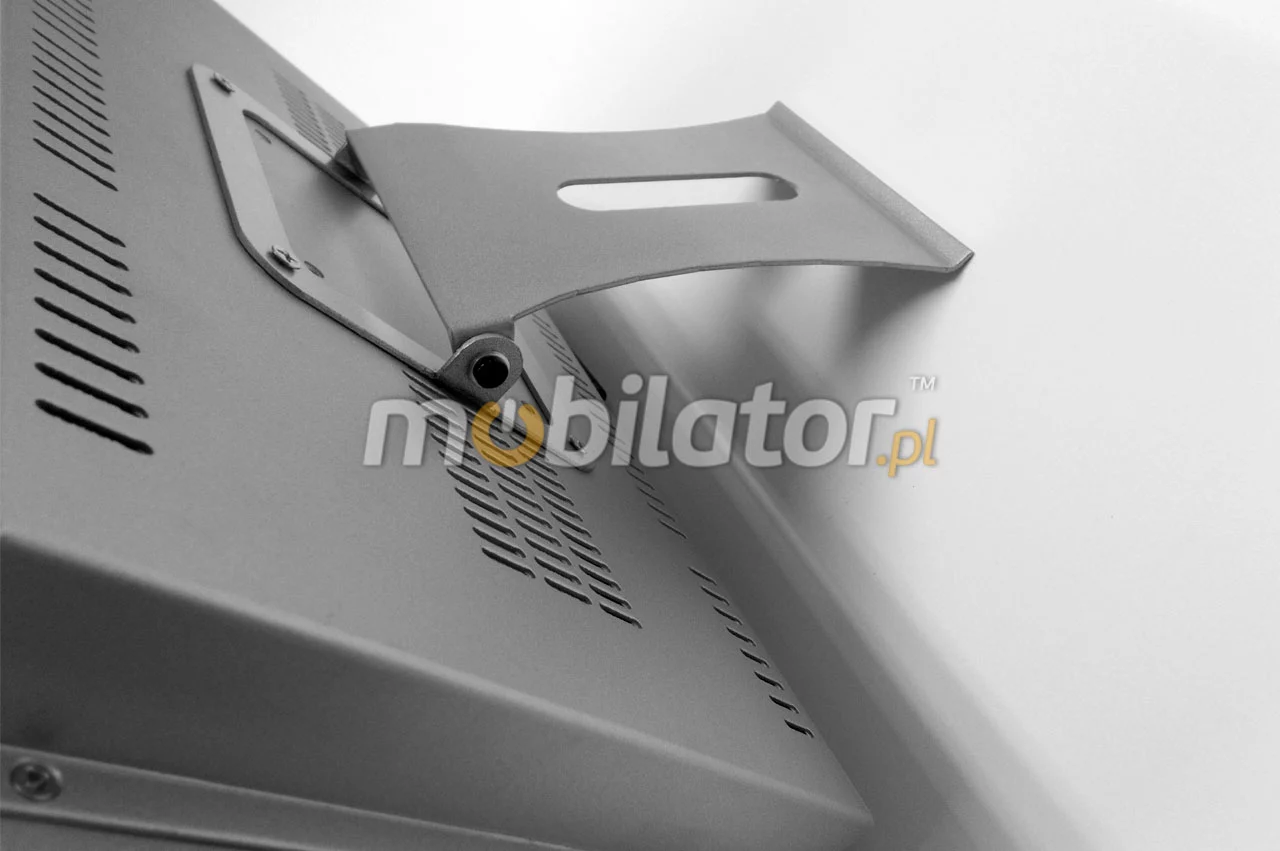

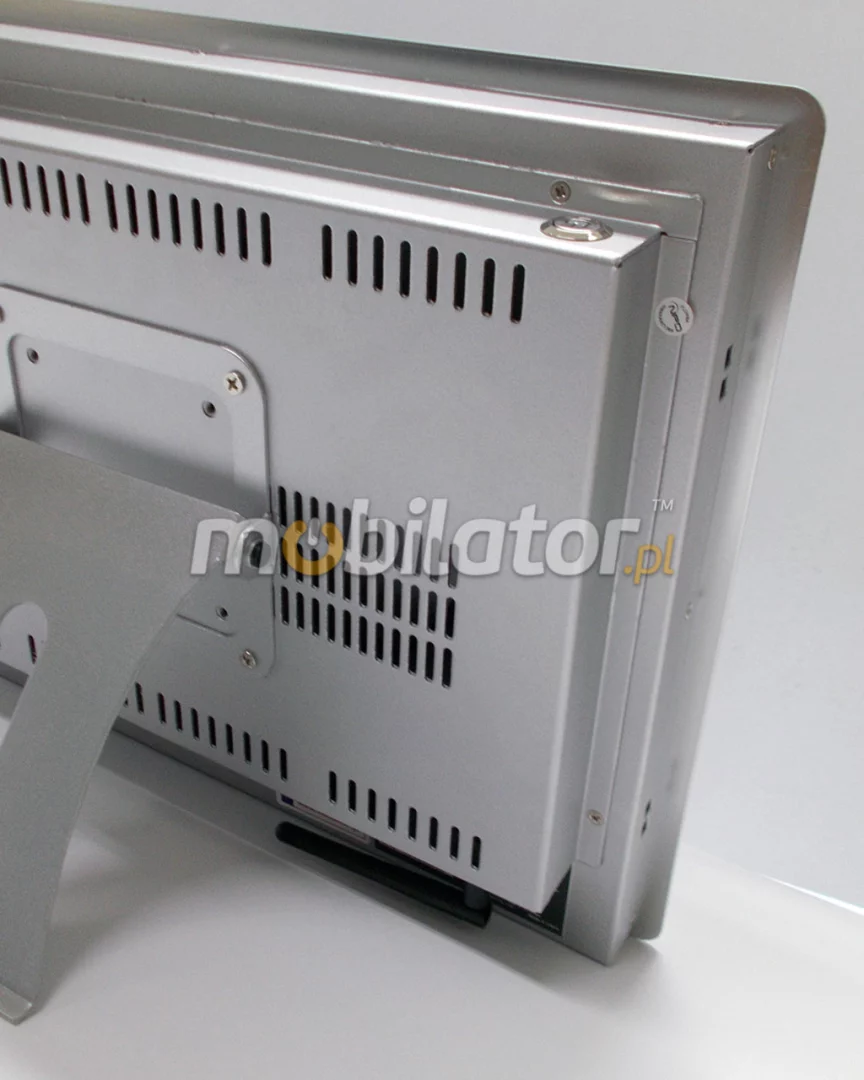

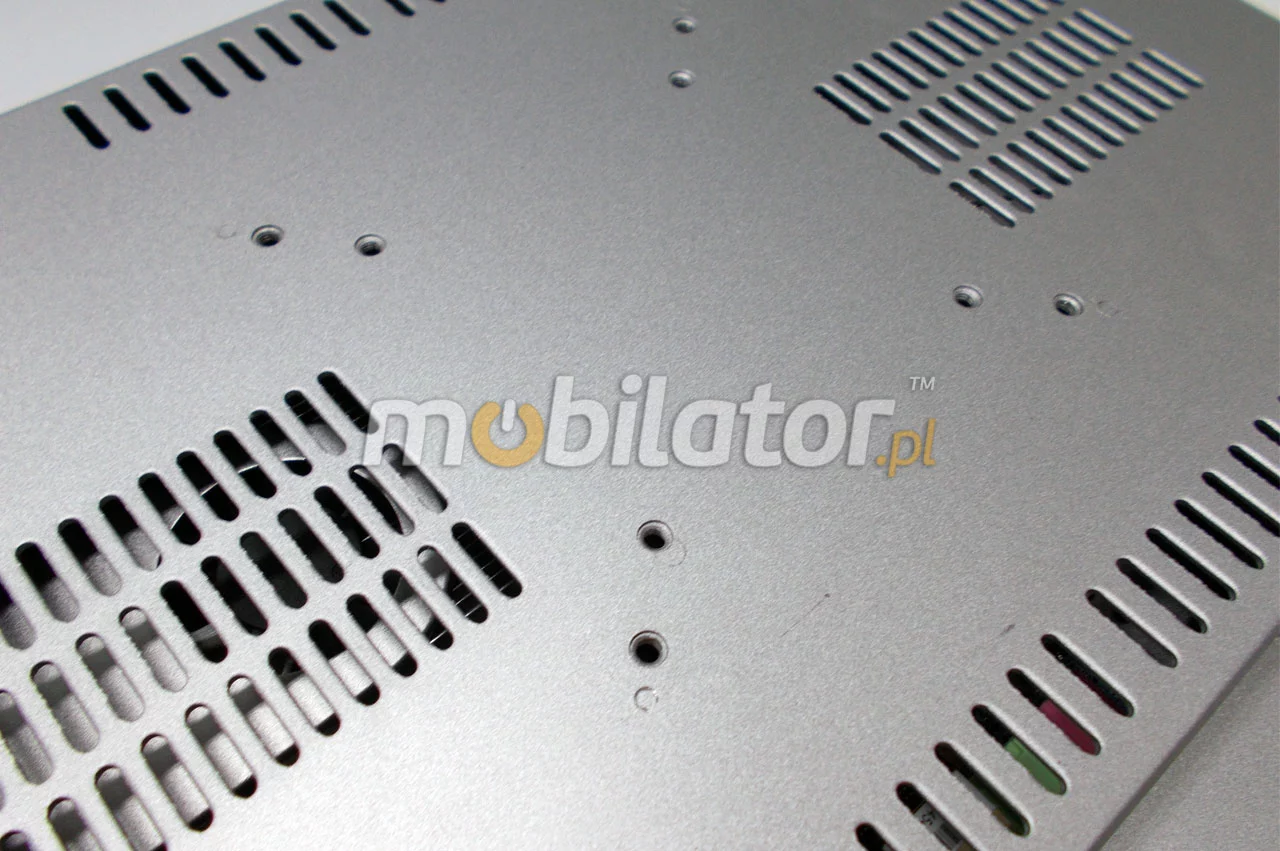

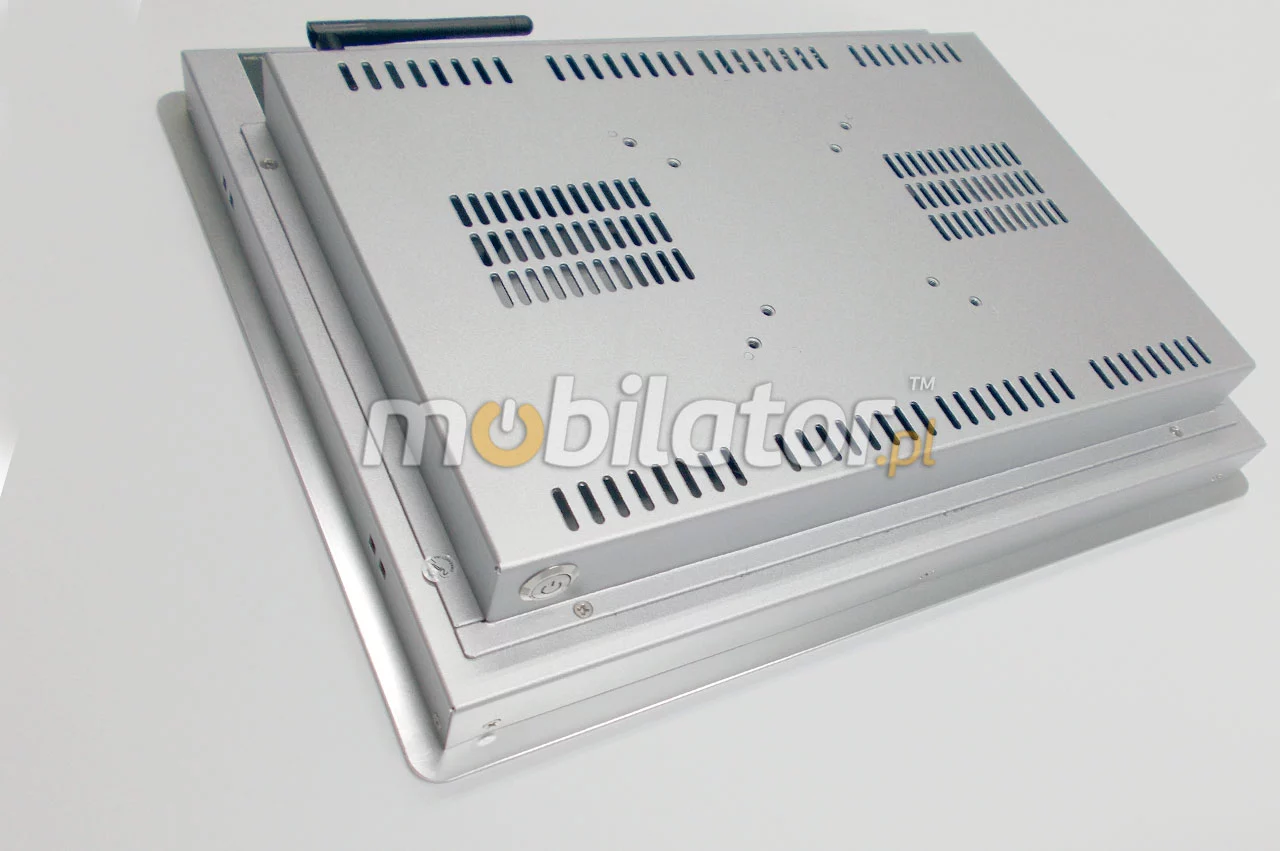

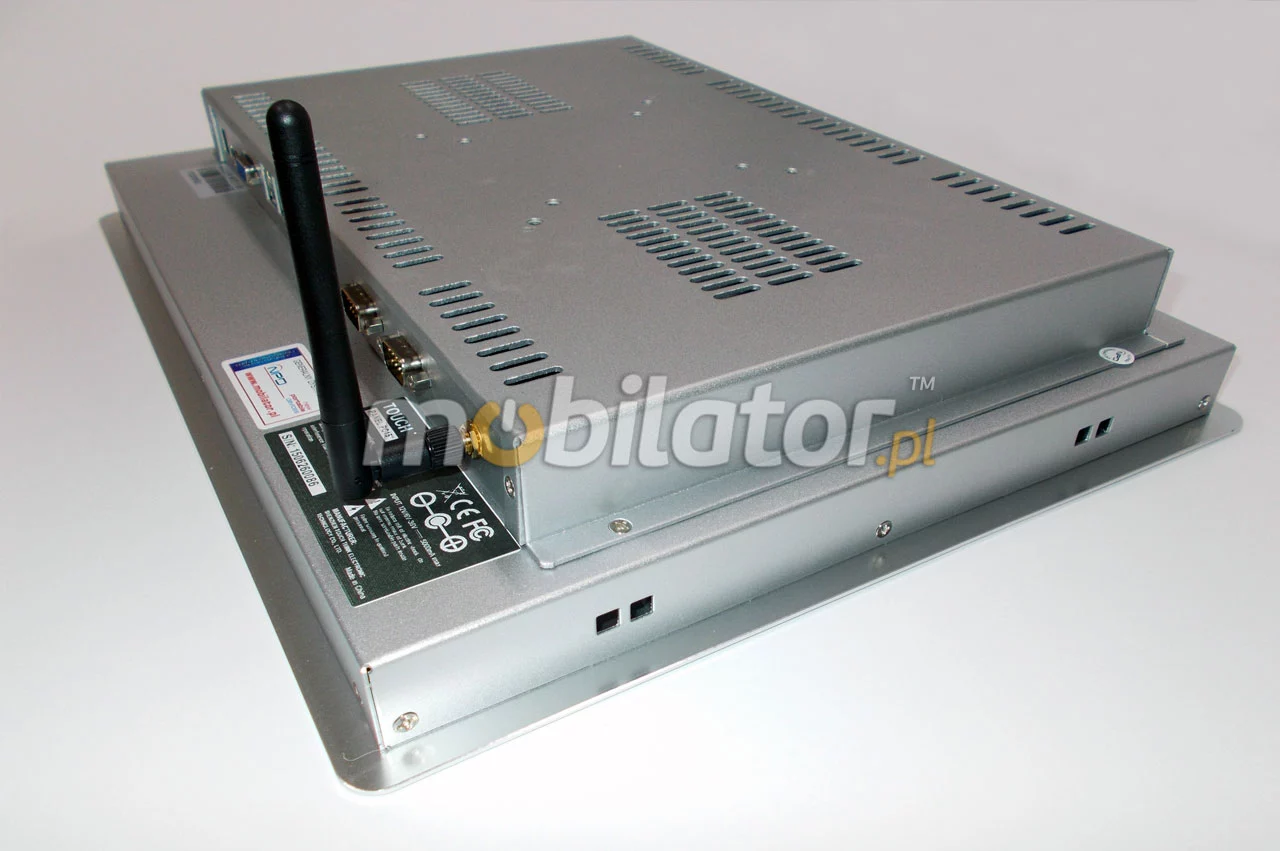

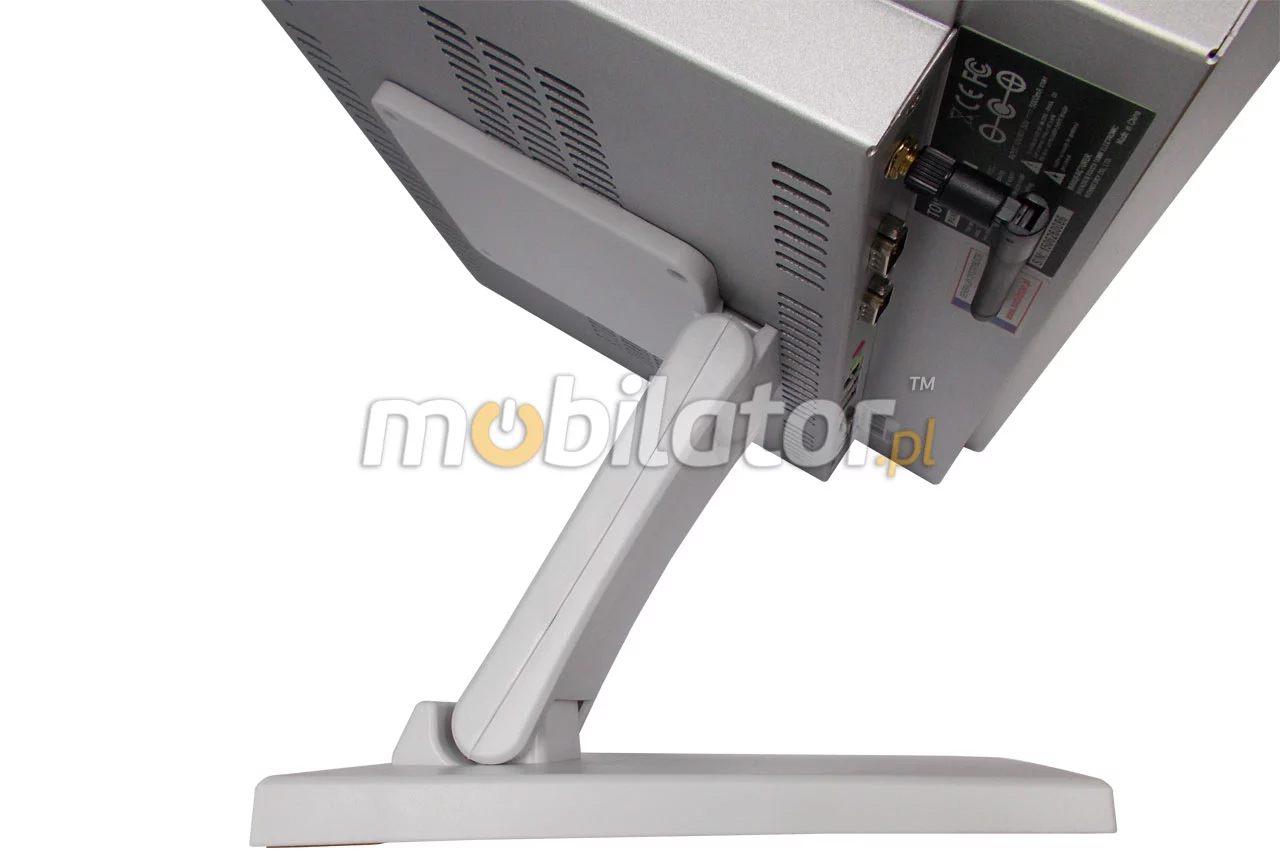

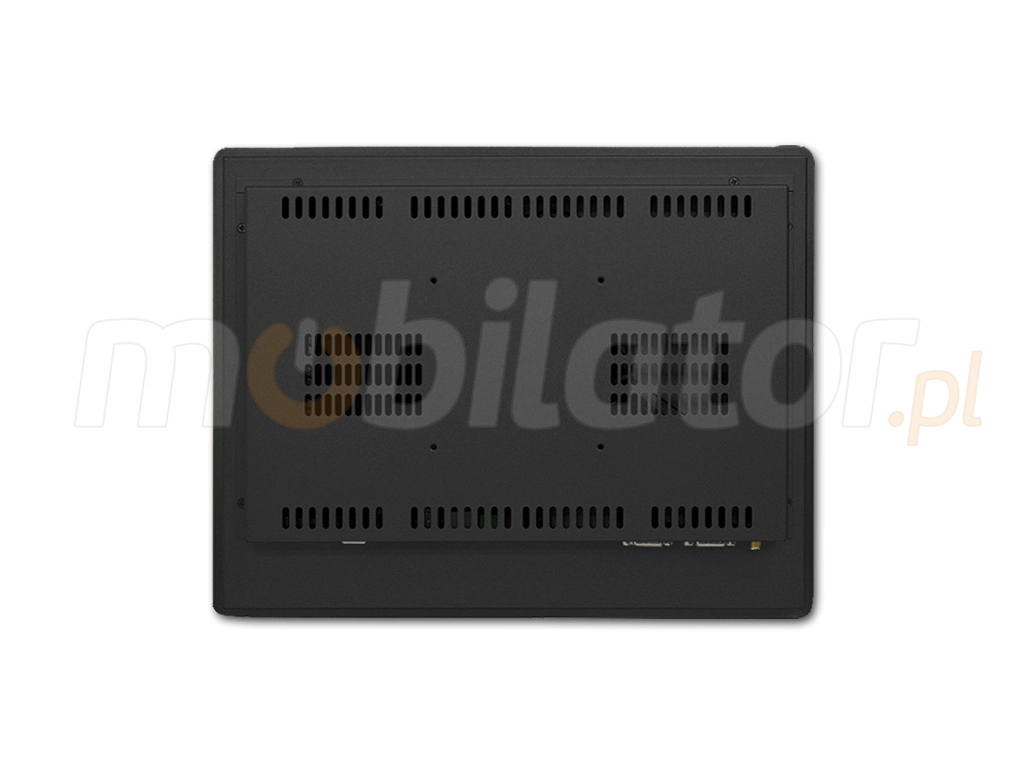

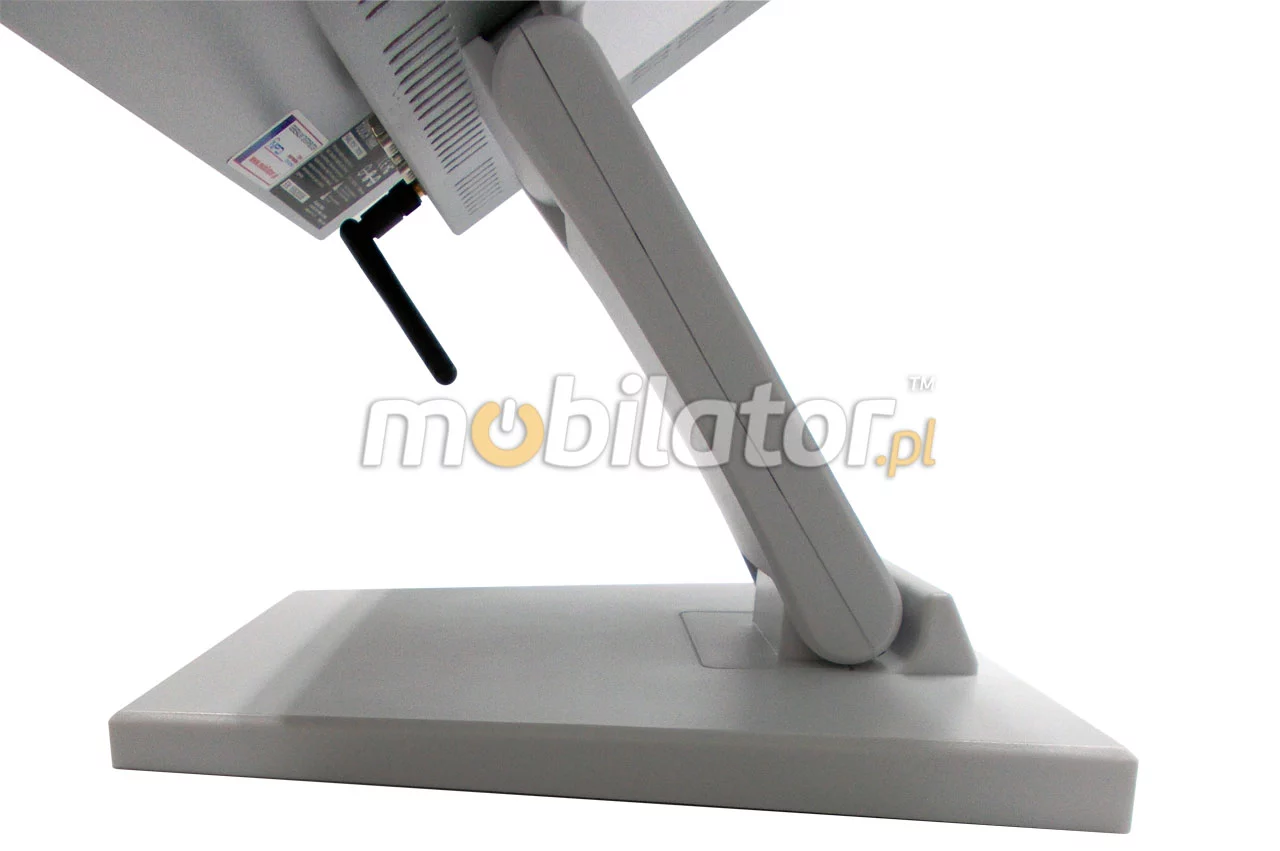

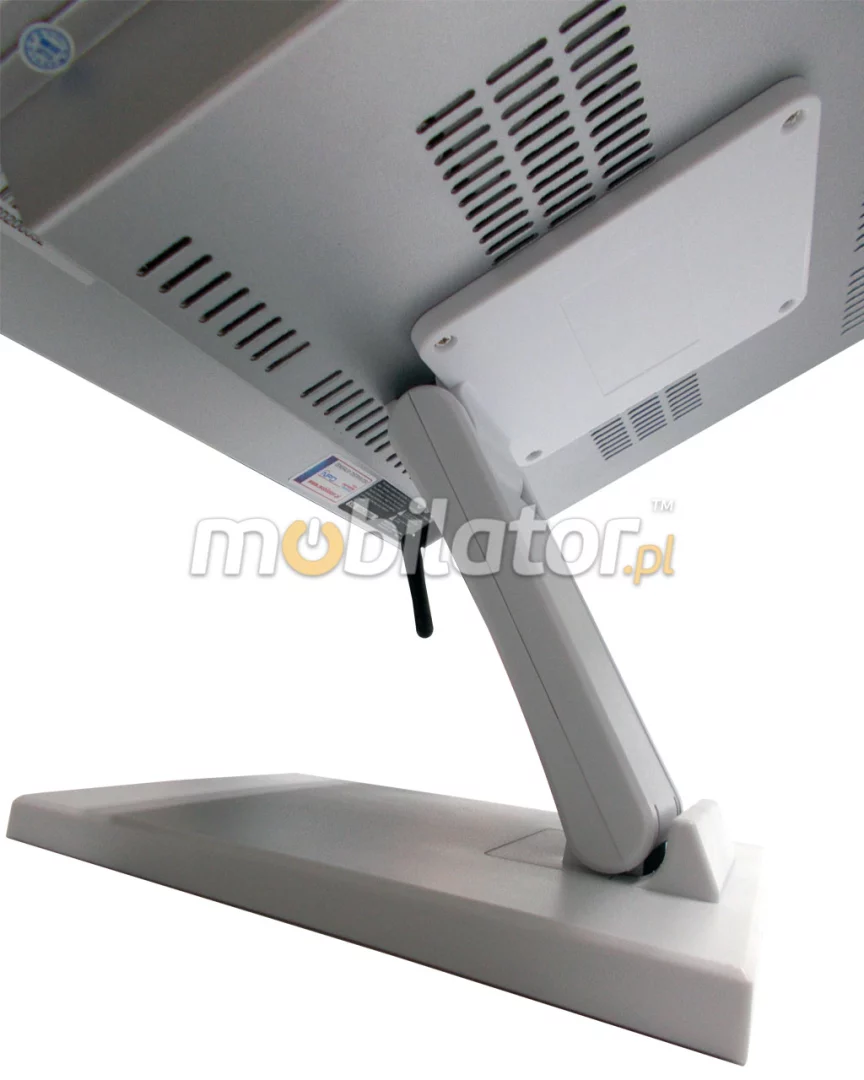

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.
Areas of use of industrial panel computers.
|
Trade
Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register), factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.
|
|
|
|
Magazine
Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.
|
|
Transport & Automotive
Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
|
|
go top… menu…
| |
v.1
|
v.2
|
v.3
|
v.4
|
v.5
|
v.6
|
|---|
| WiFi |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
| 3G |
— |
— |
✔ |
— |
✔ |
— |
| 2GB RAM |
✔ |
— |
— |
— |
— |
— |
| 4GB RAM |
— |
✔ |
✔ |
✔ |
✔ |
✔ |
| 8GB RAM |
— |
— |
— |
— |
— |
— |
| 32 GB SSD |
✔ |
— |
— |
— |
— |
— |
| 64 GB SSD |
— |
✔ |
— |
— |
— |
— |
| 128 GB SSD |
— |
— |
✔ |
✔ |
✔ |
— |
| 256 GB SSD |
— |
— |
— |
— |
— |
✔ |
| Dotyk rezystywny / Resistive |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
| Dotyk pojemnościowy / Capacitive |
— |
— |
— |
— |
— |
— |
| |
v.7
|
v.8
|
v.2.1
|
v.5.1
|
v.8.1
|
|---|
| WiFi |
✔ |
✔ |
✔ |
✔ |
✔ |
| 3G |
✔ |
— |
— |
✔ |
— |
| 2GB RAM |
— |
— |
— |
— |
— |
| 4GB RAM |
✔ |
— |
✔ |
✔ |
— |
| 8GB RAM |
— |
✔ |
— |
— |
✔ |
| 32 GB SSD |
— |
— |
— |
— |
— |
| 64 GB SSD |
— |
— |
✔ |
— |
— |
| 128 GB SSD |
— |
— |
— |
✔ |
— |
| 256 GB SSD |
✔ |
✔ |
— |
— |
✔ |
| Dotyk rezystywny / Resistive |
✔ |
✔ |
— |
— |
— |
| Dotyk pojemnościowy / Capacitive |
— |
— |
✔ |
✔ |
✔ |
|
|
go top… menu…
Display |
Screen: 15"
Resolution: 1024 x 768
Type: Capacitive |
| Resistance IP |
IP65 - front panel
|
| Communication |
Wi-FI
3G (option)
|
|
Dimensions
|
Height: 300 mm
Width: 57 mm
Length: 380 mm
|
| Weight |
4 kg |
| Processor |
Intel® Core™ i3-3217U (2x1.80GHz) |
| Chipset |
Intel |
| Memory RAM |
8GB |
| Graphics Card |
Intel® HD Graphics 4000 |
| Sound Card |
Realtek ALC662 |
| Network Card |
Intel RTL811E gigabit network card |

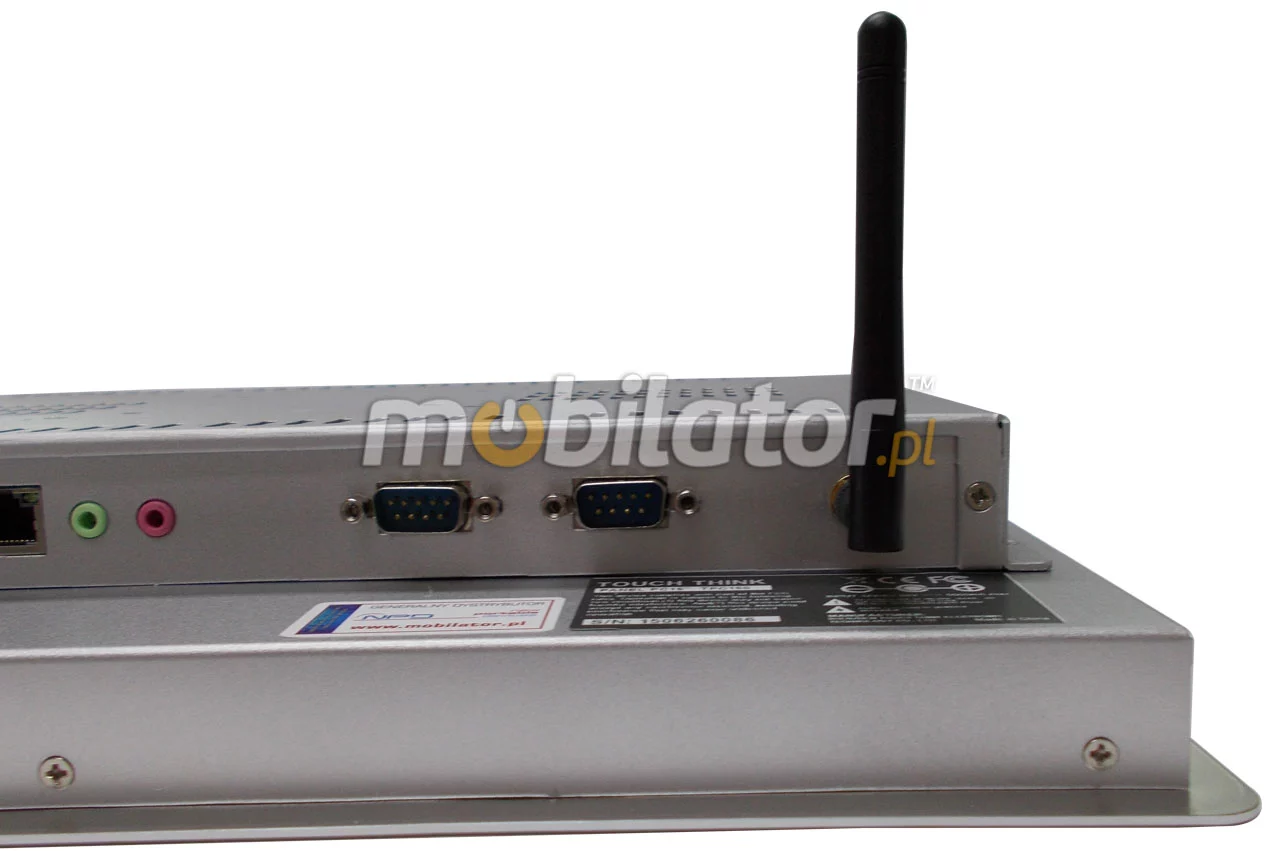

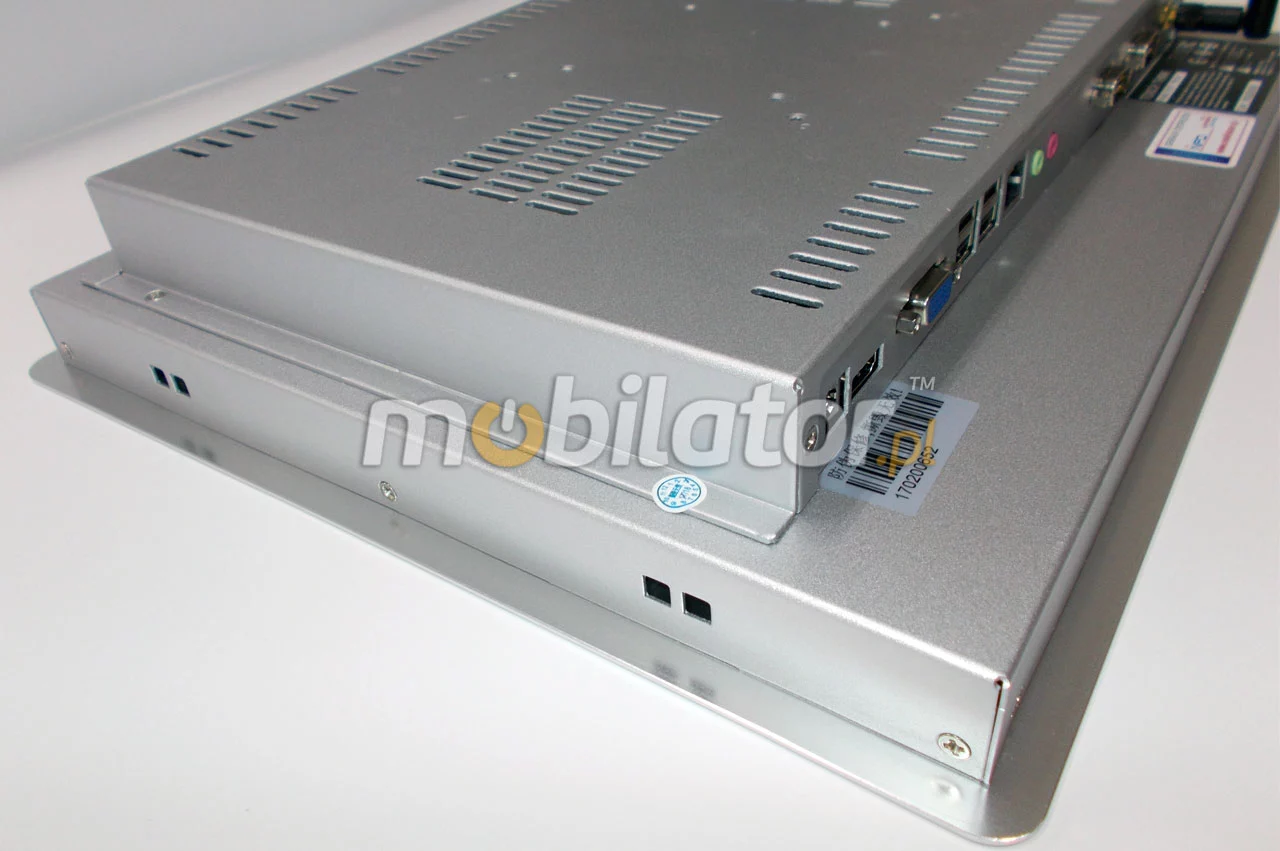

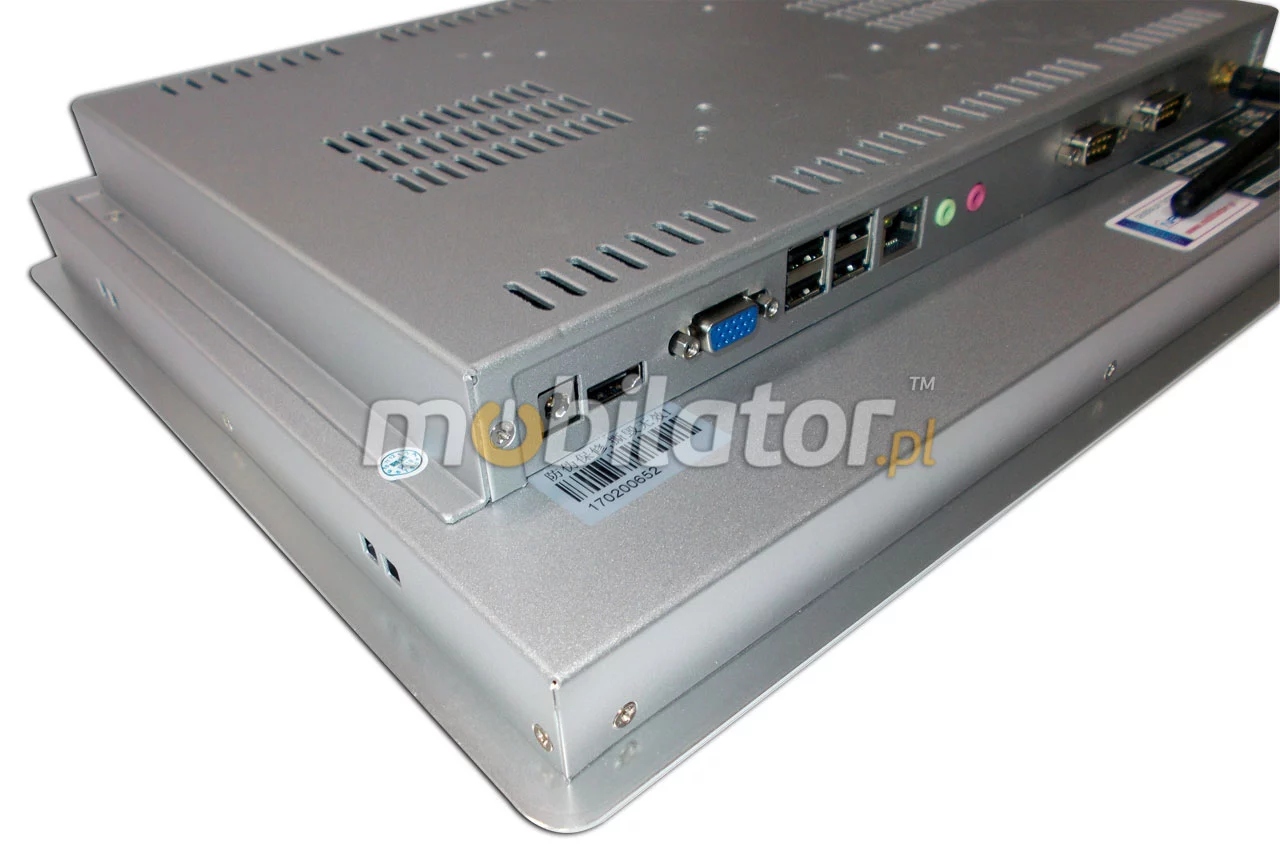

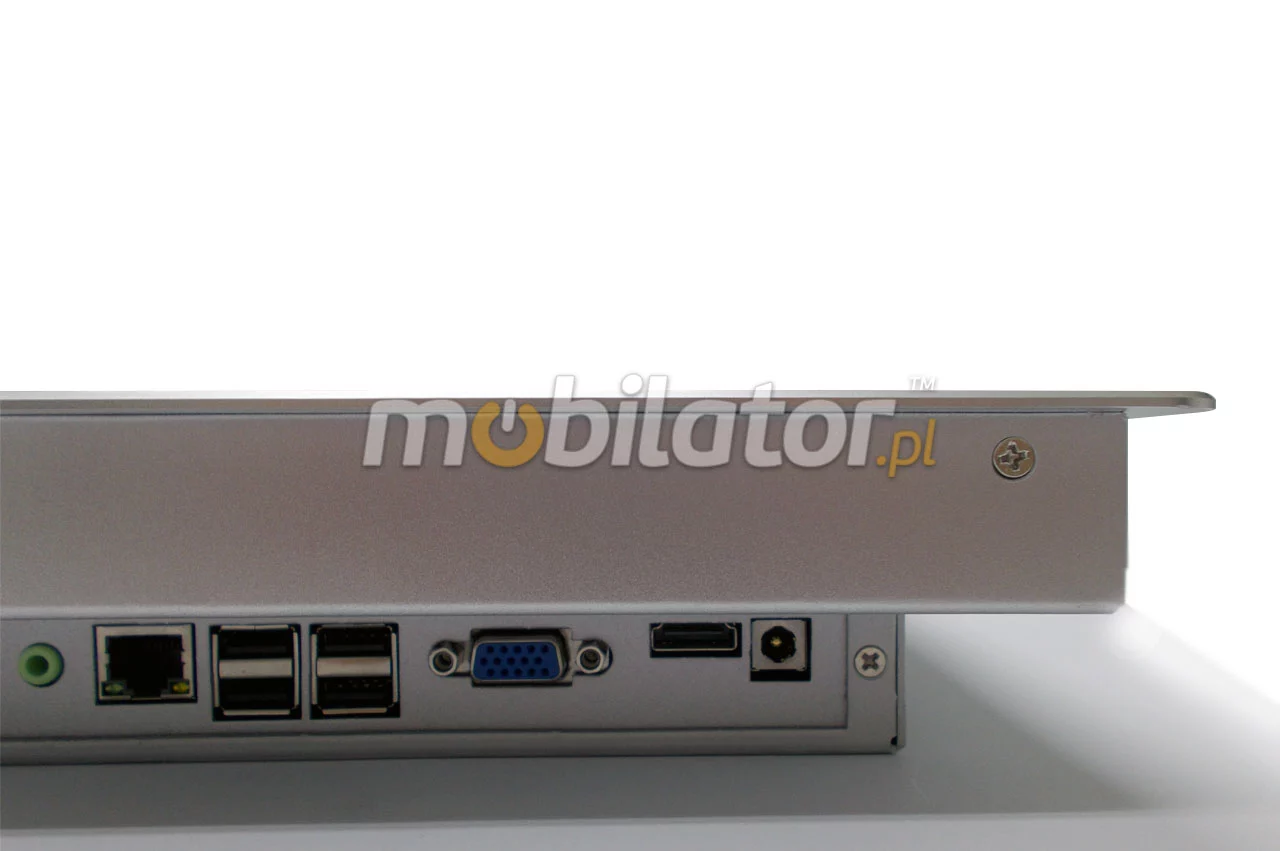

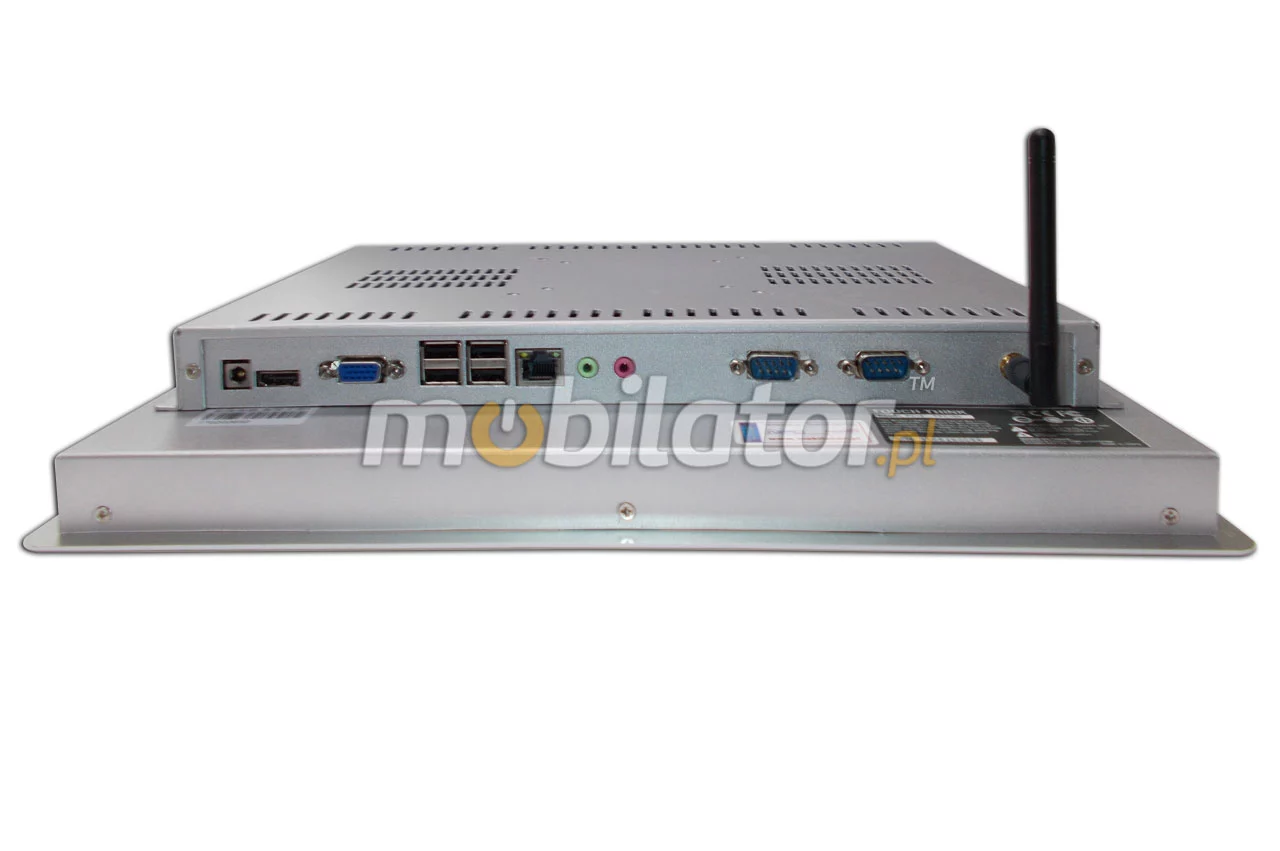

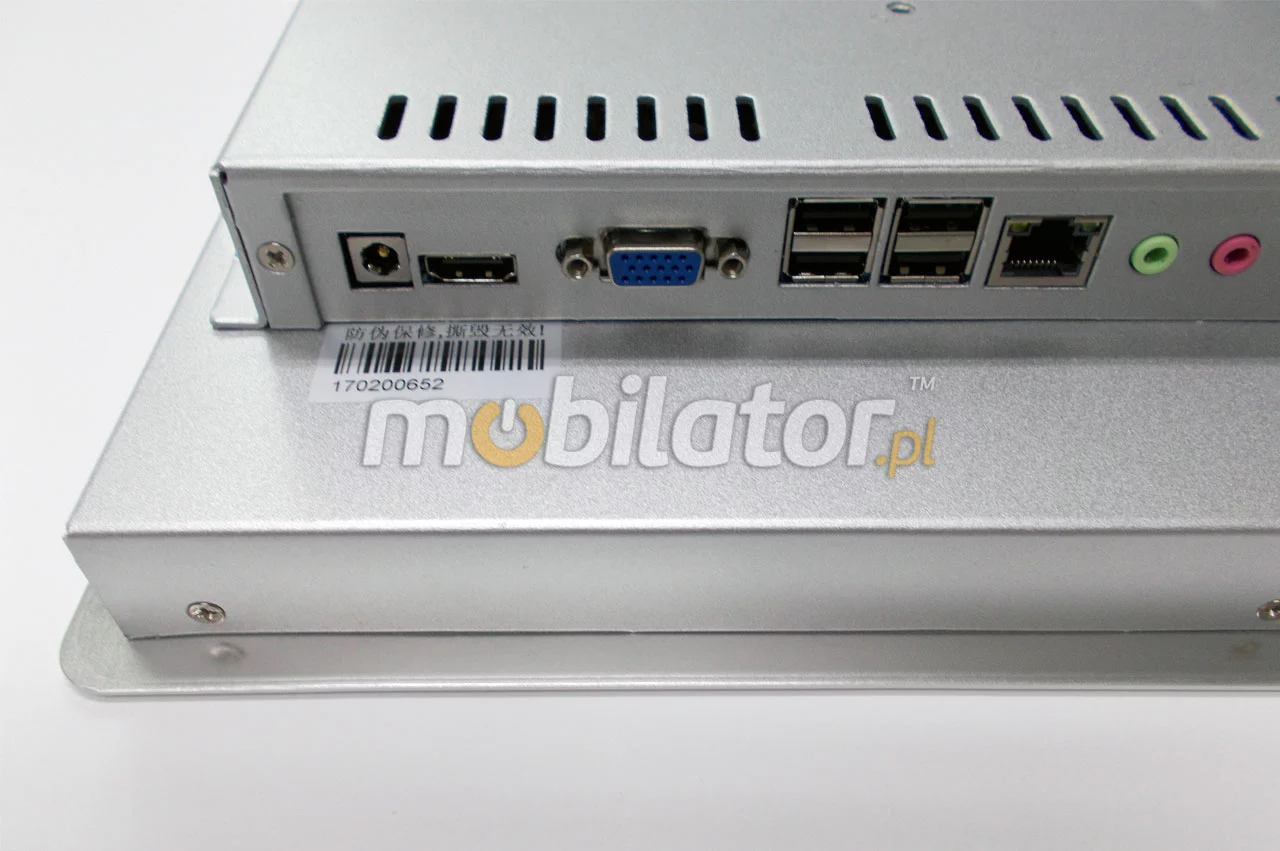

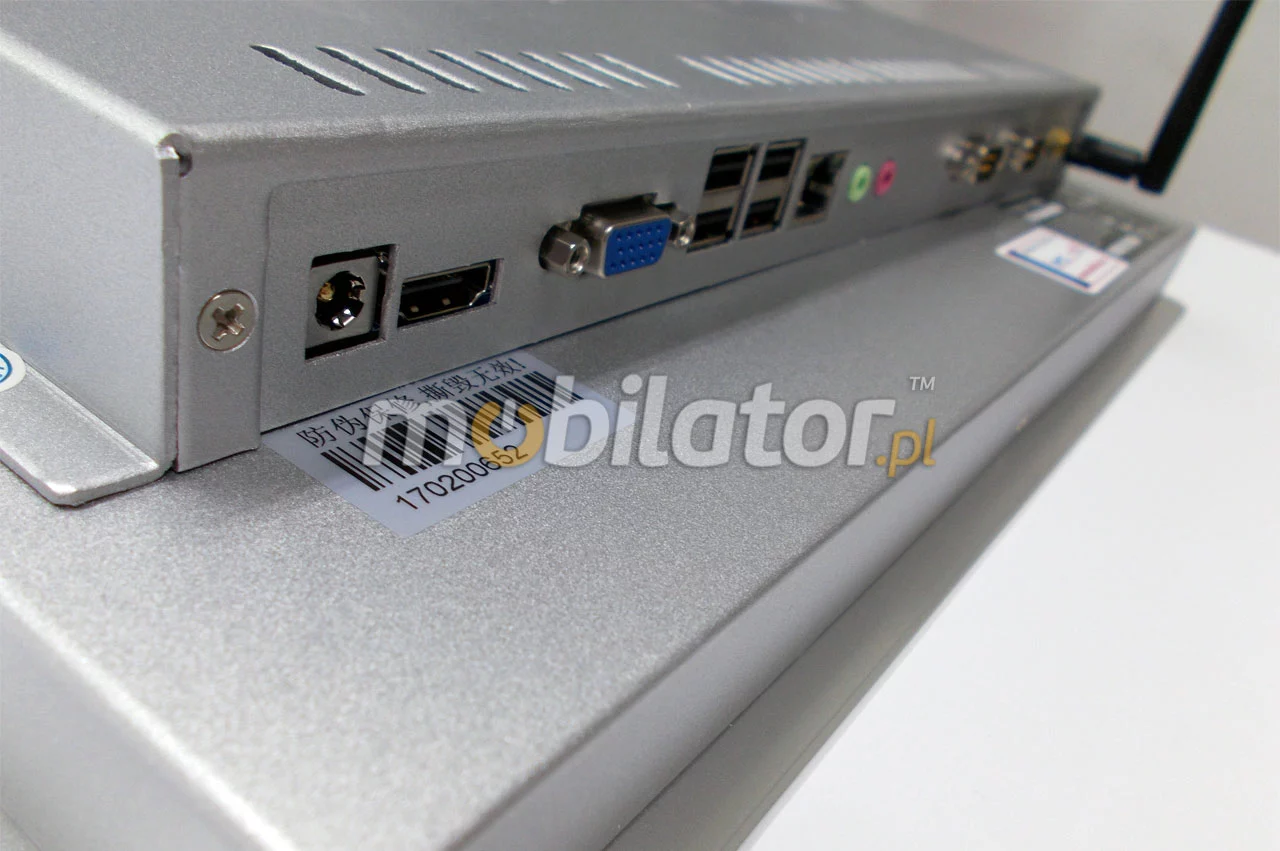

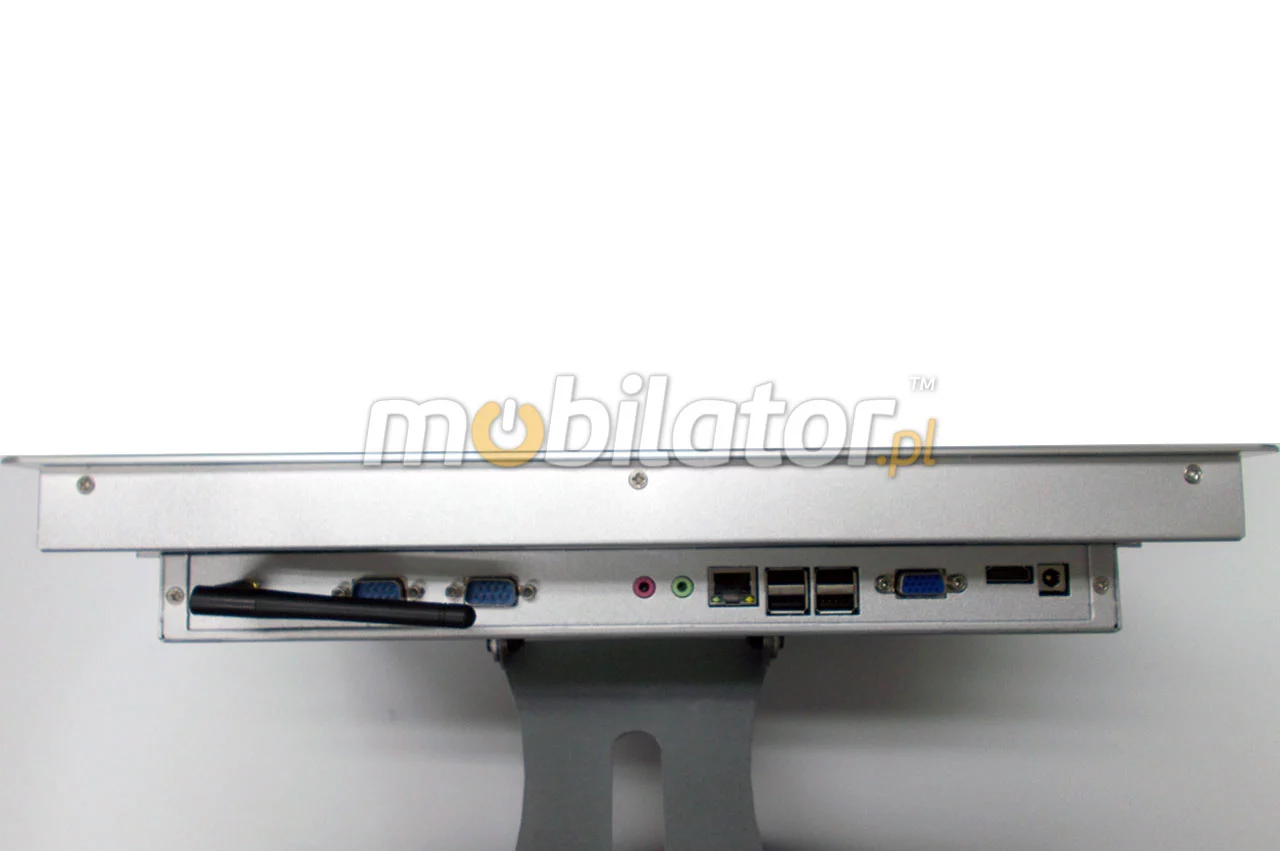

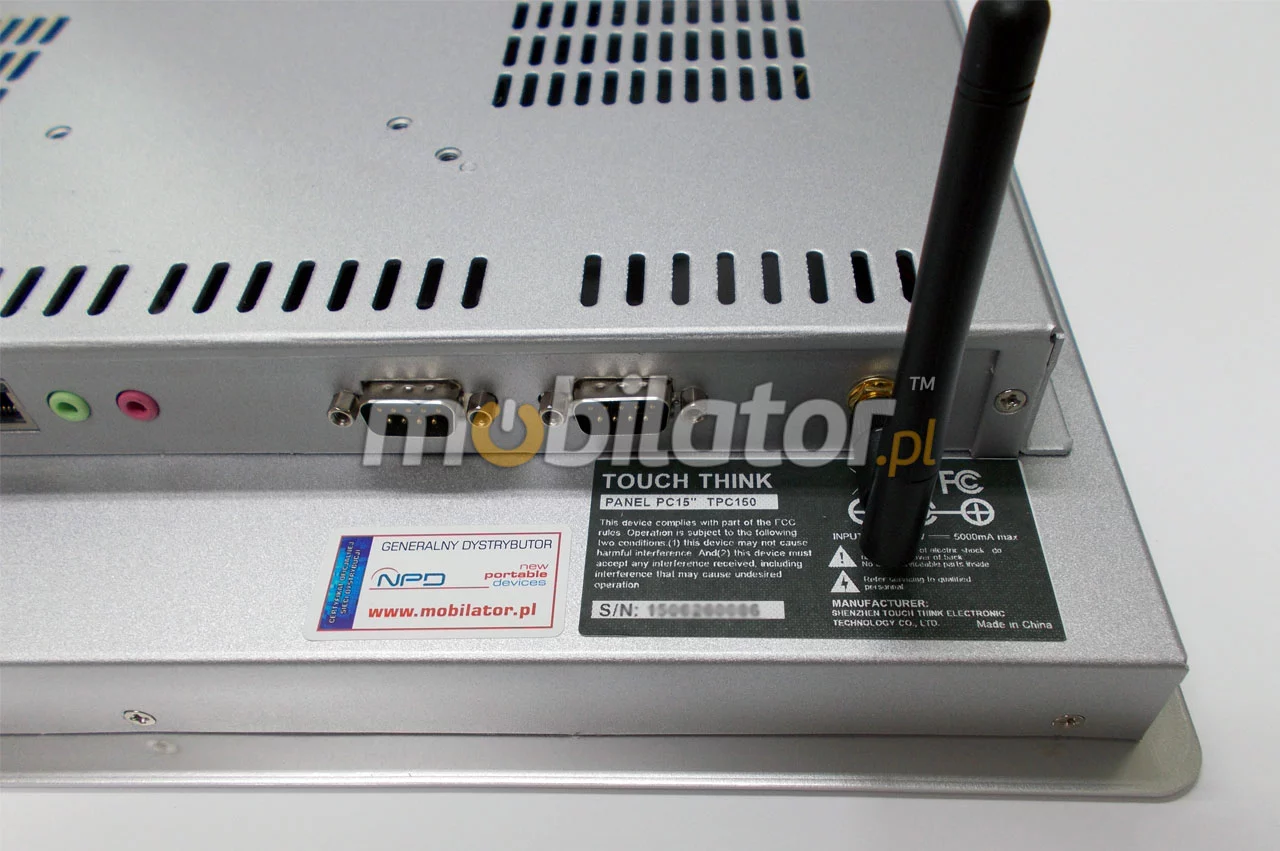

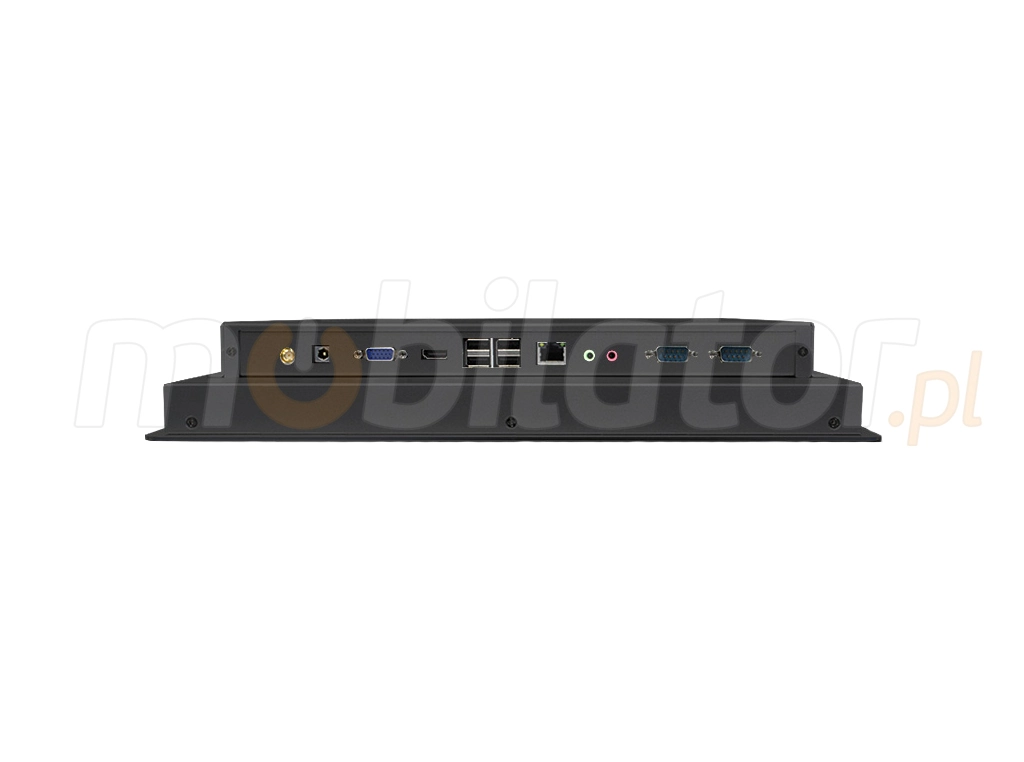

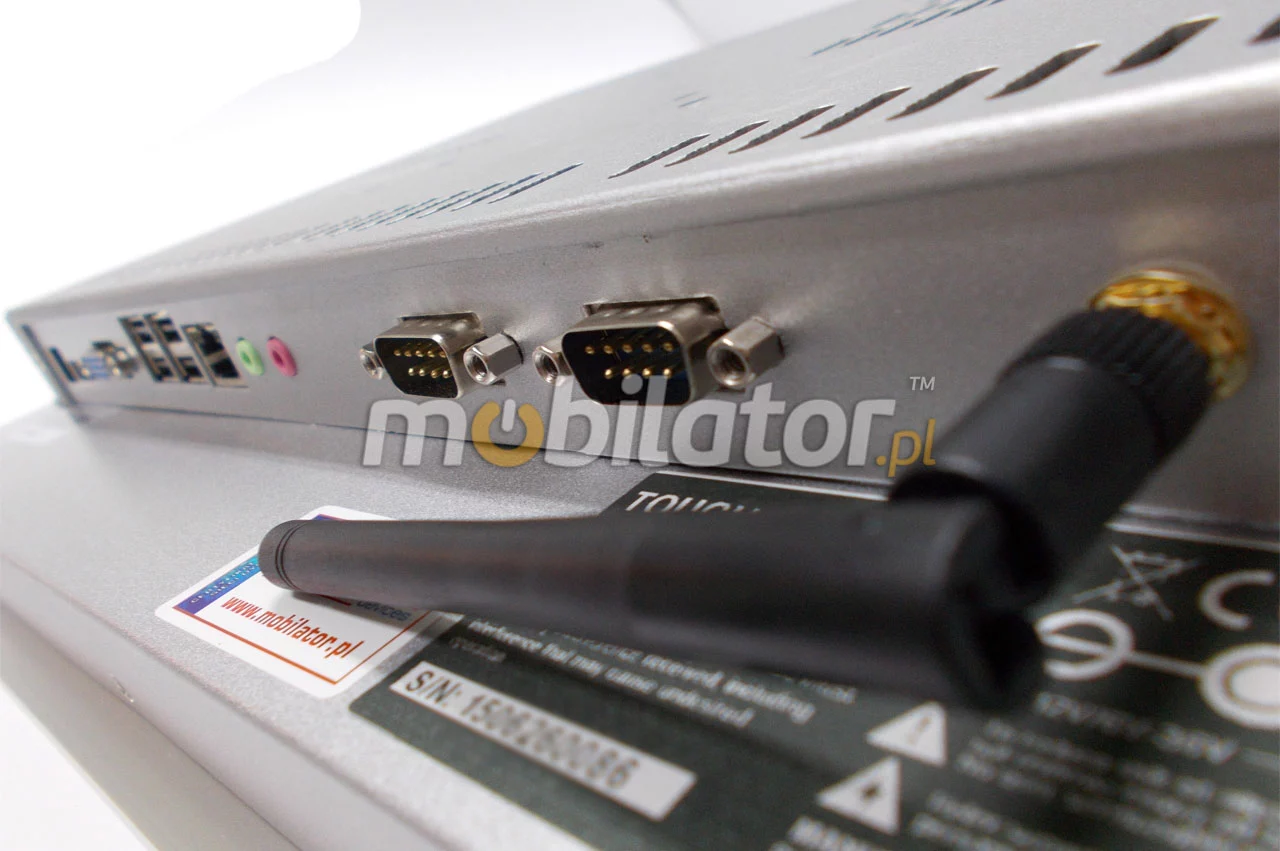

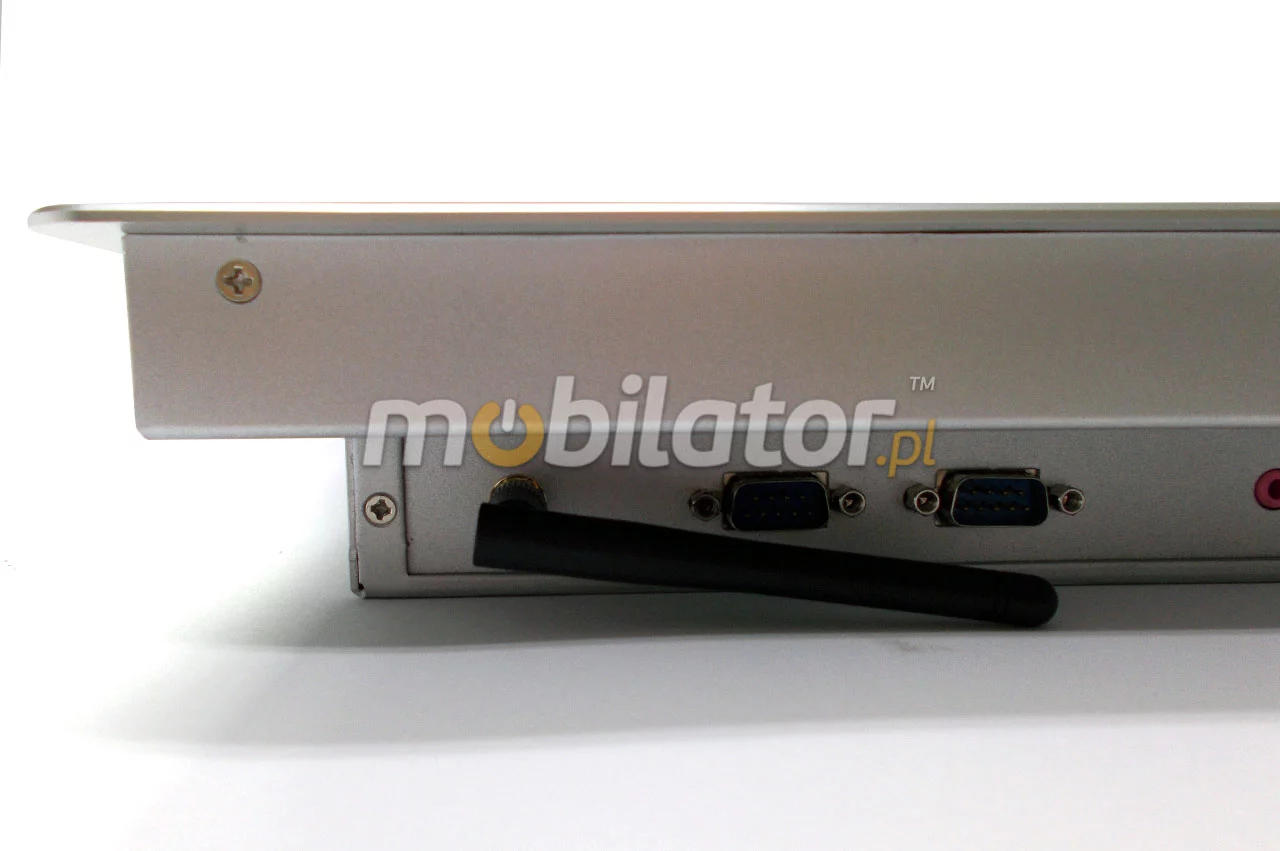

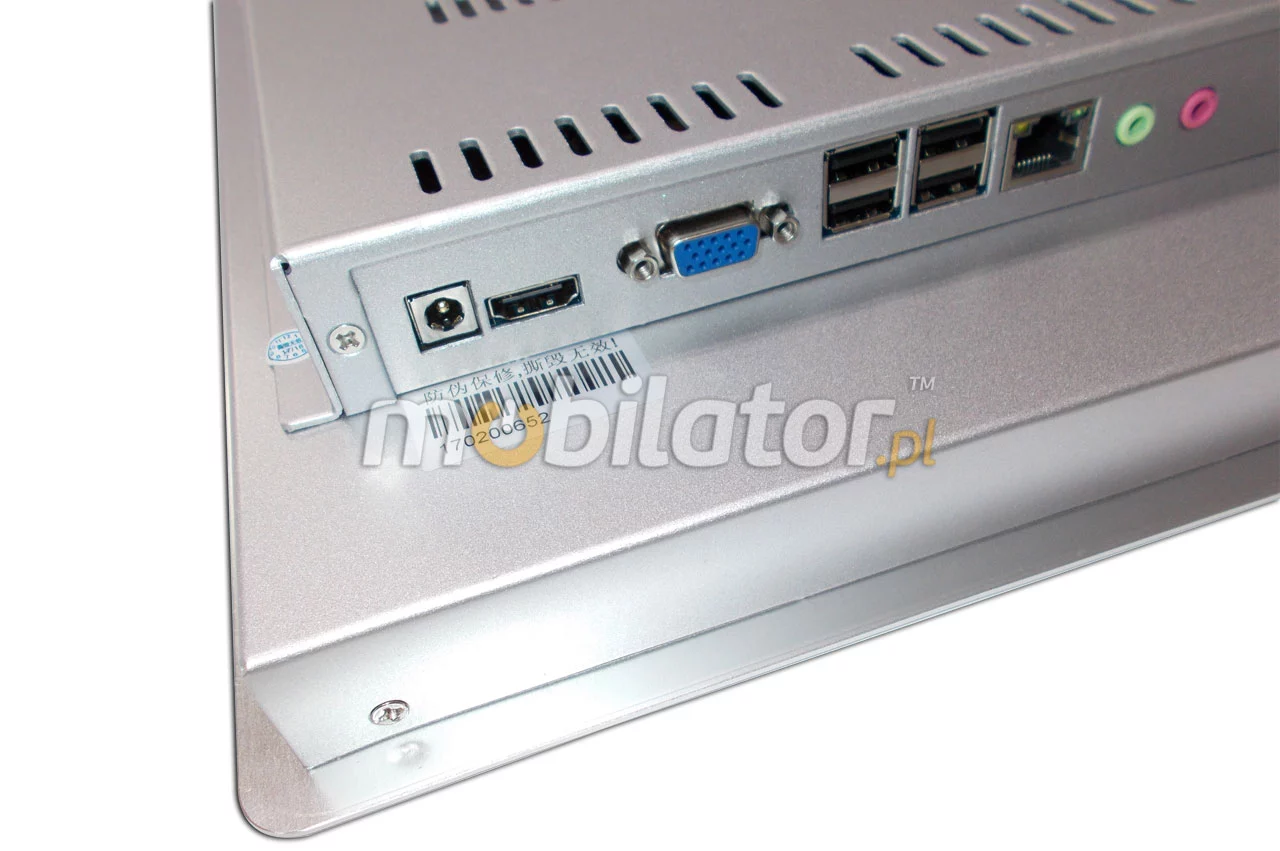

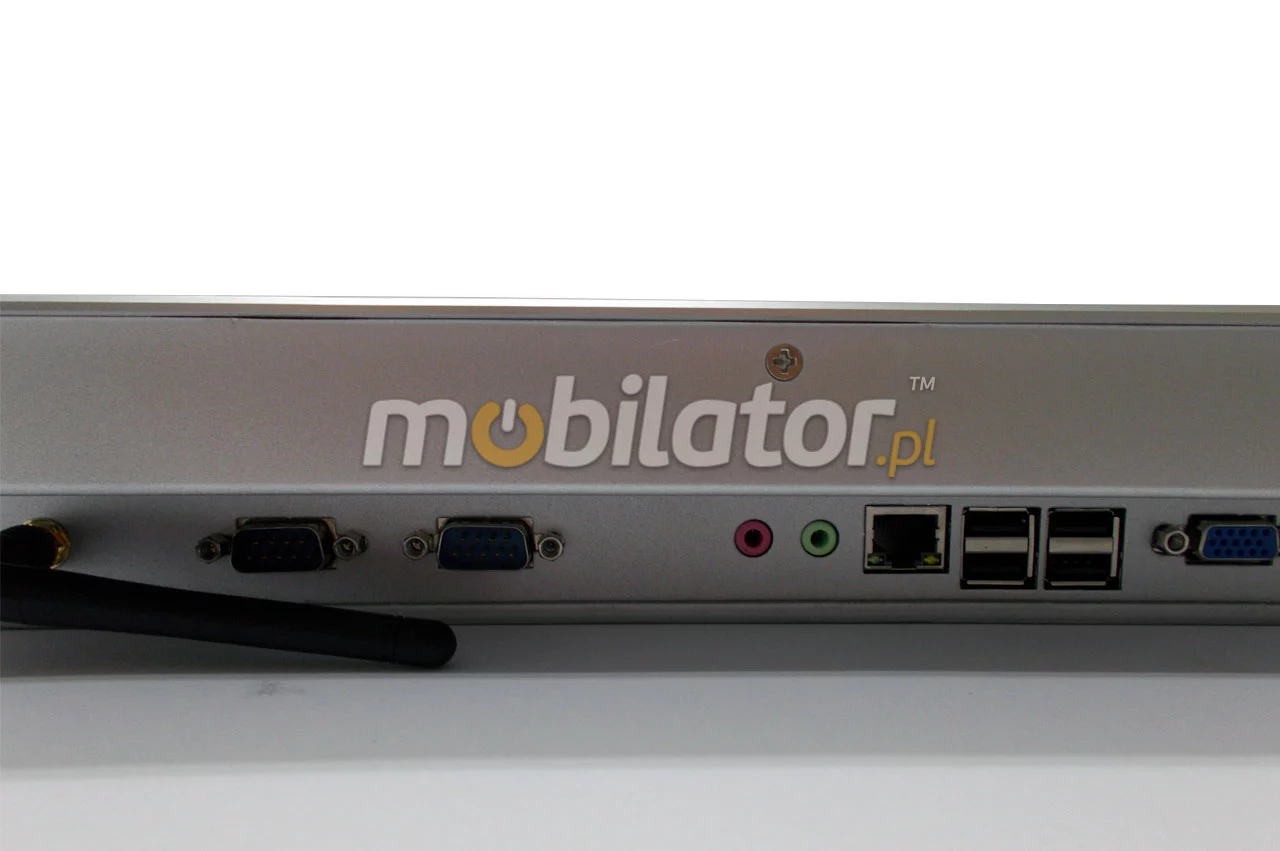

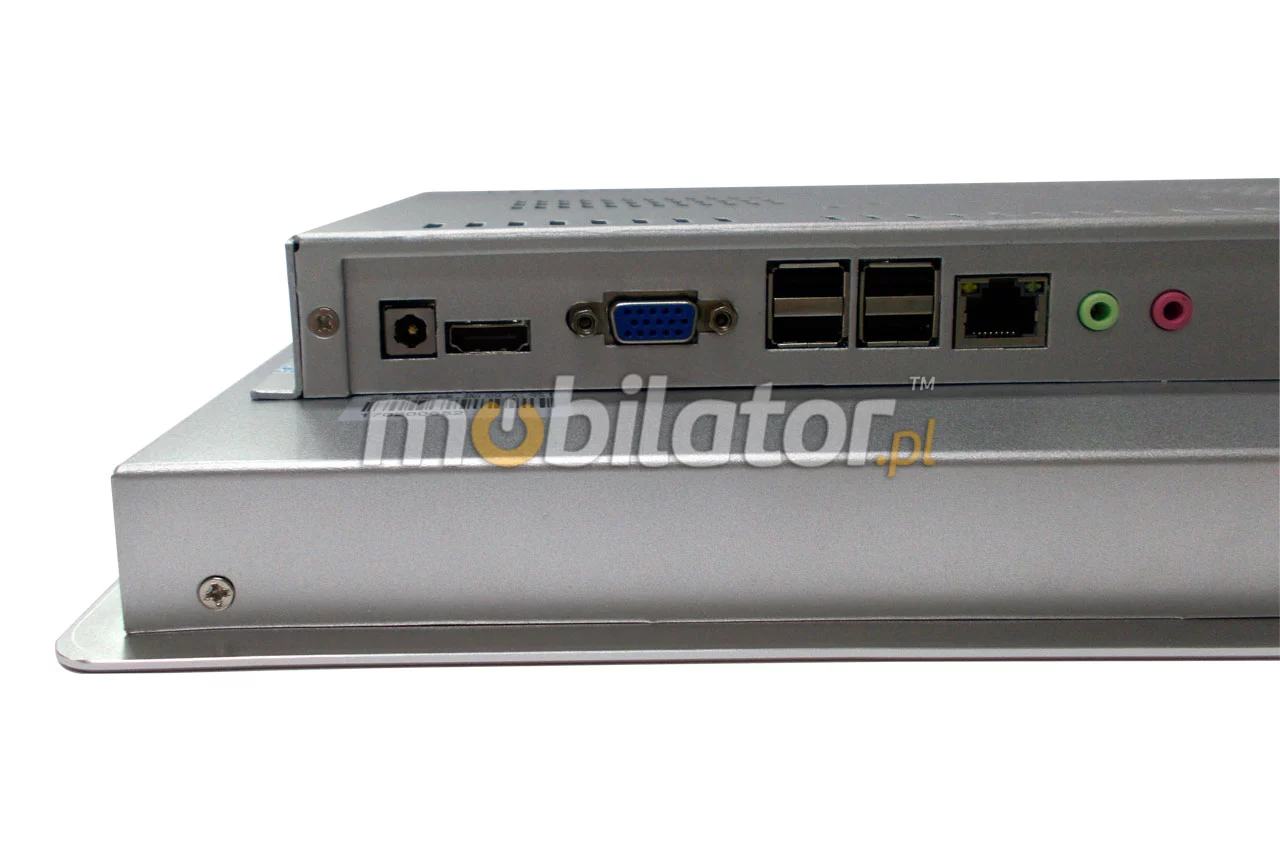

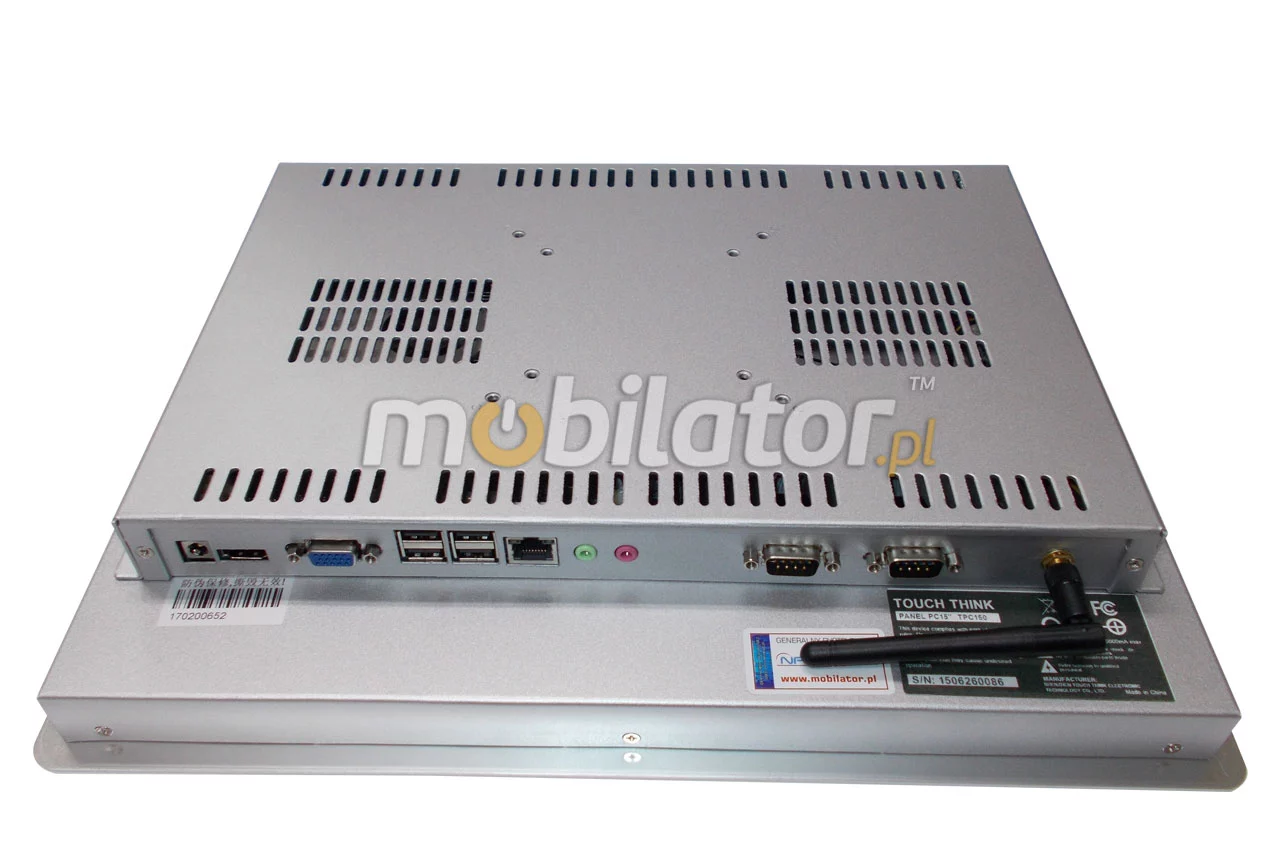

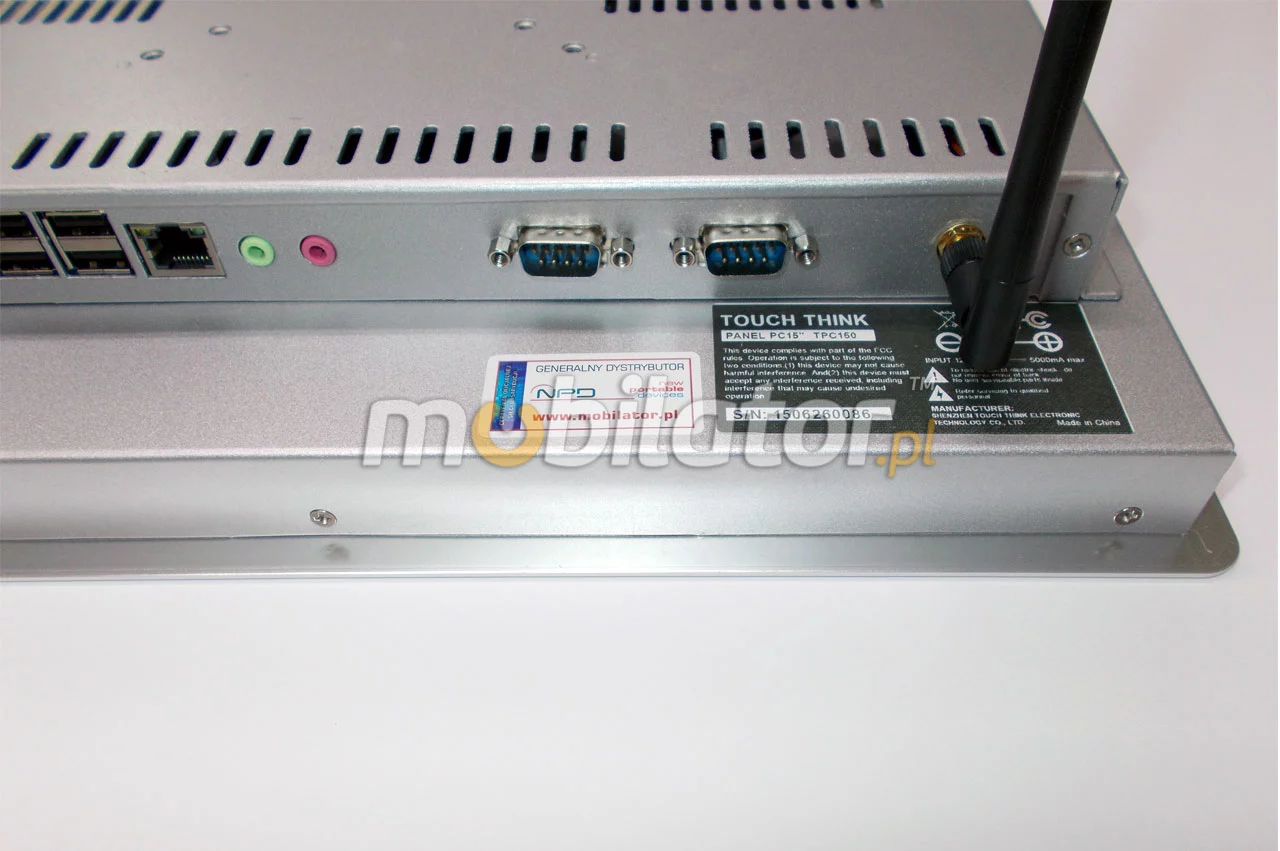

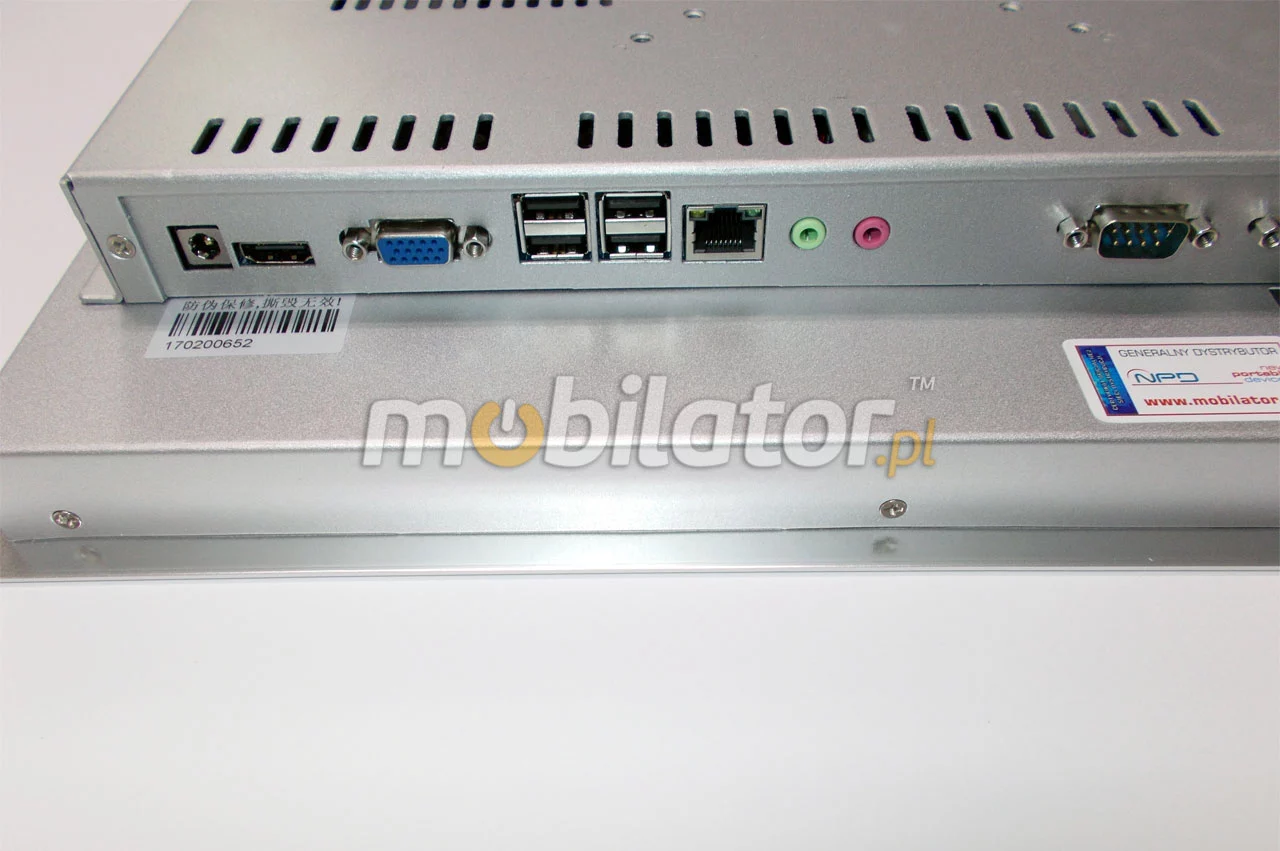

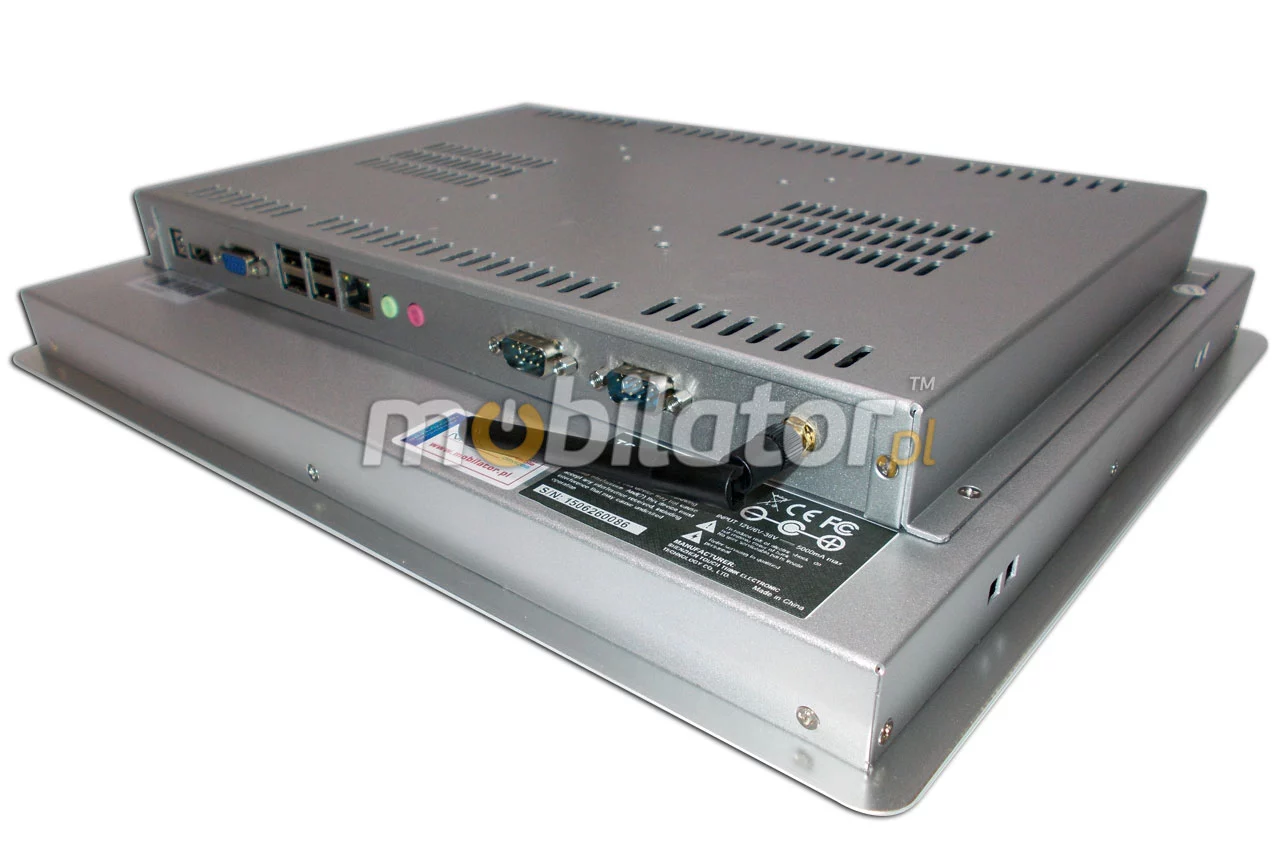

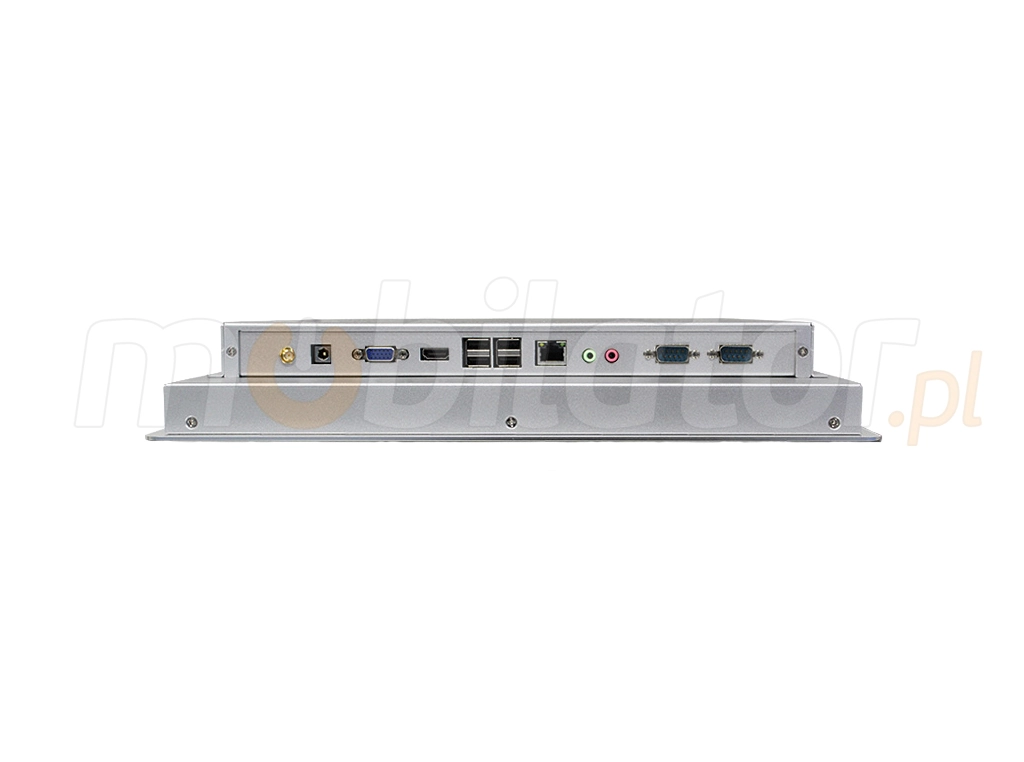

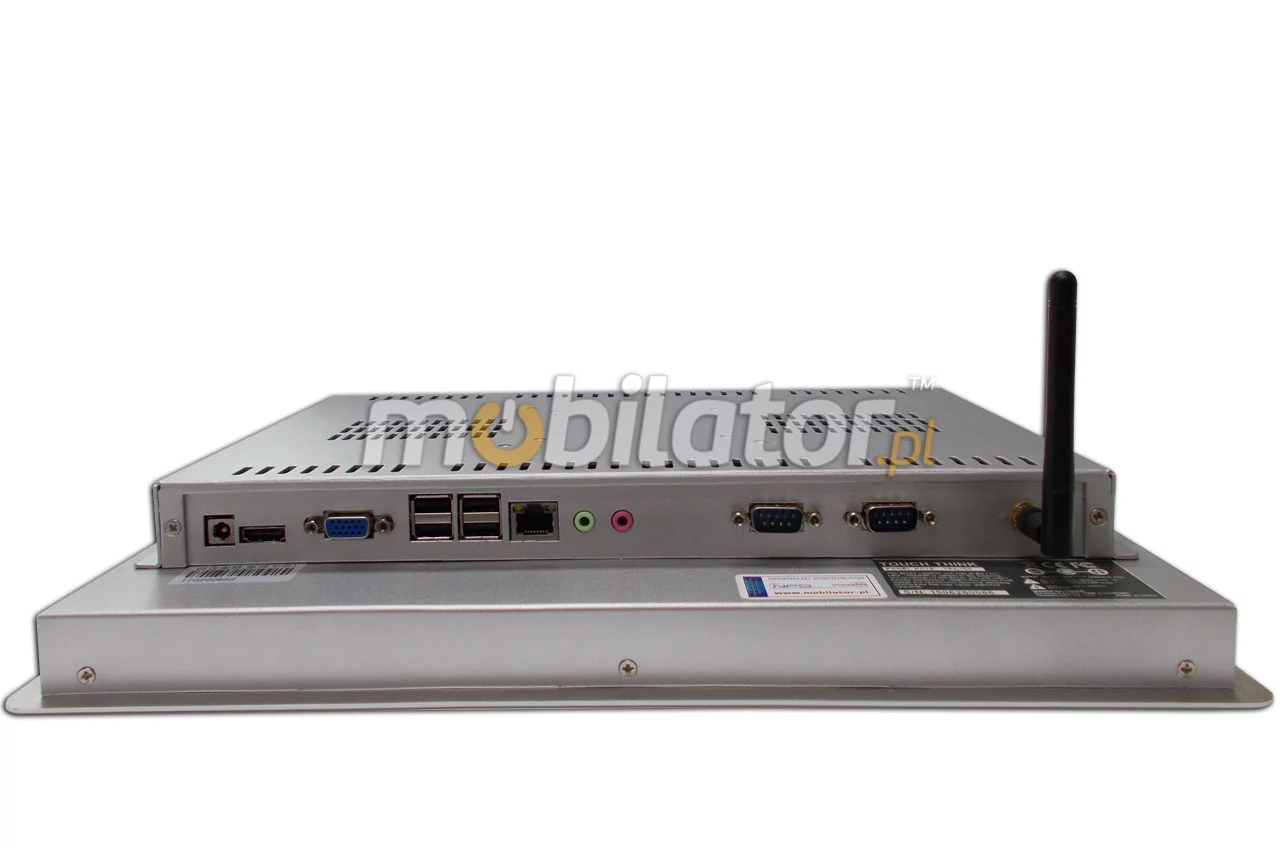

| Ports & interfaces |

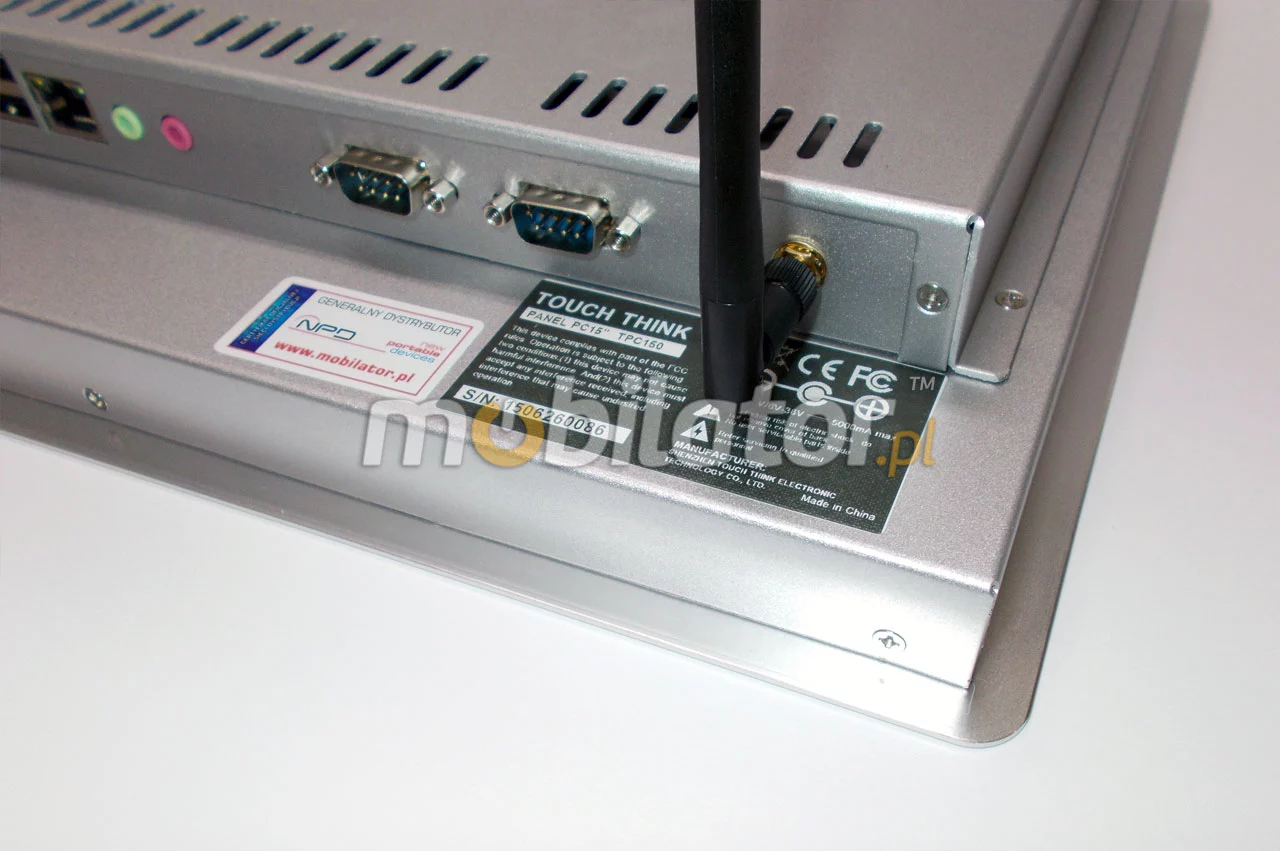

2 x COM(RS232)
4 x USB 2.0
1 x HDMI
1 x VGA
1 x LAN RJ45
1 x Audio
1 x Mic
1 x DC-in
|
|
|
