Product Update Date: 2018-03-22

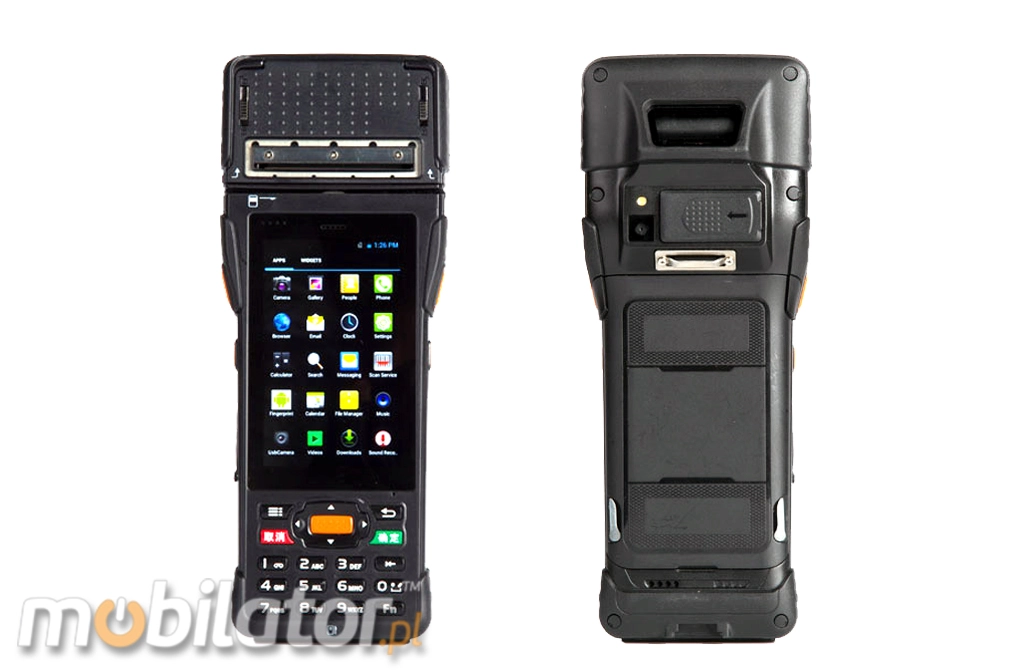

Payment Terminal SMARTPEAK P900SP Android v.1

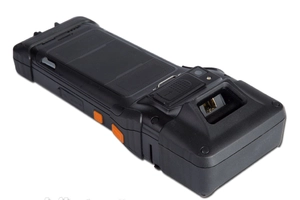

Name: Payment Terminal SMARTPEAK P900SP Android v.1
Brand: SMARTPEAK
Price: 3775.40 PLN
Availability: InStock

Update Date: 2018.03.22

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Description
The collection and processing of data
Resistance
Modules and Wireless Networks
Minimalism

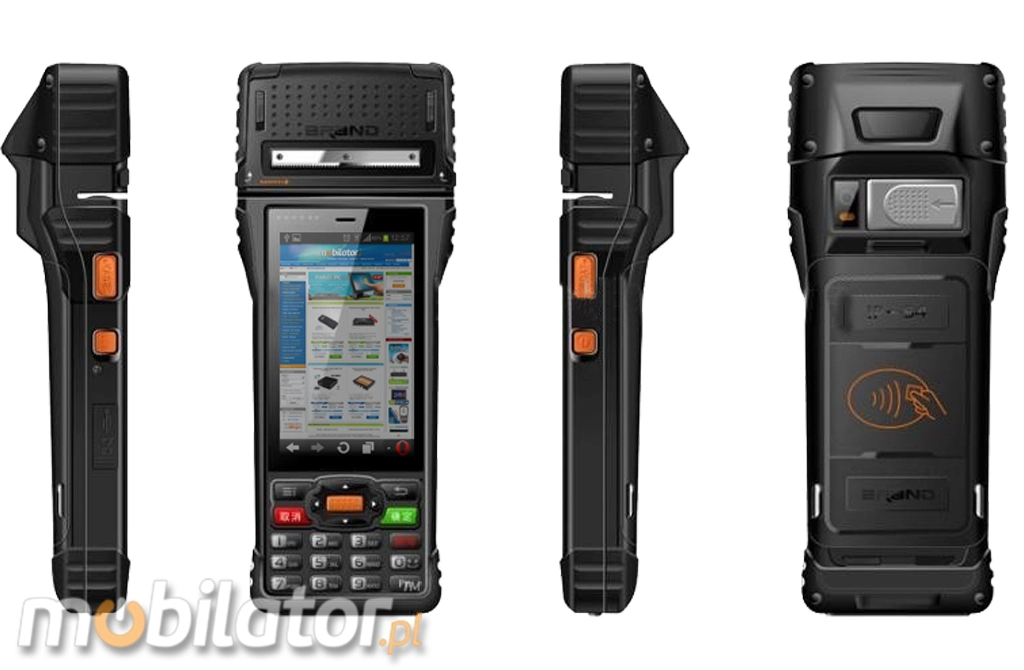

Smartpeak P900 SP has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP 54 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.

Description

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

Processor	Qualcomm MSM8625Q quad-core 1.2GHz
Display	4" (800x480) WVGA \| IPS \| Capacitive \| multi-touch
RAM	1GB
ROM	4GB
Connectors	MicroSD : Mini USB
GPS	GPS \| A-GPS
Audio	Speaker : Microphone
Camera	5Mpx
Battery	3000 mAh Li-Ion 3.7V
Keyboard	Numeric (+function keys) + On-Screen
Environment	Android 4.1
Modules (factory)	GSM (GPRS/EDGE) WCDMA (HSDPA) : WiFi : Bluetooth 4.0 : GPS+A-GPS
Dimensions	226 mm x 89/73 mm x 54/31mm - 620g
Resistance	IP54
Readers (optional)		1D - MINDEO (LASER)
Sensors	Gravity sensor, ambient light sensor, proximity sensor

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

Select a version for yourself

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

	1D (Laser)	Finger Print	Printer	3G	Camera
v.1	-	-
v.2		-
v.3

go top... menu…

The collection and processing of data

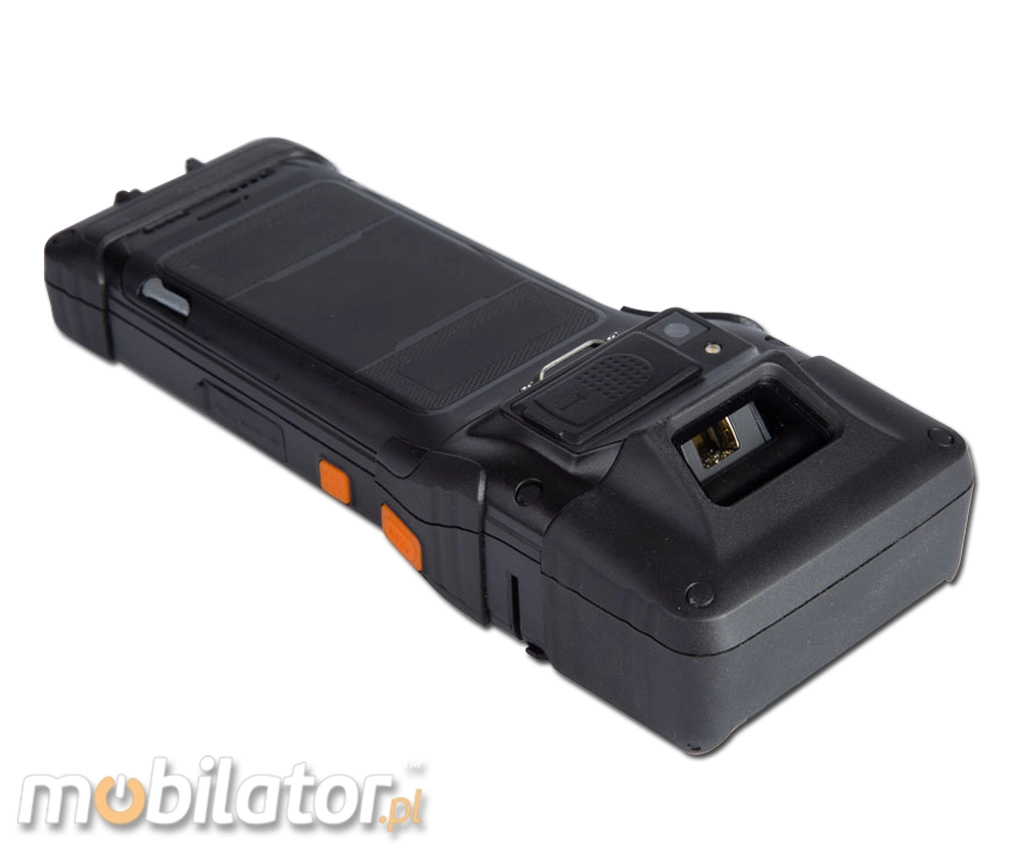

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

MINDEO (Laser)

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

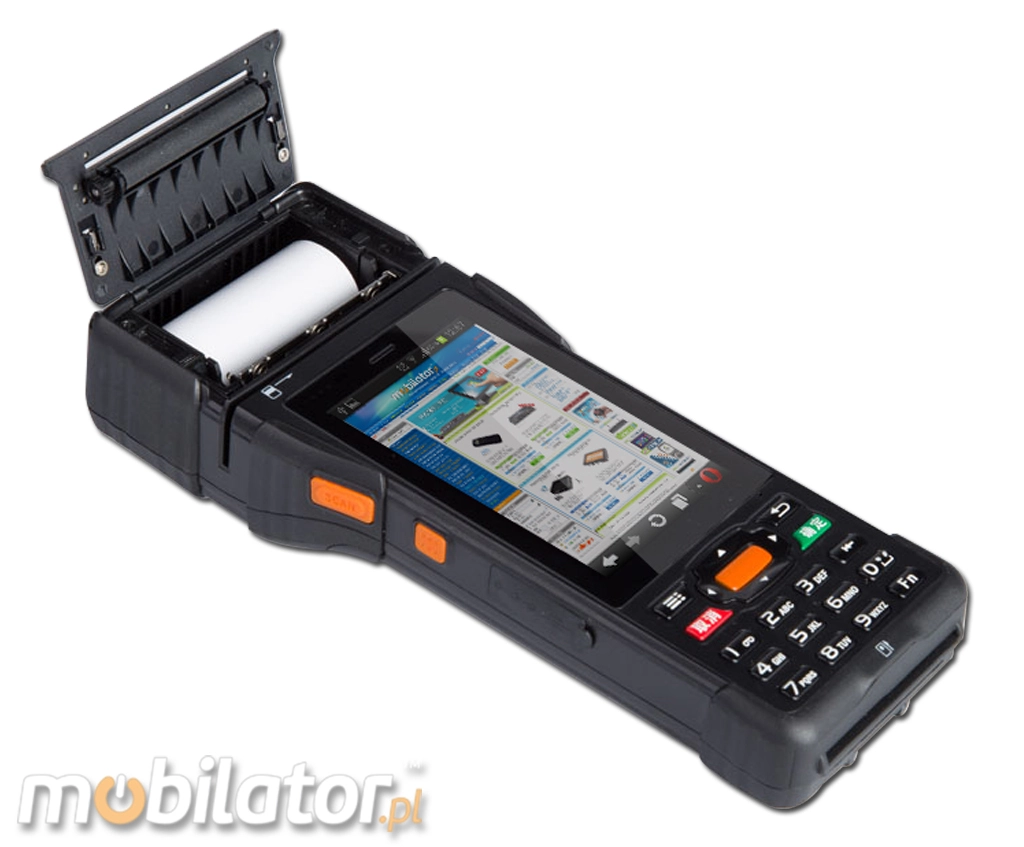

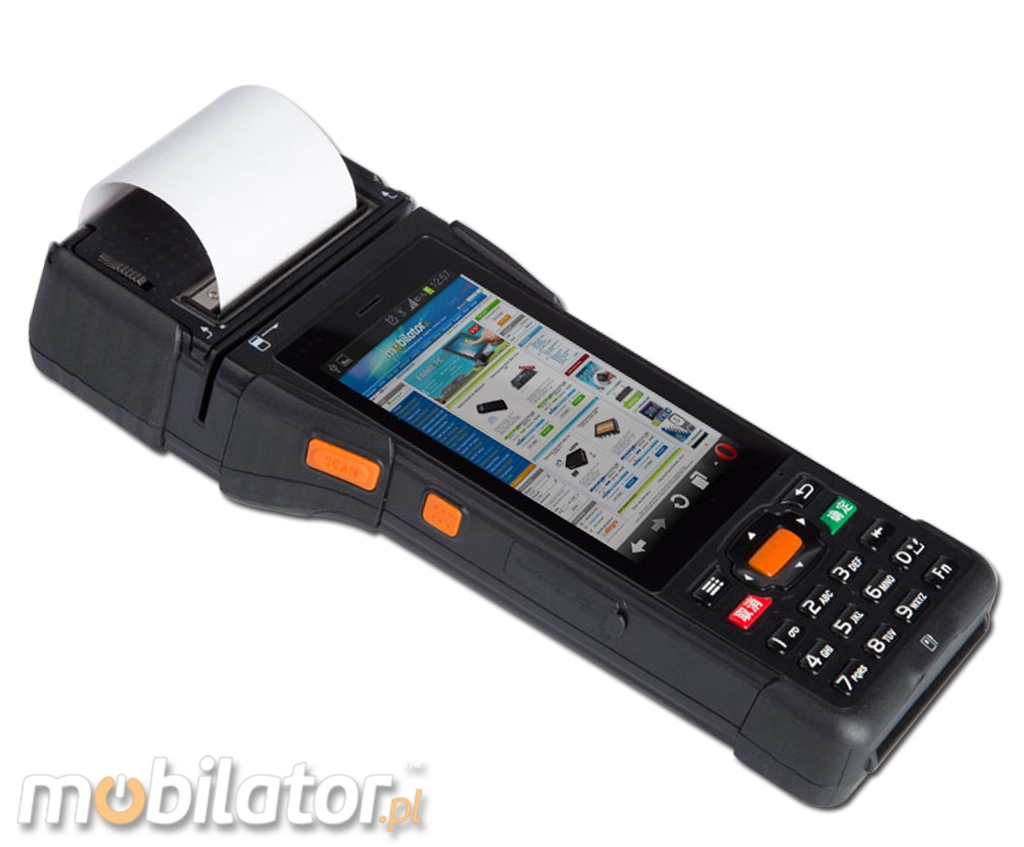

Built-in Thermal Printer

Portable thermal printers designed to work in the field, to print receipts and receipts, ensuring their fast printing. A small number of moving parts and a robust design ensure trouble-free operation even in the most difficult conditions. The use of thermal printing technology eliminates the need for expensive ink cartridges or ribbons. No matter how many pages are printed - in the printer runs out of ink unexpectedly.

Printing Speed	18 row/sec, Typical 60mm/sec, Low battery 30mm/sec
Paper Roll Width	58mm
Paper Roll diameter	30mm
Printing Width	48mm

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

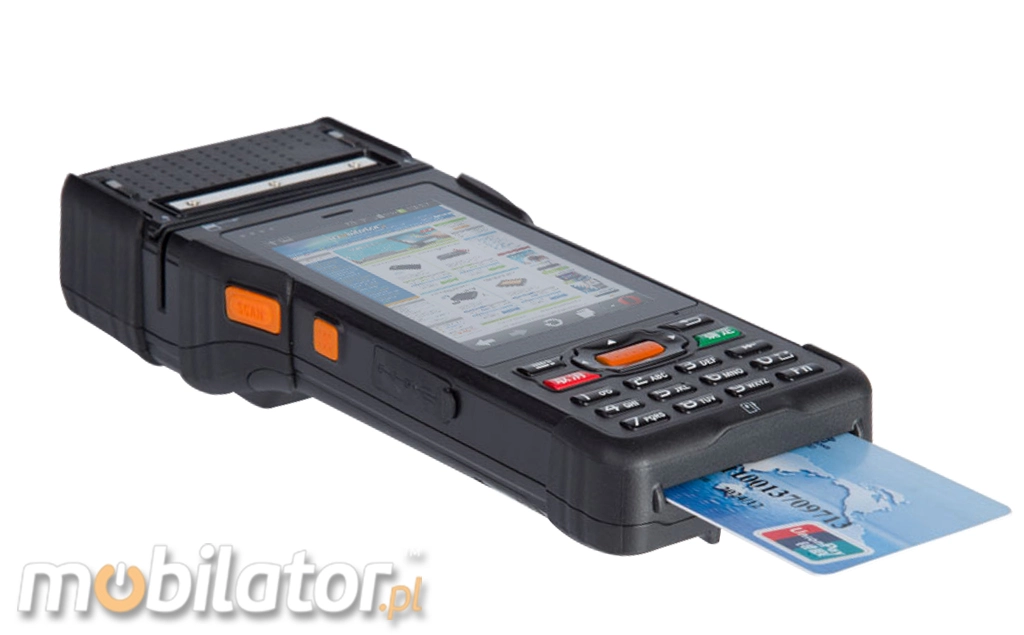

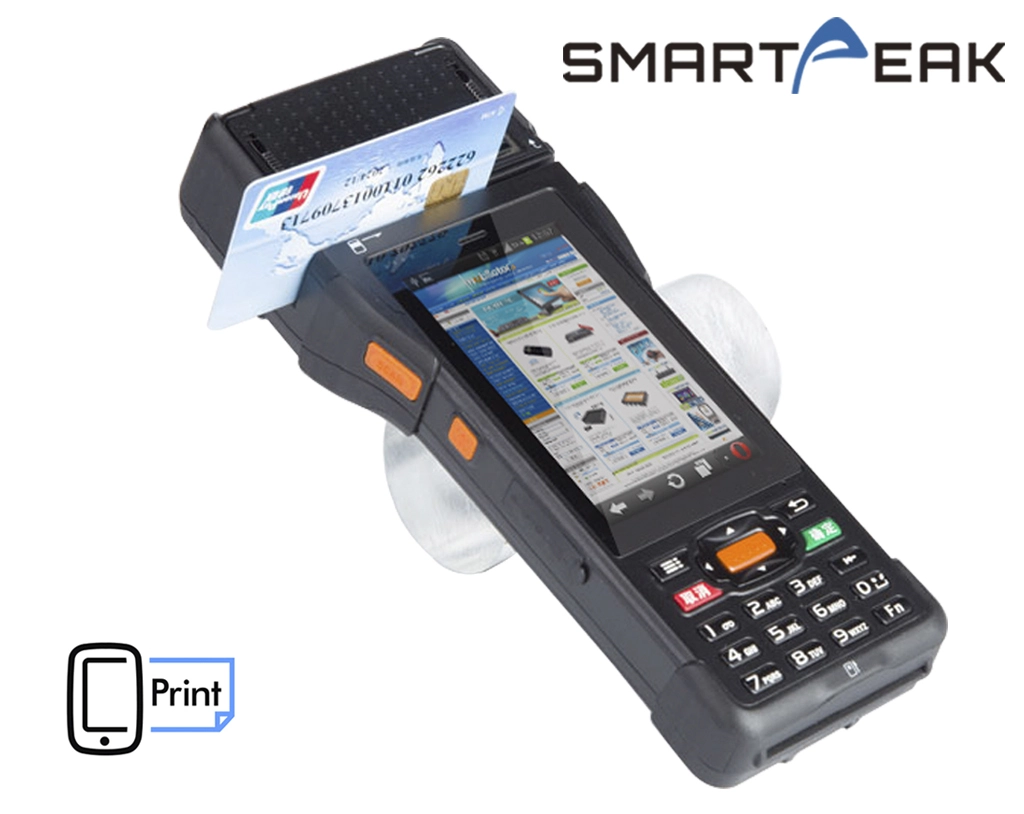

Magnetic Card Reader / IC

Card Readers Smartpeak are the products meet the safety criteria Highest during reading. Architecture on Which readers are created to efficiently protect your personal information encoded on the cards. High safety standards allow readers to use Virtually all types of applications. Read the safety data confirms compliance with the ISO 7816 standard for encryption. Urovo i9000 is equipped with a magnetic card reader (MSR) for reading and encoding cards in accordance with ISO 7811. The robust plastic housing, easy integration with existing systems, fast read and write magnetic heads that make it the perfect choice.

Magcard	Triple track MSR, bi-directional swiping, ISO7811,7812
SAM card	1 SAM Solt, ISO7816
IC Card	1 Slot, Support 1.8V/3V/5V, ISO7816, PBOC and EMV
Karta zbliżeniowa IC	13.56MHz, ISO/IEC 14443 Type A/B, qPBOC

NFC

NFC, or near-field communication, is an easy and intuitive technology that allows you to use your mobile phone for special purposes. An NFC tag can share and link to information such as web pages, social media and all other sorts of other information generally. Other areas where NFC is starting to evolve into are making payments, opening doors secured with contactless locks, logging on to computers and many more. All of these actions have something in common, that is they invoke an action based on you placing your phone (or any other NFC device) near (the N in NFC) the thing you want to read or interact with.

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

NFC	NFC 13.56Mhz ISO14443 A / B i ISO15693

Finger Print

Fingerprint security feature makes our Tablet Becomes even more personal, Allows you to secure the device fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important data and confidential and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to Effectively protect your data.

go top... menu…

Resitance

Applicable standards

Operating	-20°C -- +60°C
Storage	-40°C -- +80°C
Humidity	10% - 90% RH \| non-condensing
Dust	IP5x (dust)
Water	IPx4 (water)
Drop	Multiple drops to concrete 4.5ft./1.2m the entire operation range

go top... menu…

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

IP54 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection

No waterproofing

Protection from solid objects greater than 50mm in diameter

Protection from dripping water

Protection from solid objects greater than 50mm in diameter

Protection from vertically dripping water (tilted up to 15°)

Protection from object not greater than 2,5mm in diameter

Protection from sprayed water (tilted up to 60°)

Protection from object not greater than 1mm in diameter

Protection from splashed water

Complete protection against contact, Protection against dust deposit

Protection from splashed water

Complete protectionm against contact, Protection from infiltration of dust

Protection from water projected from a nozzle

Protection against immersion

Protection against complete, continuous submersion in water

go top... menu…

Modules and Wireless Networks

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in Smartpeak P900 SP adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi	802.11a b/g/n
GPS	GPS, supported A-GPS,
Bluetooth	Bluetooth 4.0 + EDR; Class II
GSM/3G	GSM/EDGE：850/900/1800/1900 WCDMA：2100/900 CDMA：800/1900
	The ability to make voice calls

go top... menu…

Minimalism

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

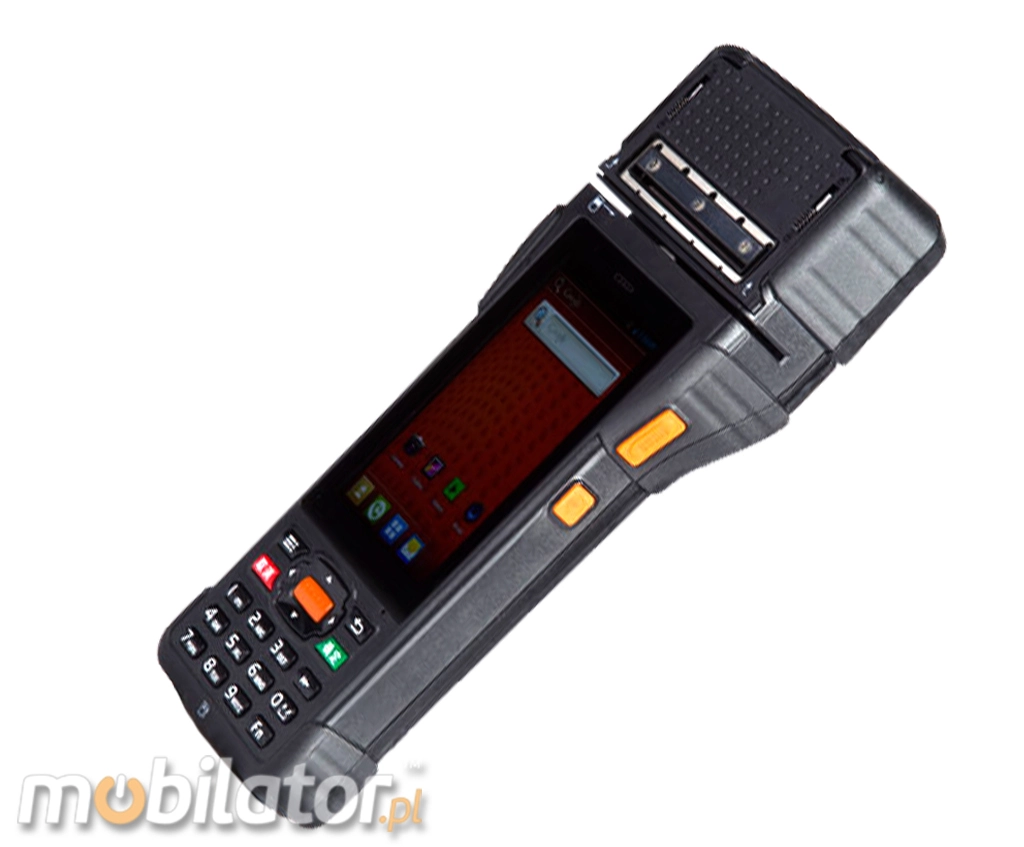

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have P900 SP. The device weighs just 630g and its dimensions (226 x 89/73 x 54/31mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that P900 SP is in a group of devices which enjoy great popularity in the European market in the industrial segment.

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

Dimensions	226 mm x 89/73 mm x 54/31mm
Weight	620g

Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

Kolektor przemysłowy SMARTPEAK P900SP-1D Android RUGGED DATA COLLECTOR P900SP 3g wcdma gsm 1d barcode scanner czytnik kodow kreskowych 1d 2d

go top... menu…

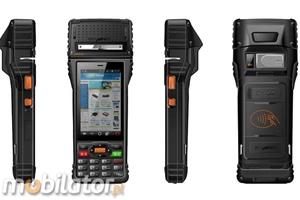

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Operating System
Android 4.1
Display
4 ", capacitive, multi touch, WVGA (480x800), IPS
Brightness
350nits
Processor
Qualcomm MSM8625Q Quad-core 1.2GHz
Memory
1GB
Hard Drive
4GB
Touch screen
Tak
Durability
IP54
Drop
1.2 meter
Shock
-----
Vibration
-----
Temperature
Operating temperature: -20°C -- +60°C
Storage temperature: -40°C -- +80°C
Humidity
10 to 90%(no condensation)
1D barcode scanner (reader)
-----
2D barcode scanner (reader)
-----
RFID scanner (reader)
Contactless card: 13.56MHz, ISO/IEC 14443 Type A/B, qPBOC
Other
Factory accessories:
 - charger
 - hand strapSensors:
 - triaxial gravity
 - light sensor
 - proximity sensor
Battery
3.7V; 3000mAh Li-Ion
Working time on battery
6h
Fast battery replacement ability
No
HotSwap battery
-----
LAN
No
WLAN
802.11 a/b/g/n Built-in Antenna
Bluetooth
Bluetooth 4.0 + EDR
WAN
WCDMA/GSM/CDMA2000/CDMA 1X
GPS
Built-in GPS, support AGPS
Camera
Yes- 5Mpx
In/Out
mini USB (support OTG), Mirco SD card slot (max.32GB)
Optional accessories
High-speed Thermal printer
Docking station connector
No
VESA standard – holders and mounts support
-----
COM port
-----
Magnetic card reader (MSR)
Yes - Triple track MSR, bi-directional swiping, ISO7811,7812
Microchip card reader
Yes - 1 Slot, Support 1.8V/3V/5V, ISO7816, PBOC and EMV | 13.56MHz, ISO/IEC 14443 Type A/B, qPBOC | 1 SAM Solt, ISO7816
Contrast
-----
Graphics card
-----
Chipset
-----
BIOS
-----
Casing material
high quality plastic
Flash Card Reader
microSD (max. 32GB)
CD/DVD
-----
Audio
Built-in Speaker : Microphone
Keyboard
Numeric (+function keys) + On-Screen
Additional Navigation Devices
-----
Color
black
Swivel Hinge
-----
VGA out
No
TV Out
-----
TV Tuner
-----
Security
-----
Waterproof
IP54
Sand and dust
IP54
Size
226 mm x 89/73 mm x 54/31mm - 620g
Fanless casing
Yes
Responsible Entity / Distributor
New Portable Devices

Compare all versions

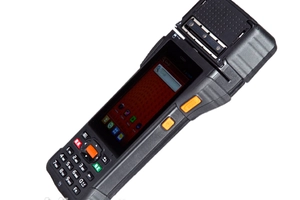

Payment Terminal SMARTPEAK P900SP Android v.1
					4 "(800x480) IPS LCD - Capacitive | IP54
Quad Core 1.2GHZ / 1GB RAM / 4GB ROM
WiFi : Bluetooth : Camera 5Mpx
Android 4.1 : GPS : 3G/GSM : NFC
Printer / Magnetic cards: contactless IC

Product from the Archive - production finished

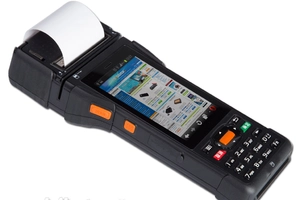

Payment Terminal SMARTPEAK P900SP Android v.2
					4 "(800x480) IPS LCD - Capacitive | IP54
Quad Core 1.2GHZ / 1GB RAM / 4GB ROM
WiFi : Bluetooth : Camera 5Mpx : NFC
Android 4.1 : GPS : 3G/GSM : 1D Mindeo
Printer / Magnetic cards: contactless IC

Product from the Archive - production finished

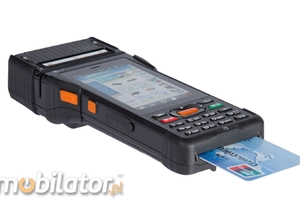

Payment Terminal SMARTPEAK P900SP Android v.3
					4 "(800x480) IPS LCD - Capacitive | IP54
Quad Core 1.2GHZ / 1GB RAM / 4GB ROM
WiFi :Bluetooth :Camera 5Mpx: NFC: Fingerprint
Android 4.1 : GPS : 3G/GSM : 1D Mindeo
Printer / Magnetic cards: contactless IC

Product from the Archive - production finished
