Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.
* Optional equipment, available only in specific versions of the device.
| Performance | |
|---|---|
| Processor | Intel Celeron J1900 (4x 2GHz) |
| Graphics card | Intel HD Graphics |
| Operating system | Windows 7/8/10/CE | Linux |
| RAM | 4 GB DDR3L |
| Drive | SSD: 32 GB |
| Display | |
| Screen | 15" (1024 x 768) |
| Touch screen | Resistive, single-point |
| Brightness | 350cd/m² |
| Screen ratio | 4:3 |
| View angle | Full |
|
Touch screen lifetime |
Over 50 million touches |
| Interfaces | |
| Communication | Wi-Fi* |

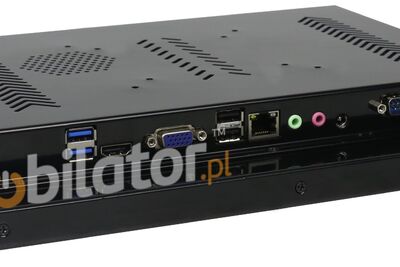

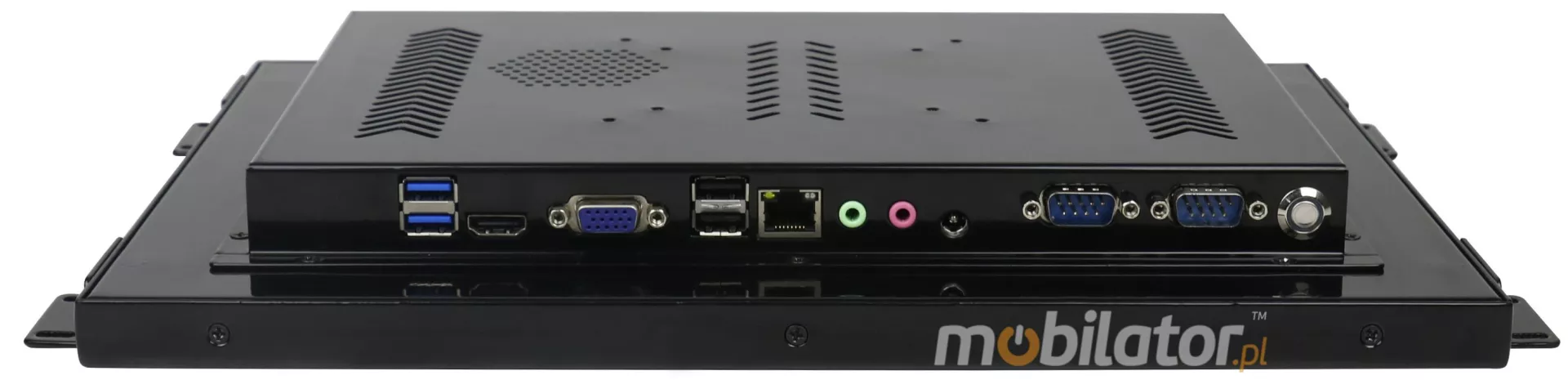

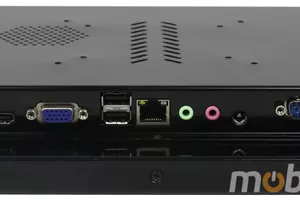

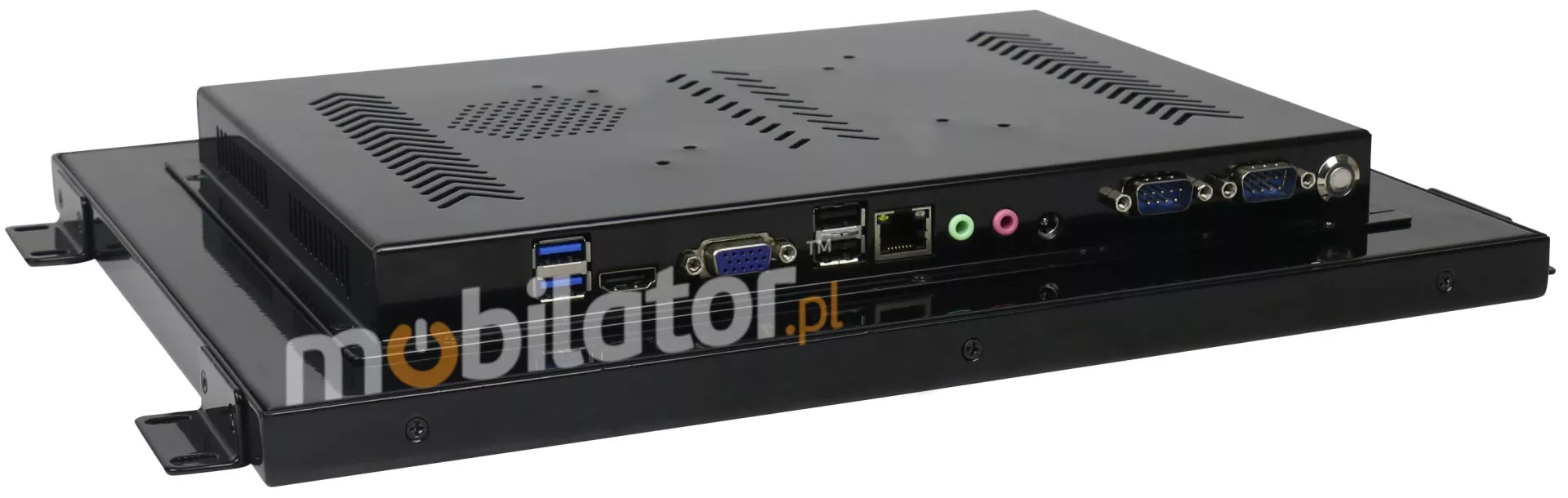

| Connectors | 2x USB 3.0 | 2x USB 2.0 | 2x RS232 | 1x Gigabit LAN | 1x VGA | 1x HDMI | 1x Mic | 1x Audio | DC 12V |
| Other | |
| Dimensions | 352 x 263 x 45mm |
| Weight | 3.0 kg |
| Casing material | Steel |
* Optional equipment, available only in specific versions of the device.
Detailed device specification is available in the "Technical data" tab.
The dust-proof industrial PC panel uses an efficient and energy-saving Intel Celeron J1900 processor. In its interior there are two cooperating cores enabling more efficient processing of many tasks at the same time. Shared cache memory in which a multi-level hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. Improved graphics card technology allows you to enjoy movies at full resolution and HD quality.
More photos in full resolution available in the "Gallery" tab.

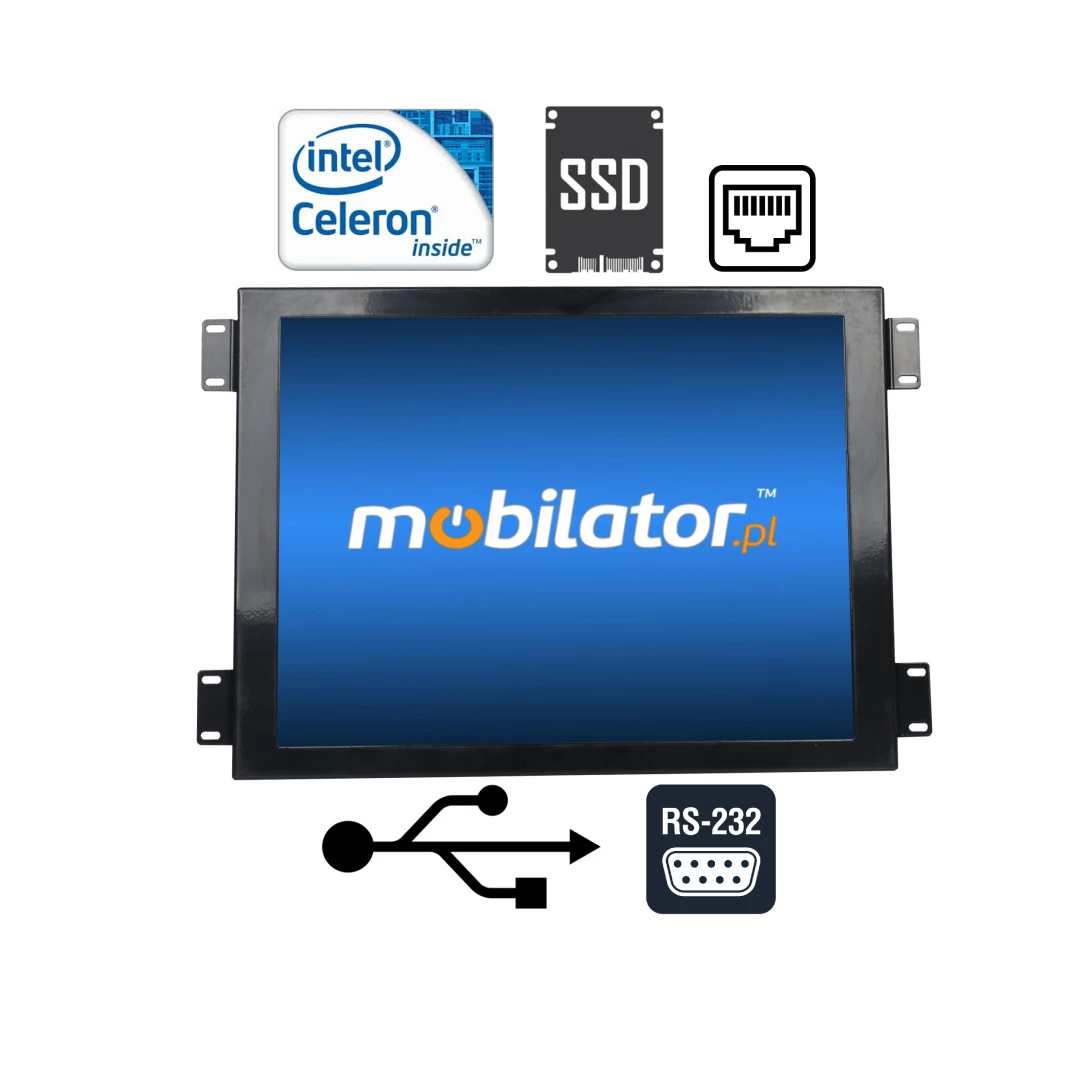

Amplified, waterproof industrial computer ITPC A150 has a water-resistant and scratch-proof 15" LED screen 1024x768 resolution offers good image quality, and high brightness in the 350 cd/m² range gives better color saturation and contrast and allows significantly improved visibility even in the case of incident The display of the resistive type provides the user with a clear image and ease of use by touch.
In the resistive screen, the sensitive surface is made of two plastic plates. The plate on the surface is made of thin and scratch-resistant plastic. It is also covered with a thin layer of conductive materials placed on the bottom of the screen. Under the top glass (i.e. below the conductive material) is a second plastic plate. Both tiles have no contact with each other until the user of the device has pressed the screen with a finger or stylus. Then there is contact between slightly separated screens. As a result of their contact, a short-circuit is created, which by measuring the vertical and horizontal resistance is converted into data indicating the processor's contact point.

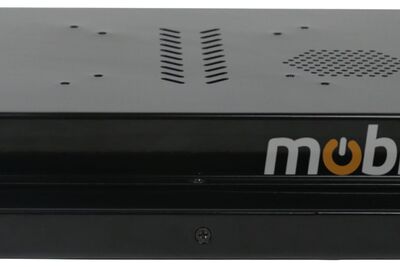

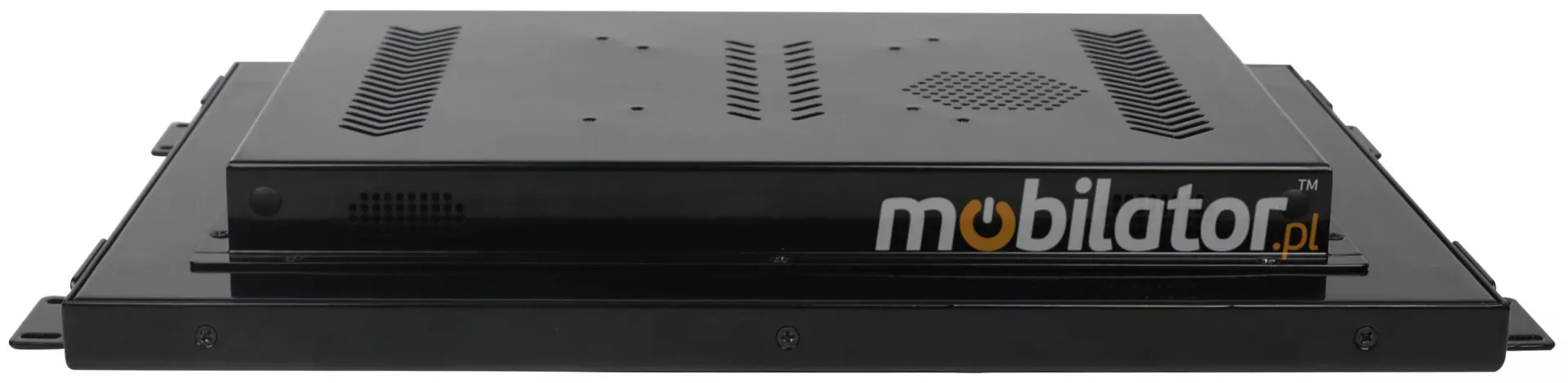

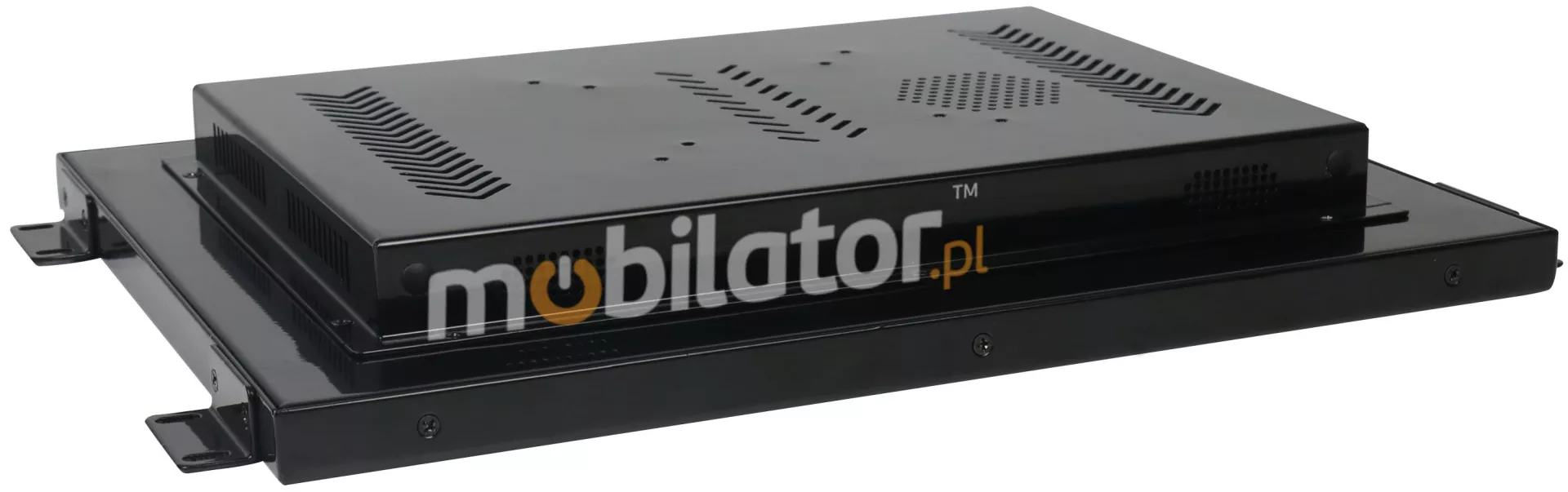

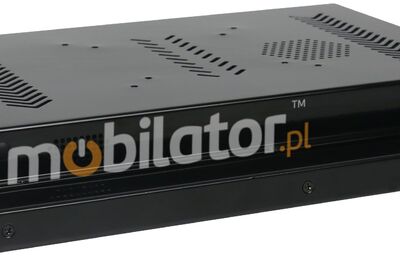

Panel PC has a high quality casing made from steel alloys. It is a very crucial component of cooling system thanks to openings allowing air flow inside casing, supporting constantly working fan. Overall design concentrates on simplicity and functionality which are in high demand amongst professionals.
PanelPC ITPC A150 is adapted for continuous operation in both very low and high temperatures in the range from -10 ° C to 50 ° C. If the device is switched off, it can already handle temperatures between -20 ° C and 60 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 95% relative humidity.
| Work temp. | -10°C do 50°C |
| Storage temp. | -20°C do 60°C |
| Humidity | 0% - 95% |
The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The shockproof industrial panel ITPC A150 has been equipped with standards - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb/s.
| Standards | 802.11a/b/g/n |
| Frequencies | 2.4GHz | 5GHz |
PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.
The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.
Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.
Industrial industrial computer ITPC A150 is offered in several versions adapted to different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.
| v.0 | v.1 | v.2 | v.3 | v.4 | v.5 | |
|---|---|---|---|---|---|---|
| 4GB RAM | — | ✔ | ✔ | ✔ | — | — |
| 8GB RAM | — | — | — | — | ✔ | ✔ |
| 32GB SSD | — | ✔ | — | — | — | — |
| 64GB SSD | — | — | ✔ | — | — | — |
| 128GB SSD | — | — | — | — | ✔ | — |
| 500GB HDD | — | — | — | ✔ | — | — |
| 1TB HDD | — | — | — | — | — | ✔ |
| WiFi | — | — | ✔ | ✔ | ✔ | ✔ |
;)
;)
;)
;)
2698.92 zł
3319.67 zł
4505.76 zł
5542.08 zł
5481.46 zł
6742.20 zł
