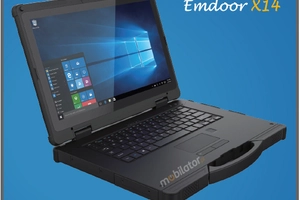

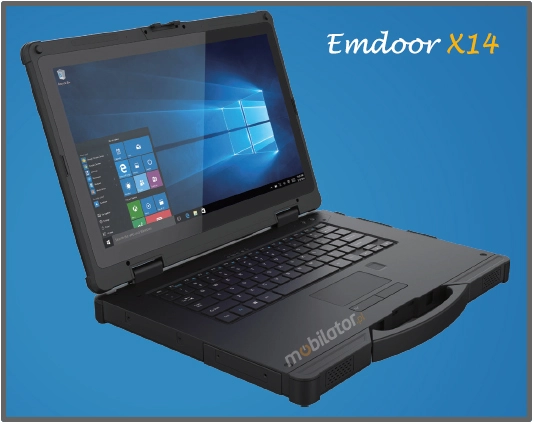

Small dimensions industrial notebook excel in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. Small and reliable notebook use heat-pipe technology and aluminum fins for passive cooling. The robust industrial laptop is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.
| Performance | |
|---|---|
| Processor | Intel Core i5 8250U (4x 1.60GHz) |
| Graphics card | Intel UHD Graphics 620 |
| Operating system | Windows 10 Professional |
| RAM |
8 GB DDR4L |
| Drive | 1TB SSD M.2 |
| Interfaces | |
| Connectivity |
Wi-Fi Intel 3165 (a/b/g/n/ac)
2x LAN - Intel I219 + I210 10/100/1000 Mbps |

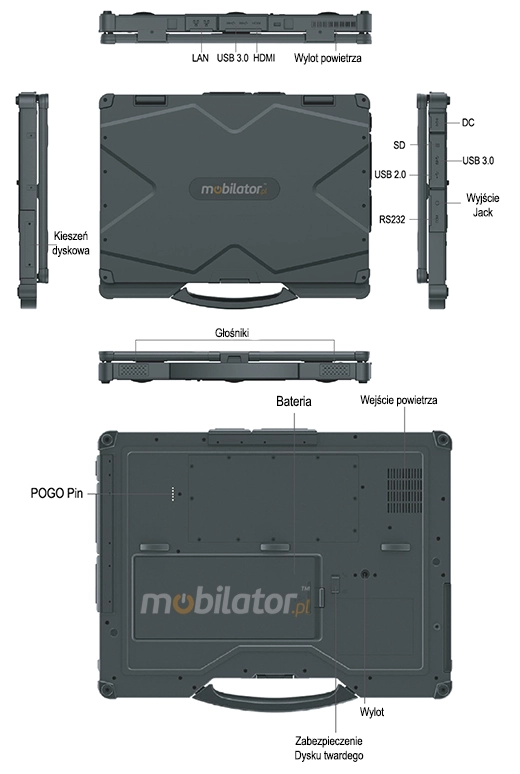

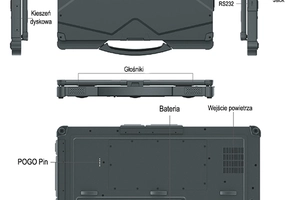

| Connectors |
1x RS232 1x RS485 2x RJ45 3x USB 3.0 DC 1x USB 2.0 1x SD Card 1x SIM 1x HDMI Type A 1x Audio Jack |
| Other | |
| Available colors | Black |

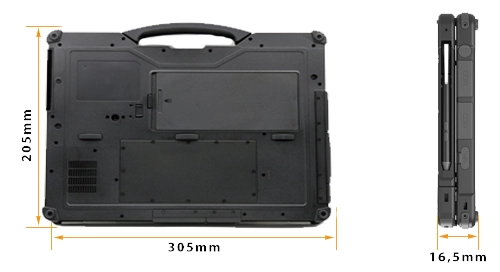

| Dimensions | 305mm x 205mm x 16,5mm |
| Weight | 2.850 kg |
| Comparison of disk speeds | |
|---|---|
| HDD | Read: 170MB/s | Write: 140MB/s |
| SSD M.2 Drive | Read: 520 MB/s | Write: 370MB/s |
The industrial Emdoor Notebook uses a proven cooling system, based only on solid elements, mainly heat sinks. The system uses the phenomenon of metals passing thermal energy into the environment - there are no additional moving elements in the form of eg fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.
X14 by Emdoor is designed for continuous operation in both very low and high temperatures ranging from -10 ° C to 50 ° C. If the device is switched off, it can already handle temperatures in the range of -30 ° C to 70 ° C.
| Work temp. | -10°C — 50°C |
| Storage temp. | -30°C — 70°C |
| Humidity | 10% — 95% |

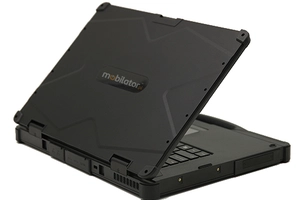

The passive cooling system used in the notebook combined with the non-disk SSD M.2 make this computer very resistant to various types of mechanical injuries. An additional advantage of industrial computers is a solid construction made of high quality aluminum and specially designed in such a way that in addition to high efficiency in heat dissipation, it can also resist any external damage.
The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial notebook X14 has been equipped the standard of - 802.11(a/b/g/n/ac), which allows transfer of files at a dizzying speed of up to 433 Mb / s.
The notebook Emdoor X14 has built-in two Intel network adapter that can work in a fast Gigabit Ethernet network.
Industrial notebook is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management.
Thanks high performance an industrial notebook can be used to connect multiple devices in a warehouse and make their management much easier. Its rugged casing and the fanless cooling system are ideal for harsh environments in such rooms. The solid construction guarantees long-lasting work, even in environments with high dustiness and dirt.
The industrial Emdoor X14 notebook is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.
| v.1 | v.2 | v.3 | v.4 | v.5 | v.6 | v.7 | v.8 | |
|---|---|---|---|---|---|---|---|---|
| 128 GB SSD | ✔ | — | — | — | — | — | — | — |
| 256 GB SSD | — | ✔ | — | — | — | — | — | ✔ |
| 1 TB SSD | — | — | ✔ | — | — | — | — | — |
| Windows 10 Home | — | — | — | ✔ | — | — | — | — |
| Windows 10 Pro | — | — | — | — | ✔ | — | — | — |
| Windows 10 IoT | — | — | — | — | — | ✔ | — | — |
| 4G | — | — | — | — | — | — | ✔ | ✔ |
| Screen Dotykowy | — | — | — | — | — | — | — | — |
| v.9 | v.10 | v.11 | v.12 | v.13 | v.14 | v.15 | v.16 | |
| 128 GB SSD | — | — | — | — | — | — | — | — |
| 256 GB SSD | ✔ | — | ✔ | — | ✔ | — | ✔ | — |
| 1 TB SSD | — | ✔ | — | ✔ | — | ✔ | — | ✔ |
| Windows 10 Home | — | — | — | — | — | — | — | — |
| Windows 10 Pro | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | — | — |
| Windows 10 IoT | — | — | — | — | — | — | — | — |
| 4G | ✔ | ✔ | — | — | ✔ | ✔ | ✔ | ✔ |
| Screen Dotykowy | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
;)
;)
;)
;)
;)
;)
;)
;)
