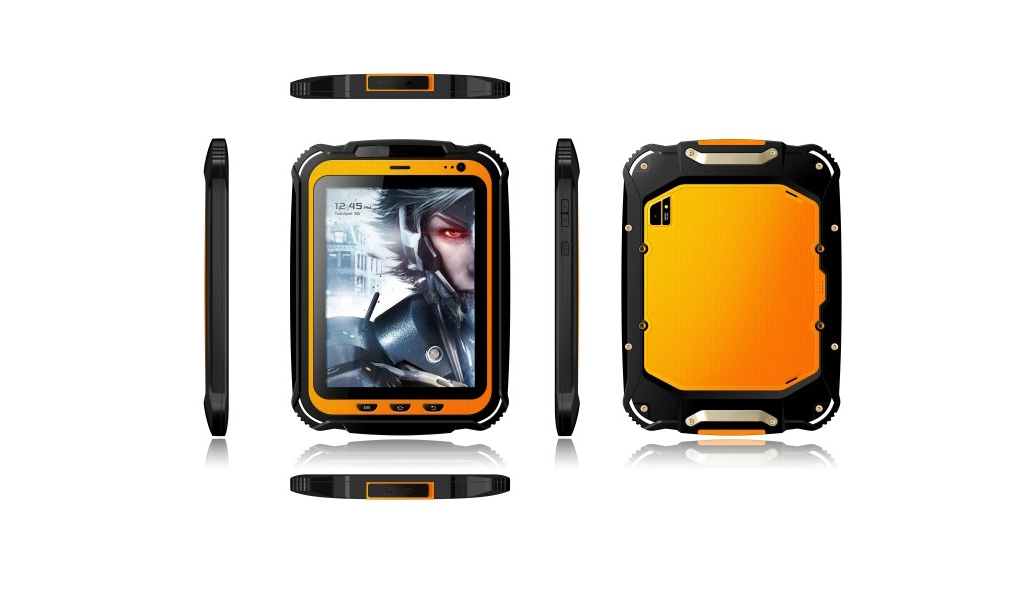

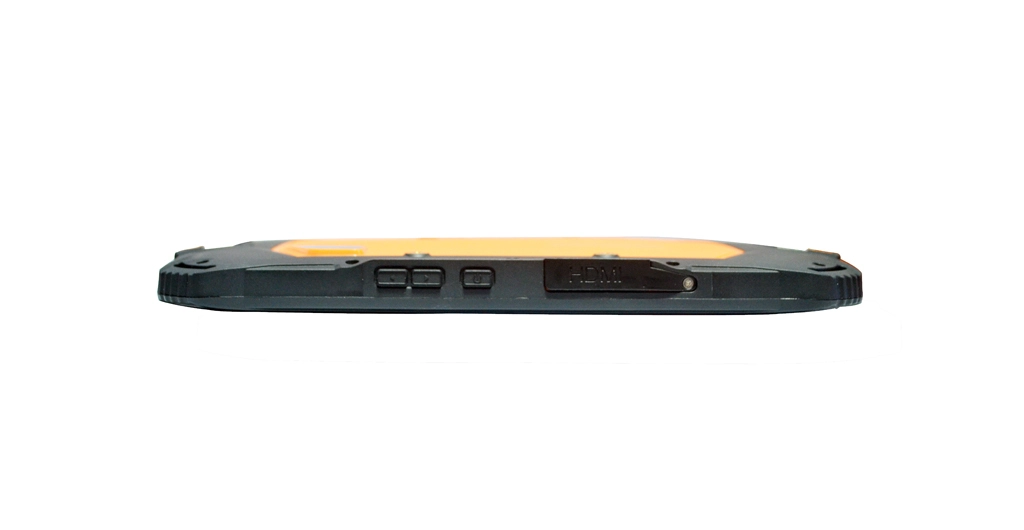

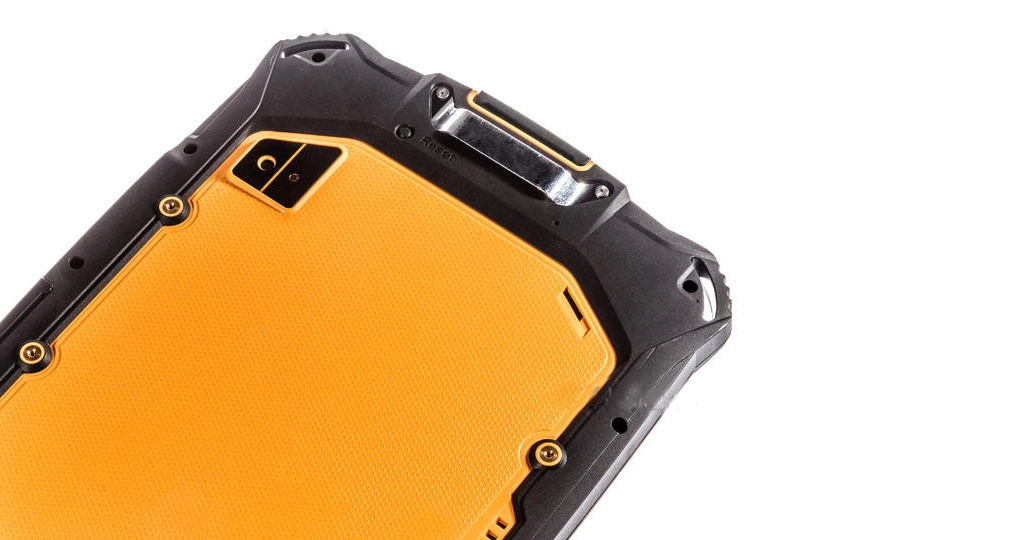

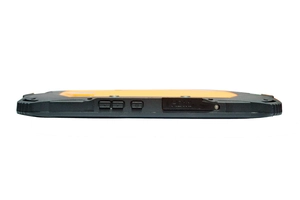

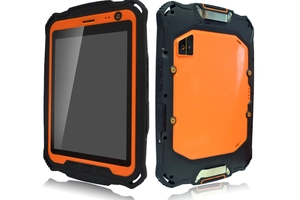

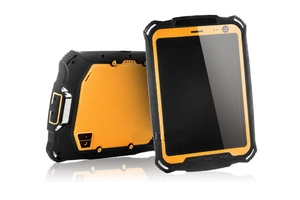

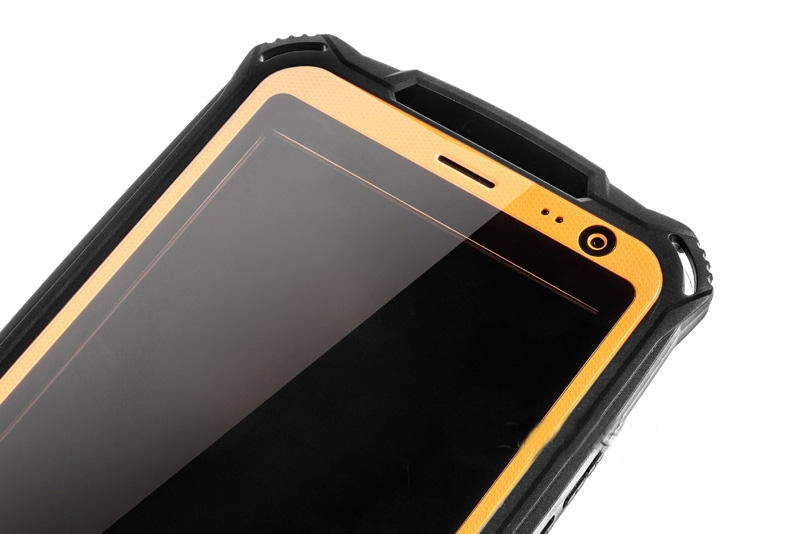

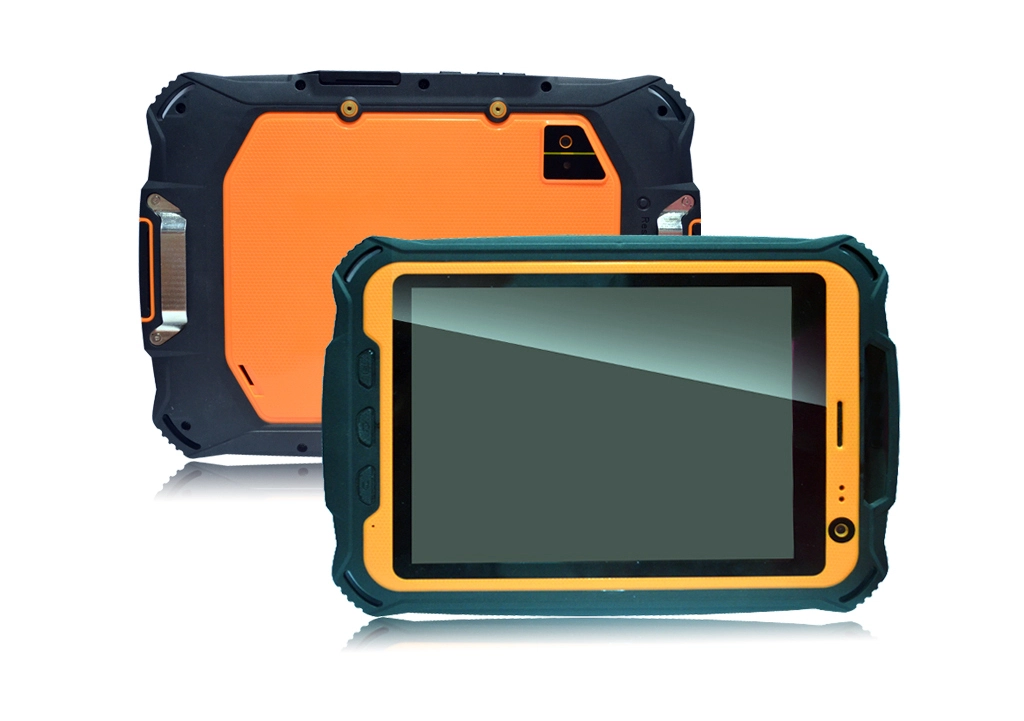

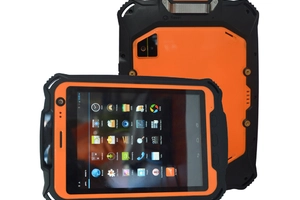

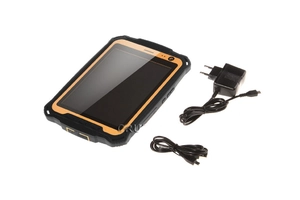

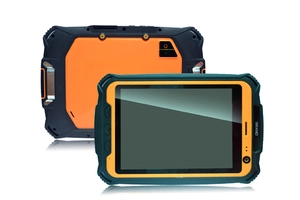

Rugged Tablet MobiPad T1 v.1

Update Date: 2020.07.28

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

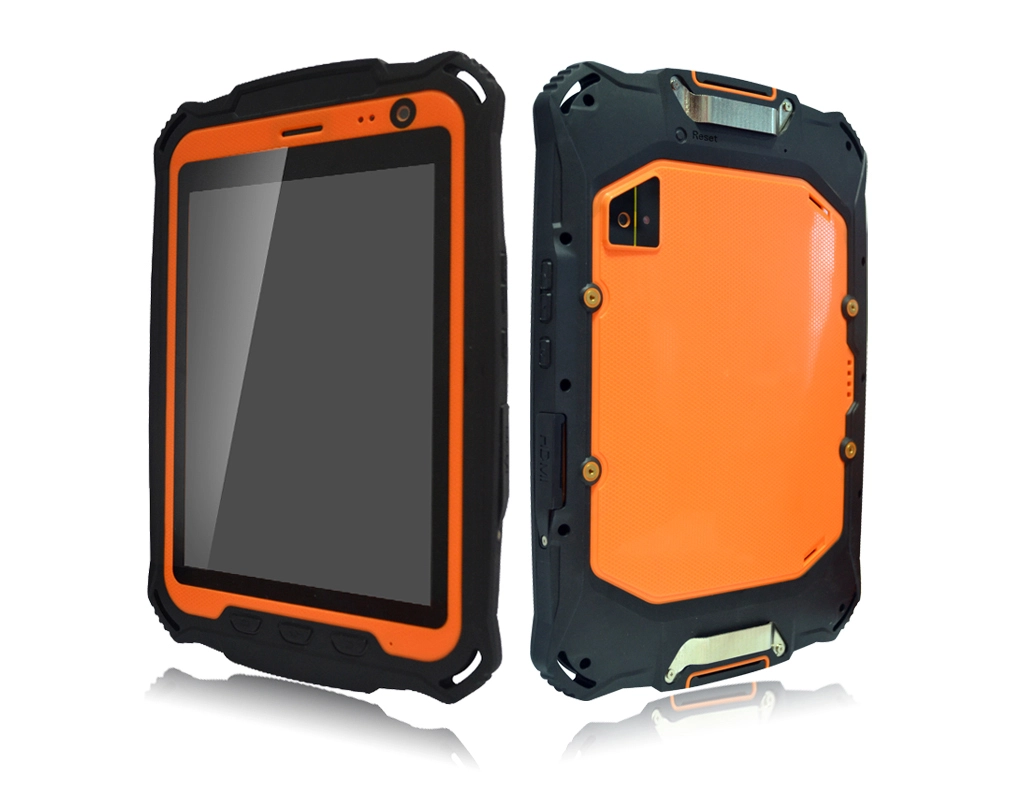

tablet przemyslowy mobipad t1 ip67

Description
Resistance
The collection and processing of data
Modules and Wireless Networks
Minimalism and comfort

MobiPad T1 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.

Description

mobipad t1 rfid hf lf tablet przemysłowy ze skanerem

Procesor	MTK8382 Quad Core (4x - 1.3GHz)
Graphics	Mali - 400MP
Display	7.85” (1024x768) IPS/AFFS \| Tempered Glass \| 5-points\| multi-touch
Type of display	Capacitive
Brightnesss	400nits
Contrast	800:1
RAM	1G LPDDR2
ROM	16GB EMCP
Connectors (factory)	MicroUSB (OTG) \| Port MicroSD \| Port SIM \| Audio Jack \| micro HDMI
GPS (factory)	Standard (GPS/EPO/A-GPS)
Audio	Built-in Microphone \| 2x - Speaker \| Receiver \| Audio Jack
Camera (Front)	2MPx
Camera (Rear)	13MPx + Autofocus + Flash
Keyboard	On-Screen + Physical keys
	Home \| Menu \| Return \| ON/OFF \| Volume \| Reset
Battery	Li-Ion 15000mA
	Standby mode - 1128h
	Operating mode (depends of usage) - 19h
System	Android 4.2.2
Modules (factory)	802.11 a/b/g/n \| Bluetooth 3.0 \| 2G/3G (GSM/WCDMA) \| GPS
Dimensions	244mm x 168mm x 16mm \| 811g
Resistance	IP67
Sensors (factory)	Accelerometer \| G-Sensor \| Light Sensor \| Proximity Sensor
Certificates	CE \| ROHS \| IP67
Warranty	12 months

Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

Select a version for yourself

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.

	v.1	v.2	v.3	v.4
RFID LF	-	-	-
RFID HF	-	-		-
NFC	-		-	-

go top… menu…

Resistance

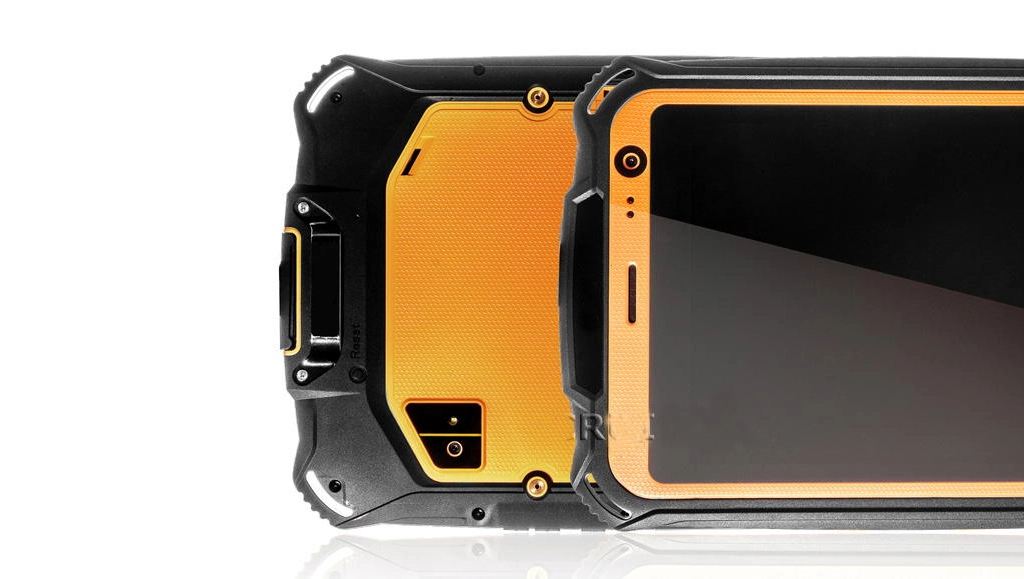

ip67 android tablet przemyslowy

Operating	-20°C -- +60°C
Storage	-40°C -- +80°C
Humidity	5% - 95% non-condensing
Dust	IP6x (dust)
Water	IPx7 (water)
Drop	3,93ft./1.2m

Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact. Protection from infiltration of dust.

Protection against immersion.

go top… menu…

The collection and processing of data

RFID

IP67 tablet wodoodporny pyloodporny

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

	RFID HF	NFC	RFID LF
Frequency	13.56 MHz	13.56 MHz	125khz
Reading distance	to 3cm	to 3cm	to 3cm
Standard	ISO/IEC 15693	ISO 18092	EM/TK 4100/4200
	ISO 14443 A/B	ISO/IEC 15693
		ISO 14443

go top… menu…

Modules and Wireless Networks

3g 2g mobipad t1 modem

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal T1 WCDMA module adapts automatically to transfer and network coverage.

WIFI	802.11 a/b/g/n
GPS (Standard)	Standard
Bluetooth	Bluetooth 3.0
2G/3G	(2G) 850/900/1800/1900MHz \| (3G) 850/1900/2100MHz
	The ability to make voice calls (speaker / audio jack)

tablet z 3g przemysłowy

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top… menu…

Minimalism and comfort

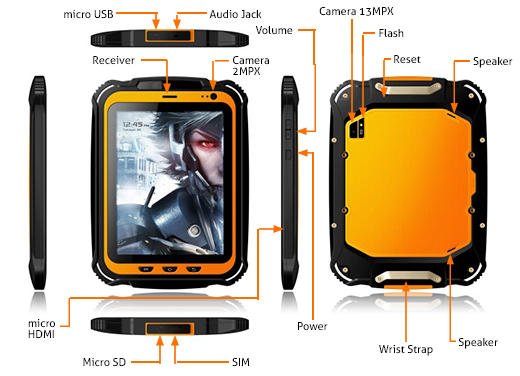

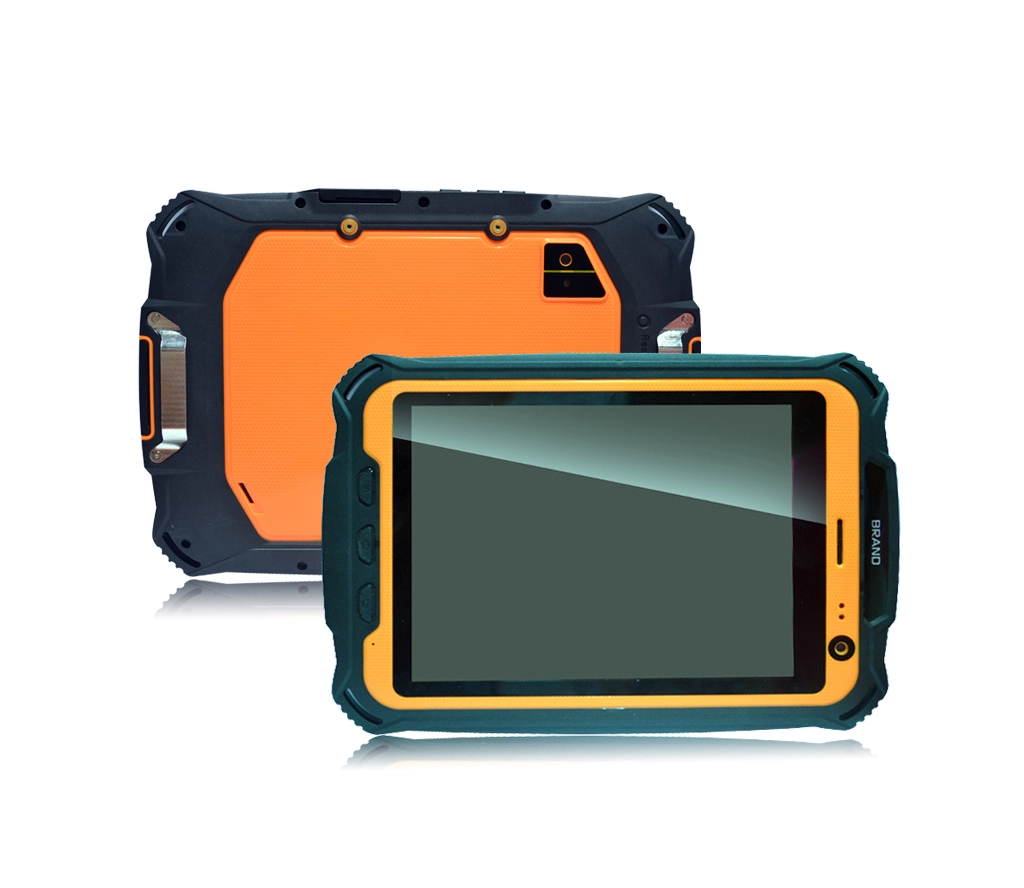

tablet z hdmi lan mobipad t1

You do not have to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with MobiPad problem disappears forever, as it weighs only 750 and its dimensions (24 x 17.8 x 20cm) allow to carry it with you everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Europe market in the industrial segment.

Dimensions	244mm x 168mm x 16mm
Weight	811g

tablet mobipad t1 rozmiary

go top… menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Operating System
Android 4.2.2
Display
7.85” (1024x768) IPS/AFFS | Toughened Glass | 5-points | multi-touch
Brightness
400nits
Processor
MTK8382 Quad Core (4x - 1.3GHz)
Memory
1GB LPDDR2
Hard Drive
16GB EMCP
Touch screen
Tak
Durability
IP67
Drop
1.2 meters
Shock
-----
Vibration
-----
Temperature
Operating temperature: -20°C -- +60°C
Storage temperature: -40°C -- +80°C
Humidity
5% - 95% non-condensing
1D barcode scanner (reader)
-----
2D barcode scanner (reader)
-----
RFID scanner (reader)
none (available in other configurations)
Other
Accelerometer | G-Sensor | Light Sensor | Proximity Sensor
Battery
Li-Ion 15000mA
Working time on battery
Operating time (depending on usage) - 19h
Standby time - 1128h
Fast battery replacement ability
No
HotSwap battery
No
LAN
Yes - via an adapter (OTG-> RJ45)
WLAN
IEEE 802.11b/g/n
Bluetooth
Bluetooth 3.0
WAN
GSM/GPRS/EDGE: 850/900/1800/1900MHz
WCDMA/HSDPA/HSUPA: 850/1900/2100MHz
GPS
Standard
Camera
FRONT: 2MPX
REAR: 13MPX (Auto Focus+ Flash)
In/Out
MicroUSB (OTG) | Port MicroSD | Port SIM | Audio Jack | micro HDMI
Optional accessories
Case, Car Charger, Wrist Strap, micro USB (RJ45)
Docking station connector
-----
VESA standard – holders and mounts support
-----
COM port
No
Magnetic card reader (MSR)
-----
Microchip card reader
-----
Contrast
800:1
Graphics card
Mali - 400MP
Chipset
-----
BIOS
-----
Casing material
high quality plastic and rubber
Flash Card Reader
micro SD/TF max. 32GB
CD/DVD
-----
Audio
Built-in Microphone | 2x - Speakers | Receiver | Audio Jack
Keyboard
Ekranowa + Przyciski fizyczne
Home | Menu | Return | ON/OFF | Volume | Reset
Additional Navigation Devices
-----
Color
orange-black
Swivel Hinge
-----
VGA out
-----
TV Out
-----
TV Tuner
-----
Security
IP67
Waterproof
IP67
Sand and dust
IP67
Size
244mm x 168mm x 16mm
811g
Fanless casing
Yes
Responsible Entity / Distributor
New Portable Devices

Compare all versions


Rugged Tablet MobiPad T1 v.1
					7.85” (1024x768) IPS/AFFS : Gorilla
MTK8382(4x - 1.3 GHz) : IP67
1GB RAM : 16GB ROM : 2/13MPX
WiFi : Bluetooth : GPS : OTG
2G/3G : Android™ 4.2

Product from the Archive - production finished

Rugged Tablet MobiPad T1 v.1
					7.85” (1024x768) IPS/AFFS : Gorilla
MTK8382(4x - 1.3 GHz) : IP67
1GB RAM : 16GB ROM : 2/13MPX
WiFi : Bluetooth : GPS : OTG
2G/3G : Android™ 4.2

Product from the Archive - production finished

Rugged Tablet MobiPad T1 v.2
					7.85” (1024x768) IPS/AFFS : Gorilla
MTK8382(4x - 1.3 GHz) : Android™ 4.2
1GB RAM : 16GB ROM : 2/13MPX
WiFi+BT : GPS : OTG : 2G/3G
NFC (13.56MHz)

Product from the Archive - production finished

Rugged Tablet MobiPad T1 v.4
					7.85” (1024x768) IPS/AFFS : Gorilla
MTK8382(4x - 1.3 GHz) : Android™ 4.2
1GB RAM : 16GB ROM : 2/13MPX
WiFi+BT : GPS : OTG : 2G/3G
RFID LF (125kHz)

Product from the Archive - production finished

Rugged Tablet MobiPad T1 v.3
					7.85” (1024x768) IPS/AFFS : Gorilla
MTK8382(4x - 1.3 GHz) : Android™ 4.2
1GB RAM : 16GB ROM : 2/13MPX
WiFi+BT : GPS : OTG : 2G/3G
RFID HF (13.56MHz)

Product from the Archive - production finished
