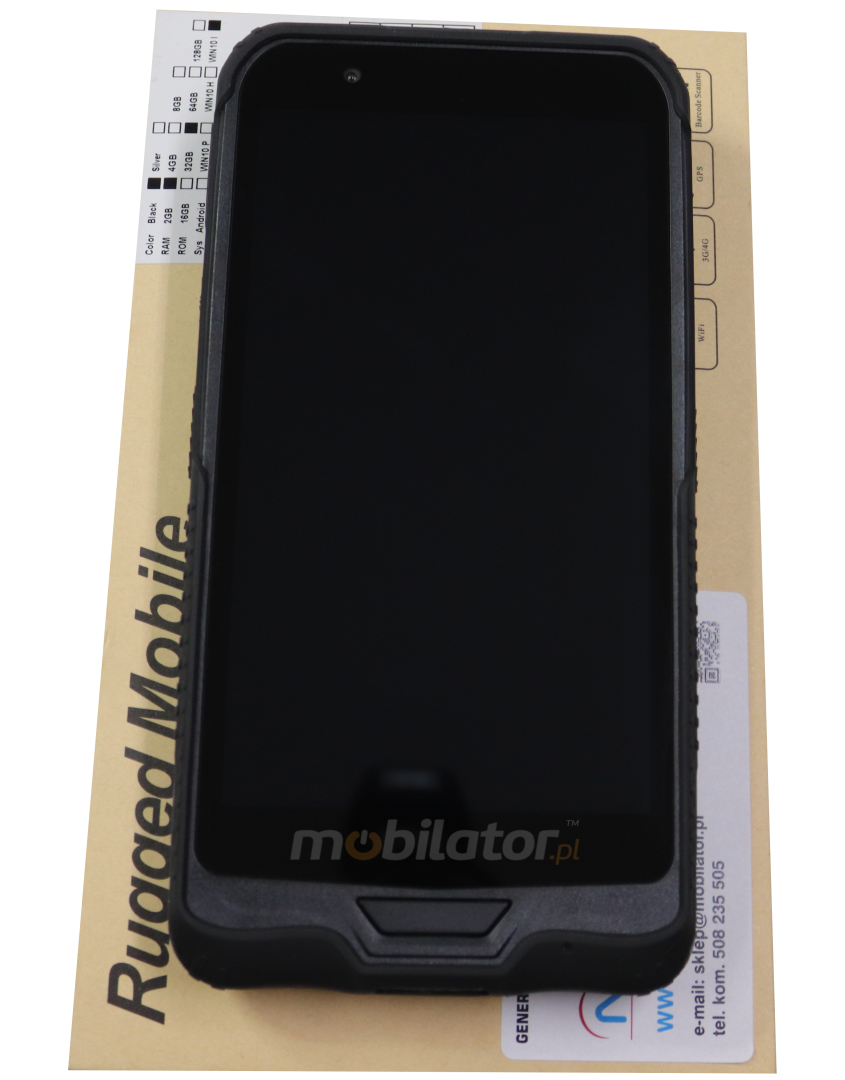

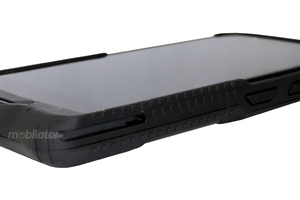

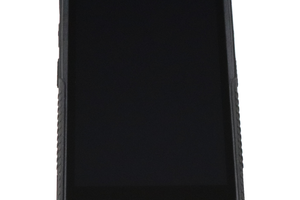

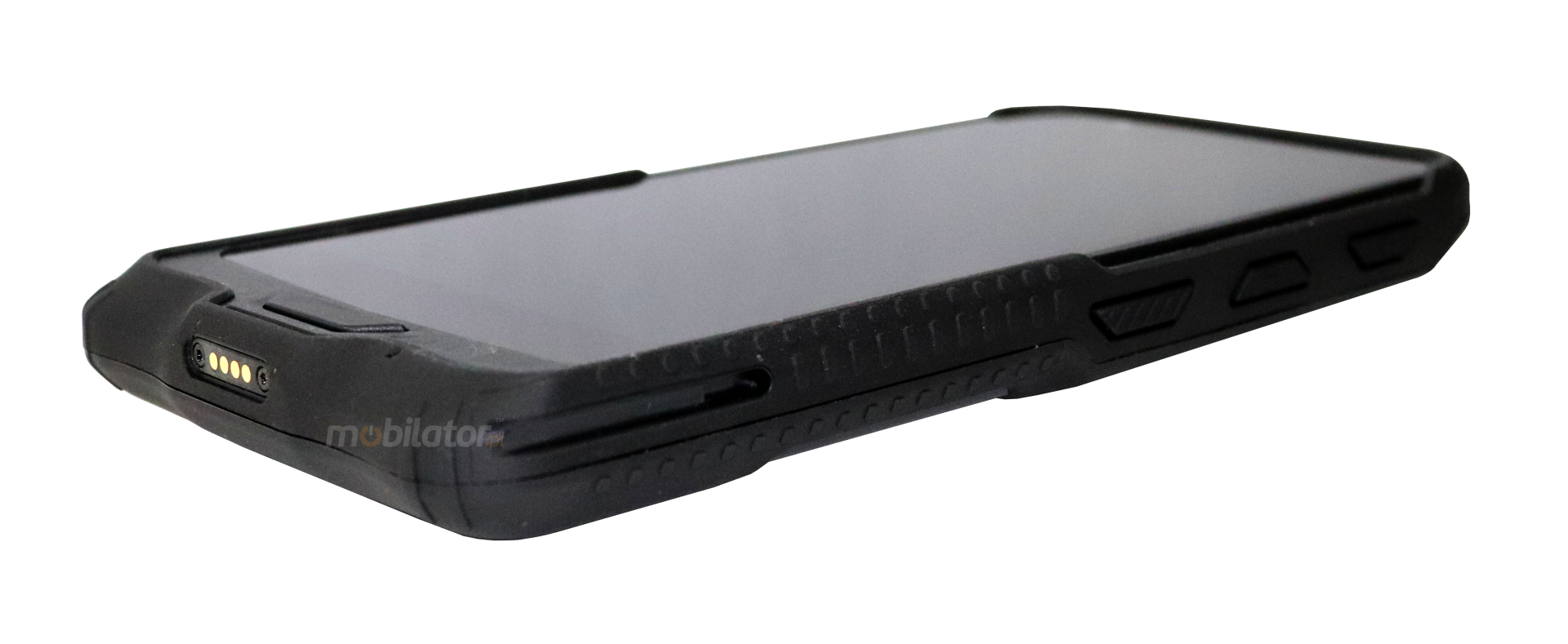

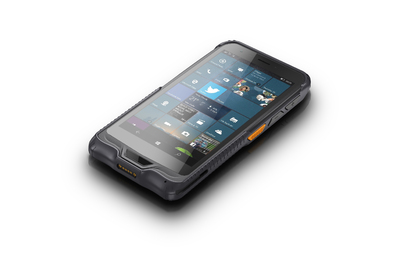

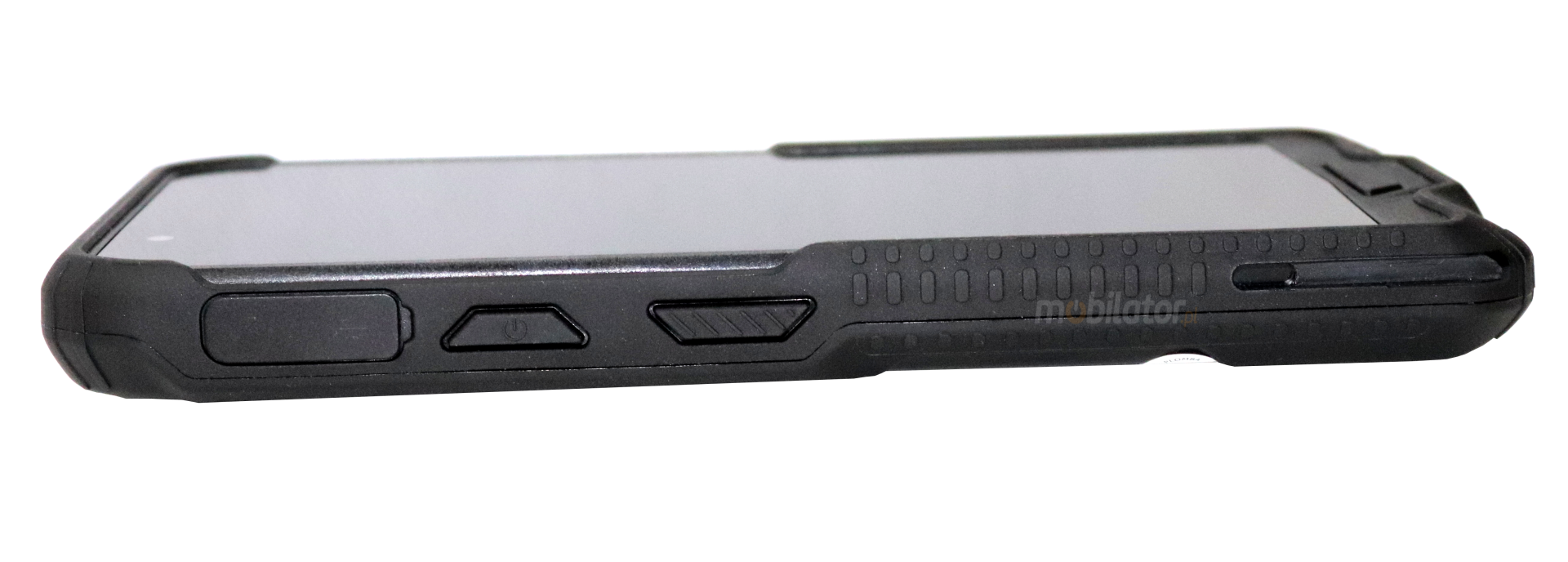

Rugged waterproof industrial data collector Emdoor I62H - Win 10 IoT Enterprise License

Name: Rugged waterproof industrial data collector Emdoor I62H - Win 10 IoT Enterprise License
Brand: EMDOOR
Price: 685.39 PLN
Availability: InStock

Update Date: 2024.11.21

Guarantee 1 years

Net

557.23 €

Gross

685.39 €

Buy now!

Negotiate the price

								Ask about the product

 Product card

								Recommend to a friend

								Store

								Compare

Product availability 14 - 20 workdays

Manufacturer's accessories

Compare all versions

Description
The collection and processing of data
Resistance
Modules and Wireless Networks
Minimalism

Rugged waterproof industrial data collector Emdoor I62H has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP67 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.

Description

Emdoor I62H 1d 2d barcode reader

Processor	Intel Cherrytrail Z8350
GPU	Intel HD Graphics 400
Display	5.98" (1280x720 IPS) Gorilla Glass \| Capacitive (5-point)
RAM memory	2GB DDR3L
ROM memory	32GB
Connectors	Micro USB \| Micro SD \| SIM \| 3.5mm Jack \| Docking
GPS	GLONASS, QZSS, GPS
Audio	Speaker \| Microphone
Camera	5Mpx Rear, 2Mpx Front
Battery	3.7V/5000mAH
Keyboard	On-Screen + Function keys
Environment	Windows 10 IoT Enterprise(factory)
Modules(factory) Modules(optional)	3G \| GPS \| WiFi 802.11 a/b/g/n \| Bluetooth 4.1 NFC
Dimensions and weight	185 x 93 x 20.7mm - 380g
Resistance	IP67
Readers(optional)	1D Honeywell \| 2D Honeywell
Sensors	G-sensor \| Gyroscope \| E-compass \| Light indicator

The collection and processing of data

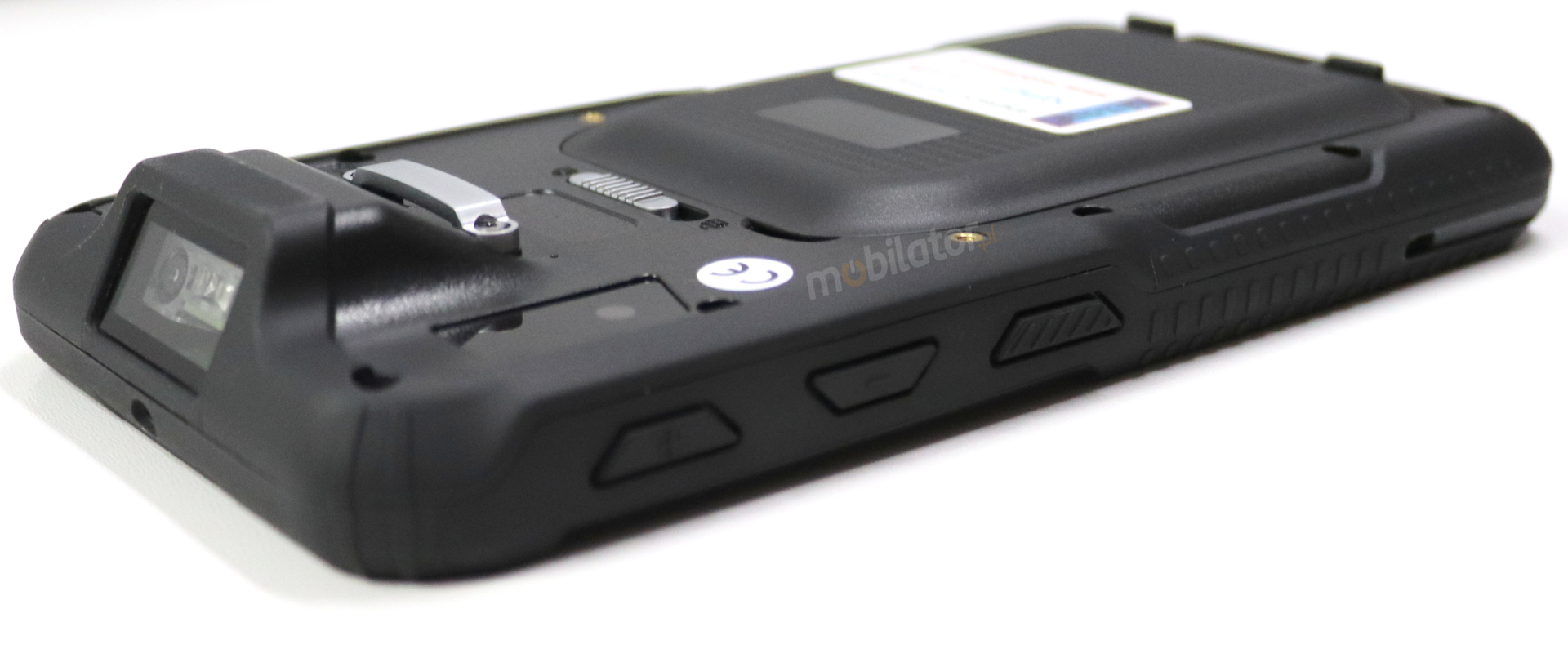

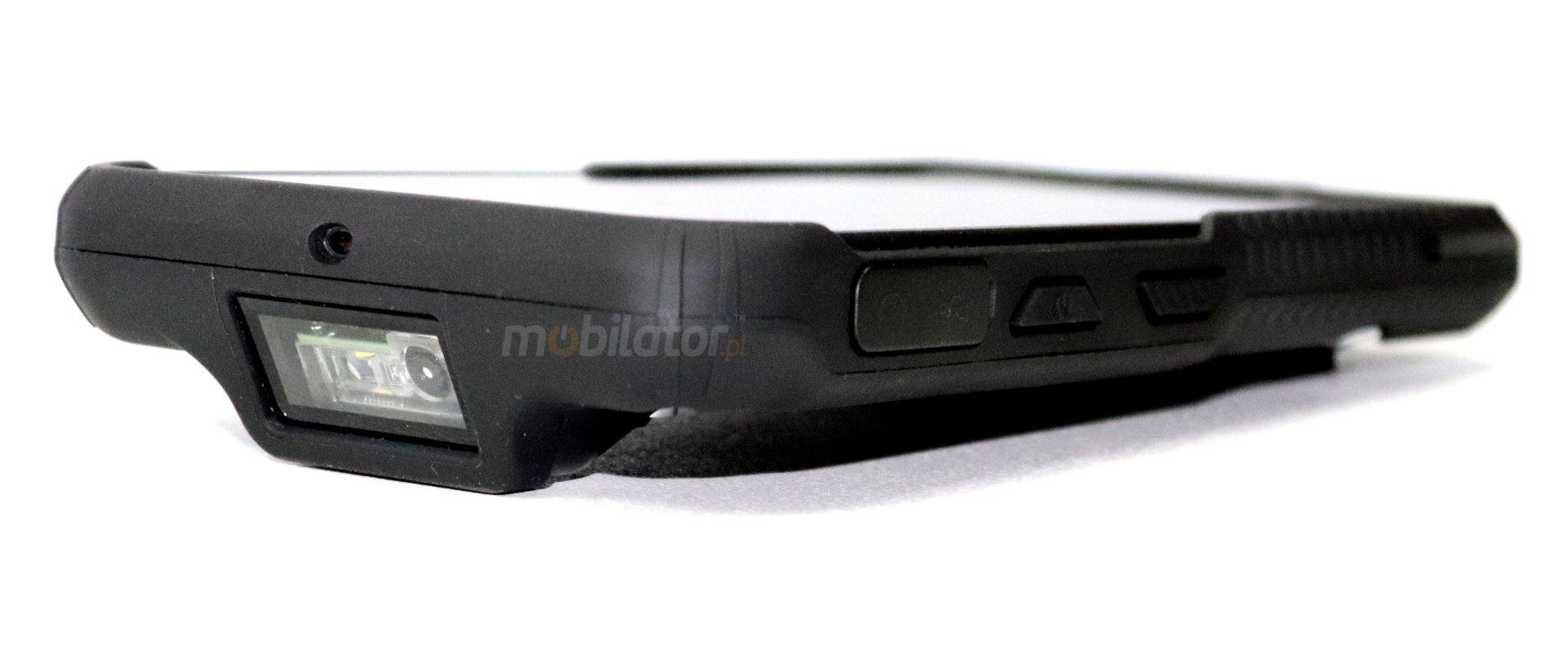

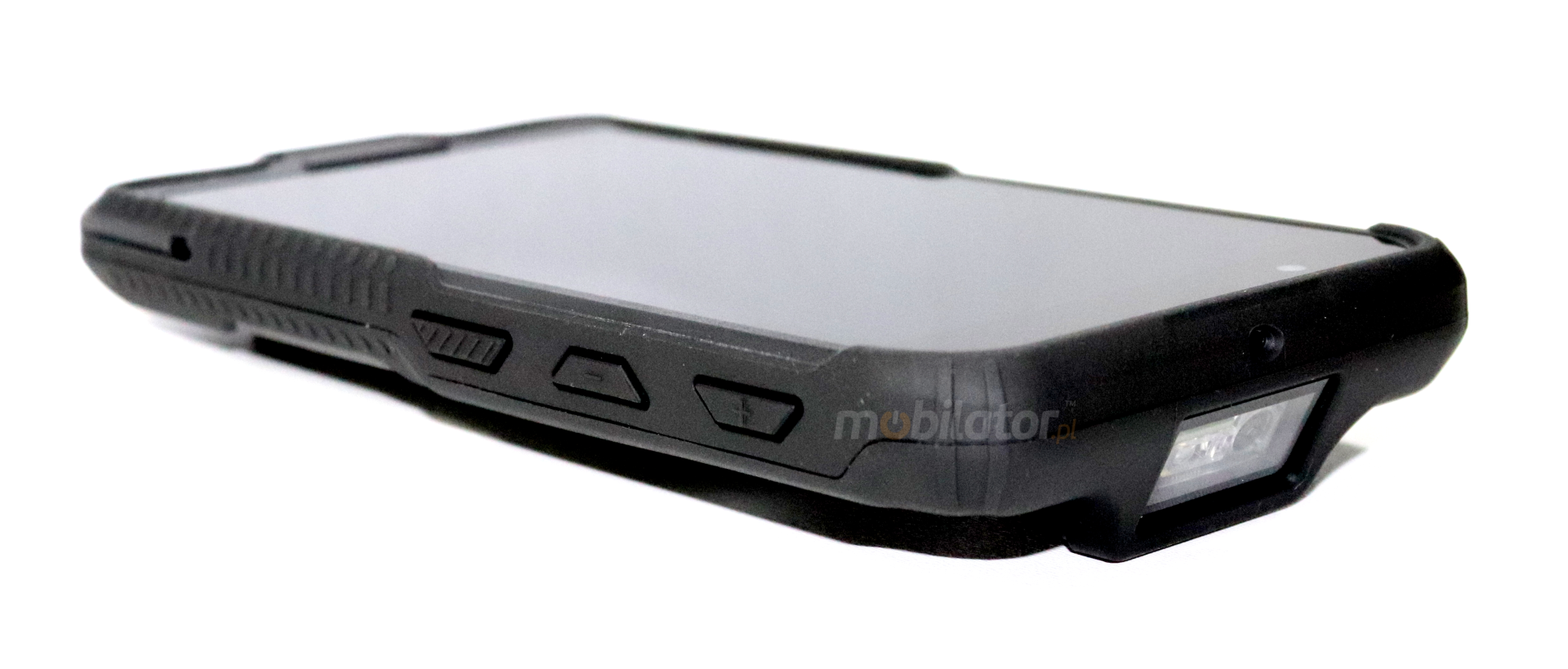

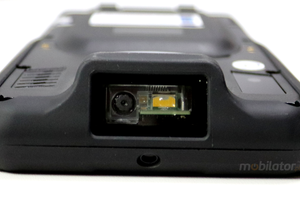

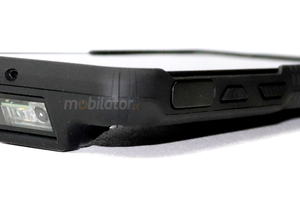

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly. Emdoor I62H 1D 2D Laser 1d 2d laser Emdoor I62H wifi

Near Field Communication (NFC)

Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less.

Emdoor I62H 1D 2D Laser 1d 2d laser Emdoor I62H wifi nfc

	NFC(optional)
Frequency	13.56 MHz
Reading distance	up to 4 cm
Supported card standard	Mifare
Supported standards	ISO/IEC 14443 A
	ISO/IEC 15693
	ISO/IEC 18092

go top... menu…

Resitance

Applicable standards

Storage	-30°C -- +70°C
Operating	-20°C -- +60°C
Dust	IP6x (dust)
Water	IPx7 (water)
Drop	1.2m
Humidity	95% non-condensing

go top... menu…

Emdoor I62H 1D 2D Laser 1d 2d laser Emdoor I62H wifi

IP67 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection

No waterproofing

Protection from solid objects greater than 50mm in diameter

Protection from dripping water

Protection from solid objects greater than 50mm in diameter

Protection from vertically dripping water (tilted up to 15°)

Protection from object not greater than 2,5mm in diameter

Protection from sprayed water (tilted up to 60°)

Protection from object not greater than 1mm in diameter

Protection from splashed water

Complete protection against contact, Protection against dust deposit

Protection from splashed water

Complete protectionm against contact, Protection from infiltration of dust

Protection from water projected from a nozzle

Protection against immersion

Protection against complete, continuous submersion in water

go top... menu…

Modules and Wireless Networks

Emdoor I62H Laser 1d 2d laser Emdoor I62H wifi gps

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G module used in Emdoor I62H adjusts automatically to transfer and network coverage.

WiFi	Dualband 802.11(a/b/g/n) 2.4G+5. 8G
GPS	GLONASS, QZSS, GPS
Bluetooth	Bluetooth V4.1
3G	WCDMA(900/2100MHz) GSM（900/1800MHz）， HSDPA 7.2Mbps，HSUPA 5.76

go top... menu…

Minimalism

Emdoor I62H1d 2d laser Emdoor I62H

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have Emdoor I62H. The device weighs just 380g and its dimensions (185 x 93 x 20.7mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that Emdoor I62H is in a group of devices which enjoy great popularity in the European market in the industrial segment.

Dimensions	185 x 93 x 20.7mm
Weight	380g

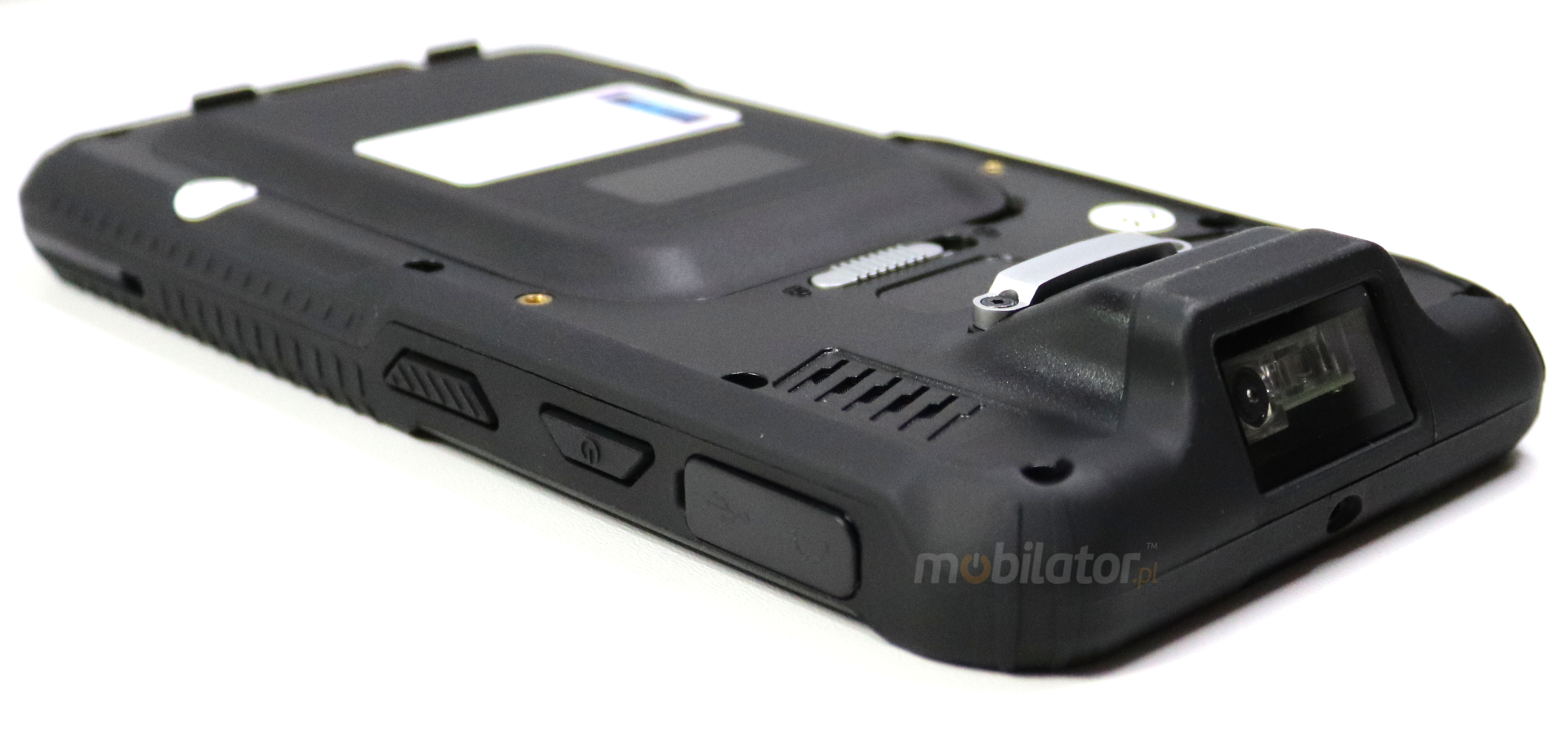

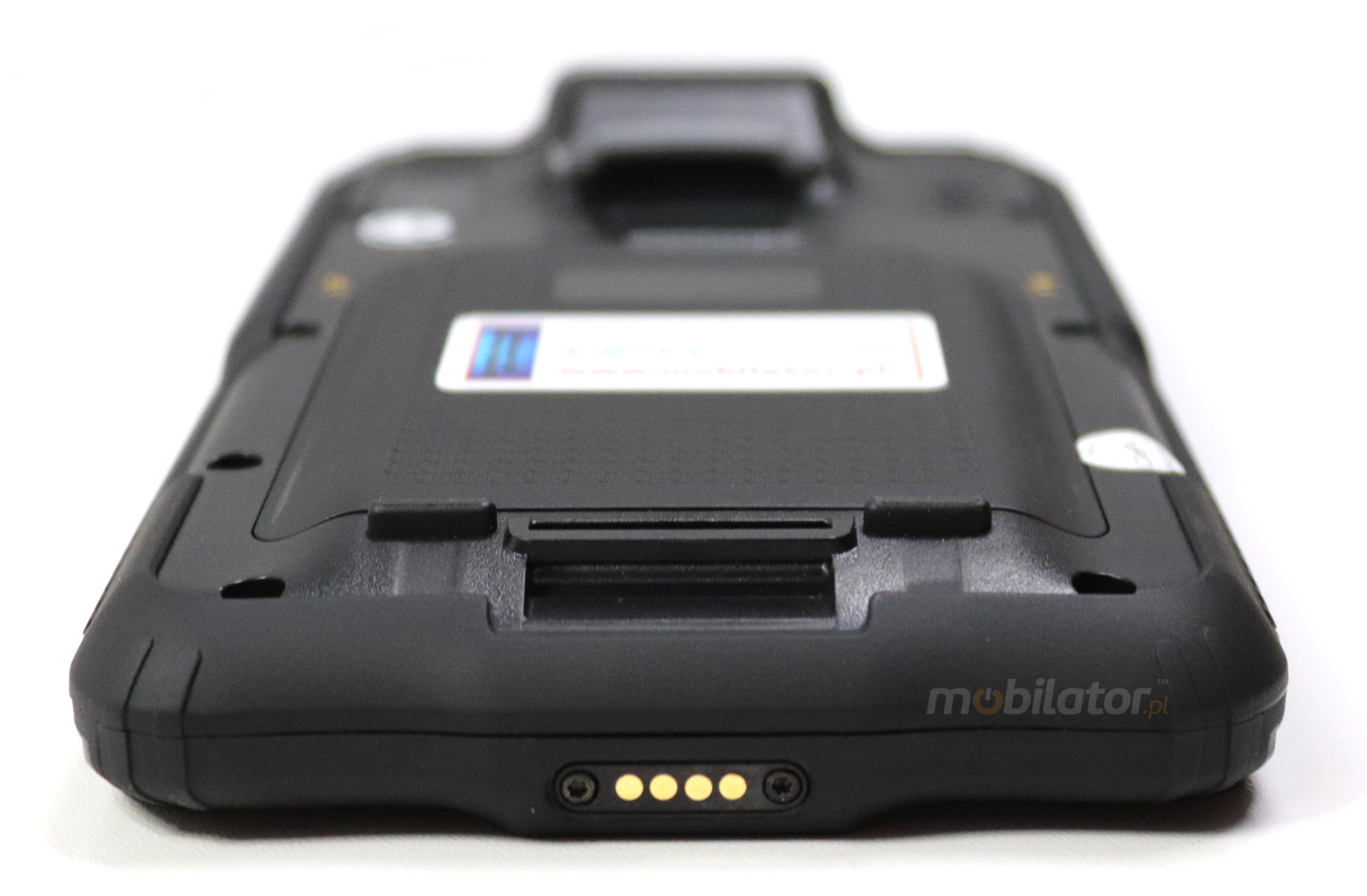

Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

Emdoor I62H1D 2D Laser 1d 2d laser Emdoor I62H wifi

go top... menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

product does not have any accesories in set...

Compare all versions

	v.1	v.2	v.3	v.4	v.5	v.6	v.7	v.8
NFC	—	✔	—	—	✔	—	✔	✔
Scanner 1D Honeywell N4313	—	—	—	✔	✔	—	—	—
Scanner 2D Honeywell N3680	—	—	—	—	—	✔	✔	✔
Windows 10 Pro licence	—	—	✔	—	—	—	—	✔

Compare all versions

Operating System
Windows 10 IoT Enterprise license
Display
5.98" (1280x720 IPS) Gorilla Glass | Capacitive (5-point)
Brightness
430Nit
Processor
Intel Cherrytrail Z8350 1.44Ghz-1.92GHz
Memory
2GB DDR3L
Hard Drive
-----
Flash Memory
Yes
Touch screen
Yes
Durability
IP67
Drop
1.2 meters
Shock
-----
Vibration
-----
Temperature
Operating Temperature: -20°C -- +60°C
Storage temperature: -30°C -- +70°C
Humidity
95% (no condensation)
1D barcode scanner (reader)
lack(available in other version)
2D barcode scanner (reader)
lack(available in other version)
RFID scanner (reader)
lack(available in other version)
Other
-----
Battery
3.7V 5000mAH
Working time on battery
-----
Fast battery replacement ability
Yes
HotSwap battery
-----
LAN
No
WLAN
Dual Band 802.11 a/b/g/n 2.4G + 5.8G
Bluetooth
Bluetooth 4.1
class 1.5 | range up to 10m
WAN
3G
WCDMA(900/2100MHz)  GSM（900/1800MHz），HSDPA 7.2Mbps，HSUPA 5.76
GPS
Built-in
Camera
Rear: 5Mpx, Front: 2Mpx
In/Out
1 x microUSB, 1 x AudioJack , 1 x Micro SD, 1 x SIM 1 x Docking
Optional accessories
-----
Docking station connector
Yes
VESA standard – holders and mounts support
-----
COM port
-----
Magnetic card reader (MSR)
-----
Microchip card reader
-----
Contrast
-----
Graphics card
Intel HD Graphics 400
Chipset
-----
BIOS
-----
Casing material
-----
Flash Card Reader
microSD (max. 128GB)
CD/DVD
-----
Audio
AudioJack : Built-in Speaker : Microphone
Keyboard
On-screen + Function Keys
Additional Navigation Devices
-----
Color
-----
Swivel Hinge
-----
VGA out
No
TV Out
-----
TV Tuner
-----
Security
MIL-STD-810G
Waterproof
IP67
Sand and dust
IP67
Size
185 x 93 x 20.7mm - 380g
Fanless casing
Yes
