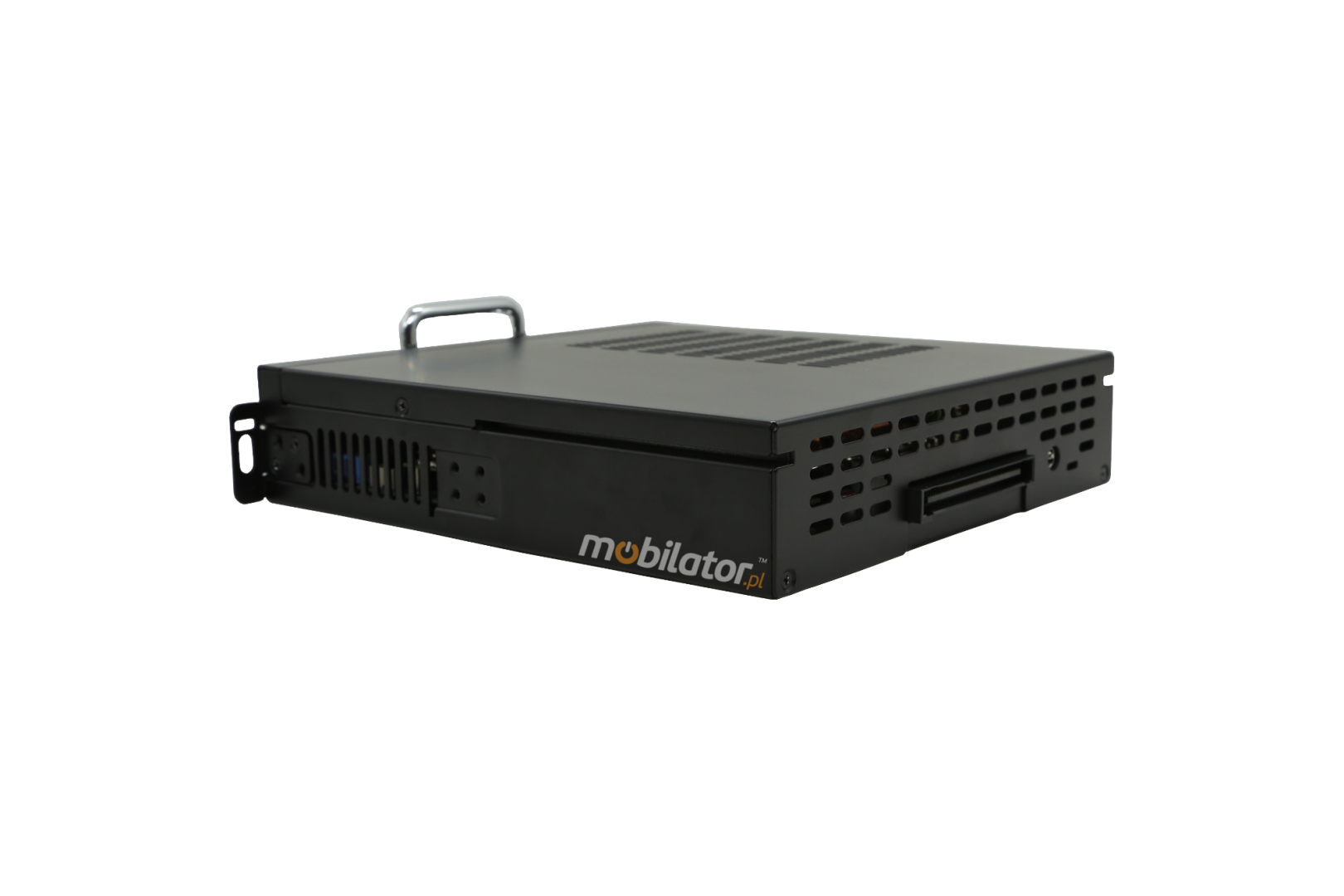

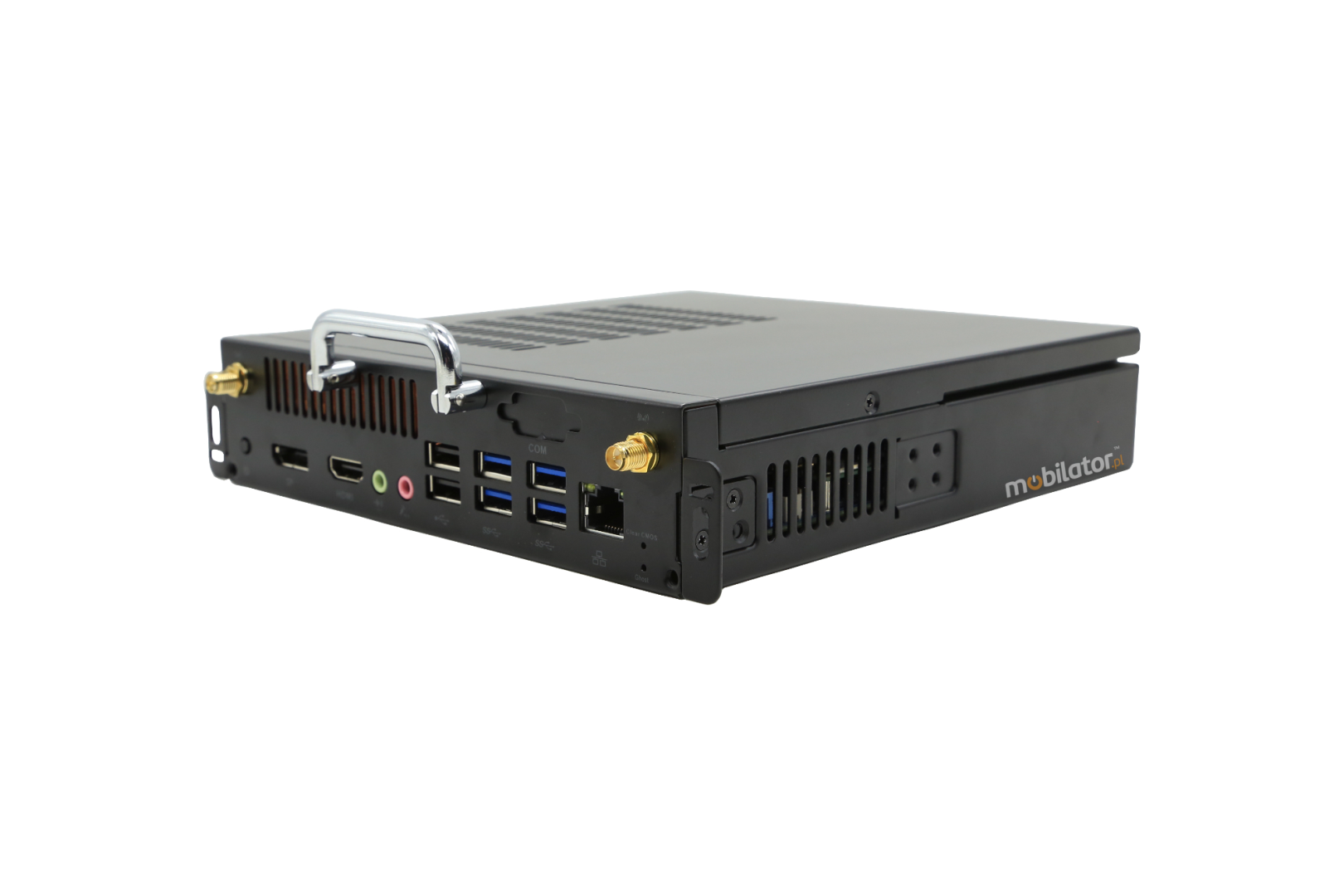

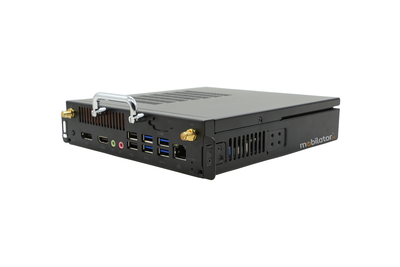

The robust mini Industrial Computer zBOX-PSO-1030 is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.
| Performance | |
|---|---|
| Processor | Intel Core i5 7400 (4x 3.00 GHz) LGA1151 |
| Graphics card | Intel HD Graphics 630 & Nvidia GT-1030 |
| Operating system | Support: Windows 8/8.1/10 | Linux |
| RAM | 8GB DDR4 |
| Drive |
HDD: 500GB ( 5400 rpm ) |
| Interfaces | |
| Connectivity |
Wi-Fi LAN - 1x RTL8111F Gigabit Ethernet |

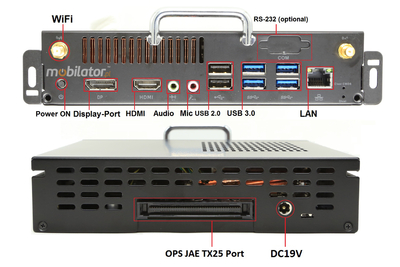

| Front panel |
Power button | Display-Port | HDMI | 1x Audio | 1x Mic 2x USB 2.0 | 4x USB 3.0 | 1x LAN | 1x RS-232 (Optional) |
| Rear panel |
Power connector - DC19V | 1x OPS JAE TX25 |
| Other | |
| Available colors | Black |
| Dimensions | 195mm x 180mm x 42,5mm |
| Weight | 1.80kg |
The industrial computer zBOX-PSO-1030 usues a very efficient GPU model from NVIDIA. On the motherboard there is a graphic card GT1030 with a memory capacity of 2GB and type GDDR5, which enables verry efficient processing of many precise tasks related to graphic processing of digital images in graphic programs such as: Adobe Photoshop, GIMP, CorelDraw, Inkscape or AutoCAD. The card`s memory uses a multi-level rendering hierarchy, it is dynamically allocated to the core graphics processor depending on the load.
TABLE WITH SPECIFICATION
| NVIDIA GeForce GT1030 | |
|---|---|
| Generation | Pascal 14nm |
| Graphic layout | Pascal GP108 |
| Stream processors | 384 |
| Texture units | 24 |
| Rasterizing units | 8 |
| Core clock | 1227 / 1468 MHz |
| Computing power | 1,13 TFLOPS |
| Video memory | 2GB |
| Speed memory bus | 64-bit |
| Memory clock | 6008MHz |
| Memory type | GDDR5 |
| Memory bandwith | 48 GB/s |

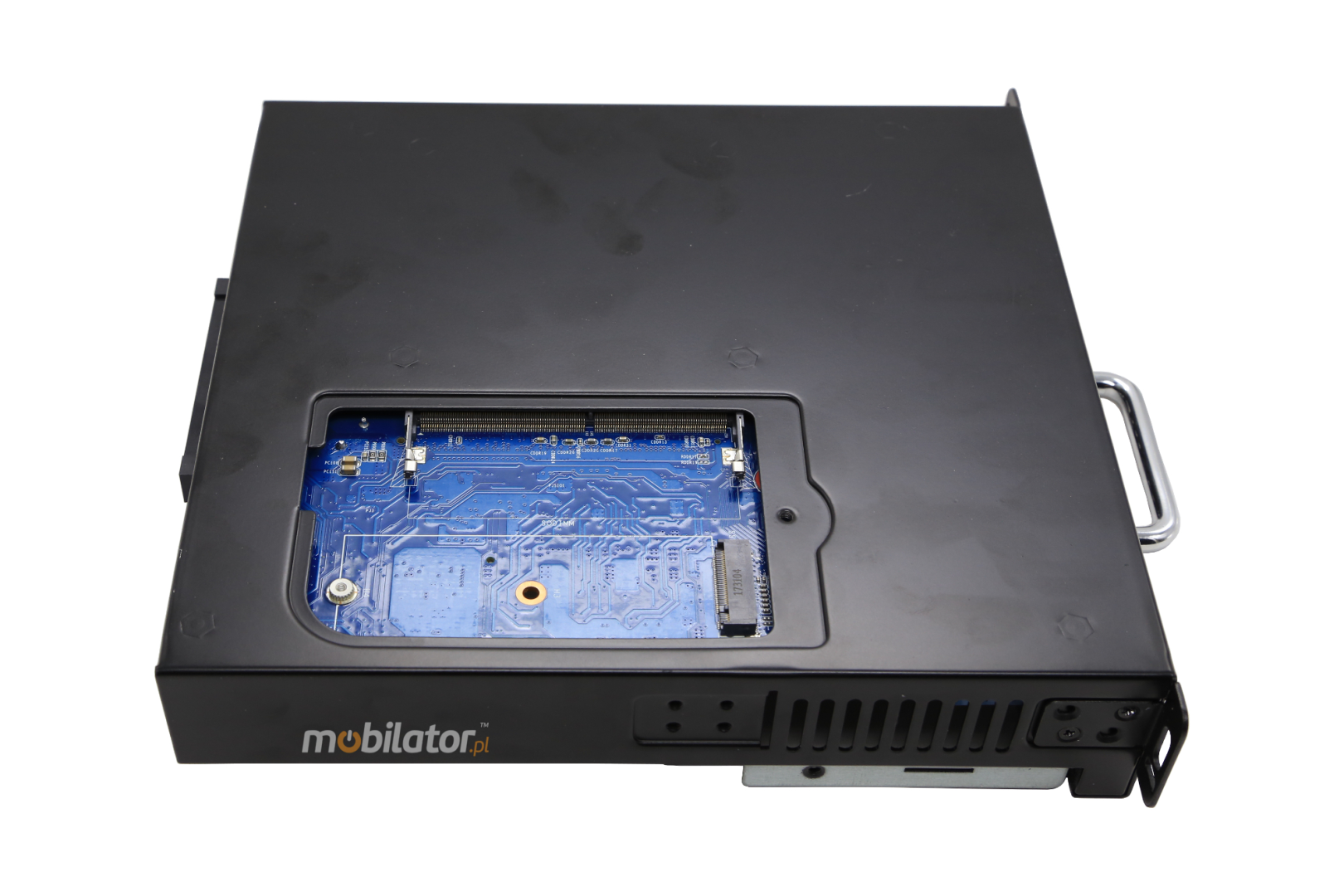

Industrial computer zBOX-PSO-1030 uses the M.2 connector to support very fast SSDs just on the M.2 connector. These drives offer higher performance than the SATA III and mSATA standard. Mobilator offers the M.2 SSD with 128GB, 256GB and 512GB of capacity.
| Comprasion table for disks speed | |
|---|---|
| Hard drive HDD | Read: 170MB/s | Write: 140MB/s |
| Disk SSD 2.5" | Read: 560MB/s | Write: 530MB/s |
| Disk SSD M.2 2280 128GB | Read: 1550 MB/s | Write: 530MB/s |
| Disk SSD M.2 2280 256GB | Read: 1650MB/s | Write: 950 MB/s |
| Disk SSD M.2 2280 512GB |
Read: 1650MB/s | Write: 1000MB/s |

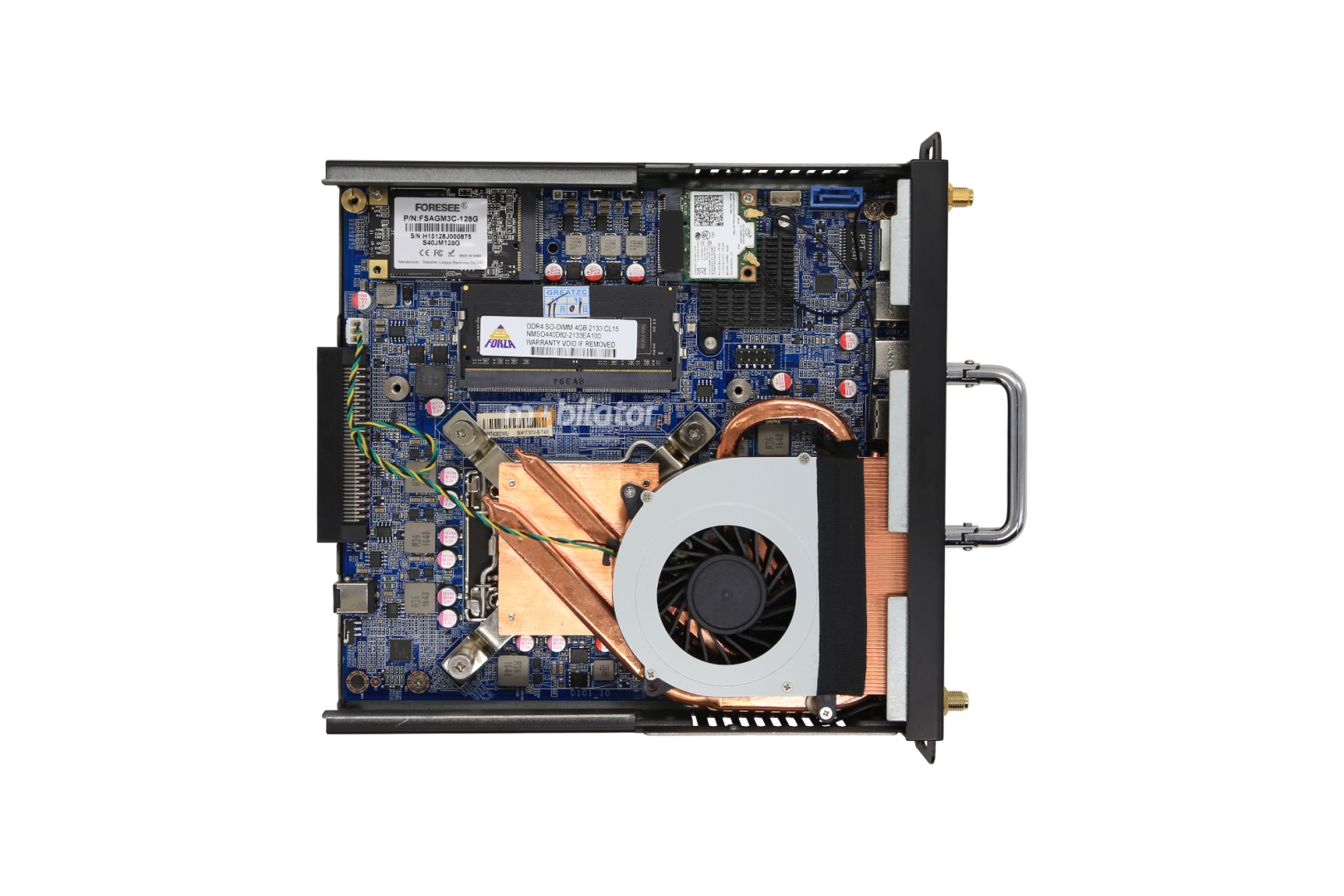

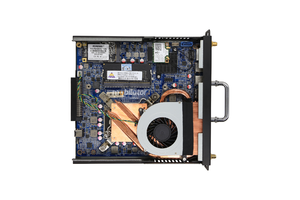

Detailed device specification is available in the "Technical data" tab.The industrial Mini PC uses a proven cooling system, based only on solid elements, mainly heat sinks. The system uses the phenomenon of metals passing thermal energy into the environment through openings in the housing. This solution provides better cooling in relation to pasive cooling.
zBOX-PSO-103 is designed for continuous operation in both very low and high temperatures ranging from -10 ° C to 50 ° C. If the device is switched off, it can already handle temperatures in the range of -20 ° C to 70 ° C.
| Work temp. | -10°C — 50°C |
| Storage temp. | -20°C — 70°C |
| Humidity | 5% — 95% |
The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial mini-PC zBOX-PSO-1030 has been equipped the standard of - 802.11n, which allows transfer of files at a dizzying speed of up to 300 Mb / s.
The MiniPC zBOX-PSO-1030 has built-in Realtek RTL8111F network adapter that can work in a fast Gigabit Ethernet network.
Mini PC is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management.
Thanks high performance an industrial computer can be used to connect multiple devices in a warehouse and make their management much easier.
More pictures of the device available in the "Gallery" tab.
The industrial mini-computer zBOX-PSO-1030 is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.
| v.0 | v.1 | v.2 | v.3 | v.4 | v.5 | v.6 | v.7 | v.8 | |
|---|---|---|---|---|---|---|---|---|---|
| WiFi | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Bluetooth | — | — | — | — | — | ✔ | ✔ | ✔ | ✔ |
| 4GB RAM | — | ✔ | ✔ | ✔ | — | — | — | — | — |
| 8GB RAM | — | — | — | — | ✔ | ✔ | — | — | — |
| 16GB RAM | — | — | — | — | — | — | ✔ | ✔ | — |
| 32GB RAM | — | — | — | — | — | — | — | — | ✔ |
| 32GB SSD | — | ✔ | — | — | — | — | — | — | — |
| 64GB SSD | — | — | ✔ | — | — | — | — | — | — |
| 128GB SSD | — | — | — | ✔ | — | — | — | — | — |
| 240GB SSD | — | — | — | — | ✔ | — | — | — | — |
| 500GB HDD | — | — | — | — | — | ✔ | ✔ | — | — |
| 1TB HDD | — | — | — | — | — | — | — | ✔ | — |
| 2TB HDD | — | — | — | — | — | — | — | — | ✔ |
;)
;)
;)
;)
;)
;)
