Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.

Waterproof

The IPX5 water-resistance standard on the front panel guarantees protection of the device for contact with water.

Dustproof

The dustproof IP6X standard on the front panel protects the panel against dust and access to hazardous parts.



Efficient

The dual-core Intel Celeron processor supported by 8GB of RAM improves the device's performance.

Bright Screen

The display with 400cd/ m² brightness makes the picture much more vivid and better readable when used outside in the sun.



Wireless network

The panel can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.

Capacitive screen

The capacitive screen allows precise handling and gentle on-screen movement.

up…   menu…

Specifications and parameters

Detailed device specification is available in the "Technical data".

The dust-proof industrial PC panel uses an efficient and energy-saving Intel Celeron 3855U processor. The shared cache memory that uses a multi-level hierarchy is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory.

More photos in full resolution available in the "Gallery".

up…   menu…

Display and touch

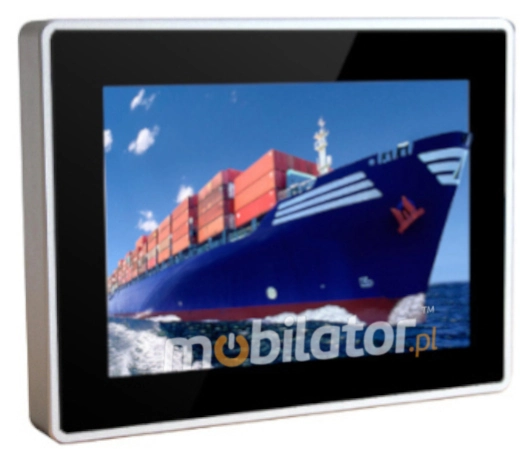

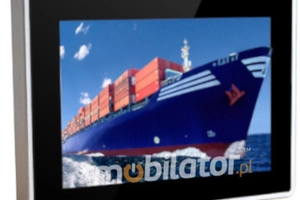

The enhanced, waterproof QBOX industrial computer has a 12" water-resistant LED screen, 800X600 resolution, good image quality and high brightness of 400 cd / m² for better color saturation and contrast, and significantly improved visibility, even in cases of sunbeams falling on the screen.

CAPACITIVE SCREEN

The capacitive screen consists of a glass coating that is covered with an insulator. Touching the surface of the touch pad with your finger causes a disturbance in the flow of electric current. This display provides very good visibility under industrial conditions. The panel can be operated with one finger or conductive material (special glove). This type of screen provides support for multi-touch technology, which is a clear convenience during work. This is due to the fact that a large number of electrodes allows accurate detection of many points of touch. You do not have to use a stronger pressure for capacitive screens, because you only need to lightly brush the screen with your finger to make the device react.

up…   menu…

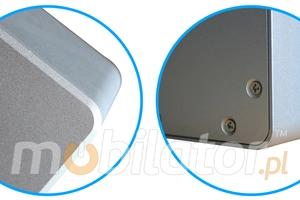

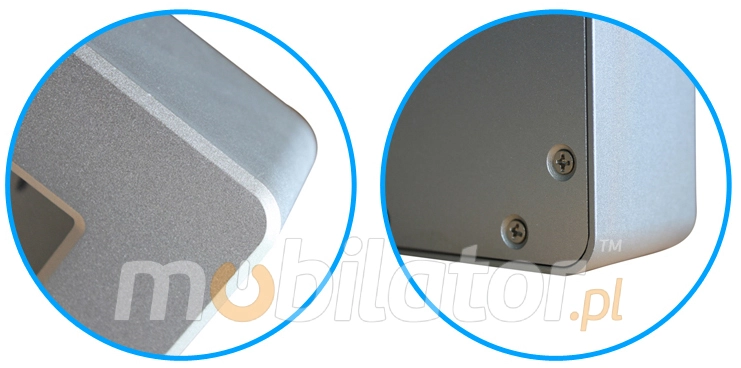

Resistance and protection

PROTECTION STANDARD IP67

Normatyw IP (International Protection Rating) determines the degree of protection provided by the housing of an electrical device against such factors as: access to dangerous parts inside the housing, penetration of foreign solids and splashing or immersion. The first characteristic number means that the housing protects people against access to dangerous parts located inside the device, and at the same time provides protection against the penetration of foreign solids. The second characteristic digit means that the housing provides protection against the effects of water penetration.

EXtreme temperatures

PanelPC QBOX is adapted for continuous operation in both very low and high temperatures ranging from -10 ° C to 60 ° C. If the device is switched off, it can already handle temperatures between -30 ° C and 60 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 90% relative humidity.

up…   menu…

Communication and connectors

WIreless Wi-Fi network

The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The QBOX shockproof industrial panel has been equipped with 802.11n standards, which allows transfer of files at a dizzying speed of up to 150 Mb / s.

WIRED LAN NETWORK

Panel PC have built-in Intel 82583V Gigabit Ethernet NIC. The network card can work in gigabit network.

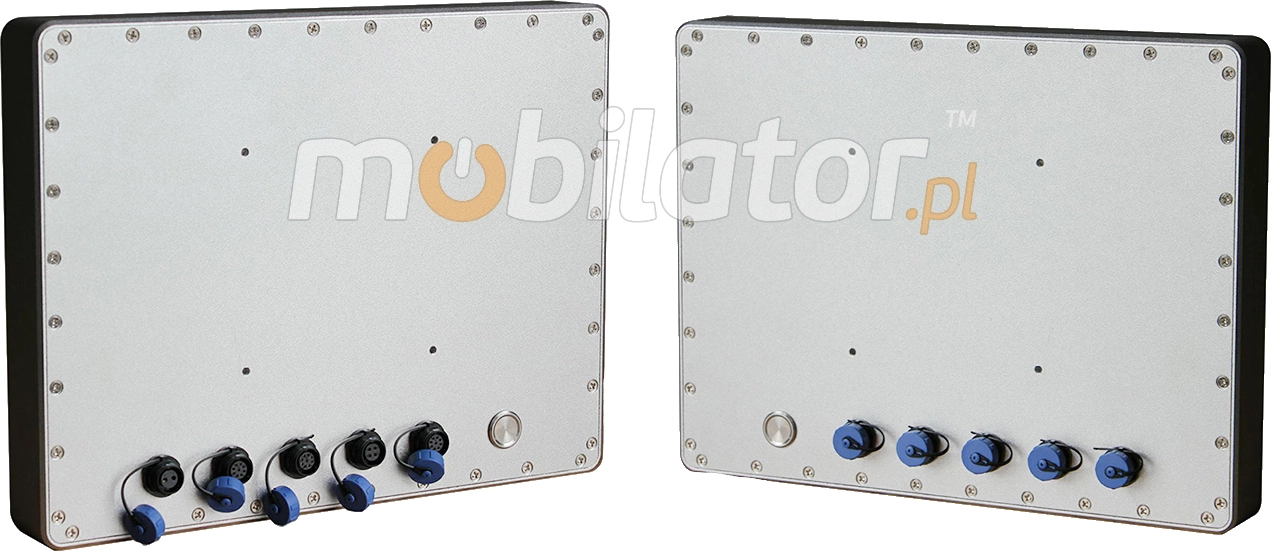

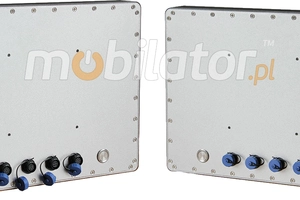

Connectors and interfaces

up…   menu…

Application

trade and services

Waterproof and dustproof PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.

warehouse and management

The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.

Transport and motorization

Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.
