Product Update Date: 2018-02-21

Industrial Fanless MiniPC bBOX-AG1190 v.1

Name: Industrial Fanless MiniPC bBOX-AG1190 v.1
Brand: Mobilator
Price: 1732.64 PLN
Availability: InStock

Update Date: 2018.02.21

Guarantee 2 years (opt. 3)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

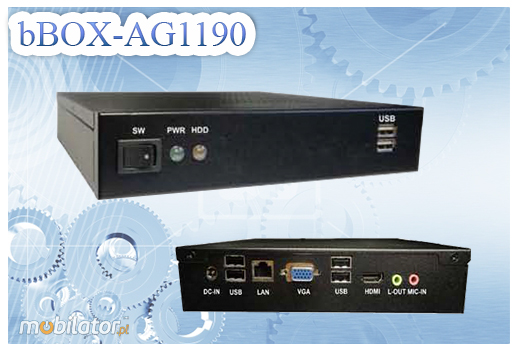

Indrustrial Fanless MiniPC bBOX-AG1190

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

bBOX-AG1190 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

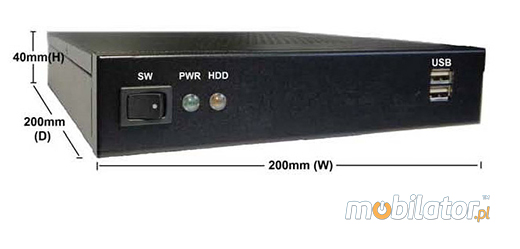

Housing dimension are 200 (W) x200 (L) x40 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.5 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 32GB/64GB SSD or 500GB HDD.

Indrustrial Fanless MiniPC bBOX-AG1190

go top…

menu…

Communication & Connectors

Integrated card - Intel RTL8111E-VL allow connection to the network. The computer is equipped with: one LAN port, one COM port (RS232), one HDMI port, one VGA outpu, four USB 2.0 ports, two USB 3.0 ports.

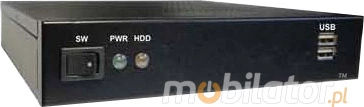

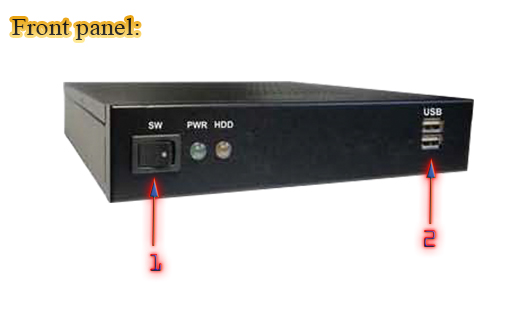

Indrustrial Fanless MiniPC bBOX-AG1190

1. Power ON/OFF

2. 2x USB 2.0

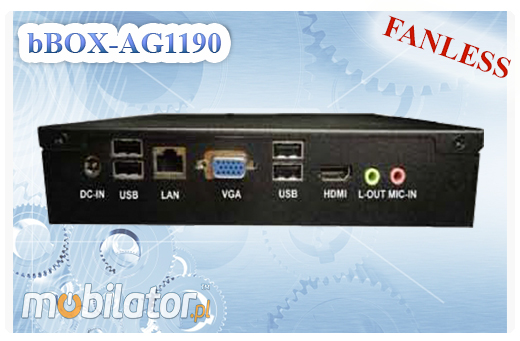

Indrustrial Fanless MiniPC bBOX-AG1190

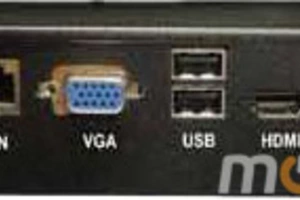

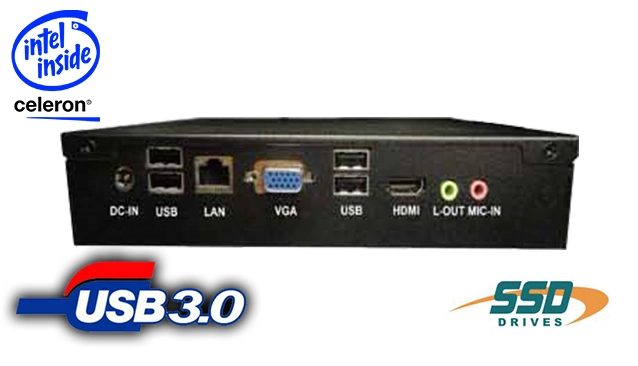

1. DC-IN 9~19V	5. 2x USB 2.0
2. 2x USB 3.0	6. 1x HDMI
3. 1x RJ-45	7. Audio/Mic
4. 1x VGA

Cooling

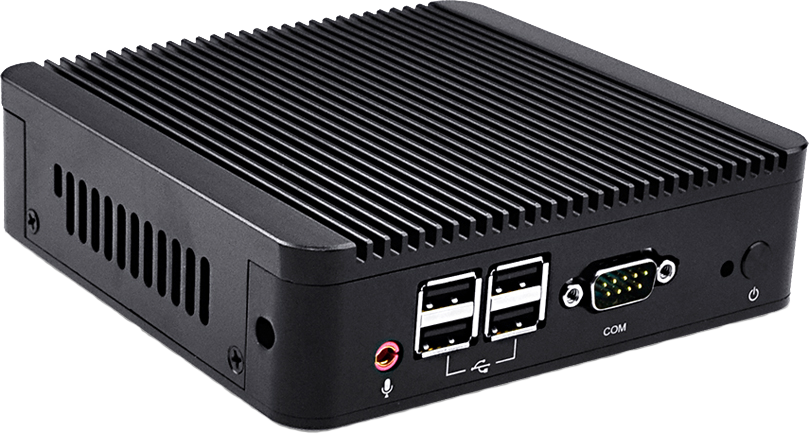

The Indrustrial Fanless MiniPC bBOX-AG1190 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

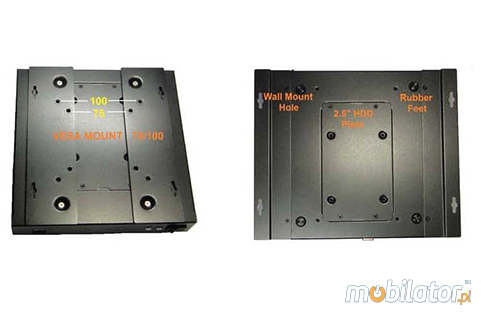

Indrustrial Fanless MiniPC bBOX-AG1190 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of bBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Indrustrial Fanless MiniPC bBOX-AG1190 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Indrustrial Fanless MiniPC bBOX-AG1190

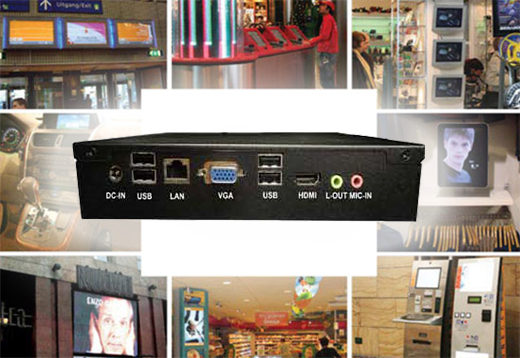

Areas of use of industrial MiniPC

Digital Engine

Indrustrial Fanless MiniPC bBOX-AG1190

Trade

Small computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Indrustrial Fanless MiniPC bBOX-AG1190 by one COM port (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC bBOX-AG1190 can be used on transport market, in cars, through adapting him to operate with a supply 9~19V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Indrustrial Fanless MiniPC bBOX-AG1190

go top…

menu…

Specifications

Dimension	H: 40 mm L: 200 mm W: 200 mm
Weight	1.5 kg
Processor	Intel Celeron J1900 (4x 2GHz)
Chipset	Intel Chipset
RAM Memory	2GB DDR3
Graphic Card	Intel HD Graphics
Sound Card	Realtek Audio
WLAN	Intel RTL8111E-VL
Connectors	1x COM(RS232) 1x wyjście 12V DC_JACK 4x USB 2.0 2x USB 3.0 1x RJ-45 1x wyjście Audio 1x HDMI 1x Mic 1x VGA

Supported OS
Microsoft Windows: 7/8/8.1
Installed OS
-----
Chipset
Intel Chipset
CPU Support
-----
Installed CPU
Intel Celeron J1900 (4x2GHz)
Graphic Card
Intel HD Graphics
Memory Support
2GB DDR3 (can up to 8GB)
Installed Memory
2GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
32 GB SSD
IP Norm
-----
Temp
0 - 60 ℃
Storage temperature
-40 - 85 ℃
Humidity
-----
Others
Colour Silver, Case
LAN
Intel RTL8111E-VL
Wireless LAN card
No
3G
No
Bluetooth
-----
Rear Panel (ports)
4x USB 2.0,
 2x USB 3.0,
1x Audio,
1x RJ-45,
DC-in Jack,
 1x HDMI,
1x Mic,
1x COM(RS232),
1x VGA
Front Panel (ports)
Power ON/OFF,
 2x USB 2.0
Expansion
-----
Power
9~19V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
200 x 200 x 40  mm
Fanless
Yes
Weight
1.0 kg
Responsible Entity / Distributor
New Portable Devices

Data sheet

Karta katalogowa - bBOX-AG1190

874.55 KB

26.11.2014

Windows 7/8

Download

Compare all versions


Industrial Fanless MiniPC bBOX-AG1190 v.1
					Small size / Intel® Celeron® J1900 4x2GHz
Grafika: Intel HD Graphic
RAM 2G DDR3 / Dysk 32GB SSD
1x LAN / 1x COM / 2x USB 3.0 / 4x USB 2.0
1x HDMI / 1x VGA / 1x Mini-PCIE

Product from the Archive - production finished
