Product Update Date: 2014-05-21

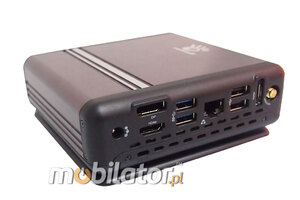

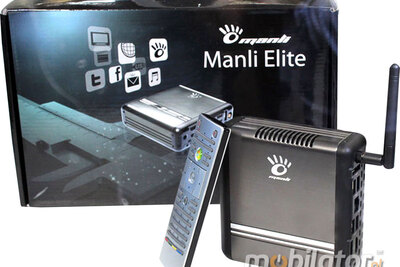

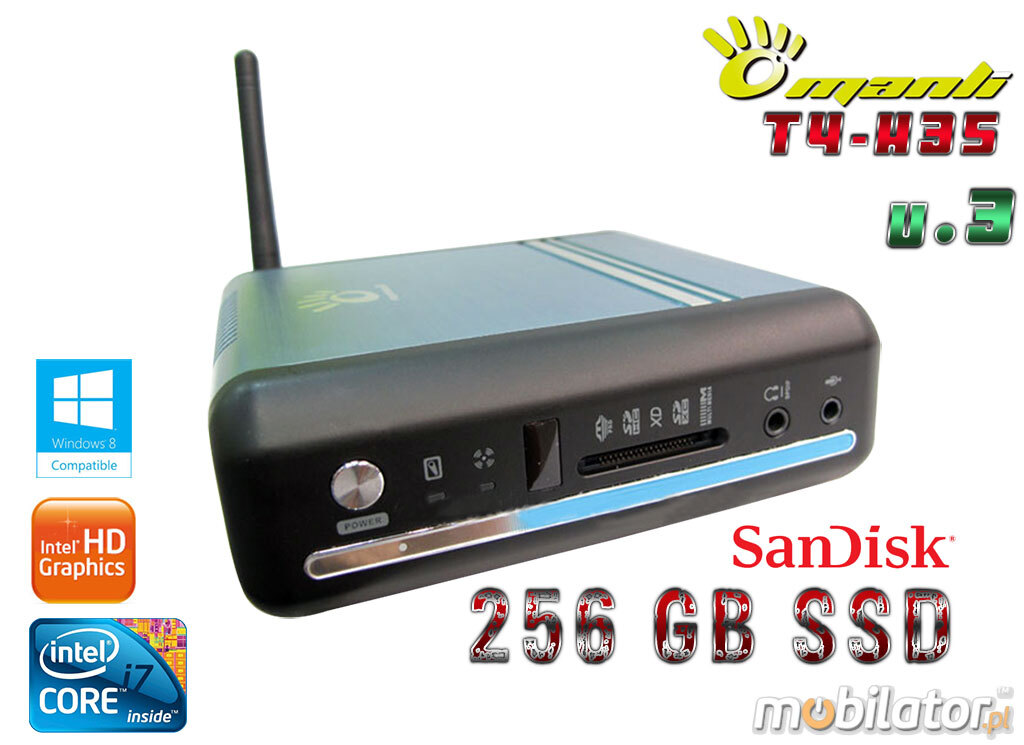

Mini PC Manli M-T4H35 v.3

Name: Mini PC Manli M-T4H35 v.3
Brand: Manli
Price: 3553.55 PLN
Availability: InStock

+20

Update Date: 2014.05.21

Guarantee 2 years

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

Company Manli is a new distribution Mobilator s. It has achieved an excellent reputation as a manufacturer of computers MiniPC. Due to the high position of the products in the high-tech won the trust of many customers around the world.

manli-logo T2 T4 T6 Mini-PC minipc

Menu
Processor Intel® Core™ i7-3537U
New series of Intel® HD 4000
Description
Connectors and Ports
Accessories

MiniPC for the most demanding users

Manli T4 Mini-PC is designed for users who require the greatest amount of power and ease of use in such a small device. Aluminium elements and modern desing complete with incredible performance and optimized power consumption puts Manli M-T4H35 in first place in the ranking of the world's MiniPC.

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

Mini PC Manli M-T4H35 - v.3
Processor	Intel® Core™ i7-3537U (2x2.0 GHz)
RAM	8GB Kingston SODIMM DDR3 1600MHz CL11 PC3-12800
Disk	256GB SSD SanDisk 2.5'' SATA3 (Read/Write:450/350 MB/sec.)
Graphics	Intel® HD 4000
Chipset	HM77
Communication	WiFi 802.11n 150Mbps + Bluetooth 3.0
Dimensions	126.7 x 126.7 x 45mm

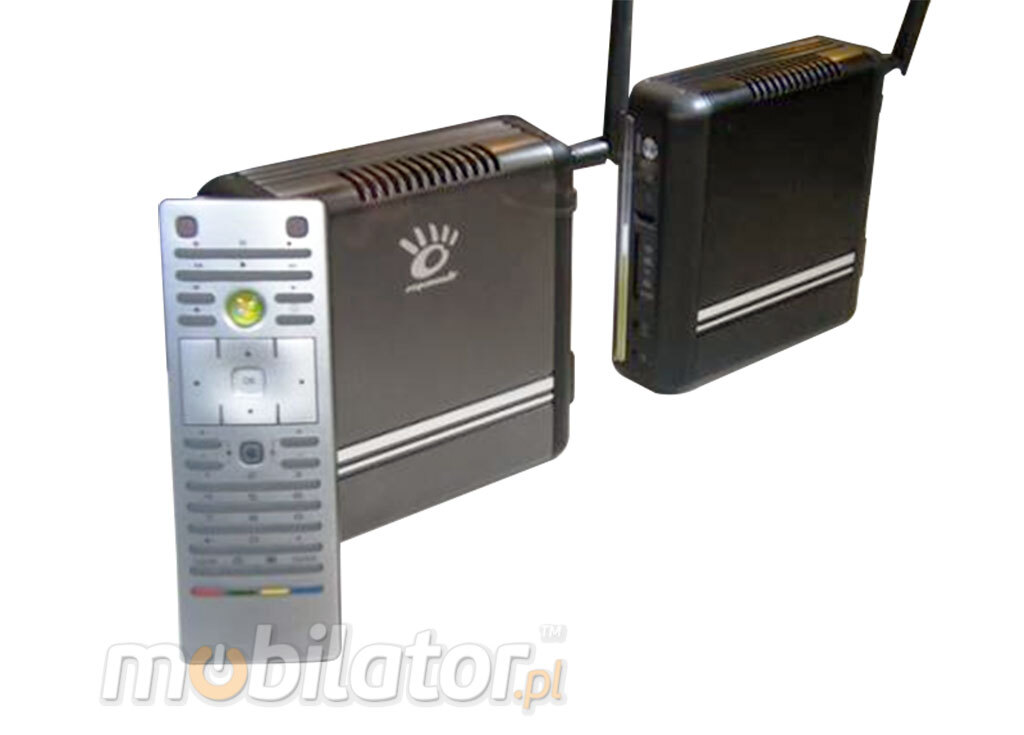

Other	MCE Remote Control
	The detailed specification of the configuration available in the "Technical data"

go top… menu…

Processor Intel® Core™ i7-3537

New generation of Intel® Core™ i7-3537U

Manli Mini-PC is supported with Intel® Core™ i7-3537U, making it extremely energy efficient (17W), while retaining the high performance, as evidenced in Windows 8 that is dedicated for this device. Intel® Core™ i7-3537U is a dual-core processor with a frequency (2x2.0GHz) for small netbooks and MiniPC. It offers powerful integrated graphics Intel® HD 4000 and a single channel DDR3-1333MHz memory.

Processors available in a series of MiniPC MANIL T4

Model	R/W	Frequency	Max. Frequency	L2 cache	L3 cache	Max. GPU	TDP
AMD E2-1800 Dual Core	2/2	1.7GHz	1.7GHz	1MB	-	680 MHz	18 Wat
Intel® Atom D2550	2/4	1.86 GHz	1.86 GHz	1 MB	-	640 MHz	10 Wat
Intel® Core™ i3-3227U	2/4	1.9 GHz	1.9 GHz	512KB	3 MB	1.1 GHz	17 Wat
Intel® Core™ i5-3337U	2/4	1.8 GHz	2.7 GHz	512 KB	3 MB	1.1 GHz	17 Wat
Intel® Core™ i7-3537U	2/4	2.0 GHz	3.1 GHz	512 KB	4 MB	1.2 GHz	17 Wat

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

go top…

menu…

New series of Intel® HD 4000

New generation Intel® HD 4000

Nettop Manli M-T4H35 equipped with powerful integrated graphics Intel ® HD 4000. Intel ® graphics solution adds a new generation of computer power, offering extremely high performance graphics. Go beyond simple Internet browsing by offering the rich multimedia capabilities, the clever arrangement of the Intel ® HD. Watch the video in full 1080p on sites like YouTube HD, and played with the stick. Play the most popular PC games and enjoy the acceleration popular applications in the field of video and image processing, providing higher performance when editing and converting videos, face tracking during the pictures and much more.

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

do góry… menu…

Description

Flexible storage

Manli T4 MiniPC dysk SSD / HDD 2xmSATA3 Flash SSD (Solid State Disc). They have no moving parts and only the same electronics. SSD two times faster reads and writes data over standard drives 2.5 ". Additionally, consumes little energy, and in general does not heat up and reduces the CPU load up to 10%..

Manli T4 MiniPC dysk SSD / HDD 2xmSATA3

Manli M-T4H35 can support a total of one HDD or SSD 2.5 ". Nettop Manli T4 is an alternative to installing two mSATA drive on which you can install and frequently used applications. Such a solution leads to a super-fast action of our little computer.

The speed of operations carried out applications installed on the mSATA drives can increase up to 30%.

Increased security and faster work in RAID

Manli T4 MiniPC dysk SSD / HDD 2xmSATA3 raid 01 RAID 0 allows you to hook up physical drives into a single logical which allows for better use of space. With RAID 1, your data will be safer because a disk is an exact copy of the other. If one drive fails all data is still available on the other. RAID 1 is almost twice as fast as reading data from the disk.

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

go top…

menu…

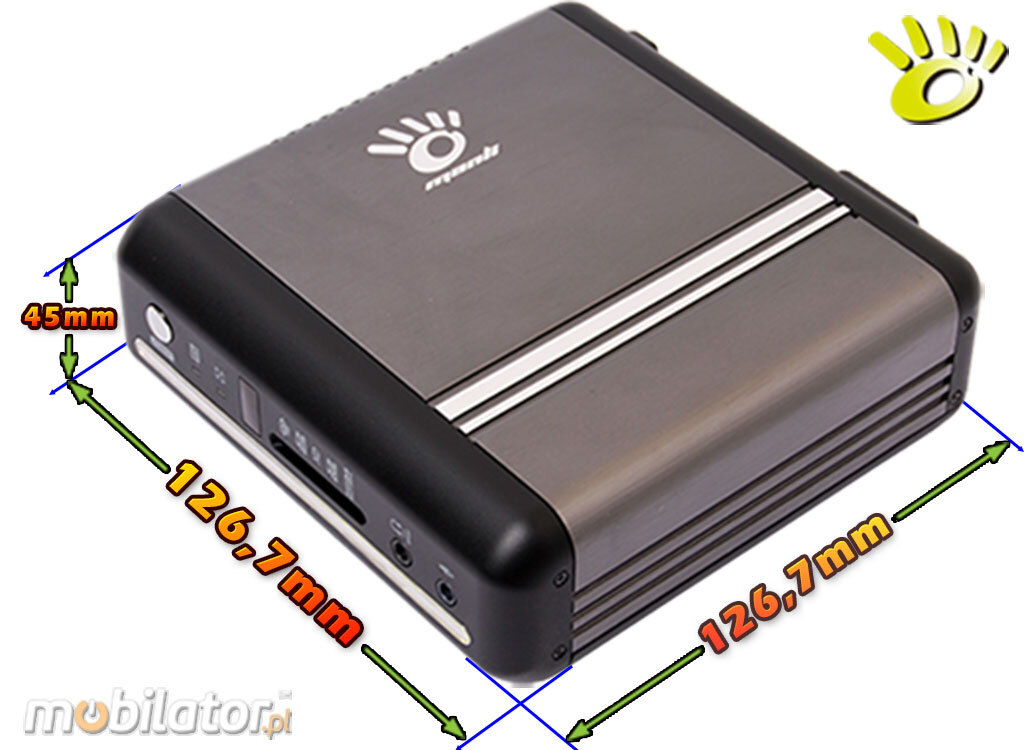

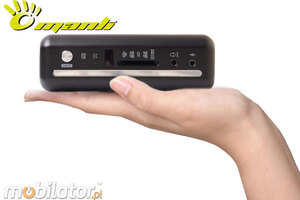

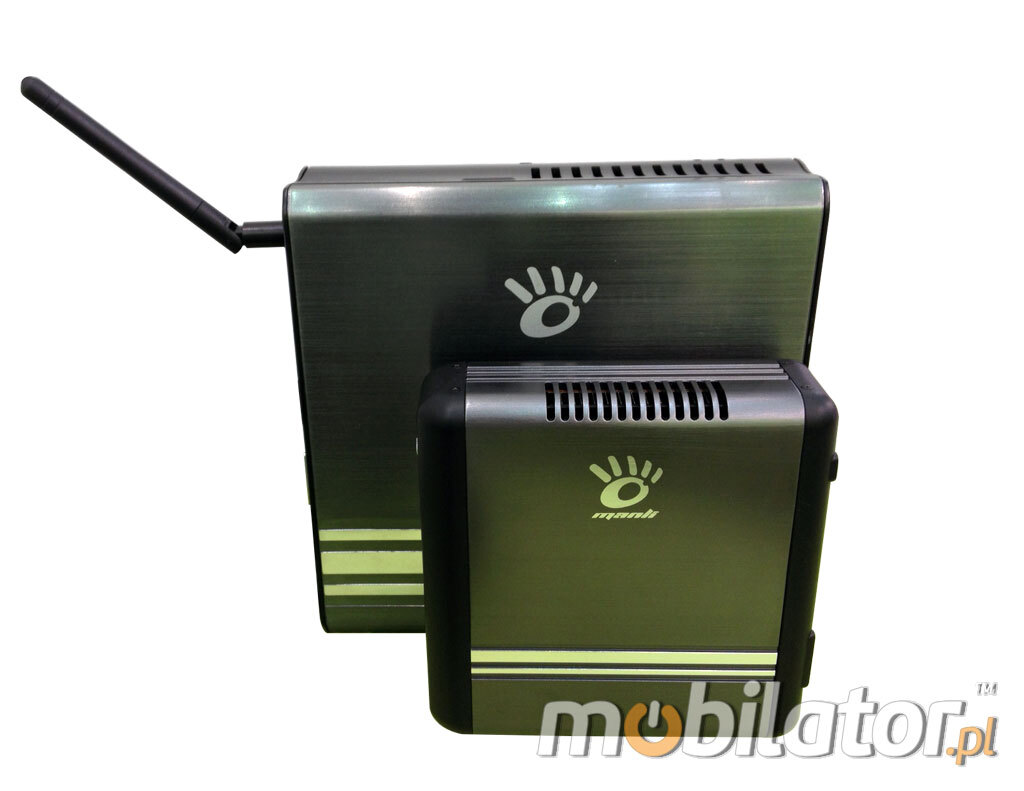

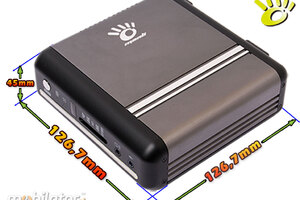

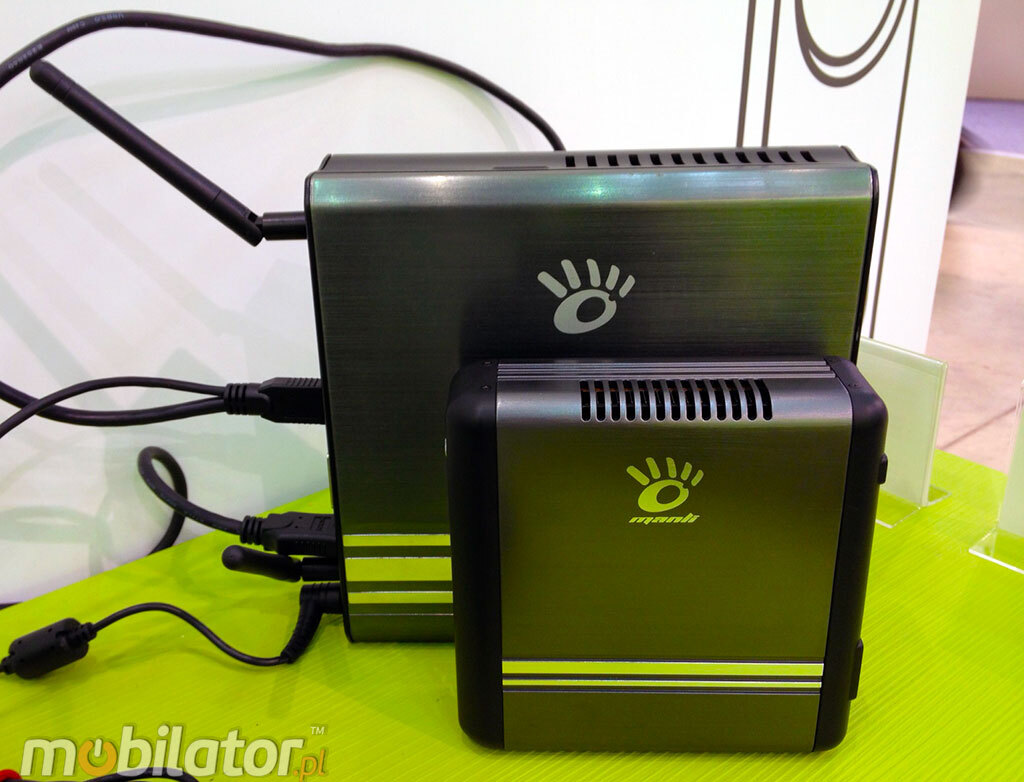

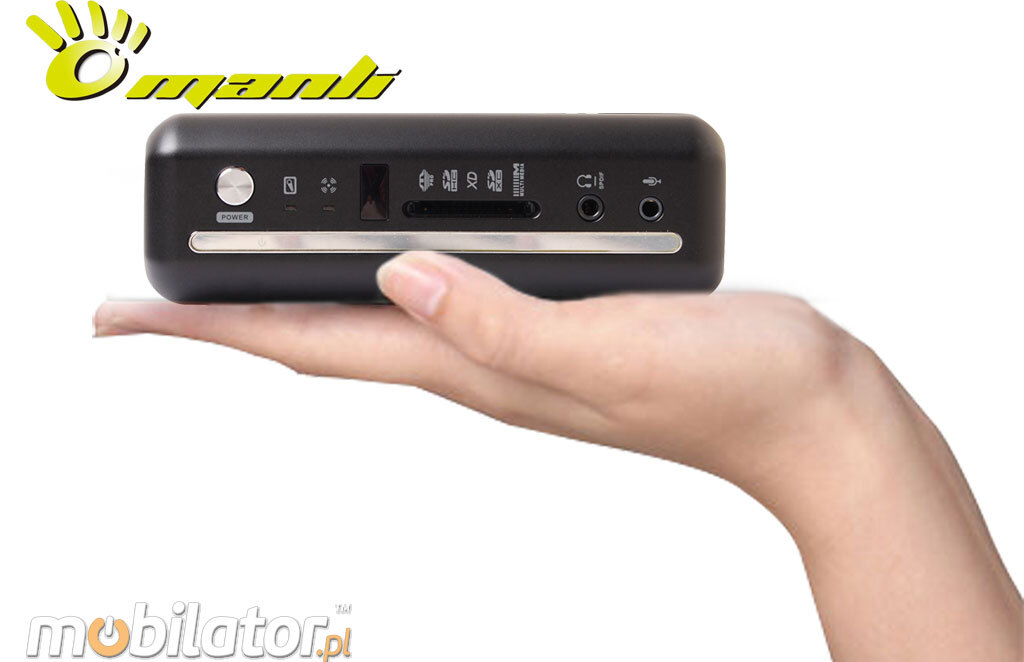

Very small size

You do not have to worry about where you bet your old desktop computer in the house or office. The Manli M-T4H35 problem disappears forever, because it has a very small size (126.7 x 126.7 x 45mm) which allows you to set him everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Polish market. Additionally MiniPC housing is made of an elegant brushed aluminum, which is very small nettop ii has a modern design.

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

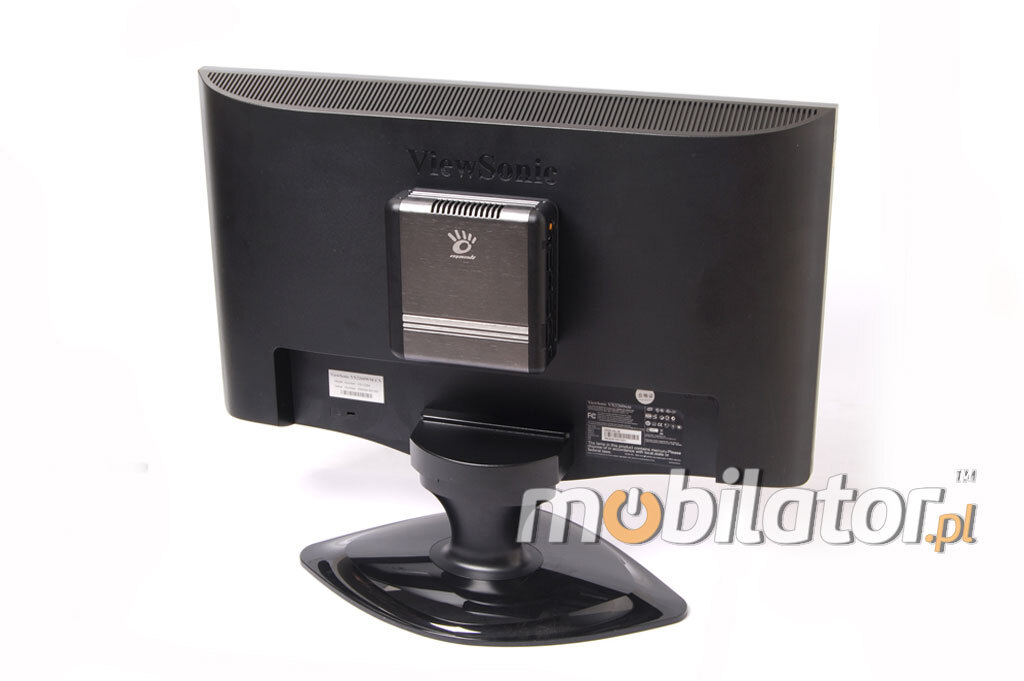

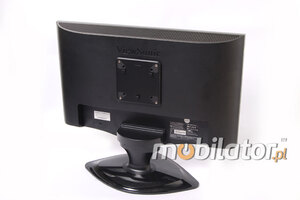

With the optional mounting brackets and adapters, there are many mounting options such as LCD / LED, in stores, on the desktop and in the car, etc

Application

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

go top…

menu…

Large storage capacity

Performance of your computer will never again let you down by technology, dual-channel RAM. Sharing channels reduces data latency and increase memory bandwidth to satisfy most storage-hungry applications.

With up to 8GB of memory, Windows 8 always cope with the number of assigned tasks in parallel MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3 .

Now is the time to effectively replace the DVD player, Manli T4 ideally suited to the role player for movies, music and photos with him on your TV to display whatever you want.

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

About 70% less energy than a standard desktop computer

Manli T4 processor with a powerful Intel® Core™ i7-3537U provides up to 70% more efficiency compared to a traditional desktop computer.

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

go top…

menu…

Connectors and Ports

Realtek 10/100/1000 Gigabit Ethernet or WiFi adapter (optional) to connect the device to the network. The computer is equipped with: Card reader (SD / SDHC / SDXC / MicroSD / MS / MSPro / XD / MMC), LAN connection, four ports MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3 USB (2xUSB 2.0 / 2xUSB 3.0) , one HDMI, one DisplayPort and eSATA port, two audio inputs, and optional WiFi, Bluetooth. MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

In addition to the HDMI Nettop Manli T4 supports DisplayPort, which offers better color depth, speed of data transfer and support for high-resolution audio formats. All with a single cable.

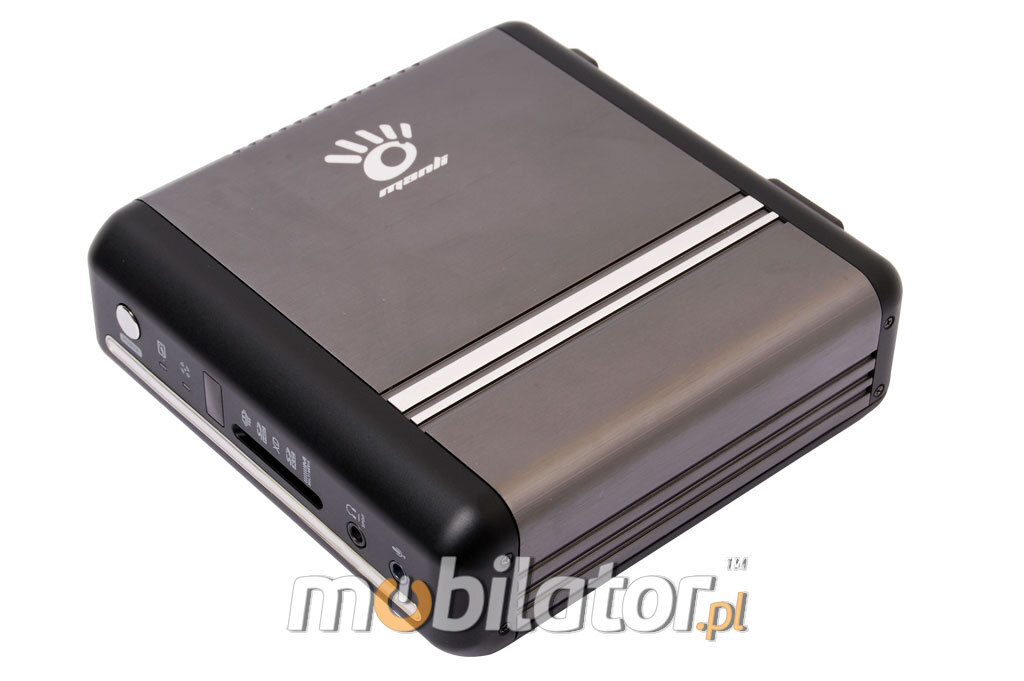

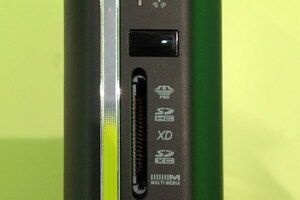

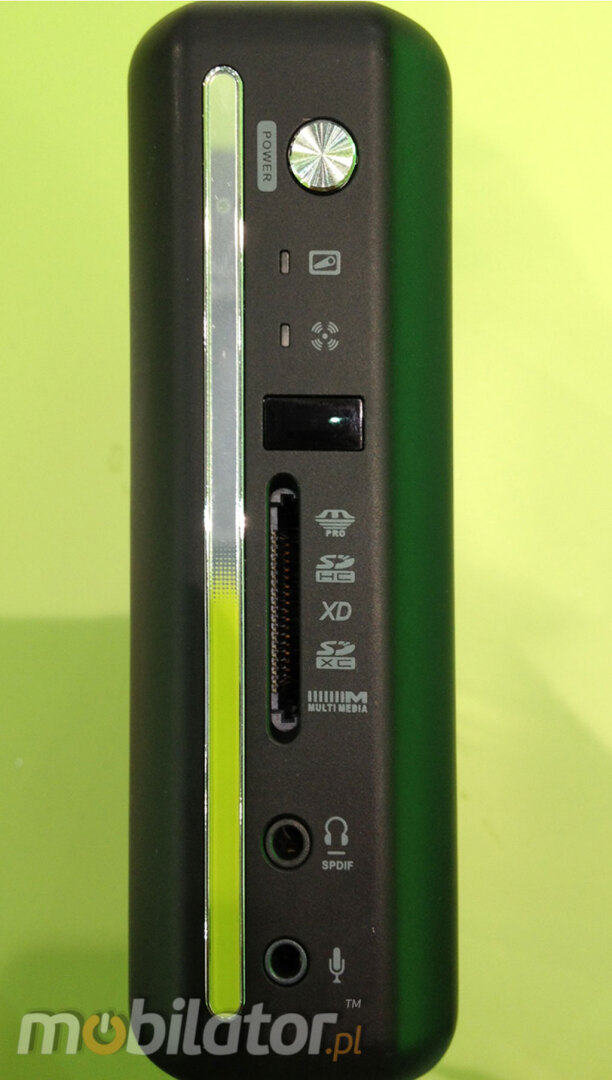

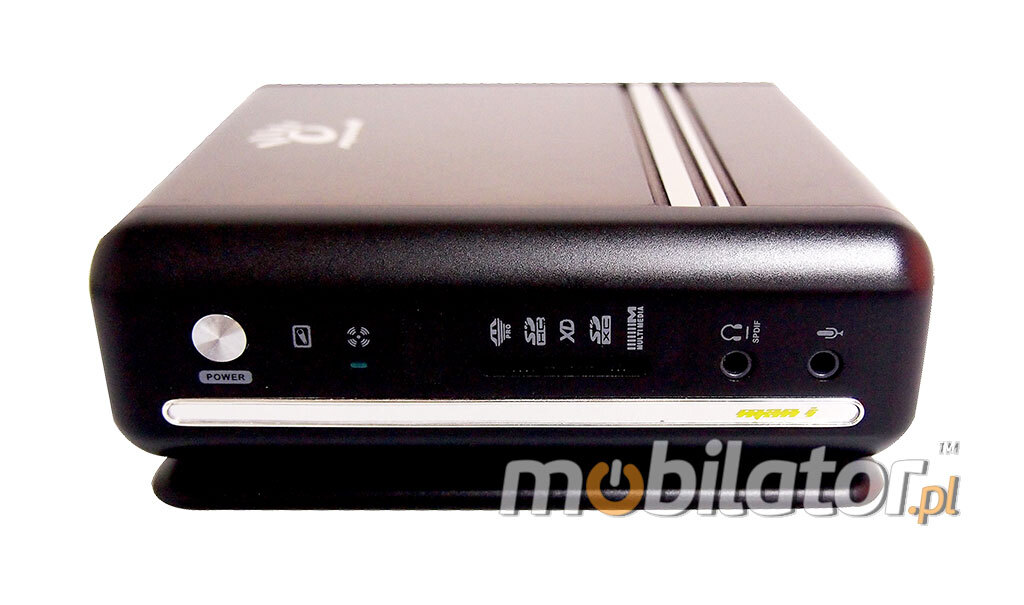

Front

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

1. Power	2. Audio (speaker) / SPDIF	3. Mic-IN
4. LED the-power on	5. DISK LED	6. Memory Card Reader

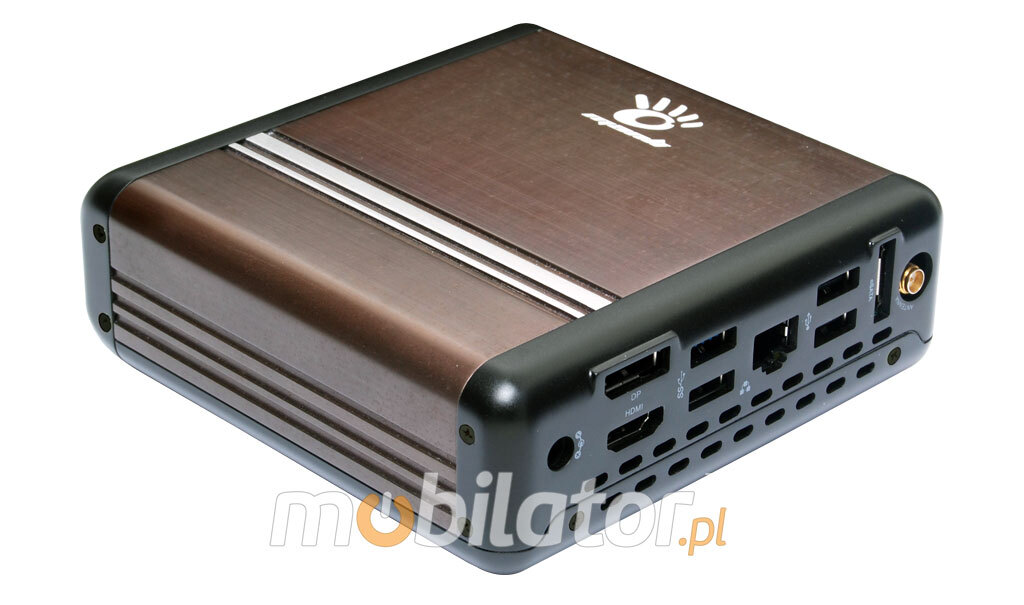

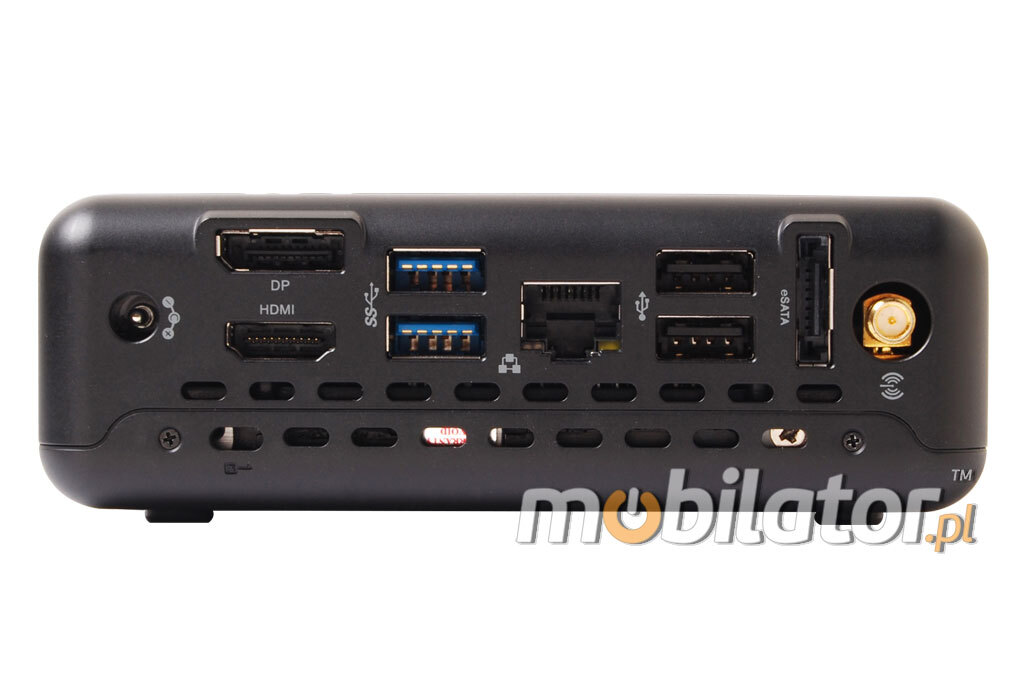

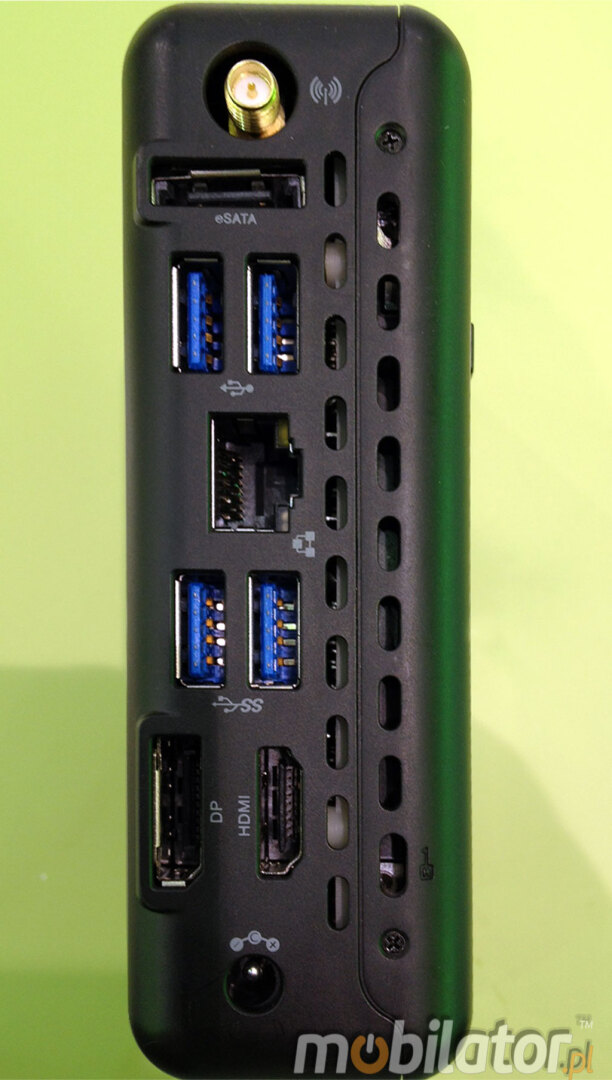

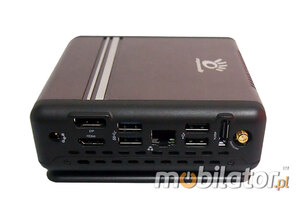

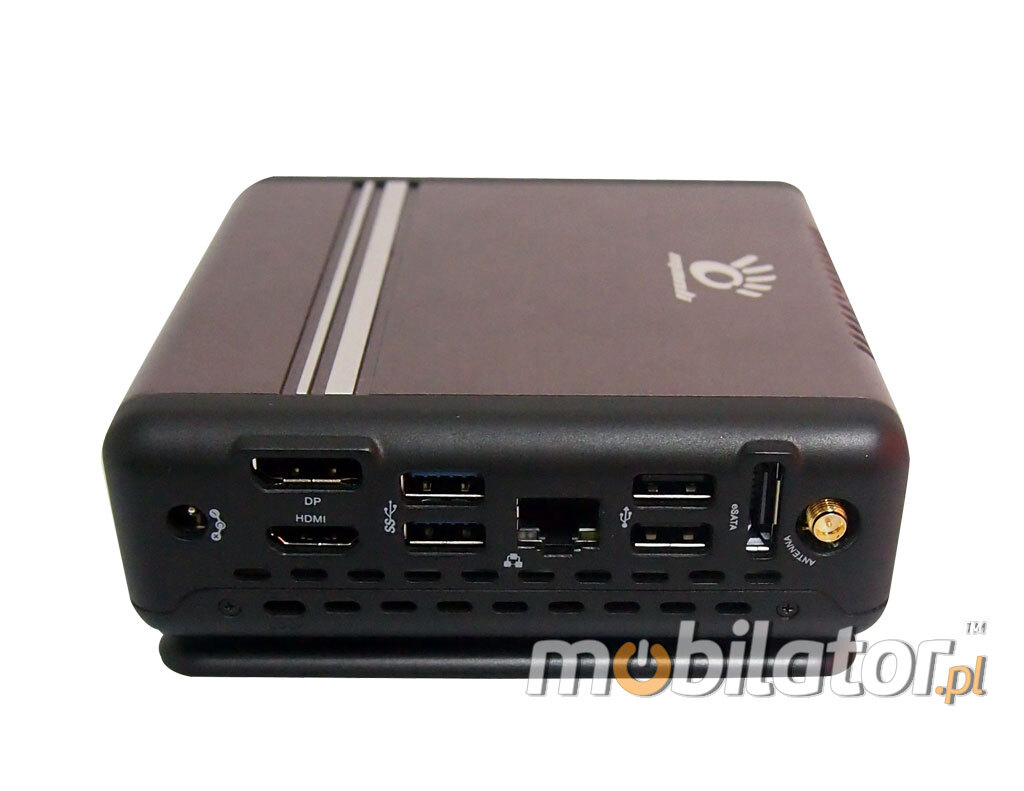

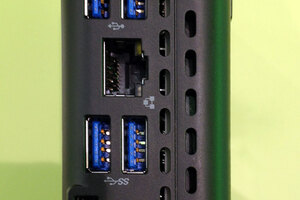

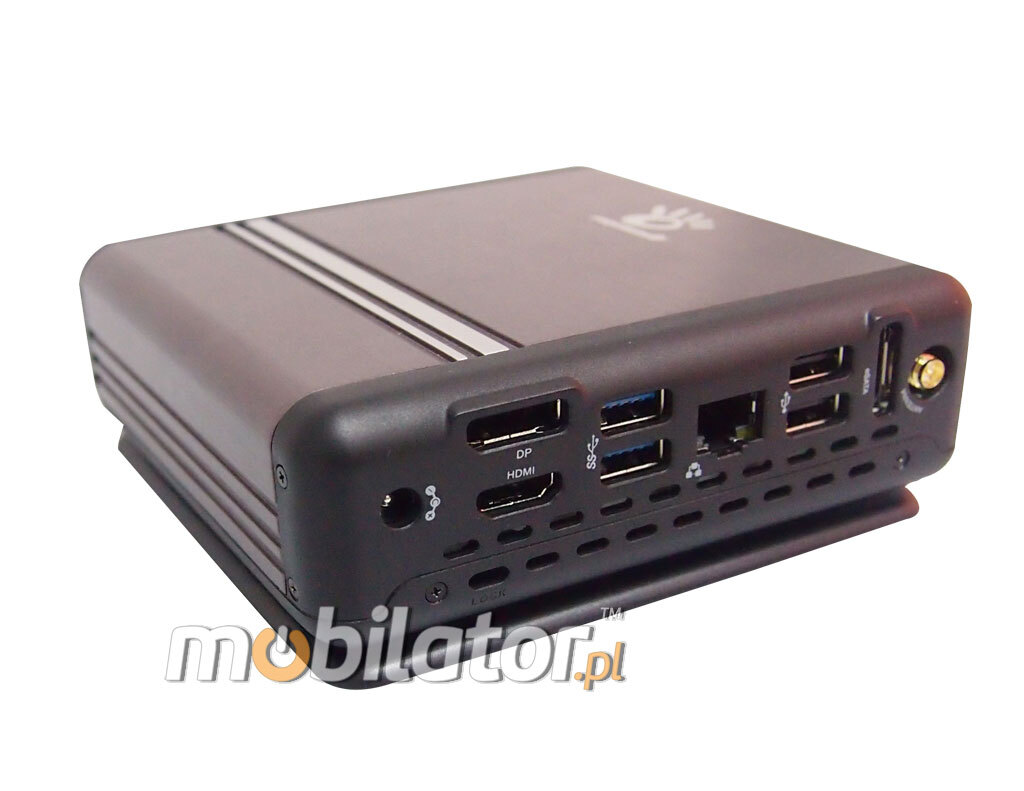

Back

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3

1. The charging DC-IN	2. Display Port	3. mSATA
4. Antena WiFi ,Bluetooth	5. Output HDMI	6. 2 x USB 3.0
7. LAN	8. 2 x USB 2.0

go top…

menu…

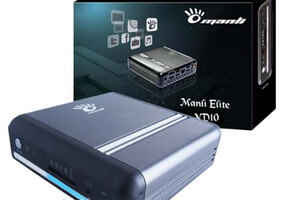

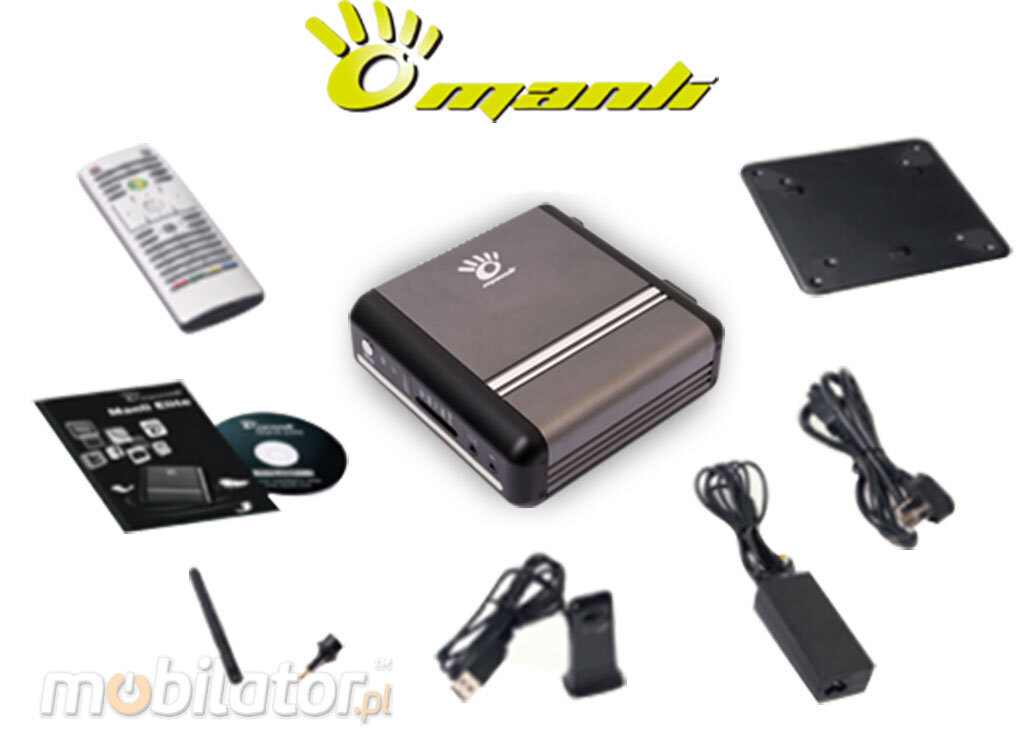

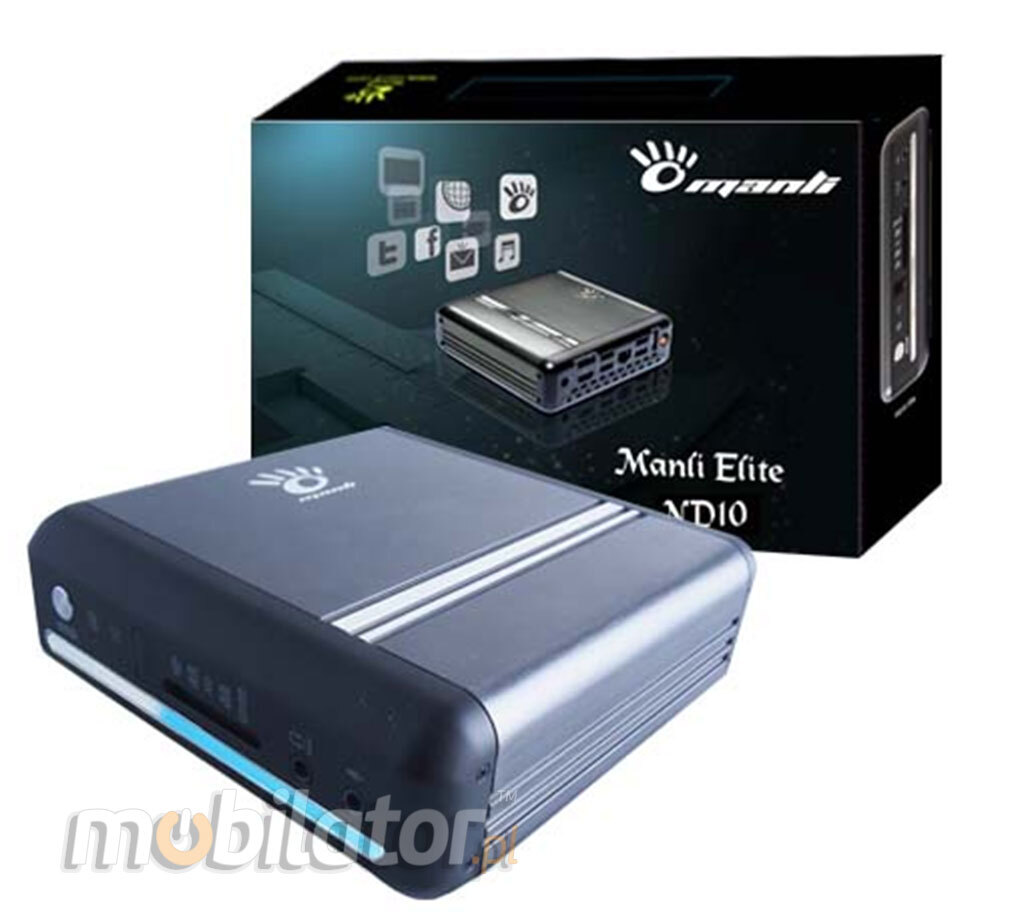

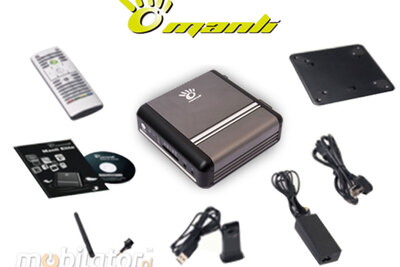

Accessories

MiniPC Nettop Mini-PC Small Computer Manli T4 M-T4H35 Intel Core™ i7-3537U (2x2.0 GHz) Intel HD 4000 1TB HDD 500GB SSD Windows 8 8GB RAM DDR 3 Chipset HM77 i3 i5 i7 Intel mSATA2 mSATA3 accesories

- AC Adapter

- VESA Mount

- Driver CD

- User Manual

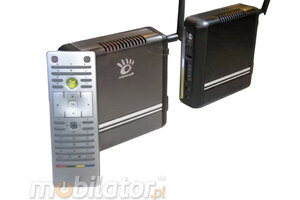

- MCE Remote Control

- Extrenal USB IR receiver

more photos in "Gallery"...

specification of this version is available in the "Specifications"...

Others
With Remote control
Chipset
HM77
FSB
1600MHz
CPU Support
Intel® Core™ i7-3537U (4M Cache, up to 3.10 GHz)
Installed CPU
Intel® Core™ i7-3537U (2x2.0 GHz)
Memory Support
DDR3 SO-DIMM x 1 1600MHz (to 8GB)
Installed Memory
8GB Kingston SODIMM DDR3 1600MHz CL11 PC3-12800
Graphic Card
Intel® HD4000
Storage (HDD) Support
2.5" SATA II/III HDD to 1TB / SSD to 500GB
Installed Storage (HDD)
256GB SSD SanDisk 2.5'' SATA3 (Read/Write: 450/350 MB/sec.)
CD/DVD Drive
None
LAN
10/100/1000Mbps
Wireless LAN card
WiFi 802.11n 150Mbps + Bluetooth 3.0
TV Tuner
None
Front Panel (ports)
Audio (Line-Out/SPDIF, Microphone) / Card Reader 7-in-1 (SD/SDHC/SDXC/MS/MSPro/XD/MMC)
Rear Panel (ports)
2x USB 2.0, 2x USB 3.0, 1x RJ-45 , 1x HDMI, 1x eSATA, 1x Display port, 1x DC-in Jack
Power
AC/100-240V to DC/19V/3.42A/65W
Supported OS
Windows 8
Installed OS
No (optional Windows 8)
Dimensions
126.7x126.7x45mm
Expansion
None
Responsible Entity / Distributor
New Portable Devices

Compare all versions


Mini PC Manli M-T4N25 Barebone
					Very small size (126.7x126.7x45mm)
CPU Support Intel Atom D2550
Memory Support up to 4GB RAM DDRIII
Support Disk HDD / SSD - 2.5'' SATA II / III
WiFi / Bluetooth / Control with Remote Control

Product from the Archive - production finished

Mini PC Manli M-T4M180
					Very small size (126.7x126.7x45mm)
CPU Support AMD Dual Core E2-1800
Memory Support up to 8GB RAM DDRIII
Support Disk HDD / SSD - 2.5'' SATA II / III
WiFi / Bluetooth / Control with Remote Control

Product from the Archive - production finished

Mini PC Manli M-T4N25 v.1
					Very small size (126.7x126.7x45mm)
Intel  Atom ™ D2550 (2 x 1.86 GHz)
Graphics Card: Intel GMA3650
RAM 2 GB DDR III - 1066MHz
Disk 500GB 2.5 "SATA II

Product from the Archive - production finished

Mini PC Manli M-T4N25 v.3
					Very small size (126.7x126.7x45mm)
Intel  Atom ™ D2550 (2 x 1.86 GHz)
Graphics Card: Intel GMA3650
RAM 4 GB DDR III - 1066MHz
Disk 64GB SSD 2.5 "SATA III

Product from the Archive - production finished

Mini PC Manli M-T4M180 v.0.1
					Very small size (126.7x126.7x45mm)
AMD ® Dual Core ™ E2-1800 (2x1.7GHz)
Graphics Card: AMD ® ​​Radeon HD 7340
RAM 2 GB DDR III - 1333MHz
Disk 250GB 2.5 "SATA II

Product from the Archive - production finished

Mini PC Manli M-T4N25 v.2
					Very small size (126.7x126.7x45mm)
Intel  Atom ™ D2550 (2 x 1.86 GHz)
Graphics Card: Intel GMA3650
RAM 4 GB DDR III - 1066MHz
Disk 500GB 2.5 "SATA II

Product from the Archive - production finished

Mini PC Manli M-T4N25 v.4
					Very small size (126.7x126.7x45mm)
Intel  Atom ™ D2550 (2 x 1.86 GHz)
Graphics Card: Intel GMA3650
RAM 4 GB DDR III - 1066MHz
Disk 2 x 32GB SSD mSATA II 280/260 MB/s

Product from the Archive - production finished

Mini PC Manli M-T4H32
					Very small size (126.7x126.7x45mm)
CPU Support Intel Core™ i3-3227U
Memory Support up to 8GB RAM DDRIII
Support Disk HDD / SSD - 2.5'' SATA II / III
WiFi / Bluetooth / Control with Remote Control

Product from the Archive - production finished

Mini PC Manli M-T4M180 v.1
					Very small size (126.7x126.7x45mm)
AMD ® Dual Core ™ E2-1800 (2x1.7GHz)
Graphics Card: AMD ® ​​Radeon HD 7340
RAM 4 GB DDR III - 1333MHz
Disk 500GB 2.5 "SATA II

Product from the Archive - production finished

Mini PC Manli M-T4H33
					Very small size (126.7x126.7x45mm)
CPU Support Intel Core™ i5-3337U
Memory Support up to 8GB RAM DDRIII
Support Disk HDD / SSD - 2.5'' SATA II / III
WiFi / Bluetooth / Control with Remote Control

Product from the Archive - production finished

Mini PC Manli M-T4H32 v.0.1
					Very small size (126.7x126.7x45mm)
Intel  Core ™ i3-3227U (2x1.90GHz)
Graphics Card: Intel HD 4000
RAM 2 GB DDR III - 1066MHz
Disk 250GB HDD 2.5 "SATA II

Product from the Archive - production finished

Mini PC Manli M-T4M180 v.2
					Very small size (126.7x126.7x45mm)
AMD ® Dual Core ™ E2-1800 (2x1.7GHz)
Graphics Card: AMD ® ​​Radeon HD 7340
RAM 8 GB DDR III - 1333MHz
Disk 1TB 2.5 "SATA II

Product from the Archive - production finished

Mini PC Manli M-T4M180 v.3
					Very small size (126.7x126.7x45mm)
AMD  Dual Core ™ E2-1800 (2x1.7GHz)
Graphics Card: AMD  ​​Radeon HD 7340
RAM 8 GB DDR III - 1333MHz
Disk 128 SSD 2.5 "SATA III

Product from the Archive - production finished

Mini PC Manli M-T4M180 v.4
					Very small size (126.7x126.7x45mm)
AMD  Dual Core ™ E2-1800 (2x1.7GHz)
Graphics Card: AMD  ​​Radeon HD 7340
RAM 8 GB DDR III - 1333MHz
Disk 2 x 32GB SSD mSATA II 280/260 MB/s

Product from the Archive - production finished

Mini PC Manli M-T4H32 v.1
					Very small size (126.7x126.7x45mm)
Intel  Core ™ i3-3227U (2x1.90GHz)
Graphics Card: Intel HD 4000
RAM 4 GB DDR III - 1600MHz
Disk 500GB HDD 2.5 "SATA II

Product from the Archive - production finished

Mini PC Manli M-T4H32 v.2
					Very small size (126.7x126.7x45mm)
Intel ® Core ™ i3-3227U (2x1.90GHz)
Graphics Card: Intel HD 4000
RAM 4 GB DDR III - 1600MHz
Disk 128GB SSD 2.5 "SATA III

Product from the Archive - production finished

Mini PC Manli M-T4H32 v.3
					Very small size (126.7x126.7x45mm)
Intel ® Core ™ i3-3227U (2x1.90GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 1TB HDD 2.5 "SATA III

Product from the Archive - production finished

Mini PC Manli M-T4H33 v.1
					Very small size (126.7x126.7x45mm)
Intel Core™ i5-3337U (2x1.80 GHz)
Graphics Card: Intel HD 4000
RAM 4 GB DDR III - 1600MHz
Disk 500GB HDD 2.5 "SATA II

Product from the Archive - production finished

Mini PC Manli M-T4H35
					Very small size (126.7x126.7x45mm)
CPU Support Intel Core™ i7-3537U
Memory Support up to 8GB RAM DDRIII
Support Disk HDD / SSD - 2.5'' SATA II / III
WiFi / Bluetooth / Control with Remote Control

Product from the Archive - production finished

Mini PC Manli M-T4H32 v.4
					Very small size (126.7x126.7x45mm)
Intel  Core ™ i3-3227U (2x1.90GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 2x64GB SSD 2.5" mSATA II

Product from the Archive - production finished

Mini PC Manli M-T4H33 v.2
					Very small size (126.7x126.7x45mm)
Intel® Core™ i5-3337U (2x1.80 GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 1TB HDD 2.5 "SATA II

Product from the Archive - production finished

Mini PC Manli M-T4H35 v.1
					Very small size (126.7x126.7x45mm)
Intel Core™ i7-3537U (2x2.0 GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 500GB HDD 2.5 "SATA II

Product from the Archive - production finished

Mini PC Manli M-T4H33 v.4
					Very small size (126.7x126.7x45mm)
Intel Core™ i5-3337U (2x1.80 GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 64GB mSATA2 + 128GB mSATA3 SSD

Product from the Archive - production finished

Mini PC Manli M-T4H33 v.3
					Very small size (126.7x126.7x45mm)
Intel Core™ i5-3337U (2x1.80 GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 256 GB SSD 2.5 "SATA III

Product from the Archive - production finished

Mini PC Manli M-T4H35 v.2
					Very small size (126.7x126.7x45mm)
Intel Core™ i7-3537U (2x2.0 GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 1TB HDD 2.5" SATA II

Product from the Archive - production finished

Mini PC Manli M-T4H32 v.5
					Very small size (126.7x126.7x45mm)
Intel  Core ™ i3-3227U (2x1.90GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 500GB SSD 2.5" SATA III

Product from the Archive - production finished

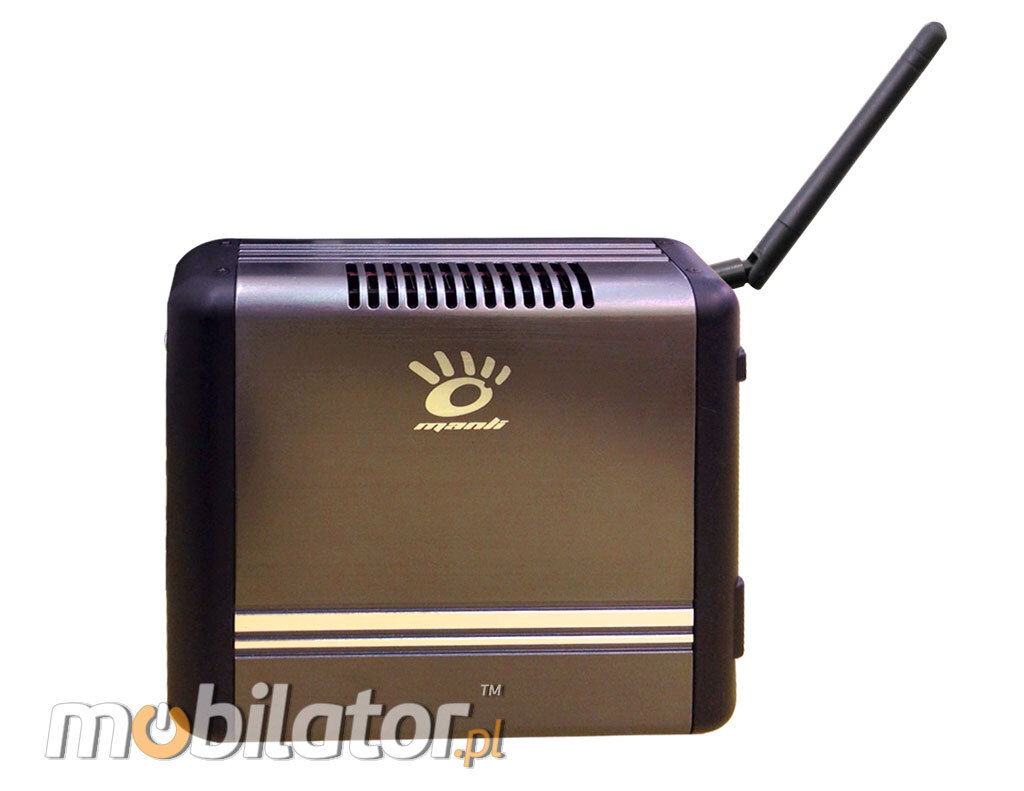

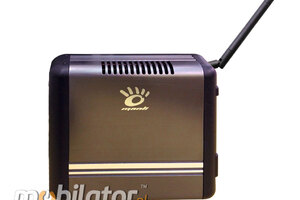

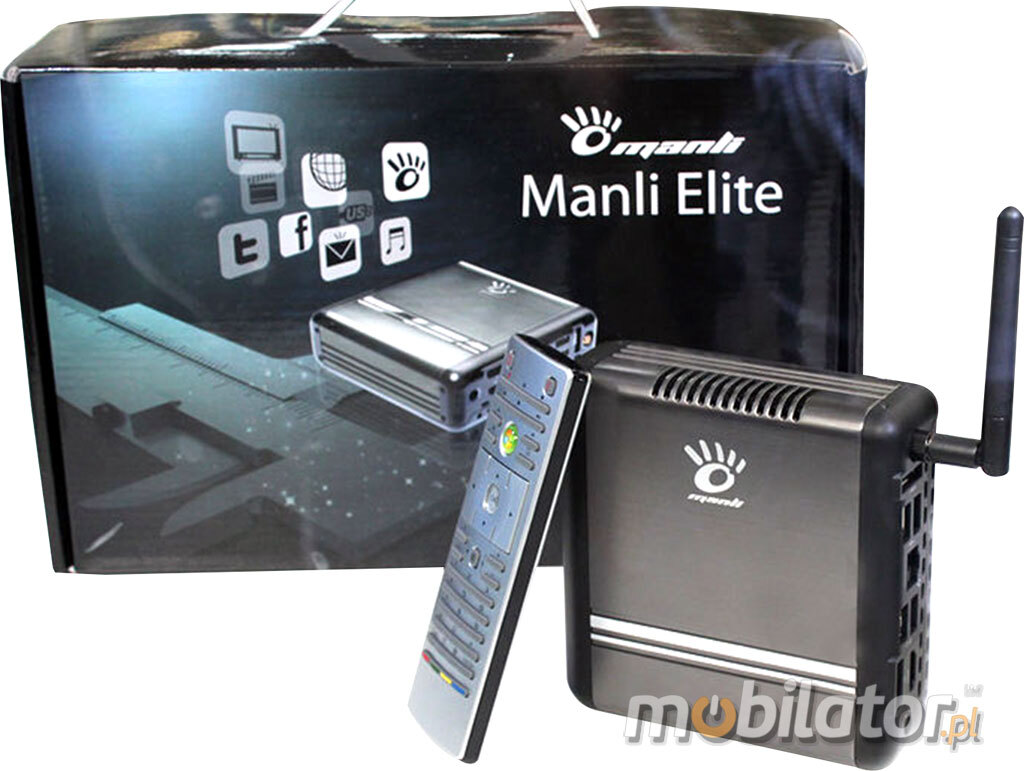

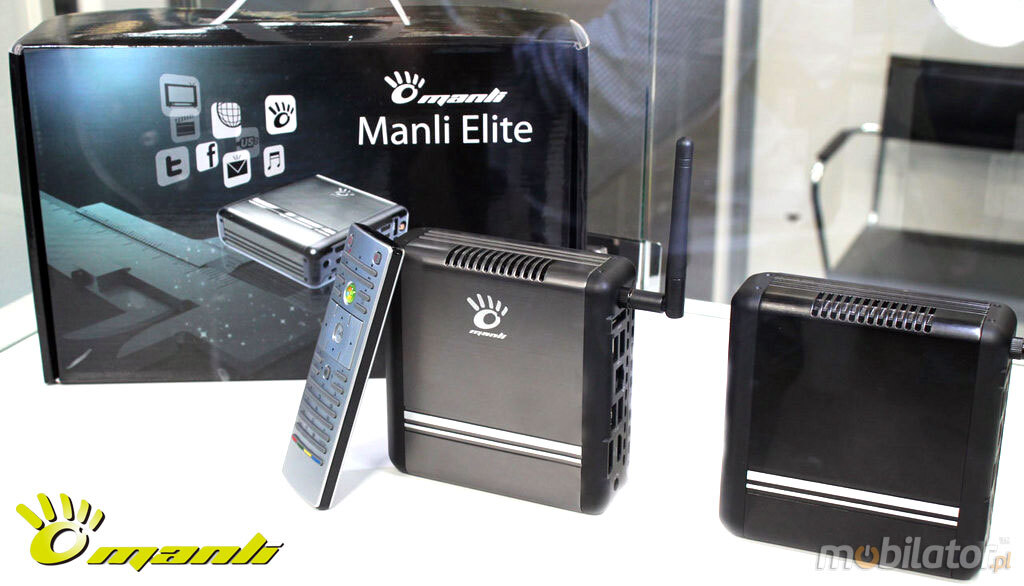

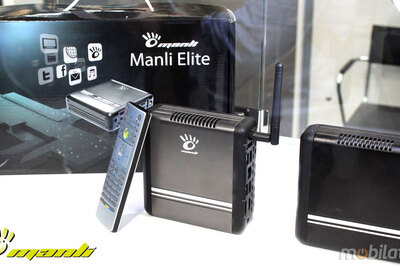

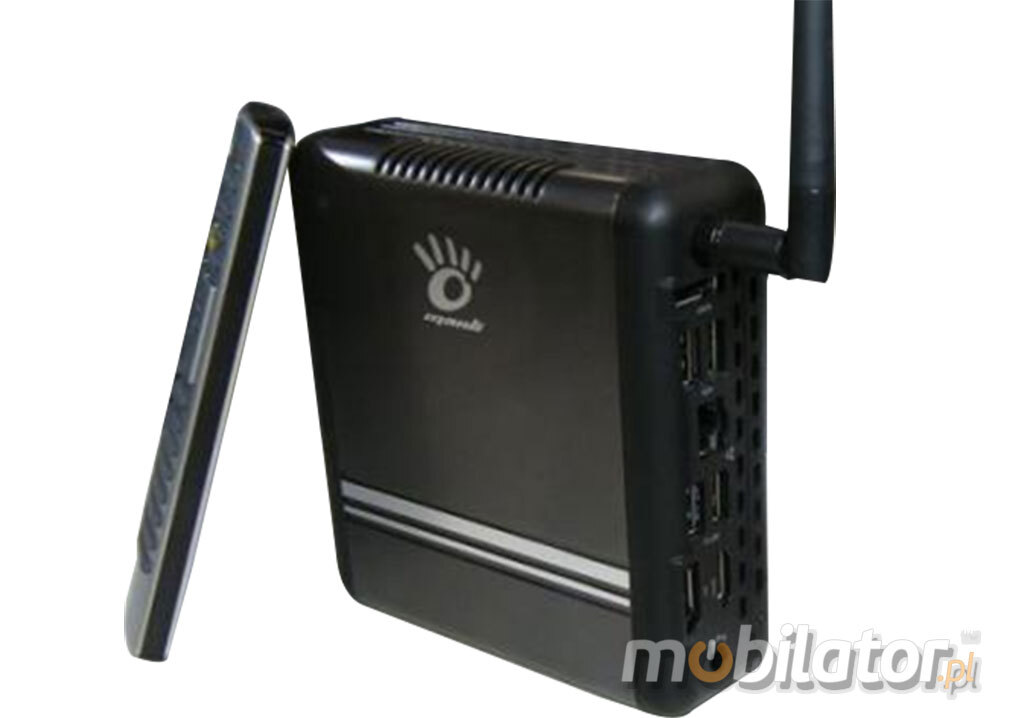

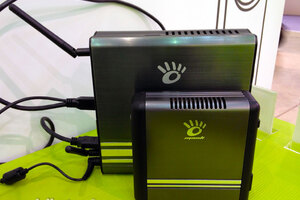

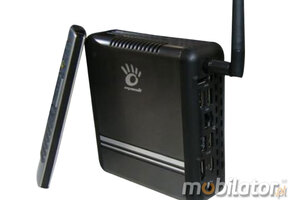

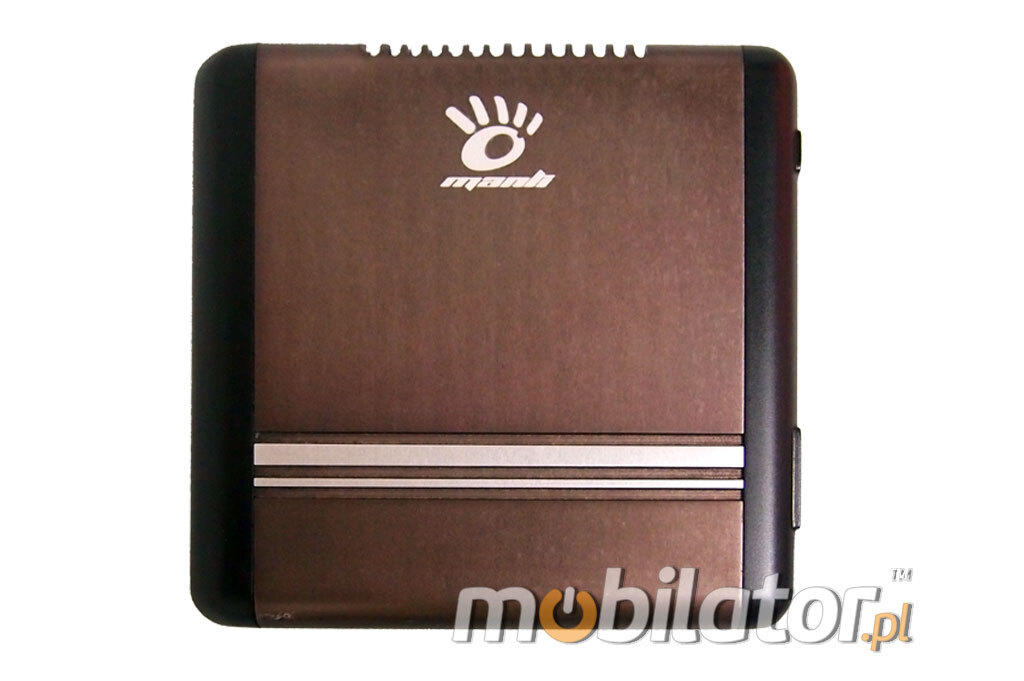

Mini PC Manli M-T4H35 v.3
					Very small size (126.7x126.7x45mm)
Intel Core™ i7-3537U (2x2.0 GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 256GB SSD 2.5" SATA III

Product from the Archive - production finished

Mini PC Manli M-T4H35 v.3
					Very small size (126.7x126.7x45mm)
Intel Core™ i7-3537U (2x2.0 GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 256GB SSD 2.5" SATA III

Product from the Archive - production finished

Mini PC Manli M-T4H35 v.5
					Very small size (126.7x126.7x45mm)
Intel Core™ i7-3537U (2x2.0 GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 128GB mSATA3 + 256GB mSATA3 SSD

Product from the Archive - production finished

Mini PC Manli M-T4H35 v.4
					Very small size (126.7x126.7x45mm)
Intel Core™ i7-3537U (2x2.0 GHz)
Graphics Card: Intel HD 4000
RAM 8 GB DDR III - 1600MHz
Disk 500GB SSD 2.5" SATA III

Product from the Archive - production finished
