Product Update Date: 2014-04-08

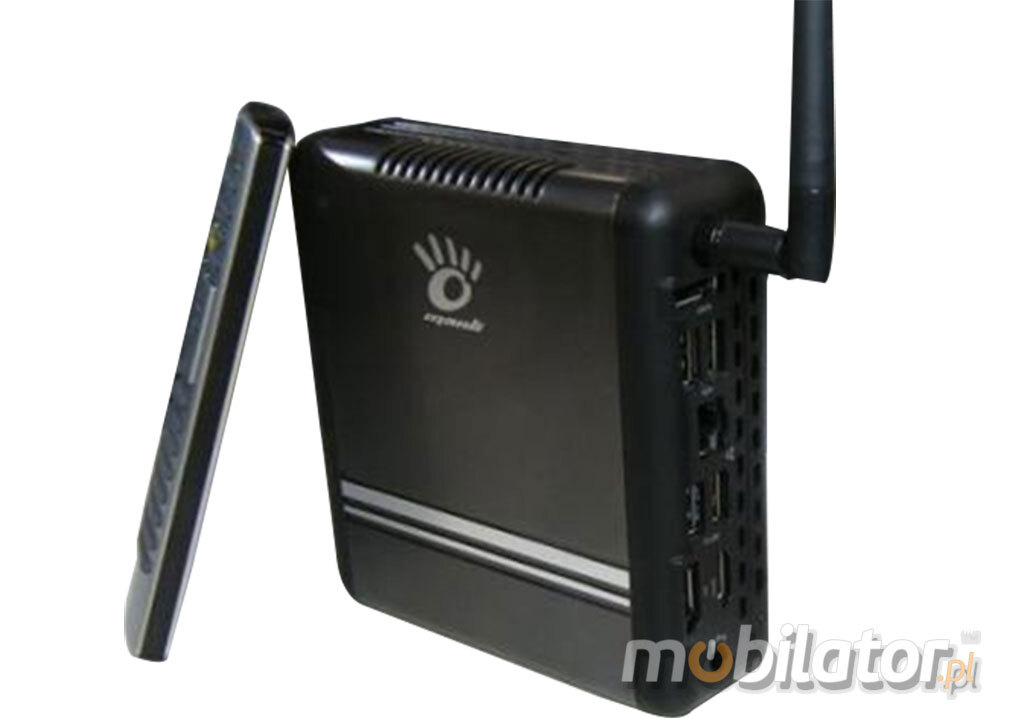

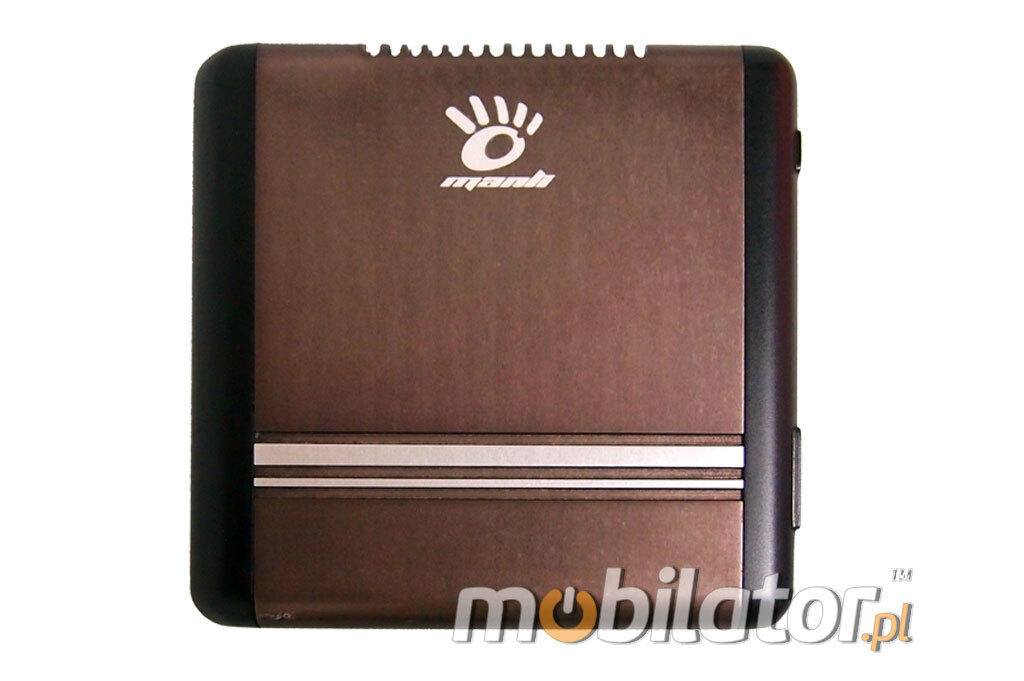

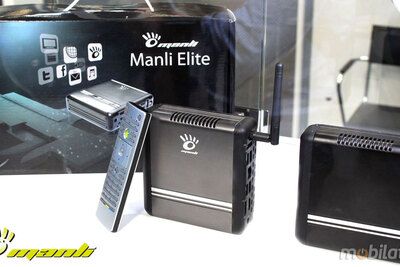

Mini PC Manli M-T4M180 v.2

Name: Mini PC Manli M-T4M180 v.2
Brand: Manli
Price: 1964.92 PLN
Availability: InStock

+20

Update Date: 2014.04.08

Guarantee 2 years

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3

Company Manli is a new distribution Mobilator s. It has achieved an excellent reputation as a manufacturer of computers MiniPC. Due to the high position of the products in the high-tech won the trust of many customers around the world.

manli-logo T2 T4 T6 Mini-PC minipc

Menu
Processor AMD E2-1800 Dual Core
New series of AMD® Radeon HD 7340
Description
Connectors and Ports
Accessories

MiniPC for the most demanding users

Manli T4 Mini-PC is designed for users who require the greatest amount of power and ease of use in such a small device. Aluminium elements and modern desing complete with incredible performance and optimized power consumption puts Manli M-T4M180 in first place in the ranking of the world's MiniPC.

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3

Mini PC Manli M-T4M180 - v.2
Processor	AMD E2-1800 Dual Core (2x1.7GHz)
RAM	8GB Kingston SODIMM DDR3 1333MHz CL9 PC3-10600
Disk	1TB HDD HGST Travelstar 7K1000 7200 RPM 32MB
Graphics	AMD® Radeon HD 7340
Chipset	AMD M3L
Communication	WiFi 802.11n 150Mbps + Bluetooth 3.0

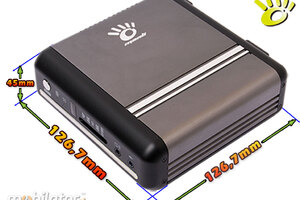

Dimensions	126.7 x 126.7 x 45mm

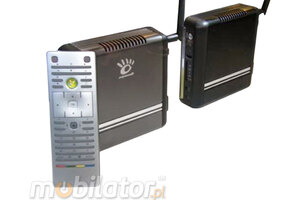

Other	MCE Remote Control
	The detailed specification of the configuration available in the "Technical data"

go top… menu…

Processor AMD E2-1800 Dual Core

New generation AMD® Dual Core™

Manli Mini-PC is supported with AMD E2-1800 Dual-core, making it extremely energy efficient (18W), while retaining the high performance, as evidenced in Windows 7 that is dedicated for this device. AMD E2-1800 is a dual-core processor with a frequency (2x1.7GHz) for small netbooks and MiniPC. It offers powerful integrated graphics card Radeon HD 7340 and a single channel DDR3-1333 MHz memory.

Processors available in a series of MiniPC MANIL T4

Model	R/W	Frequency	Max. Frequency	L2 cache	L3 cache	Max. GPU	TDP
AMD E2-1800 Dual Core	2/2	1.7GHz	1.7GHz	1MB	-	680 MHz	18 Wat
Intel® Atom D2550	2/4	1.86 GHz	1.86 GHz	1 MB	-	640 MHz	10 Wat
Intel® Core™ i3-3227U	2/4	1.9 GHz	1.9 GHz	512KB	3 MB	1.1 GHz	17 Wat
Intel® Core™ i5-3337U	2/4	1.8 GHz	2.7 GHz	512 KB	3 MB	1.1 GHz	17 Wat
Intel® Core™ i7-3537U	2/4	2.0 GHz	3.1 GHz	512 KB	4 MB	1.2 GHz	17 Wat

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3

do góry…

menu…

New series of AMD® Radeon HD 7340

New generation AMD® Radeon Graphics

Nettop Manli M-T4M180 is equipped with a powerful integrated graphics card Radeon HD 7340. Solution Graphics ATI ® Radeon ™ adds a new generation of computer power, offering extremely high performance graphics. Go beyond simple Internet browsing by offering the rich multimedia capabilities, a clever arrangement of ATI 3D. Watch the video in full 1080p on sites like YouTube HD, and played with the stick. Play the most popular PC games and enjoy the acceleration popular applications in the field of video and image processing, providing higher performance when editing and converting videos, face tracking during the pictures and much more.

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3

go top…

menu…

Description

Flexible storage

Manli T4 MiniPC dysk SSD / HDD 2xmSATA3 Flash SSD (Solid State Disc). They have no moving parts and only the same electronics. SSD two times faster reads and writes data over standard drives 2.5 ". Additionally, consumes little energy, and in general does not heat up and reduces the CPU load up to 10%.

Manli T4 MiniPC dysk SSD / HDD 2xmSATA3

Manli M-T4M180 can support a total of one HDD or SSD 2.5 ". Nettop Manli T4 is an alternative to installing two mSATA drive on which you can install and frequently used applications. Such a solution leads to a super-fast action of our little computer.

The speed of operations carried out applications installed on the mSATA drives can increase up to 30%.

Increased security and faster work in RAID

Manli T4 MiniPC dysk SSD / HDD 2xmSATA3 raid 01

RAID 0 allows you to hook up physical drives into a single logical which allows for better use of space. With RAID 1, your data will be safer because a disk is an exact copy of the other. If one drive fails all data is still available on the other. RAID 1 is almost twice as fast as reading data from the disk.

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3

go top…

menu…

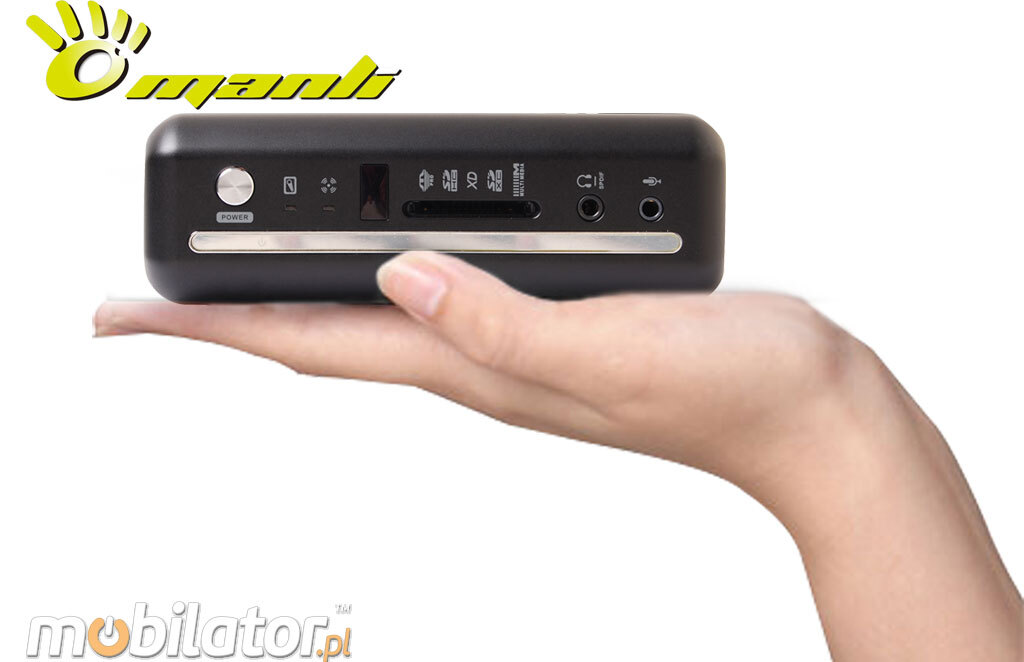

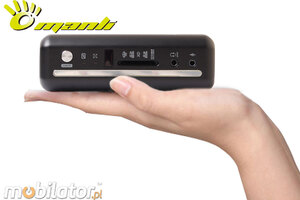

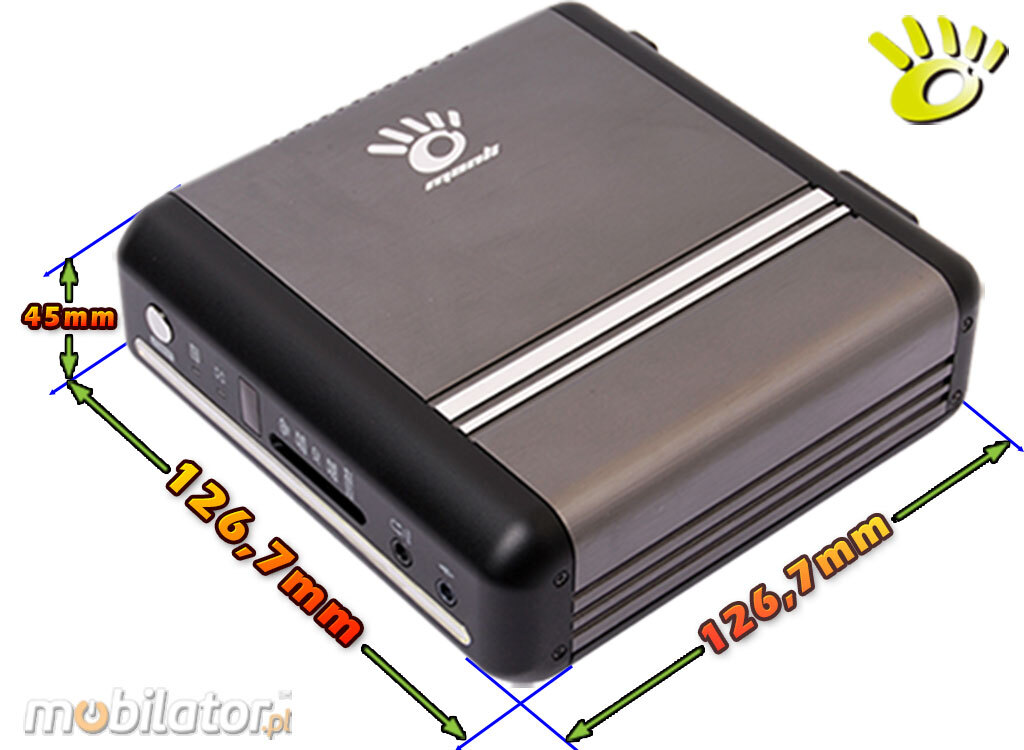

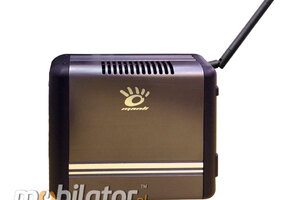

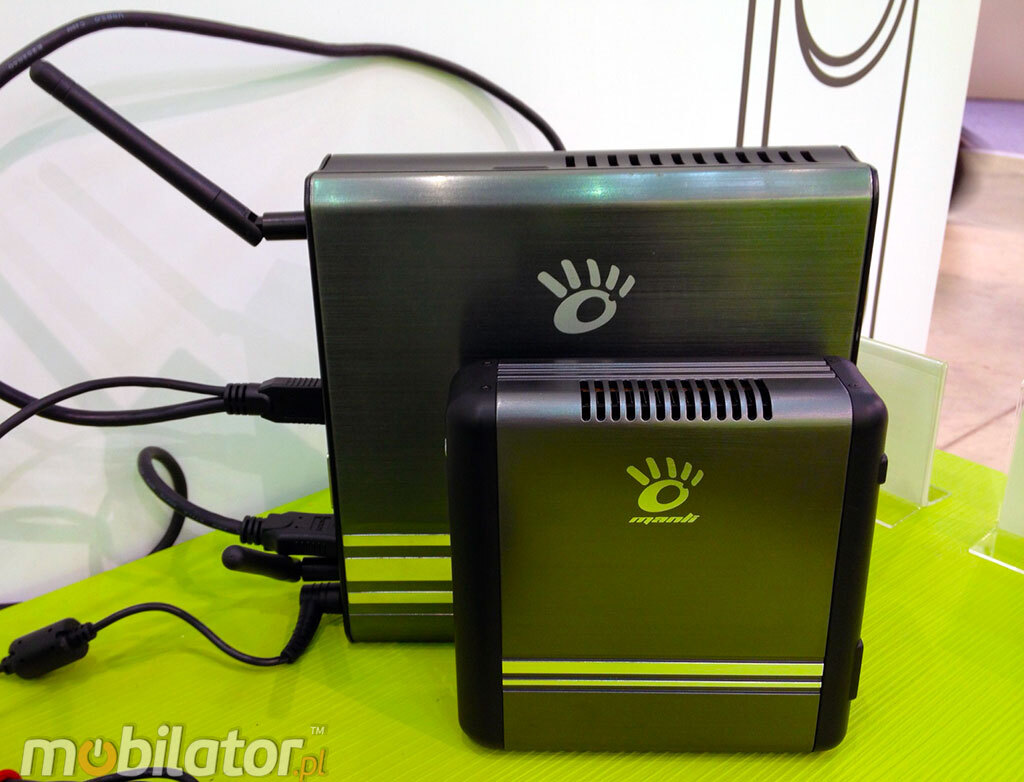

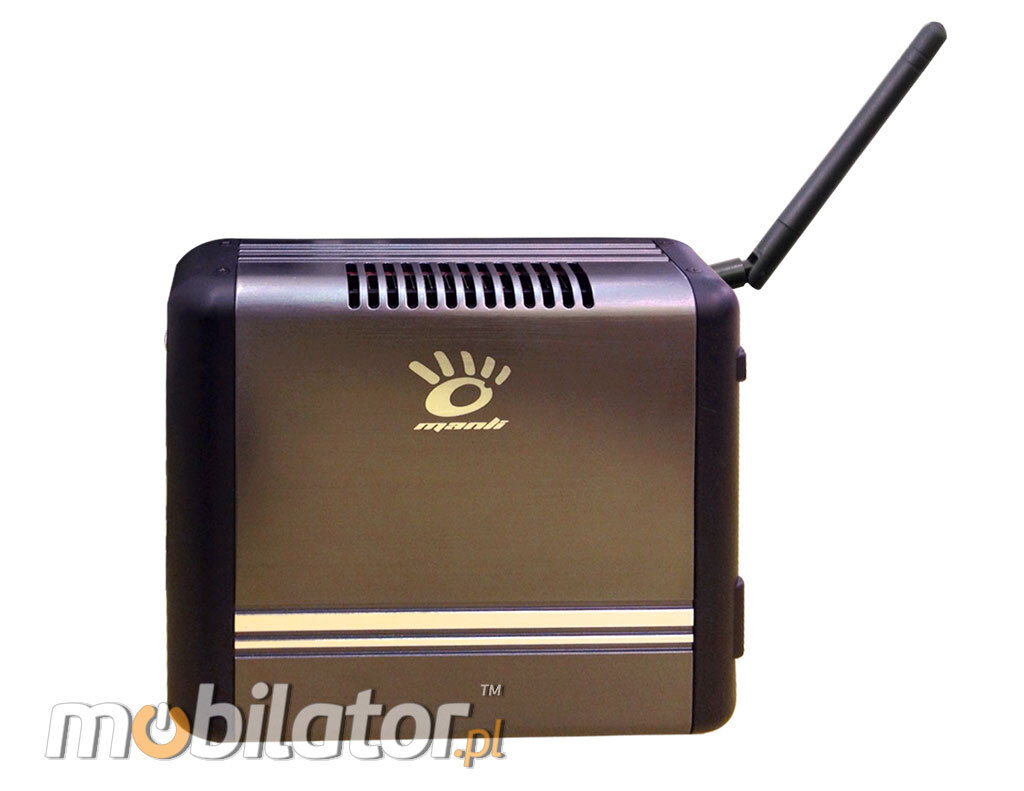

Very small size

You do not have to worry about where you bet your old desktop computer in the house or office. The Manli T4M180 problem disappears forever, because it has a very small size (126.7 x 126.7 x 45mm) which allows you to set him everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Polish market. Additionally MiniPC housing is made of an elegant brushed aluminum, which is very small nettop ii has a modern design.

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3 Monitor

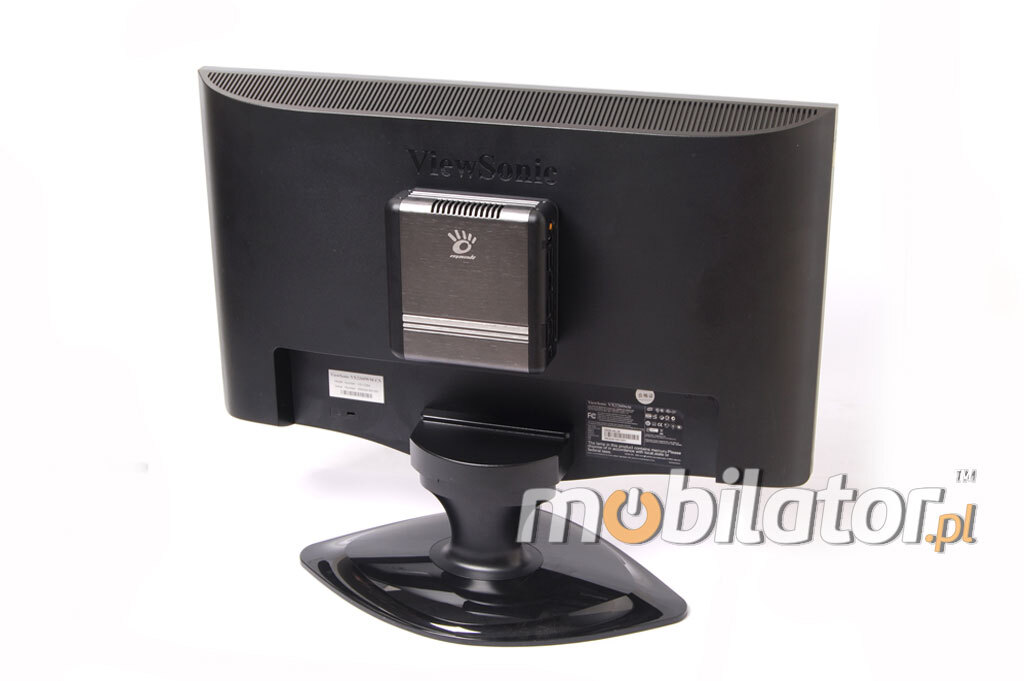

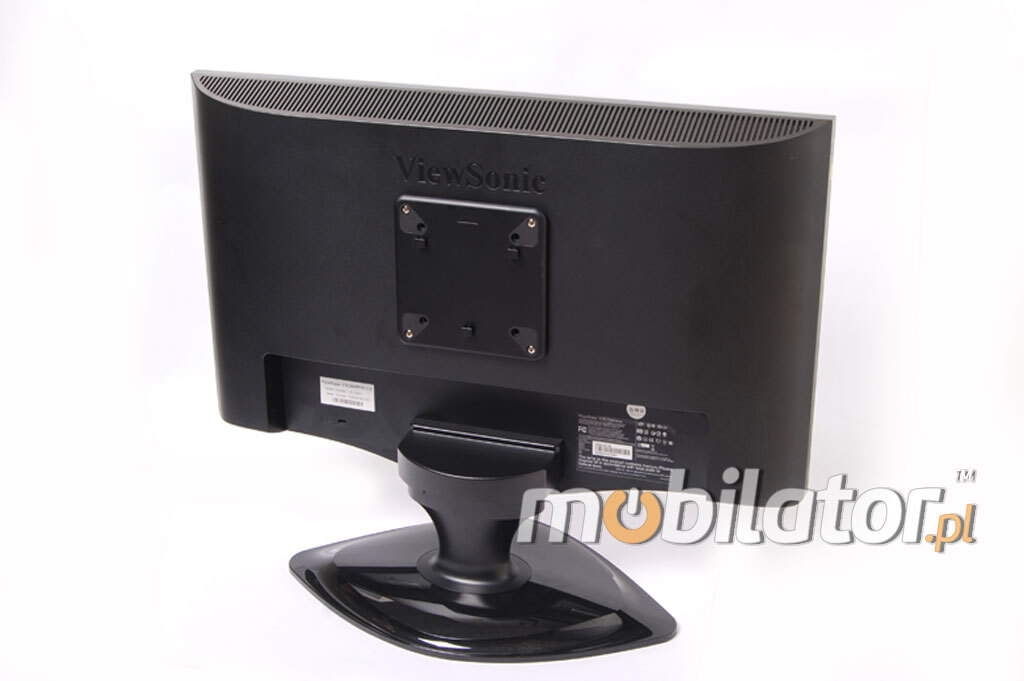

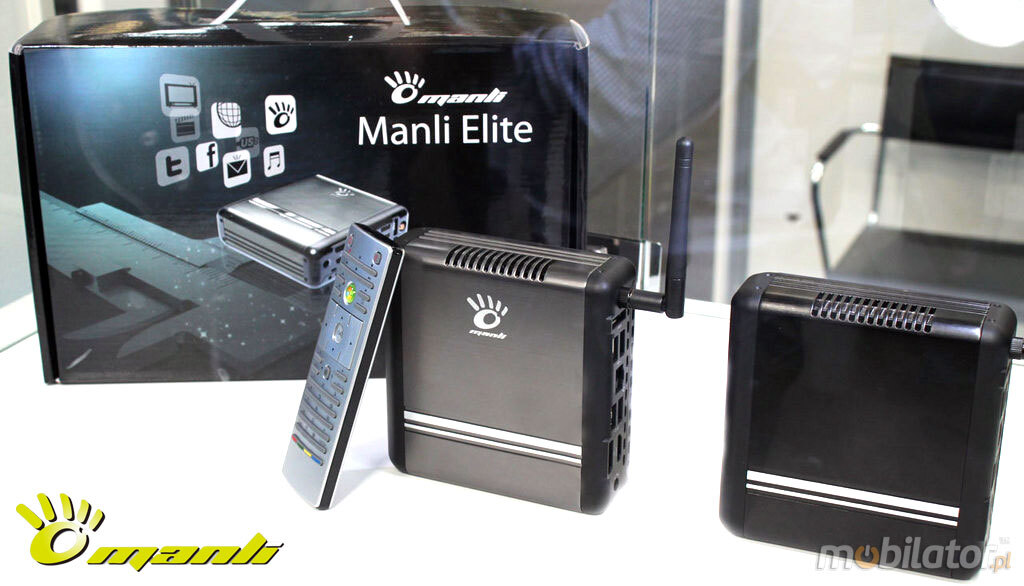

With the optional mounting brackets and adapters, there are many mounting options such as LCD / LED, in stores, on the desktop and in the car, etc.

Application

MiniPC Nettop Mini-PC small computer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3 Zastosowanie

go top…

menu…

Large storage capacity

Performance of your computer will never again let you down by technology, dual-channel RAM. Sharing channels reduces data latency and increase memory bandwidth to satisfy most storage-hungry applications. MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3 windows 7 aplikacji.

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3 With up to 8GB of memory, Windows 7 always cope with the number of assigned tasks in parallel.

Now is the time to effectively replace the DVD player, Manli T4 ideally suited to the role player for movies, music and photos with him on your TV to display whatever you want.

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3

About 70% less energy than a standard desktop computer

Manli T4 with a powerful processor, AMD E2-1800 dual-core delivers up to 70% more efficiency compared to a traditional desktop computer.

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3 zużycie energii 70% 65W

go top…

menu…

Connectors and Ports

Realtek 10/100/1000 Gigabit Ethernet or WiFi adapter (optional) to connect the device to the network. The computer is equipped with: Card reader (SD / SDHC / SDXC / MicroSD / MS / MSPro / XD / MMC), LAN connection, four ports MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3 HDMI MANLI T4 USB (2xUSB 2.0 / 2xUSB 3.0) ,one HDMI, one DisplayPort and eSATA port, two audio inputs, and optional WiFi, Bluetooth.

In addition to the HDMI Nettop Manli T4 supports DisplayPort, which offers better color depth, speed of data transfer and support for high-resolution audio formats. All with a single cable.

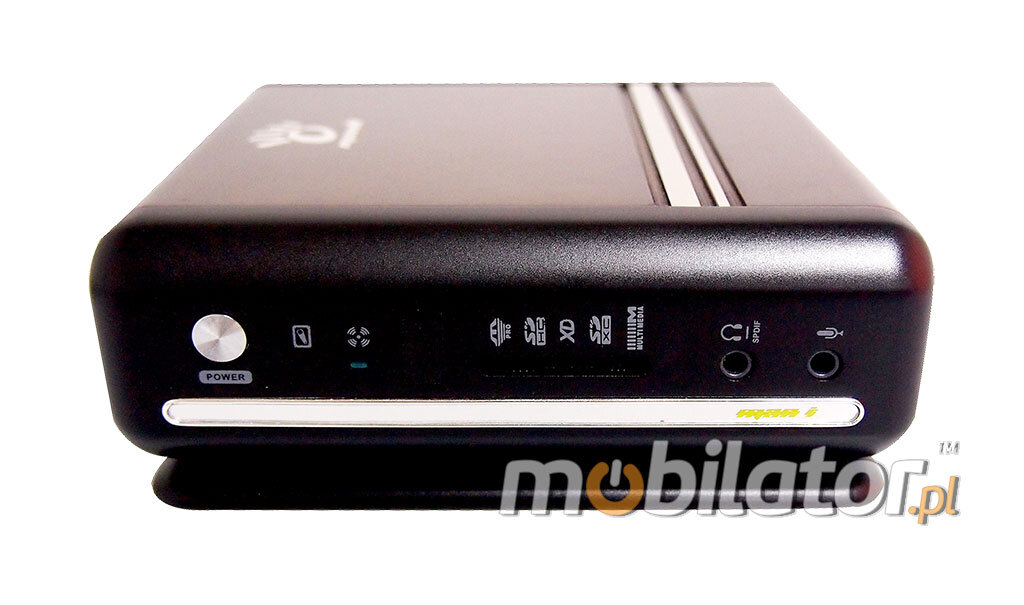

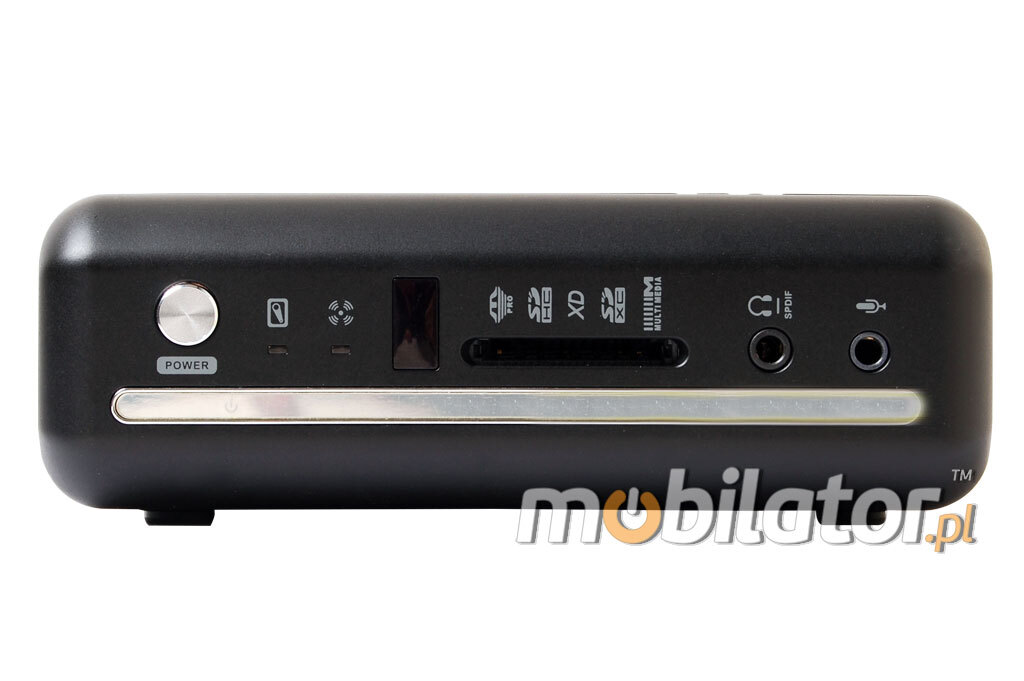

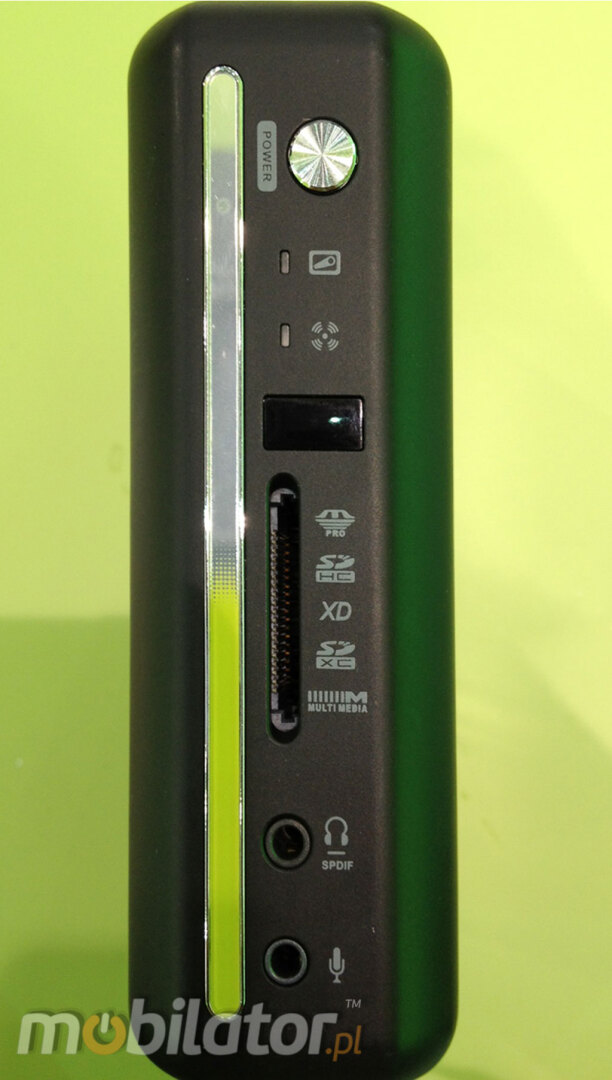

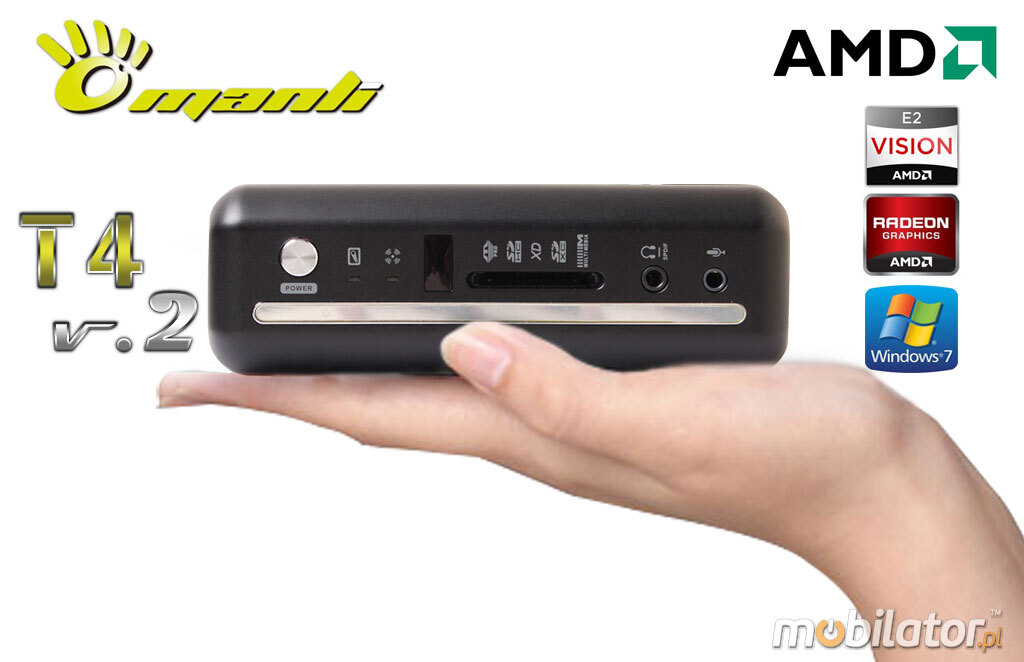

Front

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3

1. Power	2. Audio (speaker) / SPDIF	3. Mic-IN
4. LED the-power on	5. DISK LED	6. Memory Card Reader

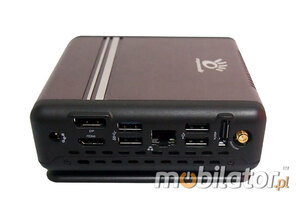

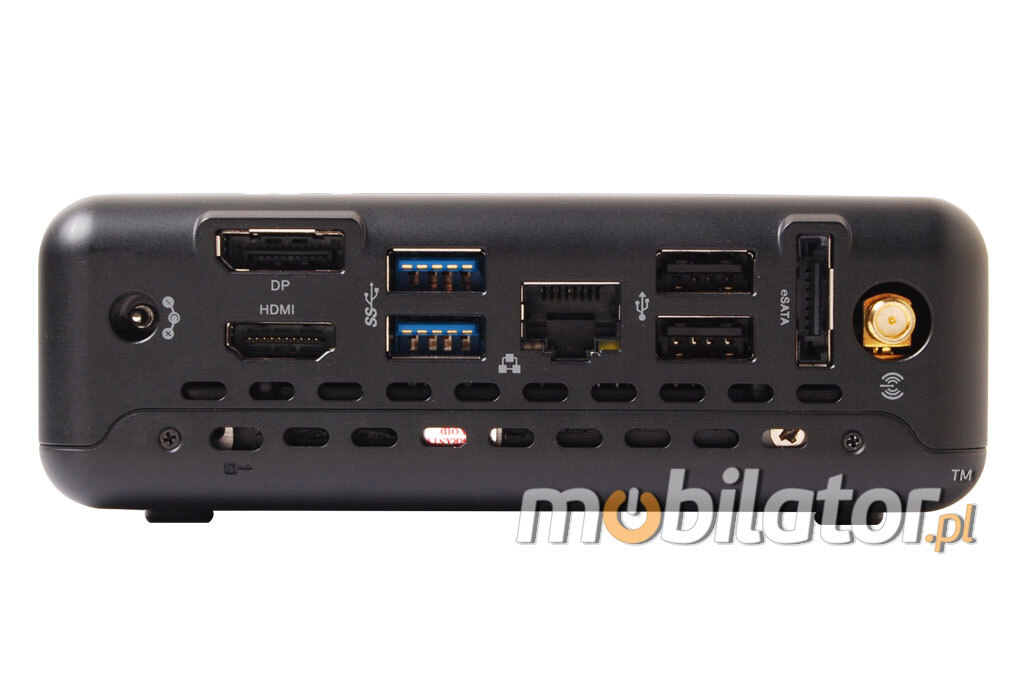

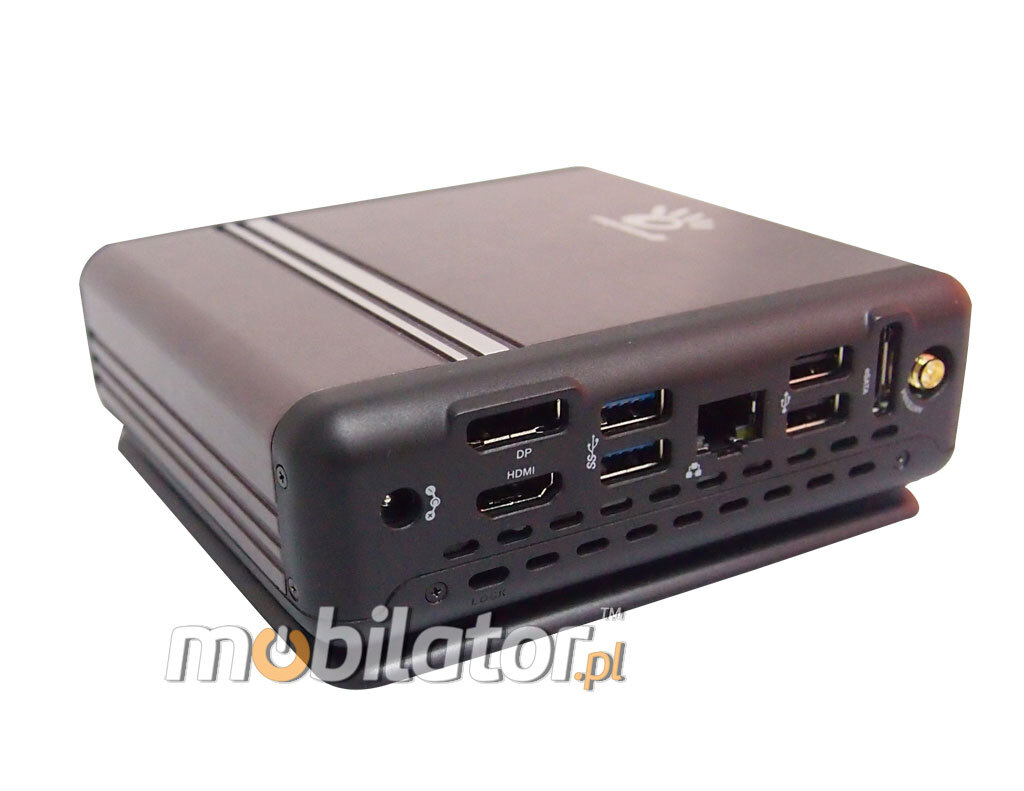

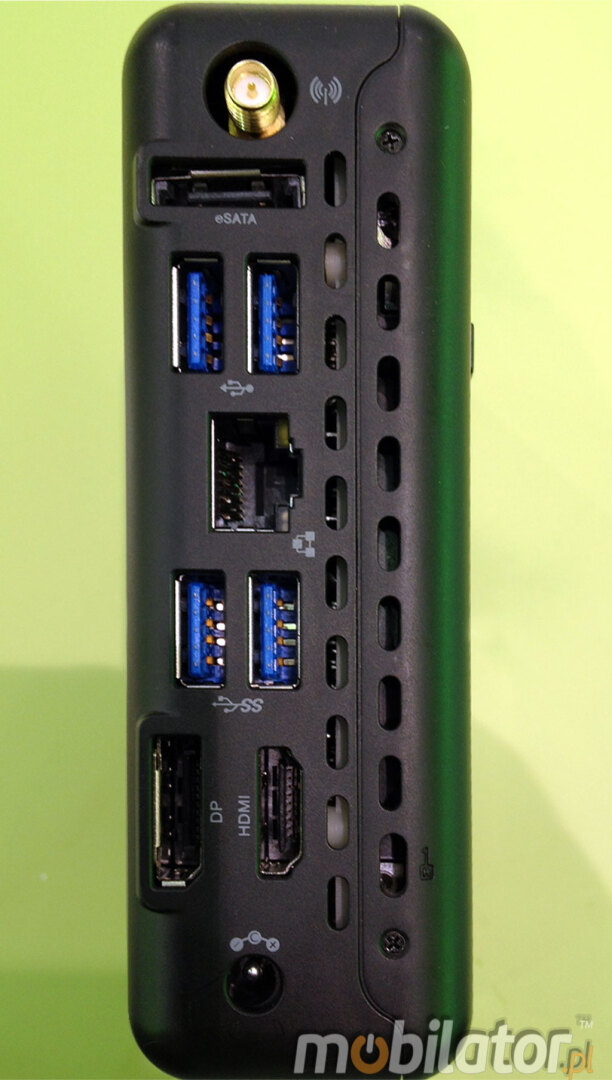

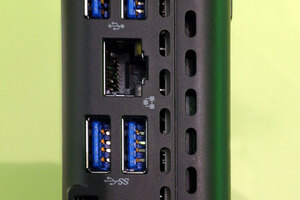

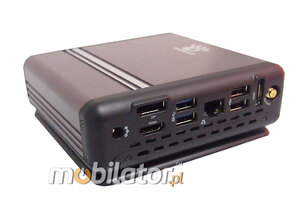

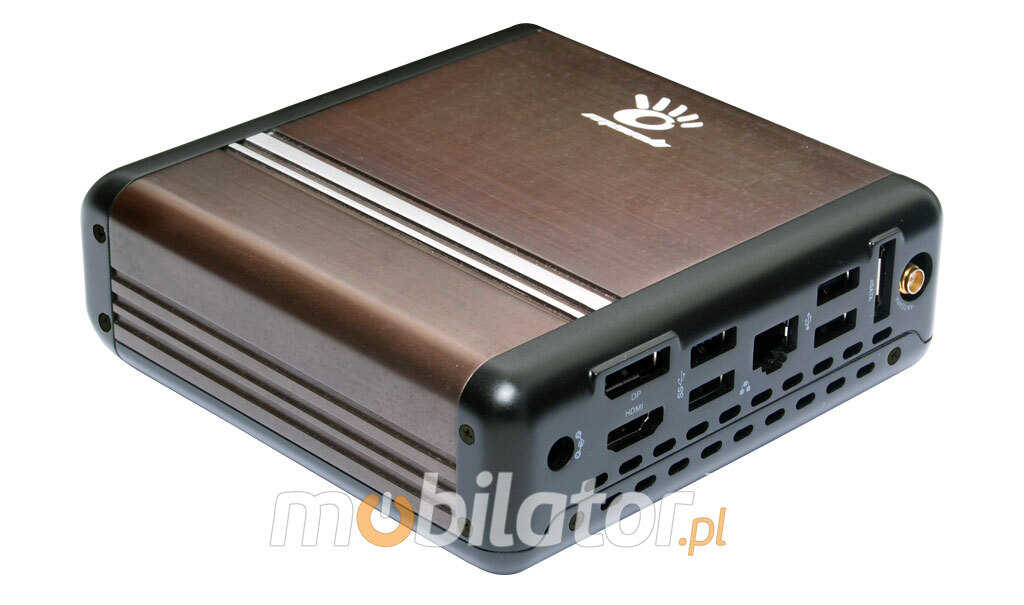

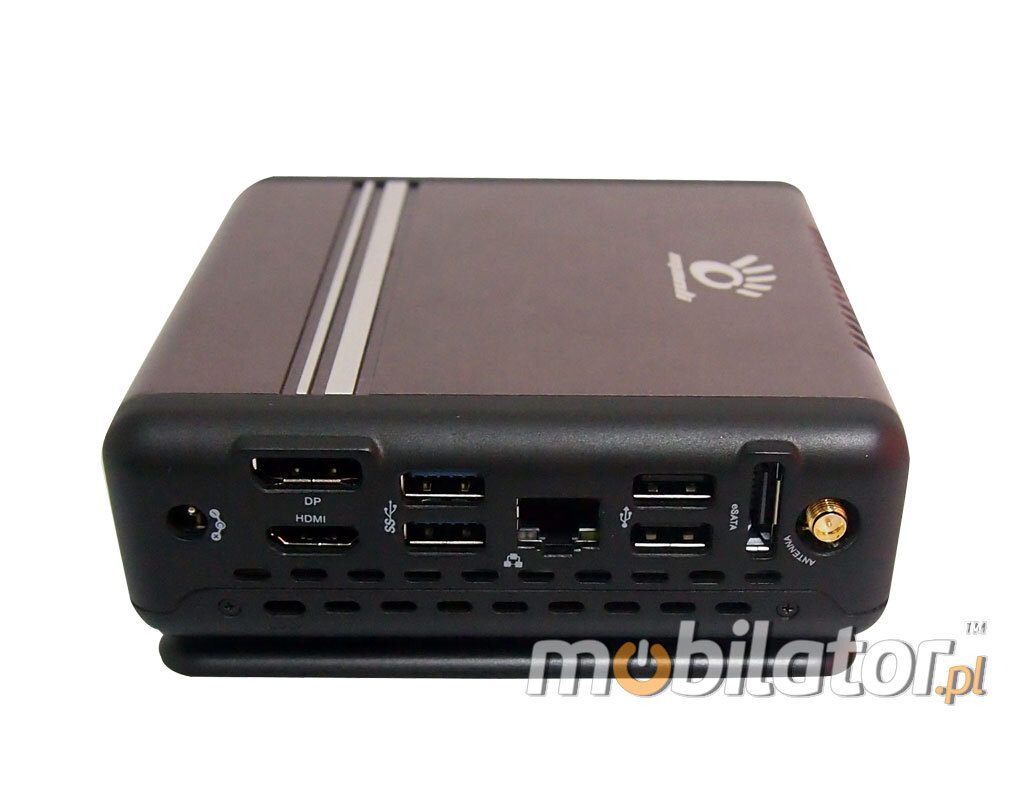

Back

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3

1. The charging DC-IN	2. Display Port	3. mSATA
4. Antena WiFi ,Bluetooth	5. Output HDMI	6. 2 x USB 3.0
7. LAN	8. 2 x USB 2.0

go top…

menu…

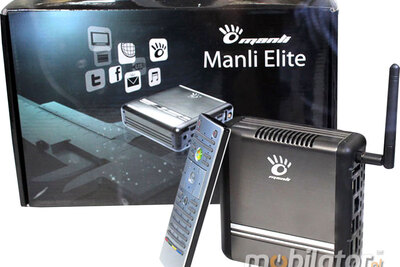

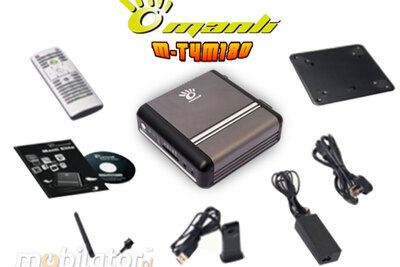

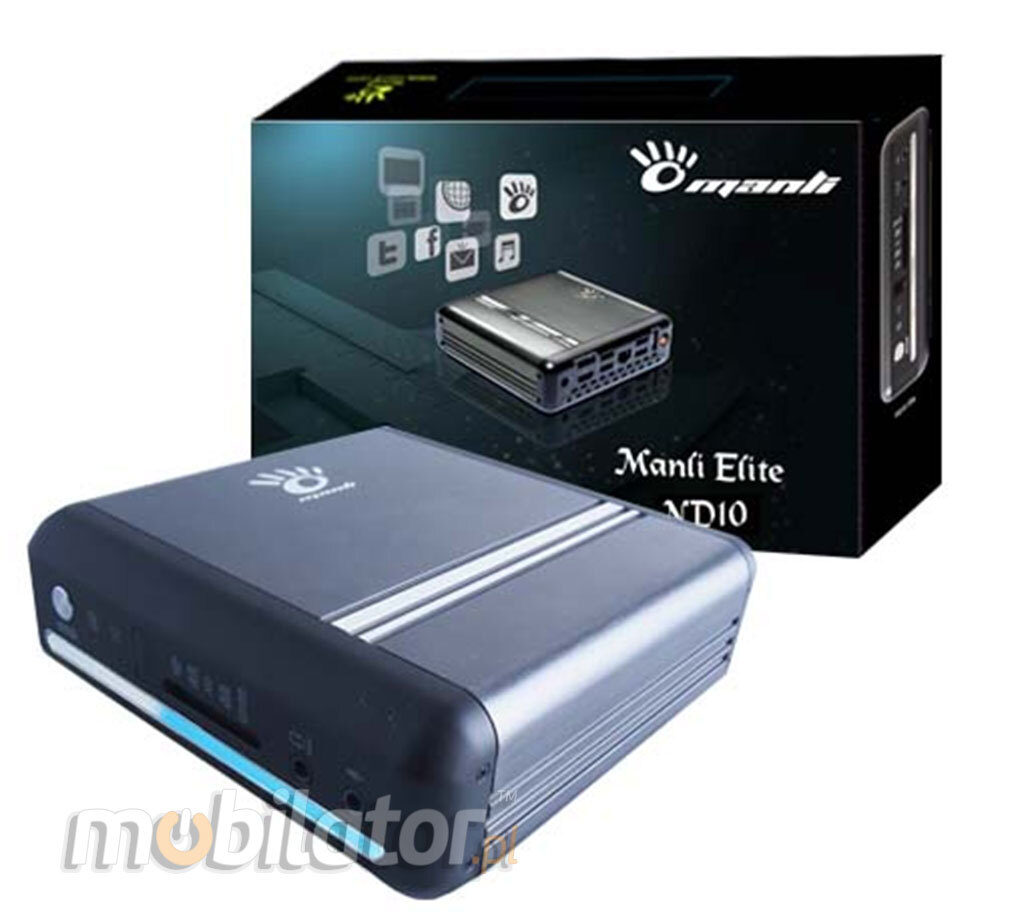

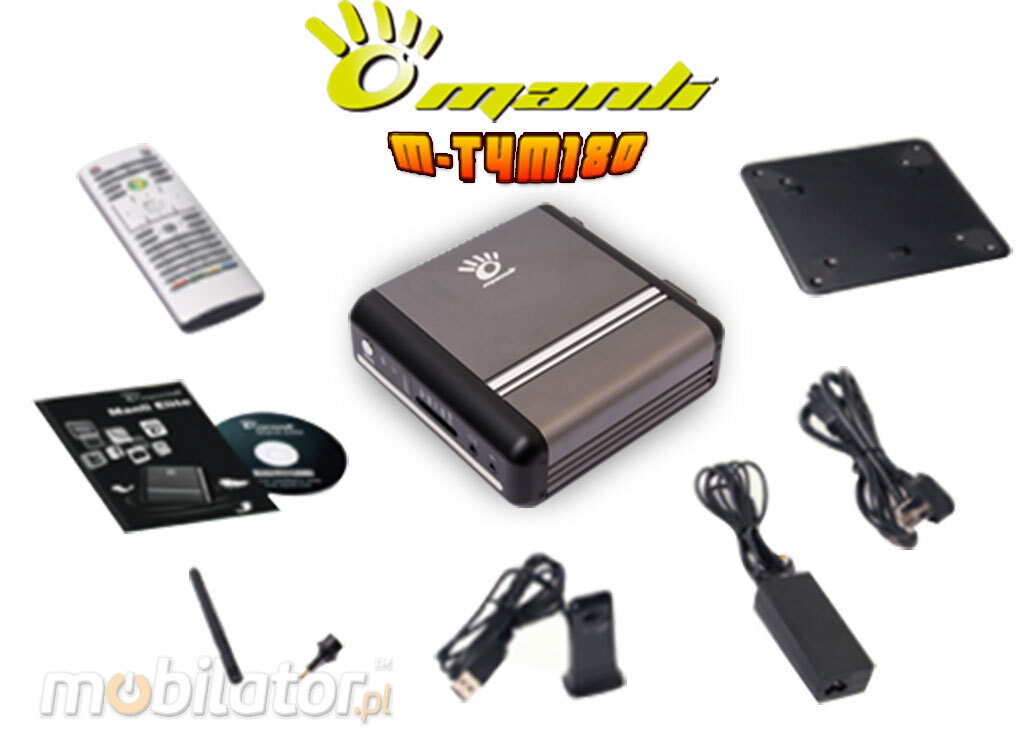

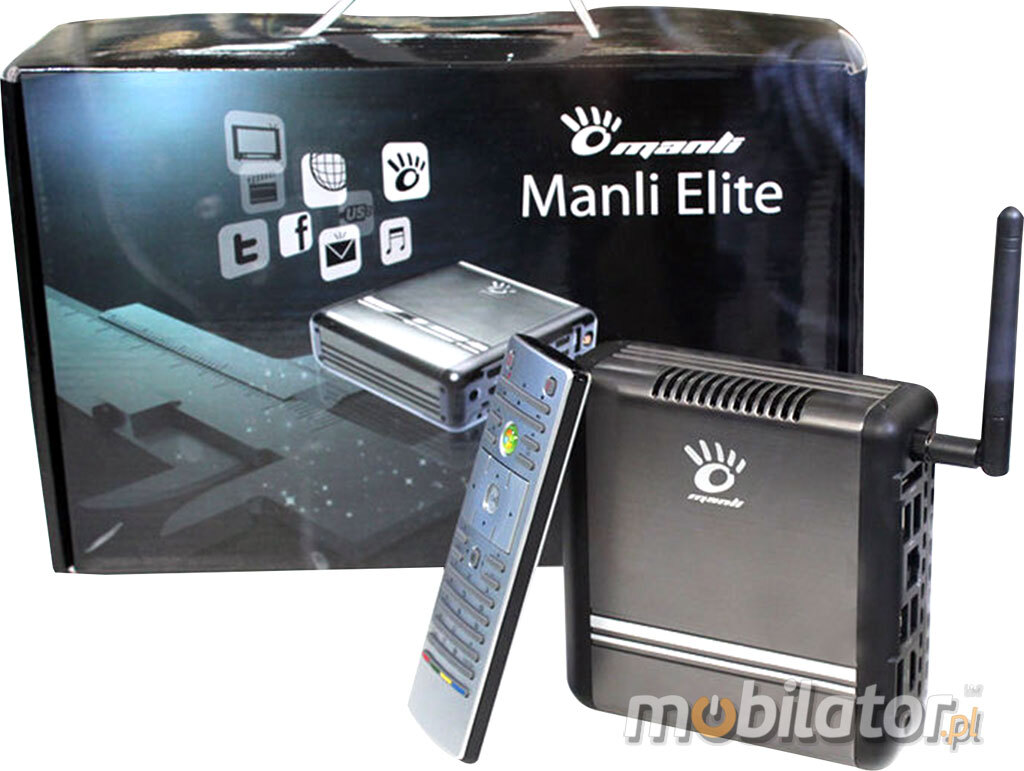

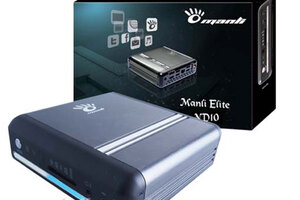

Accessories

MiniPC Nettop Mini-PC Mały komputer Manli T4 M-T4 M1800 AMD Radeon HD 7340 AMD-M3L 1TB HDD 128GB SSD Windows 7 8GB RAM DDR 3 Akcesoria

- AC Adapter

- VESA Mount

- Driver CD

- User Manual

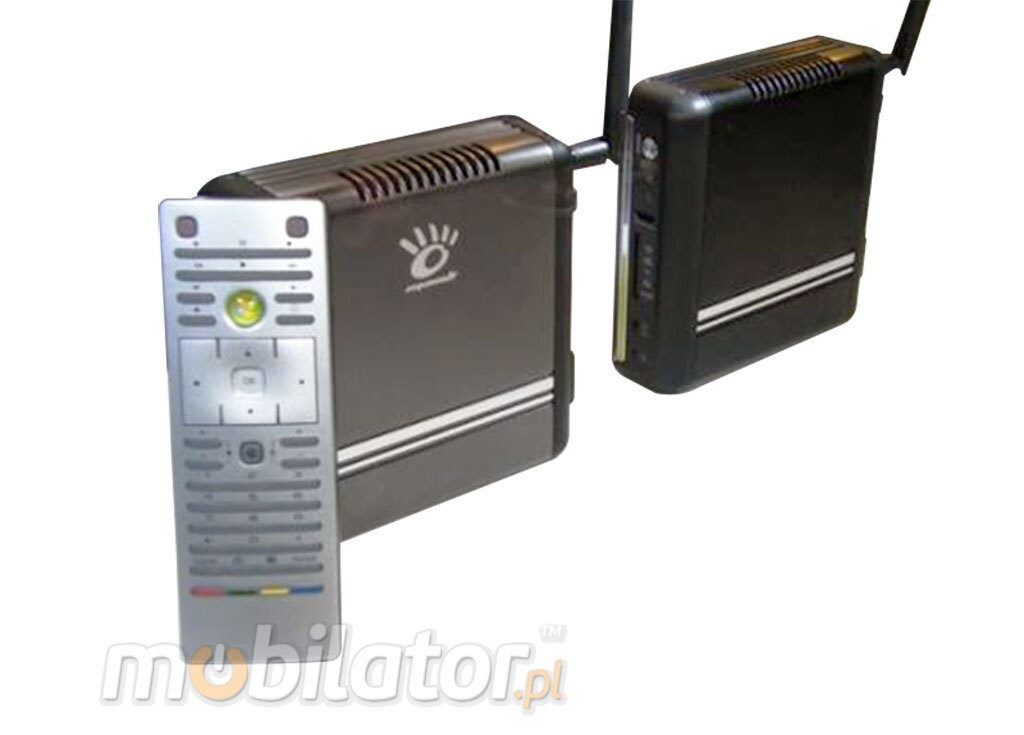

- MCE Remote Control

- Extrenal USB IR receiver

more photos in "Gallery"...

specification of this version is available in the "Specifications"...

Others
With Remote control
Chipset
AMD M3L
FSB
1333MHz
CPU Support
AMD E2- 1800 Dual-core
Installed CPU
AMD E2- 1800 Dual core (2x1.7GHz)
Memory Support
DDR3 SO-DIMM x 1 1333MHz (do 8GB)
Installed Memory
8GB Kingston SODIMM DDR3 1333MHz CL9
Graphic Card
AMD HD7340
Storage (HDD) Support
2.5 "SATA II / III HDD up to 1TB / SSD up to 128GB
Installed Storage (HDD)
 1TB HDD HGST Travelstar 7K1000, 7200 RPM, 32MB cacheCK 7200 RPM, 16MB cache
CD/DVD Drive
None
LAN
10/100/1000Mbps
Wireless LAN card
WiFi 802.11n 150Mbps + Bluetooth 3.0
TV Tuner
None
Front Panel (ports)
Audio (Line-Out/SPDIF, Microphone) / Card Reader 7-in-1 (SD/SDHC/SDXC/MS/MSPro/XD/MMC)
Rear Panel (ports)
2x USB 2.0, 2x USB 3.0, 1x RJ-45 , 1x HDMI, 1x eSATA, 1x Display port, 1x DC-in Jack
Power
AC/100-240V to DC/19V/3.42A/65W
Supported OS
Windows 7
Installed OS
No (optional Windows 7)
Dimensions
126.7x126.7x45mm
Expansion
None
