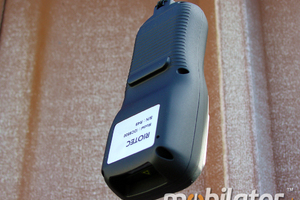

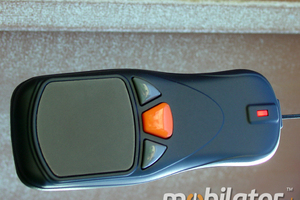

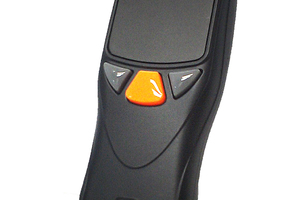

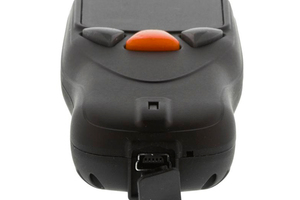

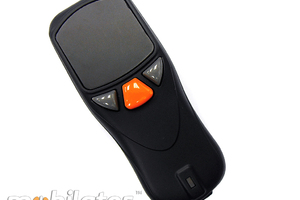

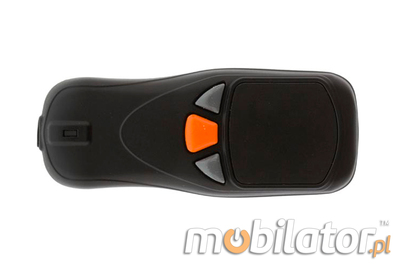

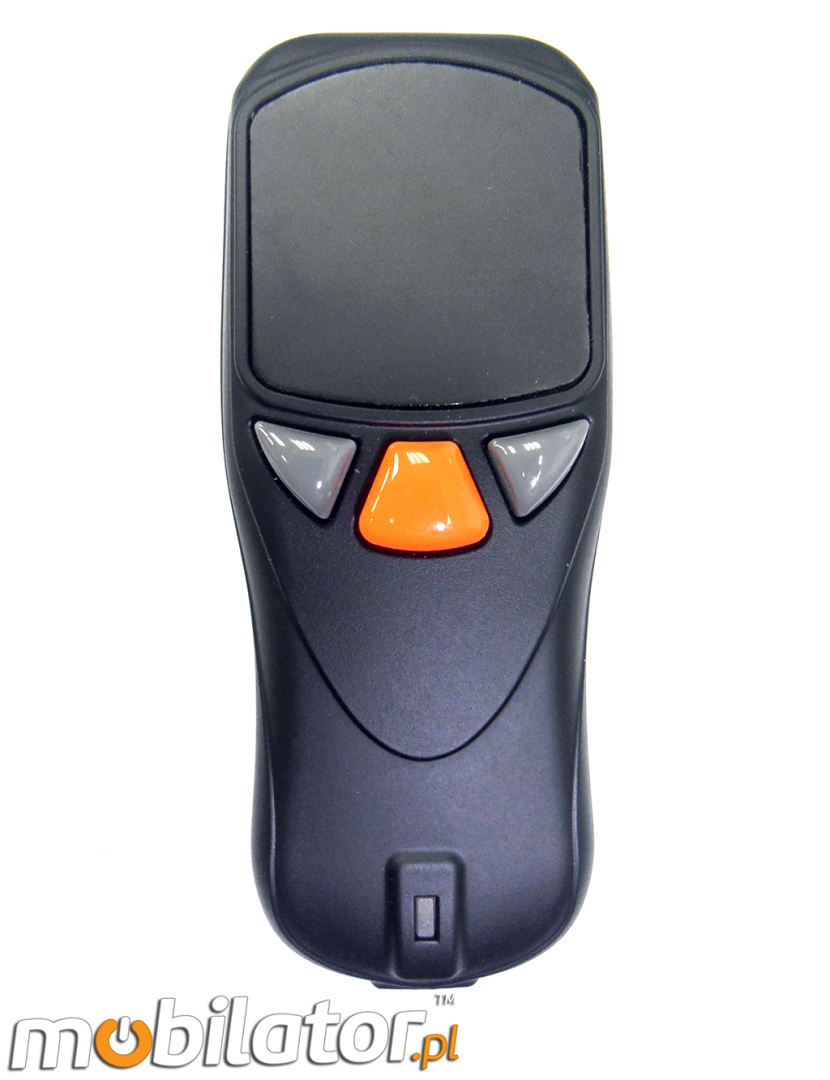

Mini scanner RIOTEC iDC9502A-M 1D

Name: Mini scanner RIOTEC iDC9502A-M 1D
Brand: RIOTEC
Price: 1470.10 PLN
Availability: InStock

+39

Update Date: 2016.01.20

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

The company's RIOTEC new distribution of Mobilator. Company achieved an excellent reputation as a manufacturer of bar code scanners. Due to the high position of the products in the high-tech won the trust of many customers around the world.

Menu
Description
Communication
Application
Specifications

The bar code scanner is a device that allows read with barcodes from boxes or devices. Business accessories RIOTEC porduktu guarantee high quality and serve for many years without any loss of quality.

Mini scanner RIOTEC iDC9502A-M 1D
Barcode scanner	1D Laser
Working time	6-8 h
Support system	Android, iOS, Windows XP, Windows 7, Windows 8, Linux
Range	100 m
Communication	Bluetooth
Dimensions	100 X 43 X 24.5 mm
Weight	66 g +/- 5 g
Other	Built-in Memory
	The detailed specification of the configuration available in the "Technical data"

go top… menu…

Description

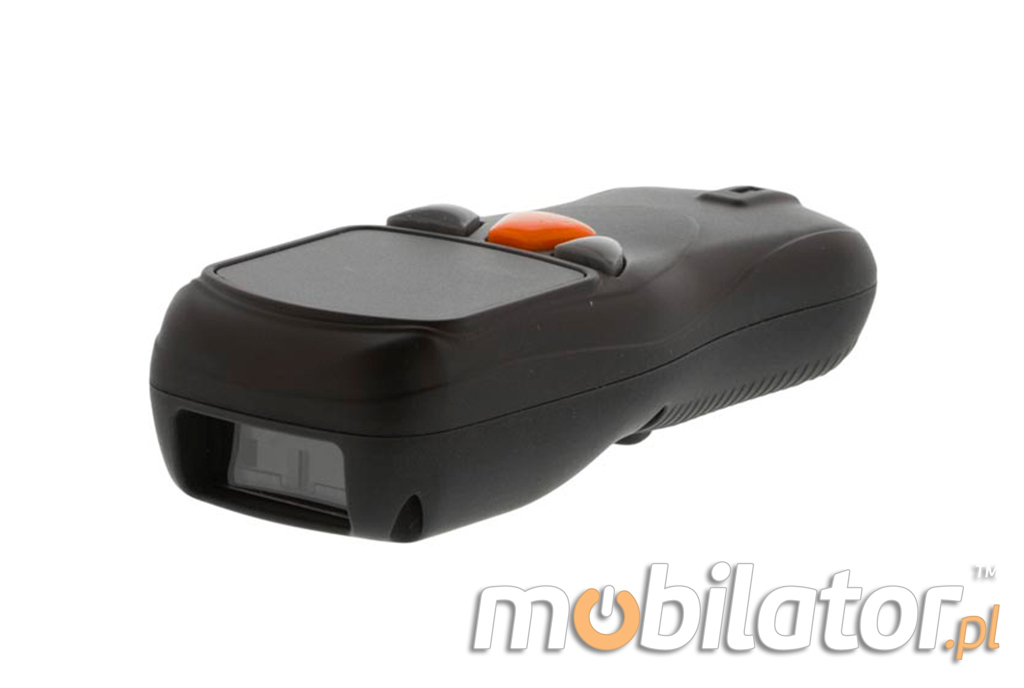

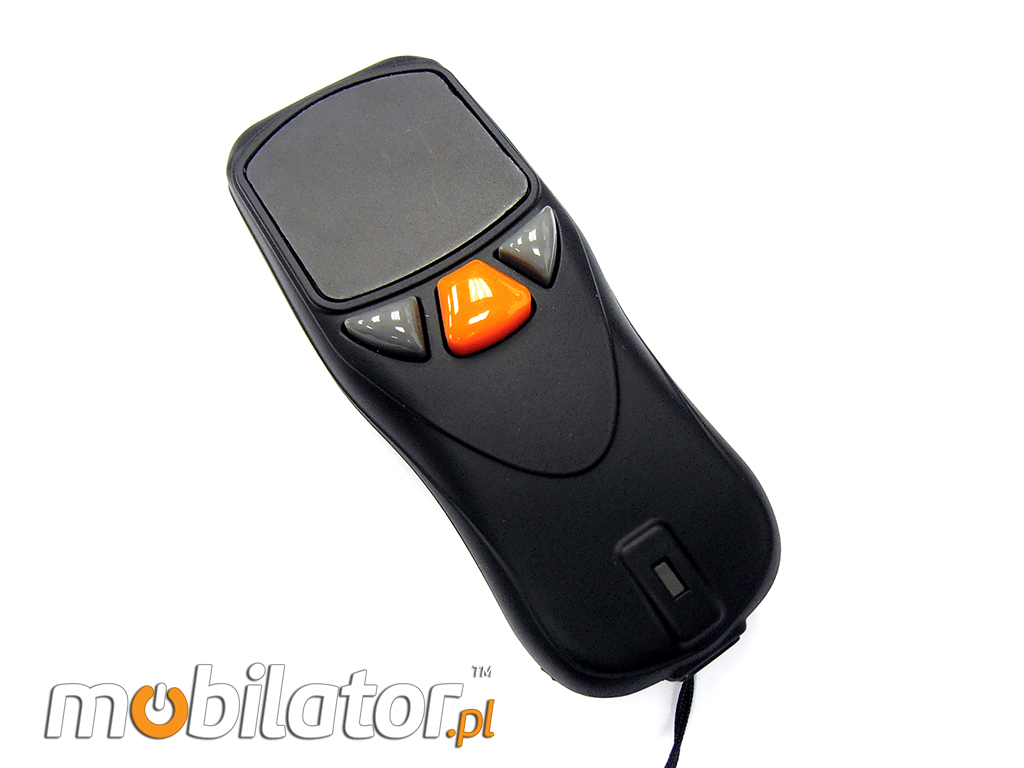

Unusual, modern, wireless (Bluetooth) mini barcode scanner RIOTEC iDC9502A 1D Laser has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI RIOTEC iDC9502A intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.

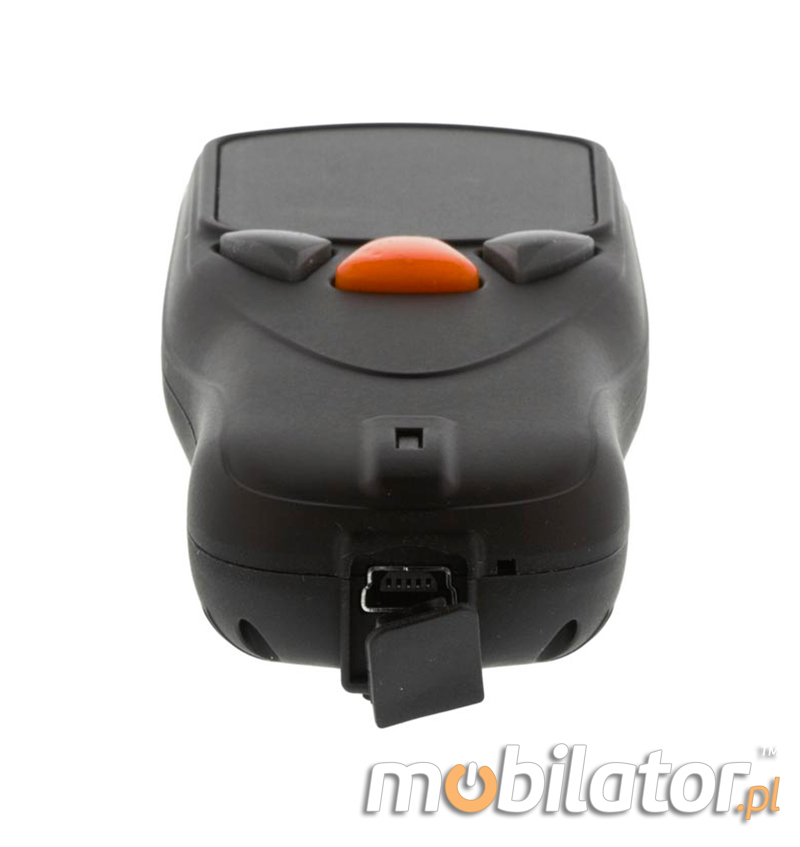

Barcode Scanner 1D Laser - RIOTEC iDC9502A through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

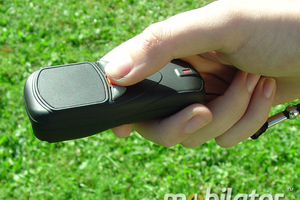

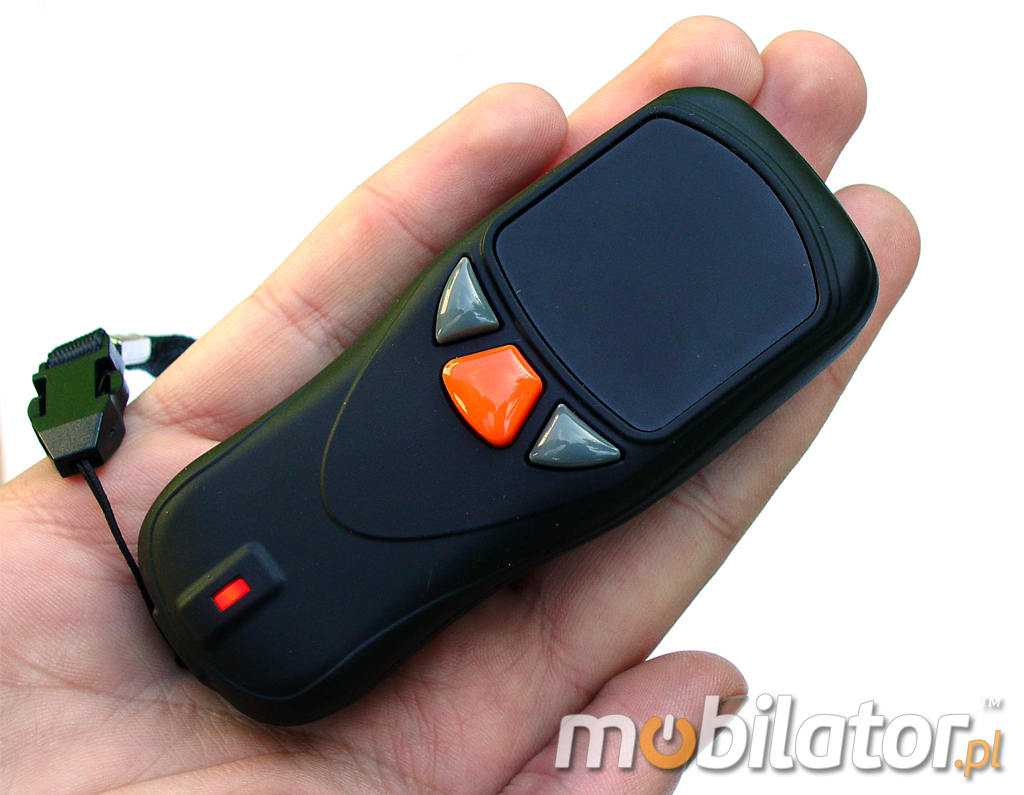

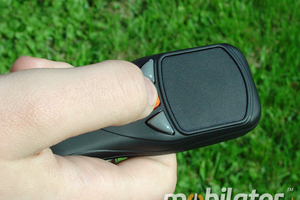

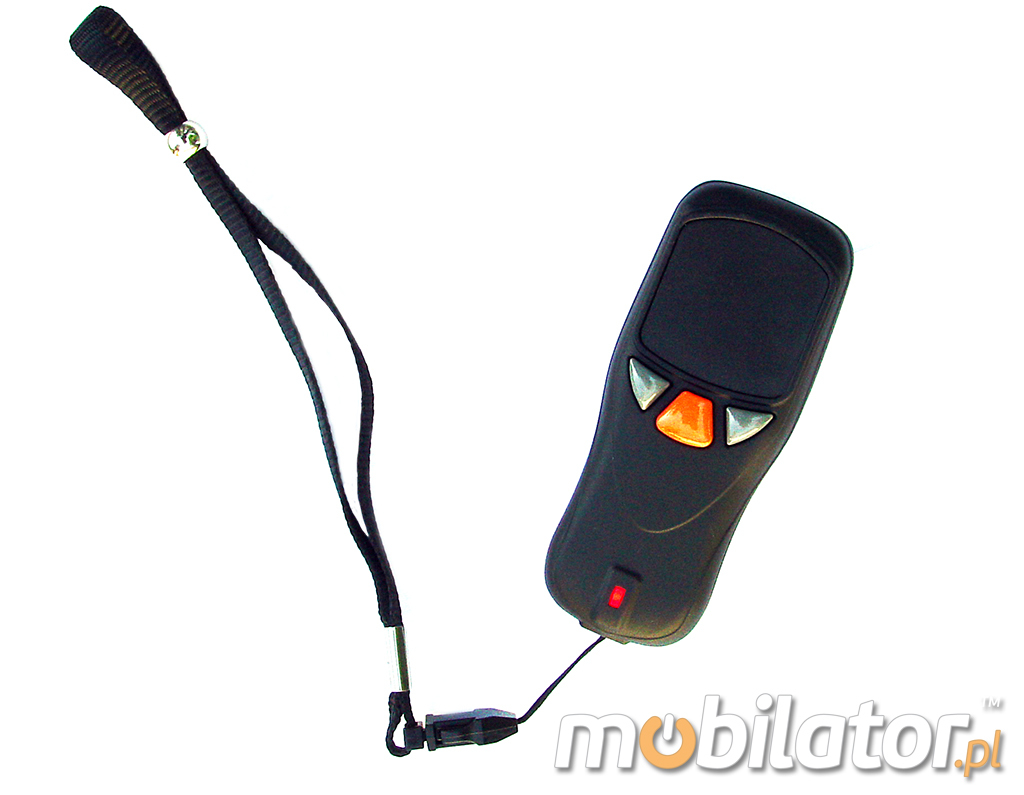

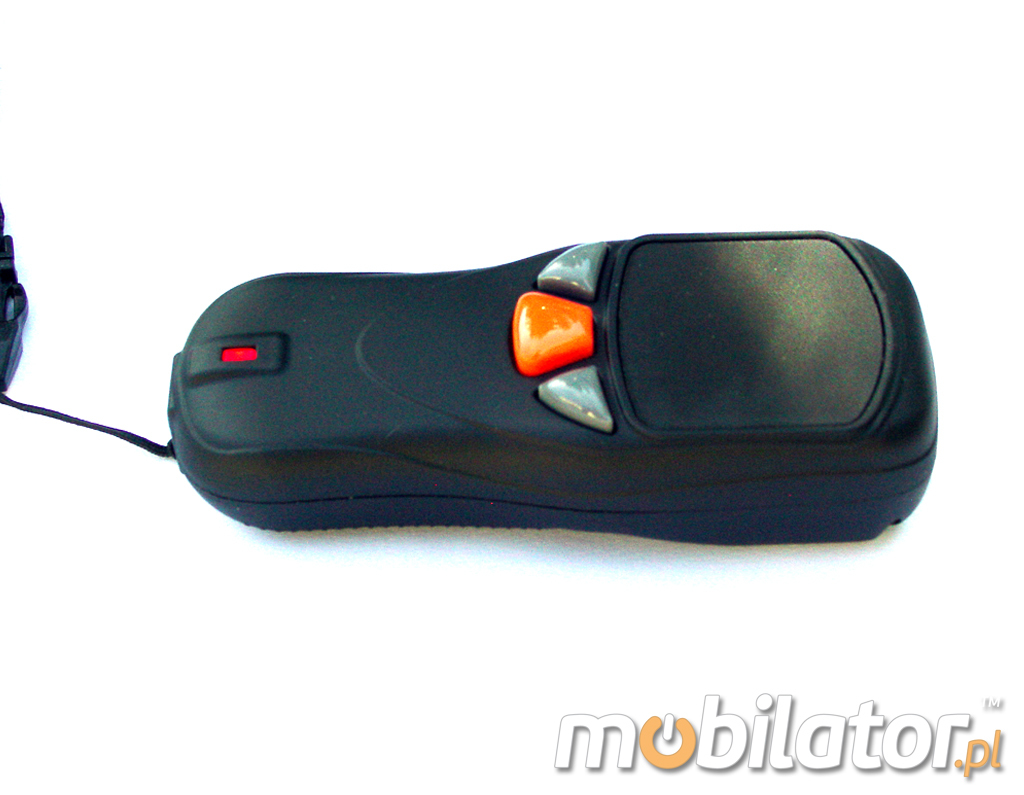

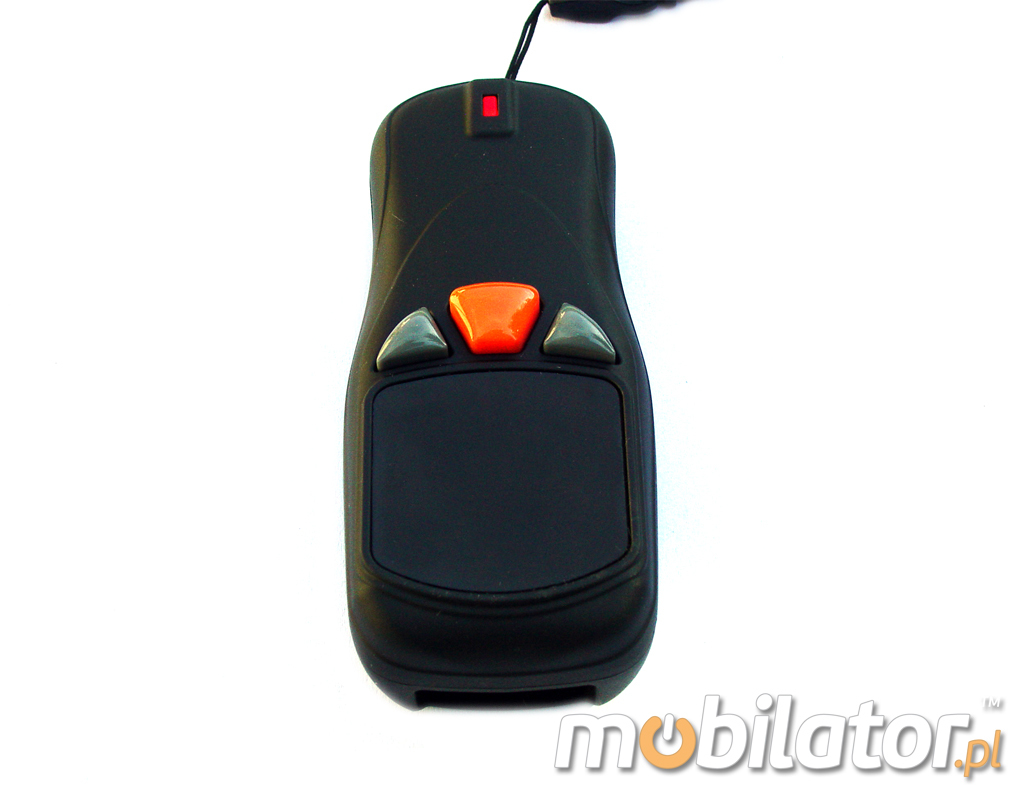

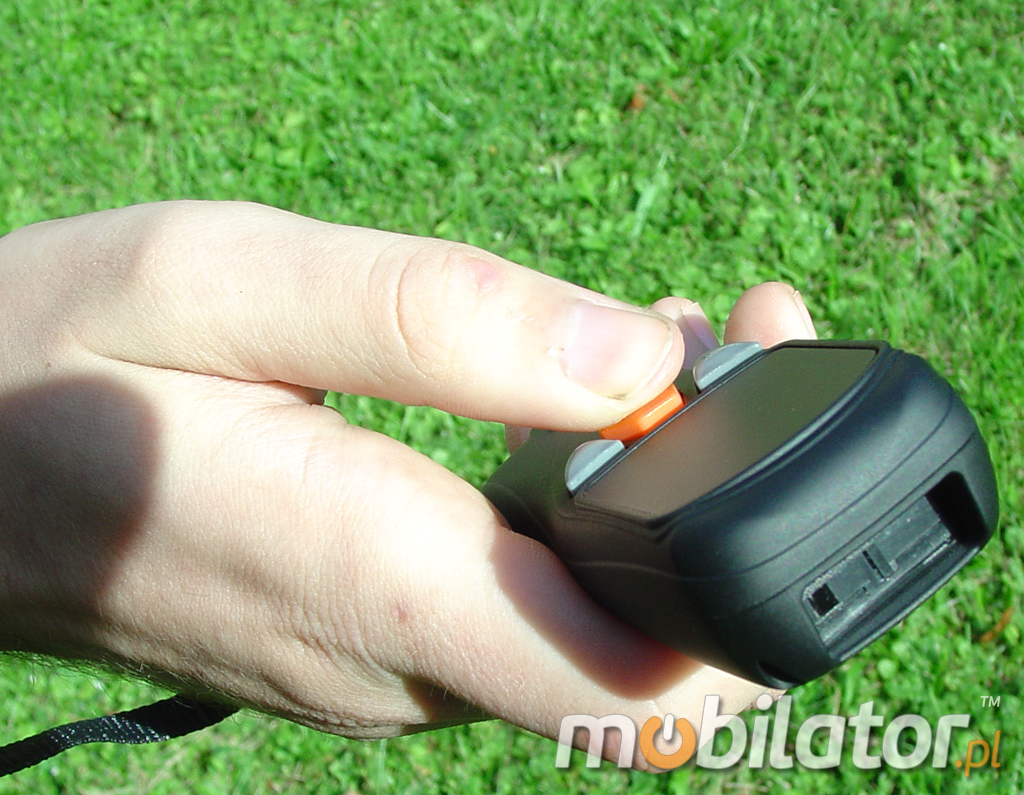

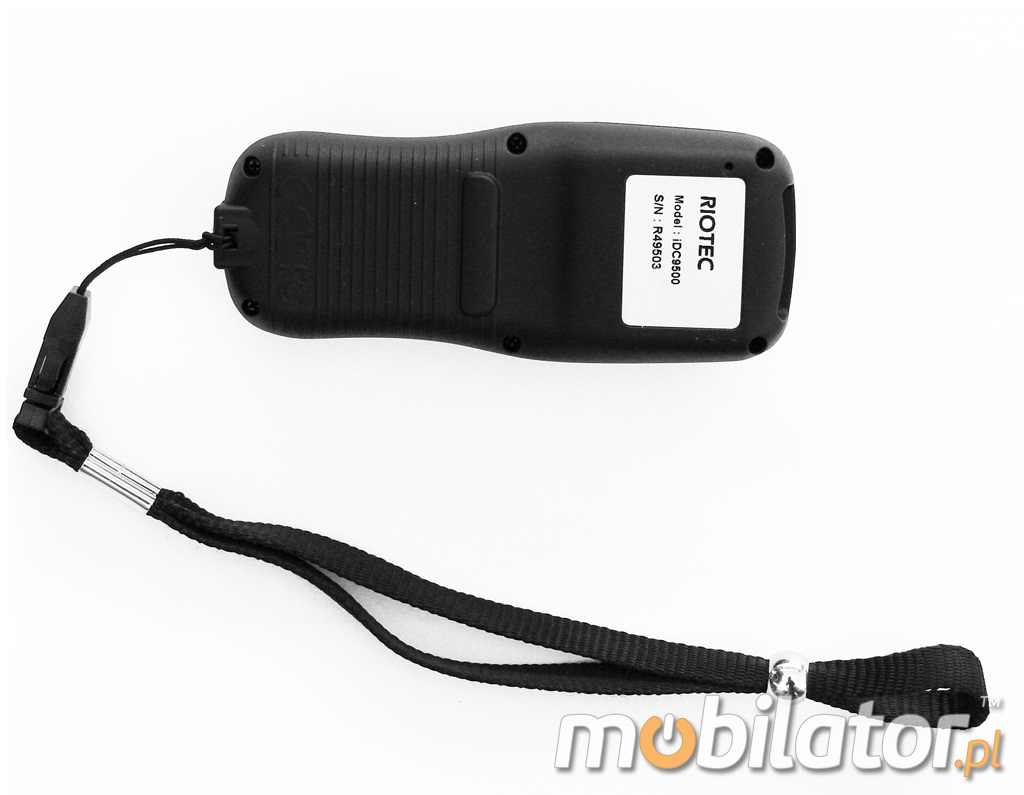

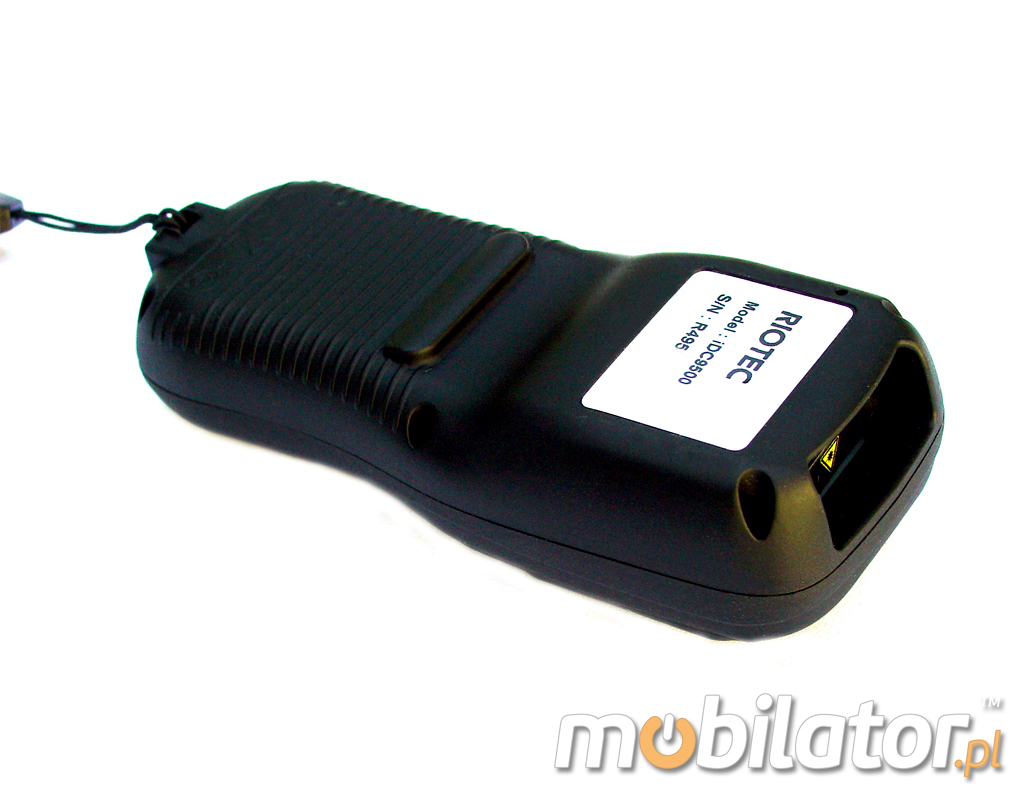

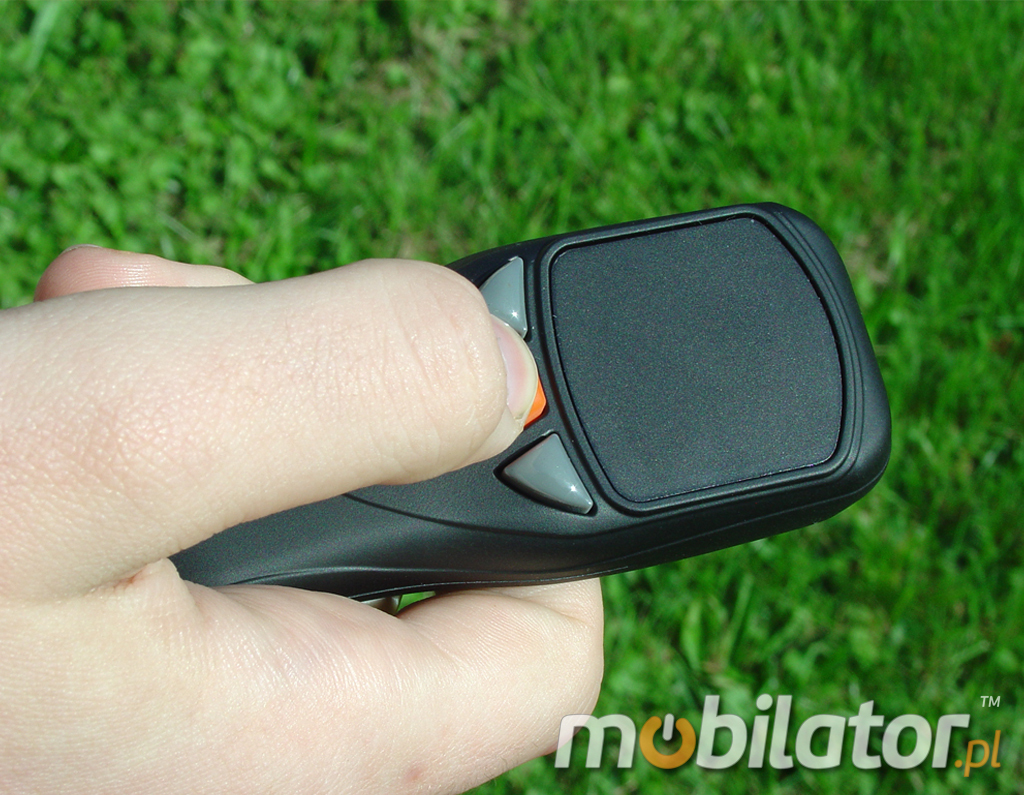

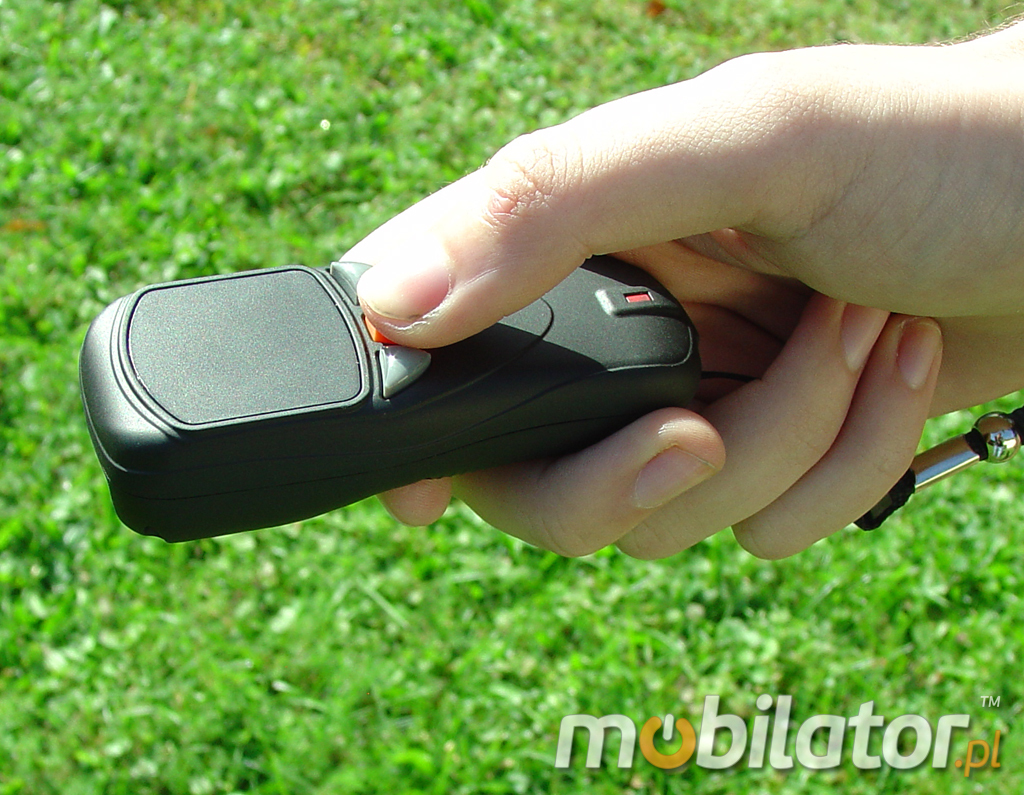

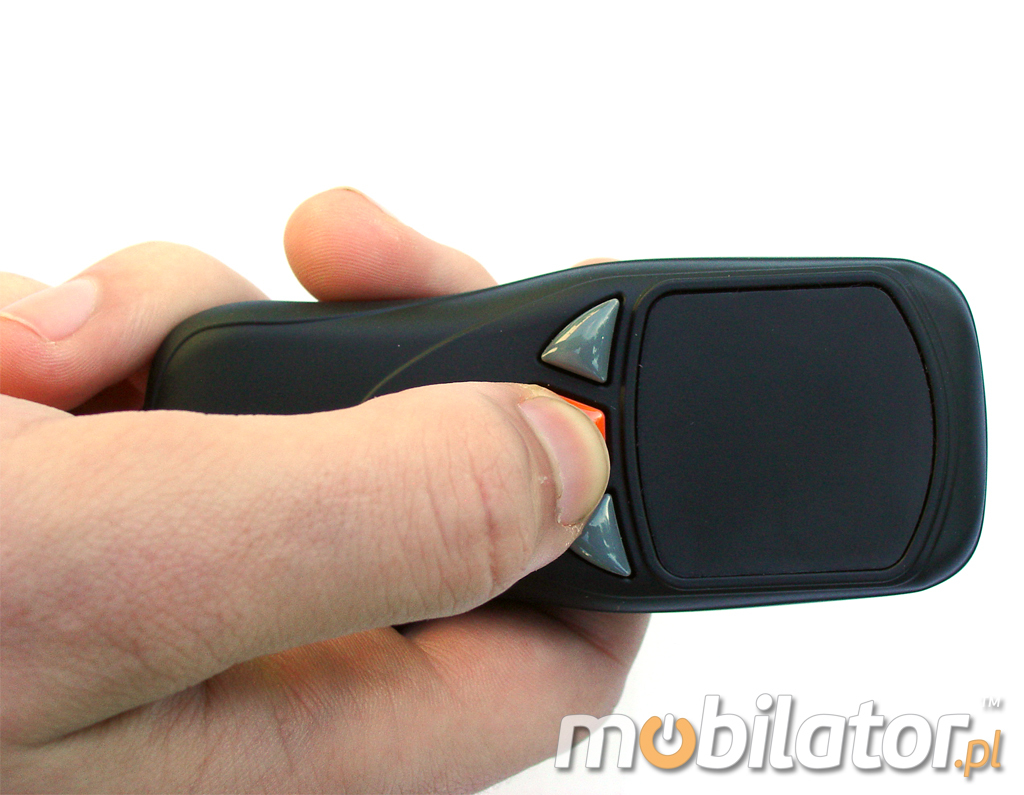

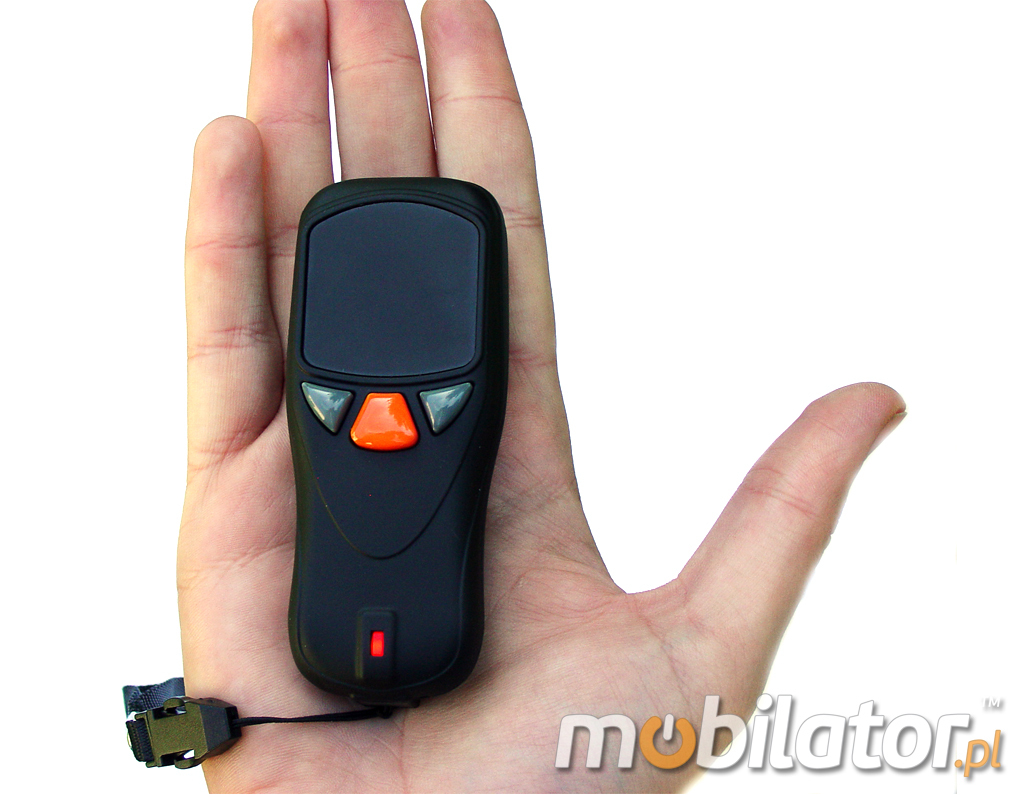

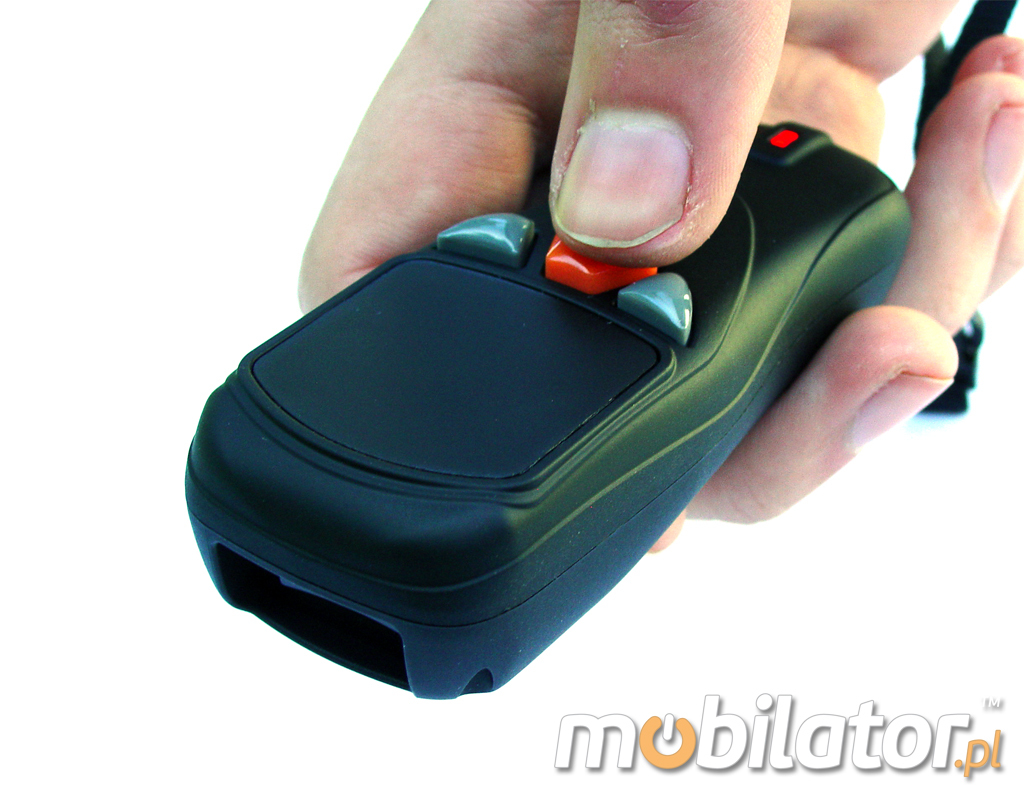

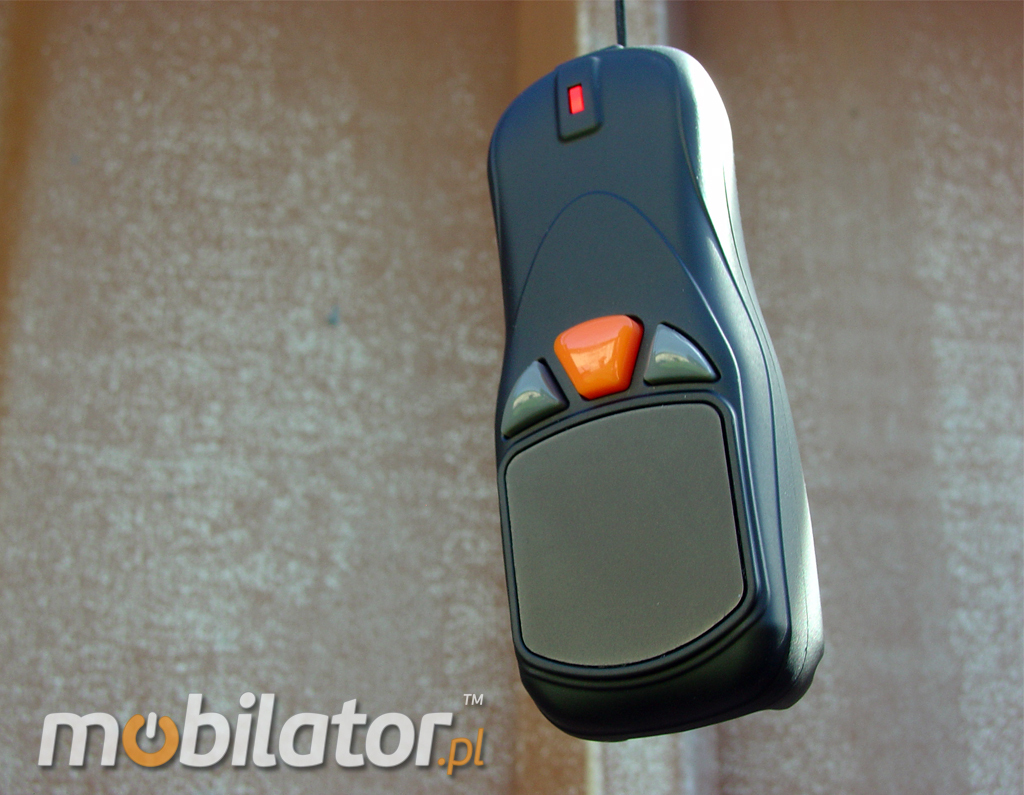

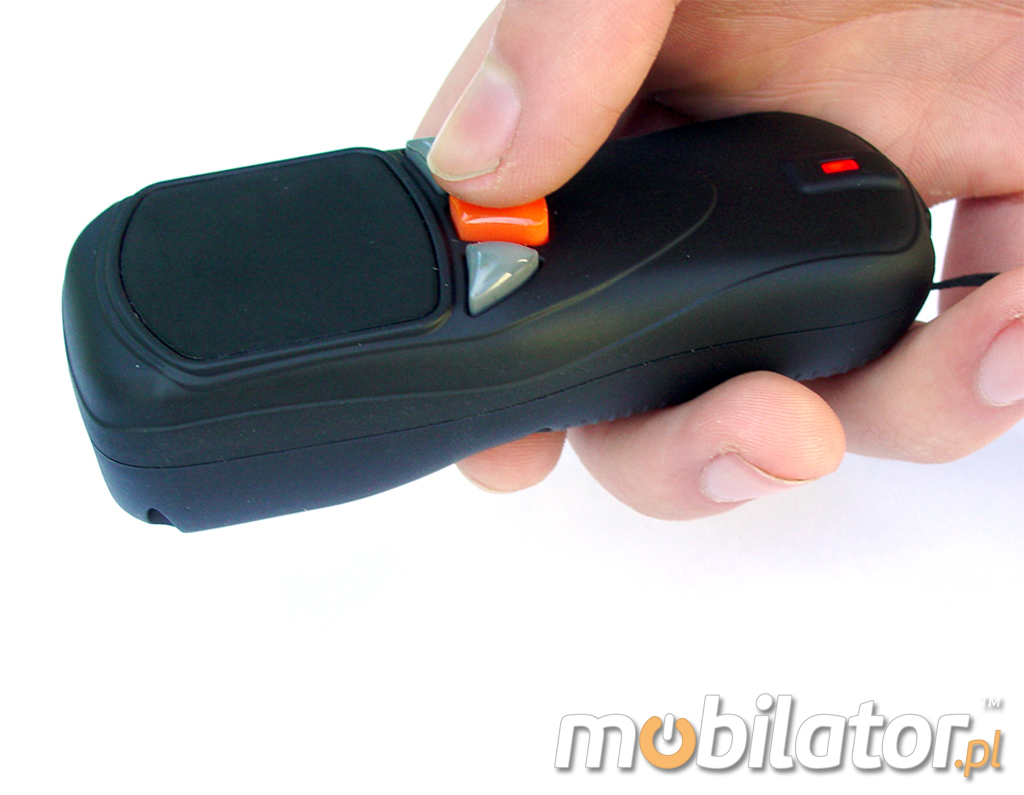

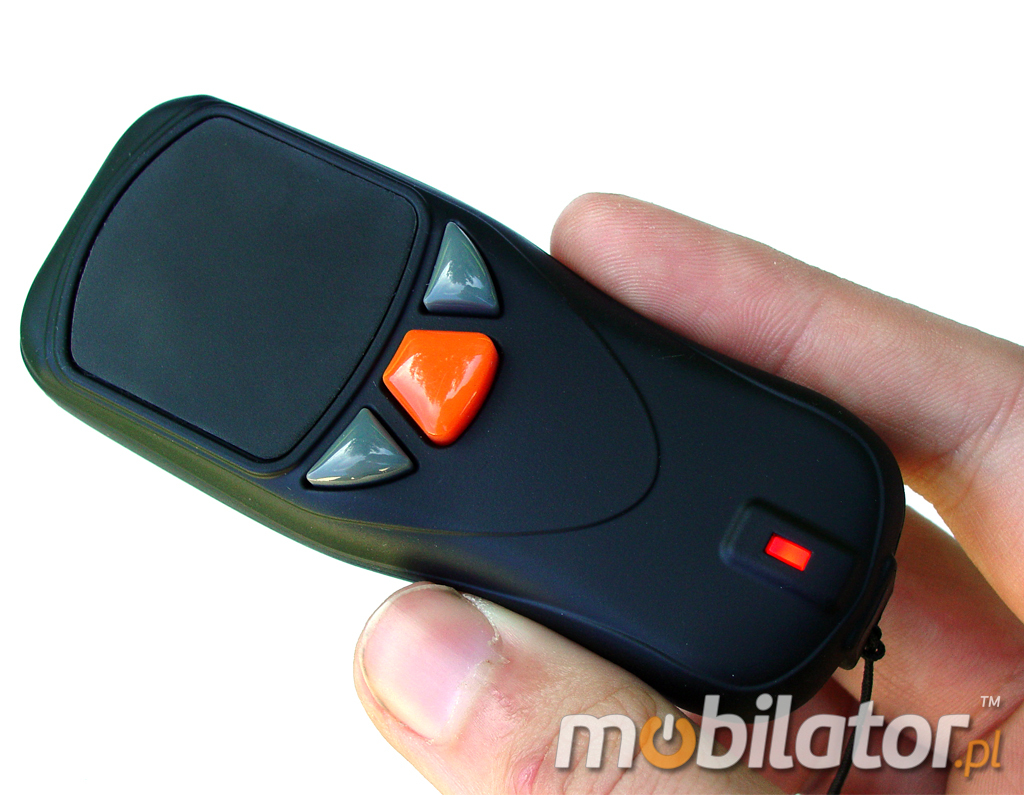

A new generation of mini scanner surprises his appearance. This ergonomic, compact and extremely lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI Mini RIOTEC iDC9502A 1D Laser is equipped with a Li-Ion battery with sufficient capacity 800mAh, which allows the scanner to operate for about 6 hours in scan mode.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI With built-in internal memory scanner can operate in trybyi (offline) and without konieczości connect the device, it even remembers 65,000 barcodes.

go top… menu…

Communication

Mini scanner has a built-in barcode reader, 1D Laser, which is connecting to a Bluetooth device provides information on, among others, the name of the product, the type, approximate value, availability, and also allows for quick and convenient automatic grouping of data.

RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI Designed to be tailored it different applications, wireless (Bluetooth) barcode scanner can be compatible with dry systems as Android, , Windows XP, Windows 7, Windows 8, Linux. Users can transmit data in real time to PCs or mobile devices.

Portable (radio and bluetooth-arid) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. Thanks to the wireless communications offer coverage up to 100m from the computer.

The device uses the HID interface

To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswać text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.

Supported Bluetooth profiles SPP system.

SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).

Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .

go top…

menu…

Application

For RIOTEC iDC9502A manufacturer recommends widely used in situations where it is necessary to fast and mobile identification of goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.

Pharmacy

Trade

The device is used for fast read-out bar codes. Certainly can be applied in all kinds of commercial networks.

Magazine

Mini barcode reader Allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.

Logistics and transport

Small scanner will find all kinds of use including in transport - a portable and super light barcode reader for fast identification.

go top…

menu…

Specifications

Barcode readers allow you to read and send data to a computer stored in the barcode. We offer the highest quality devices work flawlessly even in harsh industrial environments. RIOTEC Mini czytnik 1D 2D Bluetooth 1.0 Riotec iDC95xx Skaner 1D CCD Bezprzewodowy Bluetooth Poręczny MobiSCAN Kompatybilny Windows Android IOS mobilator.pl New Portable Devices Mobilne Skanery kodów kreskowych MINI

After scanning the coded data you can upload them to your computer or portable database. Mobile, quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes.

The bar code scanner can be connected to almost any device of computer technology - via the USB port.

Mini scanner RIOTEC iDC9502A-M 1D
Mechanical	Height: 24,5 mm Lenght: 100 mm Width: 43 mm Weight: 66g
Electrical	5 VDC ± 0.5 V
Scan Preformace	Sensor Type:1D 650 nm Laser Diode Scan Speed: 104(±)12 scans/sec (bi-directional) Resolution: 0.1mm ( 4 mils) - Code 39 Scan Angle: 47°±3° (typical)/ 35°±3°(narrow) Contrast: 20%
Barcode Type	UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39, Code 32 (Italian Pharma Code), Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, GS1 DataBar
Memory	1MB (can save 65,000 sets more EAN 13 barcode)
Battery	3.7V 800mAh Li-Ion battery Workin time : more than 10,000 scans when fully chargednaładowaniu ok.6h Charge Time: 4-5 h
Communication	BT Class 1 (2.4GHz wireless) Distance: up to 100m
Scan Range	4 mils Code 39 25 ~ 140mm 5 mils Code 39 32 ~ 203mm 13 mils Code 39 38 ~ 610mm 20 mils Code 39 44 ~ 838mm 40 mils Code 39 914~ mm (dependent on width of barcode)
Housing color	black

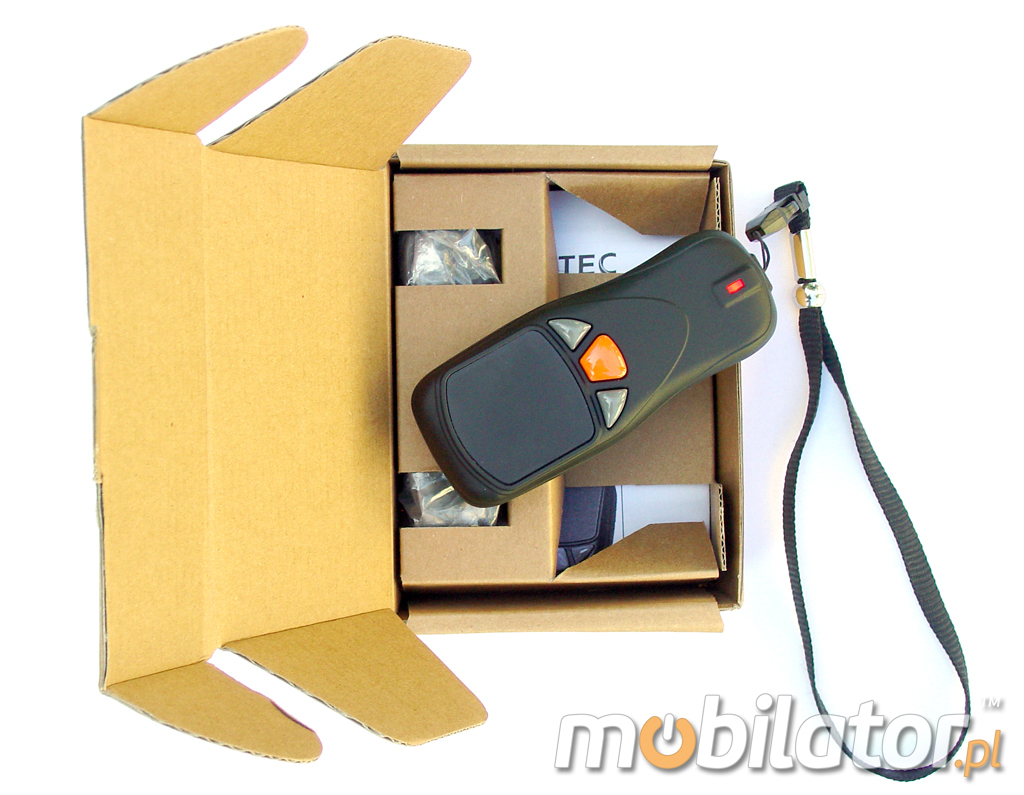

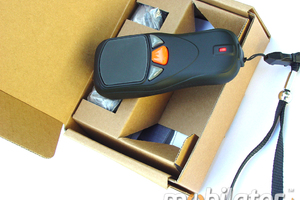

Accessories	User manual, Mini USB cable for charging

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Supported Operating Systems
Android, iOS, Windows XP, Windows 7, Windows 8, Linux
Internal memory
1 MB (can save 65,000 sets more EAN 13 barcode)
Operation Voltage
5 V ± 0.5 V - DC
Battery
800 mAh 3.7V  Li-Ion
Reading indicator
1D (Motorola SE955)
Scan rate
100 scans/sec
Light source
650 nm Laser Diode
Resolution
0.1 mm (4 mils) - Code 39
Communication distance
100 m
Readable codes
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39, Code 32 (Italian Pharma Code), Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, GS1 DataBar
Sensor

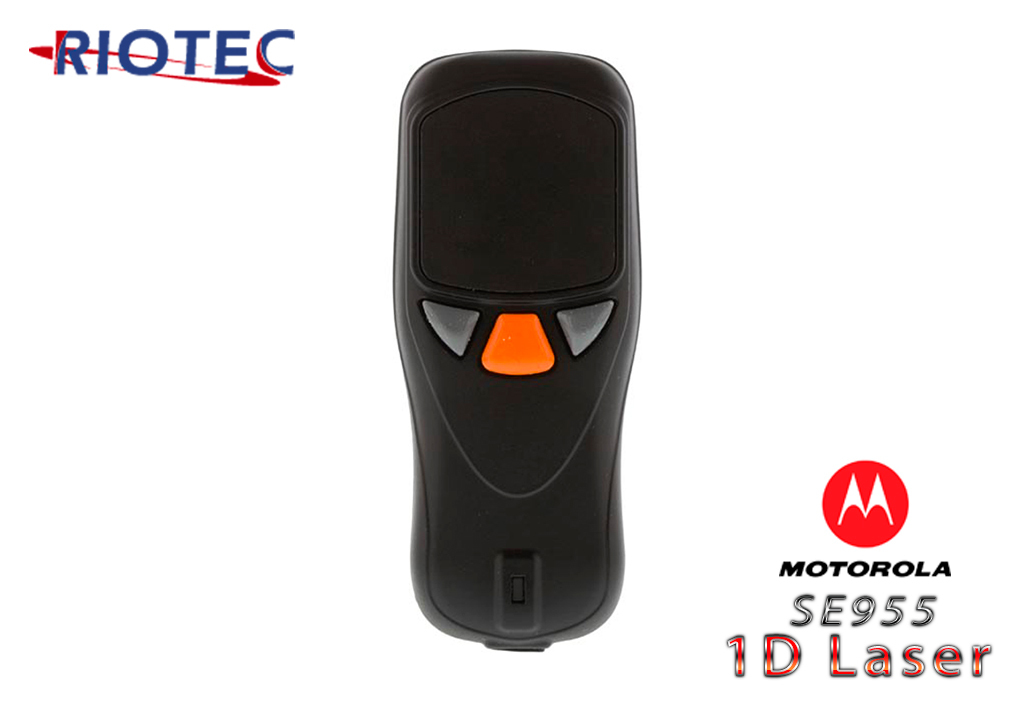

1D Laser (Motorola SE955)
Scan Angle
47° (typical) / 35 (narrow)
Print Contrast Ratio
Minimum 20% absolute dark/light reflectance measured at 650 nm
Scan range
 4 mils Code 39   25 ~ 140mm  5 mils Code 39   32 ~ 203mm 13 mils Code 39   38 ~ 610mm 20 mils Code 39   44 ~ 838mm 40 mils Code 39  *914~ mm (*dependent on width of barcode)
Cable Type
MiniUSB
Battery Life
6 - 8 h
Communication
Bluetooth Class 1 (2.4GHz)
Interface/ Prole
HID / SPP
Operating Temperature
0°C ~ 50°C
Storage Temperature
-40°C ~ 70°C
Relative Humidity
5% ~ 95% relative humidity, non-condensing
Resistance IP
-
Drop test
-
Barcodes 1D
Barcodes 1D:
2 of 5 Chinese
Yes
2 of 5 Discrete
Yes
2 of 5 IATA
No
2 of 5 Industrial
No
2 of 5 Interleaved
Yes
2 of 5 Matrix
No
2 of 5 Standard
No
BC - 412
No
Bookland EAN
Yes
Codabar
Yes
Codabar - NW7
No
Code - 11
Yes
Code - 11(USD-8)
No
Code - 32
Yes
Code - 39
Yes
Code - 39 Extended (full ASCII)
No
Code - 39 Trioptic
Yes
Code - 93
Yes
Code - 128 (A, B, C)
Yes
EAN-8
Yes
EAN-13
Yes
EAN -128 / UCC-128
Yes
GS1 DataBar
Yes
Intelligent Mail
No
ISBN
No
ISBT - 128
Yes
ISSN
No
ITF-6
No
ITF-14
No
KIX code
No
Matrix 25
No
MSI
Yes
MSI - Plessey
Yes
Pharmacode - One Track
No
Pharmacode - Two Track
No
Planet
No
Plessey
No
Post - Australian (4-State Postal Code)
No
Post - China (4-State Postal Code)
No
Post - Japanese (4-State Postal Code)
No
Post - Singapore (4-State Postal Code)
No
PostNET
No
Royal Mail (RM-4SCC)
No
Telepen Code
No
UK/Plessey
No
UPC - A
Yes
UPC - E
Yes
UPC - E1
Yes
Barcodes 2D
Barcodes 2D:
Aztec
No
Composite code
No
DataMatrix
No
MaxiCode
No
Micro PDF 417
No
Micro QR Code
No
PDF 417
No
QR Code
No
RSS
No
TLC-39
No
Housing material
Plastic
 Dimensions
100 x 43 x 24.5 mm
Weight
66 g
