Description

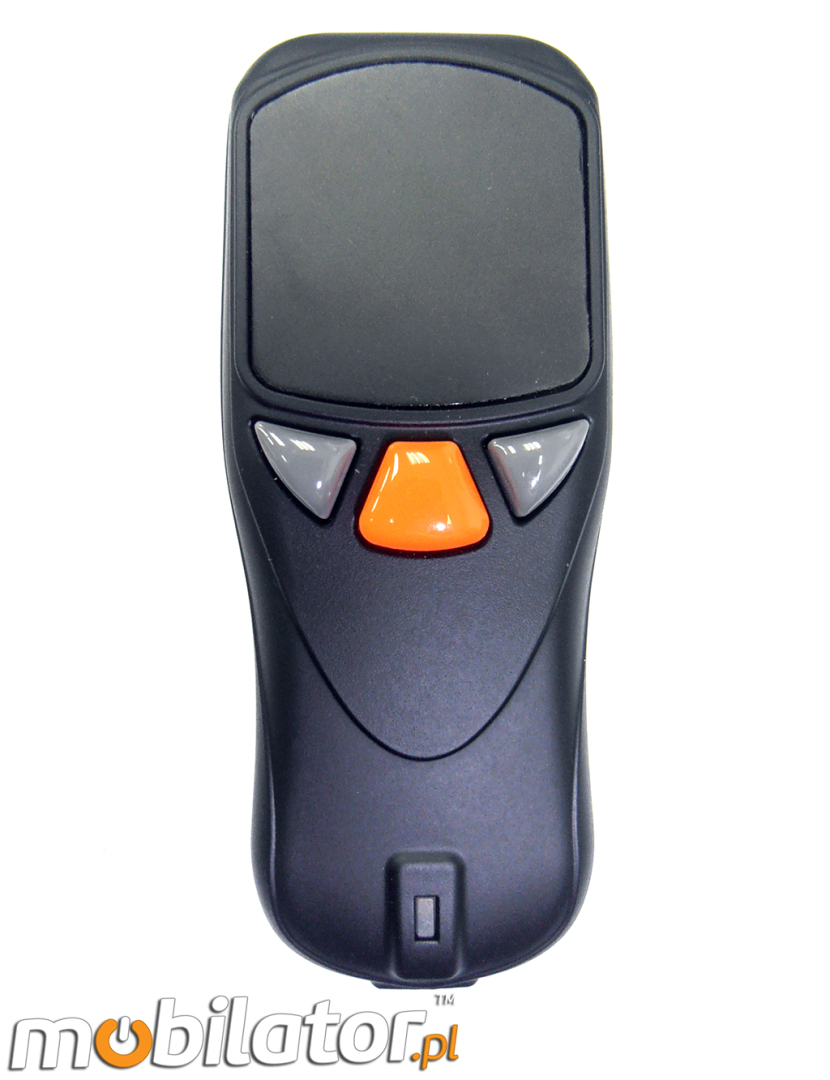

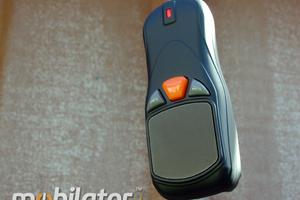

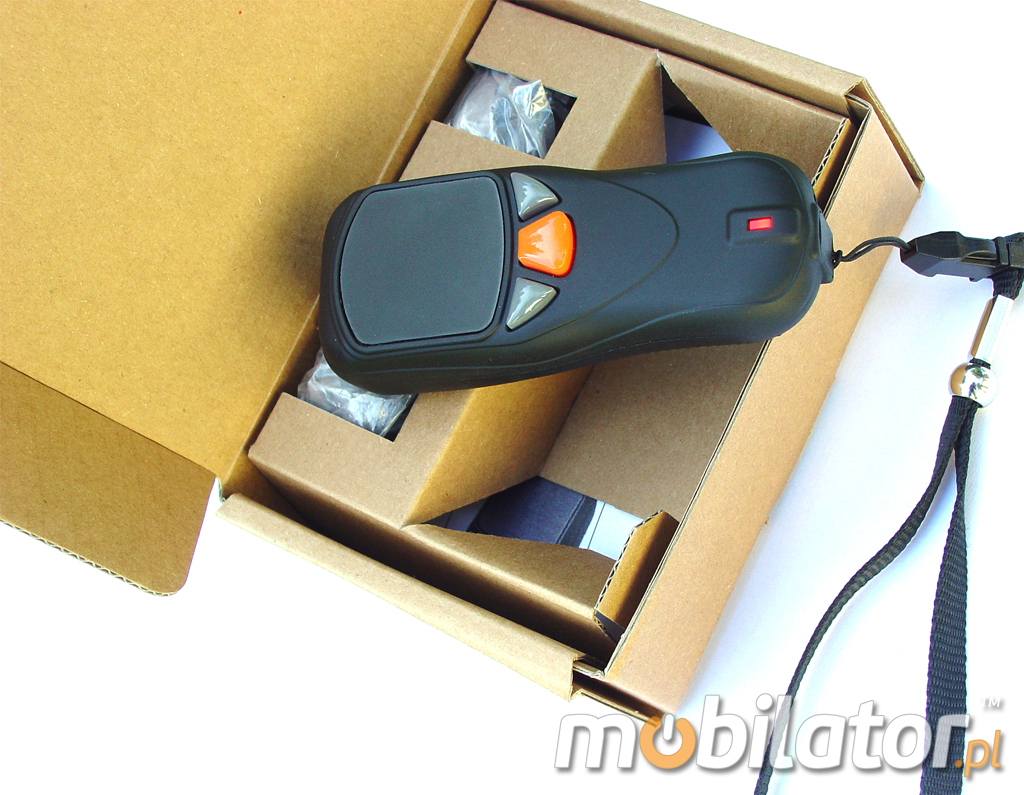

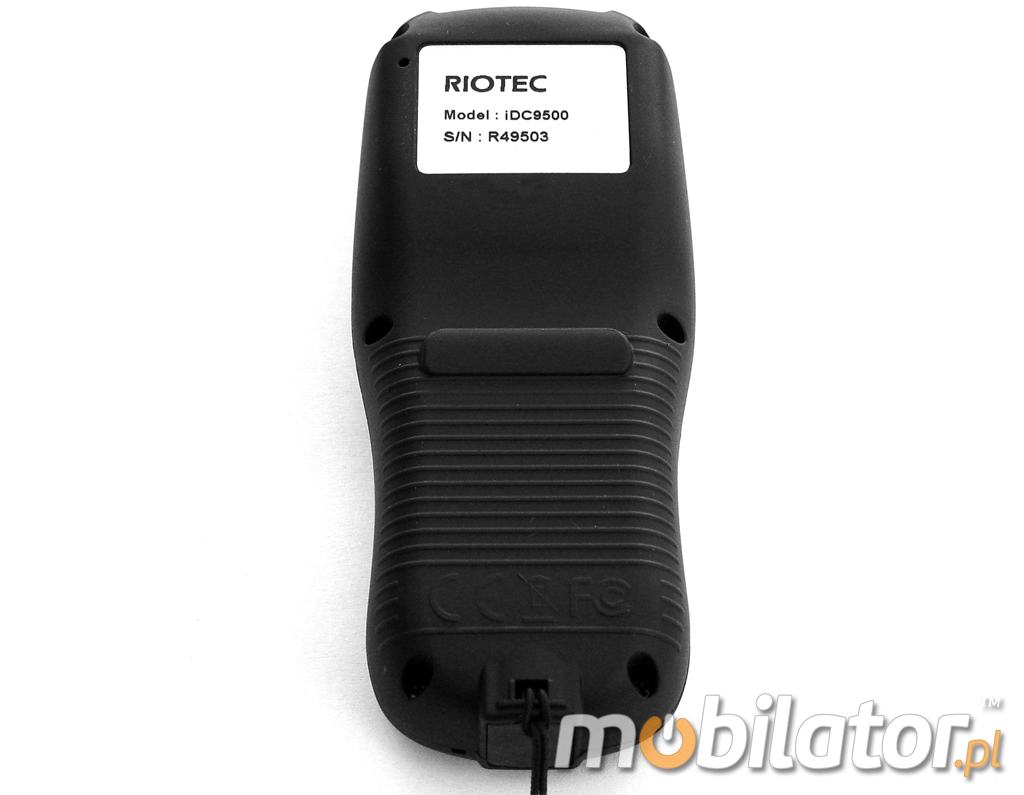

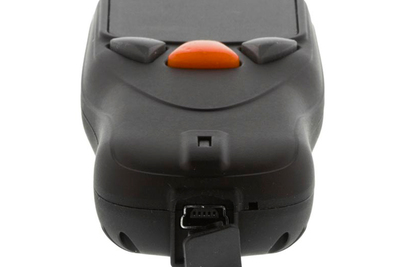

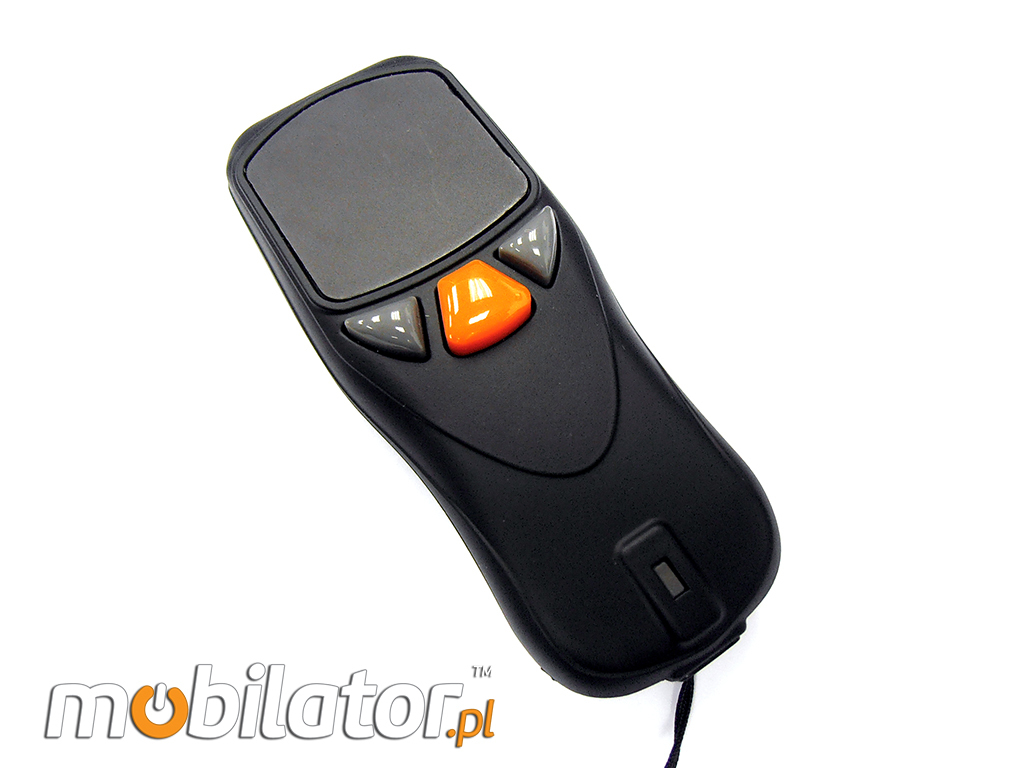

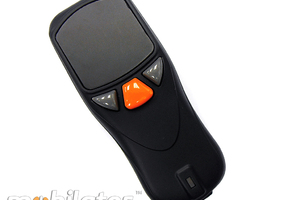

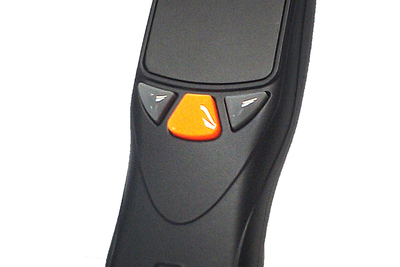

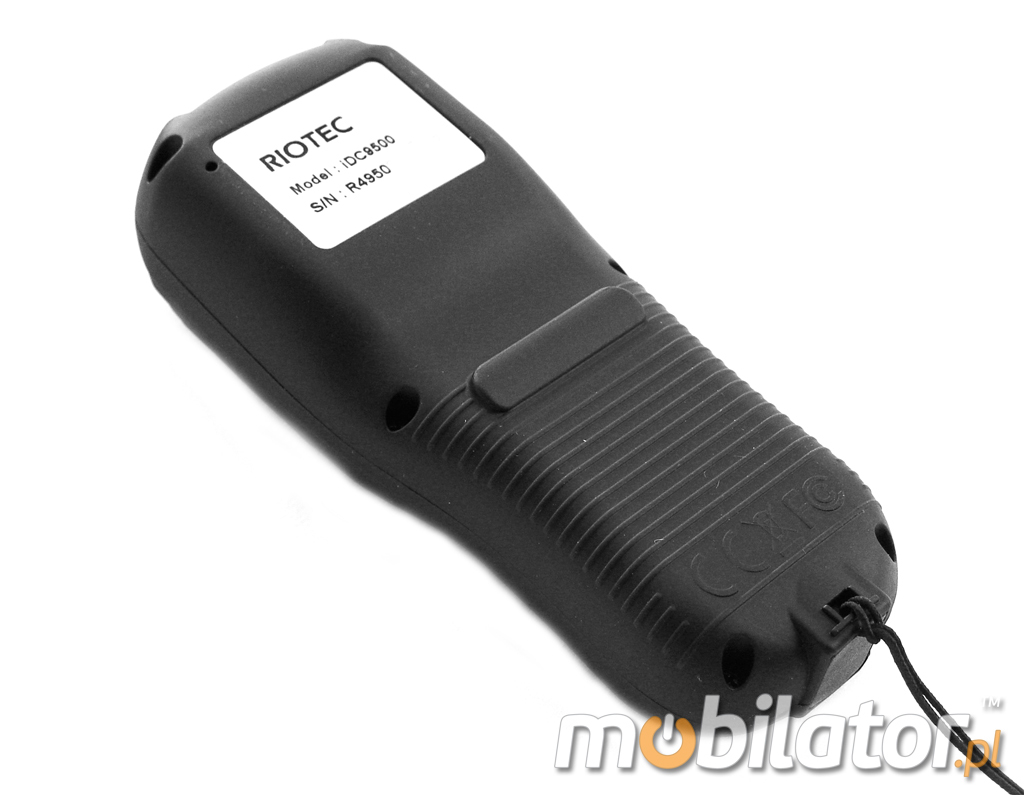

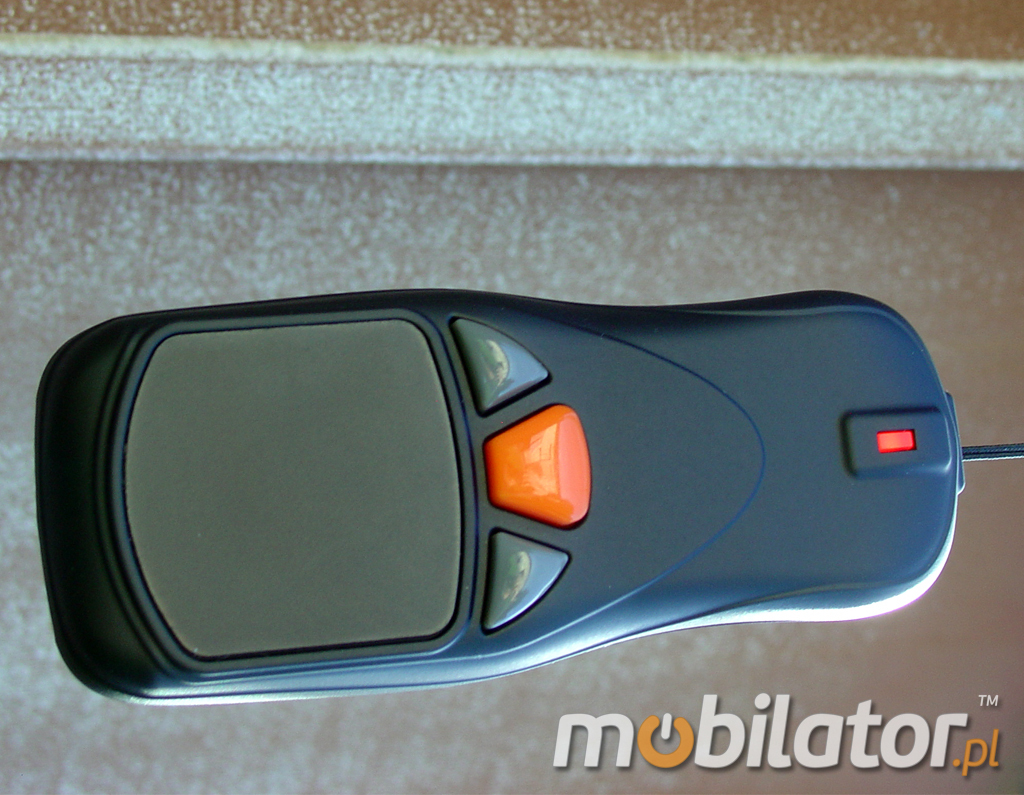

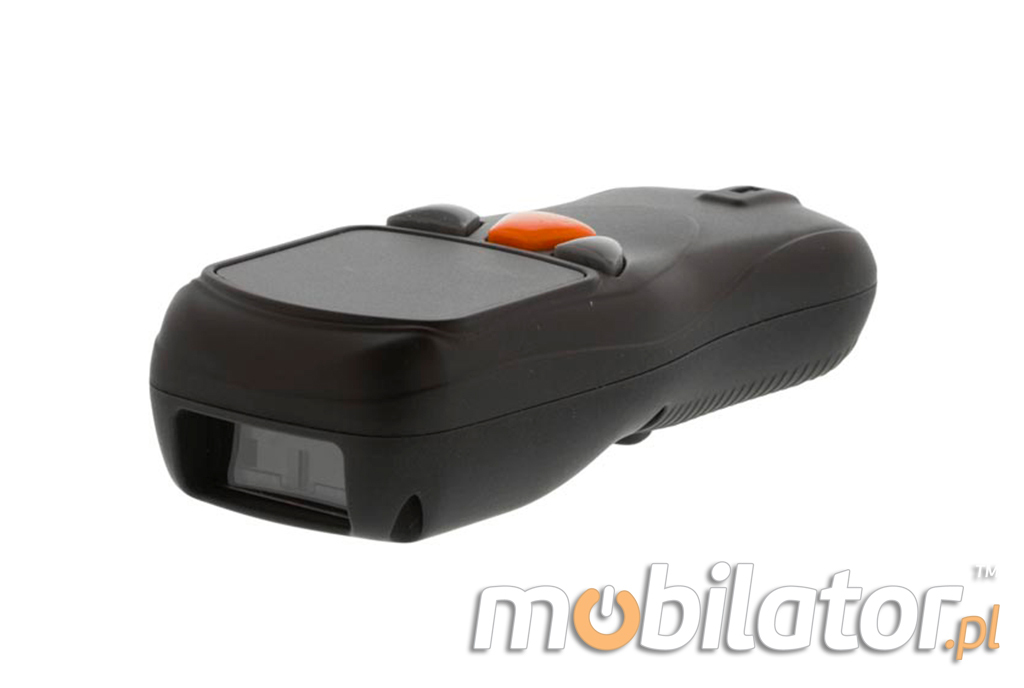

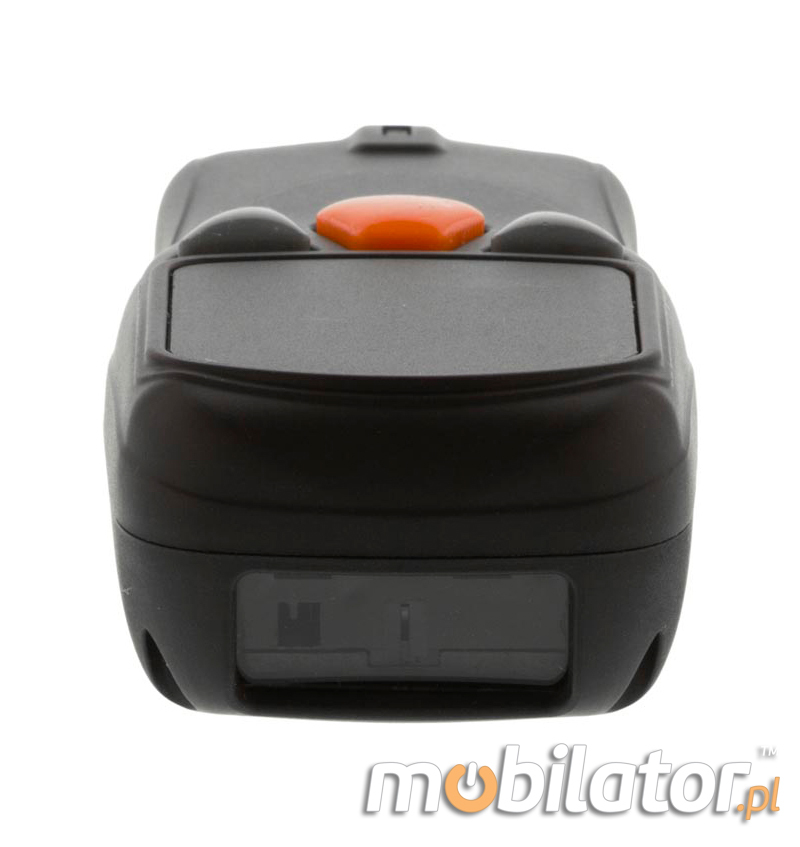

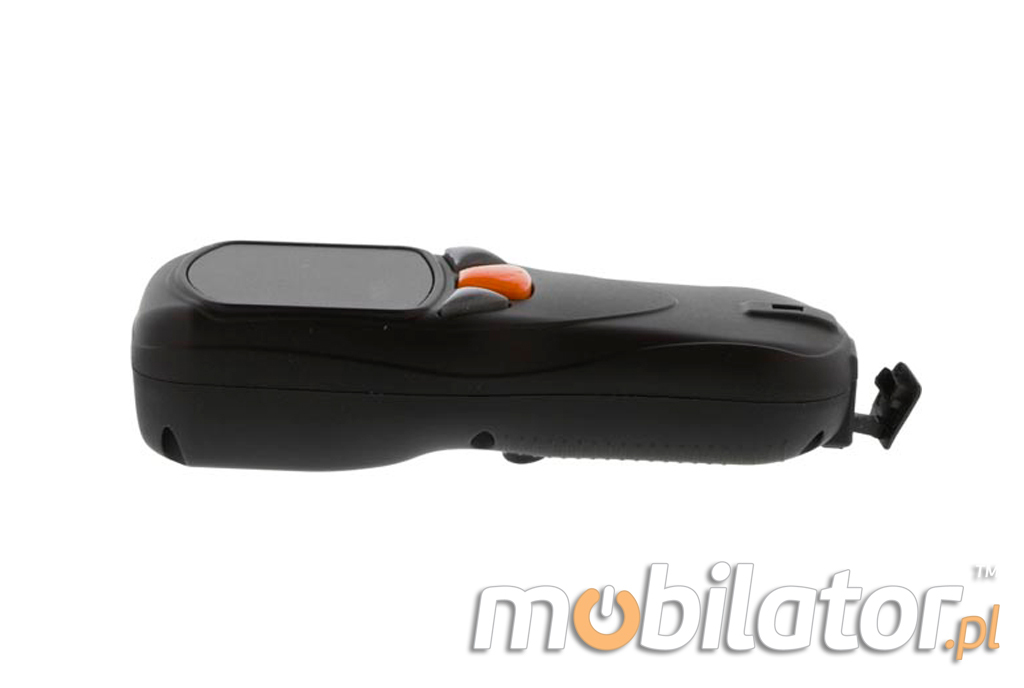

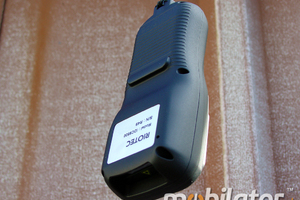

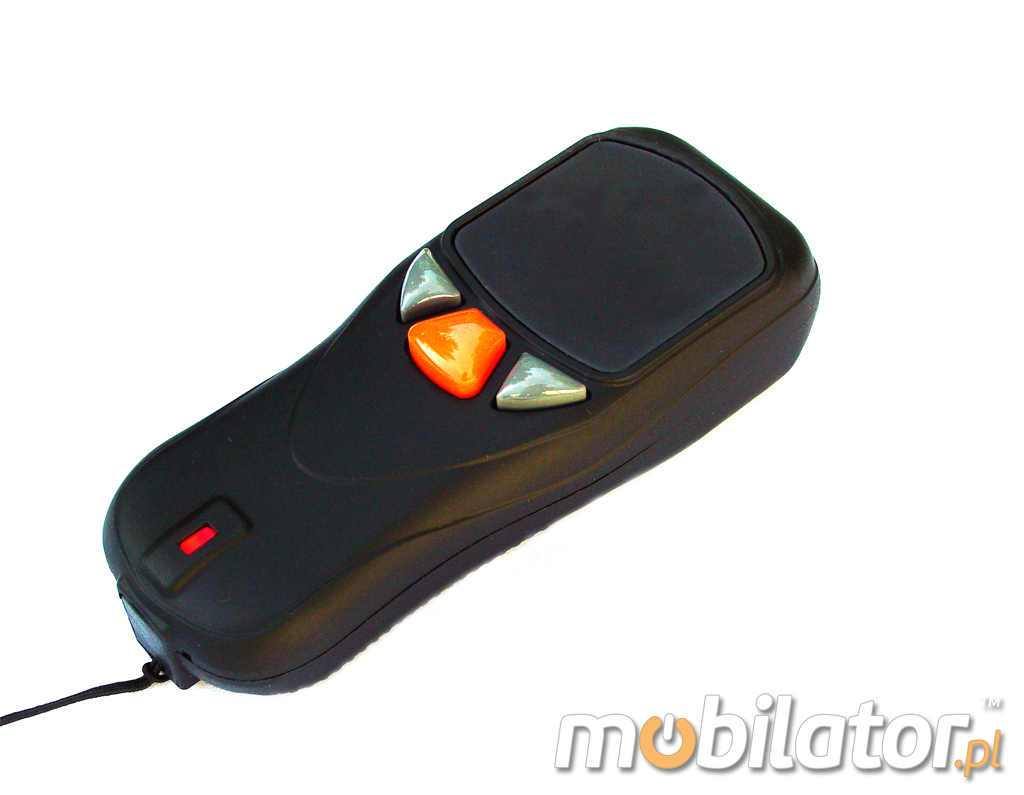

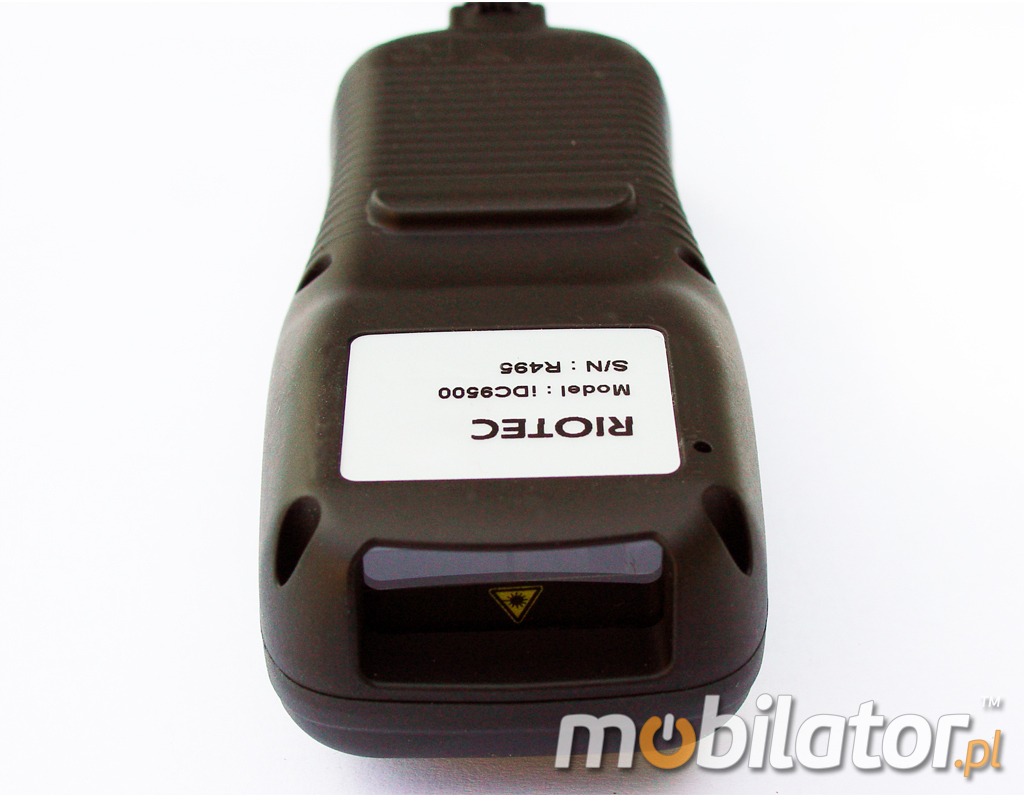

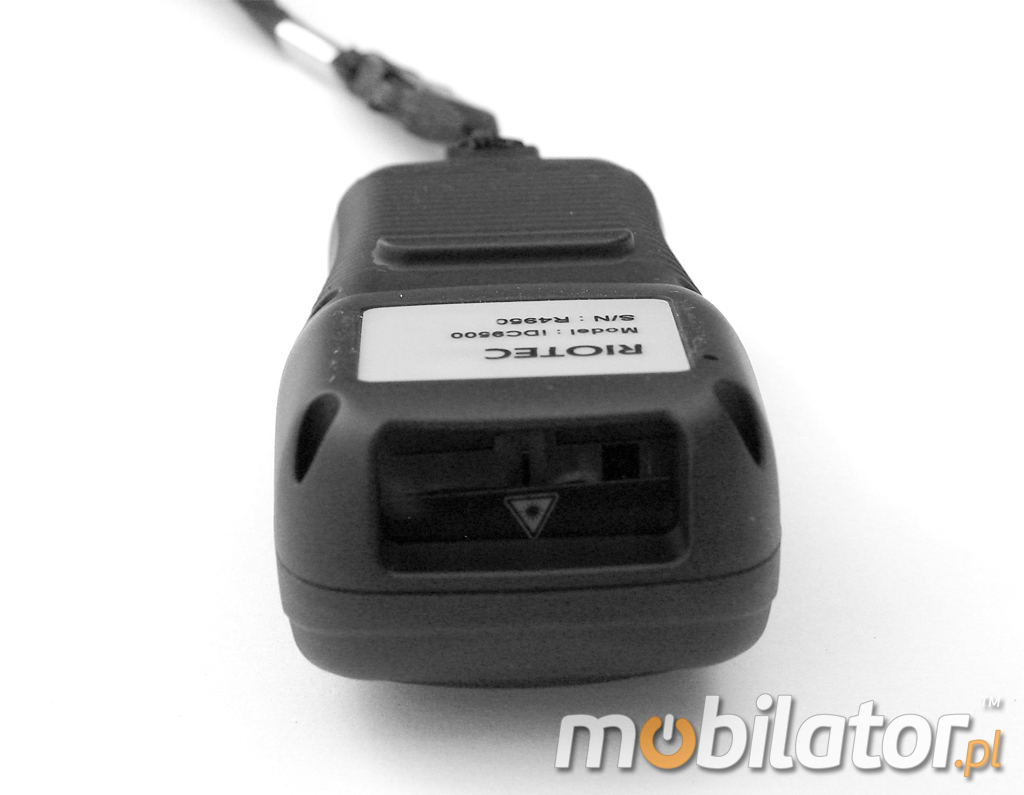

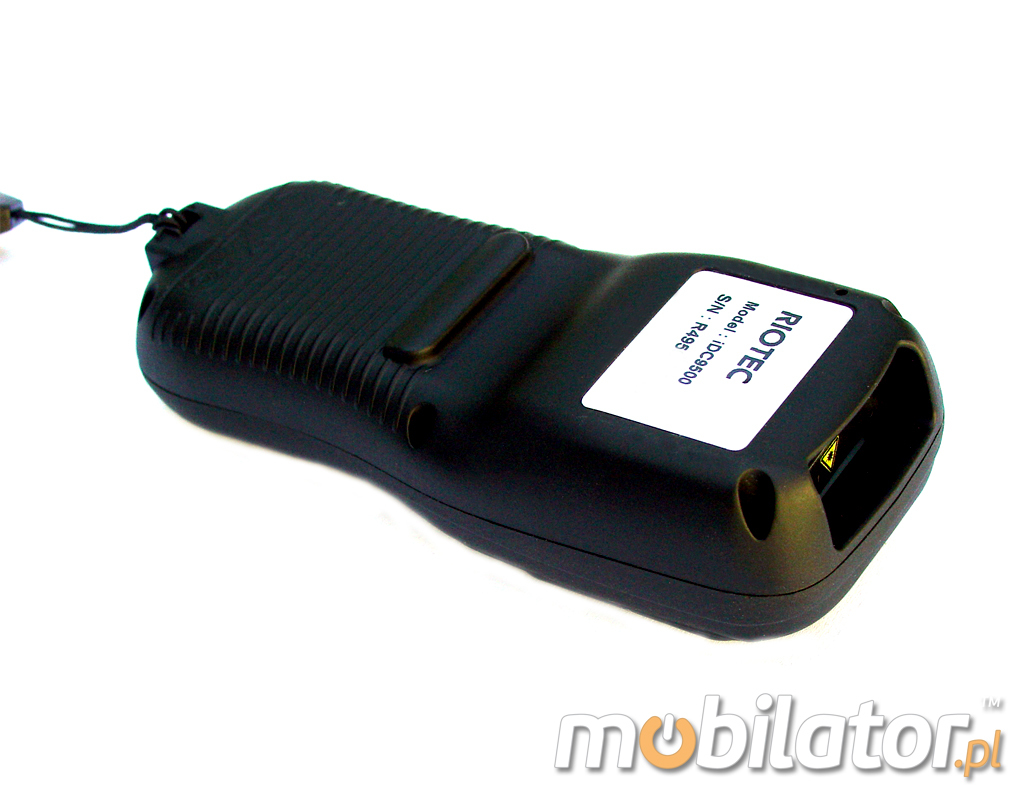

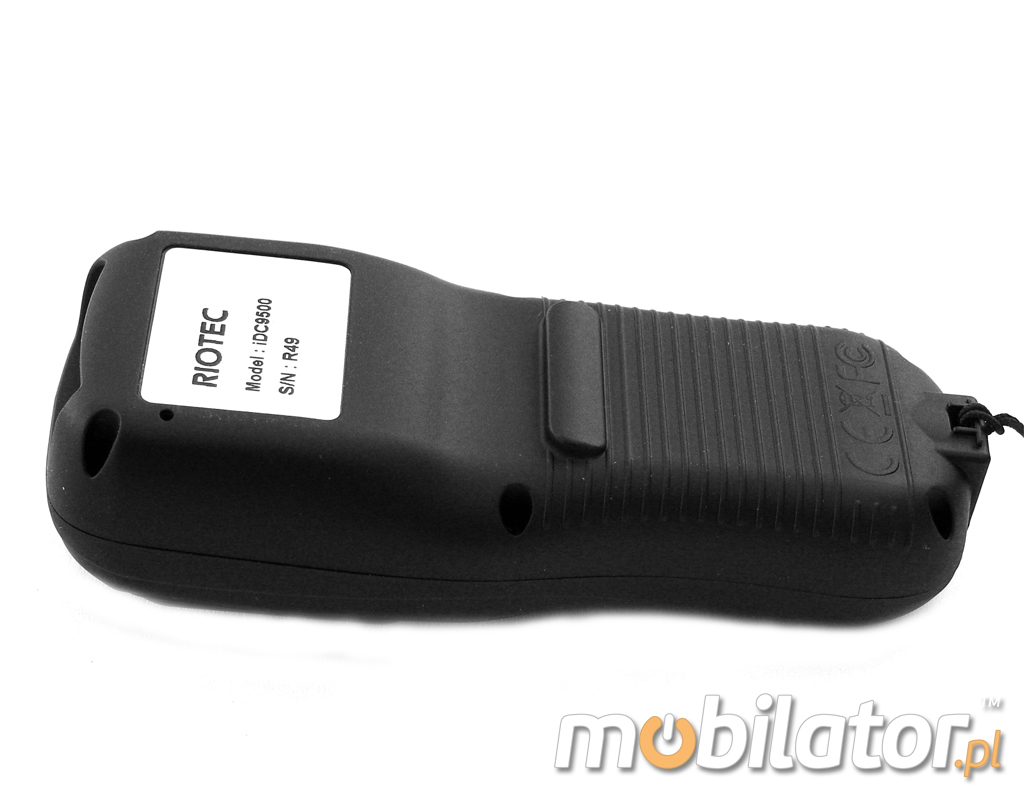

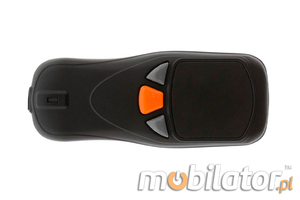

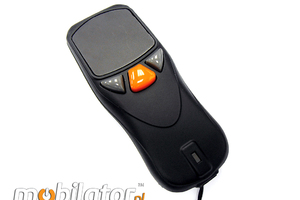

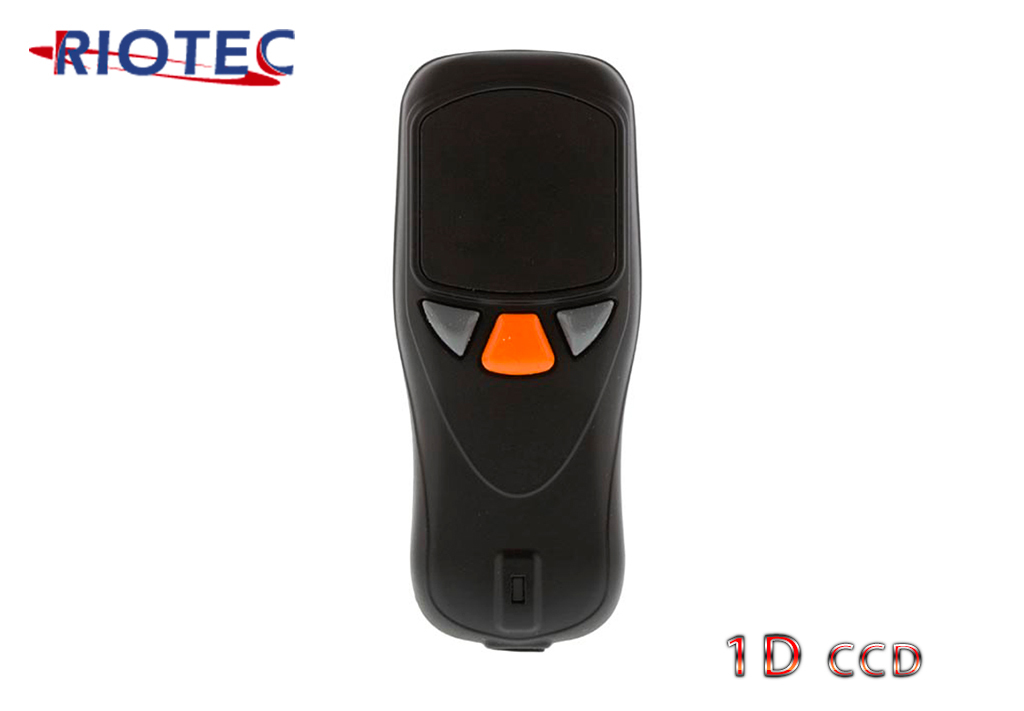

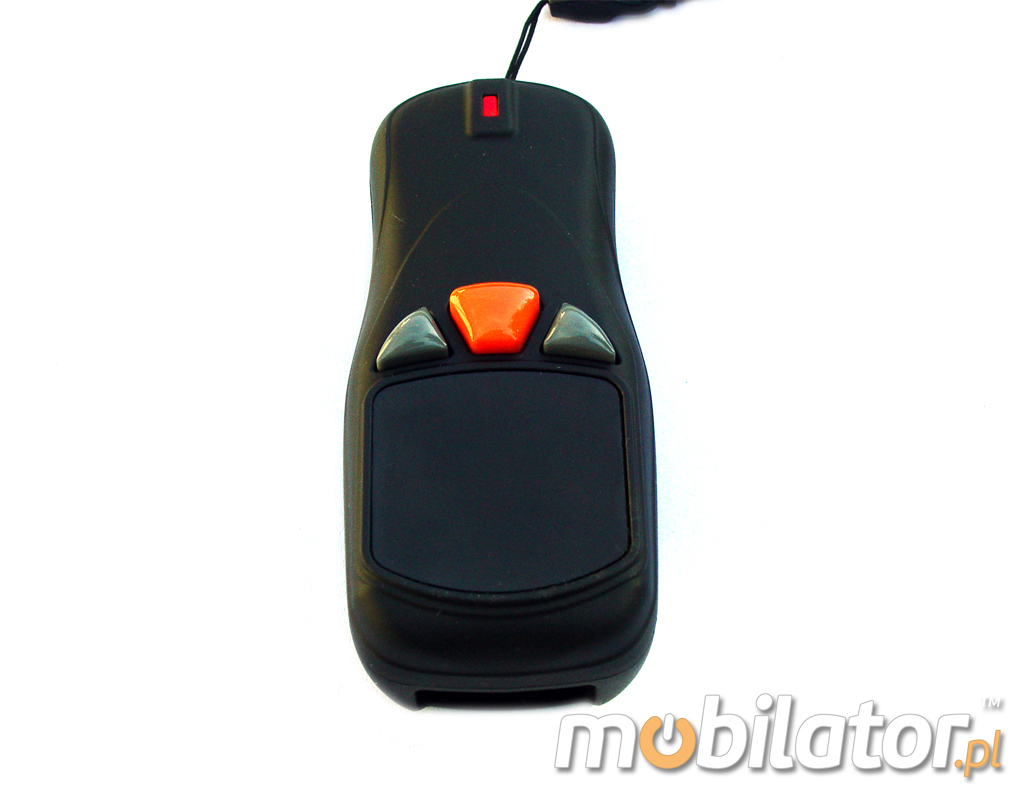

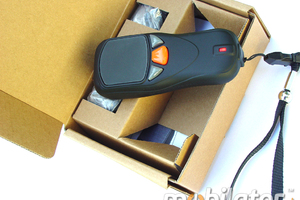

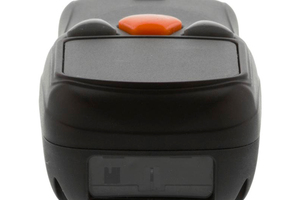

Unusual, modern, wireless (Bluetooth) mini barcode scanner RIOTEC iDC9504A 1D CCD has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc.

RIOTEC iDC9504A intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych with barcodes.

Barcode Scanner 1D CCD - RIOTEC iDC9504A through Bluetooth module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

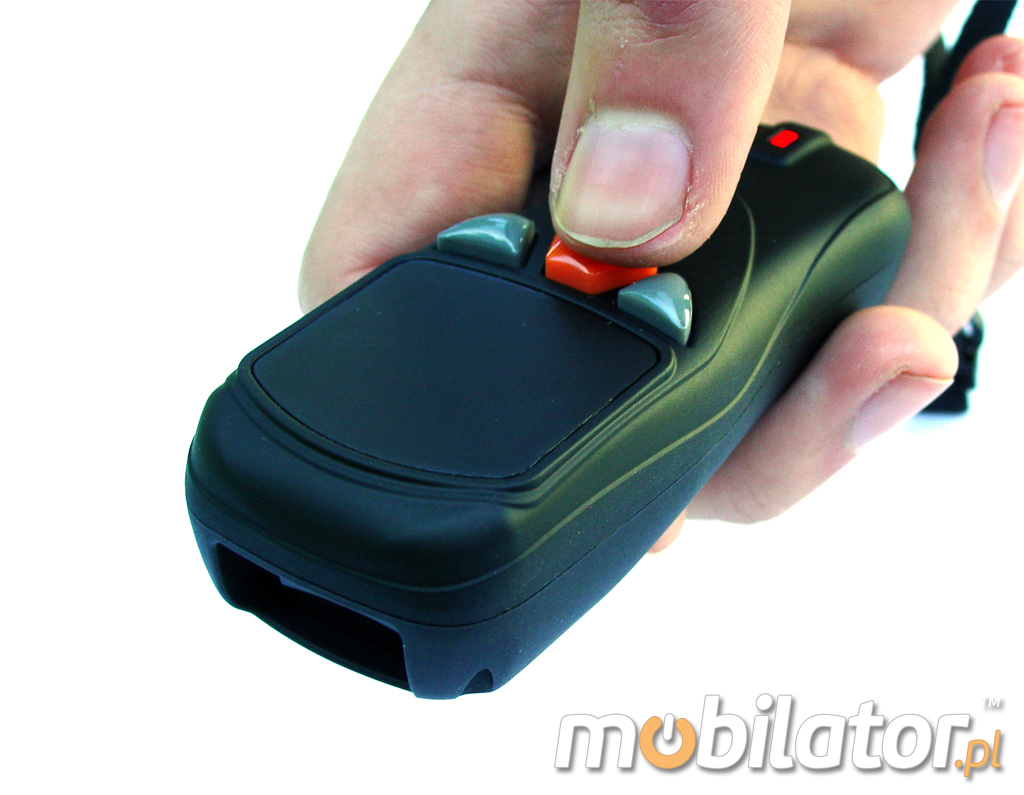

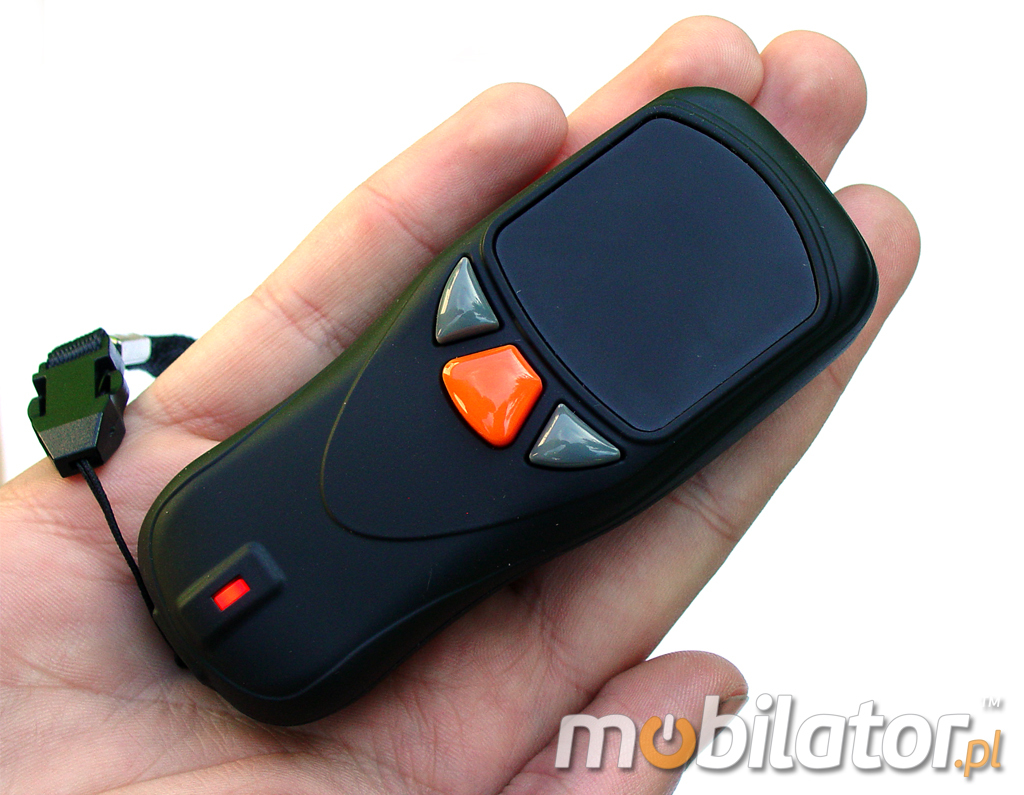

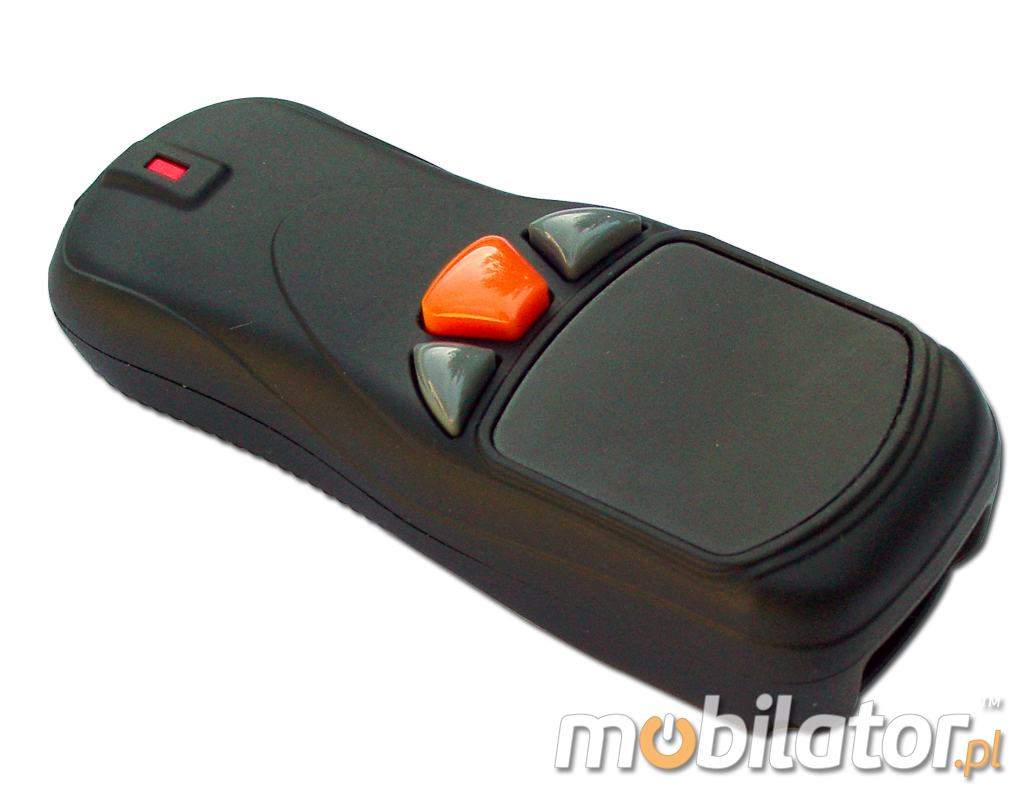

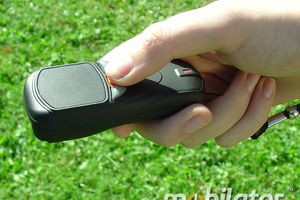

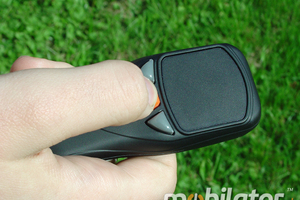

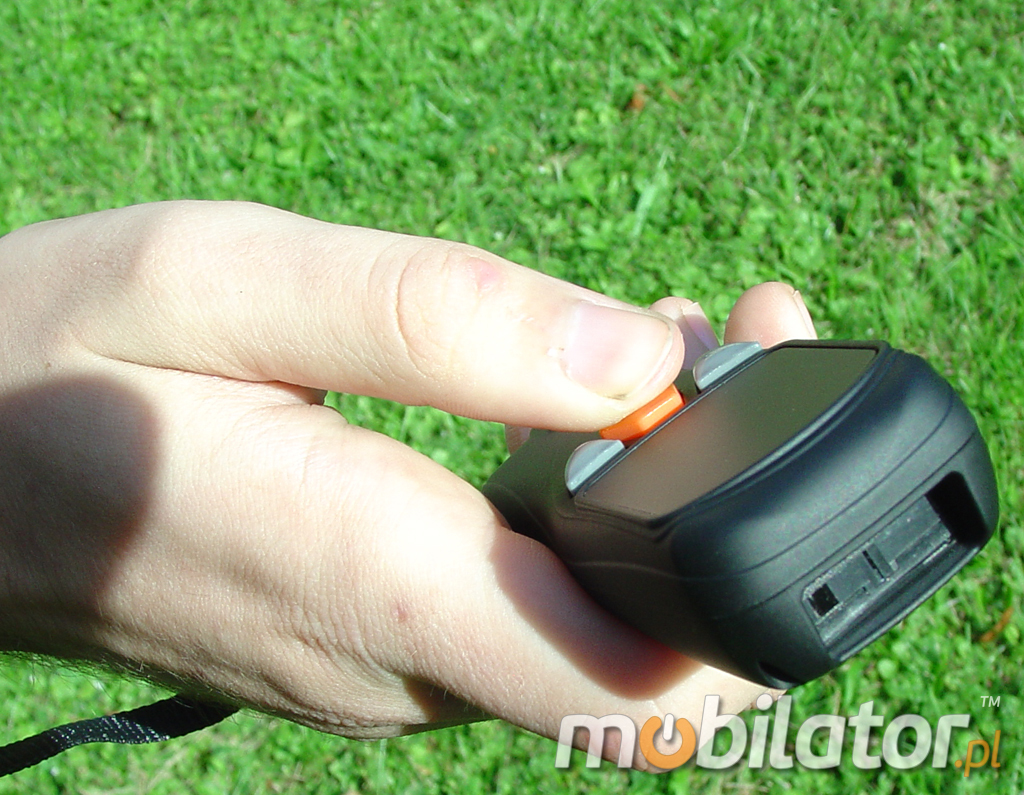

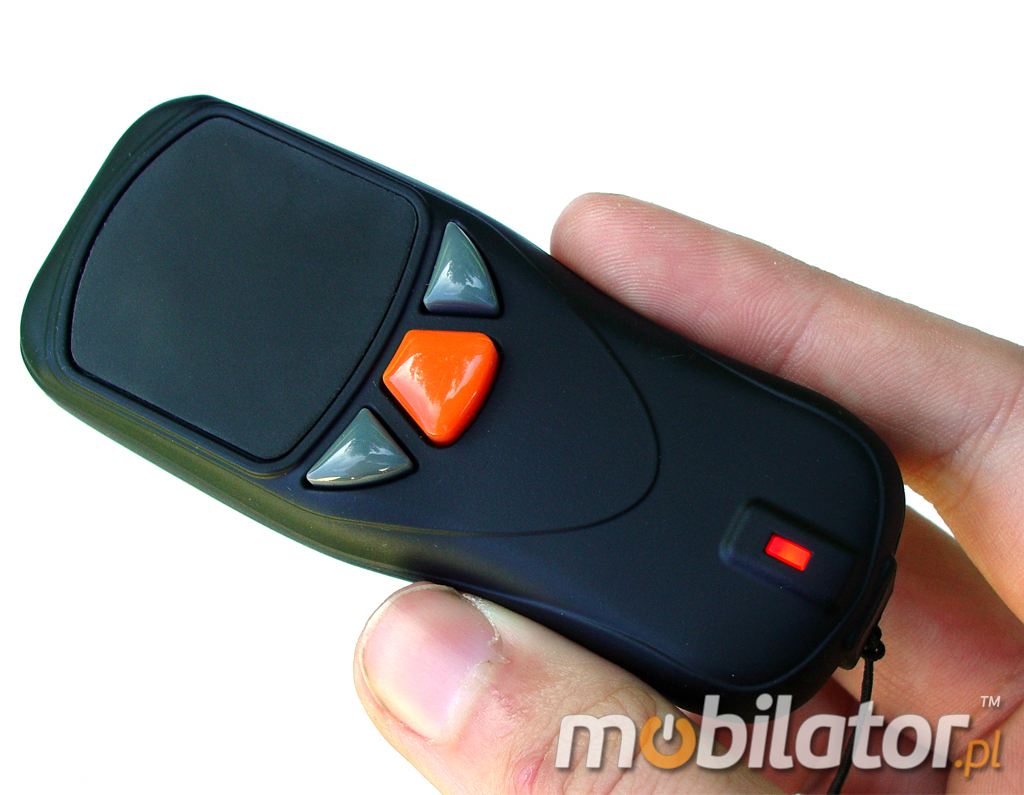

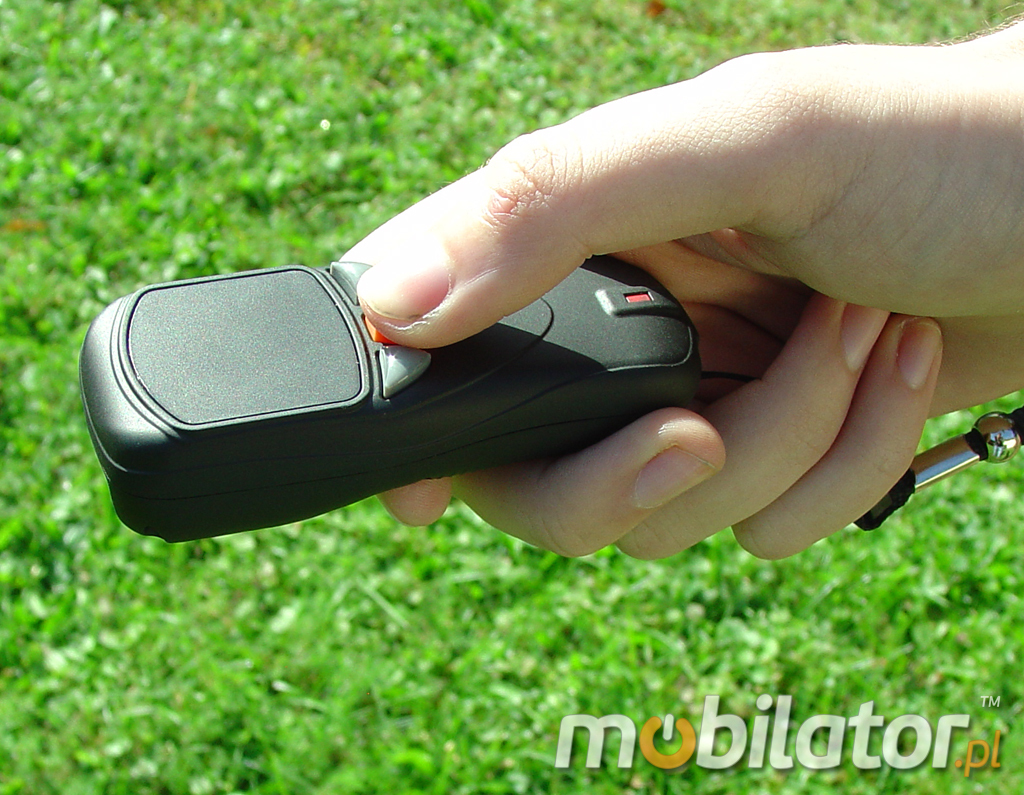

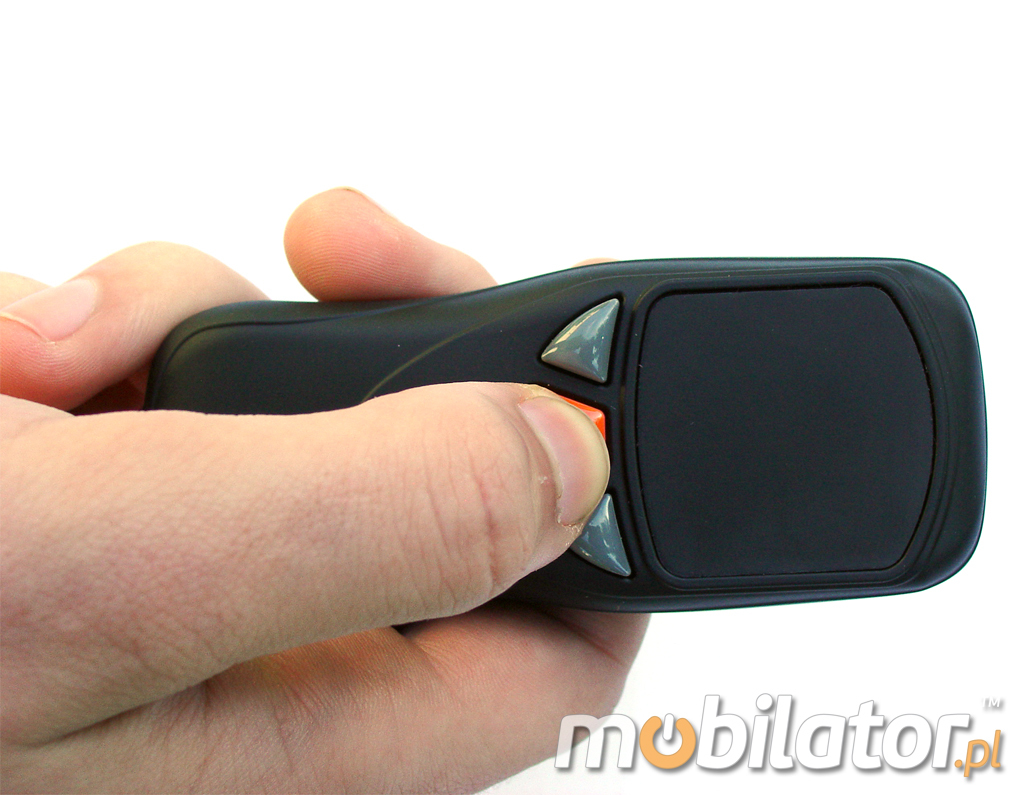

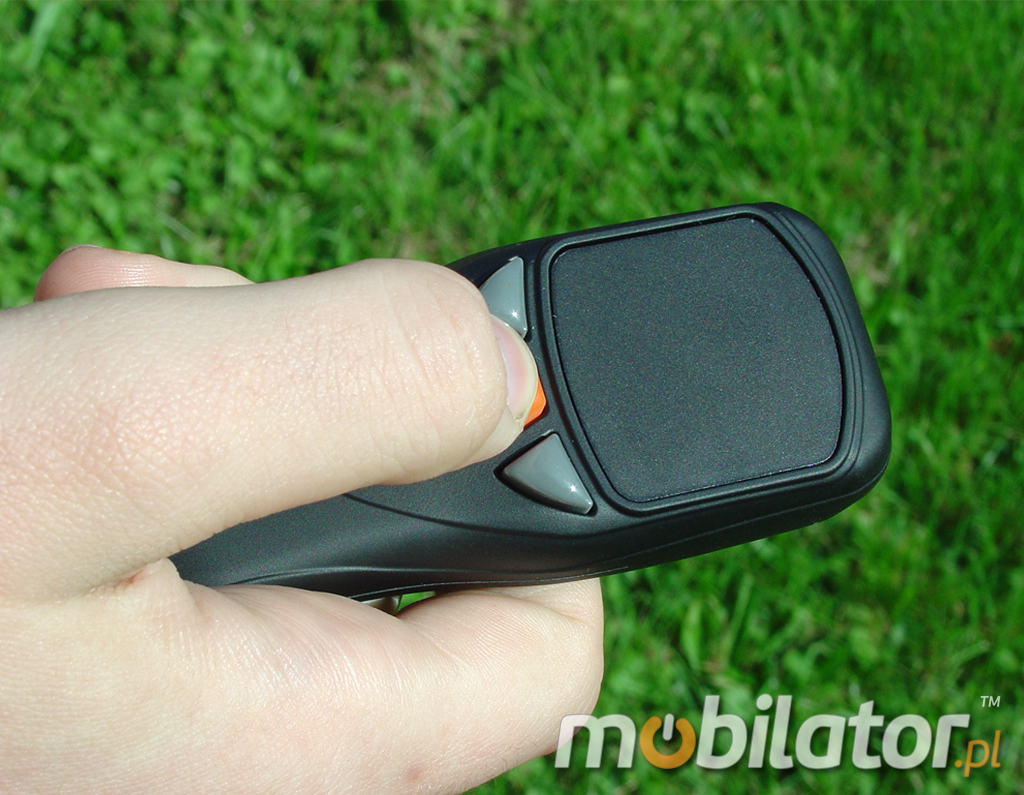

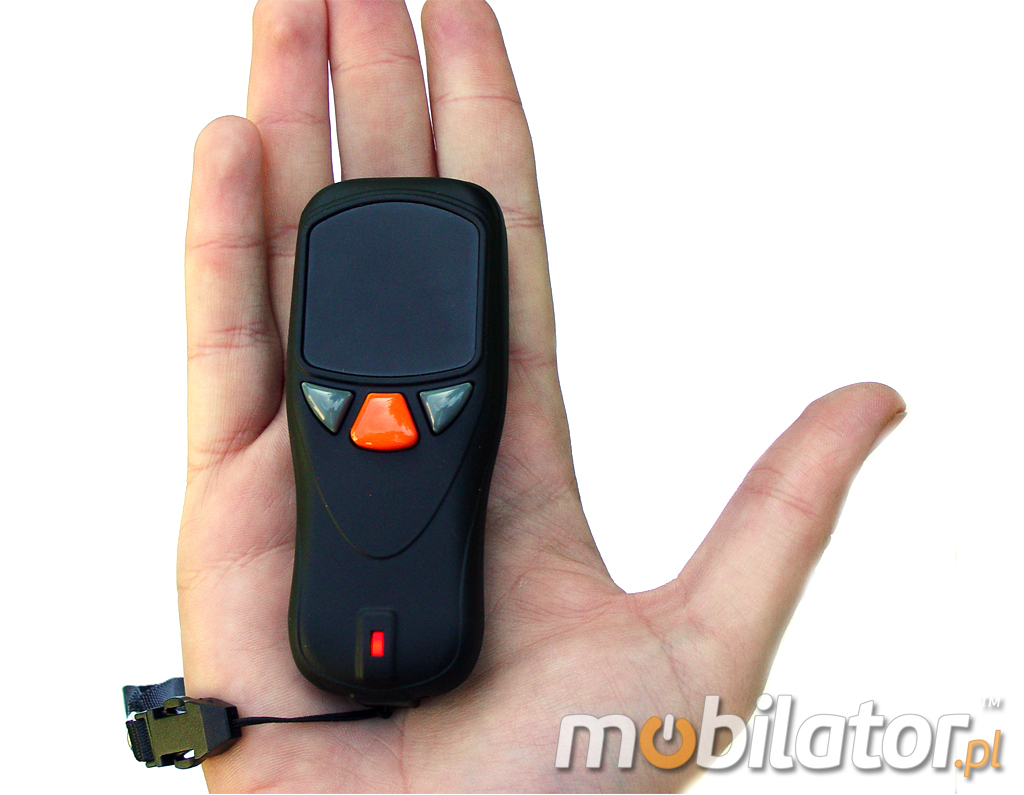

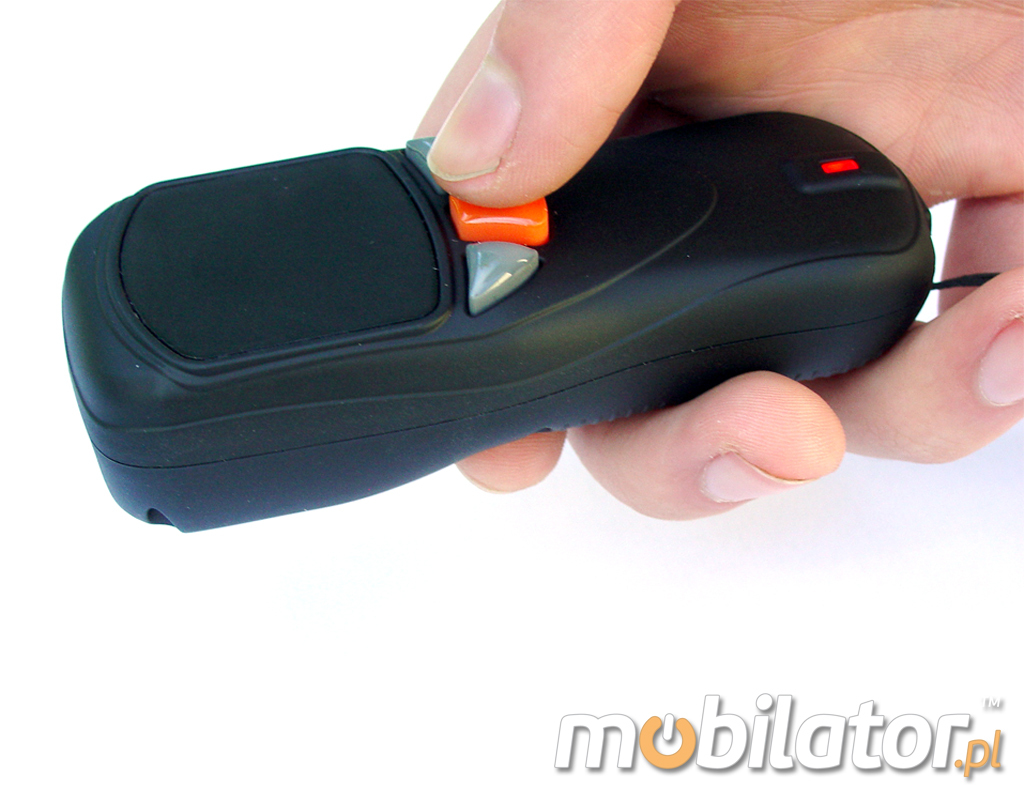

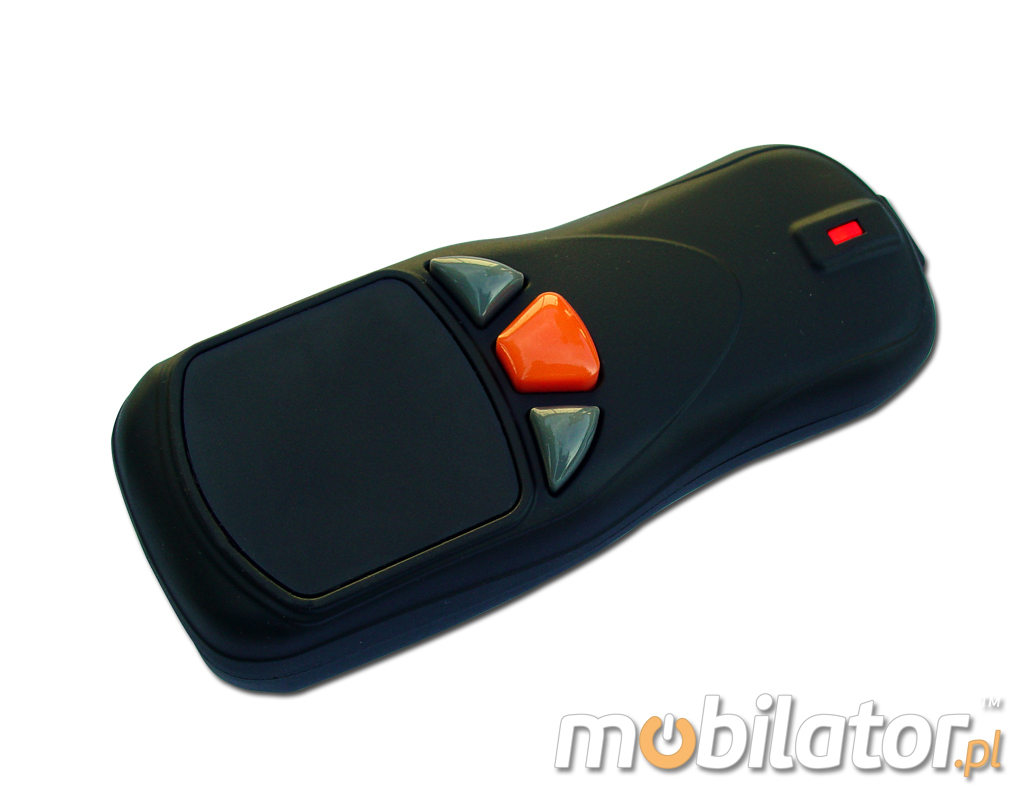

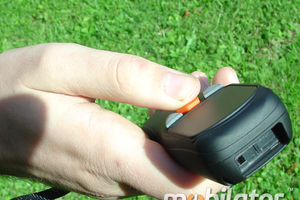

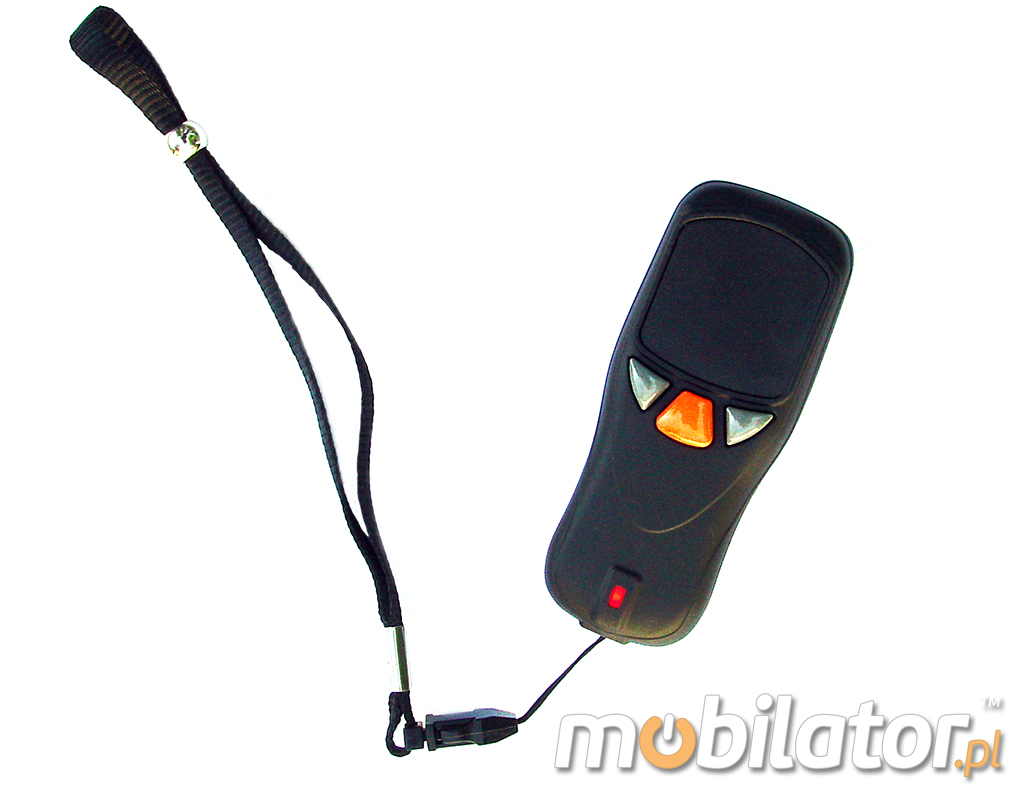

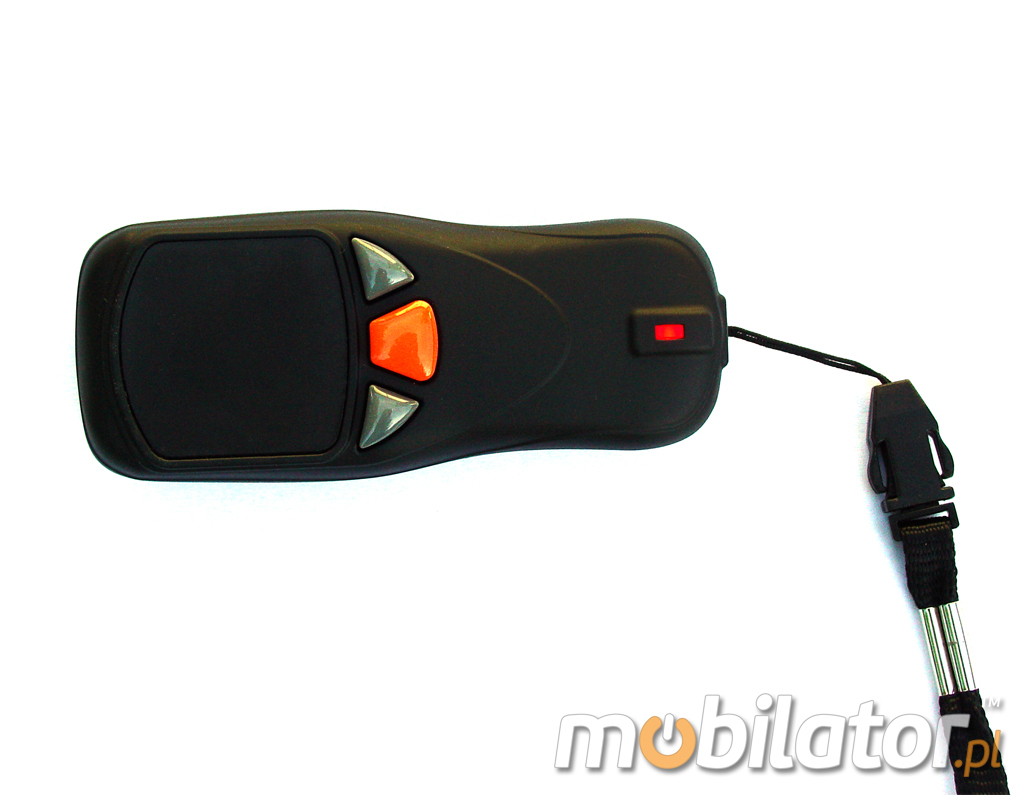

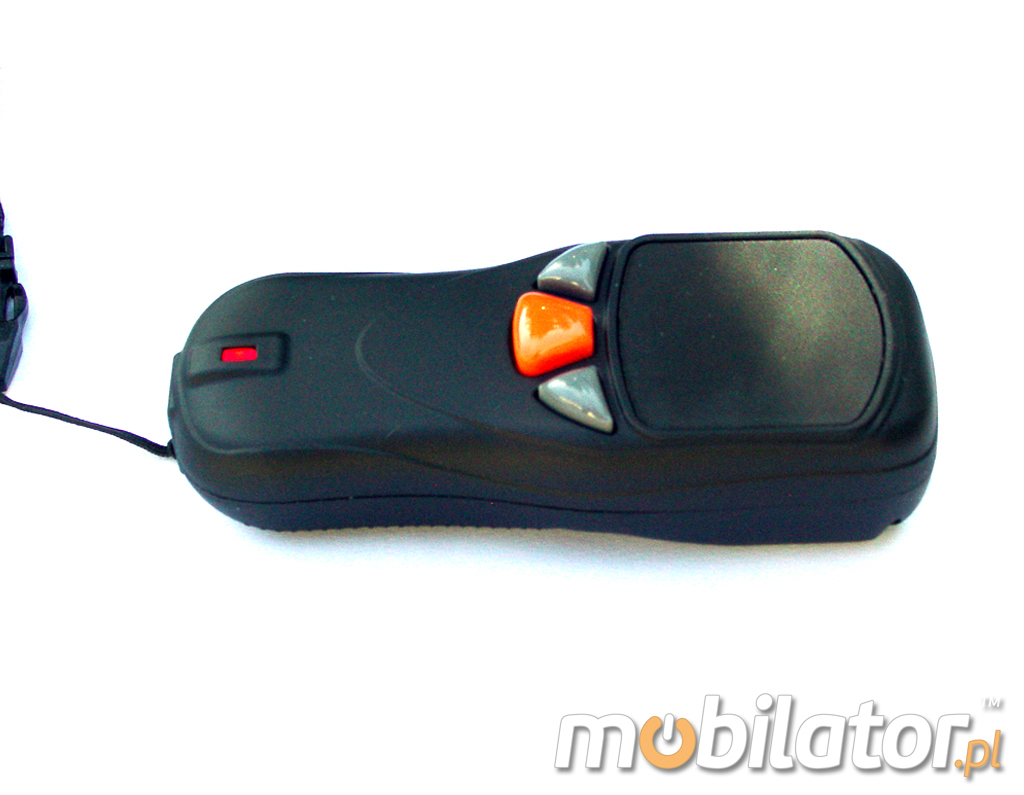

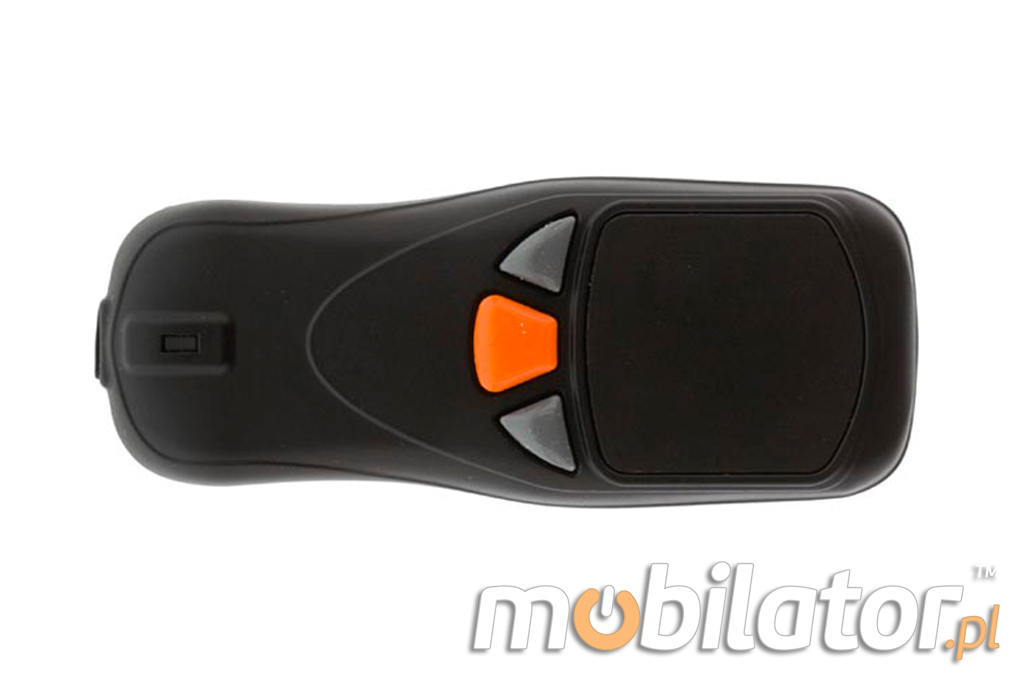

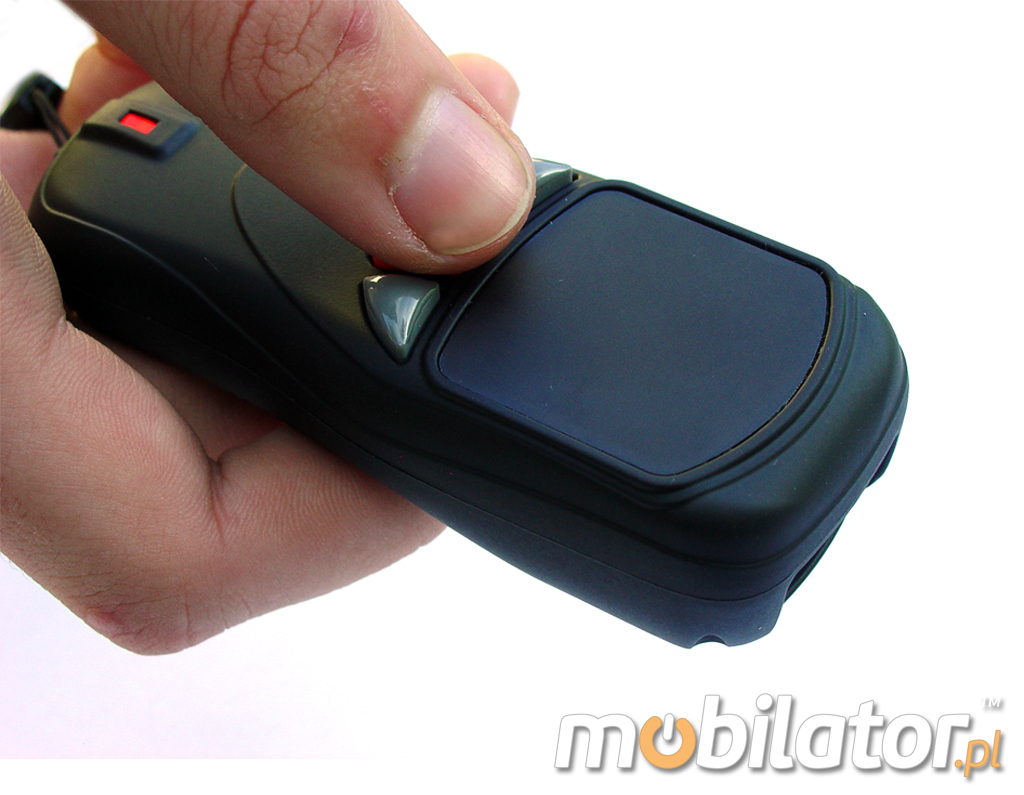

A new generation of mini scanner surprises his appearance. This ergonomic, compact and extremely lightweight barcode reader with an appropriate surface texture provides a good grip and reduces hand fatigue with long hours of work.

Mini RIOTEC iDC9504A 1D CCD is equipped with a Li-Ion battery with sufficient capacity 800mAh, which allows the scanner to operate for about 6 hours in scan mode.

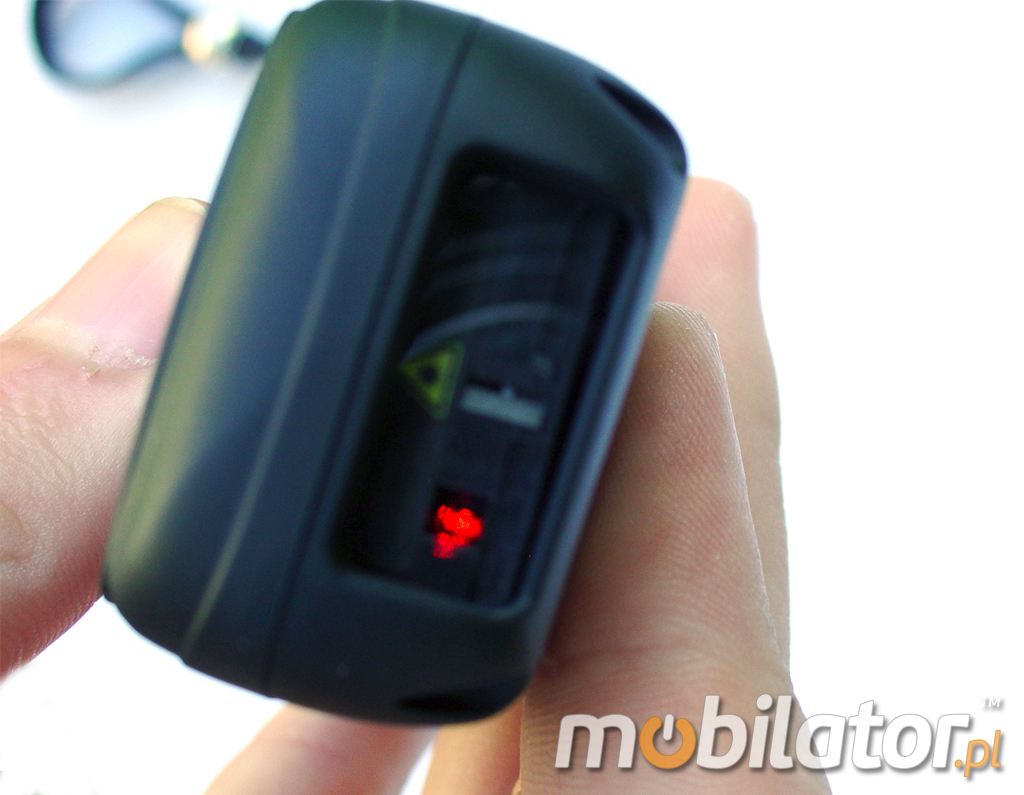

The scanner has an additional function of read-out bar codes straight from the screens and displays. With built-in internal memory scanner can operate in trybyi (offline) and without konieczości connect the device, it even remembers 65,000 barcodes.

Portable (radio and bluetooth-arid) barcode readers through the use of laser read-out techniques are convenient and easy to use and offer a wealth of configuration parameters. Enable automatic operation and manual. Read the codes with different contrasts with a distance of several centimeters. Thanks to the wireless communications offer coverage up to 100m from the computer.

The device uses the HID interface

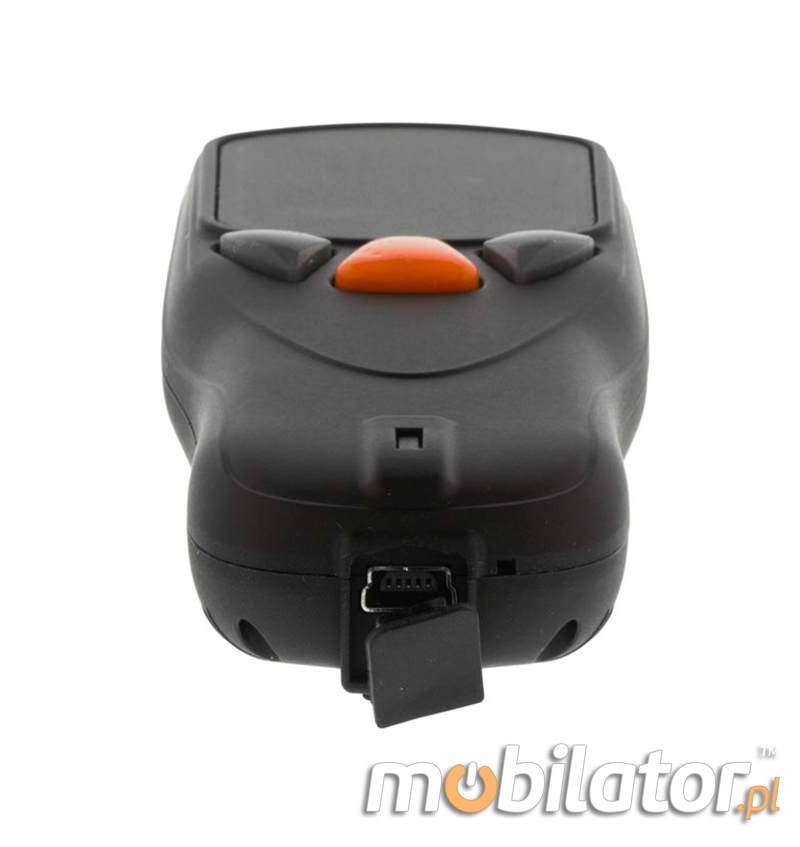

To scanner devices need to use the right software to a serial port (RS-232) collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed ​​USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our  introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswać text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.

Supported Bluetooth profiles SPP system.

SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).

Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .
