Industrial MiniPC |
Description

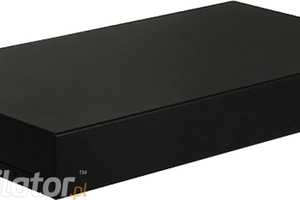

Housing dimension are 273 (W) x155 (L) x35 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.275 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.
Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3L memory. Integrated AMD RADEON 8330E video and audio Realtek HD Audio codec ALC269Q allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 320GB HDD.
|
|
|
Communication & Connectors |
|

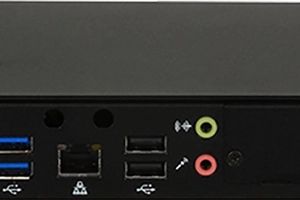

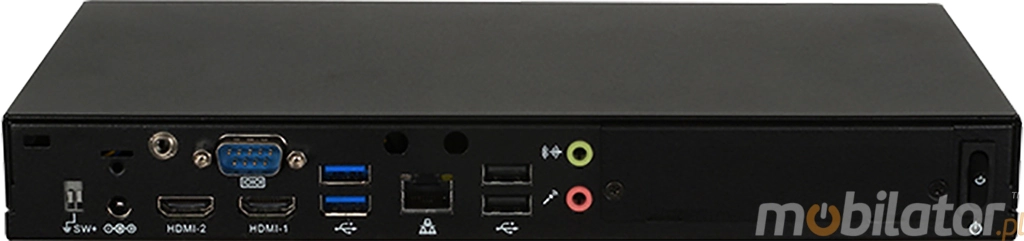

Integrated card - Realtek 8111DP GbE LAN (optional WiFi module) allow connection to the network. The computer is equipped with: one LAN port, one COM(RS232) port, two USB 3.0 ports, two USB 2.0 ports, two HDMI outputs one way audio, one microphone input and optional two COM(RS232) ports and one COM(RS485) port.
|
Cooling
The MiniPC Industrial AOpen DES4100 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.
|
|
;)
;)
;)
