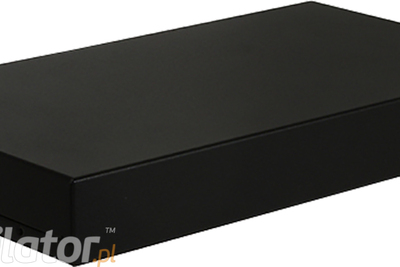

MiniPC Industrial AOpen DES4100 v.2

Name: MiniPC Industrial AOpen DES4100 v.2
Brand: AOpen
Price: 669.34 PLN
Availability: InStock

Update Date: 2018.02.21

Guarantee 2 years

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

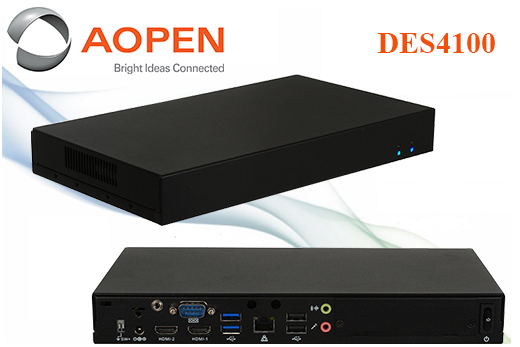

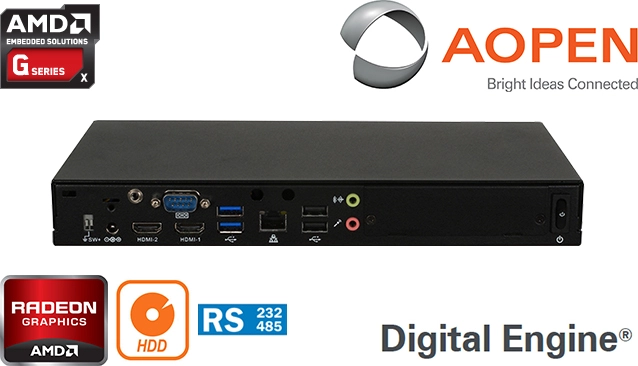

MiniPC Industrial AOpen DES4100

Menu
Description
Communication & Connectors
Application
Specifications

Industrial MiniPC

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

MiniPC Industrial AOpen DES4100 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

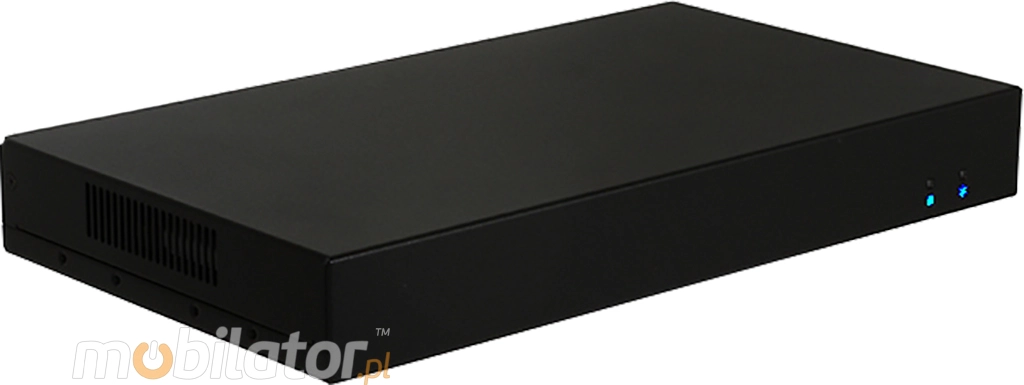

Housing dimension are 273 (W) x155 (L) x35 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 1.275 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3L memory. Integrated AMD RADEON 8330E video and audio Realtek HD Audio codec ALC269Q allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 320GB HDD.

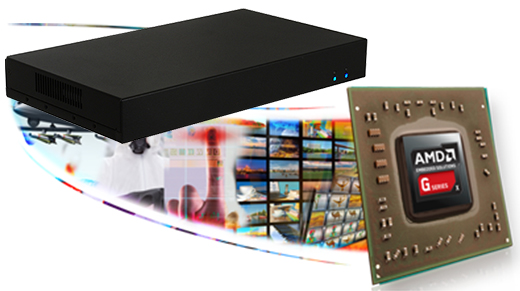

MiniPC Industrial AOpen DES4100

go top…

menu…

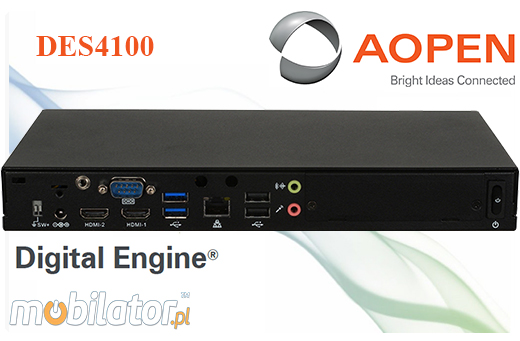

Communication & Connectors

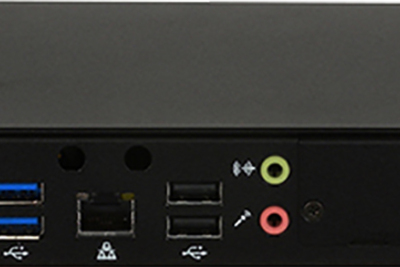

Integrated card - Realtek 8111DP GbE LAN (optional WiFi module) allow connection to the network. The computer is equipped with: one LAN port, three COM(RS232) ports, one COM(RS485) port, two USB 3.0 ports, four USB 2.0 ports, two HDMI outputs one way audio, one microphone input.

MiniPC Industrial AOpen DES4100

Cooling

The MiniPC Industrial AOpen DES4100 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

MiniPC Industrial AOpen DES4100 of these are based on high-performance processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of AOpen models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages devices are: small size, performance and energy efficiency. An extra pair of brackets at t MiniPC Industrial AOpen DES4100 he bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

MiniPC Industrial AOpen DES4100

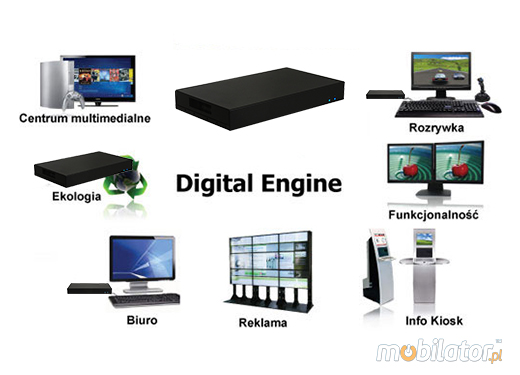

Areas of use of industrial MiniPC

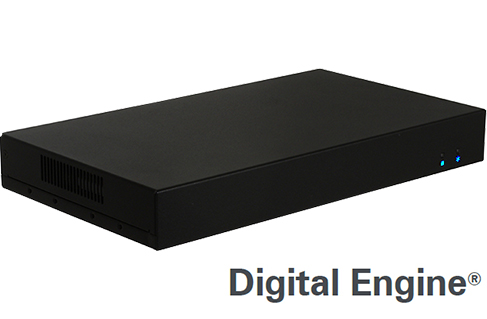

Digital Engine

MiniPC Industrial AOpen DES4100

Trade

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

MiniPC Industrial AOpen DES4100 by to six USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC Industrial AOpen DES4100 can be used on transport market, in cars, through adapting him to operate with a supply 12/19V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

MiniPC Industrial AOpen DES4100

go top…

menu…

Specifications

Dimension	H: 35 mm L: 155 mm W: 273 mm
Weight	1,275kg
Processor	AMD Quad Core GX-420CA (4x2.0 GHz)
Chipset	AMD G series
RAM Memory	4GB DDR3L, Dual Channel
Graphic Card	AMD RADEON 8330E
Sound Card	Realtek HD Audio codec ALC269Q
WLAN	Realtek 8111DP GbE LAN
Connectors	3x COM(RS232) 1x COM(RS485) 1x wyjście 12V DC_JACK 4x USB 2.0 2x USB 3.0 2x RJ-45 1x wyjście Audio 2x HDMI 1x Mic

Supported OS
Microsoft Windows: 7/8.1
Installed OS
-----
Chipset
Intel chipset
CPU Support
AMD G series
Installed CPU
AMD Quad Core GX-420CA (4x2.0 GHz)
Graphic Card
AMD RADEON 8330E
Memory Support
DDR3 (can up to 16GB), Dual Channel
Installed Memory
4GB DDR3L (Dual Channel 2x 2GB)
Storage (HDD) Support
320GB HDD
Installed Storage (HDD)
320GB HDD
IP Norm
-----
Temp
0 - 40 ℃
Storage temperature
-20 - 60 ℃
Humidity
0 ~ 90%
Others
Colour Black, Aluminum
LAN
Realtek 8111DP GbE LAN
Wireless LAN card
No (opctional Yes)
3G
No (opctional Yes)
Bluetooth
No

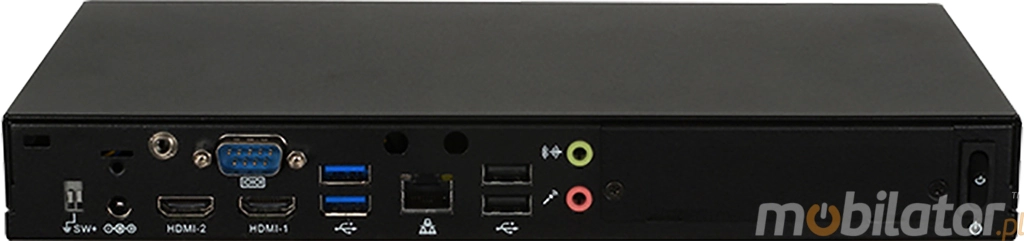

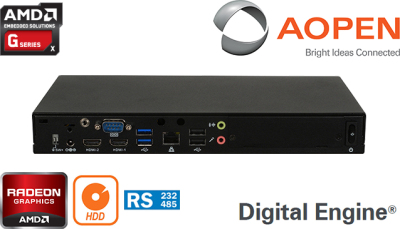

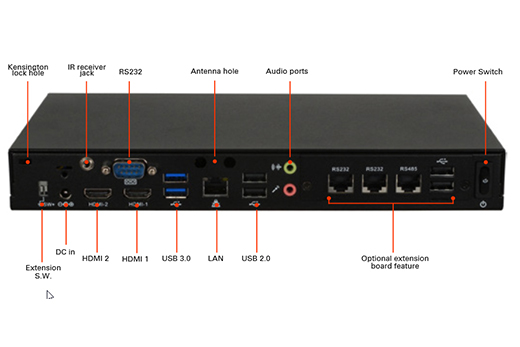

Rear Panel (ports)
1x Audio,
 1x Mic,
 3x COM(RS232),
 1x COM(RS485),
1x RJ-45,
 2x HDMI,
1x DC-IN 12/19V,
 4x USB 2.0,
 2x USB 3.0

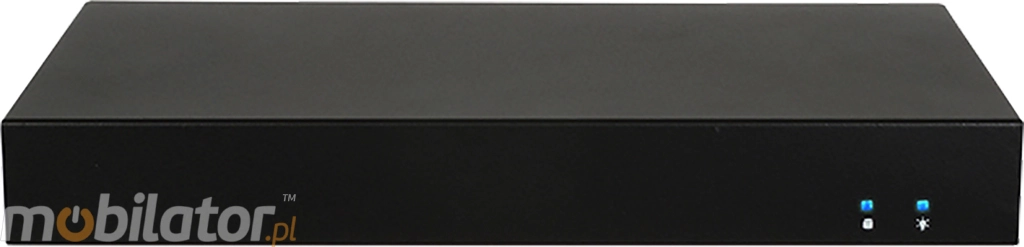

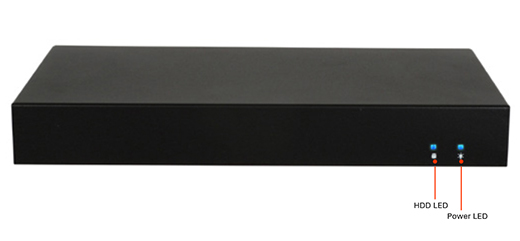

Front Panel (ports)
Power, HDD indicator LED
Expansion
-----
Power
12V
Watch Dog Timer
0~255 sec
CD/DVD Drive
No
TV Tuner
No
Dimensions
273 x 155 x35  mm
Fanless
No
Weight
1.275 kg
