Description

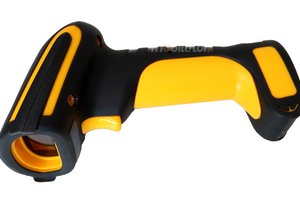

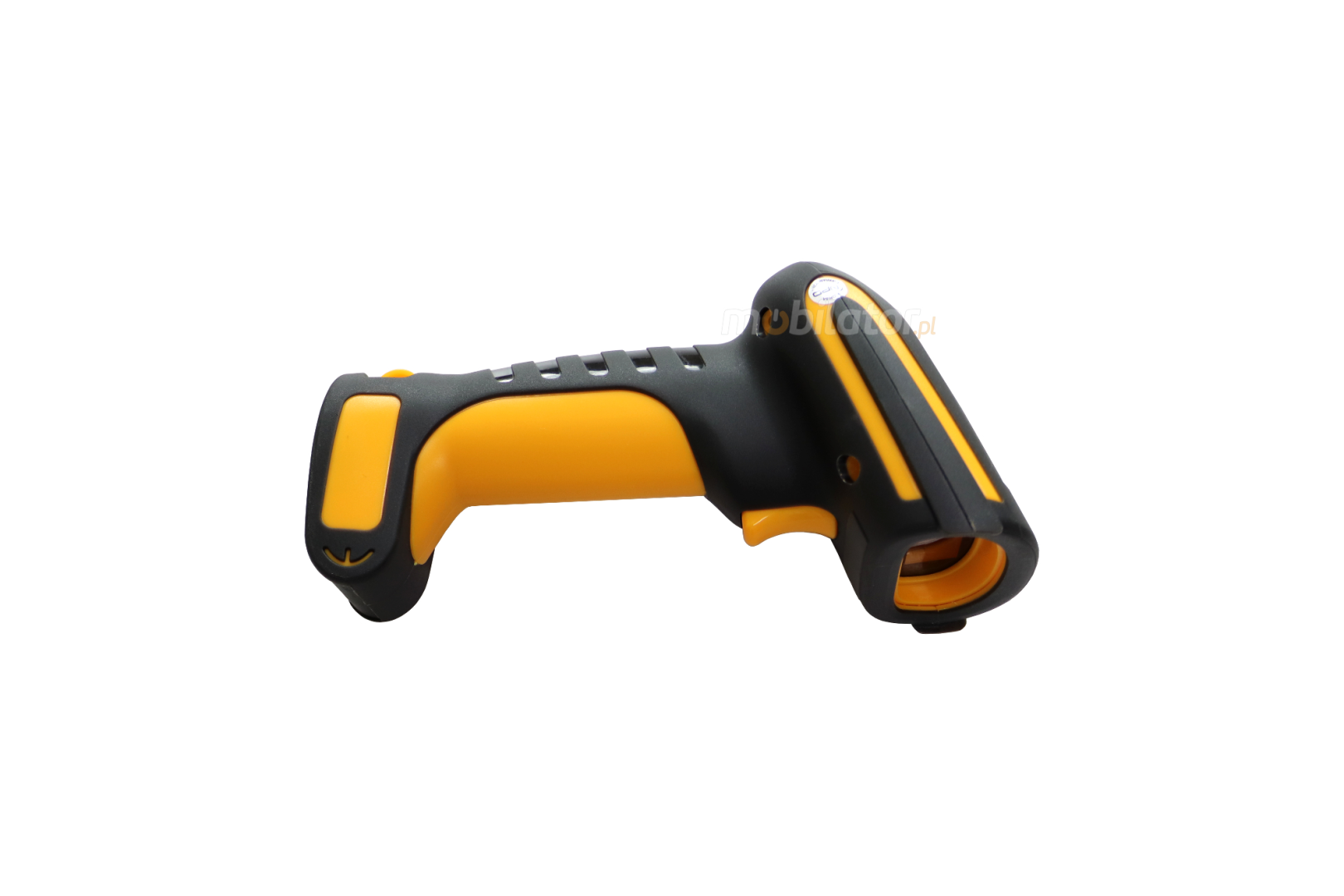

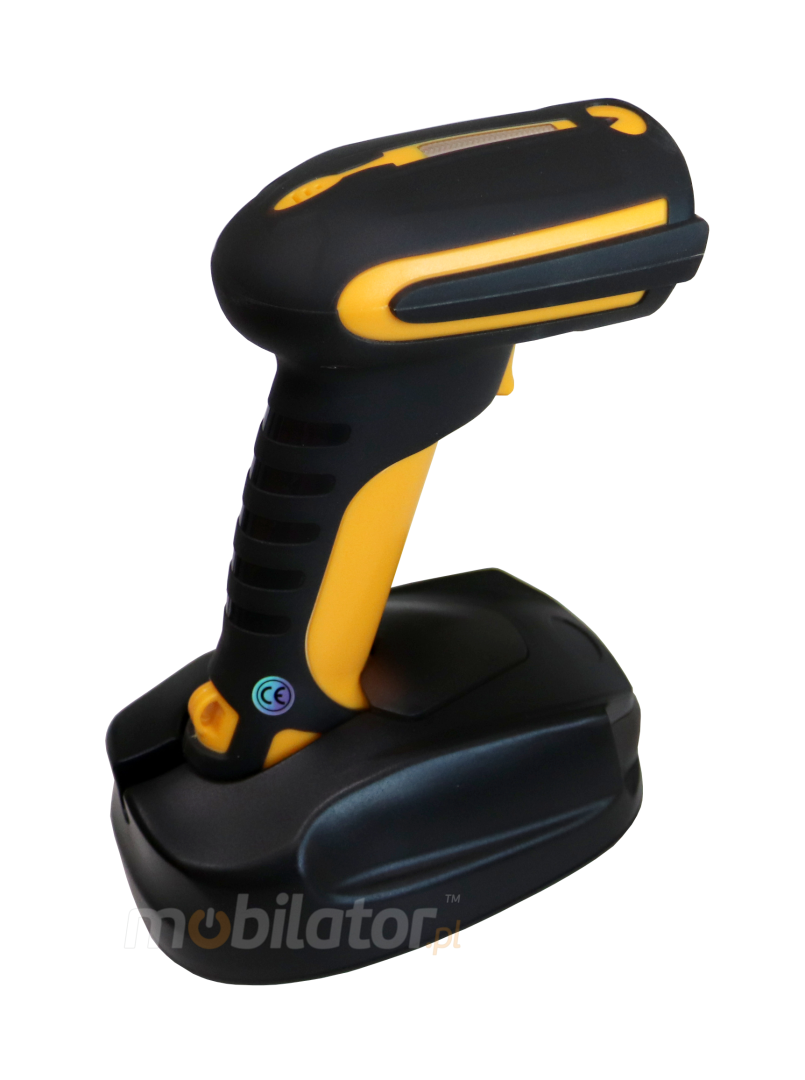

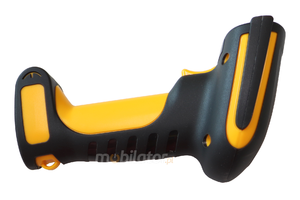

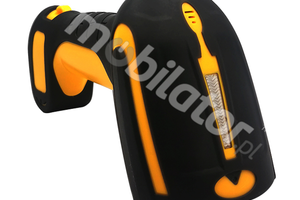

MobiScan QS-03S is ergonomic and powerful new generation barcode scanner.It design for picking and sorting application ,enable your operator to free hand and improve operational efficiency in your warehouse, distribution center and retail store. You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy pakage to the desktop for scan ,it will save more time and physical strength. Compare with common wired handheld scanner, MobiScan QS-03S wearable scanner can increase 15% -30% productivity !

MobiScan QS-03S intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers and logistics, quality controllers and inspectors of manufacturing processes and all those who need to work cataloging and storing the information read from the barcode .

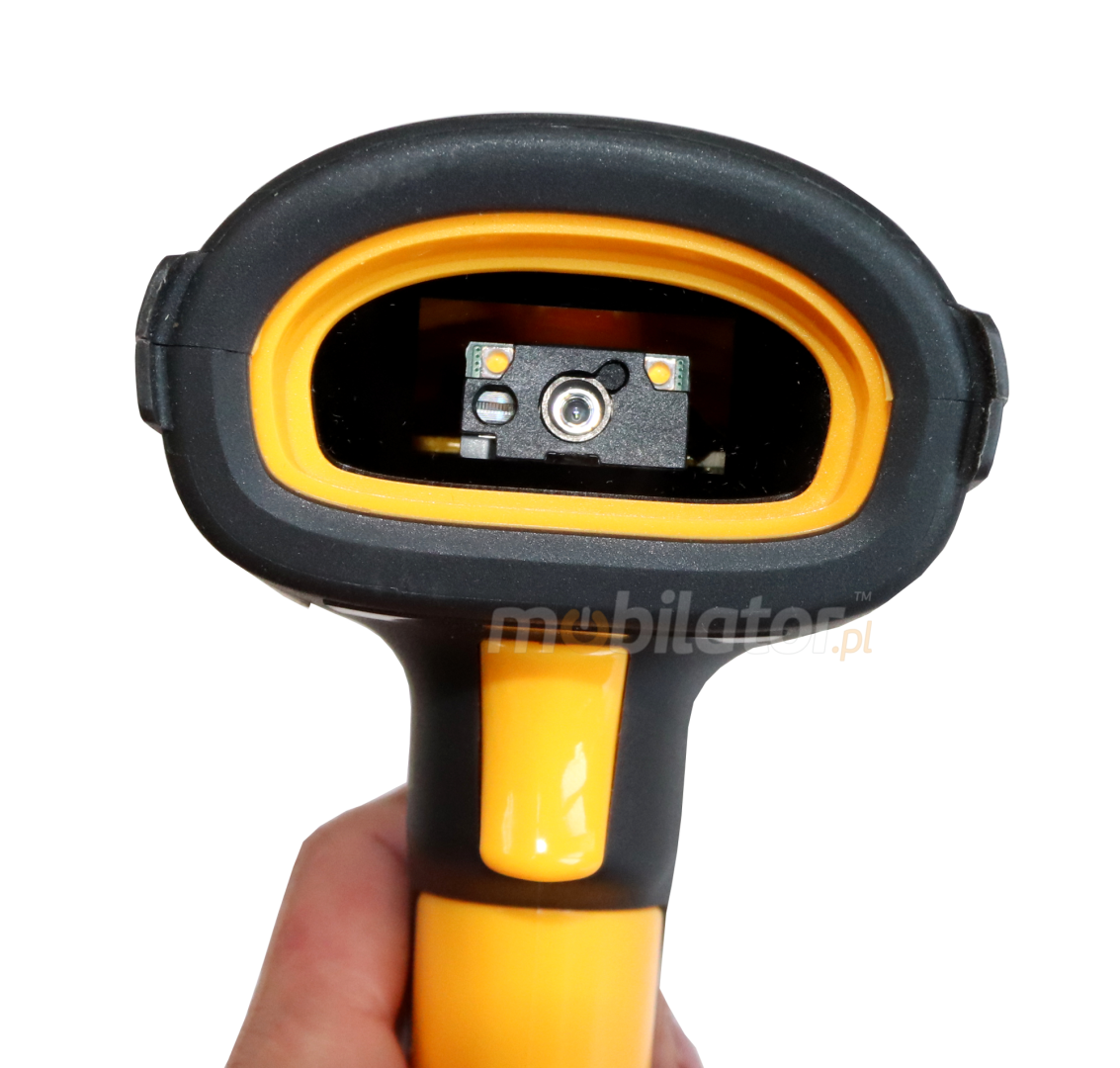

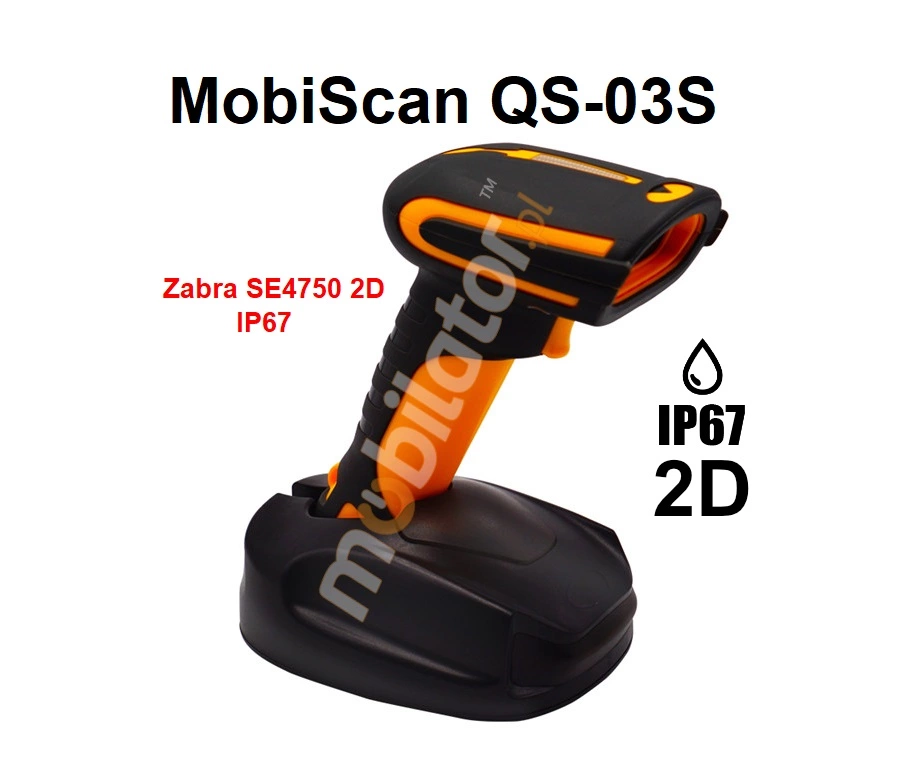

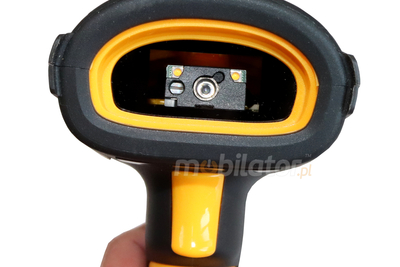

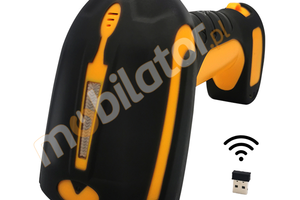

2D Zabra SE4750 Scanner - MobiScan QS-03S through Bluetooth module (which provides reliable communication) is compatible with mobile devices, data collectors and computers running on different operating systemch (see the text "Communication" - below).

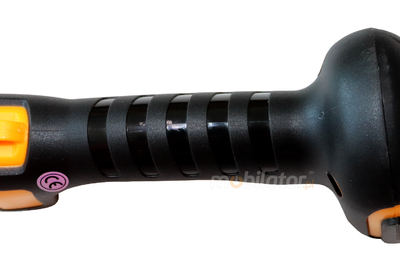

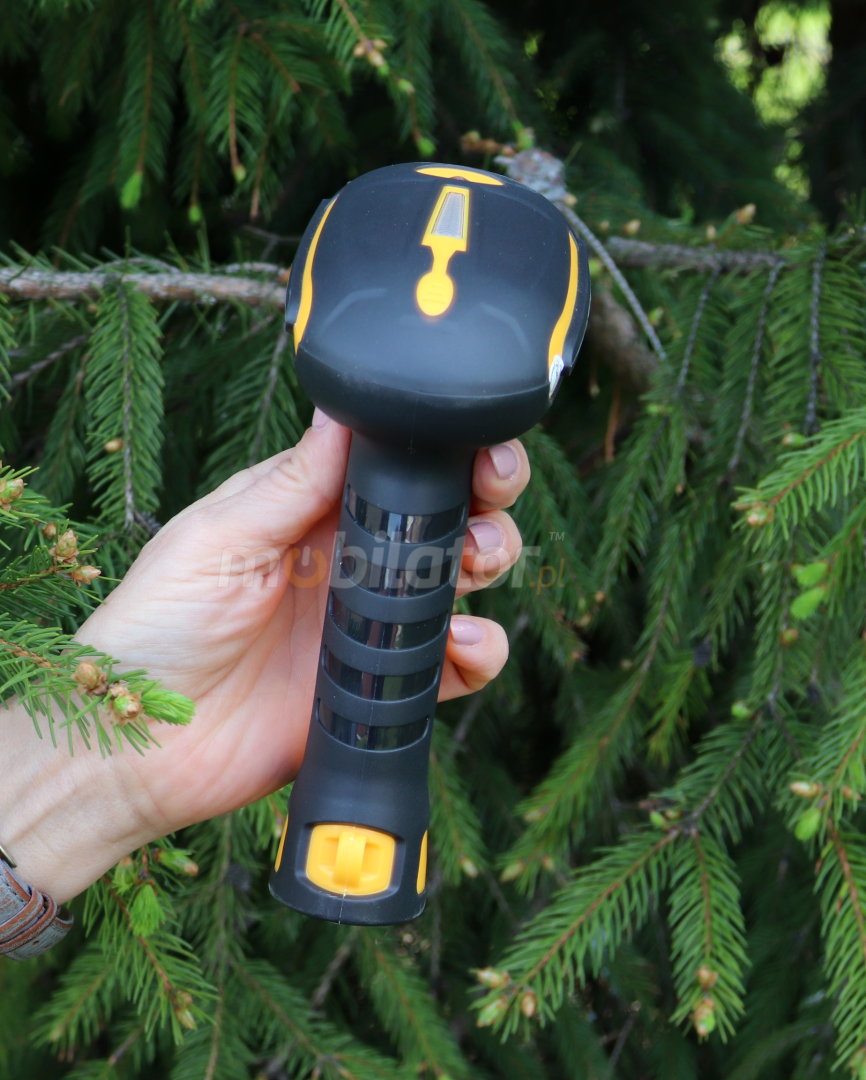

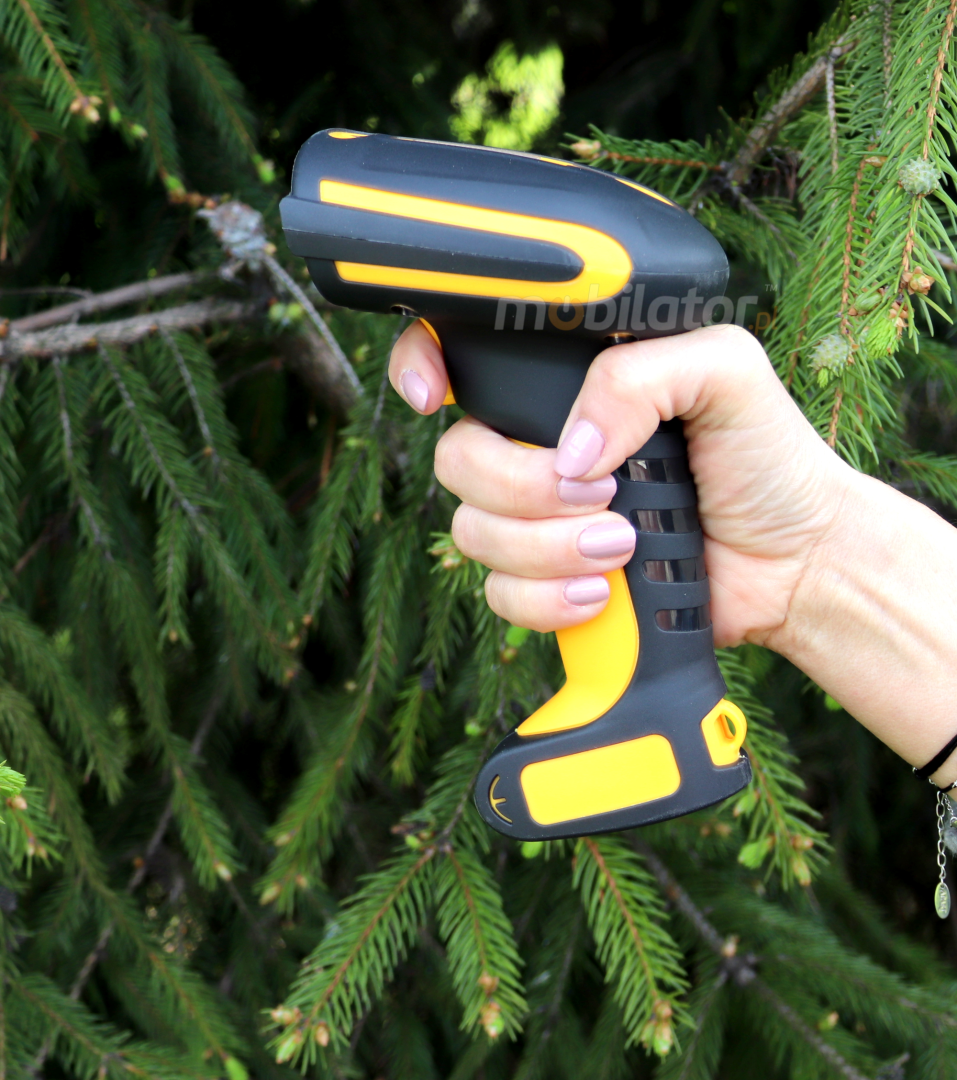

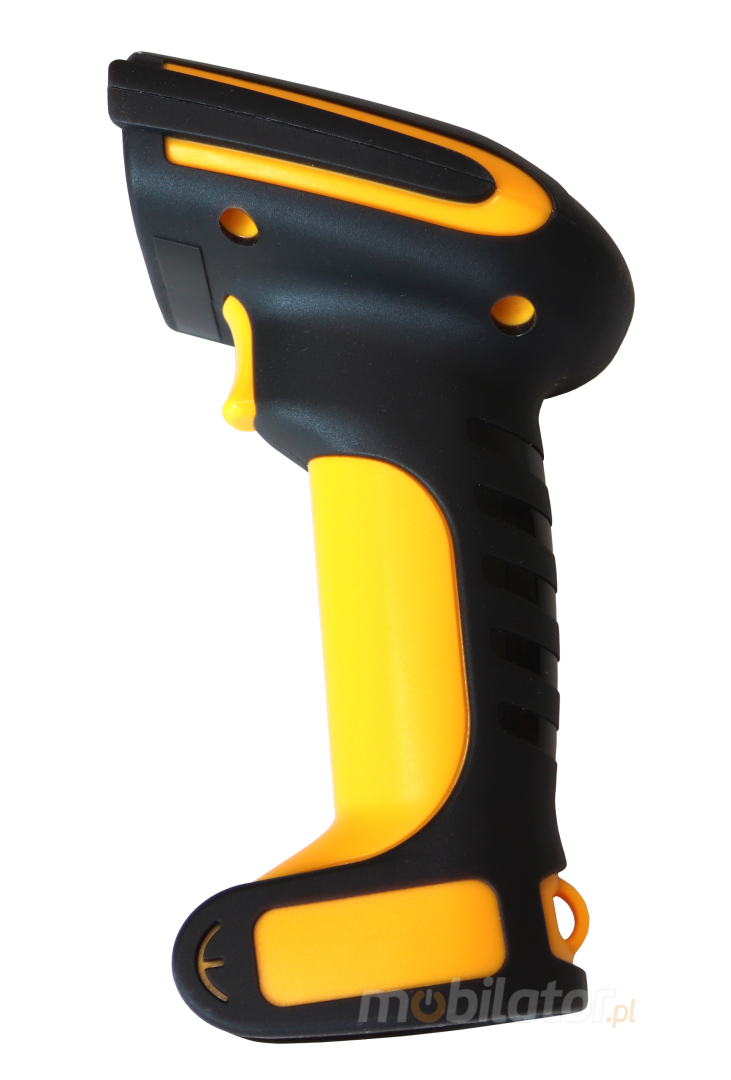

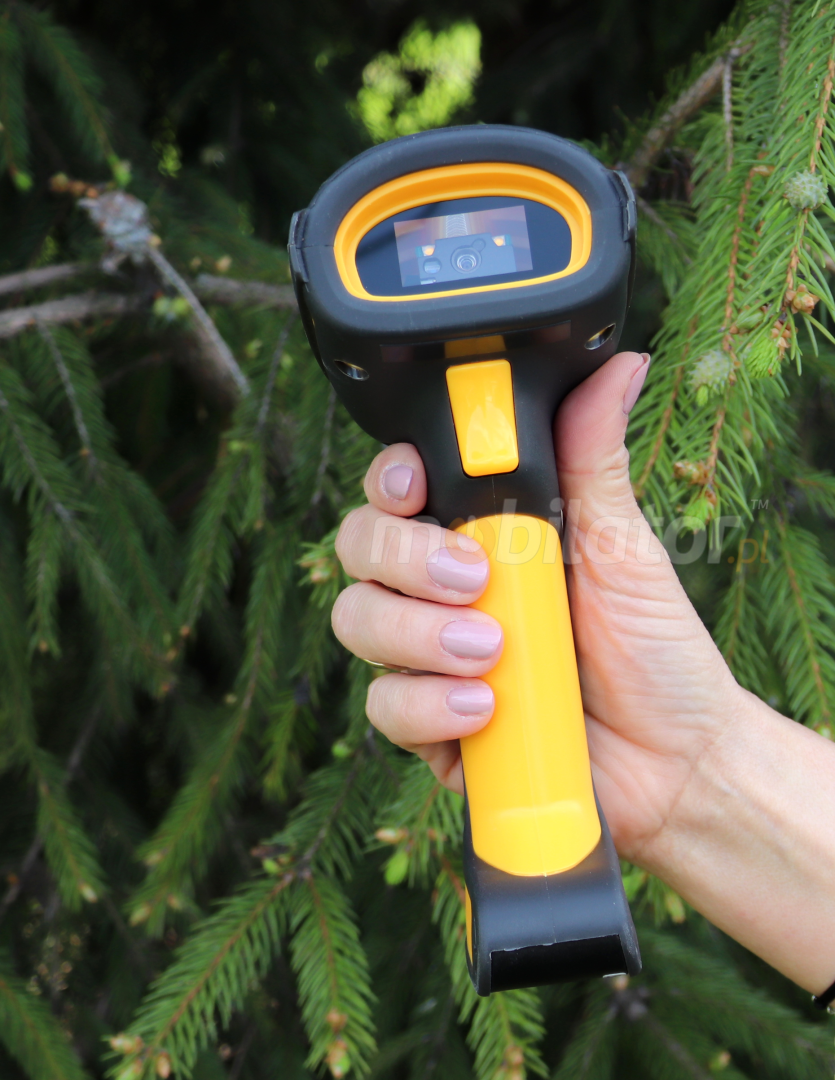

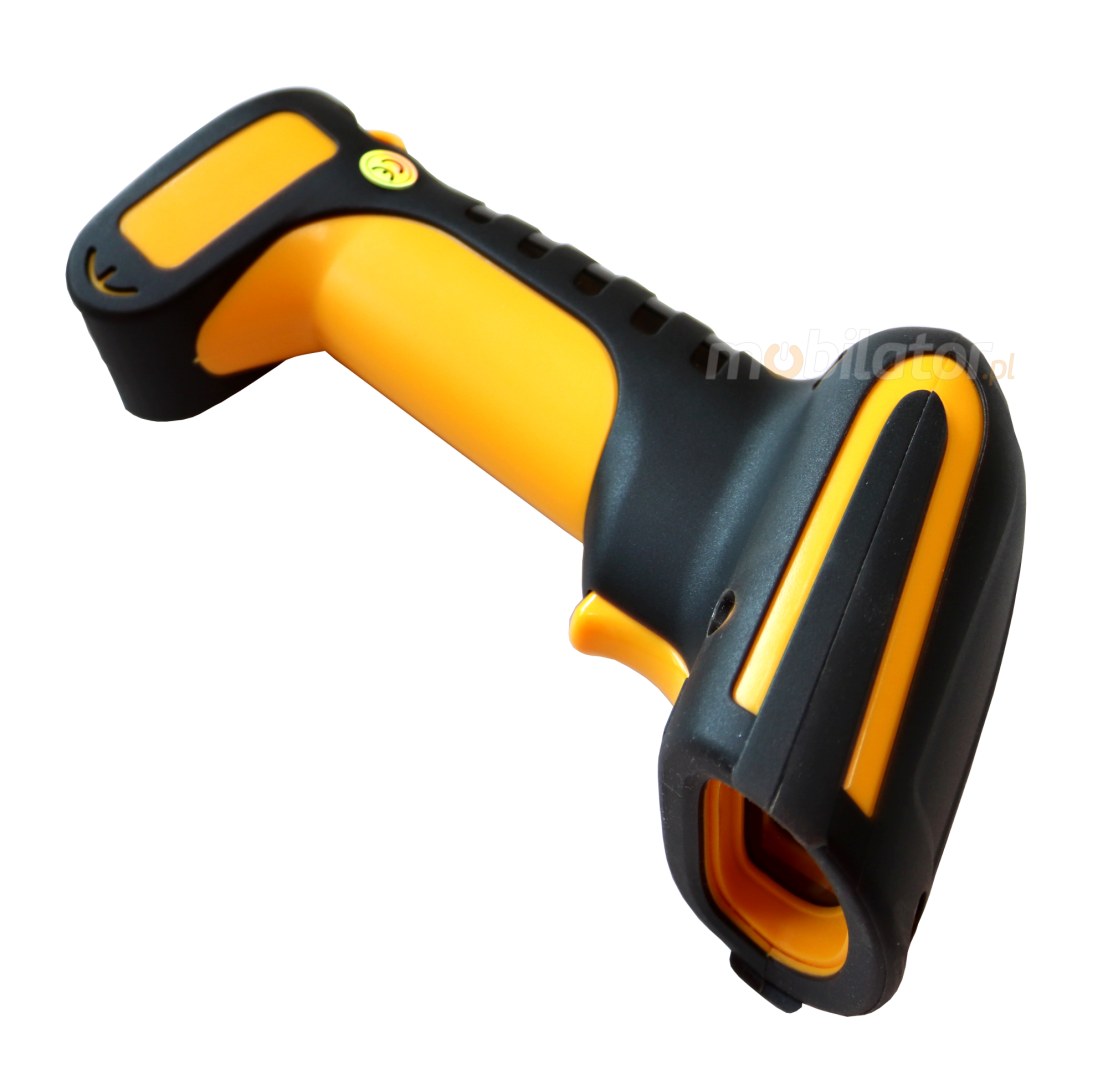

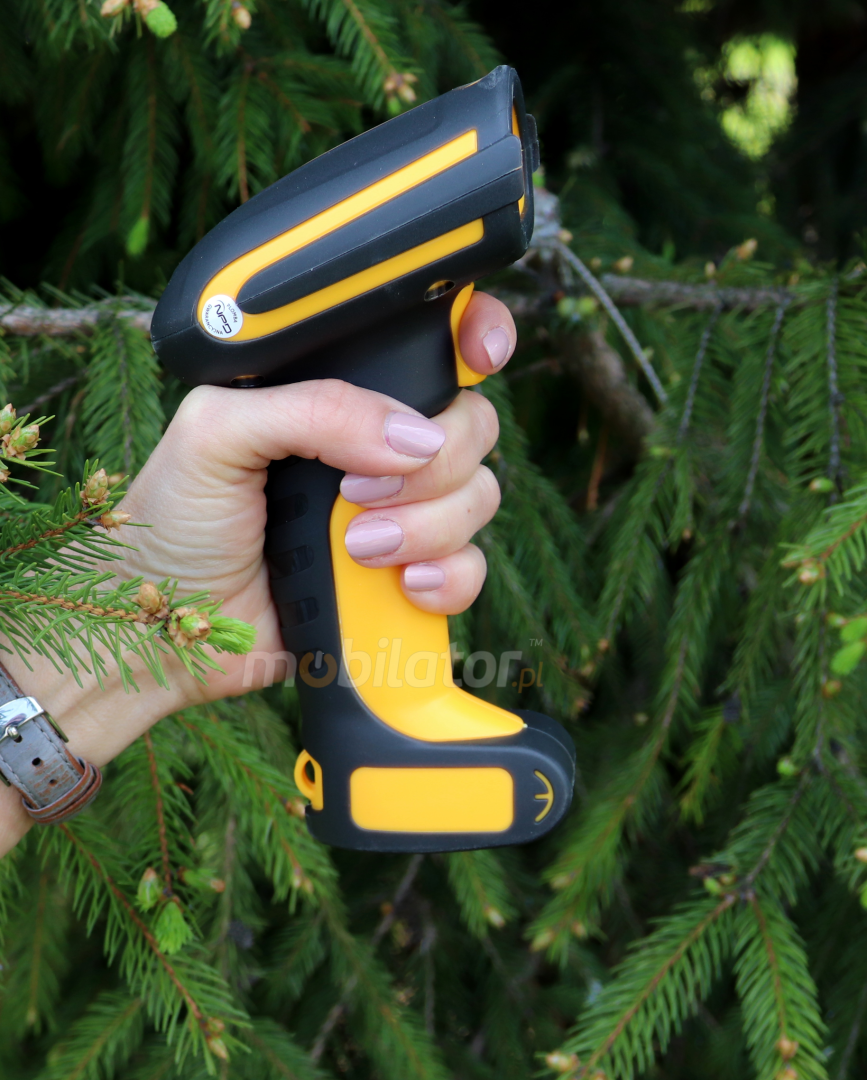

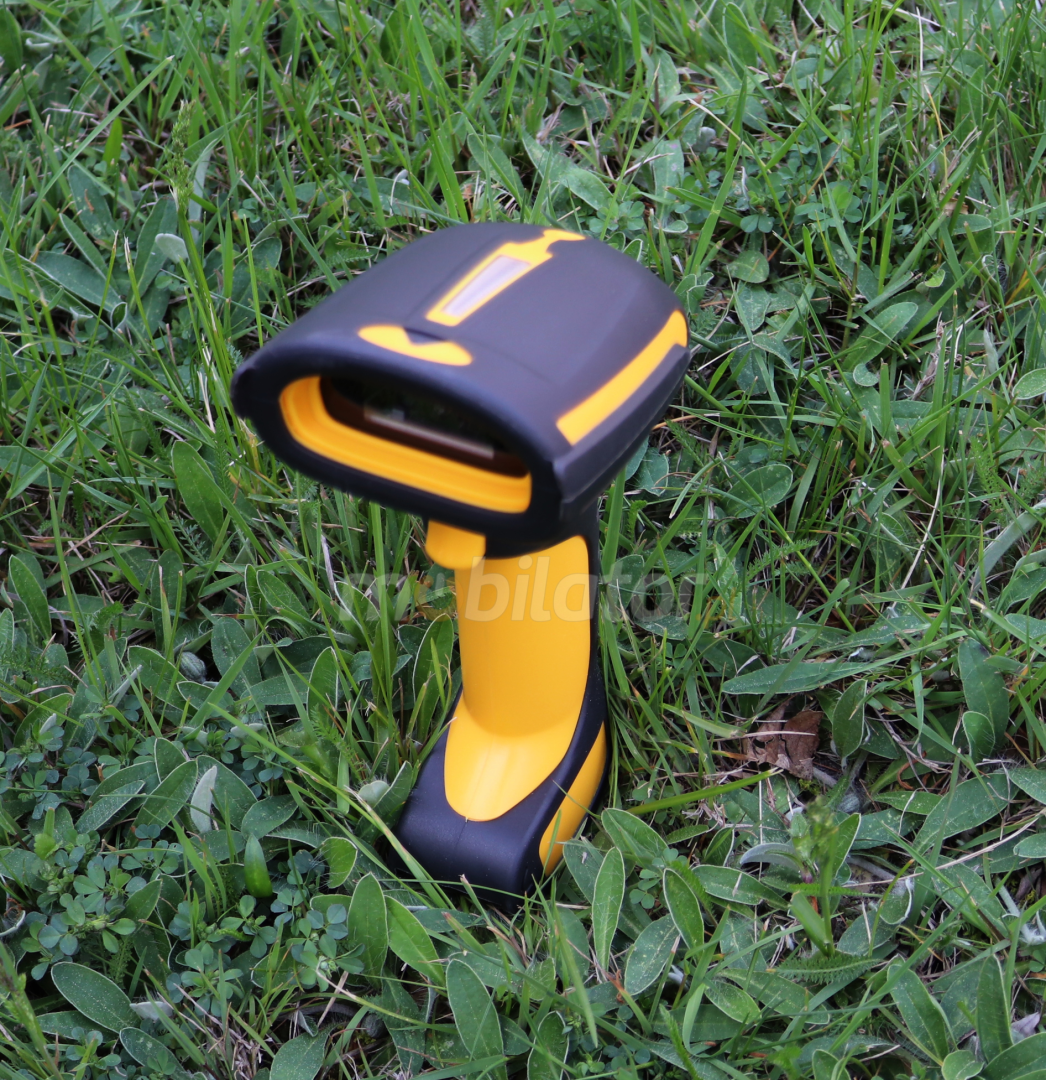

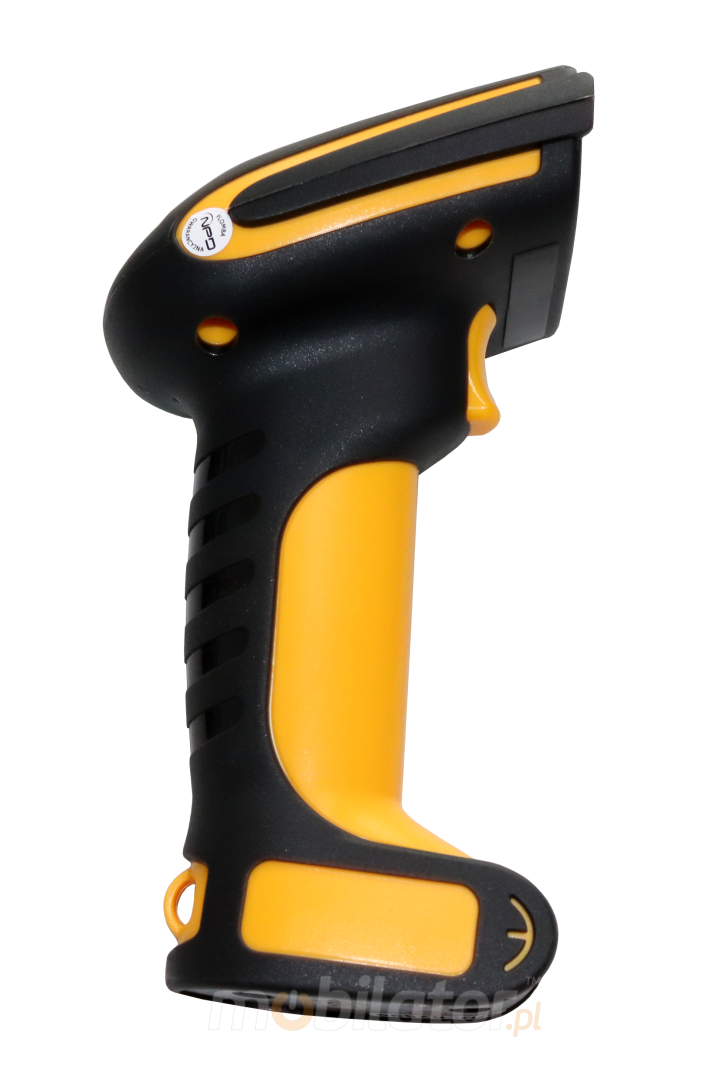

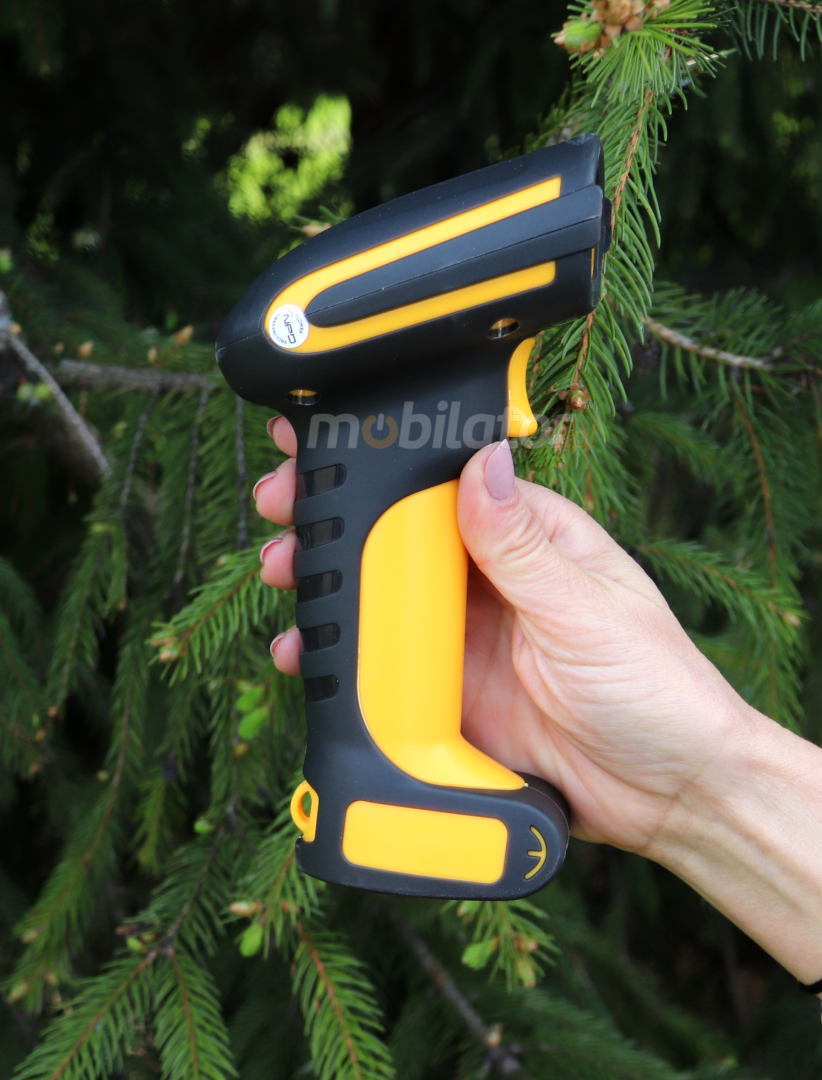

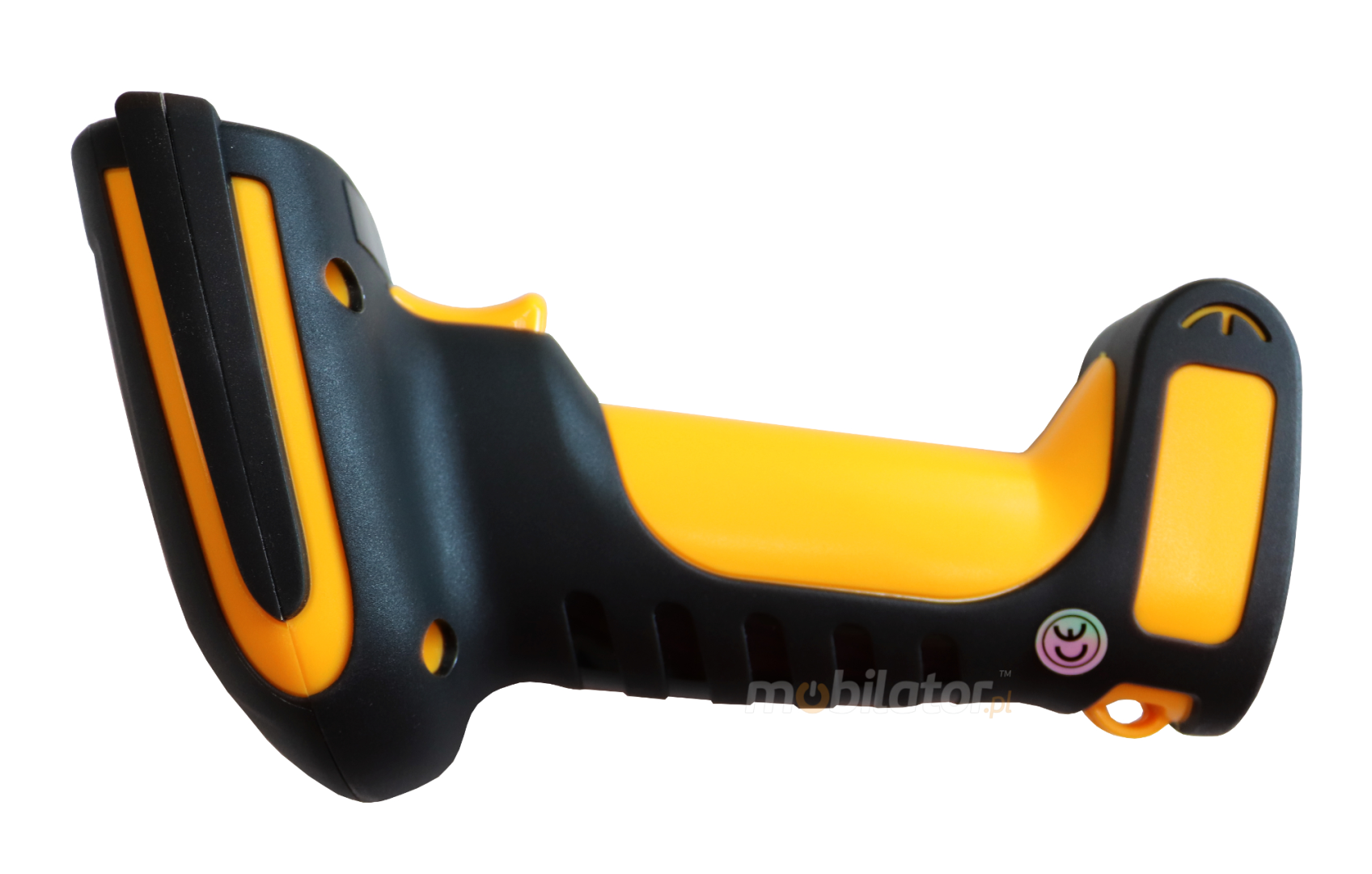

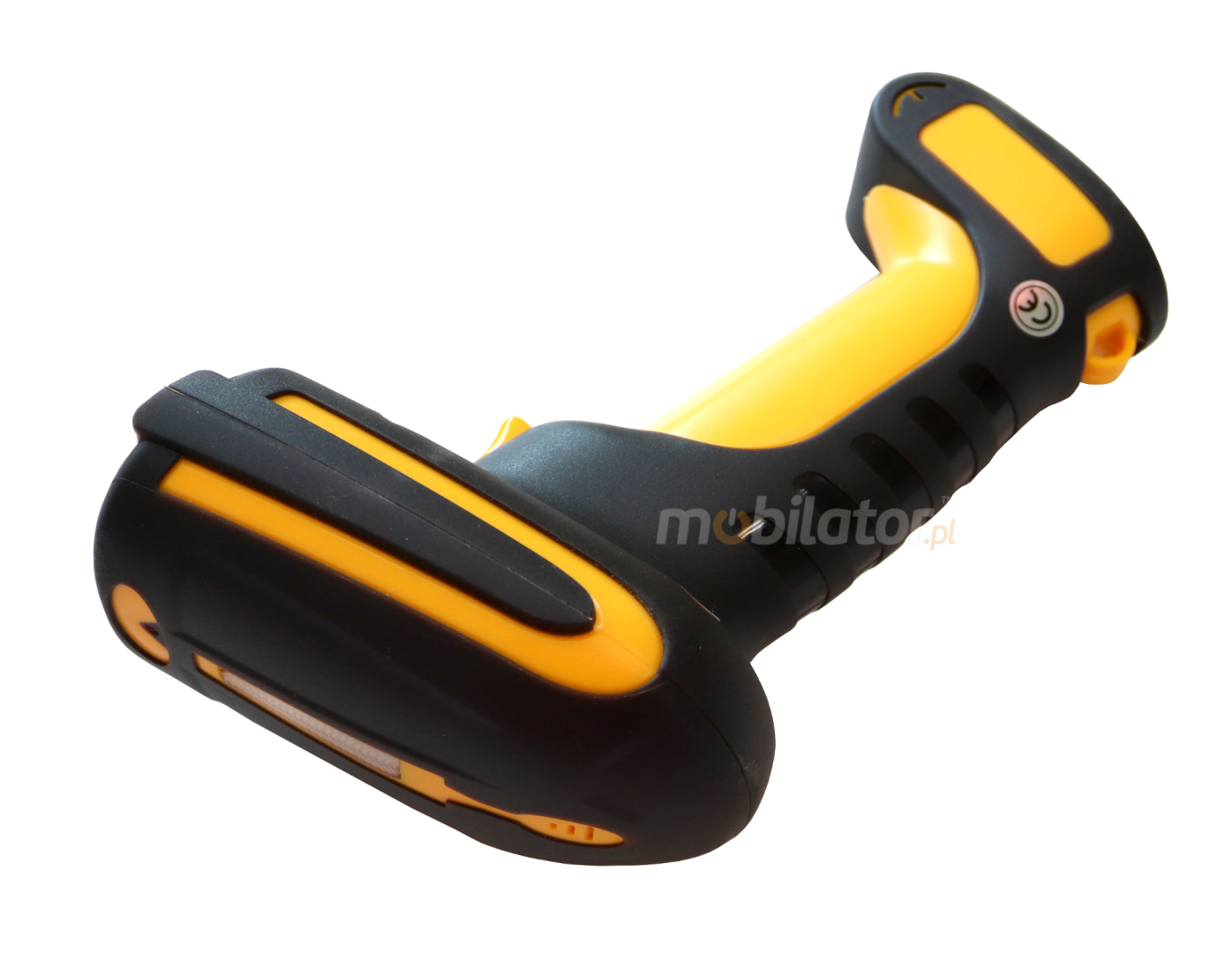

The portable scanner allows the operator to carry packages, products and materials, helping to increase productivity. It is very comfortable to wear throughout the working day, thanks to the high-performance laser scanning engine, you can read even a badly printed bar code. Durable rubber housing makes everyday use reliable even in the toughest conditions.

MobiScan QS-03s is equipped with a Li-Ion battery with sufficient capacity 2000mAh, which allows the scanner to work about 10h in scan mode (continuously working).

Communication

Designed to be tailored to different applications, wireless (Bluetooth) barcode scanner can be compatible with Android, iOS, Windows XP, Windows 7, Windows 8, Windows 10. Users can send data directly to a PC or in real time to mobile devices.

Portable (radio and bluetooth-arid) barcode readers using laser technology are comfortable and easy to use, with wide possibilities to set parameters. Enable automatic operation and manual. Read codes with different contrasts with a distance of several centimeters. The use of wireless communication (Bluetooth or radio) offer a range of up to 10m from the computer.

The device uses the HID interface

To scanner devices need to use the right software to a Bluetooth port collect data and display them in window of the user. The scanner is connected to the USB port and working in the so-called POS mode needs further appropriate driver, which once installed in the system creates a virtual port number specified - the so-called virtual COM port driver.
Most of the users is a (mistaken) belief that each scanner connected to a computer will send data, which can be further processed such as Notepad or MS Word. That's not true.To do so, use the scanner with the so-called keyboard emulation - connected to a computer via USB, but the scanner must be working in a standard USB HID (Human Interface Device) otherwise known as Low Speed ​​USB also. In this way the data is sent to the computer in exactly the same way as does a USB keyboard. Hence the term emulation keyboard.
If we have the right scanner (USB HID) - when barcode in fact our  introduce to Word or Notepad in the form of digits or in any place where we can place the cursor or wpiswać text data. Scanners USB HID usually do not require additional drivers, as the drivers for HID devices are standard in Windows.

Supported Bluetooth profiles SPP system.

SPP defines how to set up virtual serial ports (RS-232) and connect two devices via Bluetooth. SPP is a serial port profile. It is used in various devices (eg PC, GPS, industrial equipment).

Wireless barcode scanner works as a Bluetooth master (supporting SPP - Serial Port Profile). When paired with a computer or mobile device, the bar code can be read using a software virtual serial port (RS232 or COM port). This allows the device one can to both send and receive data via Bluetooth without connecting a serial cable to your computer .

Application

Compliance standards and tests performed  Work 0°  do 50°C Humidity 5% do 90% (No condensation)  Dust IP6x (dust)  Water IPx7  Drop Multiple Drop 3m go top… menu… Resistance IP67 Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.  do góry… menu… The first digit [x] Protection against solid objects Protection Level The second digits [y] Protection against liquids No special protection No special protection Protection from solid objects greater than 50mm in diameter Protection from dripping water Protection from object not greater than 12mm in diamete Protection from vertically dripping water (tilted up to 15°) Protection from object not greater than 2,5mm in diameter Protection from sprayed water (tilted up to 60°) Protection from object not greater than 1mm in diameter Protection from splashed water Complete protection against contact, Protection against dust deposit Protection from water projected from a nozzle Complete protectionm against contact, Protection from infiltration of dust Protection against heavy seas, or powerful jets of water   Protection against immersion   Protection against complete, continuous submersion in water do góry… menu…

MobiPad QS-03S - barcode scanner 2D - Ring - Bluetooth which the manufacturer recommends widely used in situations where it is necessary to rapidly identify the goods in commerce, logistics, transport, shipping, industrial, financial and public sectors.

Accessories

The MobiScan QS-03S comes standard with battery and Bluetooth 4.0

Application

Pharmacy   It enables quick identification and entering of prescriptions into the database, which increases the efficiency of orders received.

Trade   The device used to quickly read bar codes. Certainly can be applied to any kind of trade.

Magazine Barcode reader allows you to quickly update the inventory with the help of Bluetooth wireless data transfer.

Logistics and transport Scanner certainly will also use all kinds of transport as a barcode reader to help you quickly identify the goods.
