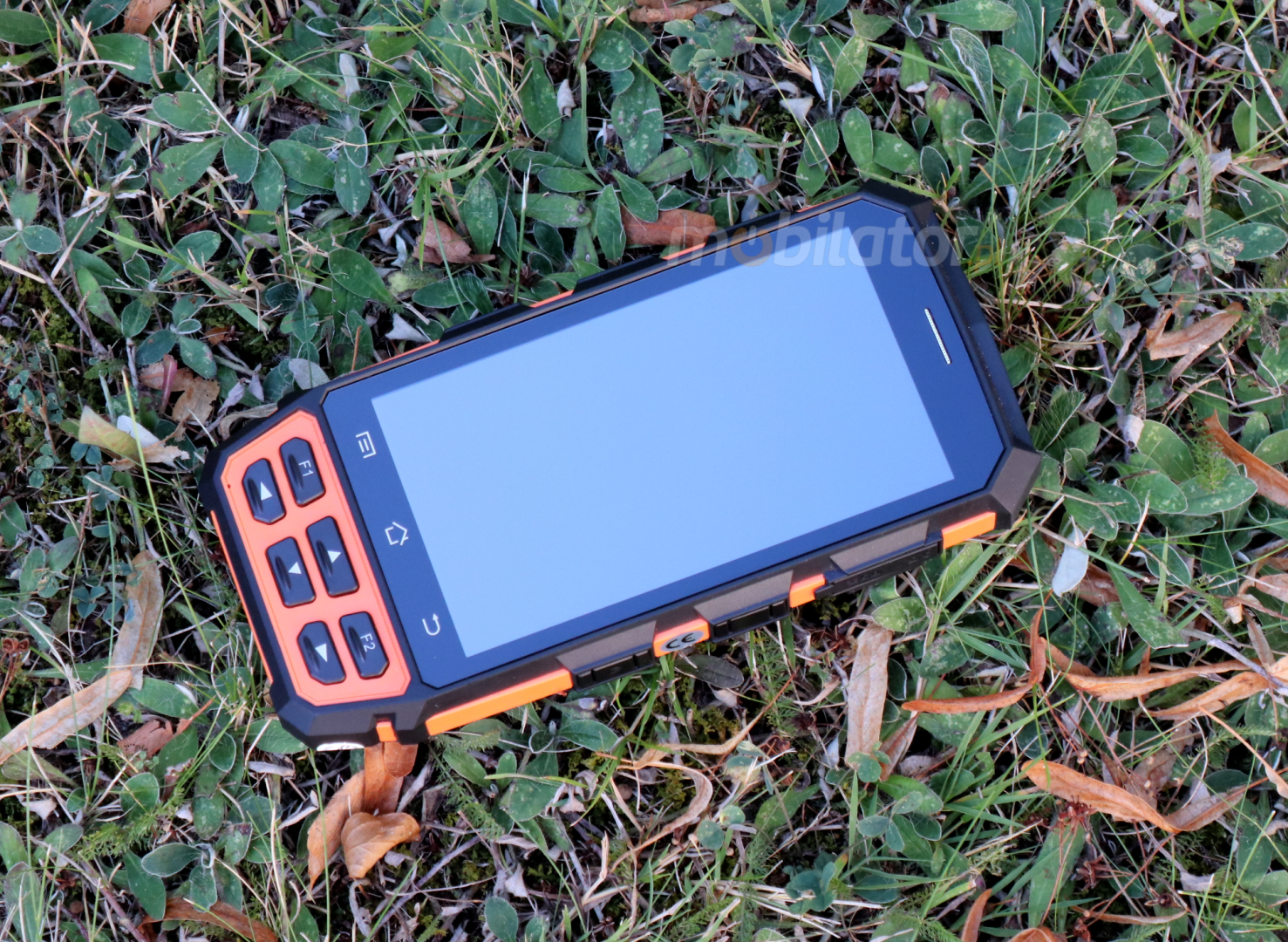

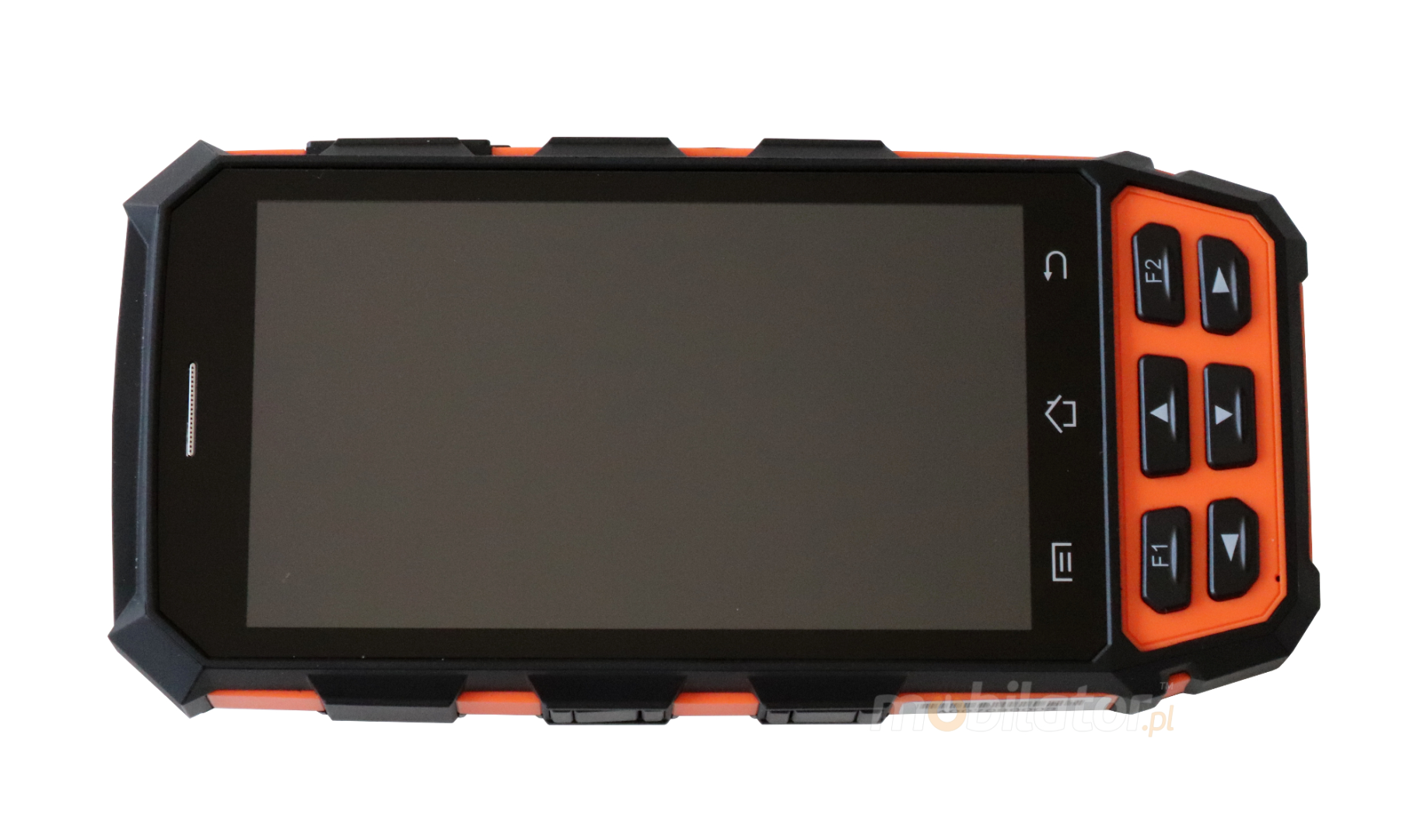

Small dimensions industrial MobiPad C50 excel in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. Small and reliable umpc use heat-pipe technology and plastic fins for passive cooling. The robust industrial laptop is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.
| Performance | |
|---|---|
| Processor | Cortex A53 - 1.3 GHz Quad Core |
| Operating system | Android 7.0 |
| RAM | 2 GB |
| Drive | 16 GB eMMC |
| Interfaces | |
| Connectivity |
Wi-Fi IEEE (802.11 a/b/g/n ; 2.4 GHz/5GHz) Bluetooth 4.0 |

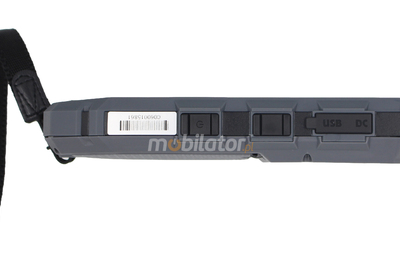

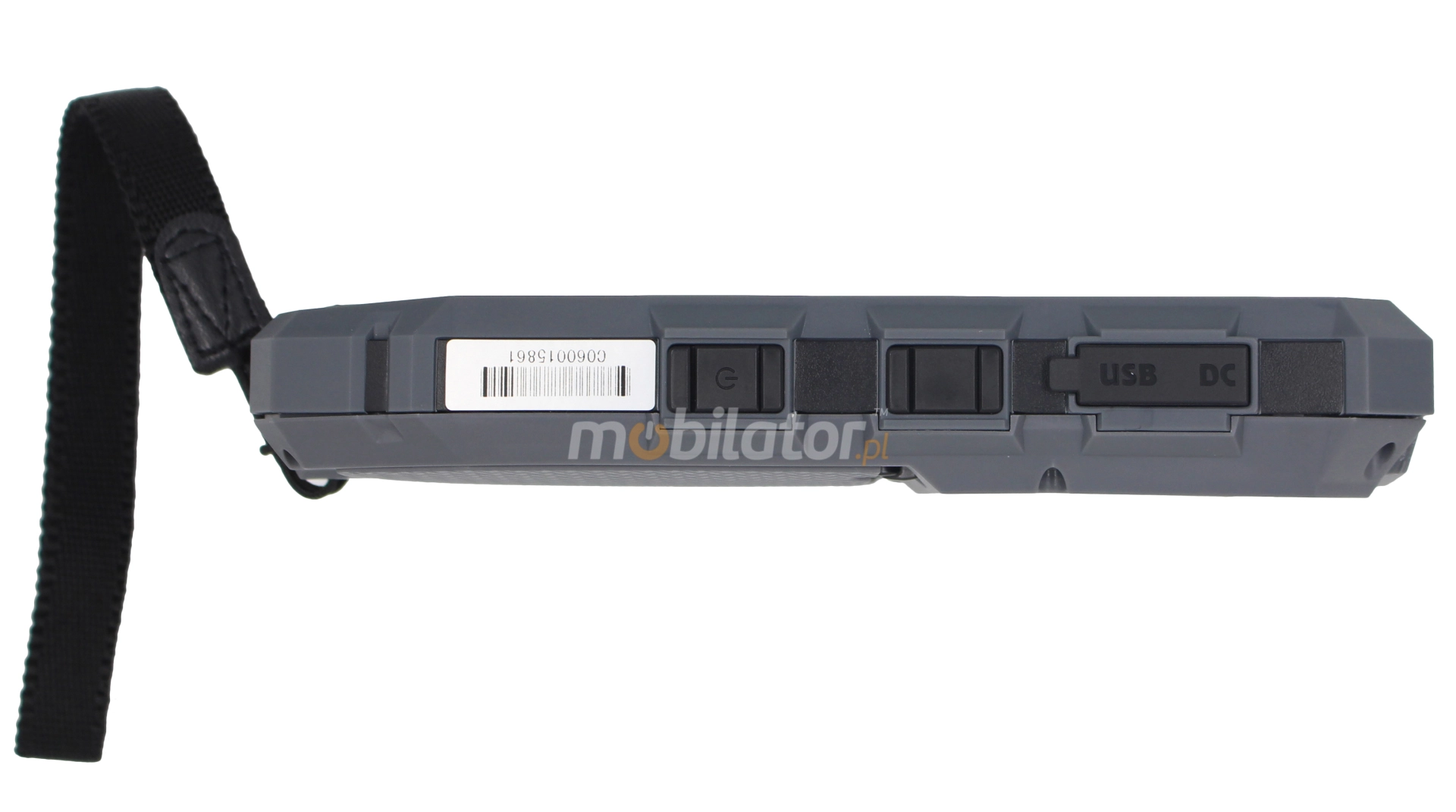

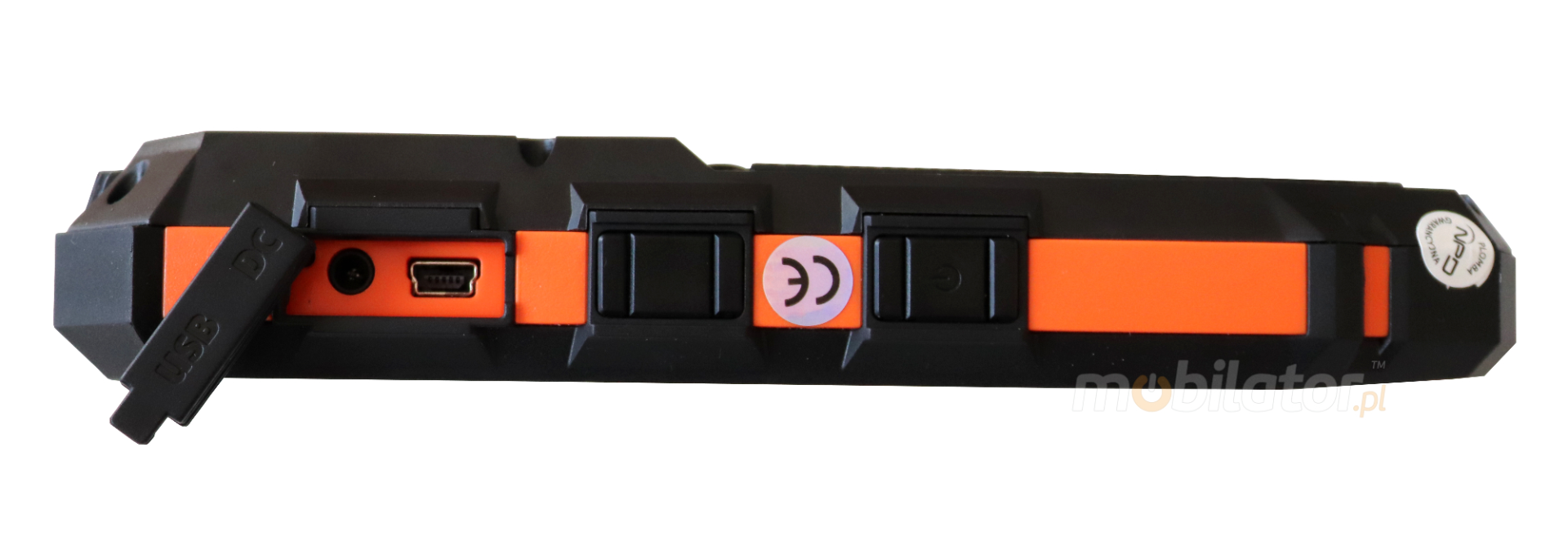

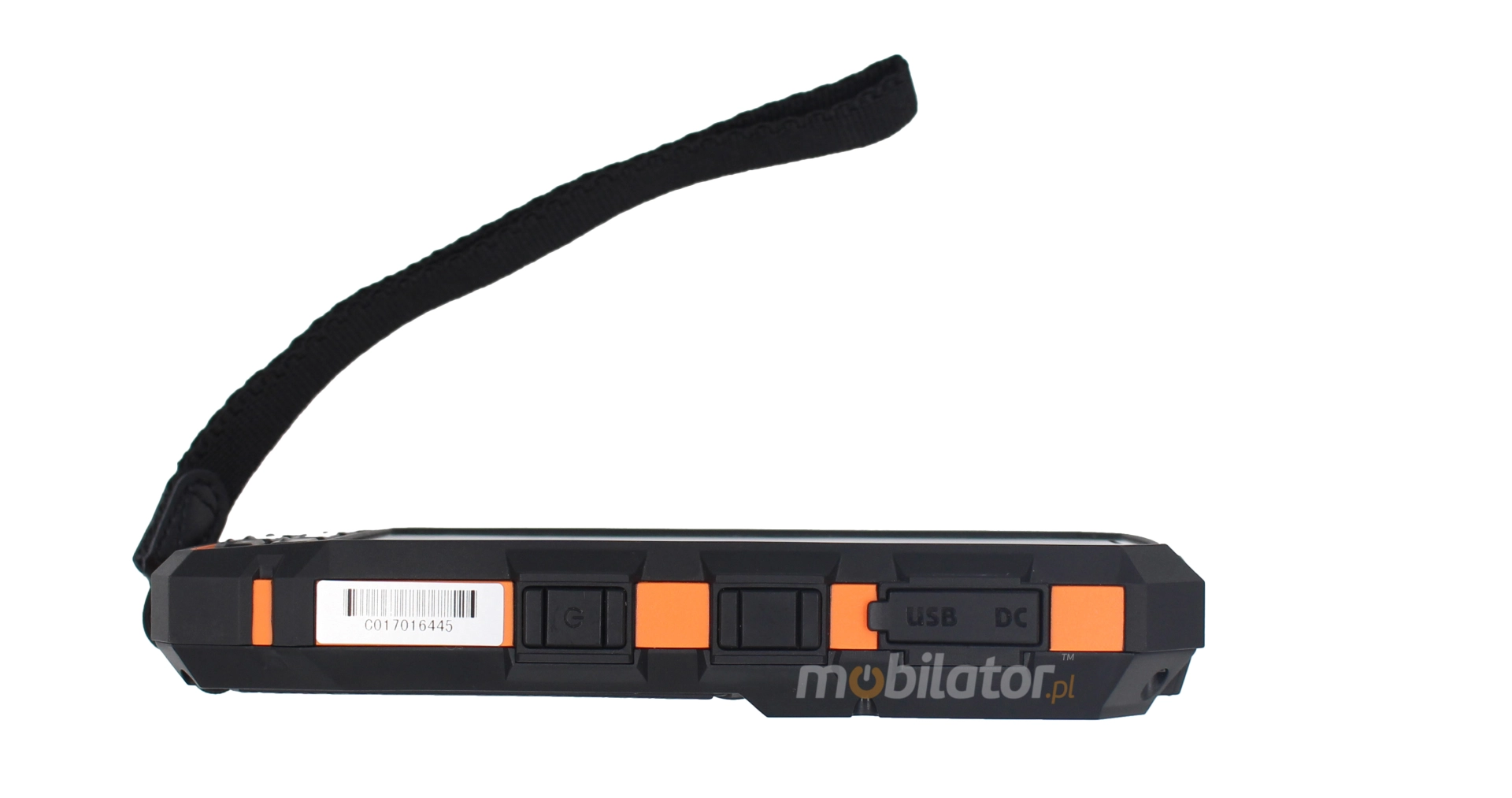

| Connectors |

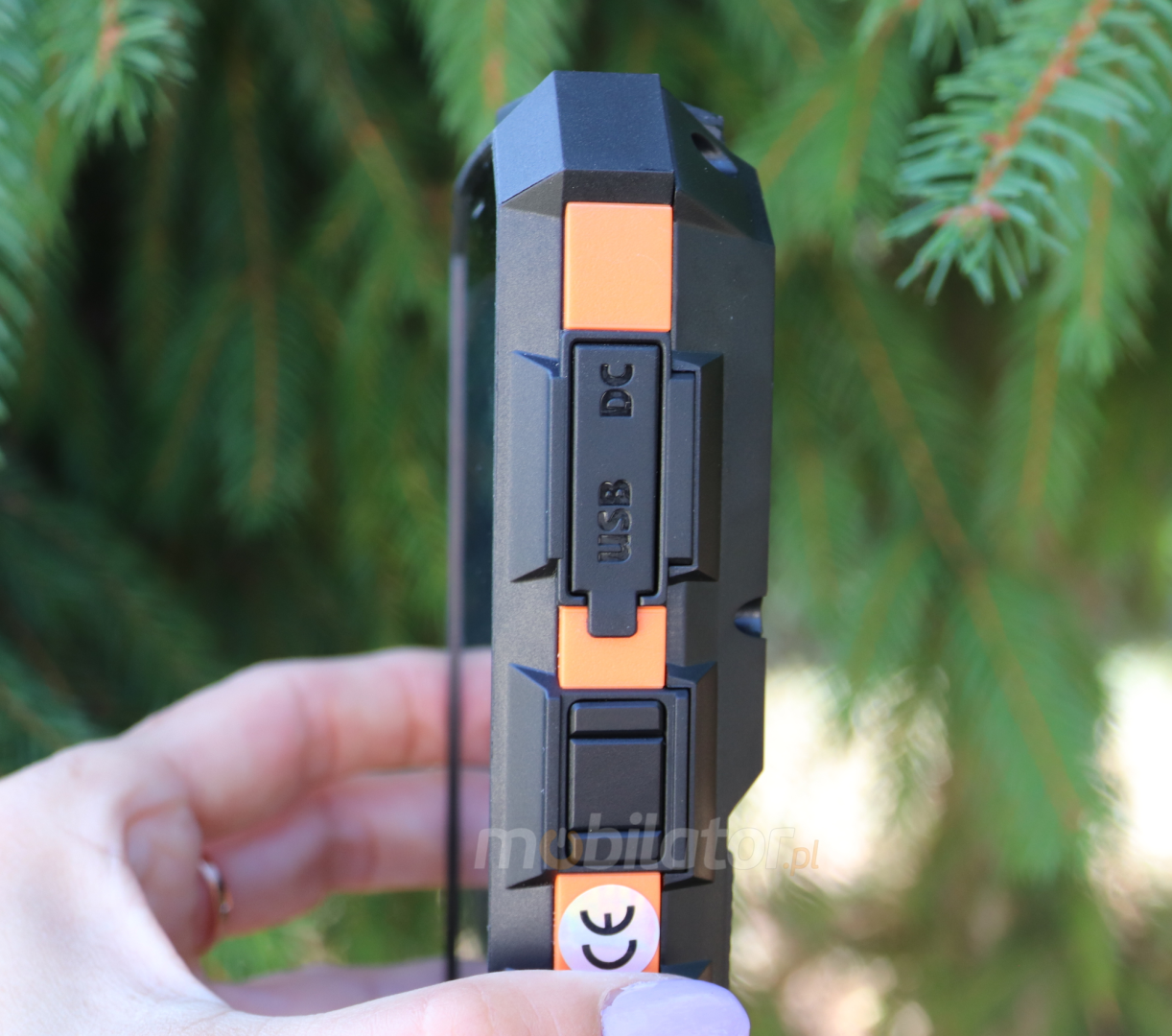

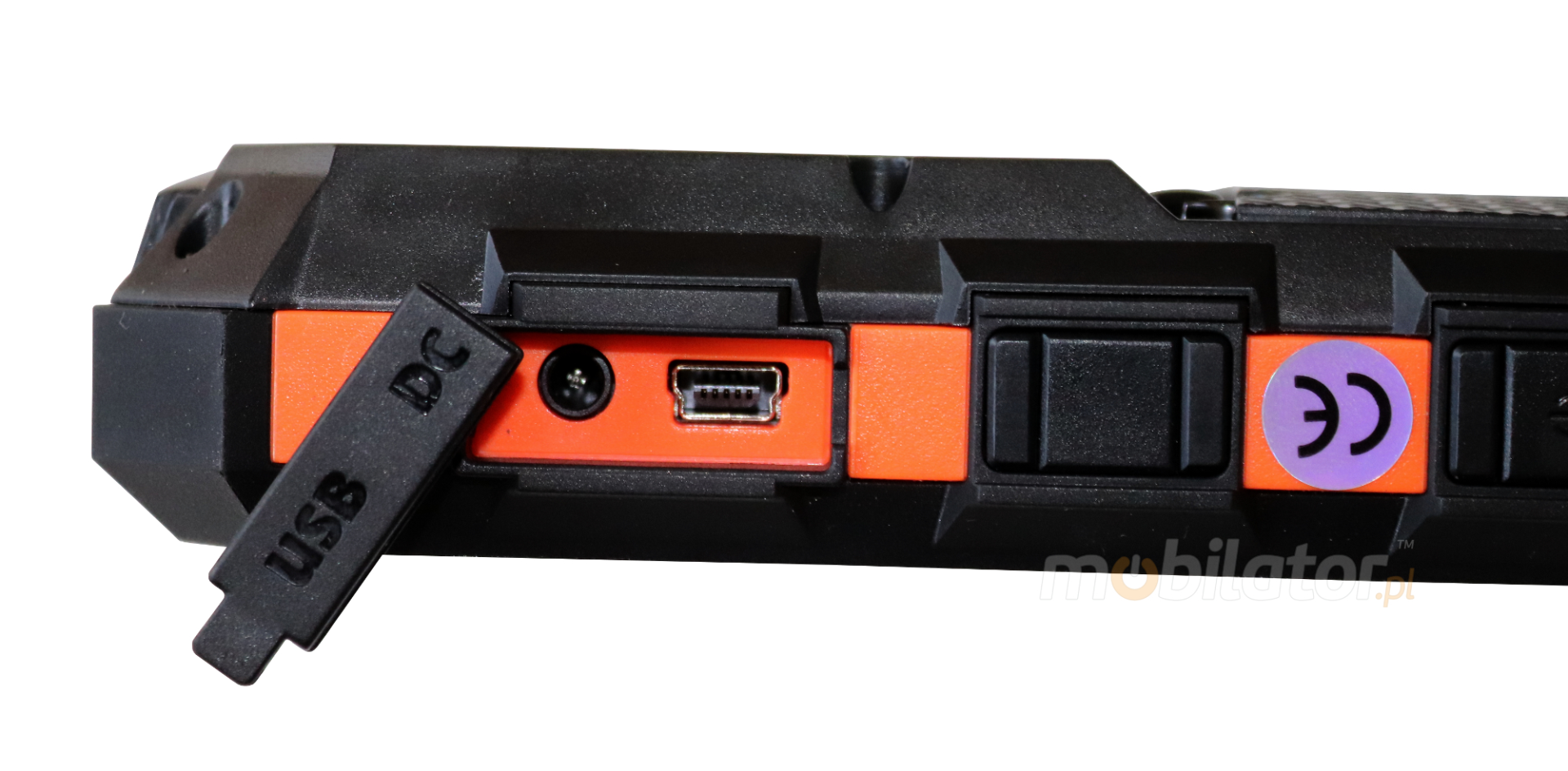

1x Sim card slot 1x USB

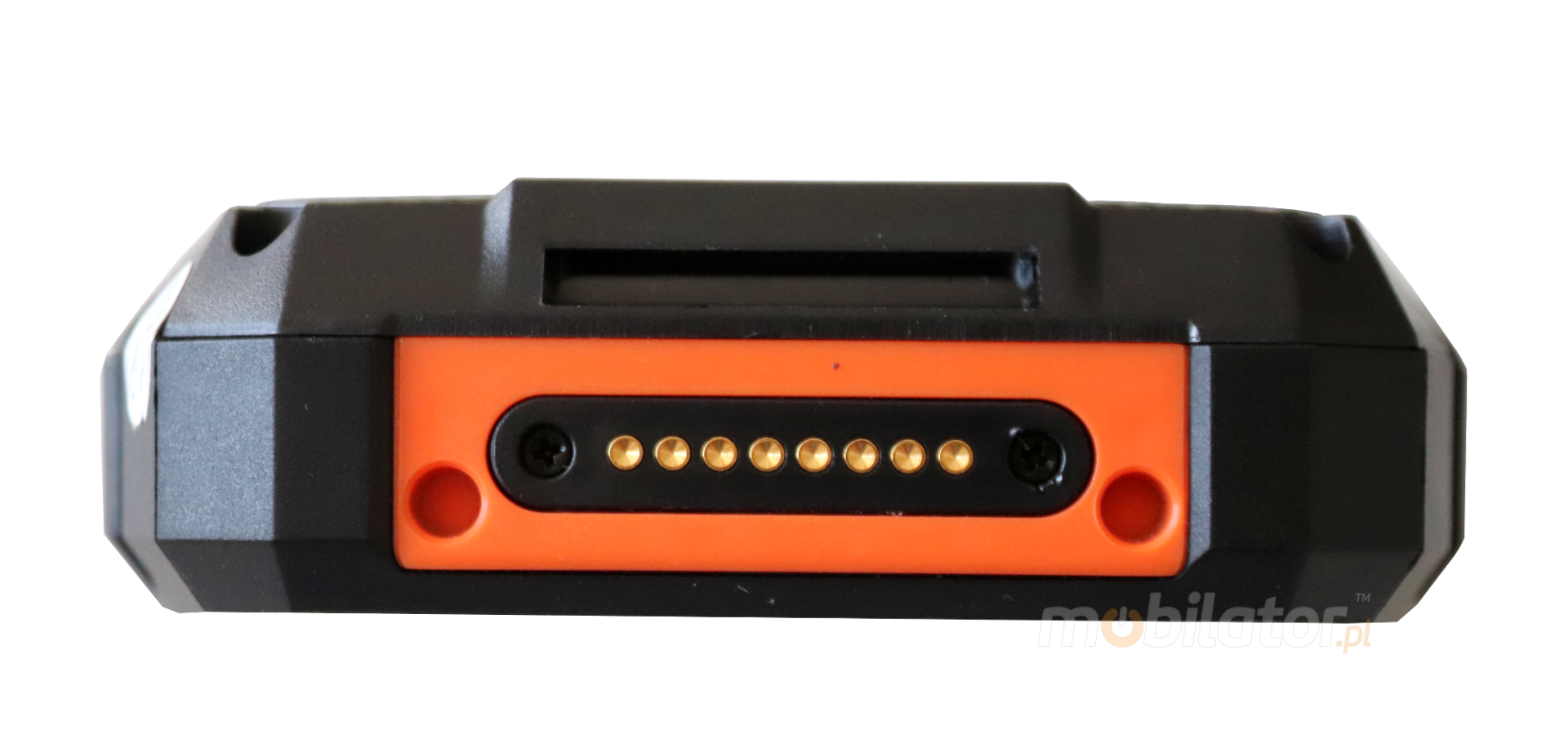

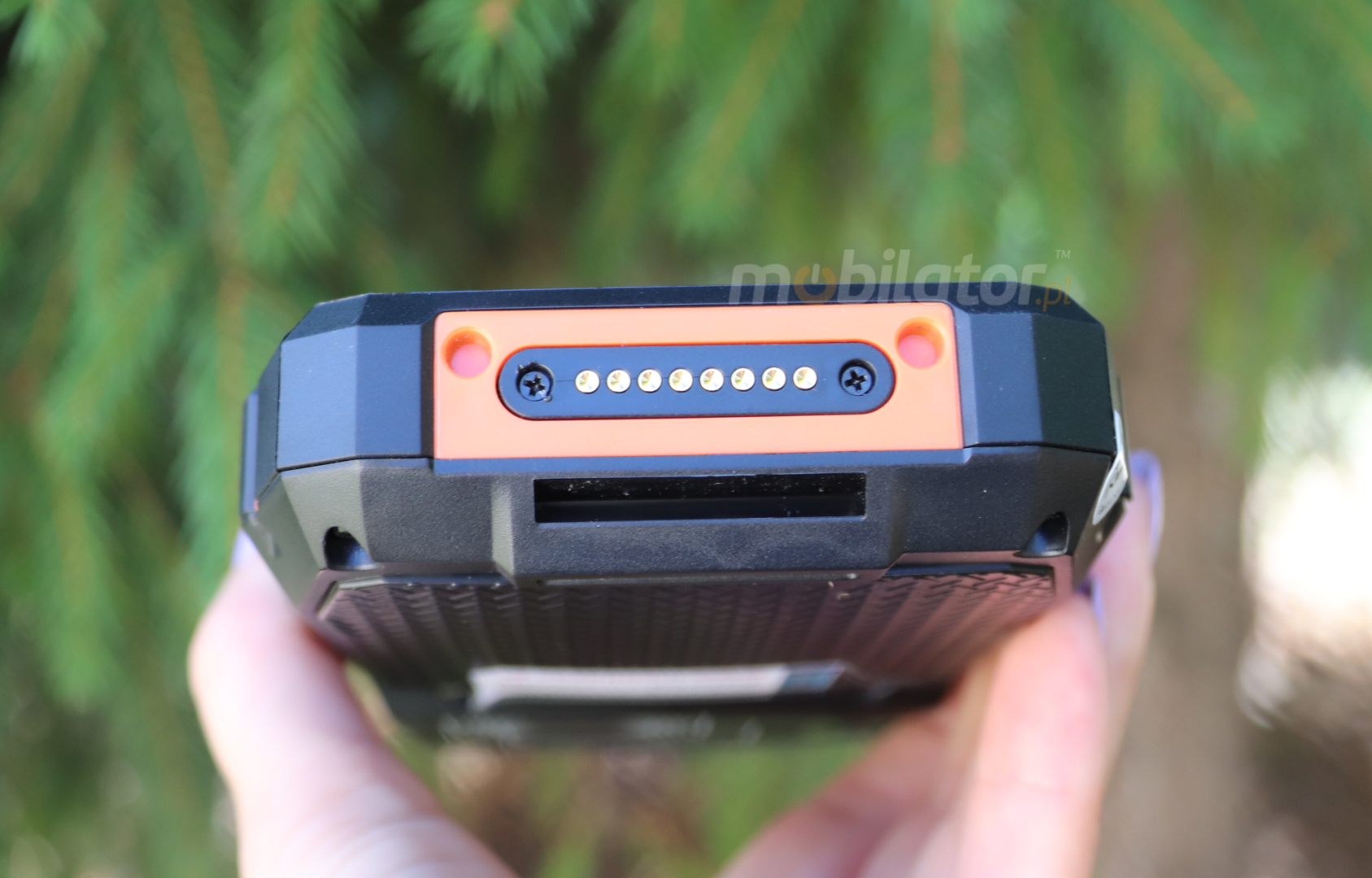

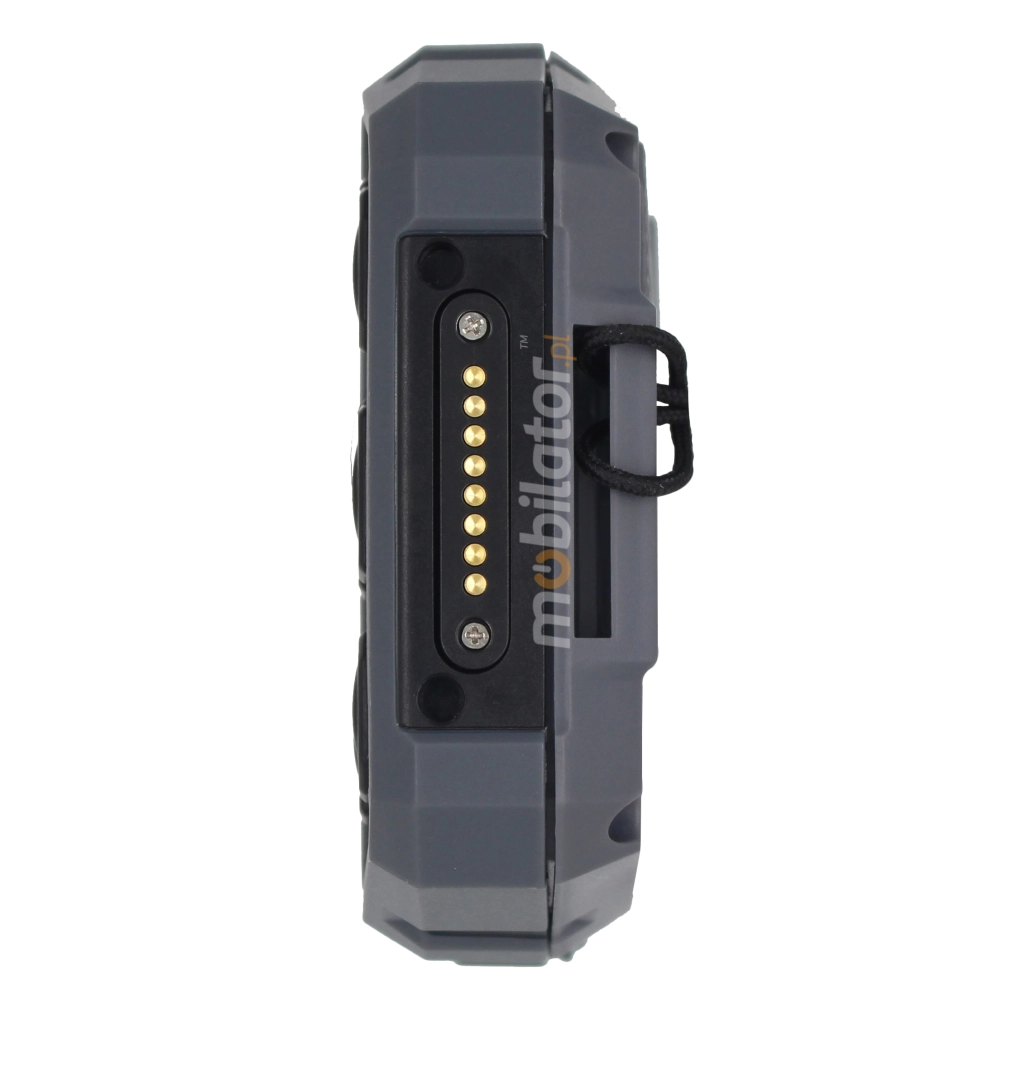

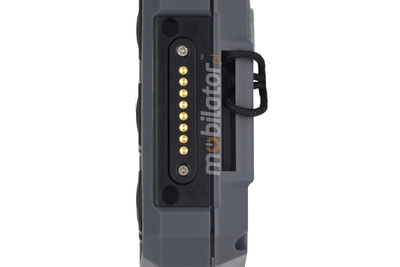

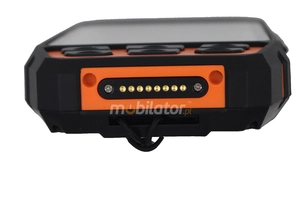

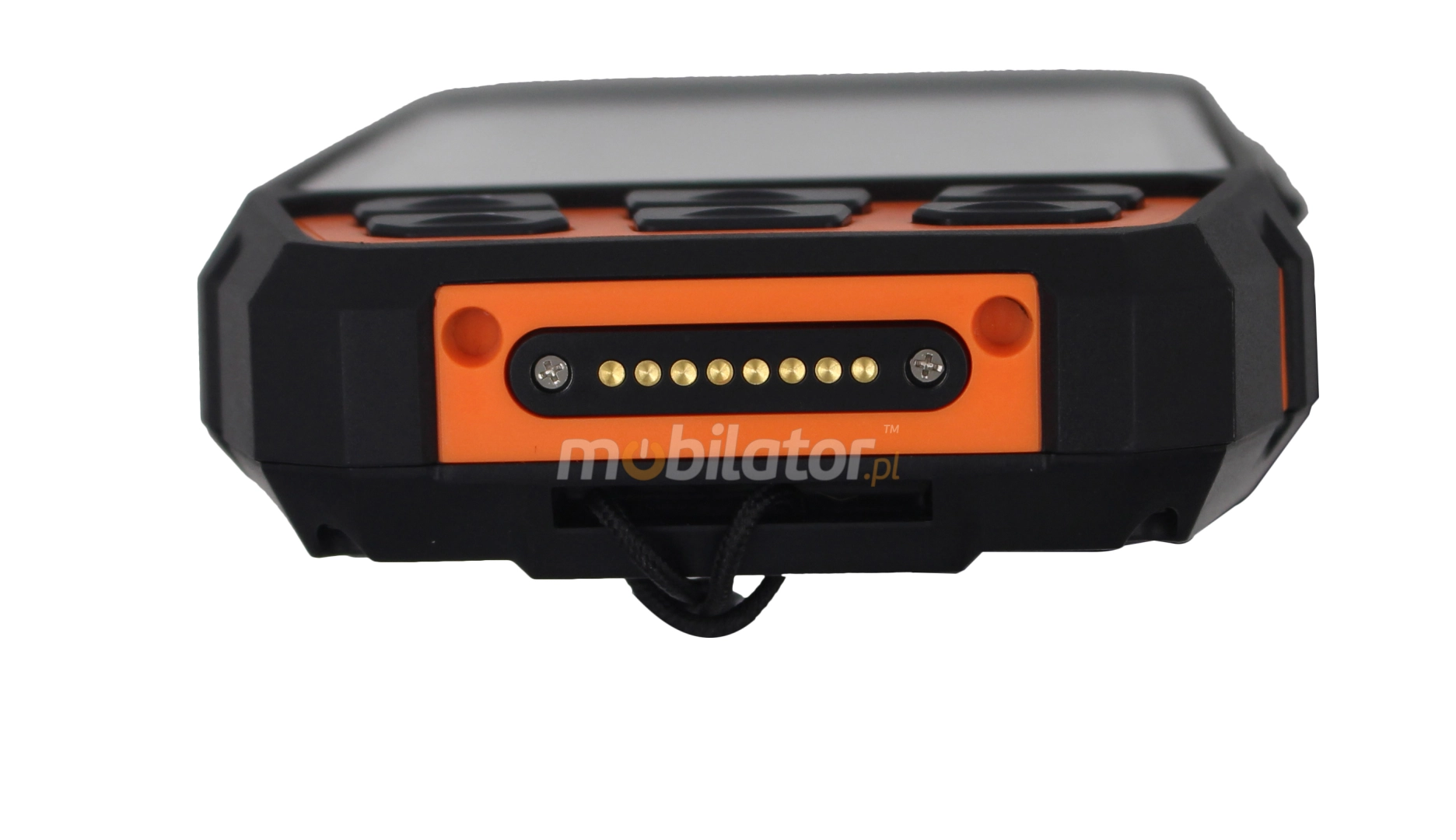

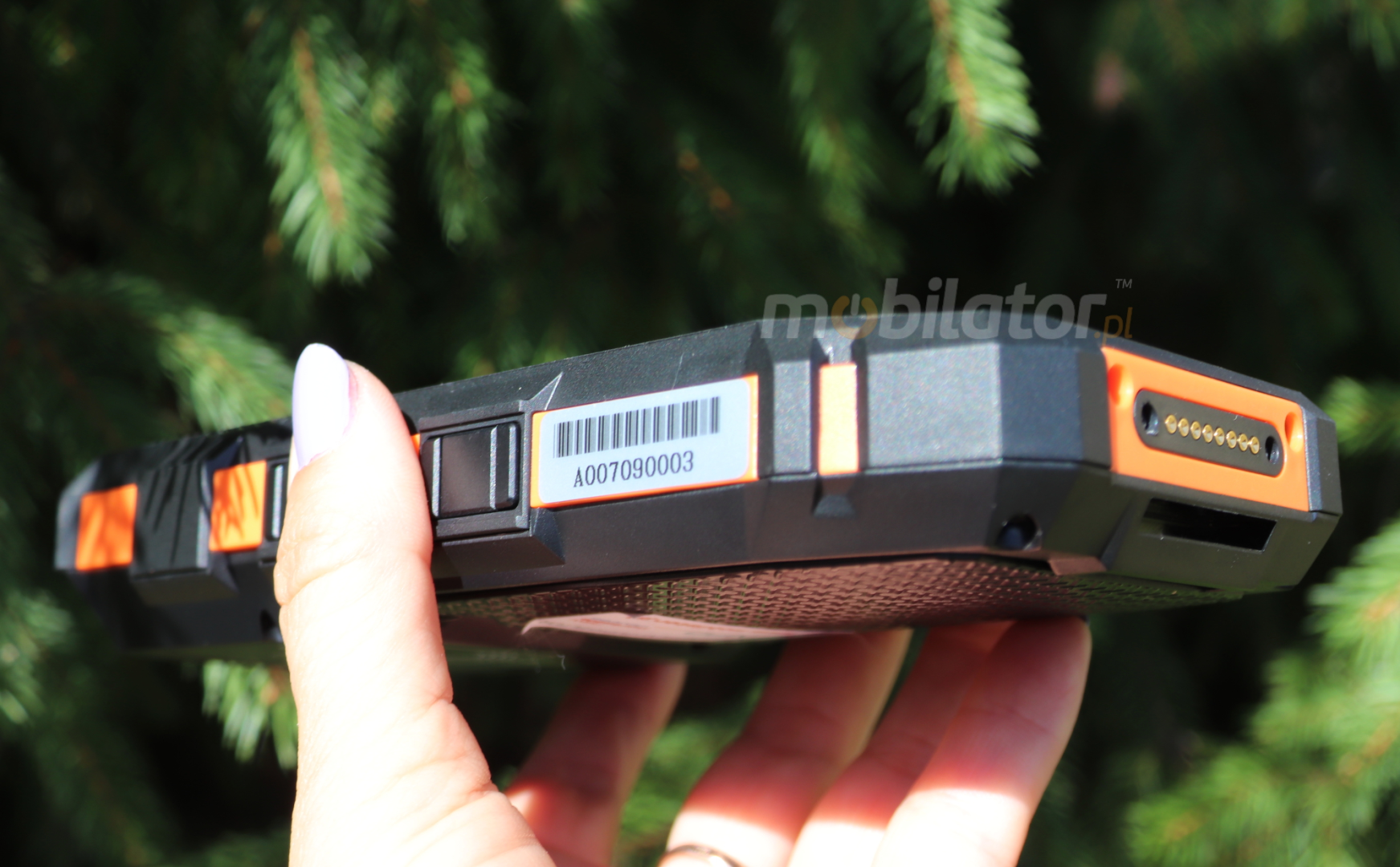

1x Docking Station slot |
| Other | |
| Available colors | Black |

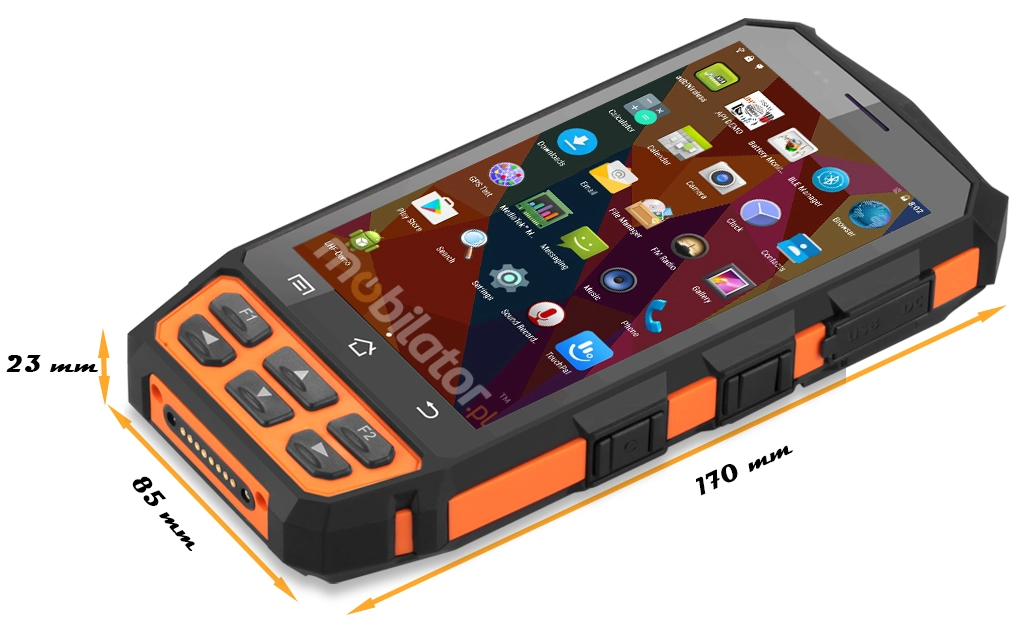

| Dimensions | 170 mm x 85 mm x 23 mm |
| Weight | 0.370 kg |

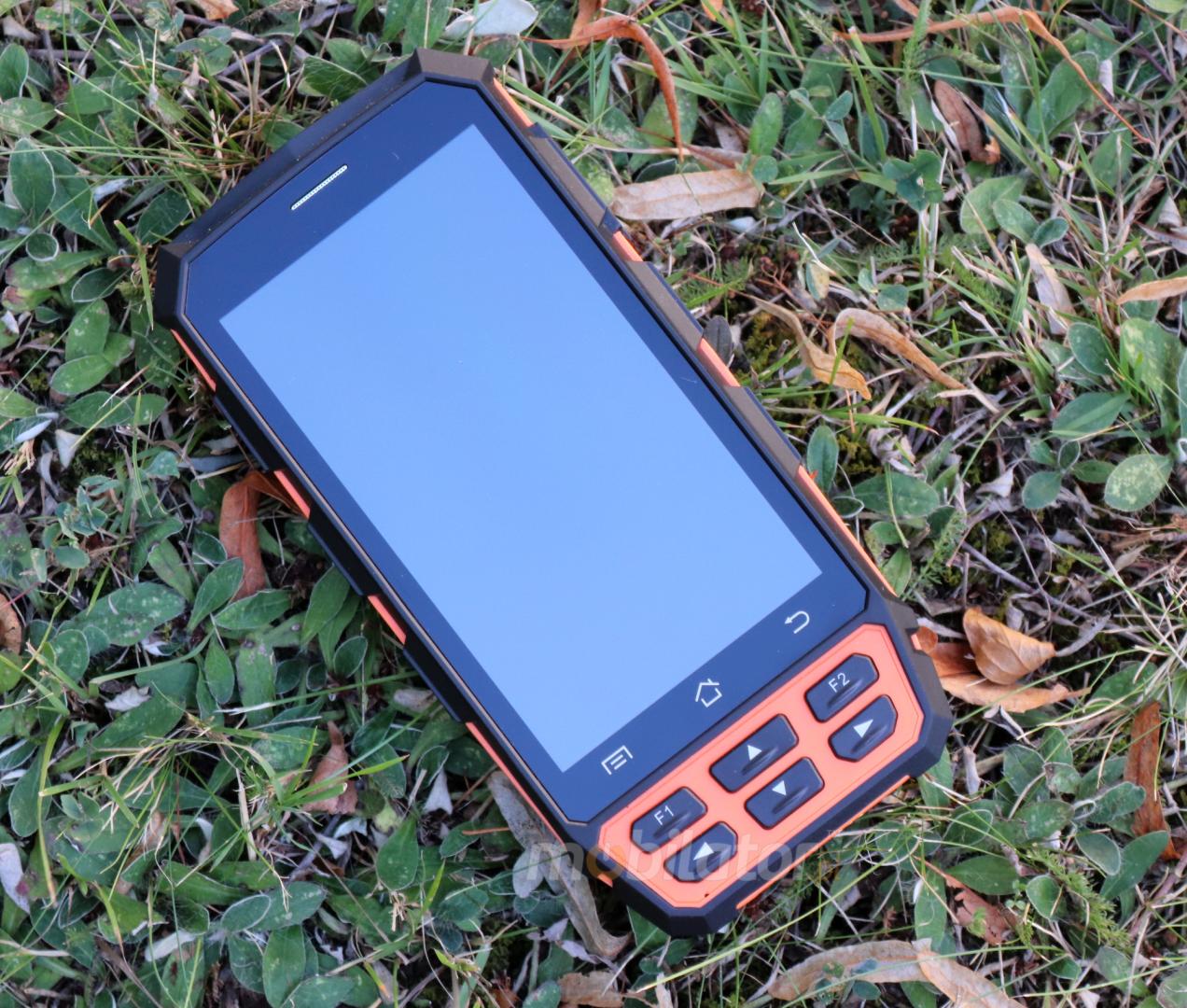

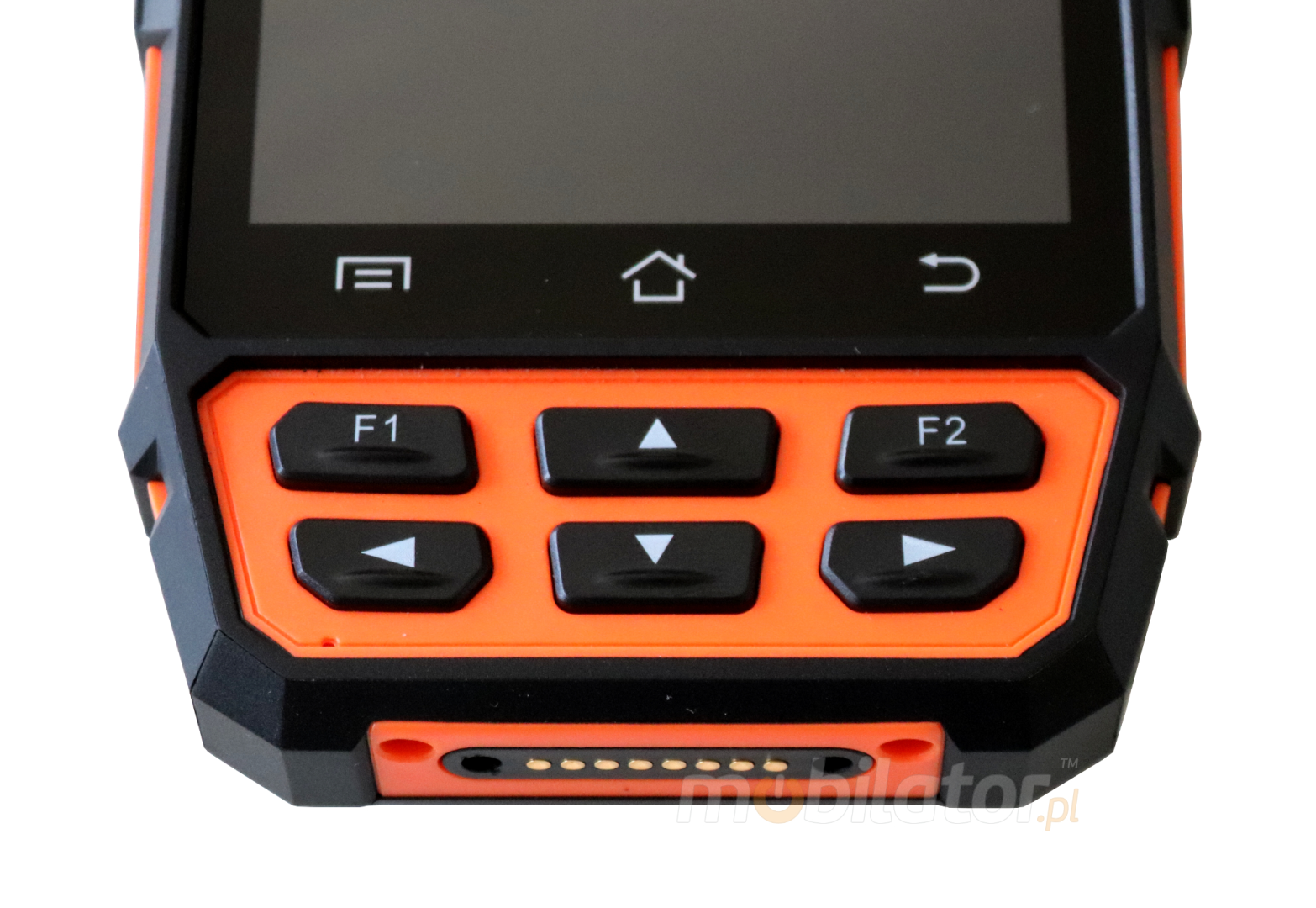

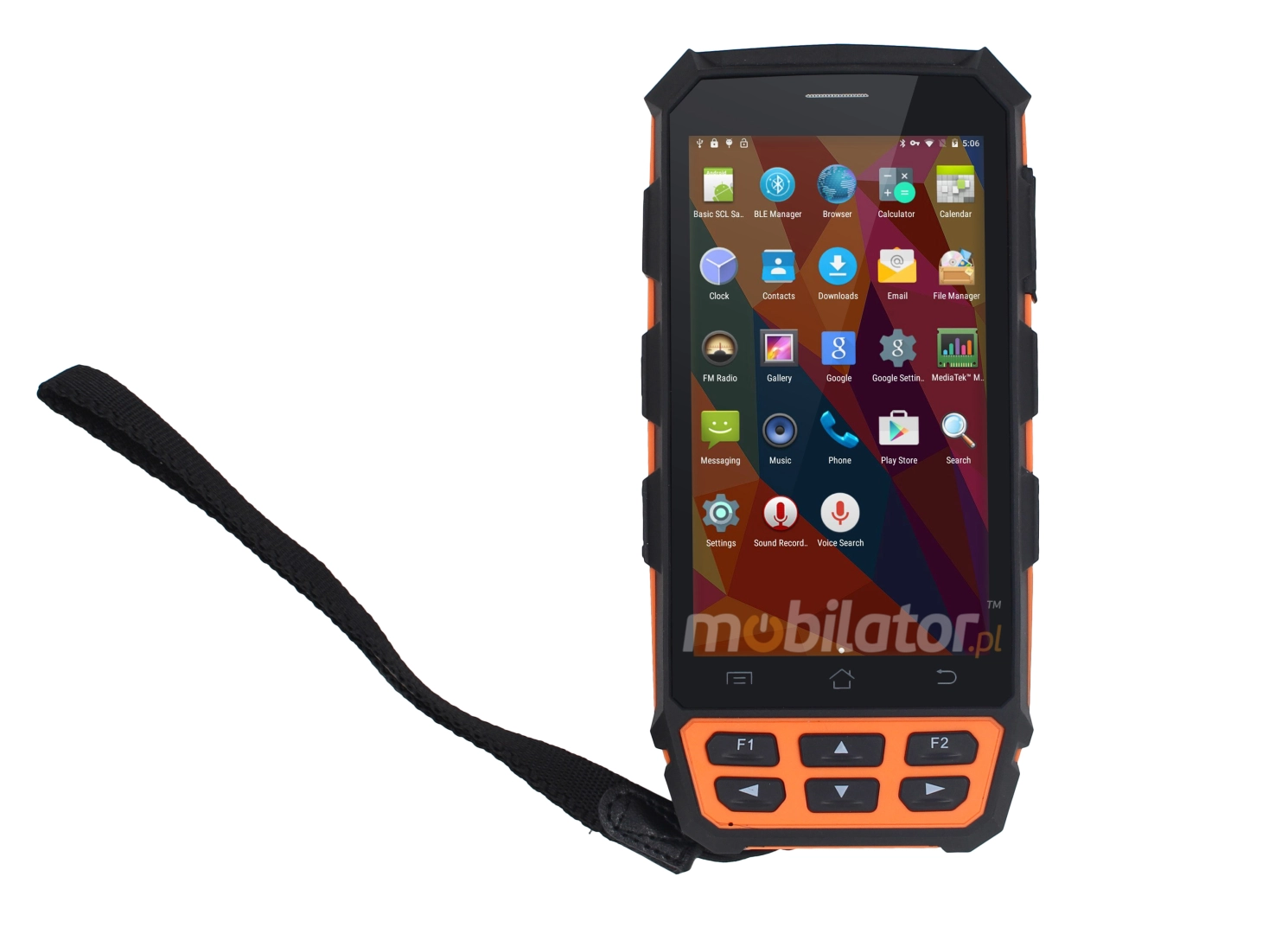

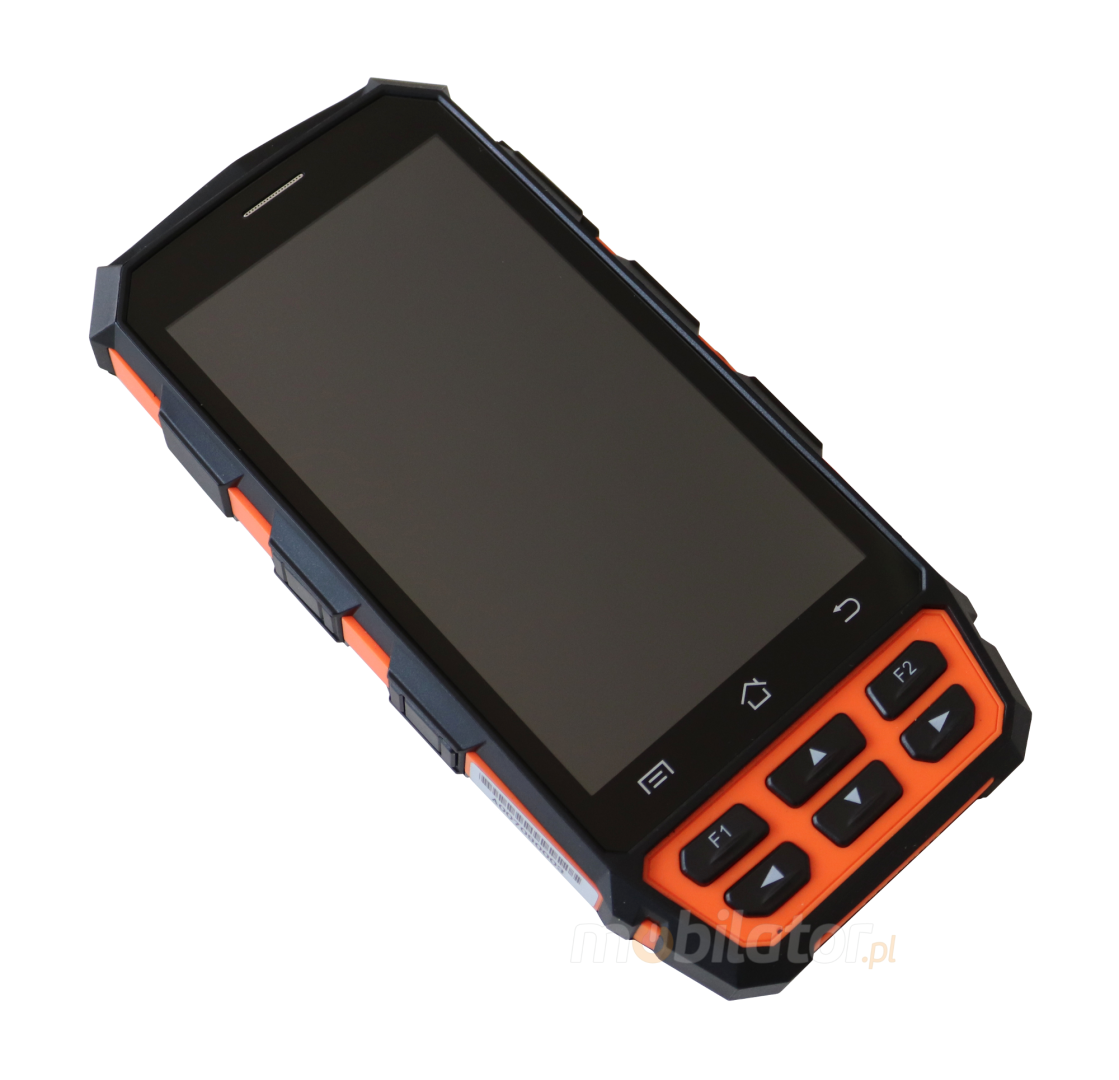

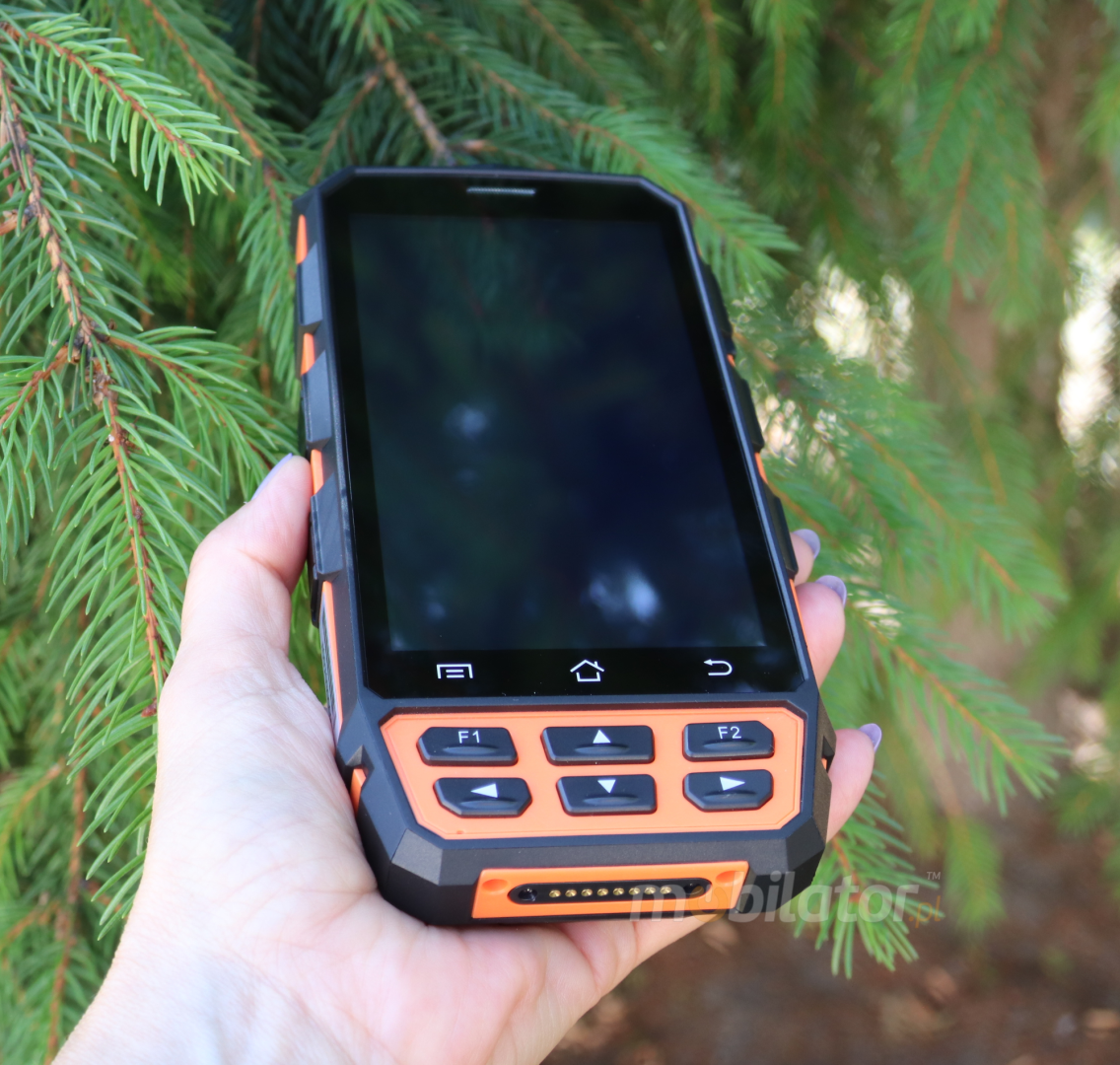

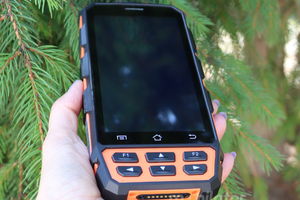

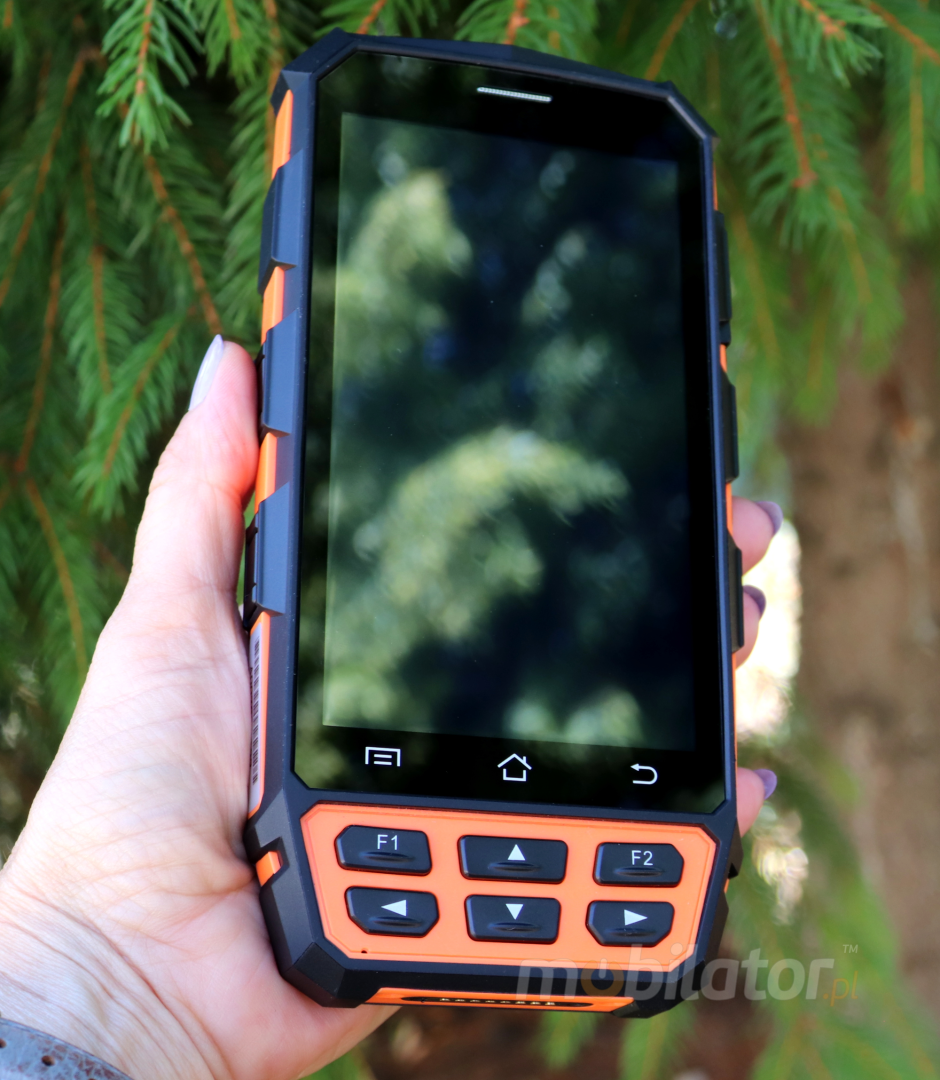

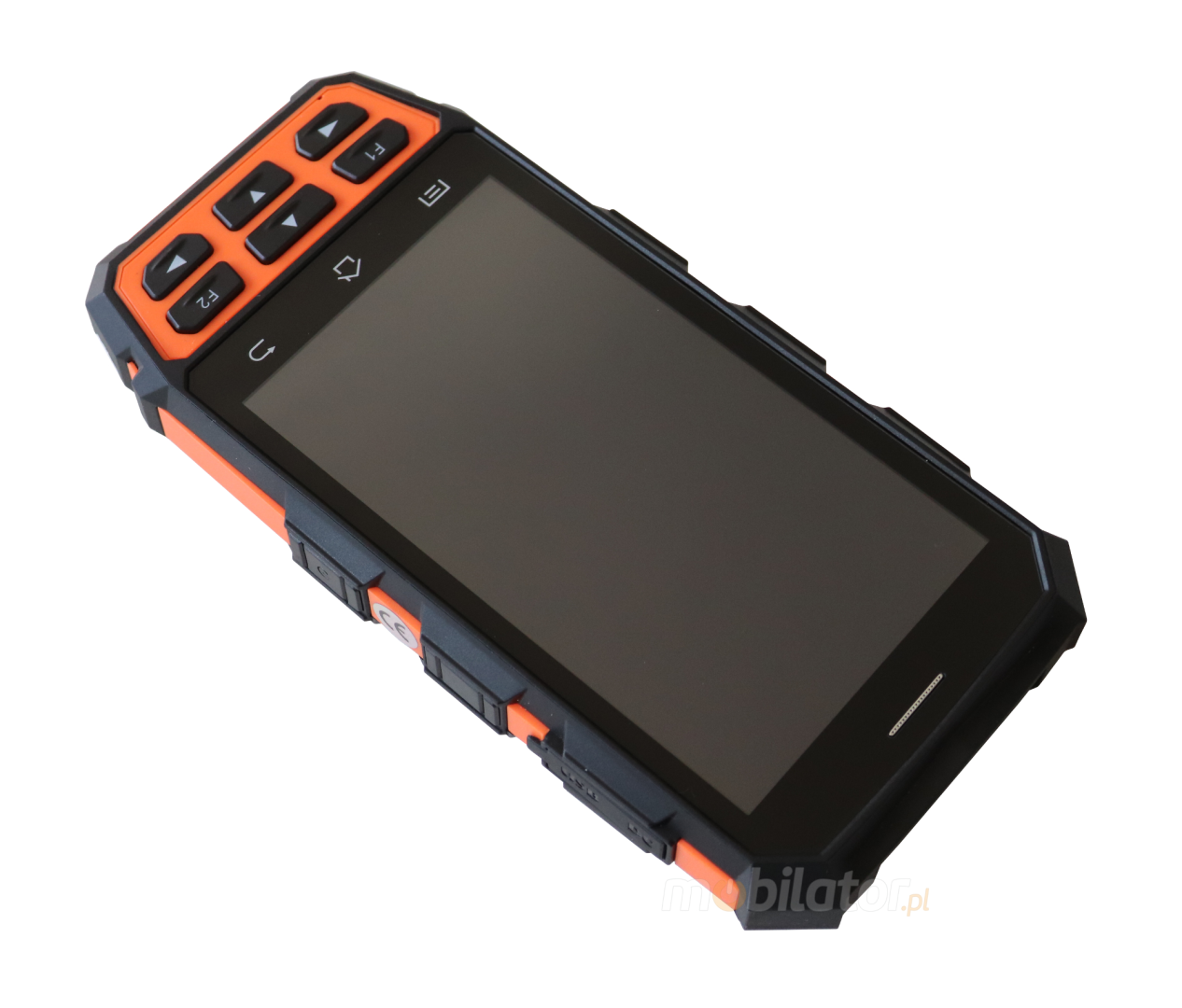

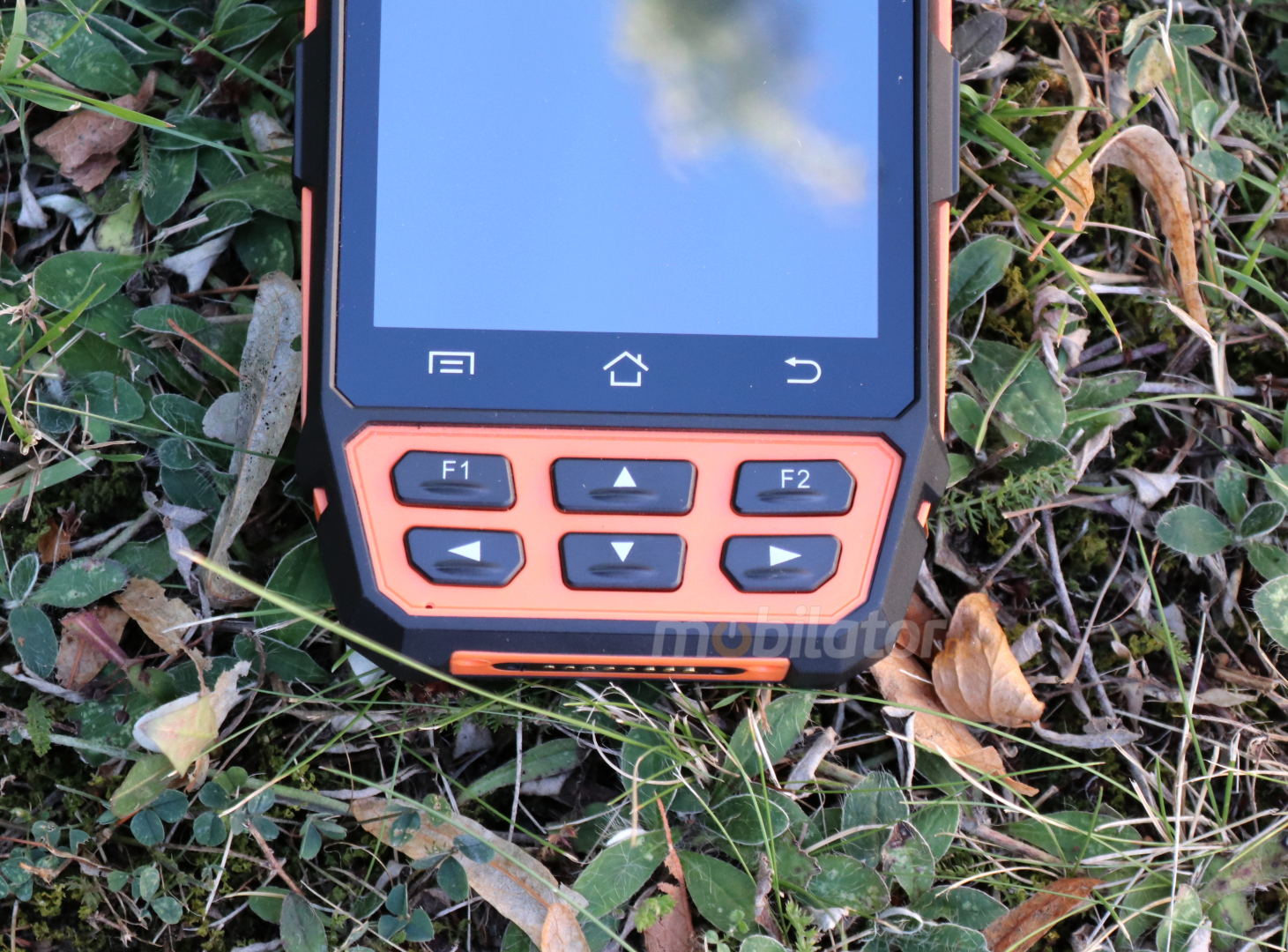

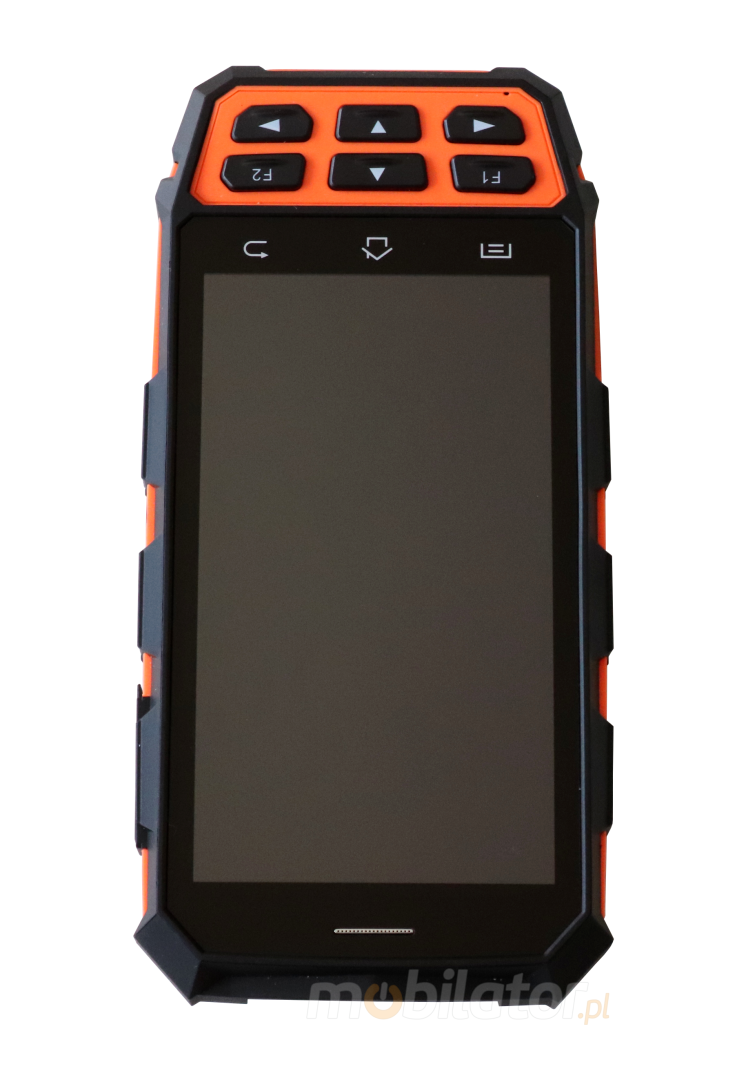

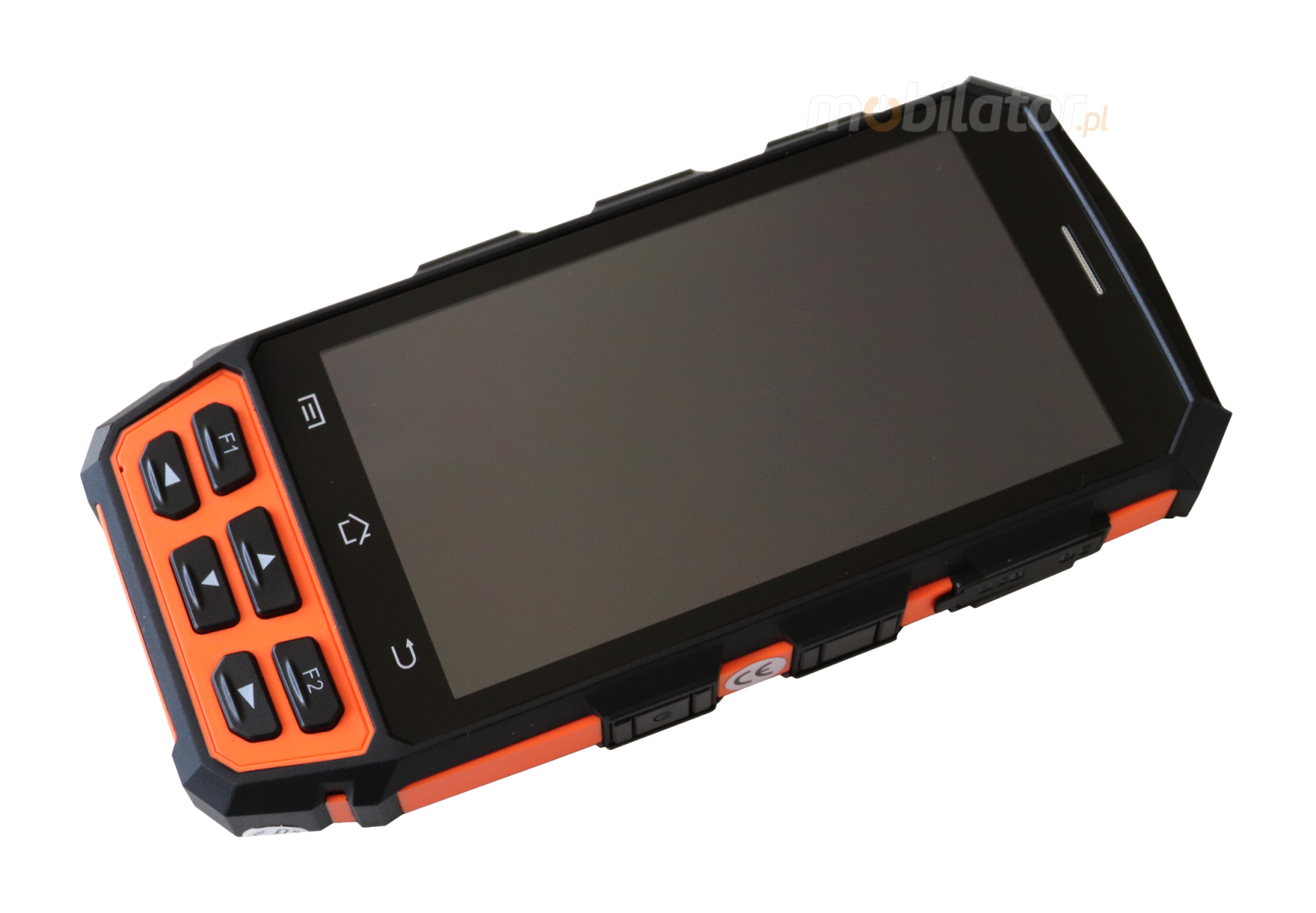

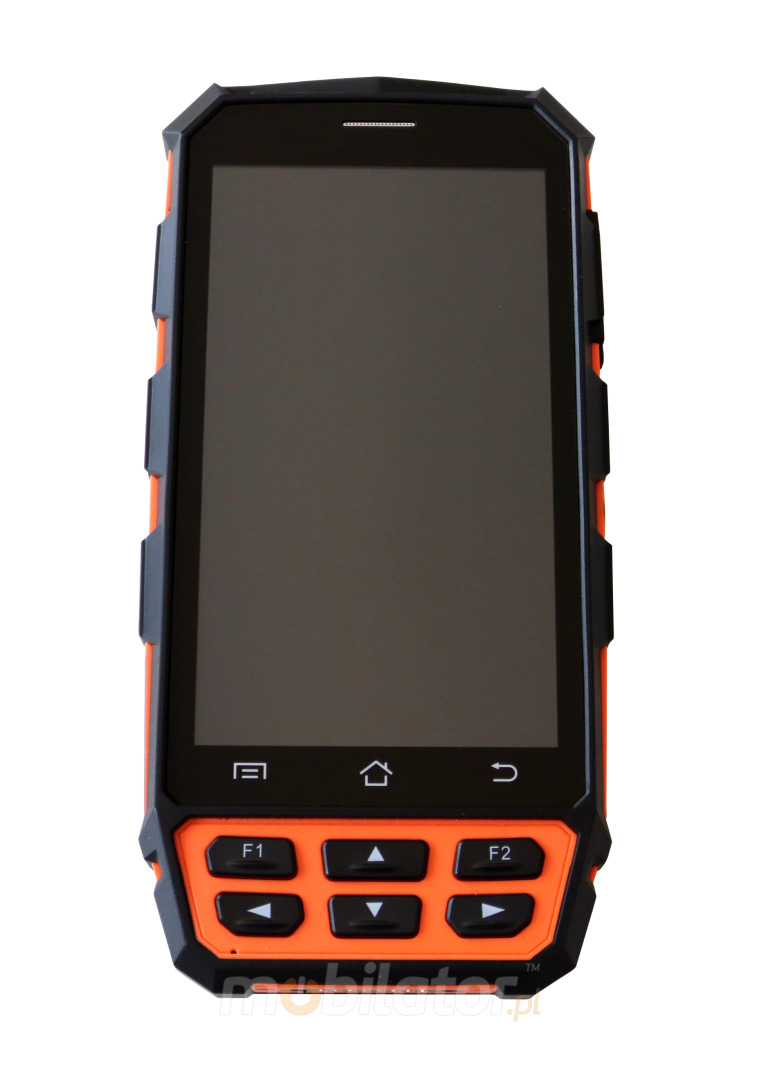

The ergonomics of work is provided by a functional keyboard and a color touch screen, everything is enclosed in a slim and small housing. Thanks to this, you can take it anywhere with you.
C50 by MobiPad is designed for continuous operation in both very low and high temperatures ranging from -20 ° C to 50 ° C. If the device is switched off, it can already handle temperatures in the range of -20 ° C to ~70 ° C.
| Work temp. | -20°C — ~50°C |
| Storage temp. | -20°C — ~70°C |
| Humidity | 10% — 95% |
IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.
|
The first digit [x] Protection against solid objects |
Protection Level |
The second digits [y] Protection against liquids |
|---|---|---|
|
No special protection |
 |
No special protection |
| Protection from solid objects greater than 50mm in diameter |
 |
Protection from dripping water |
| Protection from object not greater than 12mm in diamete |
 |
Protection from vertically dripping water (tilted up to 15°) |
| Protection from object not greater than 2,5mm in diameter |
 |
Protection from sprayed water (tilted up to 60°) |
| Protection from object not greater than 1mm in diameter |
 |
Protection from splashed water |
| Complete protection against contact, Protection against dust deposit |
 |
Protection from water projected from a nozzle |
| Complete protectionm against contact, Protection from infiltration of dust |
 |
Protection against heavy seas, or powerful jets of water |
 |
Protection against immersion | |
 |
Protection against complete, continuous submersion in water |

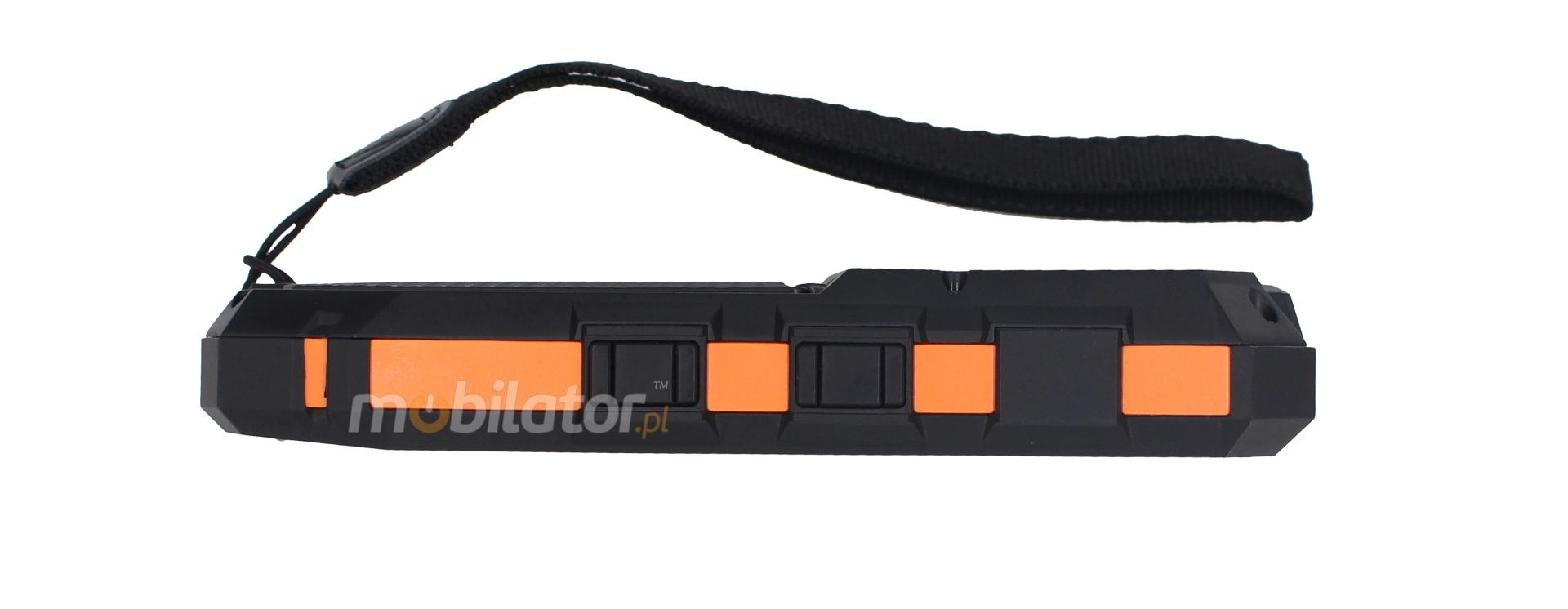

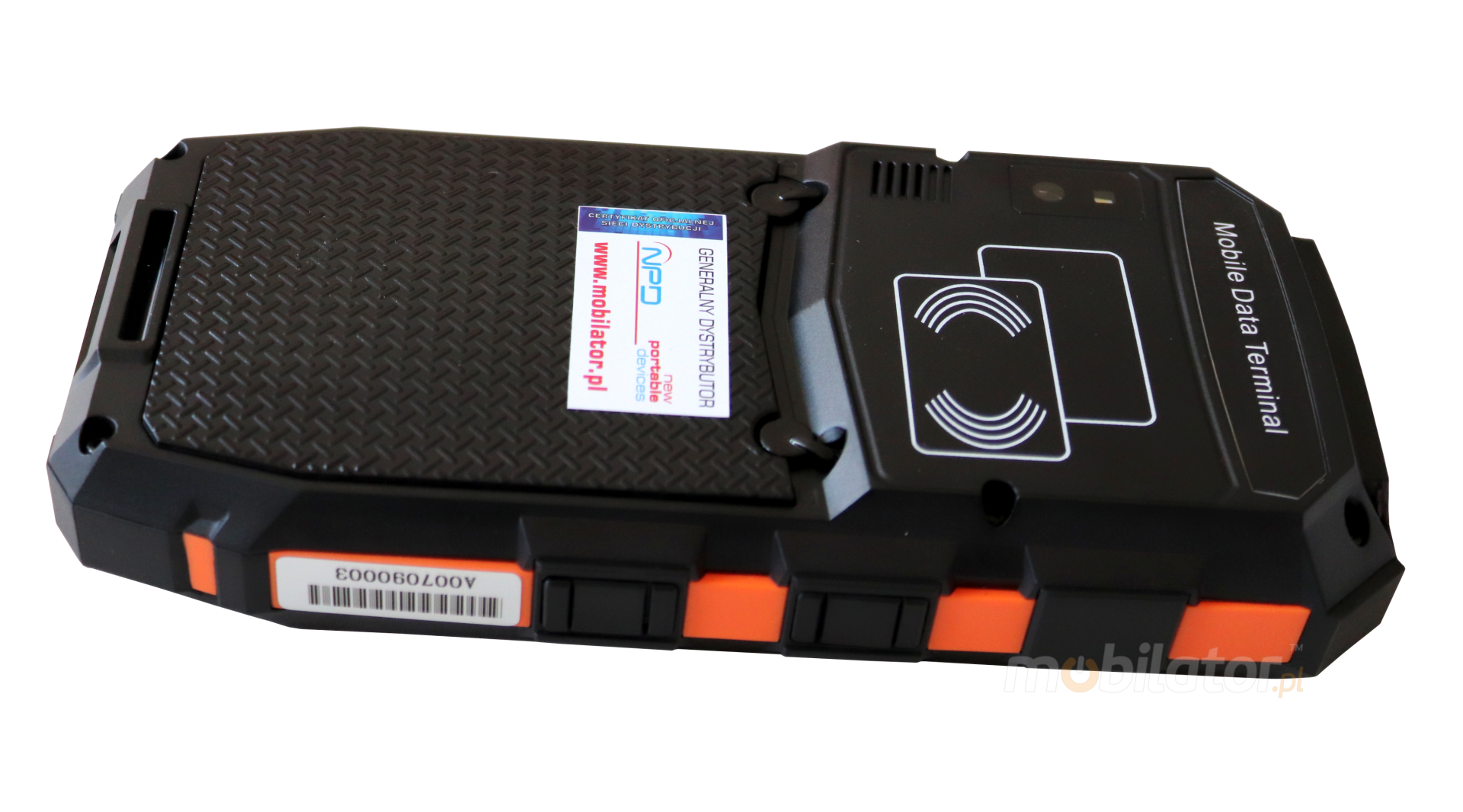

The passive cooling system used in the umpc combined with the eMMC memory make this computer very resistant to various types of mechanical injuries. An additional advantage of industrial computers is a solid construction made of high quality plastic and specially designed in such a way that in addition to high efficiency in heat dissipation, it can also resist any external damage.
The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial umpc X14 has been equipped the standard of - 802.11(a/b/g/n), which allows transfer of files at a dizzying speed of up to 300 Mb / s.

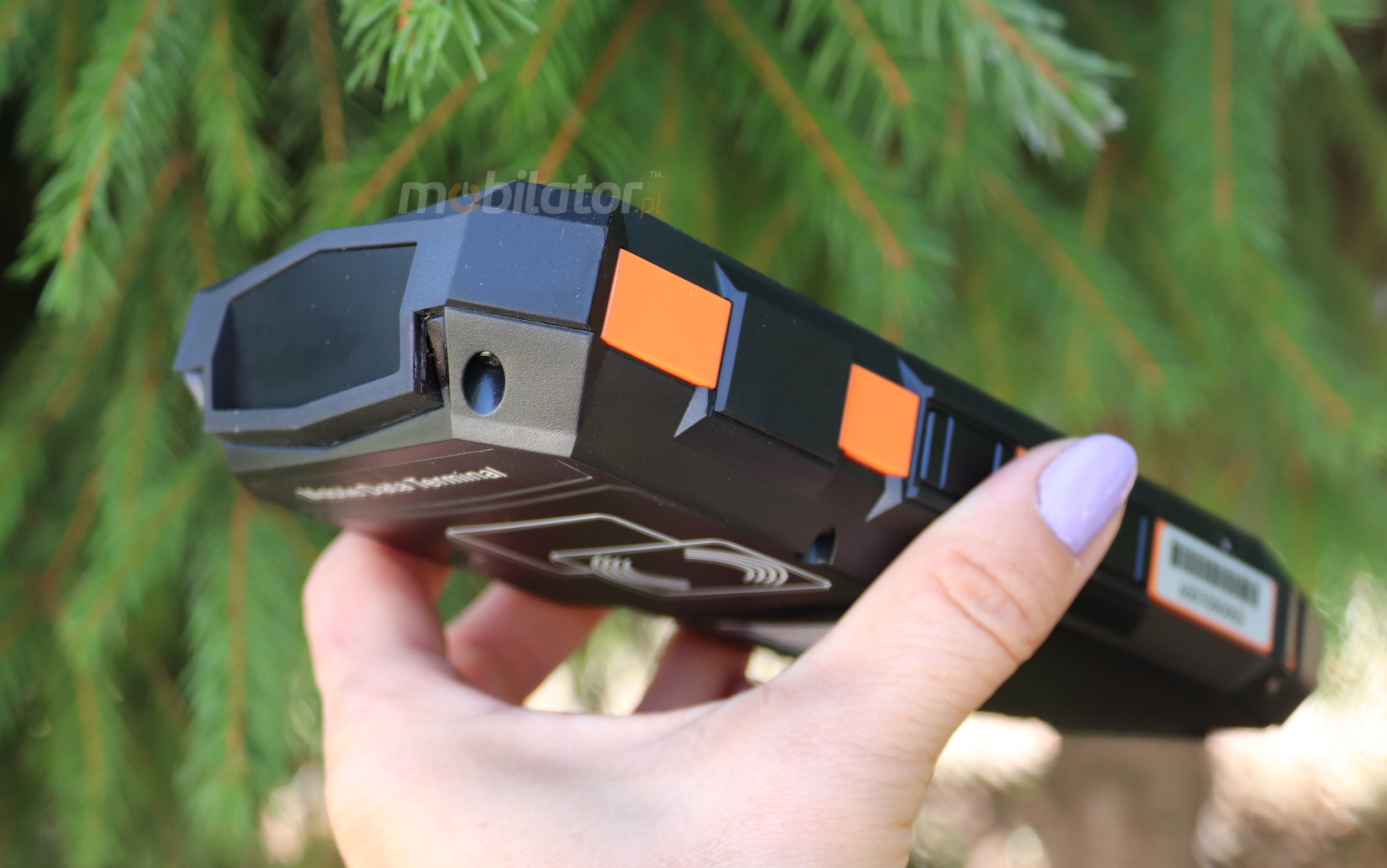

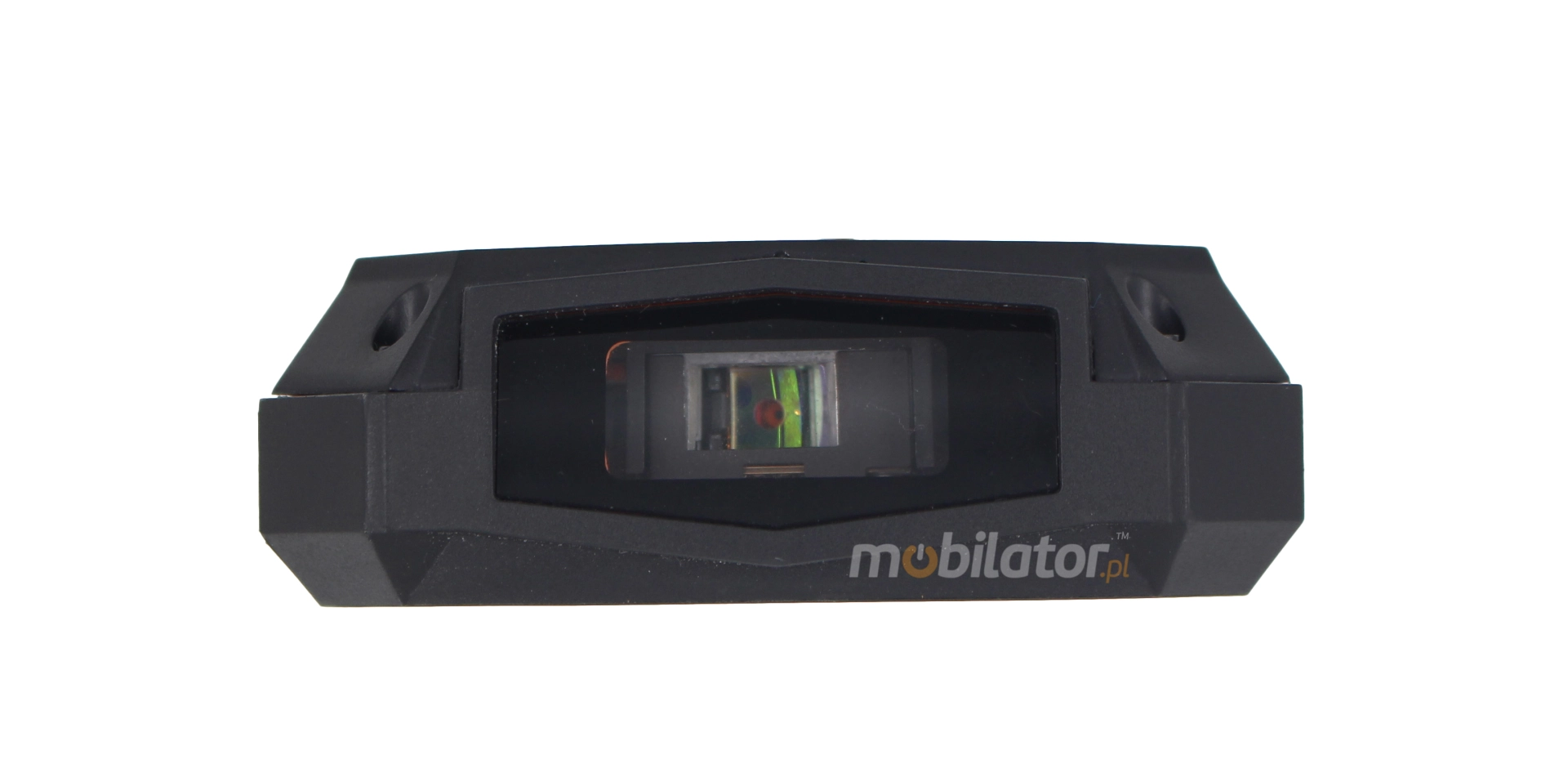

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

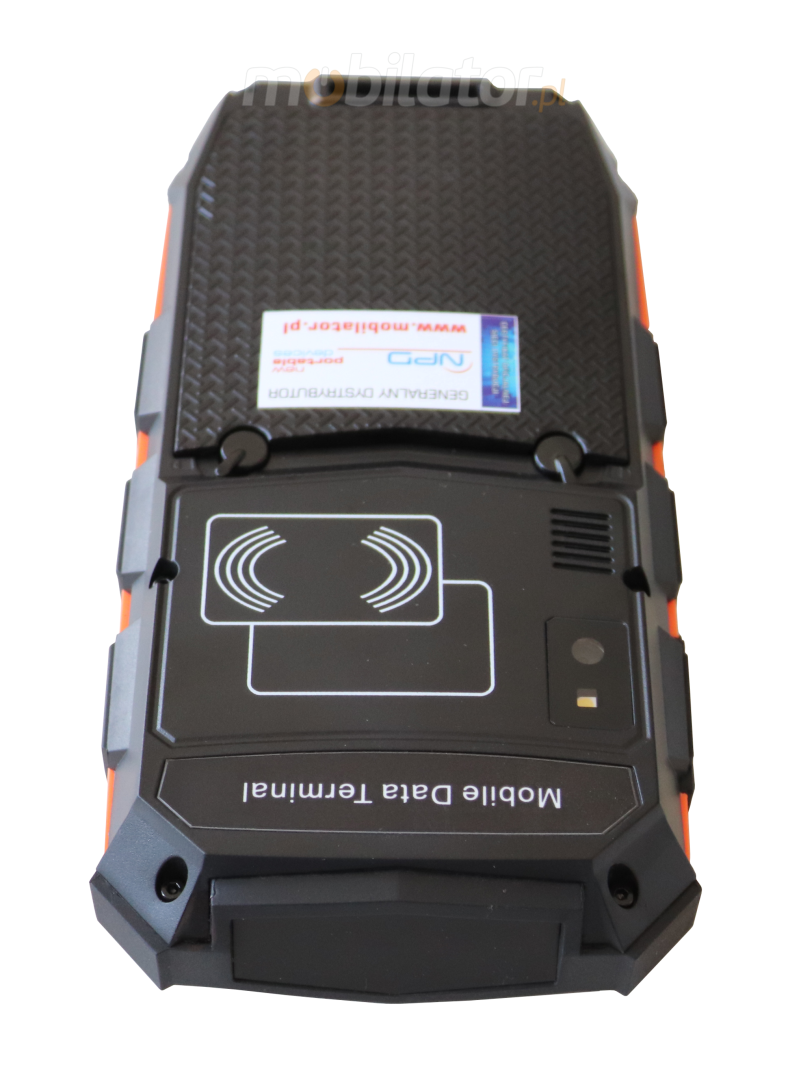

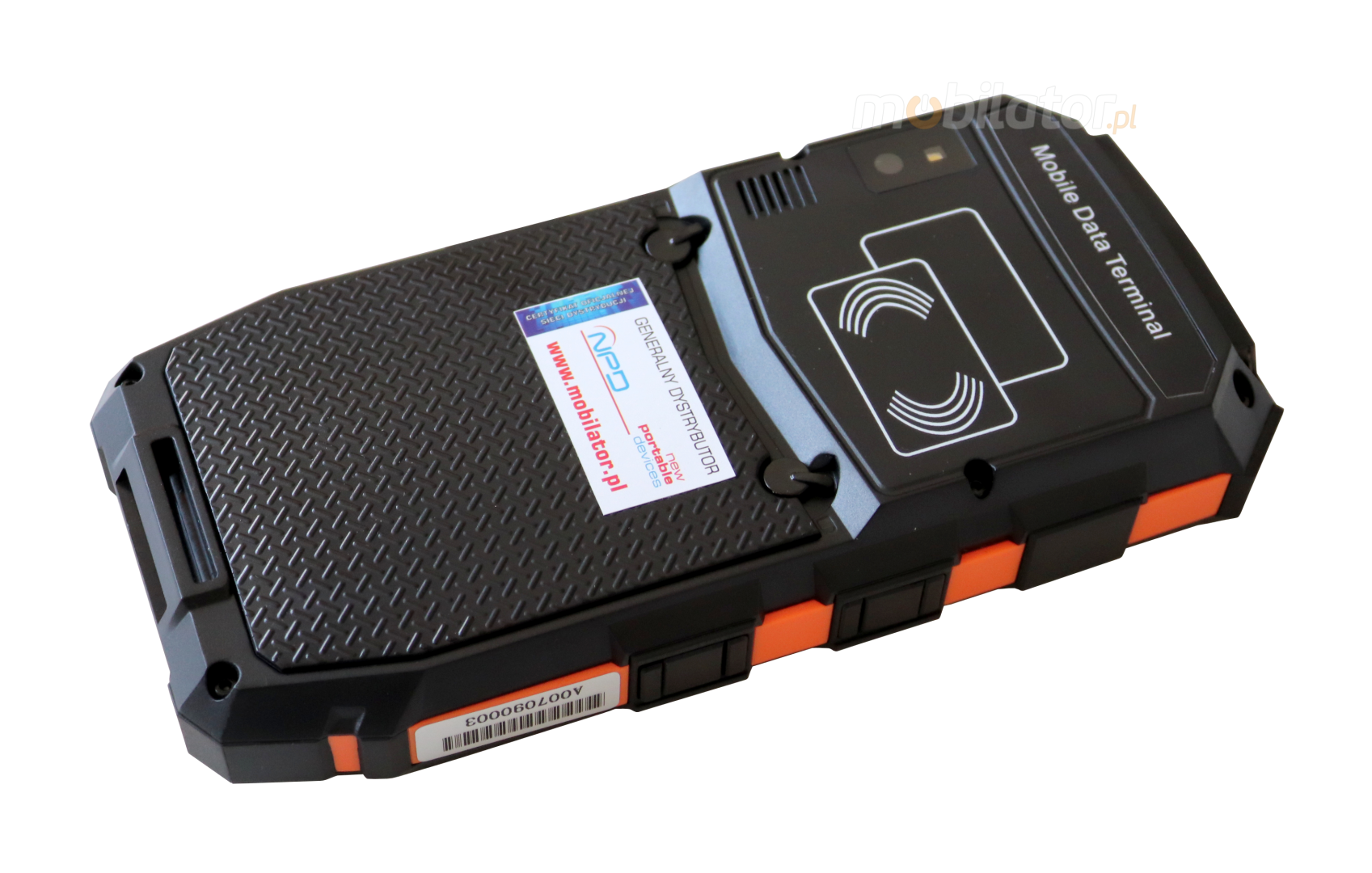

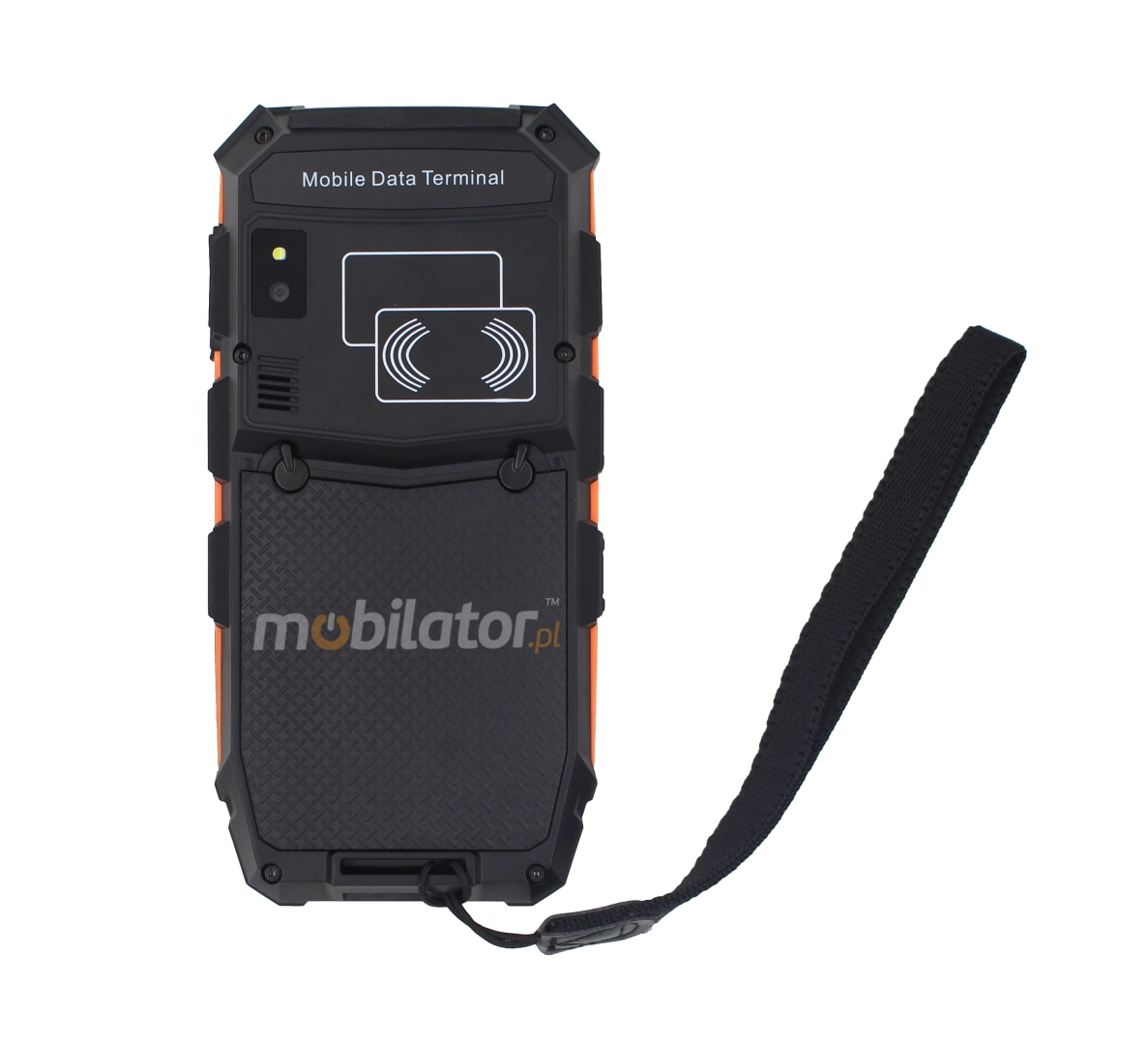

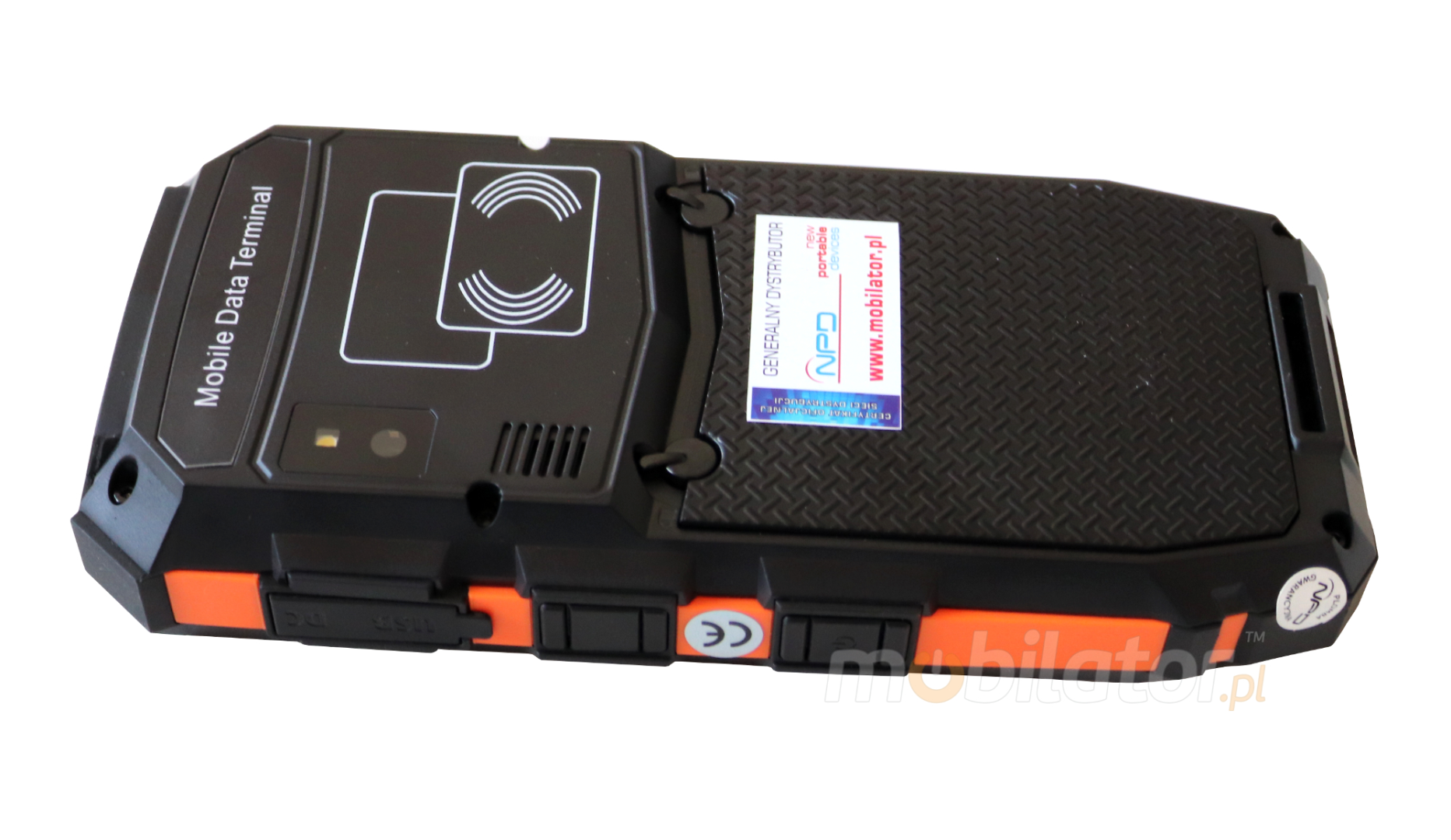

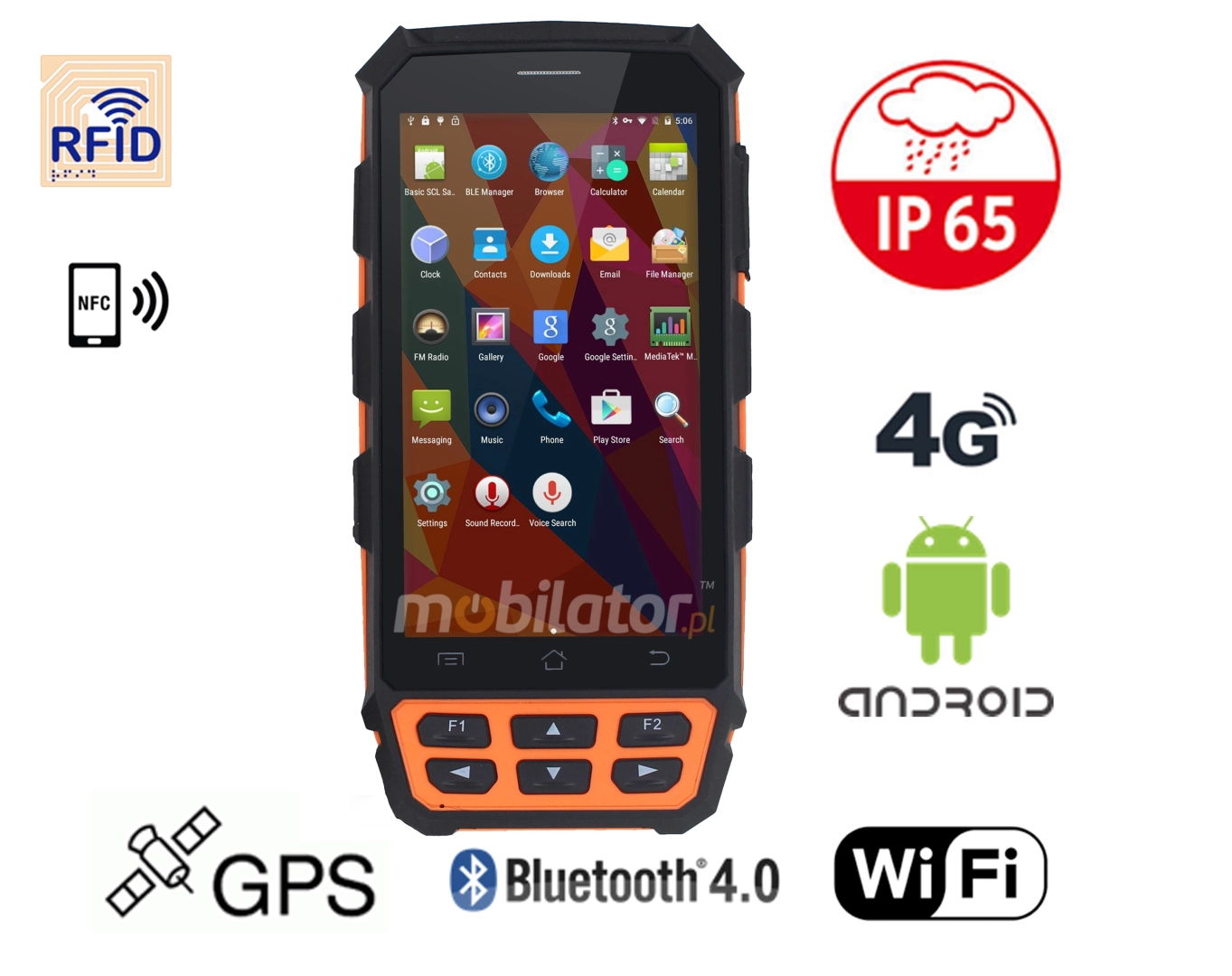

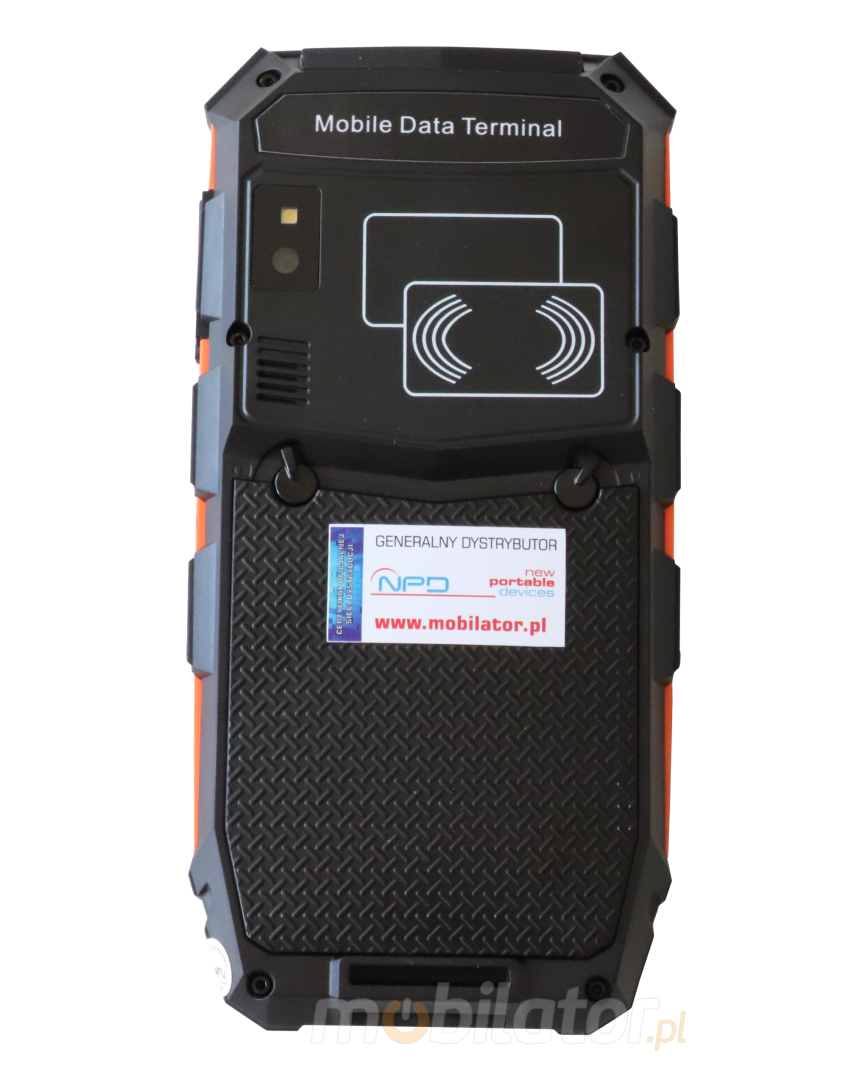

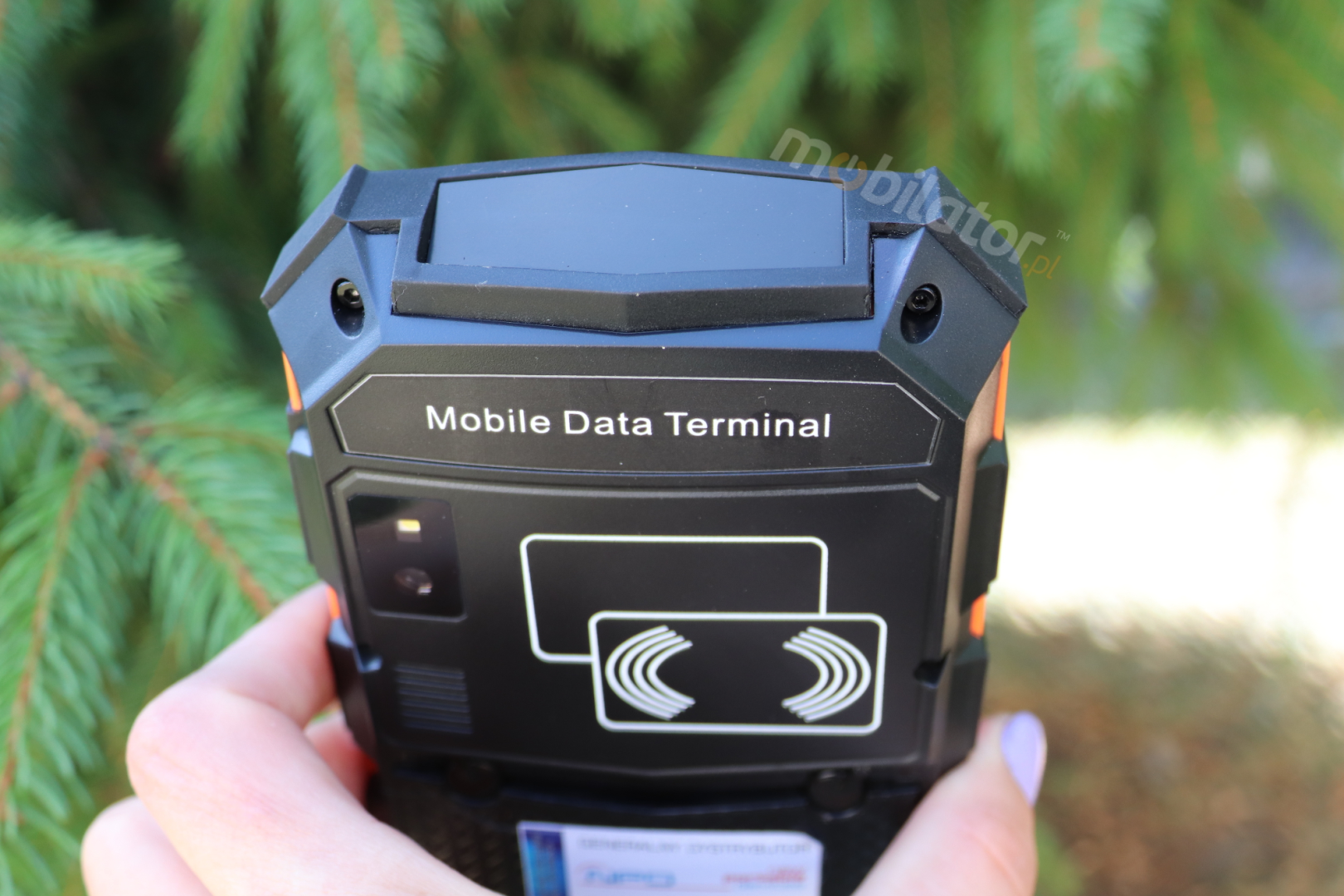

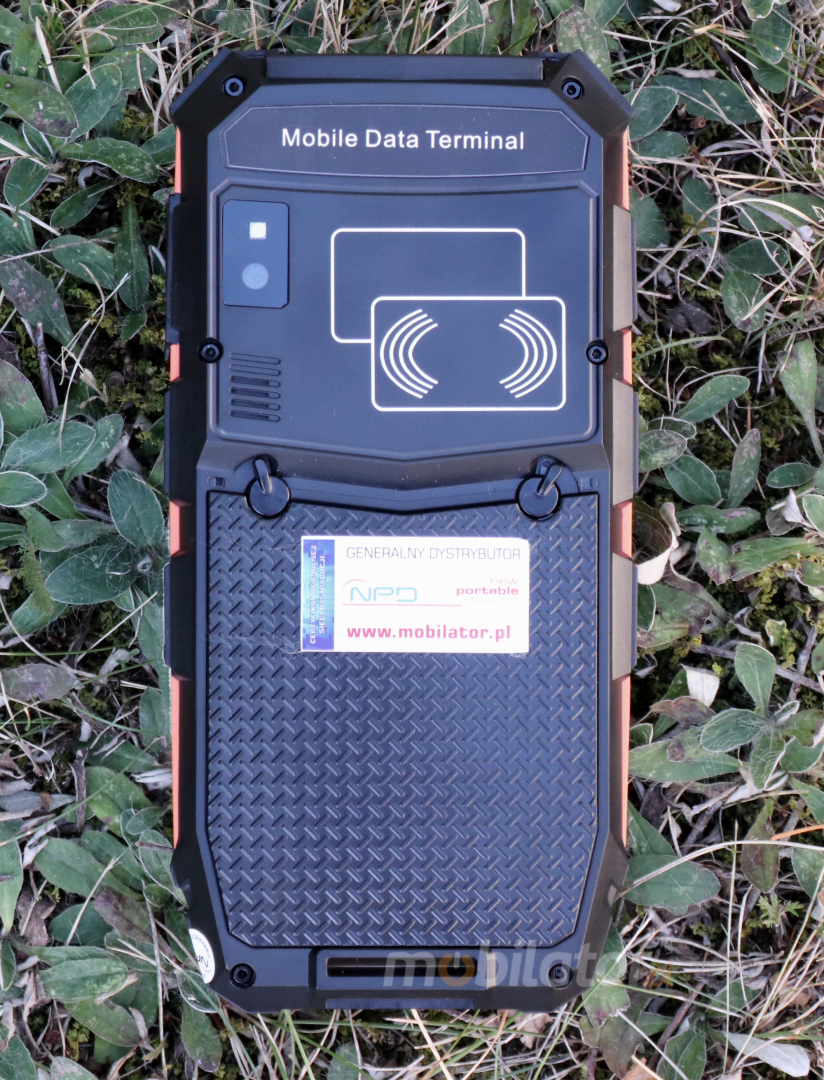

RFID is a technology used to identify objects and to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
Industrial umpc is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management.

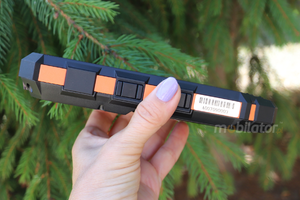

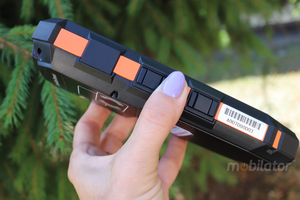

Thanks high performance an industrial umpc can be used to connect multiple devices in a warehouse and make their management much easier. Its rugged casing are ideal for harsh environments in such rooms. The solid construction guarantees long-lasting work, even in environments with high dustiness and dirt.
With the help of dedicated connectors supported by our data collector, it can be used as a diagnostic tool for cars and machines with an on-board computer, thanks to which we are able to independently detect faults and also test specific systems.
The industrial MobiPad C50 umpc is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.

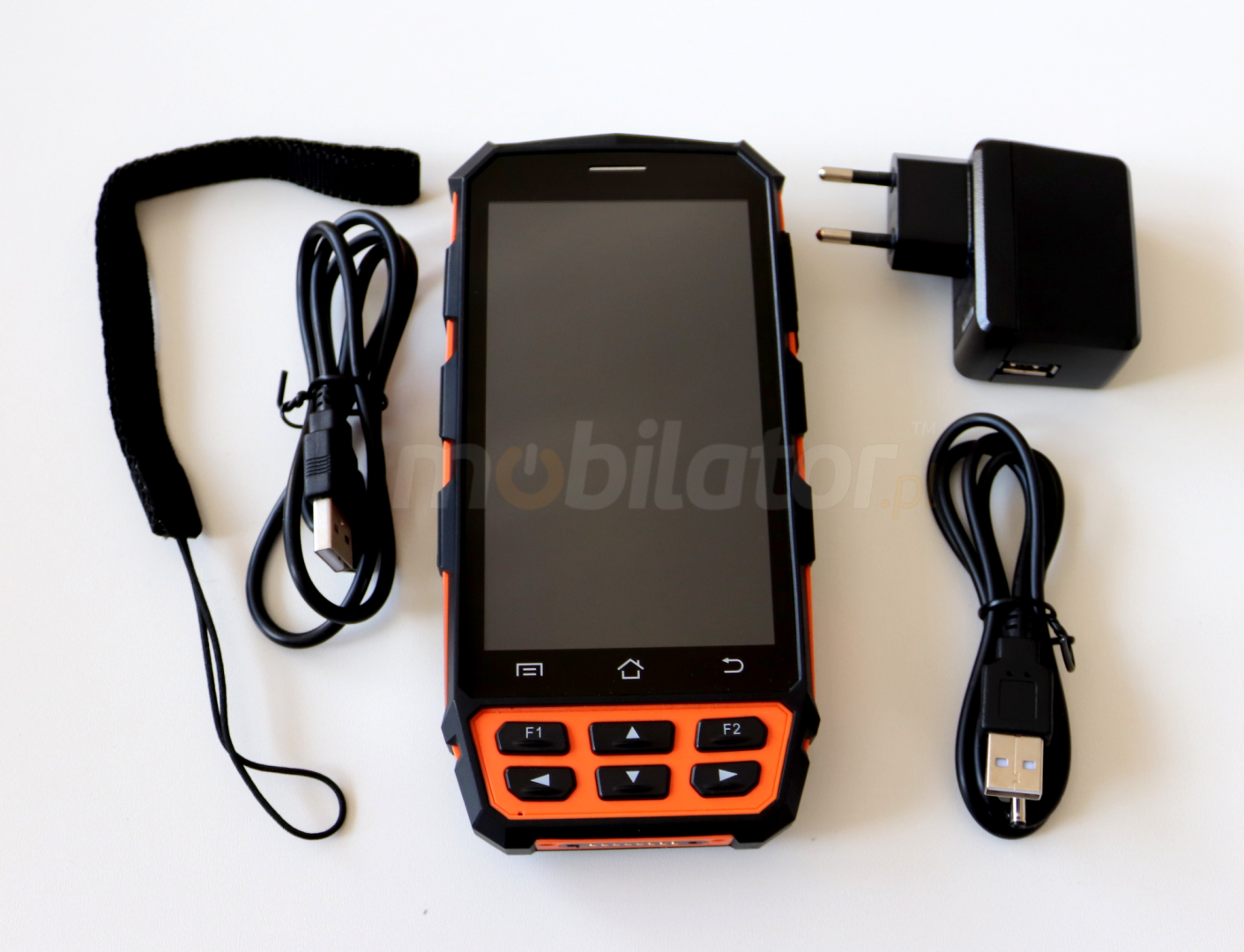

Our data collector can also be equipped with various accessories, you will find them in the manufacturer's accessories tab and in the configurator. Accessories for the above model are available: cover, additional battery or docking station.
| v.1 | v.2 | v.3 | v.4 | v.5 | v.6 | v.7 | v.8 | v.9 | v.10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| RFID LF125 KHz | — | ✔ | — | — | — | ✔ | — | — | ✔ | — |
| RFID LF134.2 KHz | — | — | ✔ | — | — | — | ✔ | — | — | ✔ |
| NFC | — | — | — | ✔ | — | ✔ | ✔ | ✔ | — | — |
| RFID UHF | — | — | — | — | ✔ | — | — | ✔ | ✔ | ✔ |
| Honeywell N4313 (1D) | — | — | — | — | — | — | — | — | — | — |
| Newland EM3396 (2D) | — | — | — | — | — | — | — | — | — | — |
| Honeywell N6603 (2D) | — | — | — | — | — | — | — | — | — | — |
| HF RFID | — | — | — | — | — | — | — | — | — | — |
| v.11 | v.11 | v.12 | v.12 | v.13 | v.14 | v.15 | v.16 | v.17 | v.4.1 | |
| RFID LF125 KHz | — | — | — | — | — | ✔ | — | ✔ | — | — |
| RFID LF134.2 KHz | — | — | — | — | — | — | ✔ | — | ✔ | — |
| NFC | — | — | — | — | — | — | — | ✔ | ✔ | — |
| RFID UHF | — | — | — | — | — | ✔ | ✔ | — | — | — |
| Honeywell N4313 (1D) | ✔ | ✔ | — | — | — | — | — | — | — | — |
| Newland EM3396 (2D) | — | — | ✔ | ✔ | — | ✔ | — | ✔ | — | — |
| Honeywell N6603 (2D) | — | — | — | — | ✔ | — | ✔ | — | ✔ | — |
| HF RFID | ✔ | — | — | ✔ | — | — | — | — | — | ✔ |
| v.6.1 | v.7.1 | v.13.1 | ||||||||
| RFID LF125 KHz | ✔ | — | — | |||||||
| RFID LF134.2 KHz | — | ✔ | — | |||||||
| NFC | — | — | — | |||||||
| RFID UHF | — | — | — | |||||||
| Honeywell N4313 (1D) | — | — | — | |||||||
| Newland EM3396 (2D) | — | — | — | |||||||
| Honeywell N6603 (2D) | — | — | ✔ | |||||||
| HF RFID | ✔ | ✔ | ✔ |
