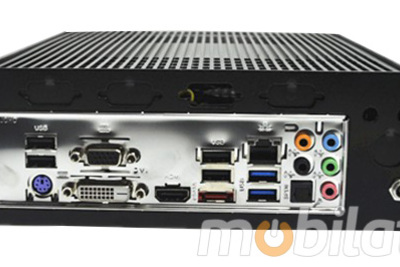

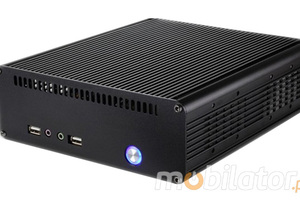

Industrial MiniPC mBOX-4570 v.2

Name: Industrial MiniPC mBOX-4570 v.2
Brand: Mobilator
Price: 729.84 PLN
Availability: InStock

Update Date: 2015.10.12

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

Przemysłowy MiniPC mBOX-4570

Menu
Description
Communication & Connectors
Application
Specifications

Industrial MiniPC

Industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

mBOX-4570 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 235 (W) x210 (L) x72 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 3.0 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

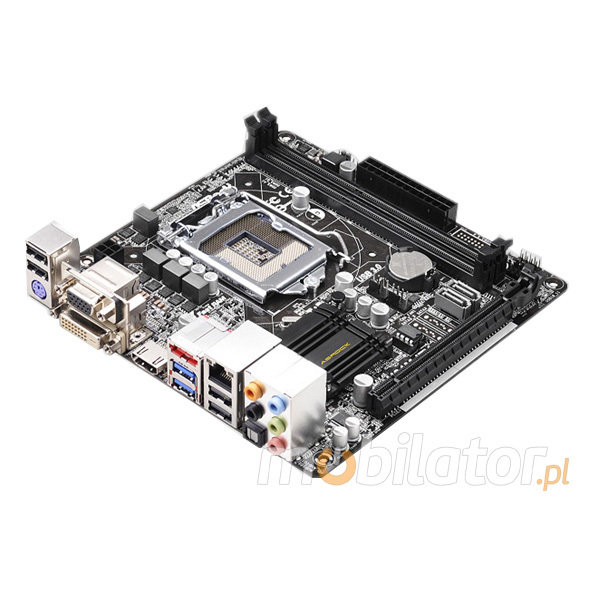

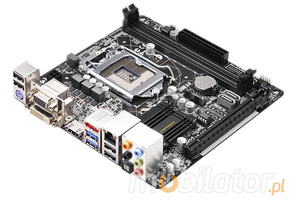

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics 4600 video and audio Realtek ALC892 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 500GB HDD.

Przemysłowy MiniPC mBOX-4570

go top…

menu…

Communication & Connectors

Integrated card - QualcommAtheros AR8171 Gigabit LAN and WiFi module allow connection to the network. The computer is equipped with: one LAN port, six USB 2.0 ports, two USB 3.0 ports, one DVi input, one HDMI input, one VGA input, one way audio, one microphone input.

Przemysłowy MiniPC mBOX-4570

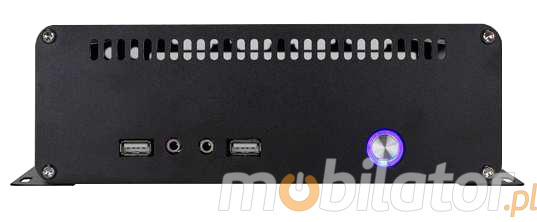

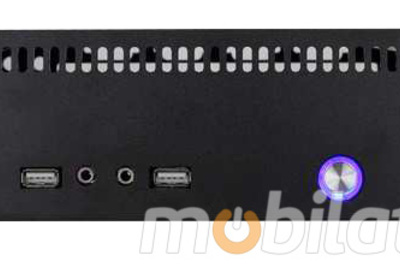

1. 2x USB 2.0	3. Power ON/OFF
2. Audio/Mic

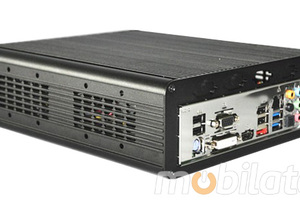

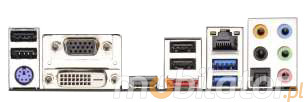

Przemysłowy MiniPC mBOX-4570

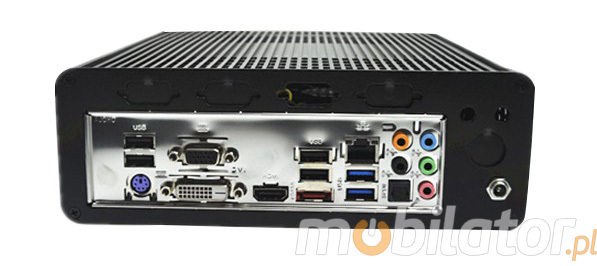

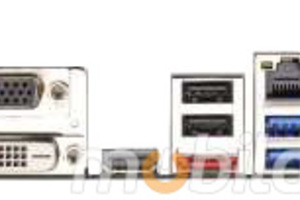

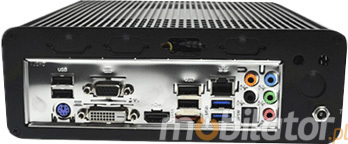

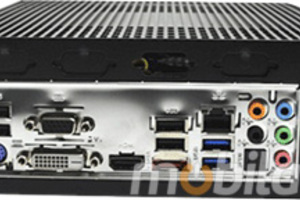

1. 1x PS/2	5. 2x USB 3.0	9. 4x USB 2.0
2. 1x DVI	6. DC-IN	10. 1x RJ-45
3. 1x HDMI	7. 7.1 CH Audio
4. 1x eSATA	8. 1x VGA

Cooling

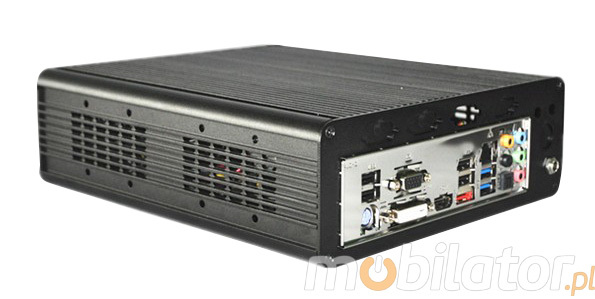

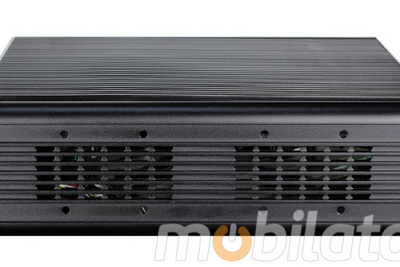

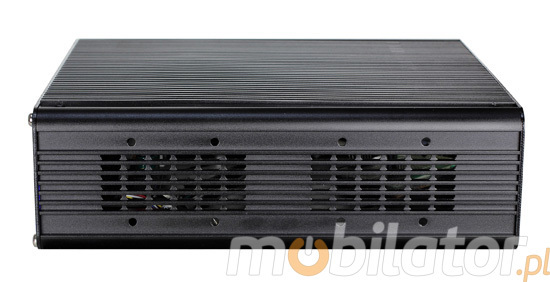

The industrial MiniPC mBOX-4570 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Industrial MiniPC Series mBOX-4570 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages Przemysłowy MiniPC mBOX-4570 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemysłowy MiniPC mBOX-4570

Dual Display

Areas of use of industrial MiniPC

Digital Engine

Przemysłowy MiniPC mBOX-4570

Trade

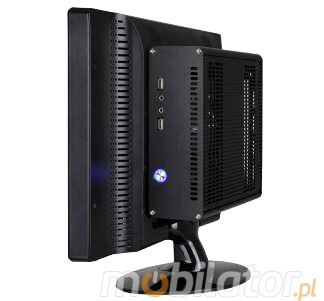

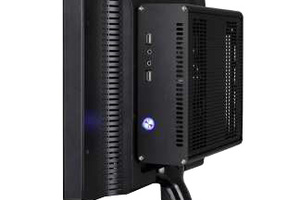

Small, computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial MiniPC mBOX-4570 by to eight USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC mBOX-4570 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Przemysłowy MiniPC mBOX-4570

go top…

menu…

Specifications

Dimension	H: 72 mm L: 210 mm W: 235 mm
Weight	3.0 kg
Processor	Intel i5 4570 (4x 3.2GHz)
Chipset	Intel B85
RAM Memory	8GB DDR3
Graphic Card	Intel HD Graphics 4600
Sound Card	Realtek ALC892
WLAN	Qualcomm Atheros AR8171 Gigabit LAN
Connectors	1x DVI 1x wyjście 12V DC_JACK 6x USB 2.0 2x USB 3.0 1x RJ-45 1x wyjście Audio 1x Mic 1x HDMI 1x VGA

Supported OS
Microsoft Windows: XP/Vista/7 , Linux
Installed OS
-----
Chipset
Intel B85
CPU Support
-----
Installed CPU
Intel i5 4570 (4x3.2GHz)
Graphic Card
Intel HD Graphics 4600
Memory Support
4GB DDR3 (can up to 8GB)
Installed Memory
8GB DDR3
Storage (HDD) Support
-----
Installed Storage (HDD)
500GB HDD
IP Norm
-----
Temp
0 - 50 ℃
Storage temperature
-15 - 70 ℃
Humidity
0 ~ 95%
Others
Colour Black, Case
LAN
Qualcomm Atheros AR8171 Gigabit LAN
Wireless LAN card
Yes
3G
-----
Bluetooth
-----
Rear Panel (ports)
4x USB 2.0,
 1x eSATA,
 2x USB 3.0,
1x Audio,
1x RJ-45,
DC-in Jack,
 1xVGA,
1x Mic,
1x HDMI,
 1x DVI
Front Panel (ports)
2x USB 2.0,
 Audio/Mic
Expansion
WiFi
Power
12V
Watch Dog Timer
-----
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
235 x 210 x 72  mm
Fanless
-----
Weight
3.0 kg
Responsible Entity / Distributor
New Portable Devices

Data sheet

Karta katalogowa mBOX-4570

166.22 KB

28.07.2014

Windows 7/8

Download

Compare all versions


Industrial MiniPC mBOX-4570 v.1
					Small size / Intel Core I5 4570 (4x3.2GHz)
Grafika: Intel HD Graphics 4600
RAM 4G DDR3 / Dysk 320GB HDD or 64GB SSD
1x LAN / 1x VGA / 1x DVI / 6x USB 2.0
1x HDMI / 2x USB 3.0 / 1x eSATA / WiFi

Product from the Archive - production finished

Industrial MiniPC mBOX-4570 v.2
					Small size / Intel Core I5 4570 (4x3.2GHz)
Grafika: Intel HD Graphics 4600
RAM 8G DDR3 / Dysk 500GB HDD
1x LAN / 1x VGA / 1x DVI / 6x USB 2.0
1x HDMI / 2x USB 3.0 / 1x eSATA / WiFi

Product from the Archive - production finished

Industrial MiniPC mBOX-4570 v.3
					Small size / Intel Core I5 4570 (4x3.2GHz)
Grafika: Intel HD Graphics 4600
RAM 8G DDR3 / Dysk 128GB SSD
1x LAN / 1x VGA / 1x DVI / 6x USB 2.0
1x HDMI / 2x USB 3.0 / 1x eSATA / WiFi

Product from the Archive - production finished
