Product Update Date: 2015-10-12

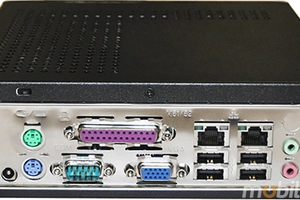

Industrial MiniPC mBOX-T30S v.1

Name: Industrial MiniPC mBOX-T30S v.1
Brand: Mobilator
Price: 1175.04 PLN
Availability: InStock

Update Date: 2015.10.12

Guarantee 1 year (opt. 2)

Product from the Archive - production finished

								Ask about the product

 Product card

								Recommend to a friend

								Compare

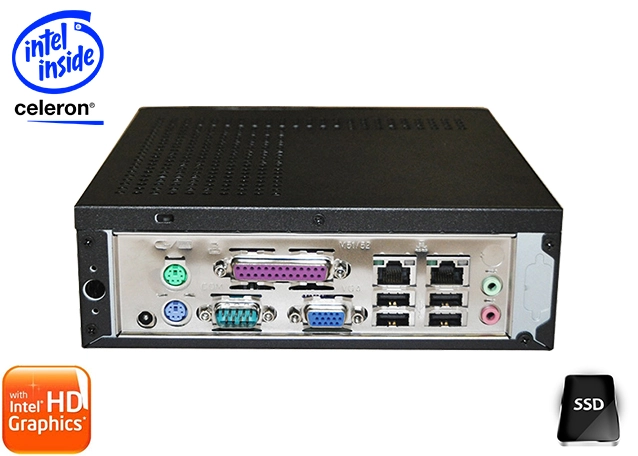

Industrial MiniPC mBOX-T30S

Menu
Description
Communication & Connectors
Application
Specifications

Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

Industrial MiniPC mBOX-T30S is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go top…

menu…

Description

Housing dimension are 215 (W) x190 (L) x60 (H) mm. Housing is made of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel HD Graphics video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space 8GB/32GB/64GB SSD.

Industrial MiniPC mBOX-T30S

go top…

menu…

Communication & Connectors

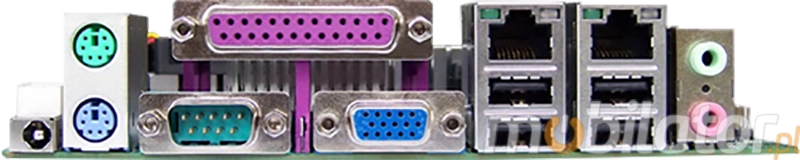

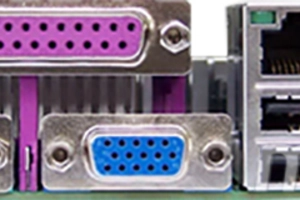

Integrated card - Intel RTL8111DL 100M allow connection to the network. The computer is equipped with: two LAN ports, four USB 2.0 ports, two PS/2 ports, one LPT input, one VGA output, one COM(RS232) conector, one way audio and one microphone input.

Industrial MiniPC mBOX-T30S

1. Power ON/OFF

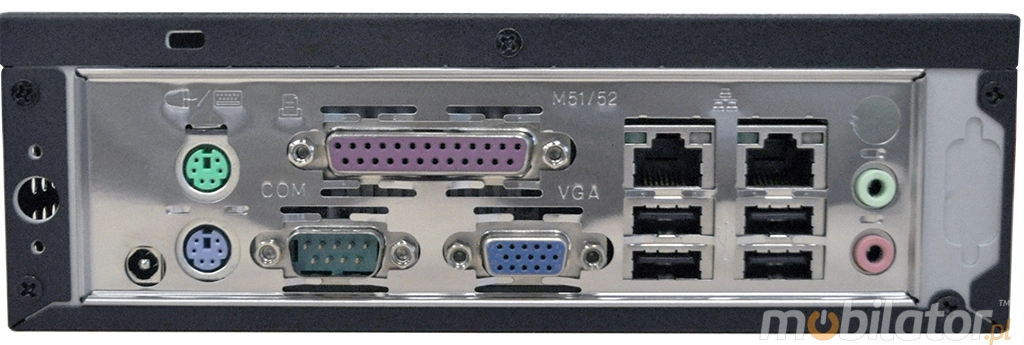

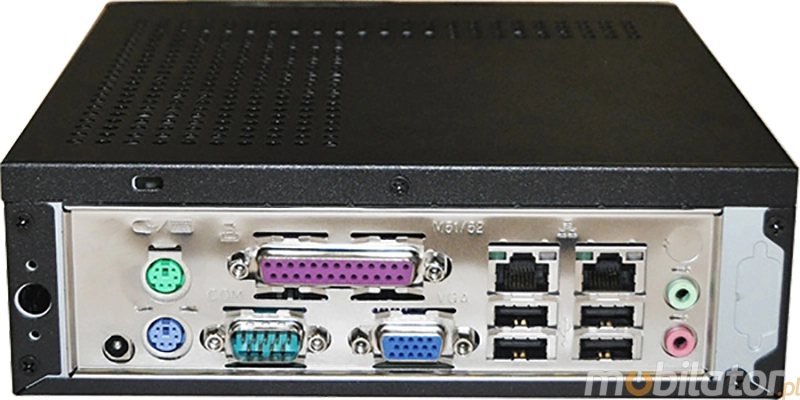

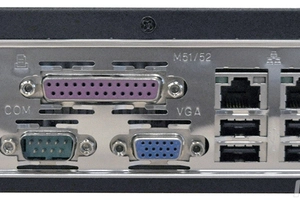

Industrial MiniPC mBOX-T30S

1. DC-IN 12V	6. 4x USB 2.0
2. 2x PS/2	7. 1x Mic
3. 1x COM(RS232)	8. 1x Audio
4. 1x LPT	9. 2x RJ-45
5. 1x VGA

Cooling

The industrial fanless Industrial MiniPC mBOX-T30S uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation.

go top… menu…

Application

Industrial MiniPC Series mBOX-T30S are based on high-performance processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of mBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantages of these devices are: small size, performance and energy efficiency. An extra pair of brackets at Industrial MiniPC mBOX-T30S the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industrial MiniPC mBOX-T30S

Areas of use of industrial MiniPC

Digital Engine

Industrial MiniPC mBOX-T30S

Trade

Small, less computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.

Magazine

Industrial MiniPC mBOX-T30S by to USB ports can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

Industrial MiniPC mBOX-T30S can be used on transport market, in cars, through adapting him to operate with a supply 12V. Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

Industrial MiniPC mBOX-T30S

go top…

menu…

Specifications

Dimension	H: 60 mm L: 190 mm W: 215 mm
Weight	2kg
Processor	Intel Celeron 1037U (2x1,8GHz)
Chipset	Intel Soc Chipset
RAM Memory	2GB DDR3 (1x SODIMM)
Graphic Card	Intel HD Graphics
Sound Card	Realtek ALC662
WLAN	Intel RTL8111DL 100M Lan
Connectors	1x wyjście 12V DC_JACK 4x USB 2.0 2x PS/2 2x RJ-45 1x wyjście Audio 1x COM(RS232) 1x Mic 1x VGA 1x LPT

Supported OS
Microsoft Windows: XP/7/8/8.1, Linux
Installed OS
-----
Chipset
Intel Soc Chipset
CPU Support
-----
Installed CPU
Intel Celeron 1037U (2x1,8GHz)
Graphic Card
Intel HD Graphics
Memory Support
2GB DDR3 (can up to 16GB)
Installed Memory
2GB DDR3 SODIMM DUAL CHANNEL
Storage (HDD) Support
SSD
Installed Storage (HDD)
8GB SSD
IP Norm
-----
Temp
0 - 50 ℃
Storage temperature
-15 - 70 ℃
Humidity
0 ~ 95%
Others
Colour Black, Aluminum
LAN
Intel RTL8111DL 100M Lan
Wireless LAN card
No
3G
No
Bluetooth
No
Rear Panel (ports)
1x Audio,
2x RJ-45,
 1x COM(RS232),
1x LPT,
 1x VGA,
 4x USB 2.0,
 1x Mic,
 DC-IN 12V
Front Panel (ports)
Power ON/OFF
Expansion
-----
Power
12V
Watch Dog Timer
0~255 sec
CD/DVD Drive
-----
TV Tuner
-----
Dimensions
215 x 190 x60  mm
Fanless
No
Weight
2kg
Responsible Entity / Distributor
New Portable Devices

Compare all versions


Industrial MiniPC mBOX-T30S v.1
					Small size / Intel® Celeron 1037U 2x1,8GHz
Graphics: Intel® HD Graphics
RAM 2G DDR3 / Disk 8GB SSD
2x LAN / 4x USB 2.0 / 1x VGA / 1x LPT
1x COM / 2x PS/2 / 1x Audio / 1x Mic

Product from the Archive - production finished

Industrial MiniPC mBOX-T30S v.2
					Small size / Intel® Celeron 1037U 2x1,8GHz
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disk 32GB SSD / WiFi
2x LAN / 4x USB 2.0 / 1x VGA / 1x LPT
1x COM / 2x PS/2 / 1x Audio / 1x Mic

Product from the Archive - production finished

Industrial MiniPC mBOX-T30S v.3
					Small size / Intel® Celeron 1037U 2x1,8GHz
Graphics: Intel® HD Graphics
RAM 4G DDR3 / Disk 64GB SSD / WiFi
2x LAN / 4x USB 2.0 / 1x VGA / 1x LPT
1x COM / 2x PS/2 / 1x Audio / 1x Mic

Product from the Archive - production finished
